431
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
16STOP15 A
Stoplights, high mounted stop-
light, brake controller, towing
converter, ABS, VSC, main
body ECU, EFI
17TOW BRK30 A
Brake controler
18RR AUTO A/C50 ARear blower control
19PTC-150 APTC heater
20PTC-250 A
PTC heater
21PTC-350 APTC heater
22RH-J/B40 ANo circuit
23SUB BATT40 A
To w i n g
24VGRS40 ANo circuit
25H-LP CLN30 AHeadlight cleaner
26DEFOG30 A
Rear window defogger
27AHC60 ANo circuit
28HTR50 ABlower controller
29PBD30 A
No circuit
30LH-J/B150 A Main body ECU
31ALT180 ANo circuit
32A/PUMP NO.150 A
AI DRIVER
33A/PUMP NO.250 AAI DRIVER2
34MAIN40 AHeadlight, daytime running
light system
35ABS150 A
ABS
36ABS230 A
ABS
37ST30 AStarter system
38IMB7.5 A ID code box, smart key sys-
tem, GBS
39AM25 A
Main body ECU
40DOME27.5 A
Vanity lights, overhead module
FuseAmpereCircuit

432 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)

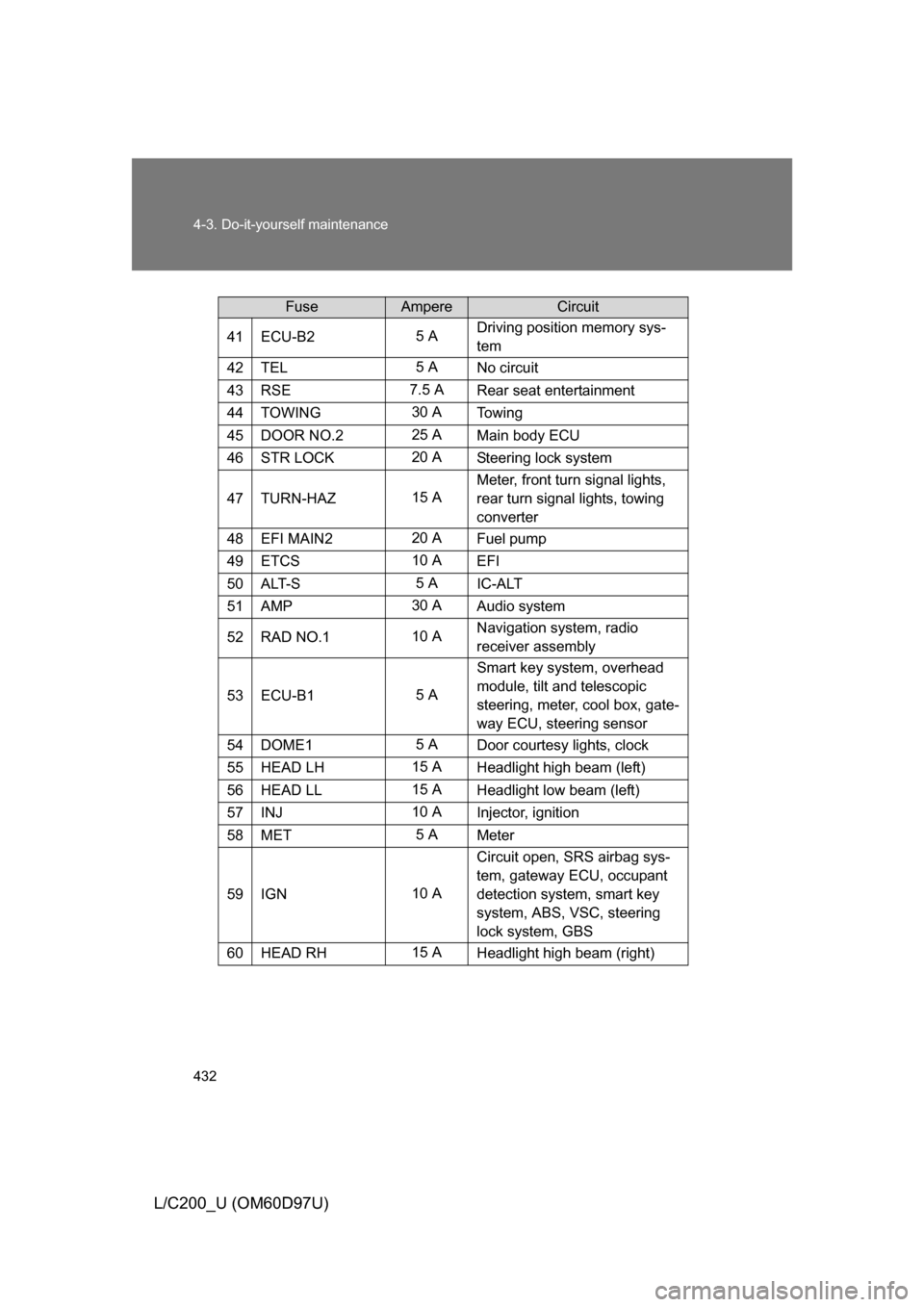

41ECU-B25 ADriving position memory sys-
tem
42TEL5 A
No circuit
43RSE7.5 A Rear seat entertainment
44TOWING30 ATo w i n g
45DOOR NO.225 A
Main body ECU
46STR LOCK20 ASteering lock system
47TURN-HAZ15 AMeter, front turn signal lights,
rear turn signal lights, towing
converter
48EFI MAIN220 A
Fuel pump
49ETCS10 A
EFI
50ALT-S5 AIC-ALT
51AMP30 A Audio system
52RAD NO.110 ANavigation system, radio
receiver assembly
53ECU-B15 ASmart key system, overhead
module, tilt and telescopic
steering, meter, cool box, gate-
way ECU, steering sensor
54DOME15 A
Door courtesy lights, clock
55HEAD LH15 A Headlight high beam (left)
56HEAD LL15 AHeadlight low beam (left)
57INJ10 A
Injector, ignition
58MET5 AMeter
59IGN10 A Circuit open, SRS airbag sys-
tem, gateway ECU, occupant
detection system, smart key
system, ABS, VSC, steering
lock system, GBS
60HEAD RH15 A
Headlight high beam (right)
FuseAmpereCircuit

433
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)

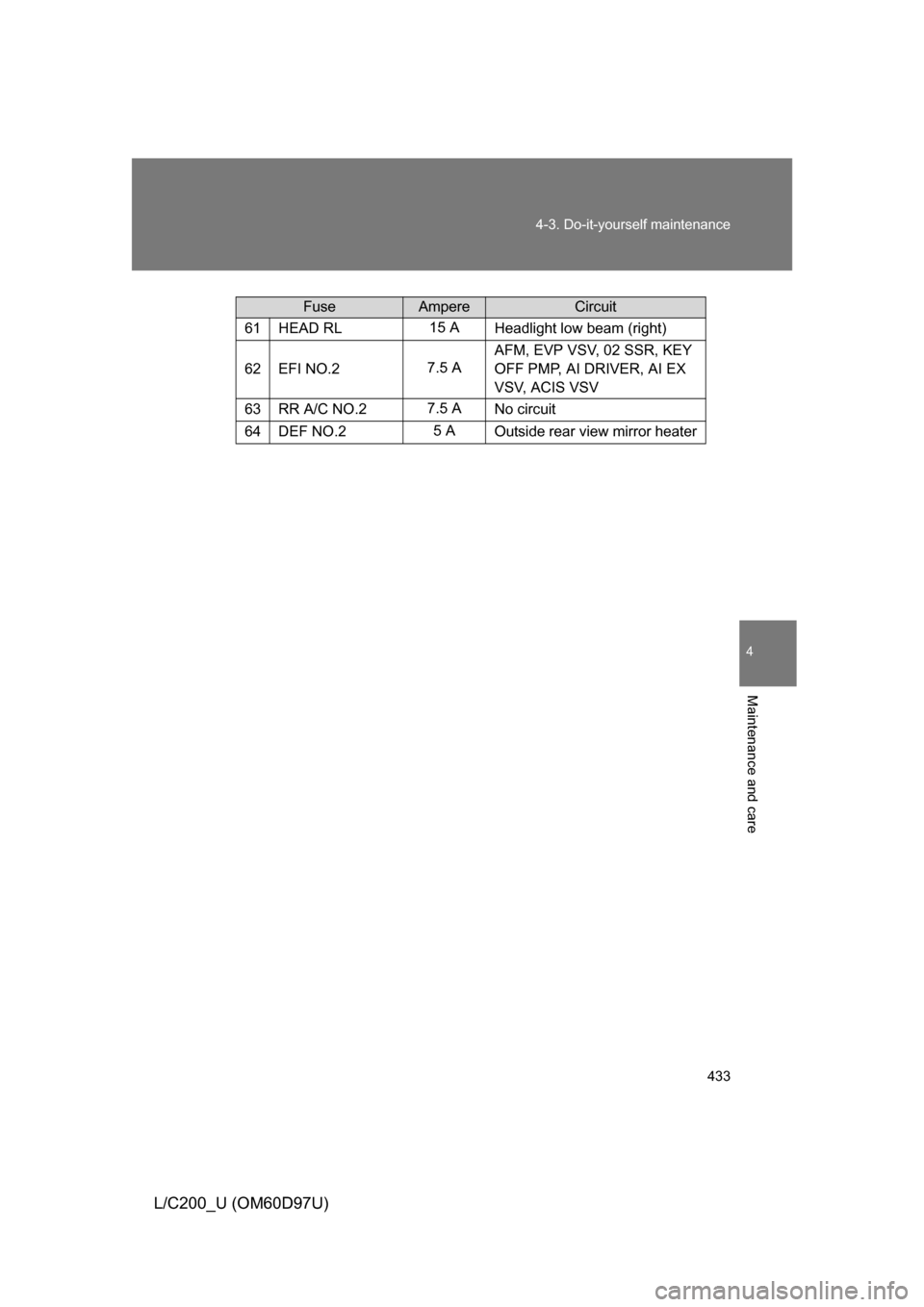

61HEAD RL15 A
Headlight low beam (right)
62EFI NO.27.5 A AFM, EVP VSV, 02 SSR, KEY
OFF PMP, AI DRIVER, AI EX
VSV, ACIS VSV
63RR A/C NO.27.5 A
No circuit
64DEF NO.25 AOutside rear view mirror heater
FuseAmpereCircuit

434 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)■

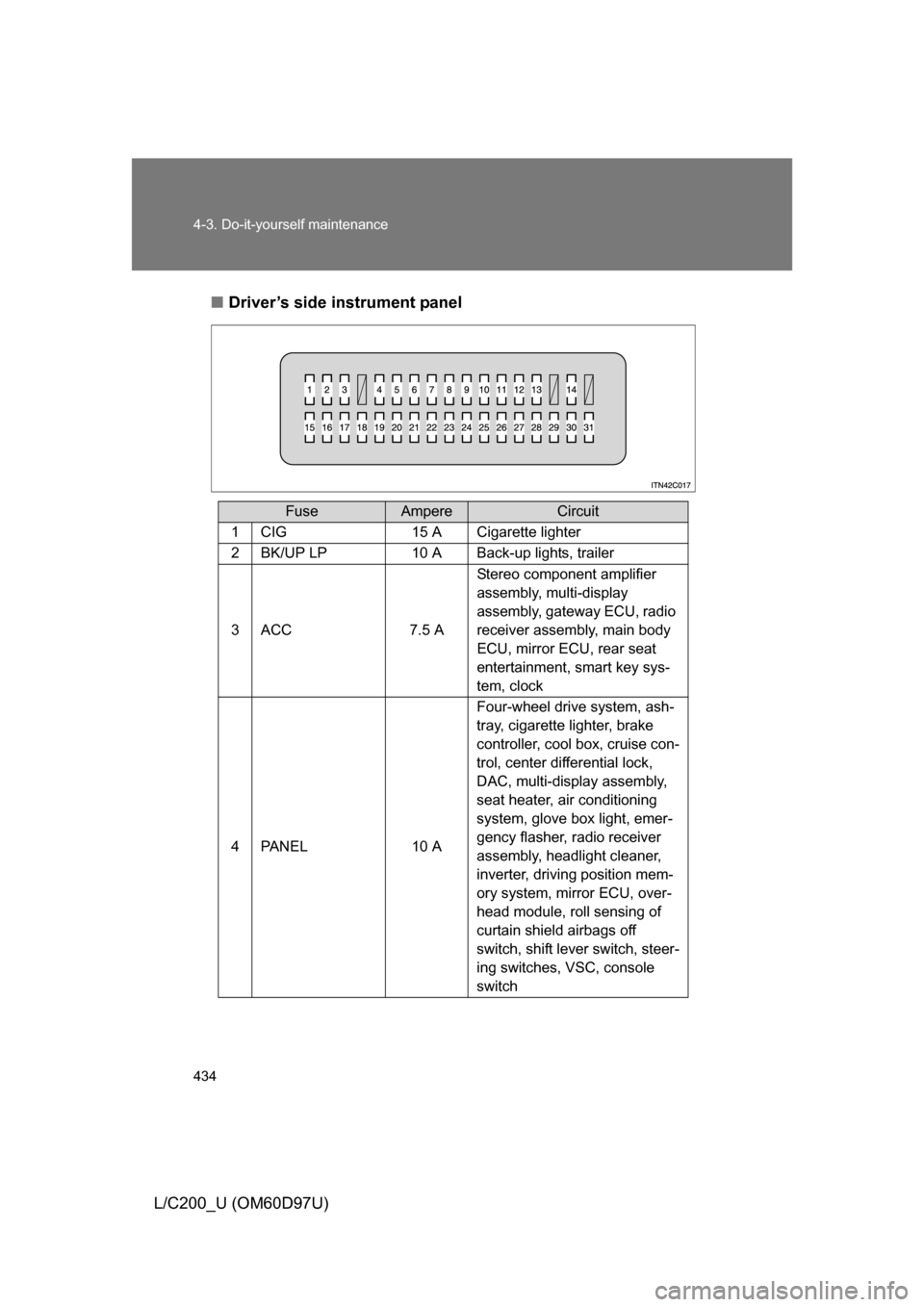

Driver’s side instrument panel
FuseAmpereCircuit
1CIG15 A Cigarette lighter
2BK/UP LP10 A Back-up lights, trailer
3ACC7.5 A Stereo component amplifier
assembly, multi-display
assembly, gateway ECU, radio
receiver assembly, main body
ECU, mirror ECU, rear seat
entertainment, smart key sys-
tem, clock
4PA N E L10 AFour-wheel drive system, ash-
tray, cigarette lighter, brake
controller, cool box, cruise con-
trol, center differential lock,
DAC, multi-display assembly,
seat heater, air conditioning
system, glove box light, emer-
gency flasher, radio receiver
assembly, headlight cleaner,
inverter, driving position mem-
ory system, mirror ECU, over-
head module, roll sensing of
curtain shield airbags off
switch, shift lever switch, steer-
ing switches, VSC, console
switch

435
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)

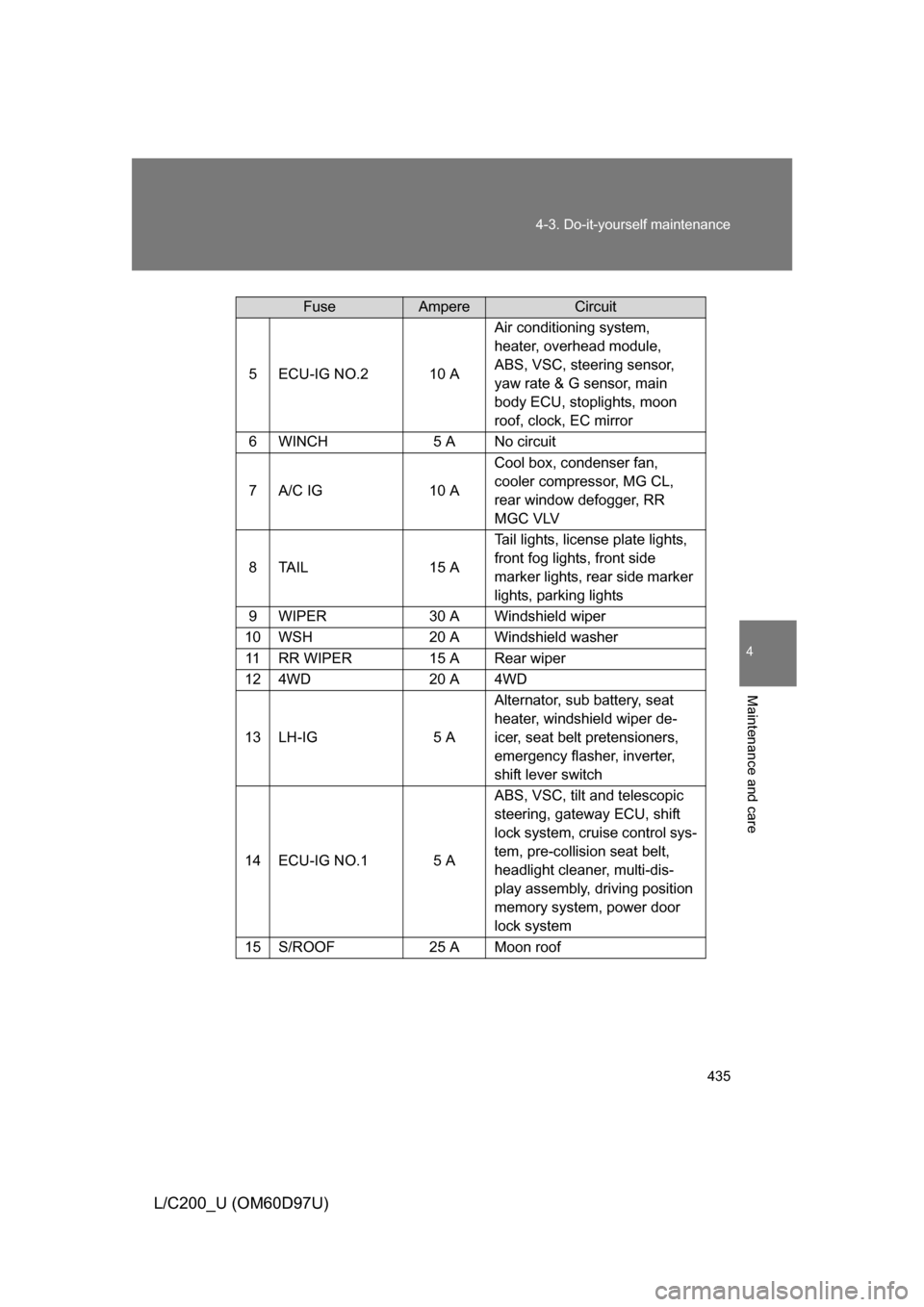

5ECU-IG NO.210 A
Air conditioning system,
heater, overhead module,
ABS, VSC, steering sensor,
yaw rate & G sensor, main
body ECU, stoplights, moon
roof, clock, EC mirror
6WINCH5 A No circuit
7A/C IG10 A
Cool box, condenser fan,
cooler compressor, MG CL,
rear window defogger, RR
MGC VLV
8TA I L15 ATail lights, license plate lights,
front fog lights, front side
marker lights, rear side marker
lights, parking lights
9WIPER30 A Windshield wiper
10WSH20 A Windshield washer
11RR WIPER15 A Rear wiper
124WD20 A 4WD
13LH-IG5 AAlternator, sub battery, seat
heater, windshield wiper de-
icer, seat belt pretensioners,
emergency flasher, inverter,
shift lever switch
14ECU-IG NO.15 AABS, VSC, tilt and telescopic
steering, gateway ECU, shift
lock system, cruise control sys-
tem, pre-collision seat belt,
headlight cleaner, multi-dis-
play assembly, driving position
memory system, power door
lock system
15S/ROOF25 A Moon roof
FuseAmpereCircuit

436 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)

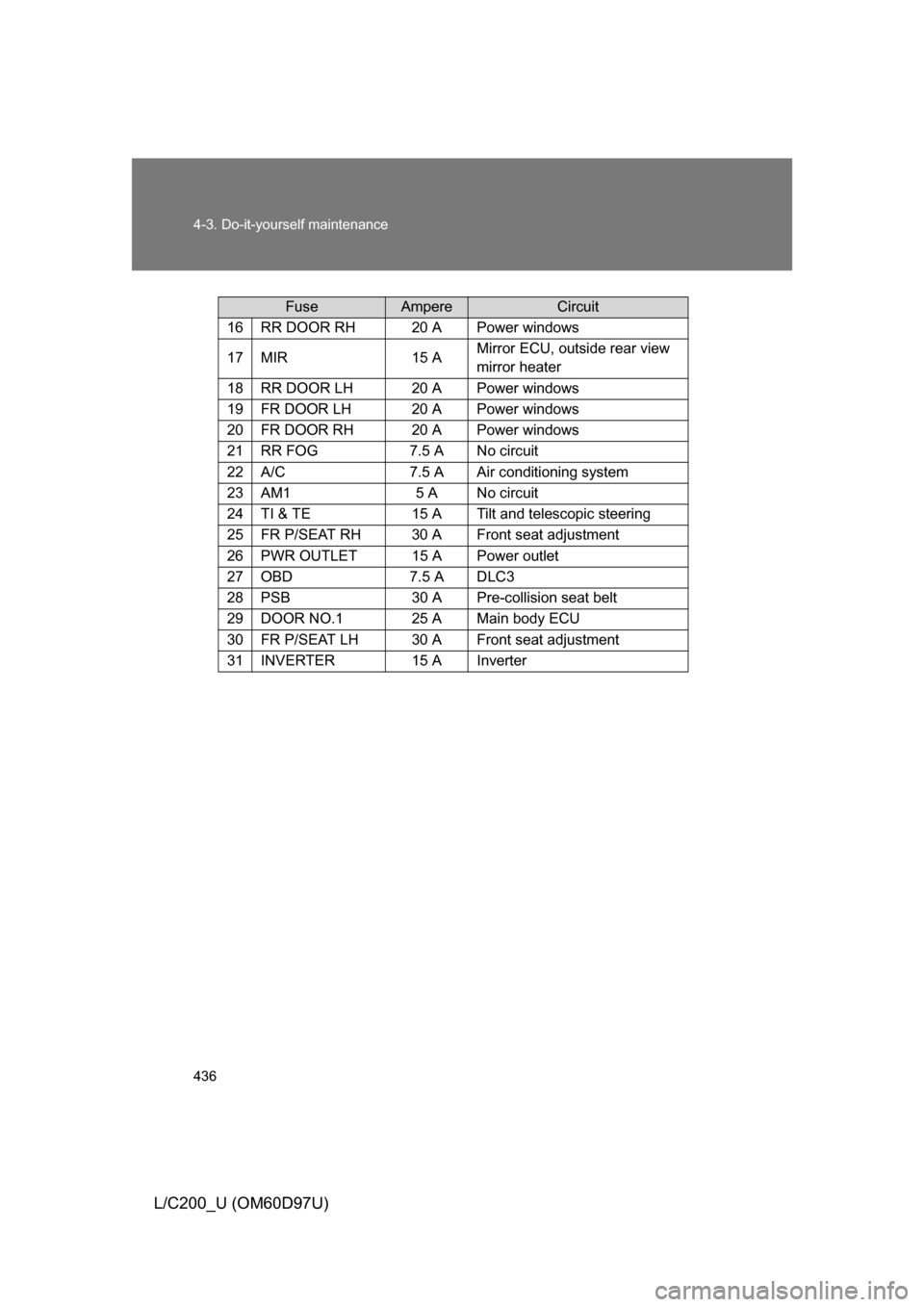

16RR DOOR RH20 A Power windows
17MIR15 AMirror ECU, outside rear view
mirror heater
18RR DOOR LH20 A Power windows
19FR DOOR LH20 A Power windows
20FR DOOR RH20 A Power windows
21RR FOG7.5 A No circuit
22A/C7.5 A Air conditioning system
23AM15 A No circuit
24TI & TE15 A Tilt and telescopic steering
25FR P/SEAT RH30 A Front seat adjustment
26PWR OUTLET15 A Power outlet
27OBD7.5 A DLC3
28PSB30 A Pre-collision seat belt
29DOOR NO.125 A Main body ECU
30FR P/SEAT LH30 A Front seat adjustment
31INVERTER15 A Inverter
FuseAmpereCircuit

437
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
■

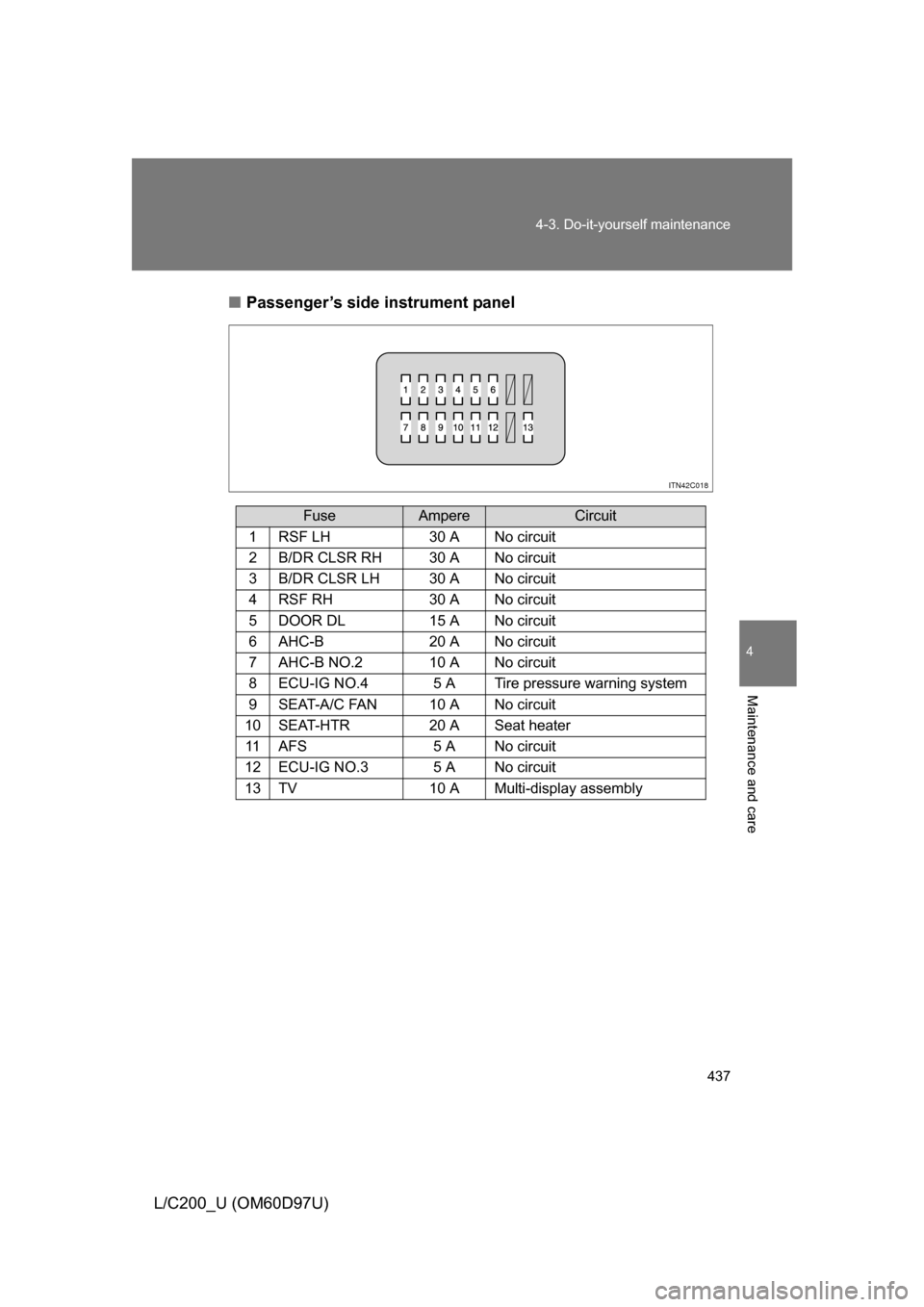

Passenger’s side instrument panel
FuseAmpereCircuit
1RSF LH30 A No circuit
2B/DR CLSR RH30 A No circuit
3B/DR CLSR LH30 A No circuit
4RSF RH30 A No circuit
5DOOR DL15 A No circuit
6AHC-B20 A No circuit
7AHC-B NO.210 A No circuit
8ECU-IG NO.45 A Tire pressure warning system
9SEAT-A/C FAN10 A No circuit
10SEAT-HTR20 A Seat heater
11AFS5 A No circuit
12ECU-IG NO.35 A No circuit
13TV10 A Multi-display assembly
ITN42C018

438 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)

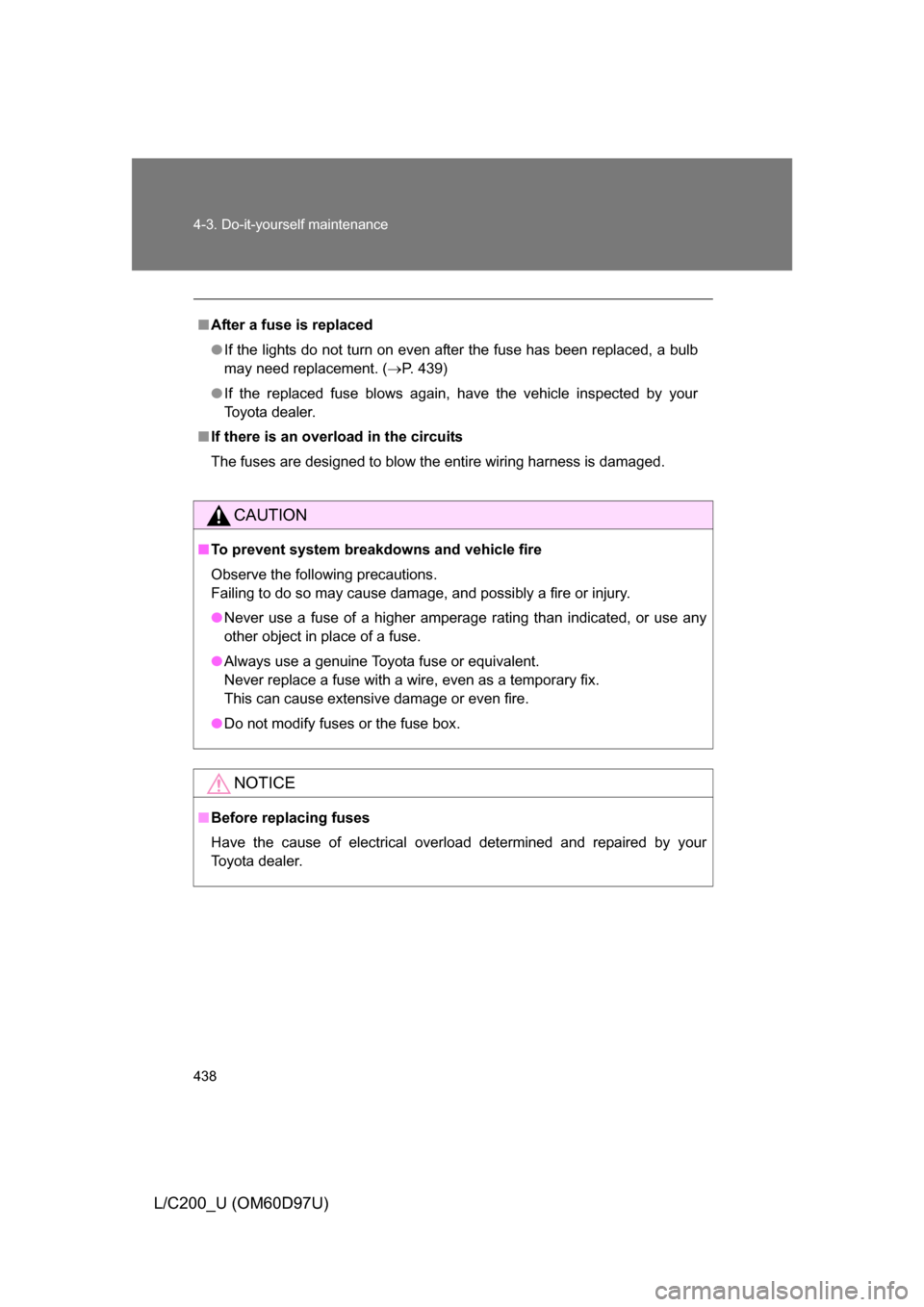

■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 439)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
● Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer.

439
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)

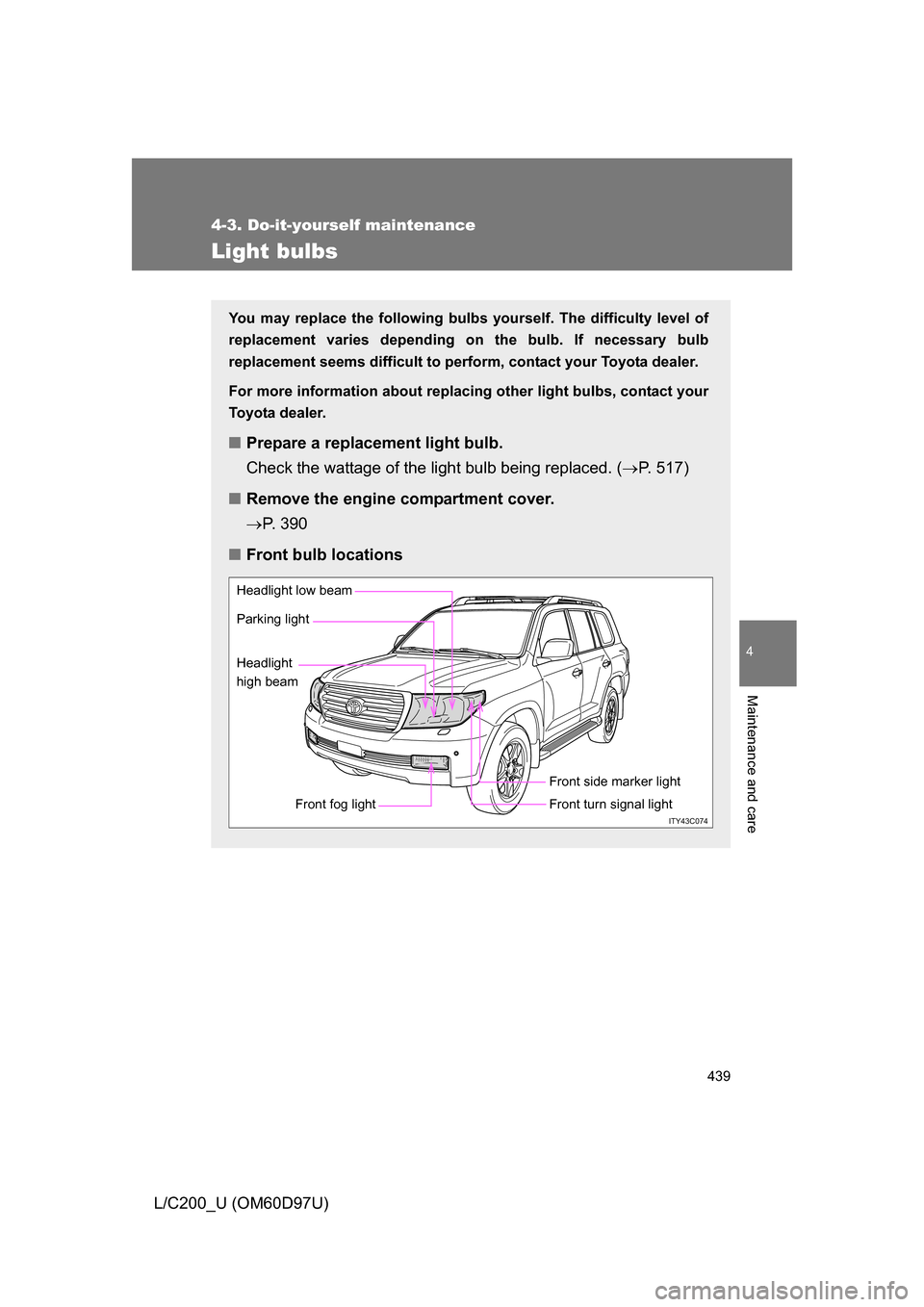

Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 517)
■ Remove the engine compartment cover.
P. 390
■ Front bulb locations
ITY43C074
Front side marker light
Parking light
Front fog light
Headlight
high beam Headlight low beam
Front turn signal light

440 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)
Replacing light bulbs■ Headlight low beam
Turn the bulb base counterclock-
wise.
■Rear bulb locations
ITY43C075
License plate lights
Rear turn signal
light
Back-up light
ITY43C038
STEP1
