1-2. Opening, closing and locking the doors
1
Before driving
L/C200_U (OM60D97U)
■

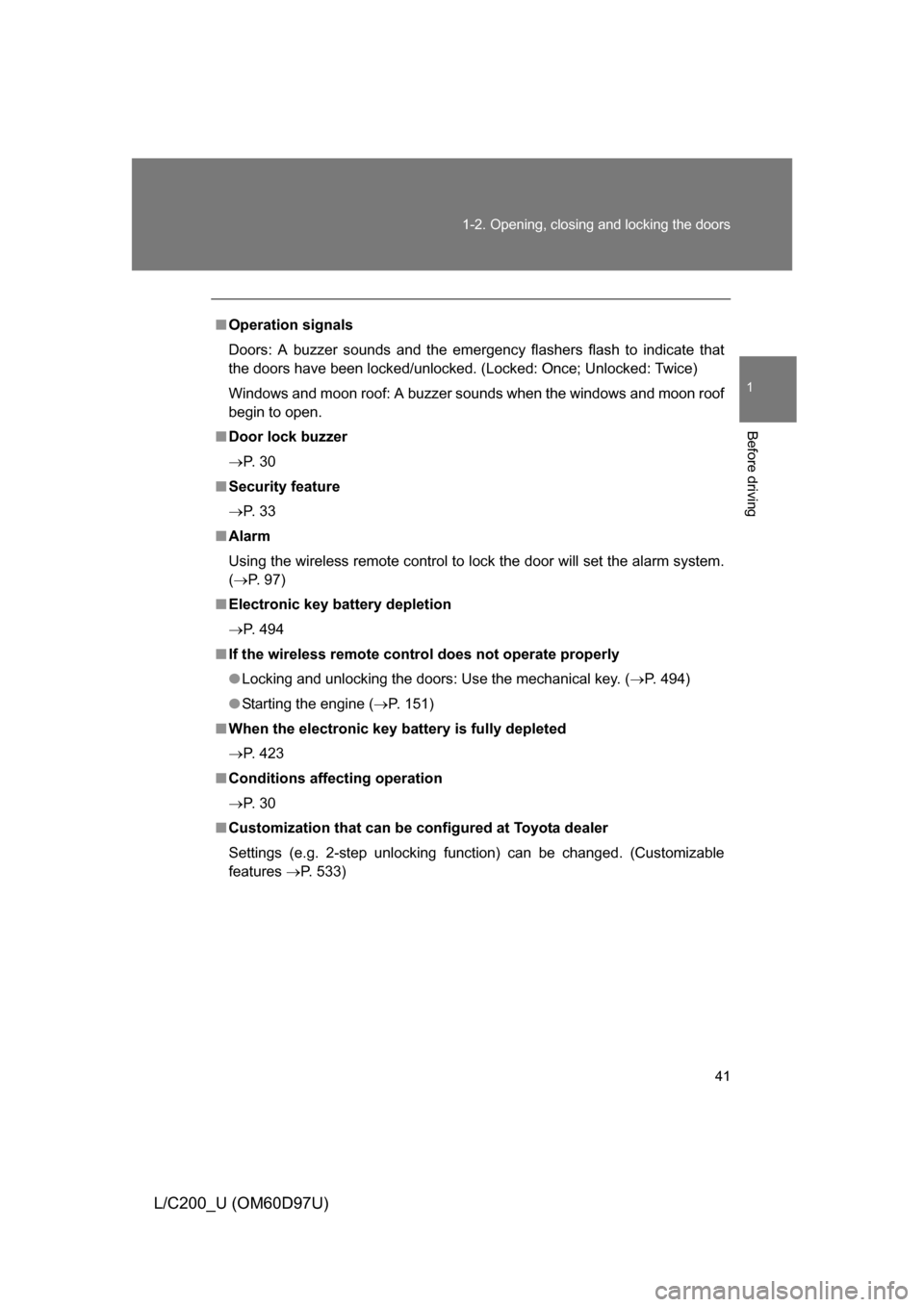

Operation signals
Doors: A buzzer sounds and the emergency flashers flash to indicate that
the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Windows and moon roof: A buzzer s ounds when the windows and moon roof
begin to open.
■ Door lock buzzer
 P. 3 0
■ Security feature
 P. 3 3
■ Alarm
Using the wireless remote control to lock the door will set the alarm system.
(P. 97)
■ Electronic key battery depletion
 P. 494
■ If the wireless remote cont rol does not operate properly
● Locking and unlocking the doors: Use the mechanical key. ( P. 494)
● Starting the engine ( P. 151)
■ When the electronic key battery is fully depleted
 P. 423
■ Conditions aff ecting operation
 P. 3 0
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. 2-step unlocking function) can be changed. (Customizable
features P. 533)

42 1-2. Opening, closing and locking the doors
L/C200_U (OM60D97U)

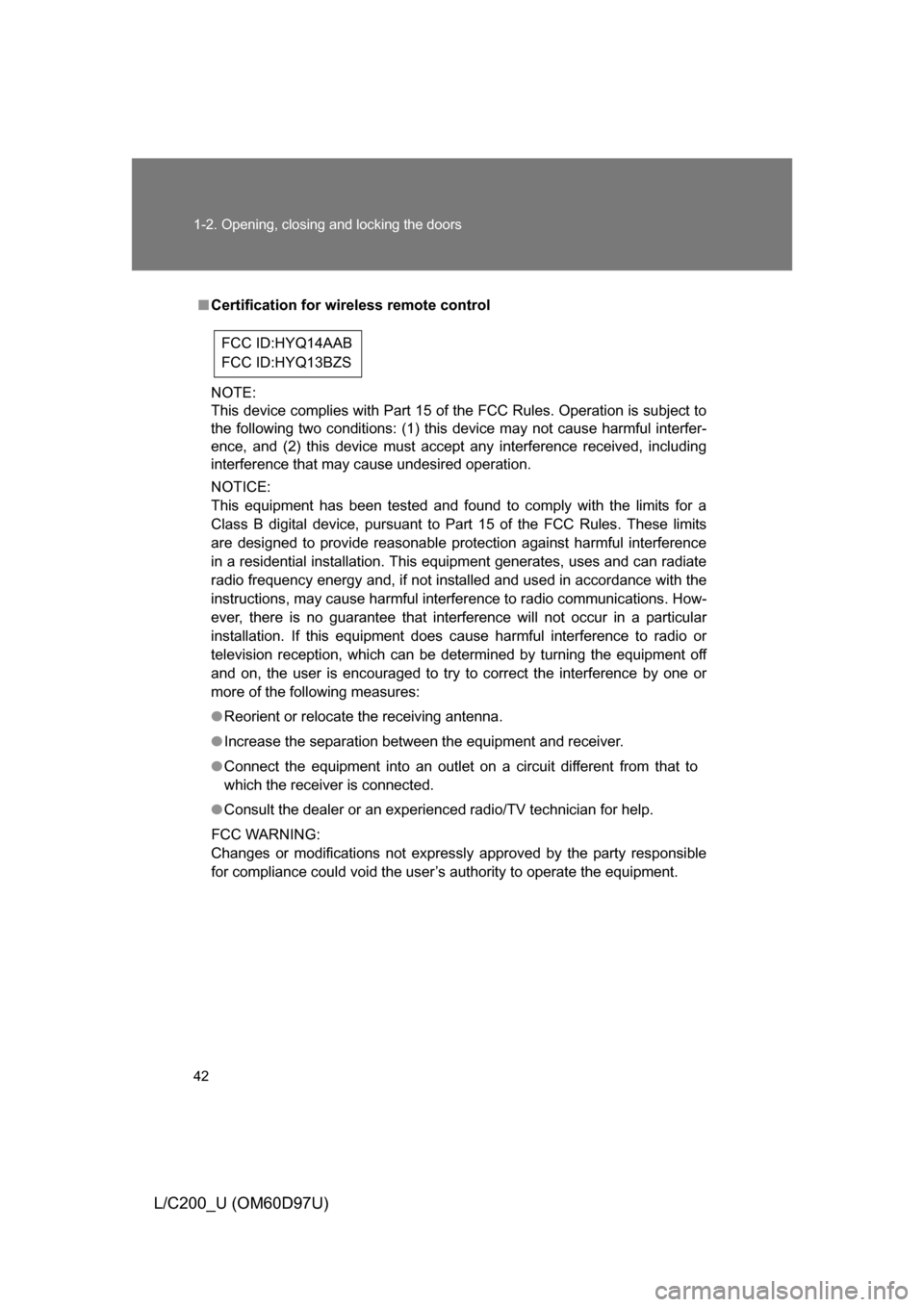

■Certification for wir eless remote control
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
● Consult the dealer or an experienc ed radio/TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
FCC ID:HYQ14AAB
FCC ID:HYQ13BZS

43
1
1-2. Opening, closing and locking the doors
Before driving
L/C200_U (OM60D97U)

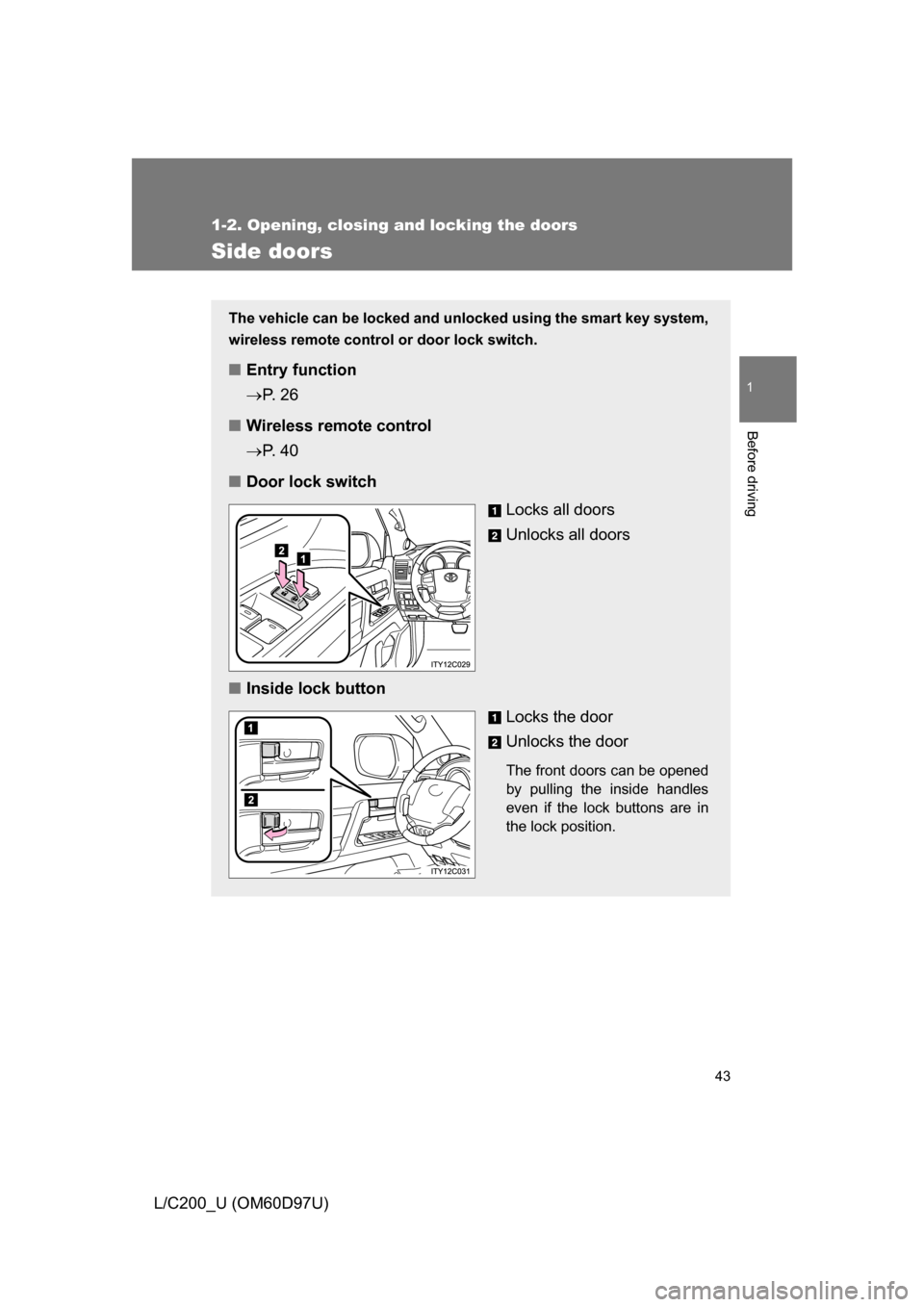

Side doors
The vehicle can be locked and unlocked using the smart key system,
wireless remote control or door lock switch.
■ Entry function
P. 2 6
■ Wireless remote control
P. 4 0
■ Door lock switch
Locks all doors
Unlocks all doors
■ Inside lock button
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handles
even if the lock buttons are in
the lock position.

44 1-2. Opening, closing and locking the doors
L/C200_U (OM60D97U)

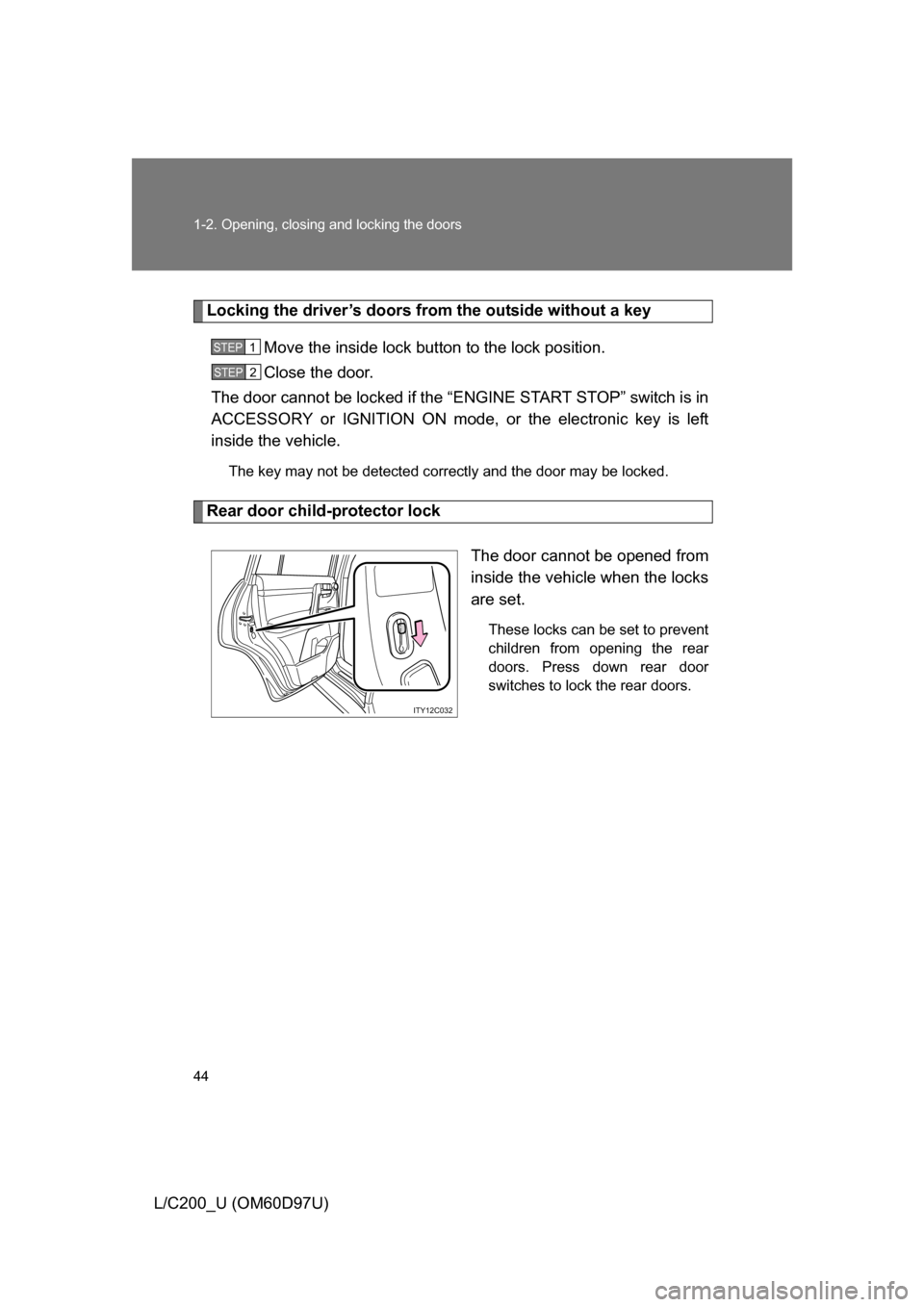

Locking the driver’s doors from the outside without a keyMove the inside lock button to the lock position.
Close the door.
The door cannot be locked if the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode, or the electronic key is left
inside the vehicle.
The key may not be detected correctly and the door may be locked.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the locks
are set.
These locks can be set to prevent
children from opening the rear
doors. Press down rear door
switches to lock the rear doors.
STEP1
STEP2
ITY12C032

45
1-2. Opening, closing and locking the doors
1
Before driving
L/C200_U (OM60D97U)

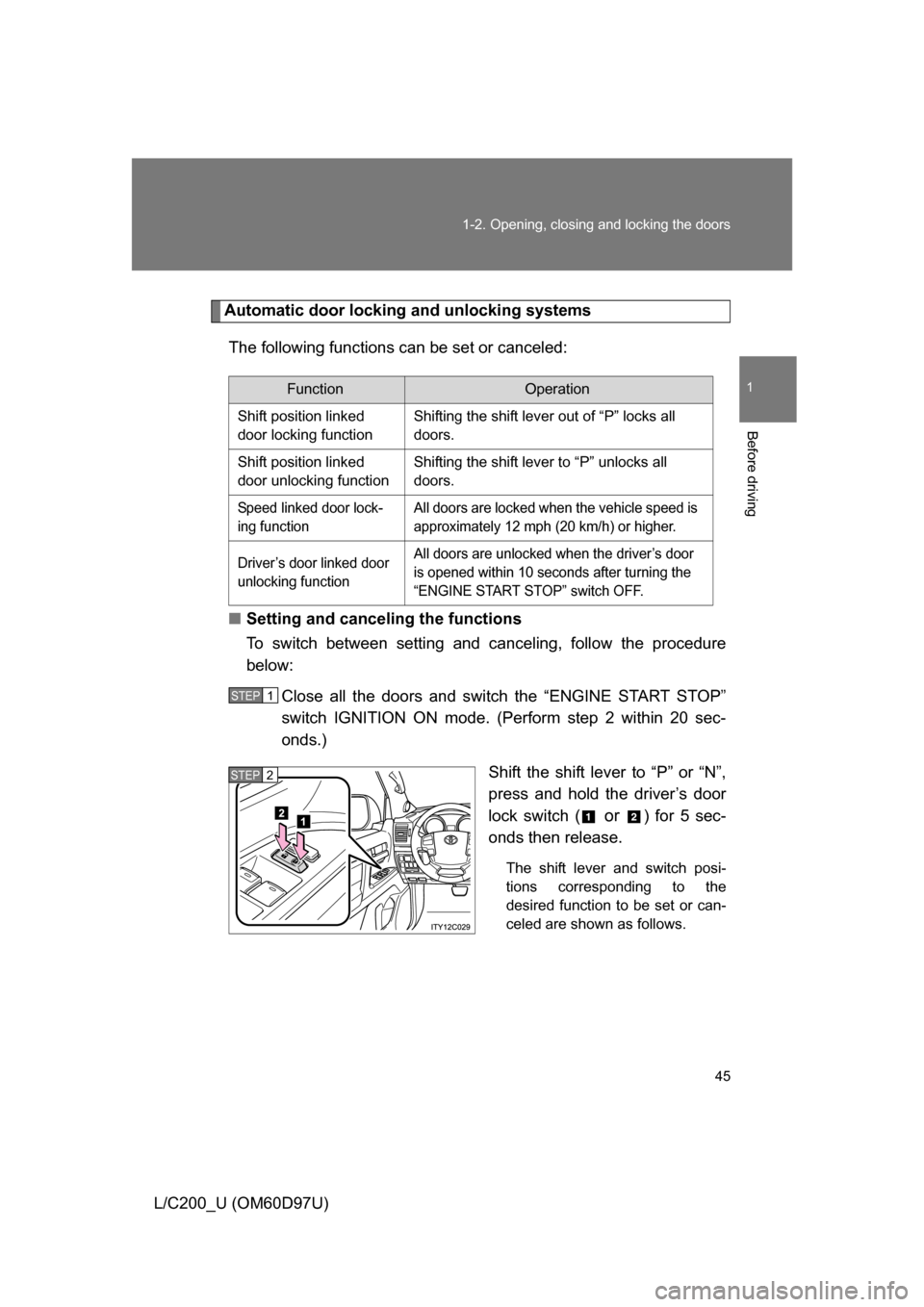

Automatic door locking and unlocking systems
The following functions can be set or canceled:
■ Setting and canceling the functions
To switch between setting and canceling, follow the procedure
below:
Close all the doors and switch the “ENGINE START STOP”
switch IGNITION ON mode. (Perform step 2 within 20 sec-
onds.)
Shift the shift lever to “P” or “N”,
press and hold the driver’s door
lock switch (
or ) for 5 sec-
onds then release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set or can-
celed are shown as follows.
FunctionOperation
Shift position linked
door locking function Shifting the shift lever out of “P” locks all
doors.
Shift position linked
door unlocking function Shifting the shift lever to “P” unlocks all
doors.
Speed linked door lock-
ing function All doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver’s door linked door
unlocking function All doors are unlocked when the driver’s door
is opened within 10 seconds after turning the
“ENGINE START STOP” switch OFF.
STEP1
STEP2

46 1-2. Opening, closing and locking the doors

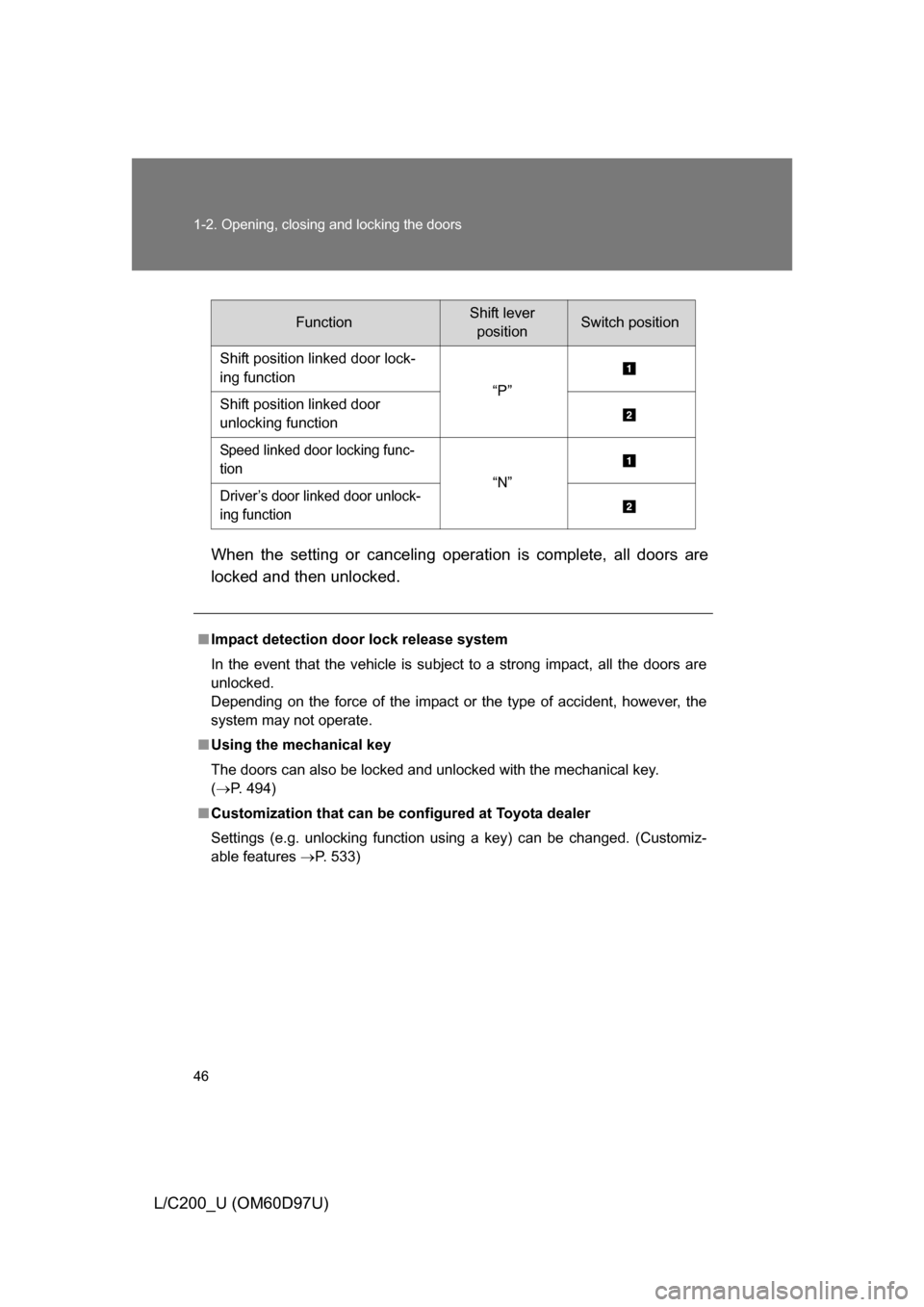

L/C200_U (OM60D97U)When the setting or canceling operation is complete, all doors are
locked and then unlocked.
FunctionShift lever
positionSwitch position
Shift position linked door lock-
ing function “P”
Shift position linked door
unlocking function
Speed linked door locking func-
tion “N”
Driver’s door linked door unlock-
ing function
■ Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked.
Depending on the force of the impact or the type of accident, however, the
system may not operate.
■ Using the mechanical key
The doors can also be locked and unlocked with the mechanical key.
(P. 494)
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. unlocking function using a key) can be changed. (Customiz-
able features P. 533)

47
1-2. Opening, closing and locking the doors
1
Before driving
L/C200_U (OM60D97U)

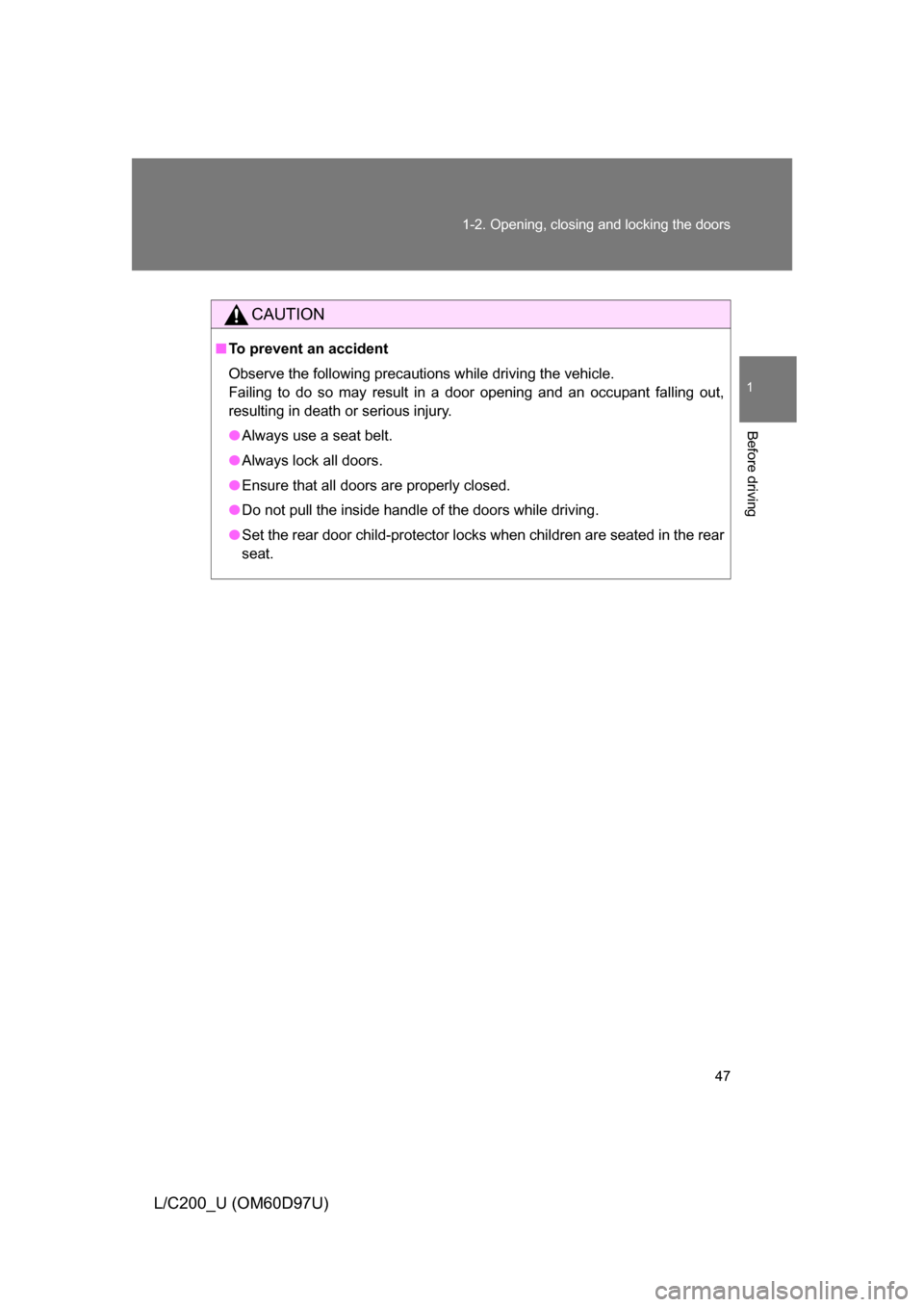

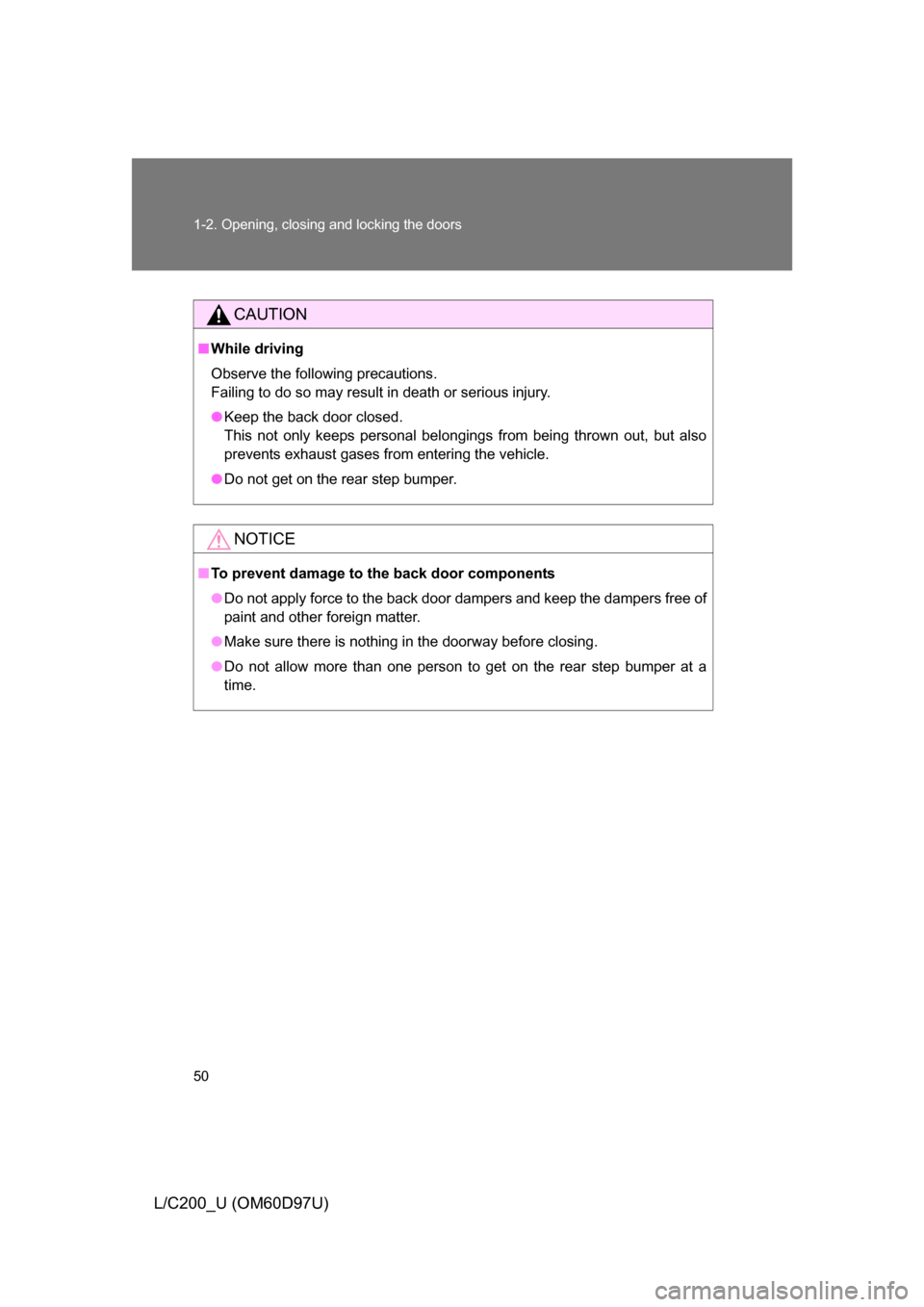

CAUTION
■
To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Always use a seat belt.
● Always lock all doors.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving.
● Set the rear door child-protector locks when children are seated in the rear
seat.

48
1-2. Opening, closing and locking the doors
L/C200_U (OM60D97U)

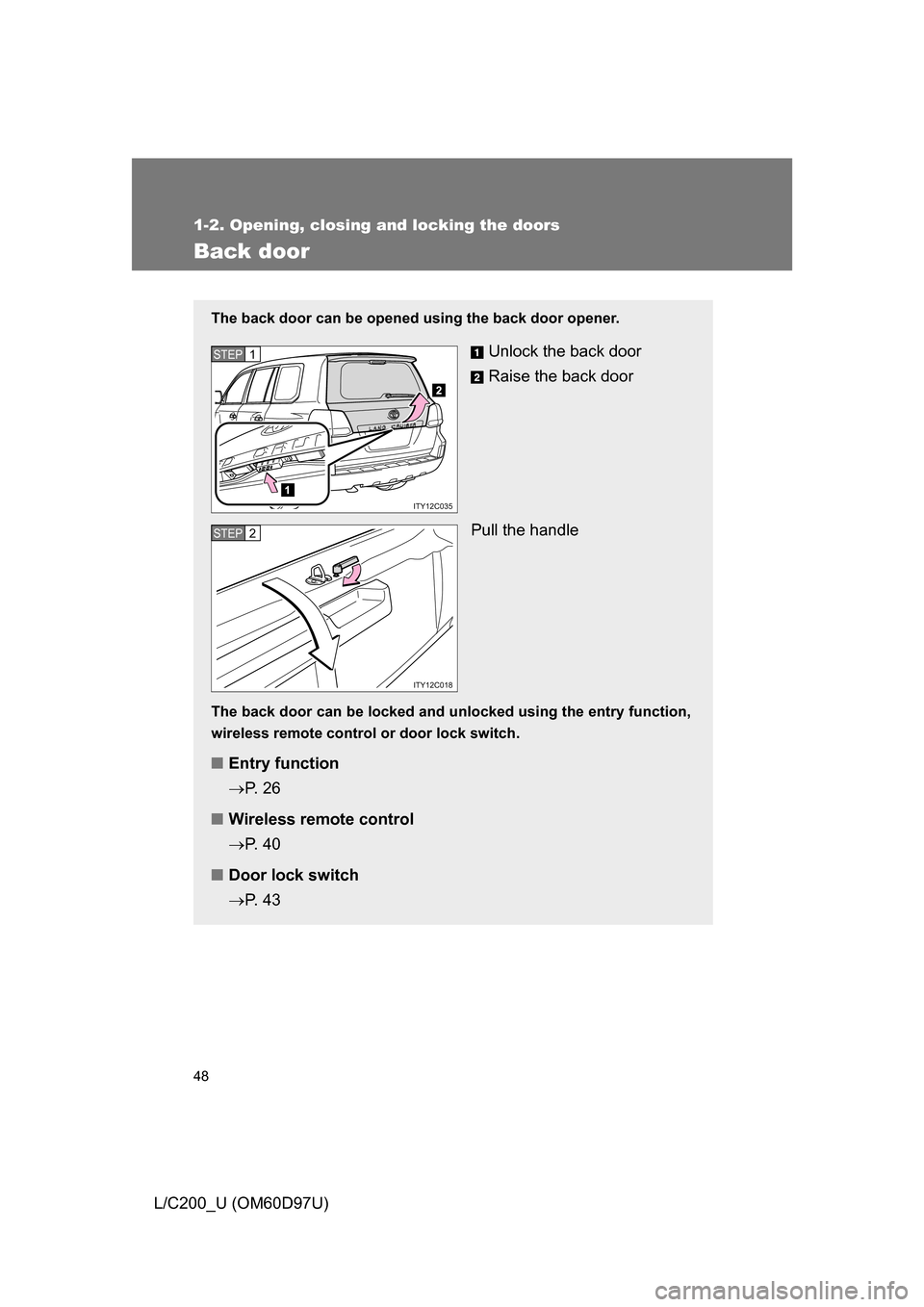

Back door
The back door can be opened using the back door opener.
Unlock the back door
Raise the back door
Pull the handle
The back door can be locked and unlocked using the entry function,
wireless remote control or door lock switch.
■Entry function
P. 2 6
■ Wireless remote control
P. 4 0
■ Door lock switch
P. 4 3
ITY12C035
STEP1
ITY12C018
STEP2

49
1-2. Opening, closing and locking the doors
1
Before driving
L/C200_U (OM60D97U)

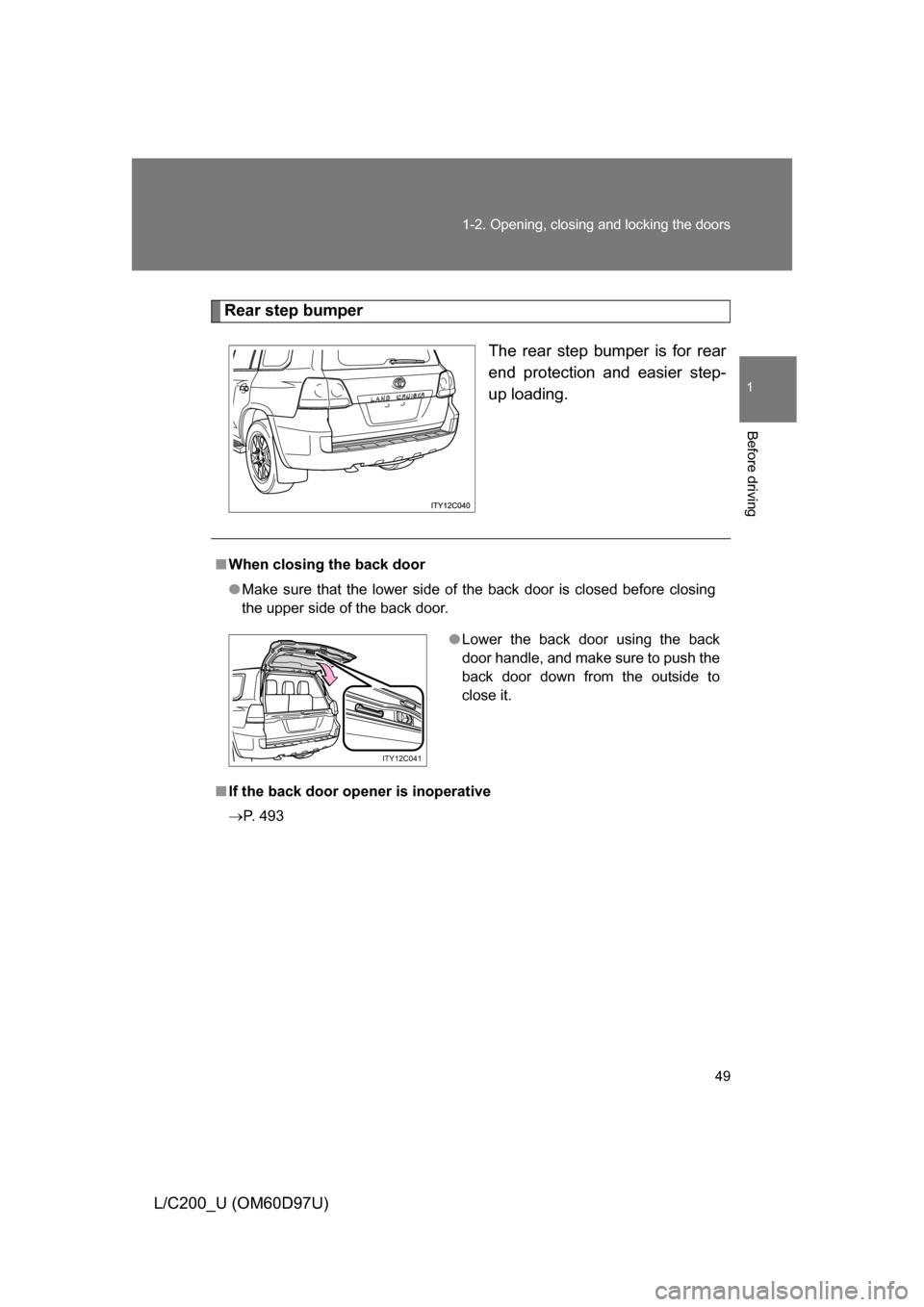

Rear step bumper
The rear step bumper is for rear
end protection and easier step-
up loading.
■When closing the back door
● Make sure that the lower side of the back door is closed before closing
the upper side of the back door.
■ If the back door opener is inoperative
 P. 493
●Lower the back door using the back
door handle, and make sure to push the
back door down from the outside to
close it.
ITY12C041

50 1-2. Opening, closing and locking the doors
L/C200_U (OM60D97U)
CAUTION
■While driving
Observe the following precautions.
Failing to do so may result in death or serious injury.
● Keep the back door closed.
This not only keeps personal belongings from being thrown out, but also
prevents exhaust gases from entering the vehicle.
● Do not get on the rear step bumper.
NOTICE
■To prevent damage to th e back door components
● Do not apply force to the back door dampers and keep the dampers free of\
paint and other foreign matter.
● Make sure there is nothing in the doorway before closing.
● Do not allow more than one person to get on the rear step bumper at a
time.
