1-3. Adjustable components (seats, mirrors, steering wheel)

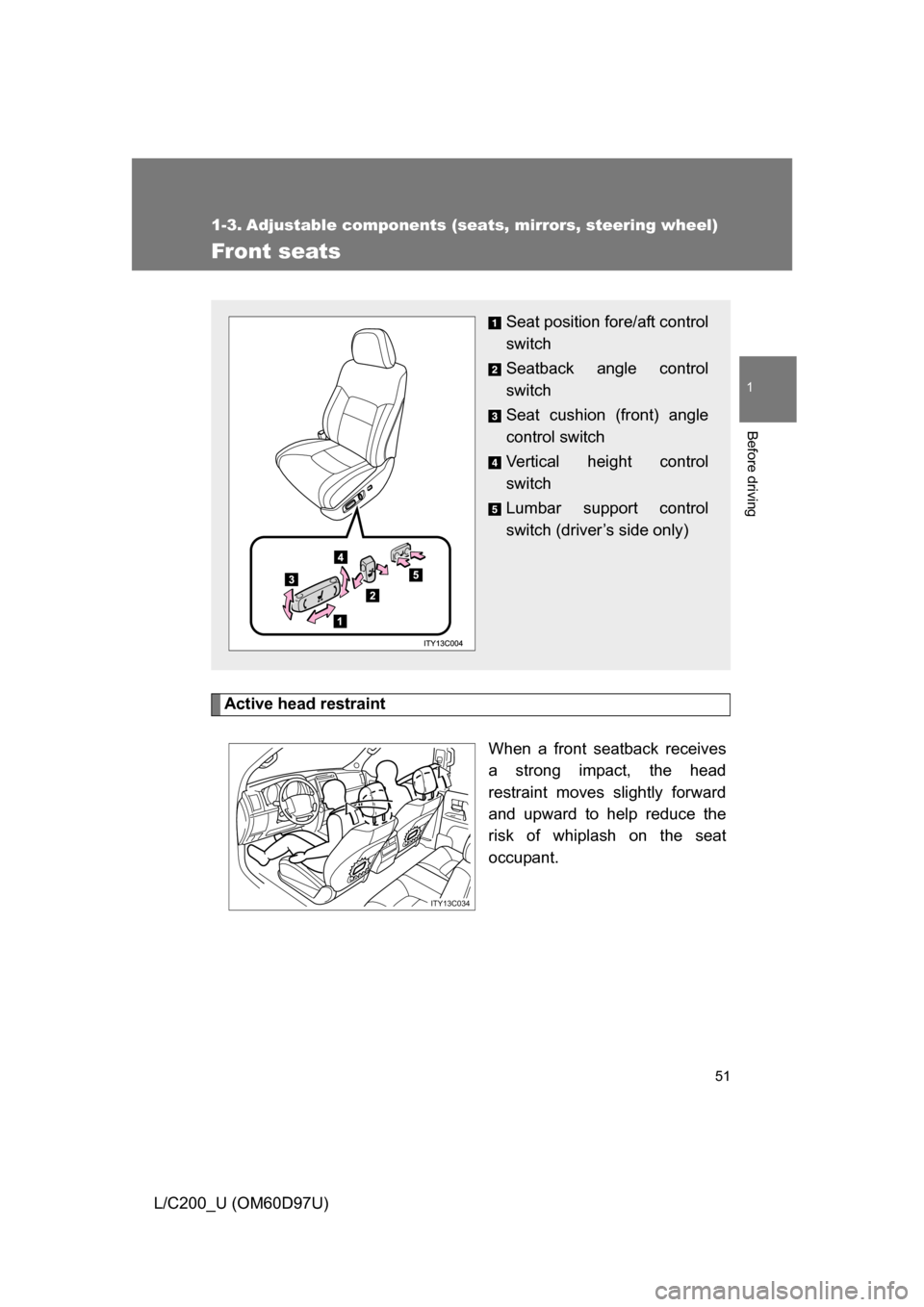

Front seats
Active head restraint
When a front seatback receives
a strong impact, the head
restraint moves slightly forward
and upward to help reduce the
risk of whiplash on the seat
occupant.
Seat position fore/aft control
switch
Seatback angle control
switch
Seat cushion (front) angle
control switch
Vertical height control
switch
Lumbar support control
switch (driver’s side only)
ITY13C034

52 1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_U (OM60D97U)

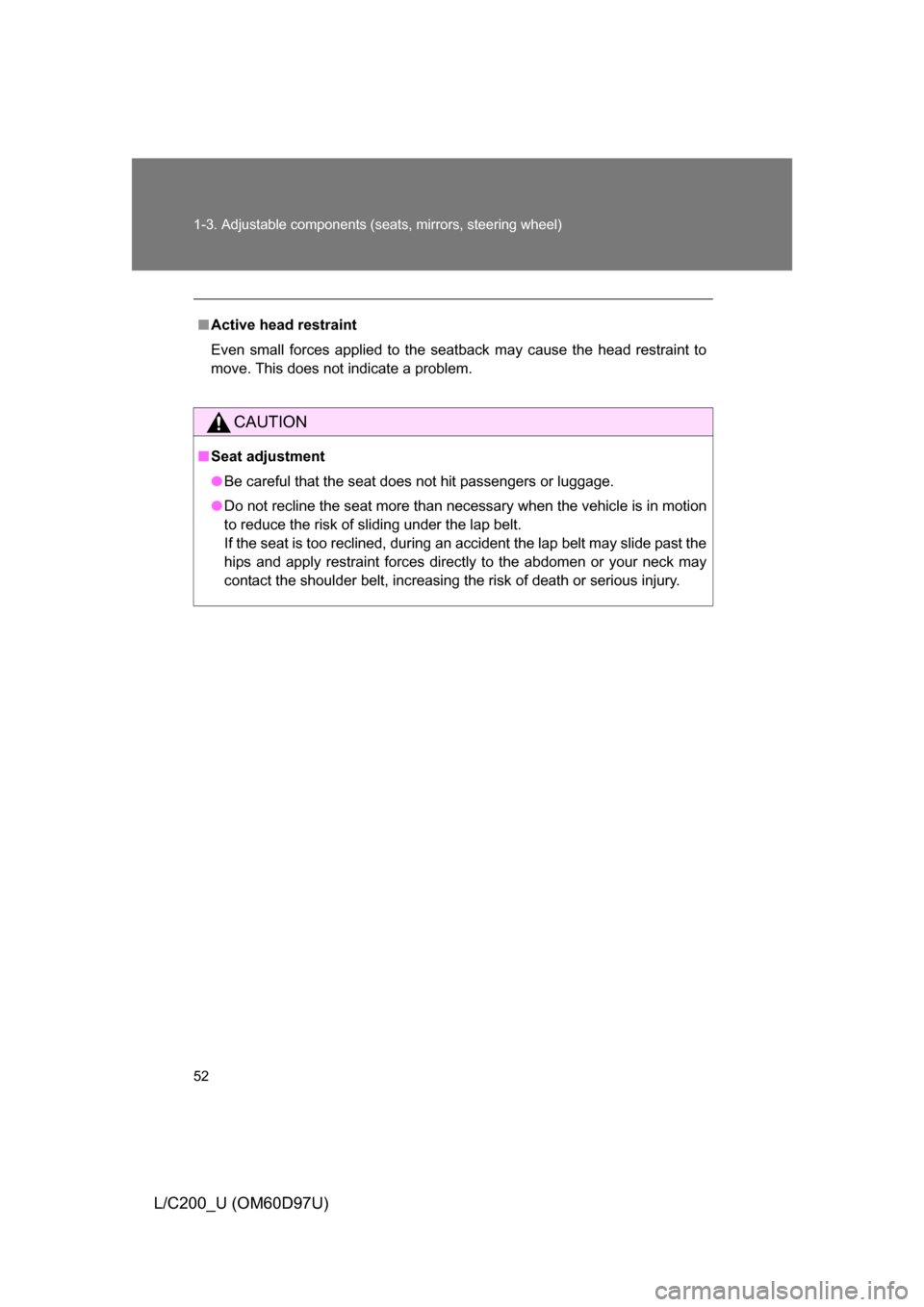

■Active head restraint
Even small forces applied to the seatback may cause the head restraint to
move. This does not indicate a problem.
CAUTION
■Seat adjustment
● Be careful that the seat does not hit passengers or luggage.
● Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, during an accident the lap belt may slide past the
hips and apply restraint forces directly to the abdomen or your neck may
contact the shoulder belt, increasing the risk of death or serious injury.

53
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
L/C200_U (OM60D97U)

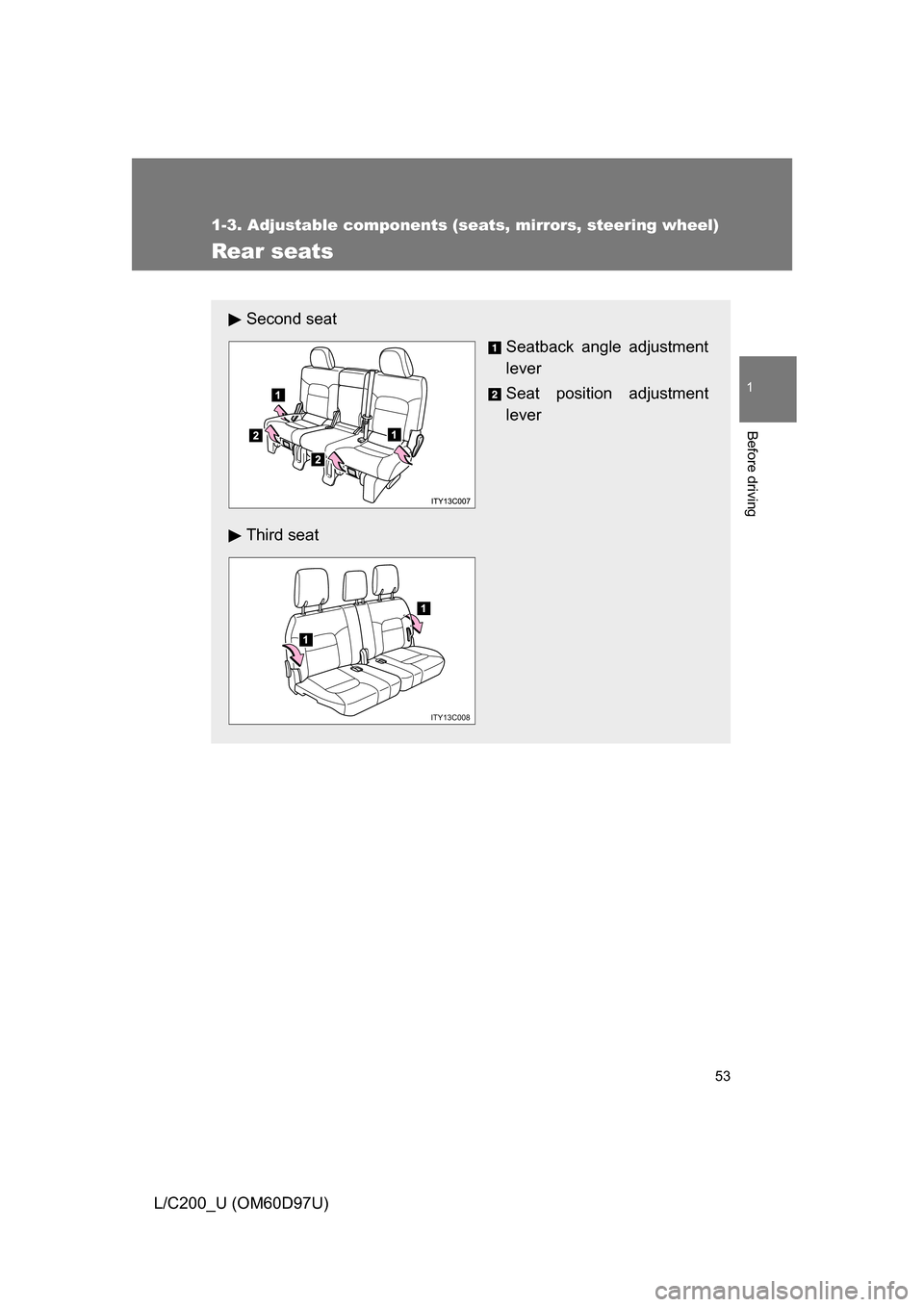

Rear seats
Second seatSeatback angle adjustment
lever
Seat position adjustment
lever
Third seat
1
1
ITY13C008

54 1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_U (OM60D97U)
Tumbling the second seats and third seat entry
For easy access to the third seat, perform in “Tumbling sec-
ond seats”. ( P. 5 5 )
■ Before tumbling the second seats
Stow the seat belt buckles and
lower the head restraints to the
lowest position.
Pass the outer seat belts through
the seat belt hangers and secure
the seat belt plates.
This prevents the shoulder belt
from being damage.
Make sure that the seat belts are
removed from the hangers before
using them.
STEP1
STEP1
ITY13C013a
STEP2

55
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
L/C200_U (OM60D97U)■

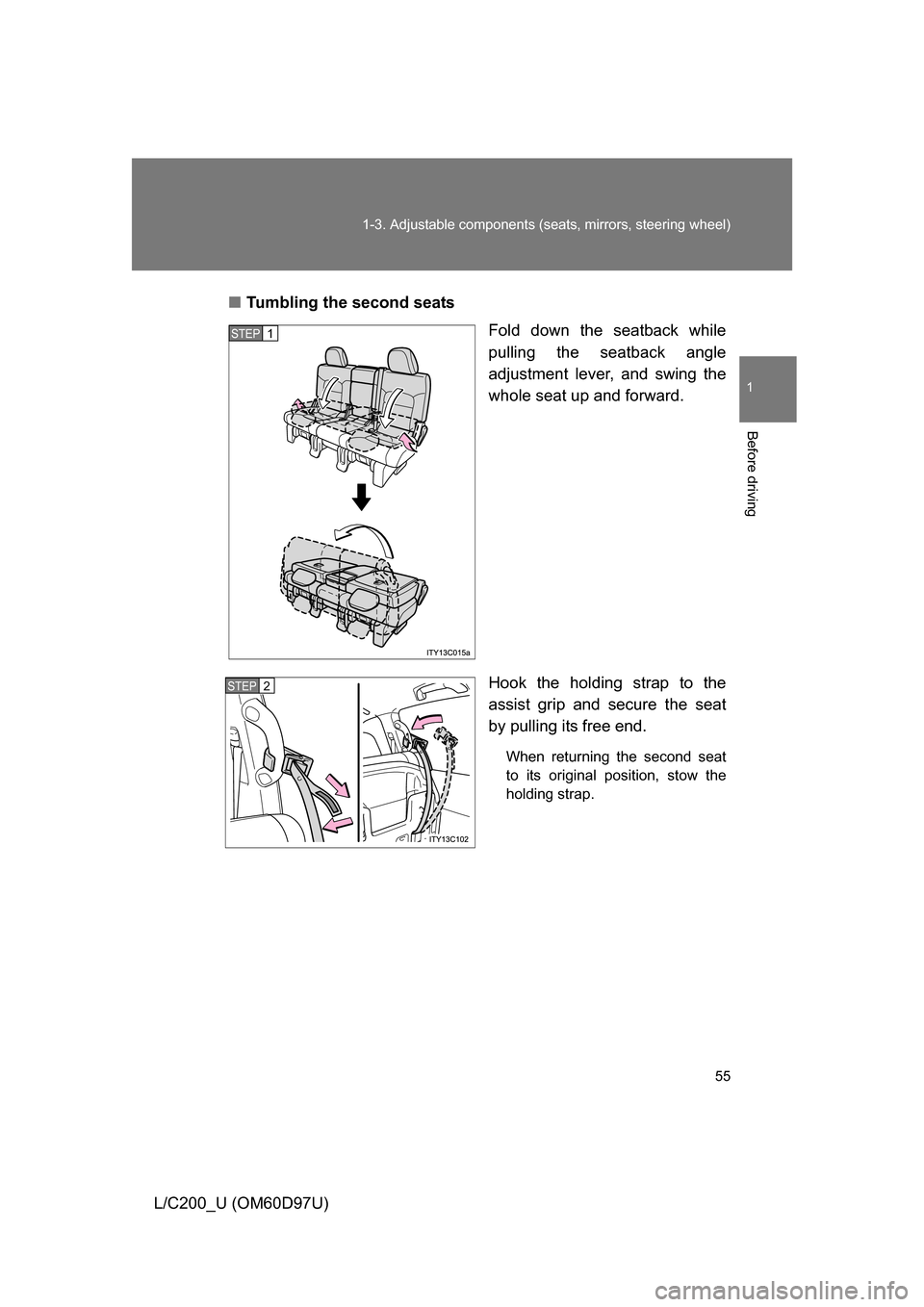

Tumbling the second seats
Fold down the seatback while
pulling the seatback angle
adjustment lever, and swing the
whole seat up and forward.
Hook the holding strap to the
assist grip and secure the seat
by pulling its free end.
When returning the second seat
to its original position, stow the
holding strap.
STEP1
STEP2

56 1-3. Adjustable components (seats, mirrors, steering wheel)

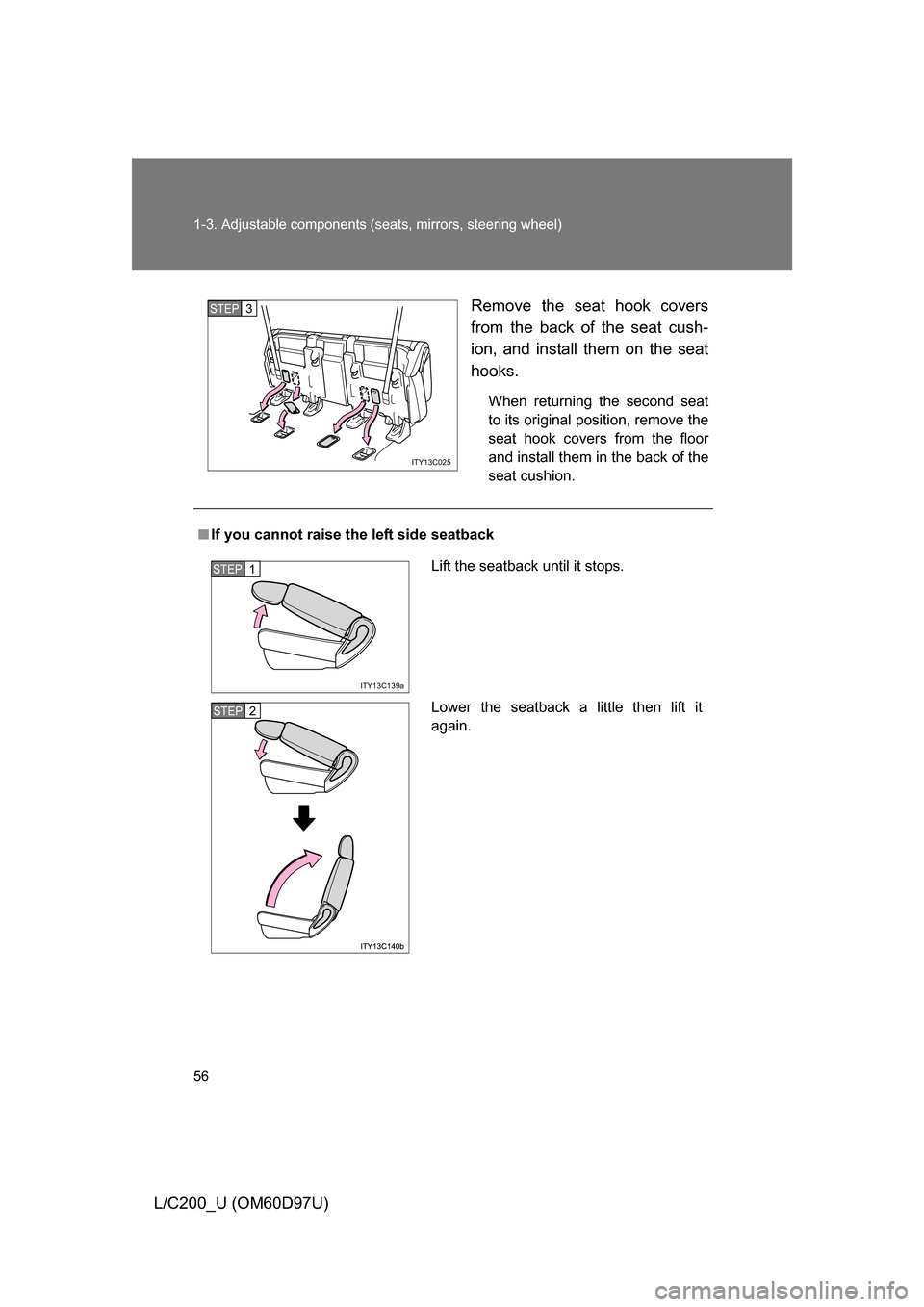

L/C200_U (OM60D97U) Remove the seat hook covers
from the back of the seat cush-
ion, and install them on the seat
hooks.
When returning the second seat
to its original position, remove the
seat hook covers from the floor
and install them in the back of the
seat cushion.
ITY13C025
STEP3
■
If you cannot raise the left side seatback
Lift the seatback until it stops.
Lower the seatback a little then lift it
again.
ITY13C139a
STEP1
STEP2

57
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
L/C200_U (OM60D97U)

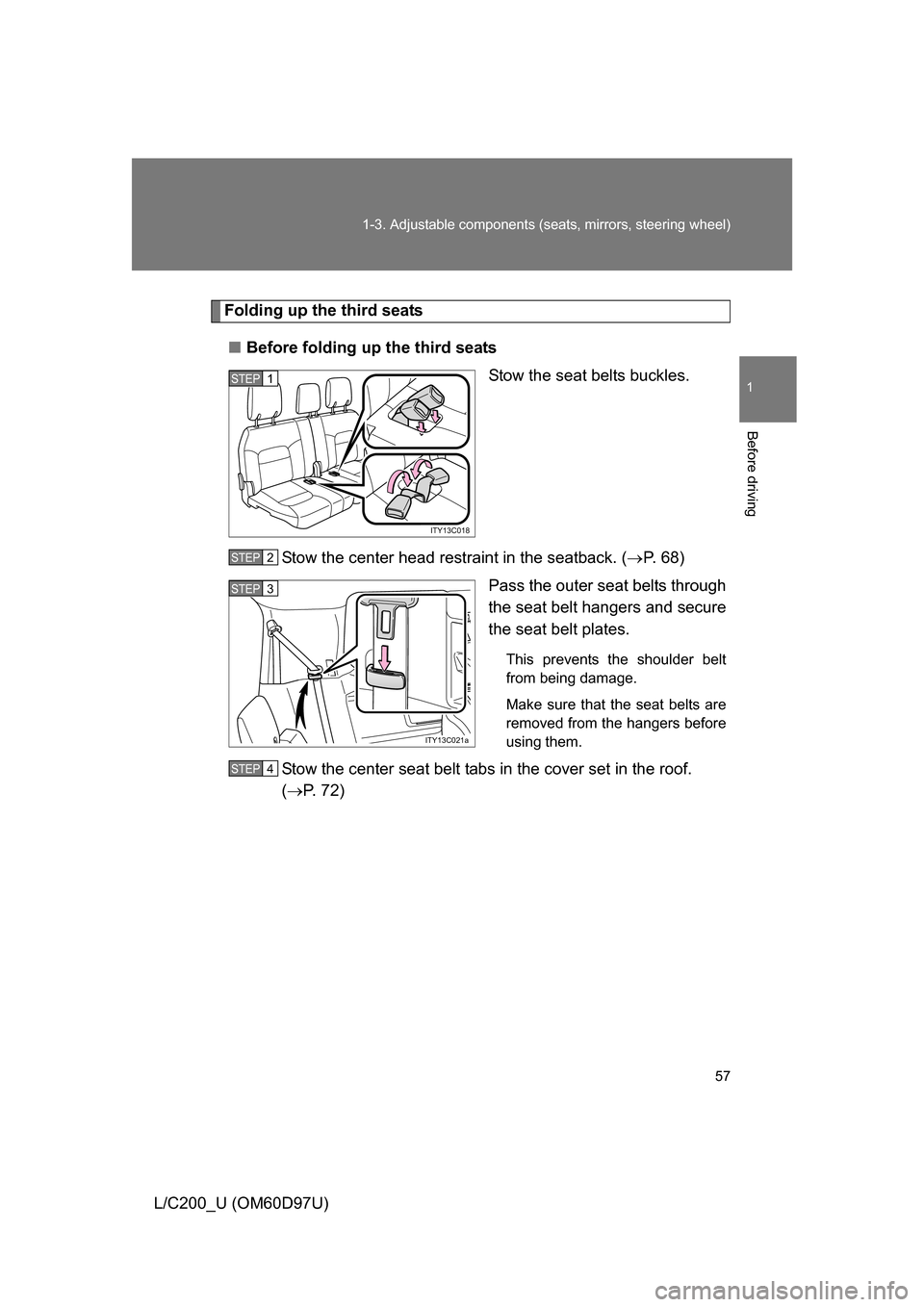

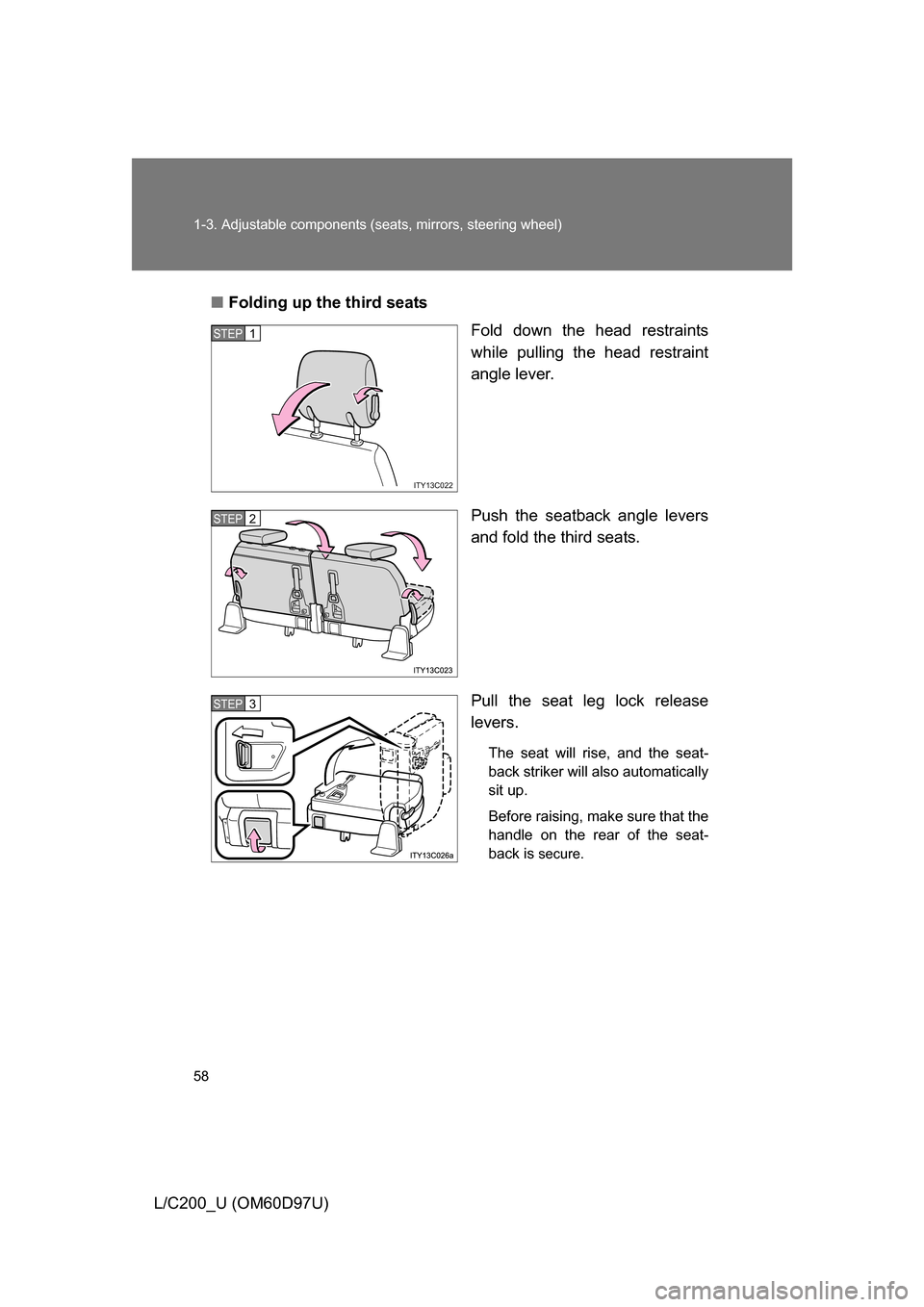

Folding up the third seats
■ Before folding up the third seats
Stow the seat belts buckles.
Stow the center head restraint in the seatback. ( P. 68)
Pass the outer seat belts through
the seat belt hangers and secure
the seat belt plates.
This prevents the shoulder belt
from being damage.
Make sure that the seat belts are
removed from the hangers before
using them.
Stow the center seat belt tabs in the cover set in the roof.
(  P. 7 2 )
ITY13C018
STEP1
STEP2
ITY13C021a
STEP3
STEP4

58 1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_U (OM60D97U)■
Folding up the third seats
Fold down the head restraints
while pulling the head restraint
angle lever.
Push the seatback angle levers
and fold the third seats.
Pull the seat leg lock release
levers.
The seat will rise, and the seat-
back striker will also automatically
sit up.
Before raising, make sure that the
handle on the rear of the seat-
back is
secure.
ITY13C022
STEP1
STEP2
STEP3

59
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving

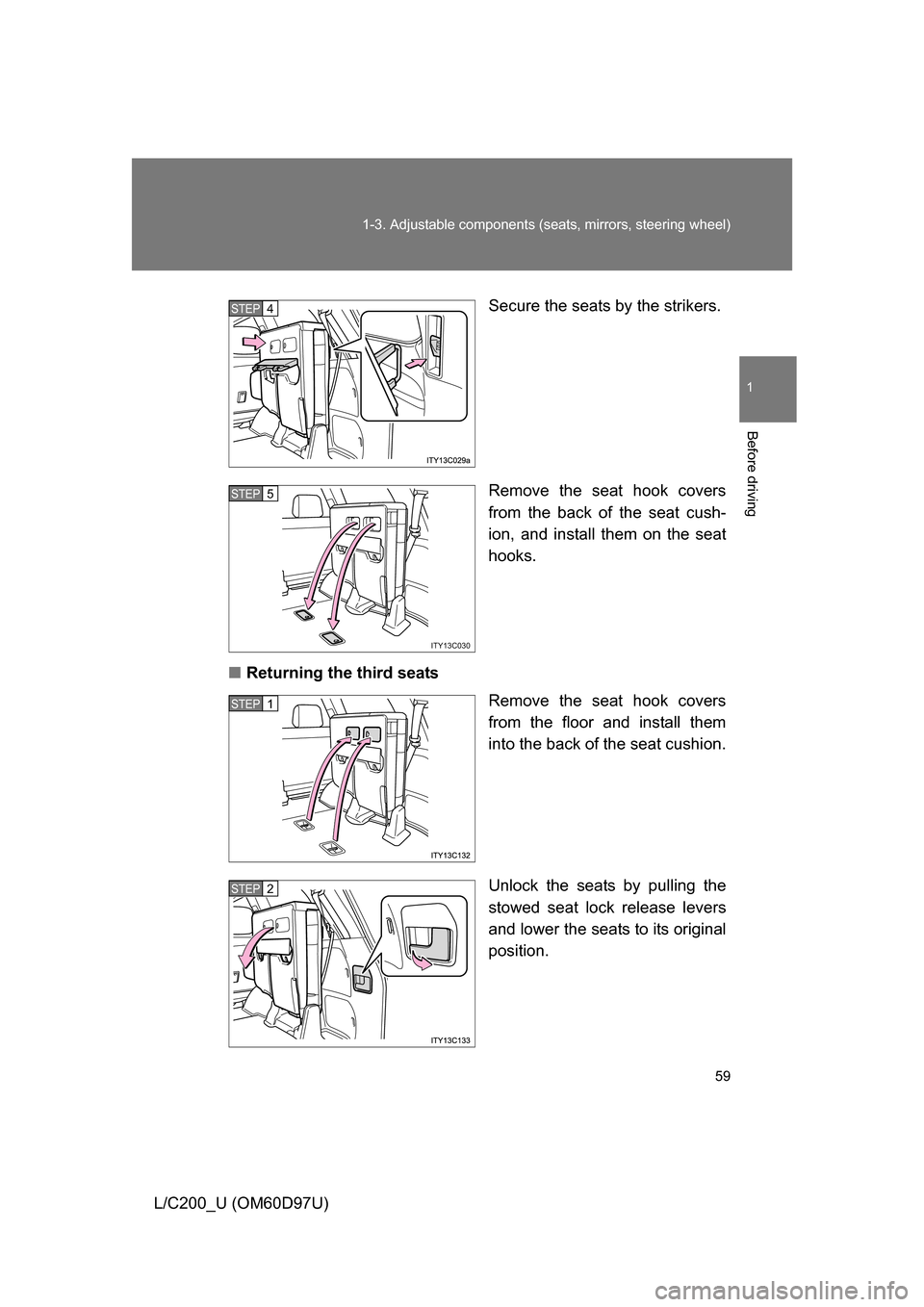

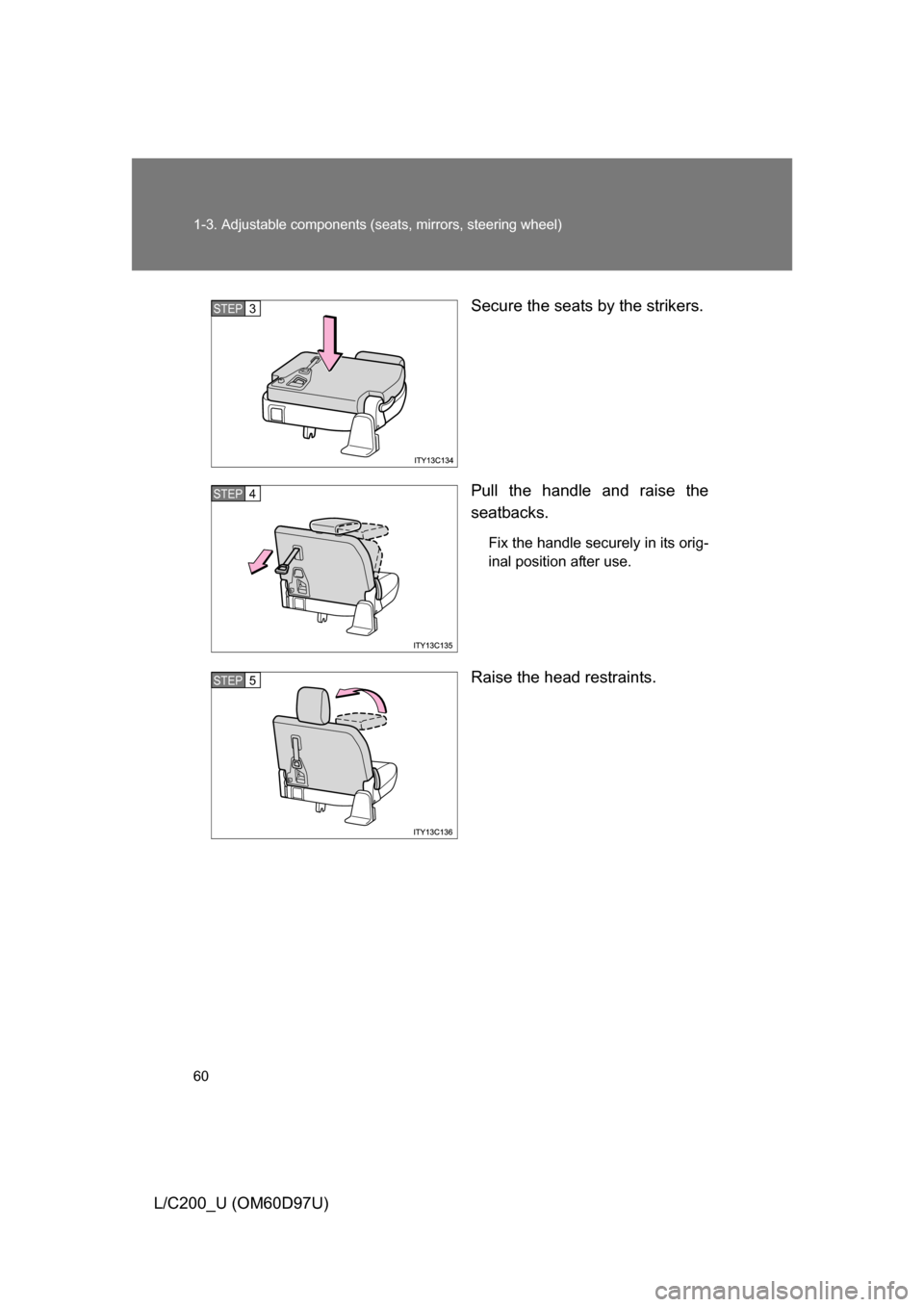

L/C200_U (OM60D97U) Secure the seats by the strikers.
Remove the seat hook covers
from the back of the seat cush-
ion, and install them on the seat
hooks.
■ Returning the third seats
Remove the seat hook covers
from the floor and install them
into the back of the seat cushion.
Unlock the seats by pulling the
stowed seat lock release levers
and lower the seats to its original
position.
STEP4
ITY13C030
STEP5
STEP1
STEP2

60 1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_U (OM60D97U) Secure the seats by the strikers.
Pull the handle and raise the
seatbacks.
Fix the handle securely in its orig-
inal position after use.
Raise the head restraints.
STEP3
STEP4
STEP5
