19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

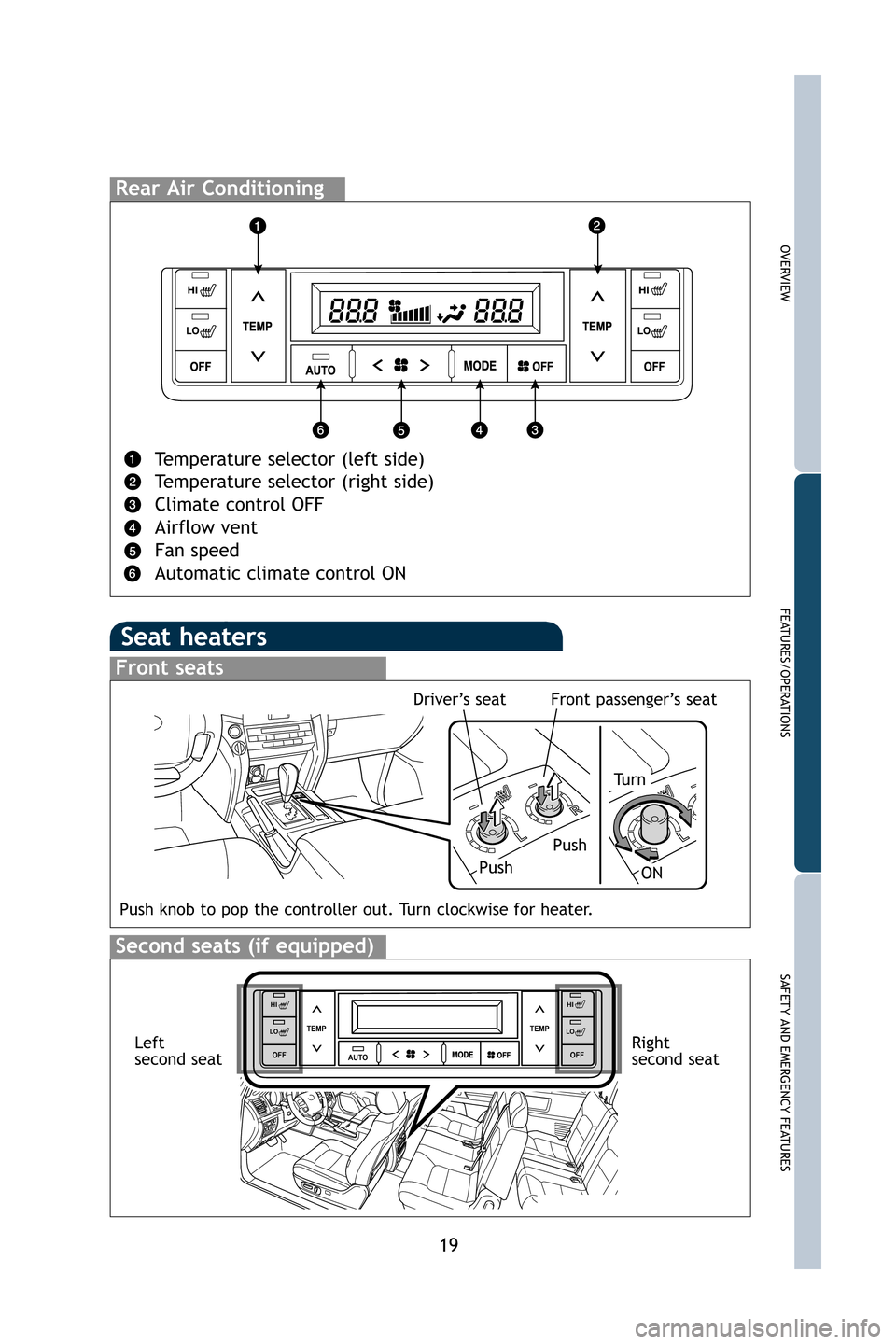

Rear Air Conditioning
Temperature selector (left side)
Temperature selector (right side)
Climate control OFF
Airflow vent
Fan speed
Automatic climate control ON
Seat heaters
L
R
L
Front seats
Push
Tu r n
Push knob to pop the controller out. Turn clockwise for heater.
Push
Second seats (if equipped)
Driver’s seatFront passenger’s seat
AUTO
TEMP
OFF TEMP
HI
LO
OFF
HI
LO
OFF
HI
LO
OFF
HI
LOLeft
second seatRight
second seat
ON
M2.qxd 7/28/08 3:14 PM Page 19
Page 22 of 32
20
FEATURES/OPERATIONS

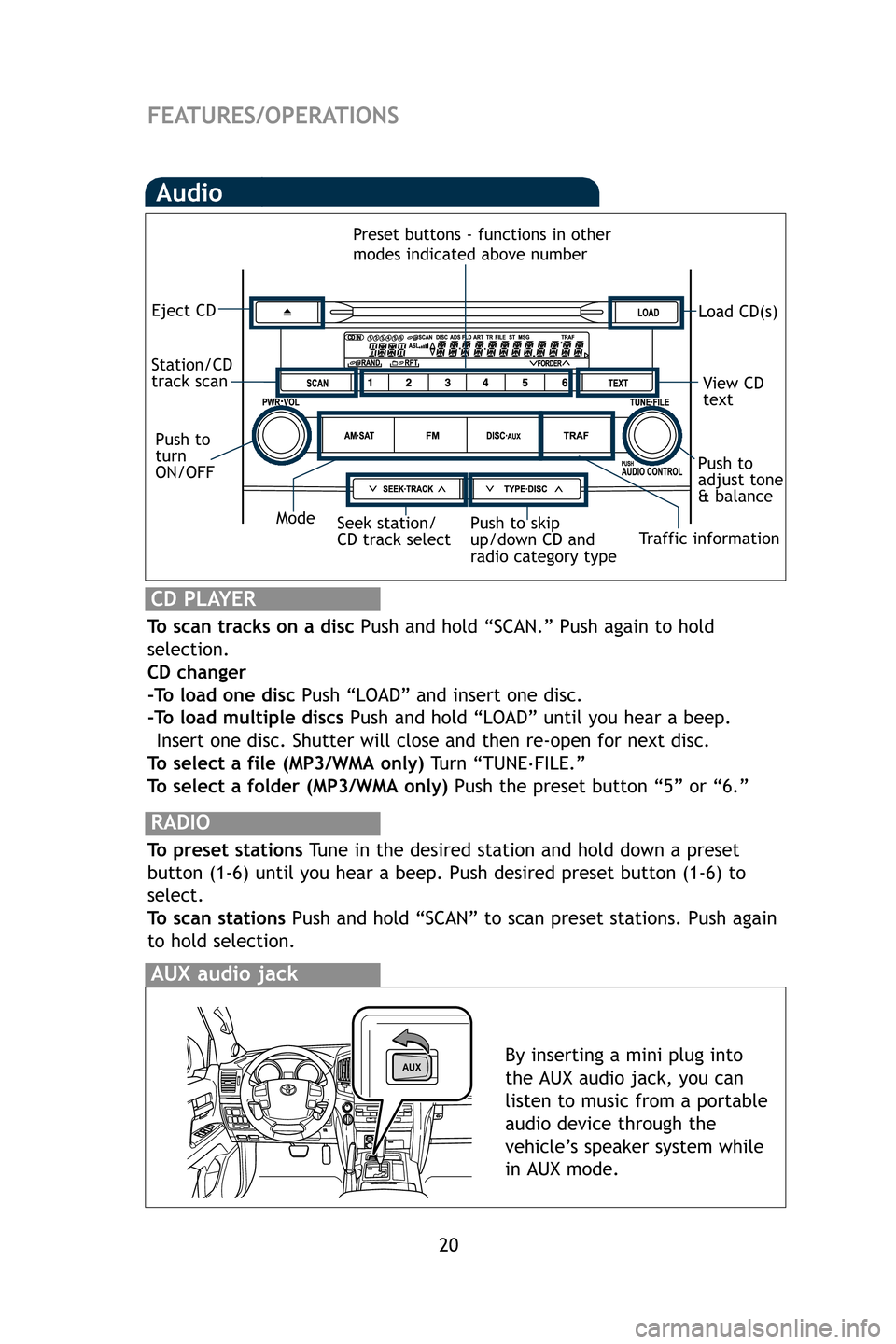

Audio
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6)\
to
select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE.”
To select a folder (MP3/WMA only) Push the preset button “5” or “6.”
AUX audio jack
Eject CD
Push to
turn
ON/OFF Load CD(s)
Seek station/
CD track select
Station/CD
track scan
Mode Traffic information
Preset buttons - functions in other
modes indicated above number
View CD
text
Push to skip
up/down CD and
radio category type
Push to
adjust tone
& balance
AUXBy inserting a mini plug into
the AUX audio jack, you can
listen to music from a portable
audio device through the
vehicle’s speaker system while
in AUX mode.
M2.qxd 7/28/08 3:14 PM Page 20
Page 23 of 32
21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
“ ”
-In radio modePush to select a preset station; push and hold to seek
the next strong station.
-In CD mode Push to skip up or down to next/previous track.
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to
turn audio system OFF.vv
Steering wheel switches
MODE
Volume control
Rear seat entertainment system
(if equipped)
PHONE VOL
PHONE VIDEO MONOLVOLRAC1
15
V10 0W
Front audio system (DVD player)
DVD screen
Remote control
Headphone volume control and headphone jacks
A/V input adapter
115V AC Power outlet
For details, refer to the “ Navigation System Owner’s Manual .”
M2.qxd 7/28/08 3:14 PM Page 21
Page 24 of 32
22
FEATURES/OPERATIONS

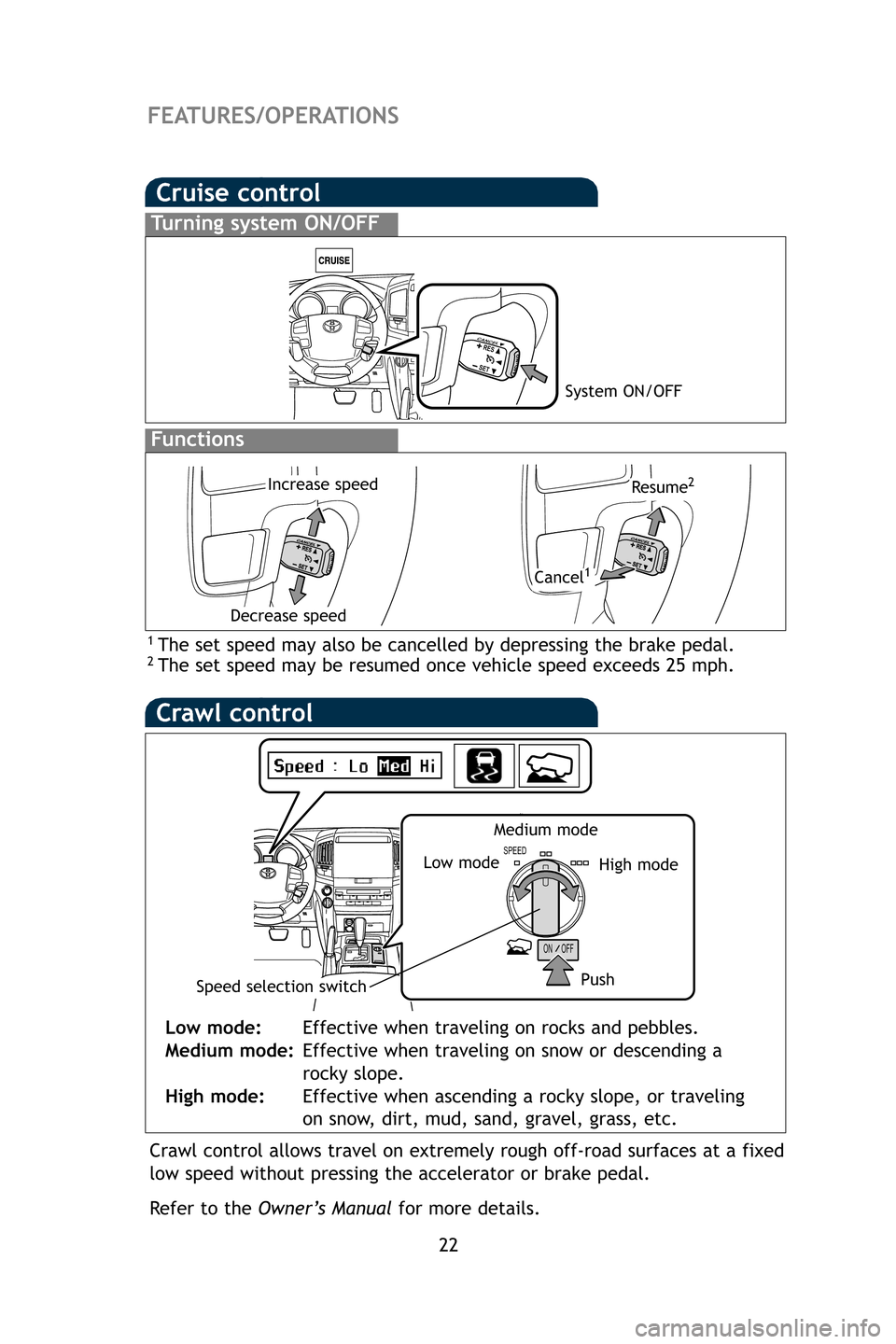

Crawl control
ON
SPEED
OFF
Low mode:Effective when traveling on rocks and pebbles.
Medium mode: Effective when traveling on snow or descending a
rocky slope.
High mode: Effective when ascending a rocky slope, or traveling
on snow, dirt, mud, sand, gravel, grass, etc.
Low modeHigh mode
Medium mode
PushSpeed selection switch
Crawl control allows travel on extremely rough off-road surfaces at a fi\
xed
low speed without pressing the accelerator or brake pedal.
Refer to the Owner’s Manual for more details.
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
S
ERTES
L
E
C
N
AC
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
M2.qxd 7/28/08 3:14 PM Page 22
Page 25 of 32
23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Power outlets-12V DC
The “ENGINE START STOP” switch must be in ACCESSORY or IGNITION ON
mode to be used.
Power outlets-115V AC
AC
115VAC11 5V100W
ON/OFF switch
The “ENGINE START STOP” switch must be in IGNITION ON mode to be used.
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, \
etc.
Refer to “Garage door opener,” Section 3-6 in the Owner’s Manualfor
more details.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*
M2.qxd 7/28/08 3:14 PM Page 23
Page 26 of 32
24
FEATURES/OPERATIONS
Multi-information display
Push “DISP” to change information in the following:
(1) Current gas mileage
(2) Average gas mileage after refueling
(3) Miles left on remaining fuel
(4) Average vehicle speed
(5) Running distance from engine start
(6) Tire inflation pressure (if equipped)
Clock
H-Hour set
M-Minute set
:00-round off minutes
Refer to the Owner’s Manual for adjusting time.
M2.qxd 7/28/08 3:14 PM Page 24
Page 27 of 32
25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the telephone
and the system.
Refer to “Hands-free system (for cellular phone),” Section 5 in t\
he
Navigation System Owner’s Manual for more details.
Telephone controls (Bluetooth®)
(if equipped)
MicrophoneDisplay
Steering wheel telephone switches
Start call
End call
Voice command button
Door locks
LockUnlock
M2.qxd 7/28/08 3:14 PM Page 25
Page 28 of 32
26
FEATURES/OPERATIONS
Parking brake
(2) Push
SetRelease
(1) Pull slightly
(3) Lower
Pull
UpTo w a r d
the
driver
Down
Note: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Away
from the
driver
Control switch
M2.qxd 7/28/08 3:14 PM Page 26
Page 29 of 32
27
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

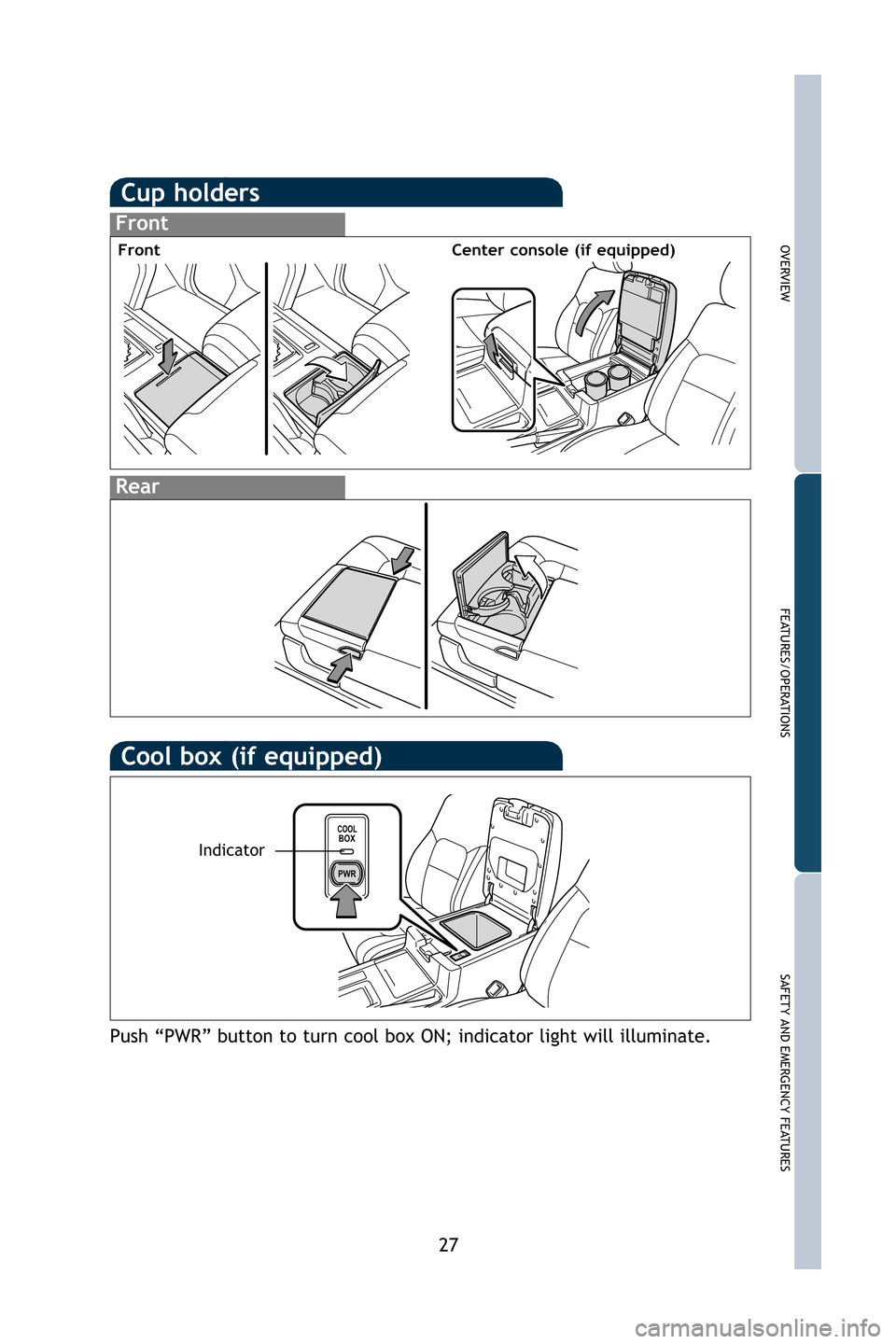

Cup holders
Front
Rear
FrontCenter console (if equipped)
COOLBOX
PWR
Cool box (if equipped)
Push “PWR” button to turn cool box ON; indicator light will illumi\
nate.
Indicator
M2.qxd 7/28/08 3:14 PM Page 27
Page 30 of 32
28
SAFETY AND
EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This featur\
e
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high

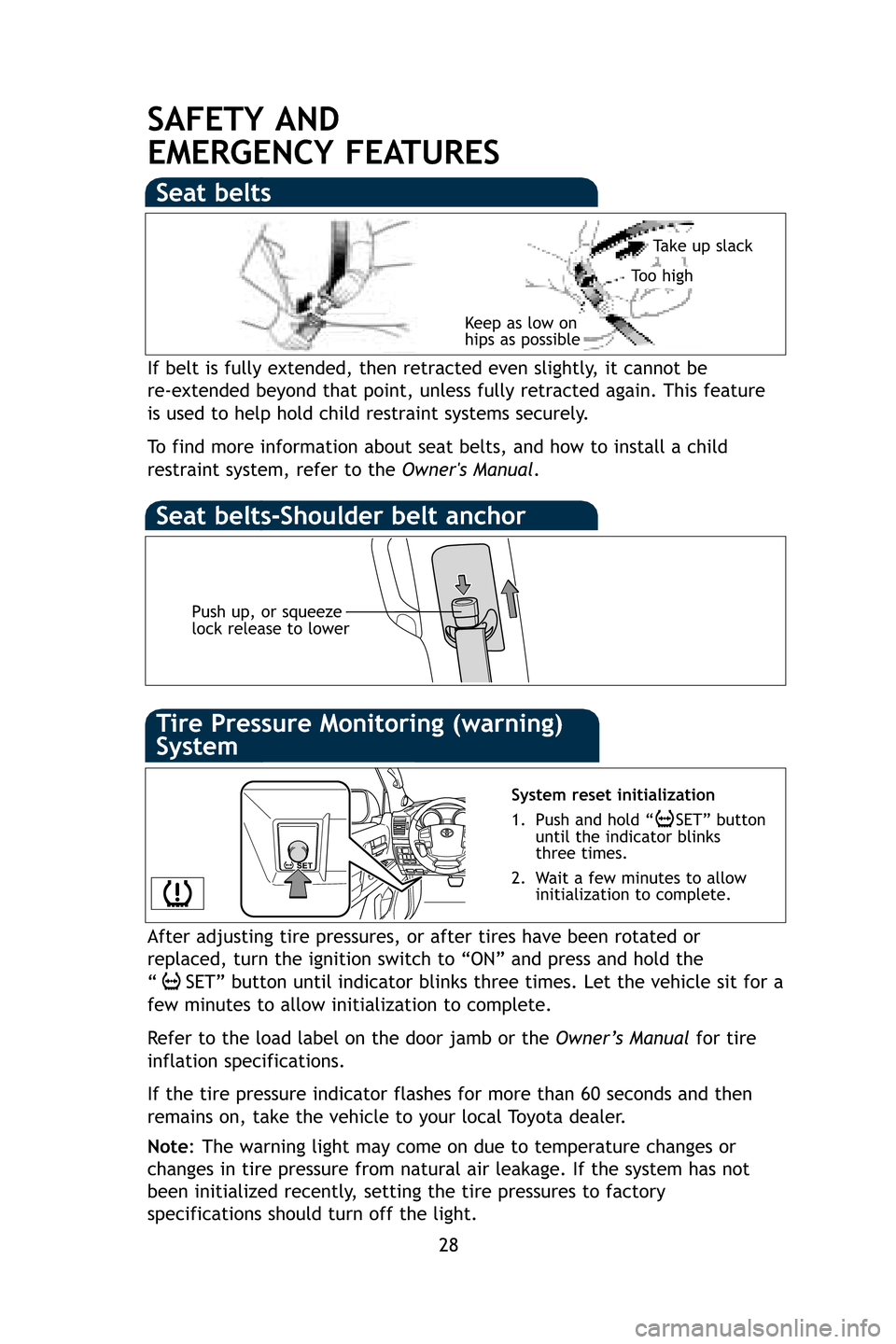

Seat belts
Push up, or squeeze
lock release to lower
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow initialization to complete.
Seat belts-Shoulder belt anchor
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the \
“ SET” button until indicator blinks three times. Let the vehicle sit f\
or a
few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains on, take the vehicle to your local Toyota dealer.
Note : The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not\
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.
Tire Pressure Monitoring (warning)
System
M2.qxd 7/28/08 3:14 PM Page 28
