Page 15 of 32
13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES(1) Stow the seat belt buckles and lower the head restraints.
(2) Hook the seat belt to the seat belt hangers.
(3) Fold down the seatback and swing the whole seat up and forward.
(4) Hook the holding strap to the assist grip and secure the seat.
(5) Install the seat hook covers on the seat hooks.
(1)
(5)
(3)
(2)

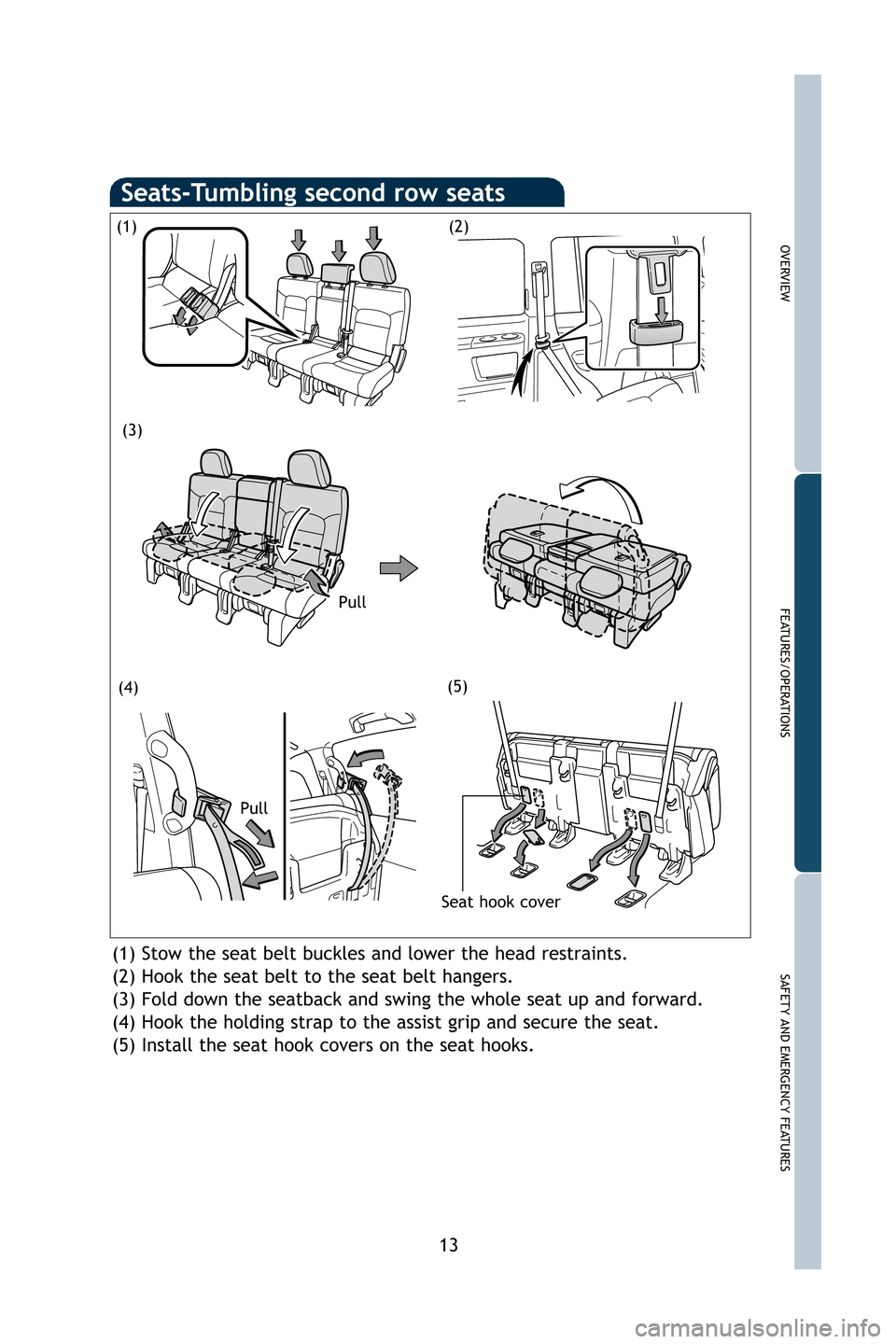

Seats-Tumbling second row seats
(4)Pull Seat hook cover
Pull
M2.qxd 7/28/08 3:14 PM Page 13
Page 16 of 32
14
FEATURES/OPERATIONS
(1) Stow the seat belt buckles.
(2) Stow the center head restraint.
(3) Hook the seat belt to the seat belt hangers.
(4) Fold down the outer head restraints.
(5) Fold the seats.
(6) Lift the seats sideward.
(7) Lock the seats.
(8) Install the seat hook covers on the seat hooks.
(1)
(5)
(3)
(2)

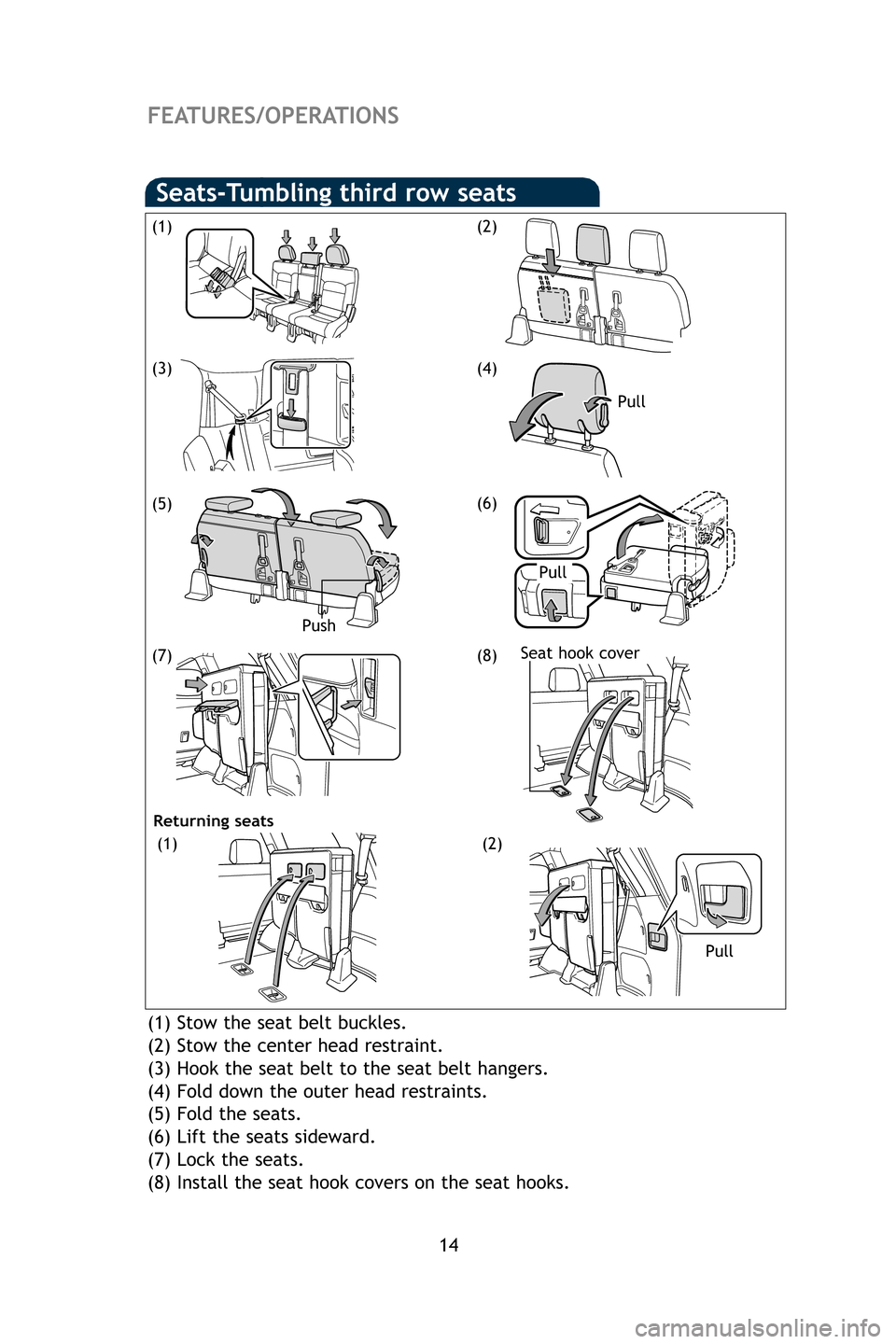

Seats-Tumbling third row seats
(4)
Push
(6)
Pull
(7)(8)Seat hook cover
Pull
Pull
Returning seats
(1)(2)
M2.qxd 7/28/08 3:14 PM Page 14
