TOYOTA LAND CRUISER 2010 J200 Owners Manual

471
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U
61HEAD RL15 A
Headlight low beam (right)

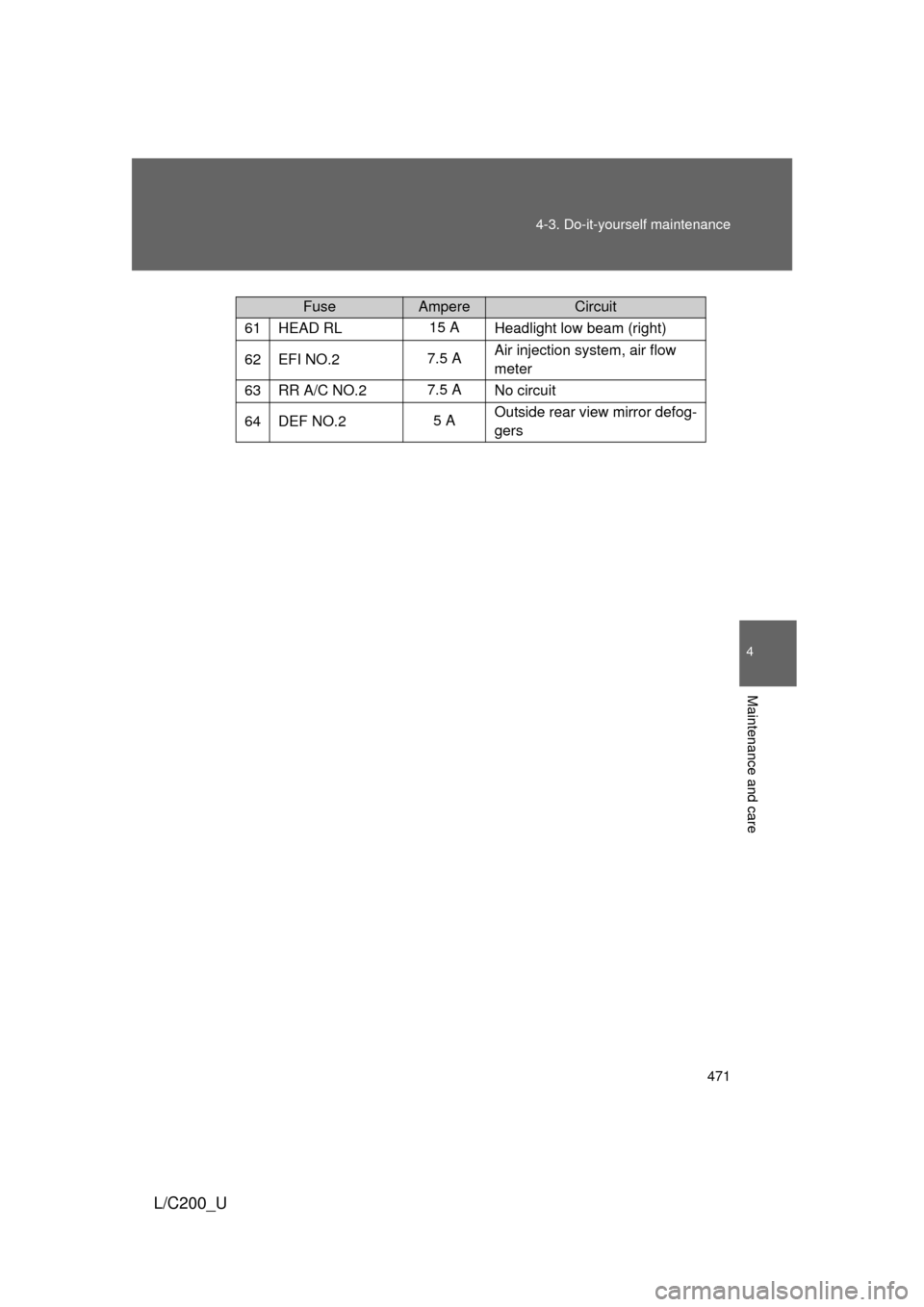

62EFI NO.27.5 A Air injection system, air flow
meter
63RR A/C NO.27.5 A
No circuit
64DEF NO.25 AOutside rear view mirror defog-
gers
FuseAmpereCircuit

472 4-3. Do-it-yourself maintenance
L/C200_U■

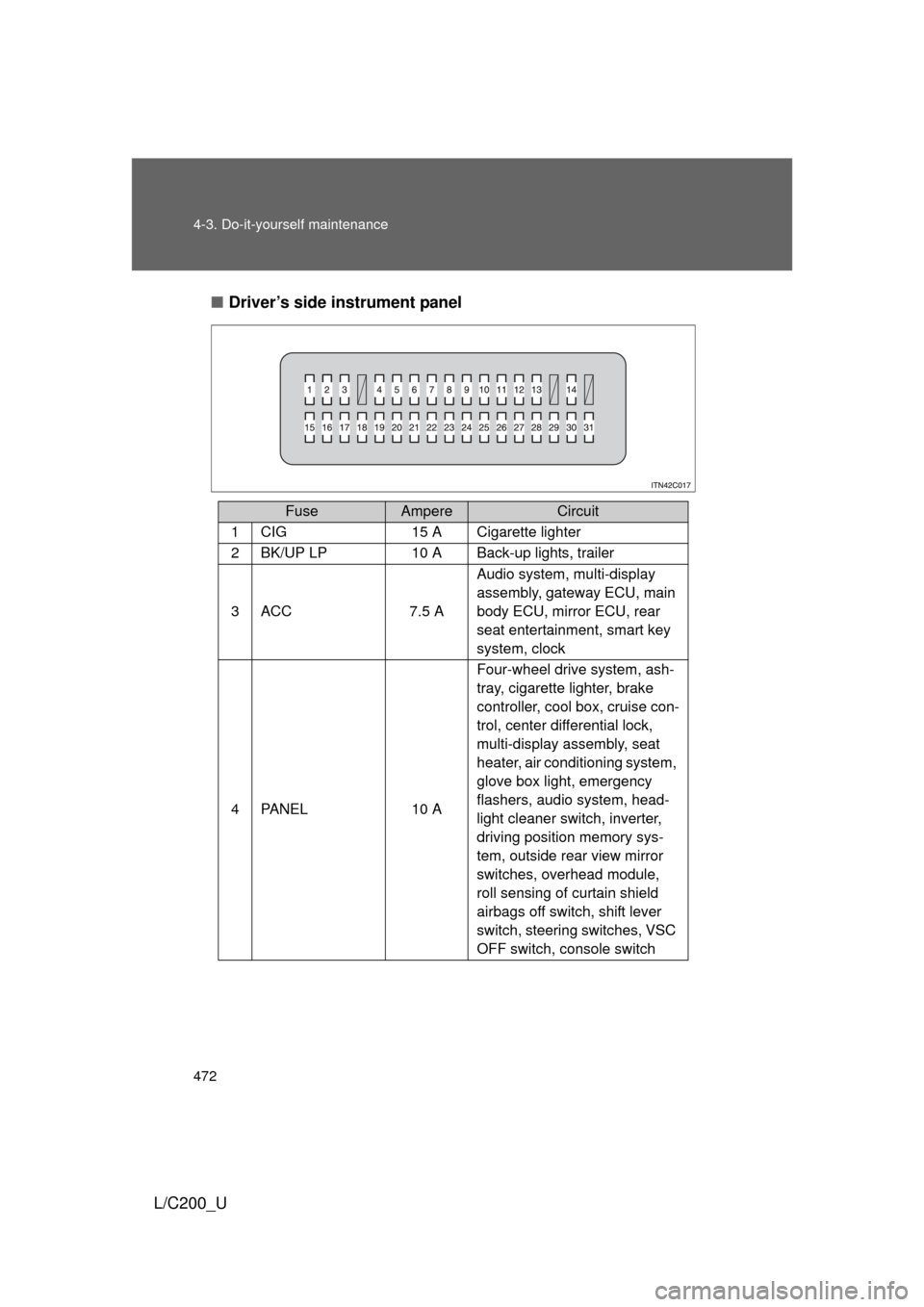

Driver’s side instrument panel
FuseAmpereCircuit
1CIG15 A Cigarette lighter
2BK/UP LP10 A Back-up lights, trailer
3ACC7.5 A Audio system, multi-display
assembly, gateway ECU, main
body ECU, mirror ECU, rear
seat entertainment, smart key
system, clock
4PA N E L10 AFour-wheel drive system, ash-
tray, cigarette lighter, brake
controller, cool box, cruise con-
trol, center differential lock,
multi-display assembly, seat
heater, air conditioning system,
glove box light, emergency
flashers, audio system, head-
light cleaner switch, inverter,
driving position memory sys-
tem, outside rear view mirror
switches, overhead module,
roll sensing of curtain shield
airbags off switch, shift lever
switch, steering switches, VSC
OFF switch, console switch

473
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U
5ECU-IG NO.210 A
Air conditioning system,
heater, overhead module,
ABS, VSC, steering sensor,
yaw rate & G sensor, main
body ECU, stoplights, moon
roof, clock, EC mirror
6WINCH5 A No circuit
7A/C IG10 A
Cool box, condenser fan,
cooler compressor, rear win-
dow and outside rear view mir-
ror defoggers, air conditioning
system
8TA I L15 A
Tail lights, license plate lights,
front fog lights, front side
marker lights, rear side marker
lights, parking lights

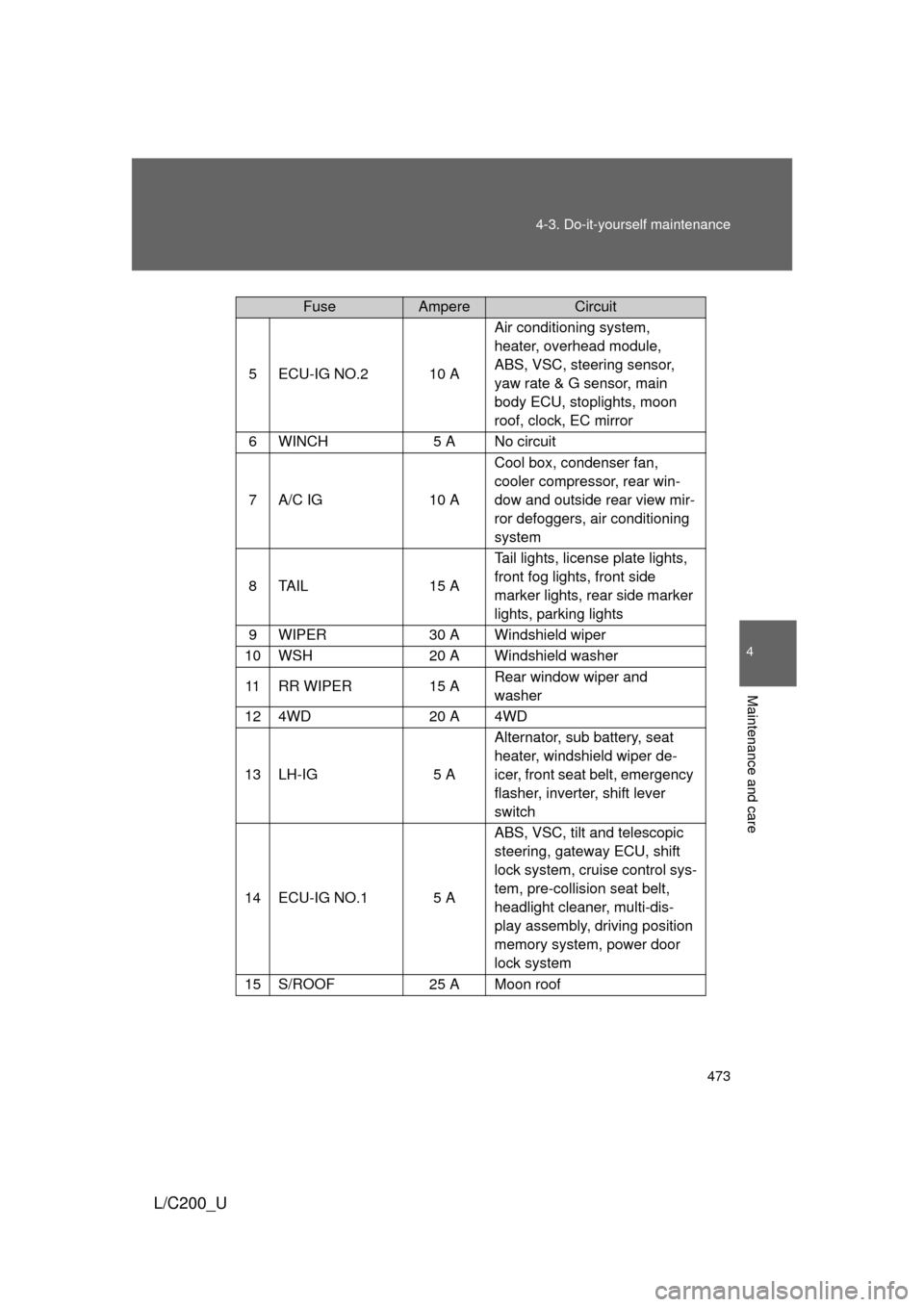

9WIPER30 A Windshield wiper
10WSH20 A Windshield washer
11RR WIPER15 A
Rear window wiper and
washer
124WD20 A 4WD
13LH-IG5 AAlternator, sub battery, seat
heater, windshield wiper de-
icer, front seat belt, emergency
flasher, inverter, shift lever
switch
14ECU-IG NO.15 AABS, VSC, tilt and telescopic
steering, gateway ECU, shift
lock system, cruise control sys-
tem, pre-collision seat belt,
headlight cleaner, multi-dis-
play assembly, driving position
memory system, power door
lock system
15S/ROOF25 A Moon roof
FuseAmpereCircuit

474 4-3. Do-it-yourself maintenance
L/C200_U
16RR DOOR RH20 A Power windows
17MIR15 AMirror ECU, outside rear view
mirror defoggers
18RR DOOR LH20 A Power windows
19FR DOOR LH20 A Power windows
20FR DOOR RH20 A Power windows
21RR FOG7.5 A No circuit
22A/C7.5 A Air conditioning system
23AM15 A No circuit
24TI & TE15 A Tilt and telescopic steering
25FR P/SEAT RH30 A Power seat
26PWR OUTLET15 A Power outlet
27OBD7.5 A On-Board diagnosis
28PSB30 A Pre-collision seat belt

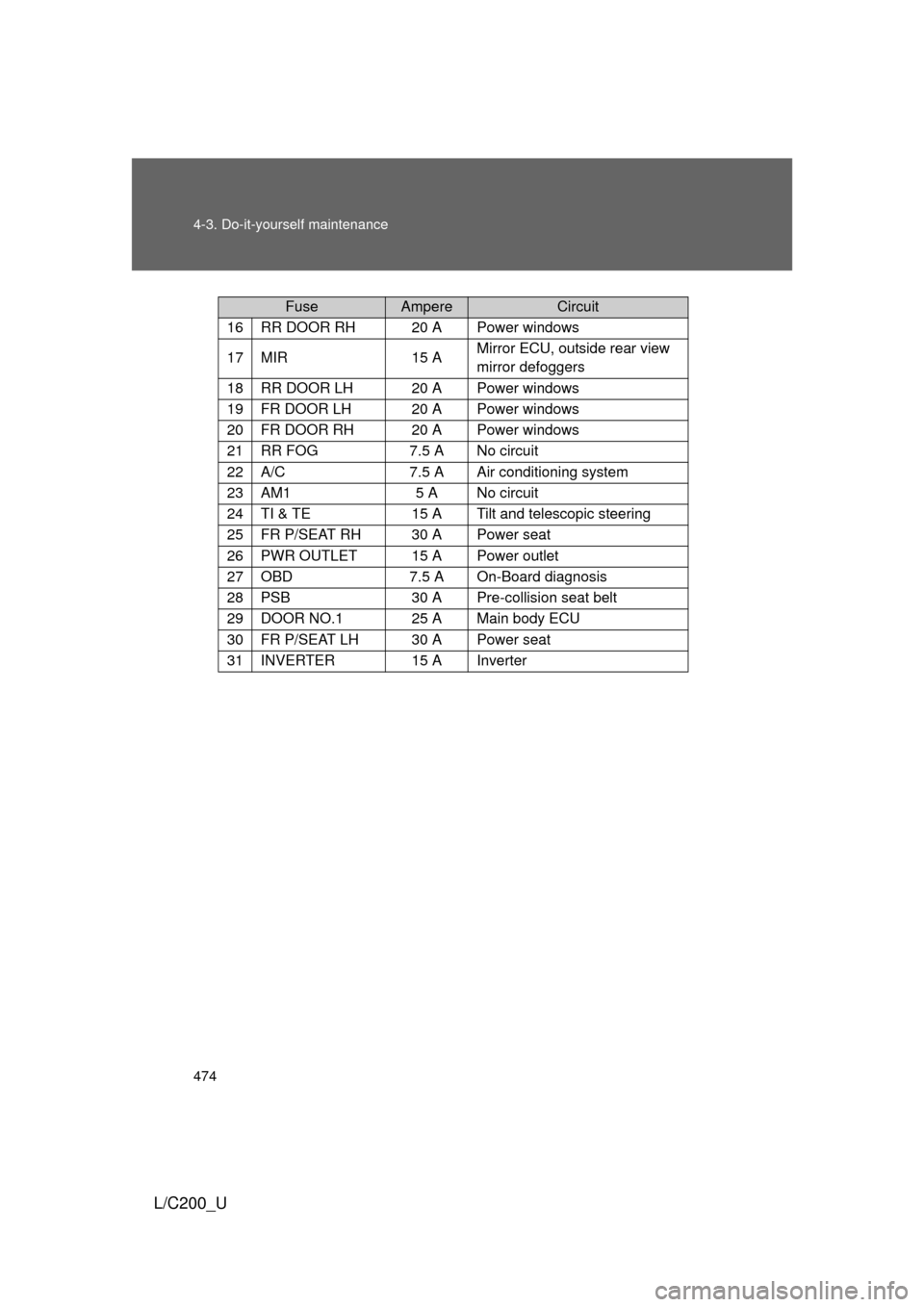

29DOOR NO.125 A Main body ECU
30FR P/SEAT LH30 A Power seat
31INVERTER15 A Inverter
FuseAmpereCircuit

475
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U
■

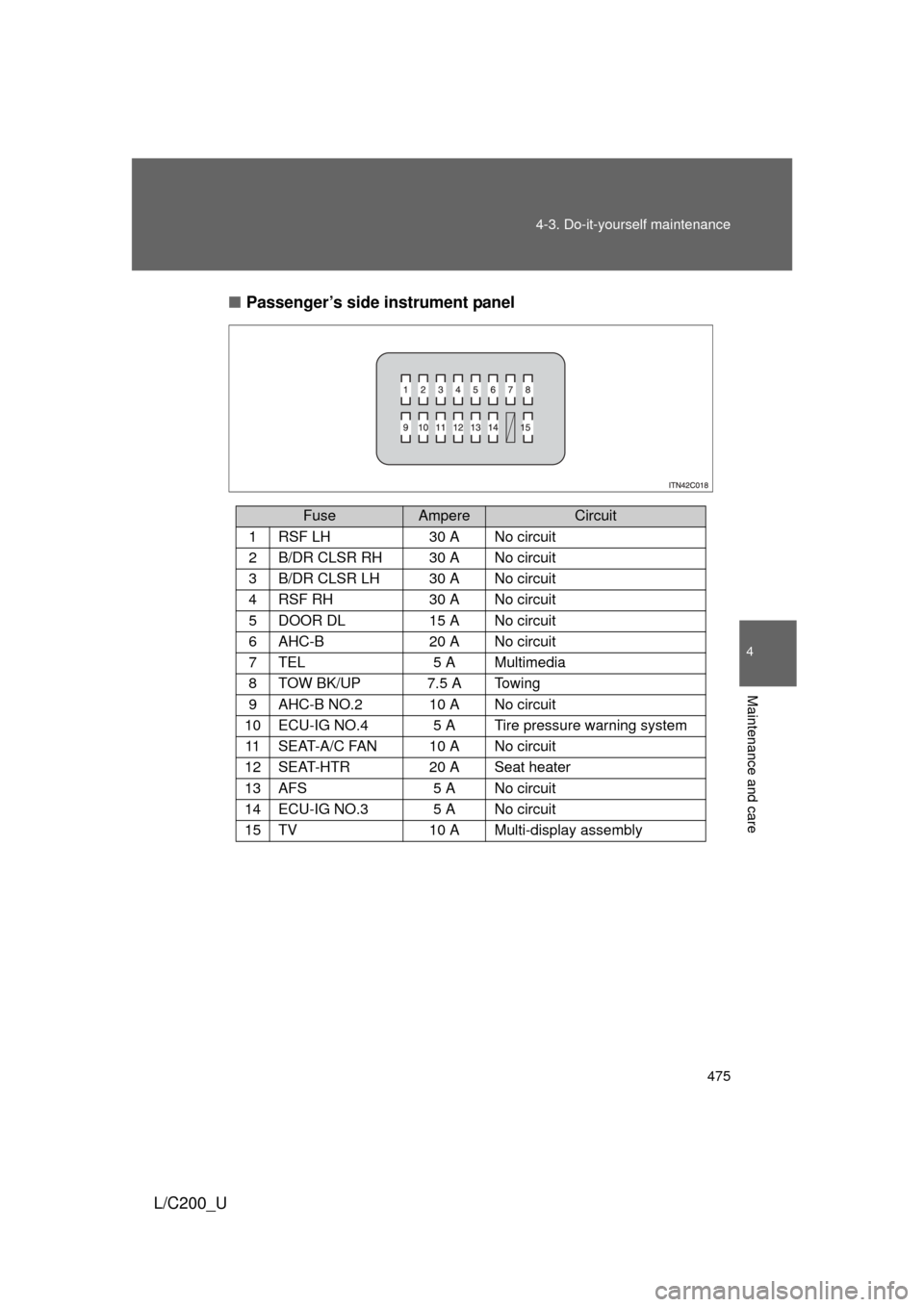

Passenger’s side instrument panel
FuseAmpereCircuit
1RSF LH30 A No circuit
2B/DR CLSR RH30 A No circuit
3B/DR CLSR LH30 A No circuit
4RSF RH30 A No circuit
5DOOR DL15 A No circuit
6AHC-B20 A No circuit
7TEL5 A Multimedia
8TOW BK/UP7.5 A Towing
9AHC-B NO.210 A No circuit
10ECU-IG NO.45 A Tire pressure warning system
11SEAT-A/C FAN10 A No circuit
12SEAT-HTR20 A Seat heater
13AFS5 A No circuit
14ECU-IG NO.35 A No circuit
15TV10 A Multi-display assembly

476 4-3. Do-it-yourself maintenance
L/C200_U
■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 477)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
● Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer.

477
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 551)
■ Remove the engine compartment cover.
P. 429

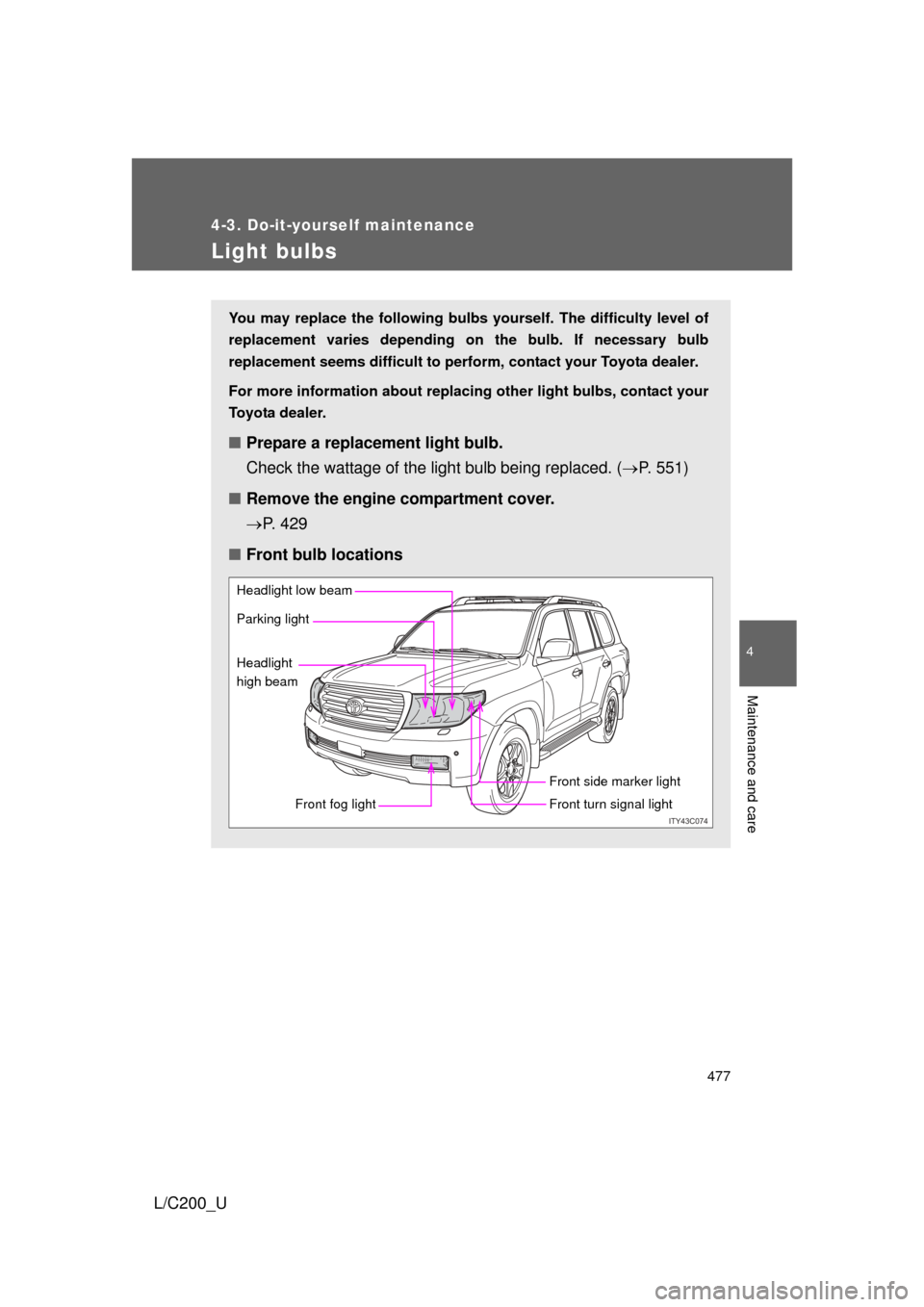

■ Front bulb locations
ITY43C074
Front side marker light
Parking light
Front fog light
Headlight
high beam Headlight low beam
Front turn signal light

478 4-3. Do-it-yourself maintenance
L/C200_U
Replacing light bulbs■ Headlight low beam
Turn the bulb base counterclock-
wise.

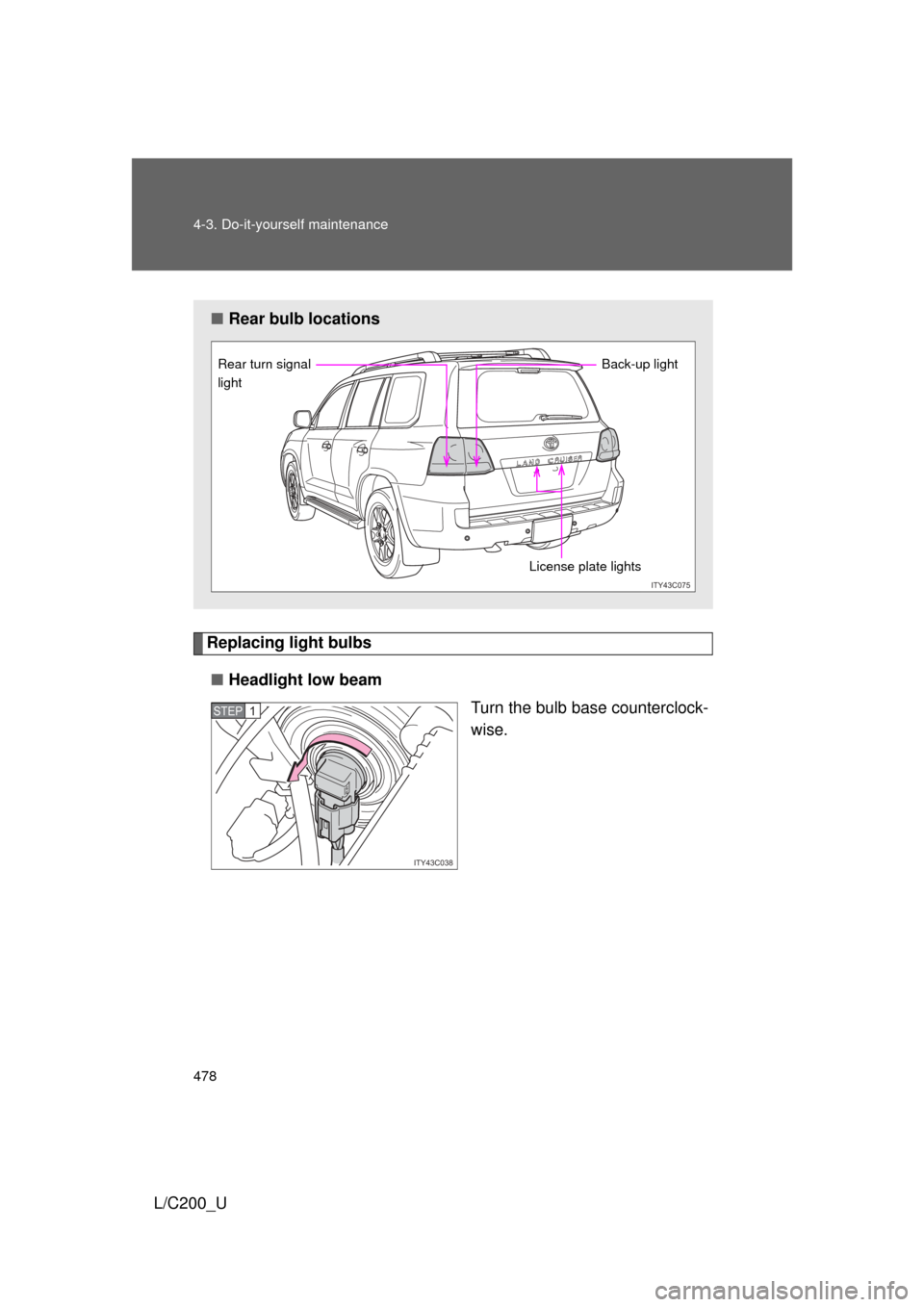

■Rear bulb locations
ITY43C075
License plate lights
Rear turn signal
light
Back-up light
ITY43C038
STEP1

479
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U

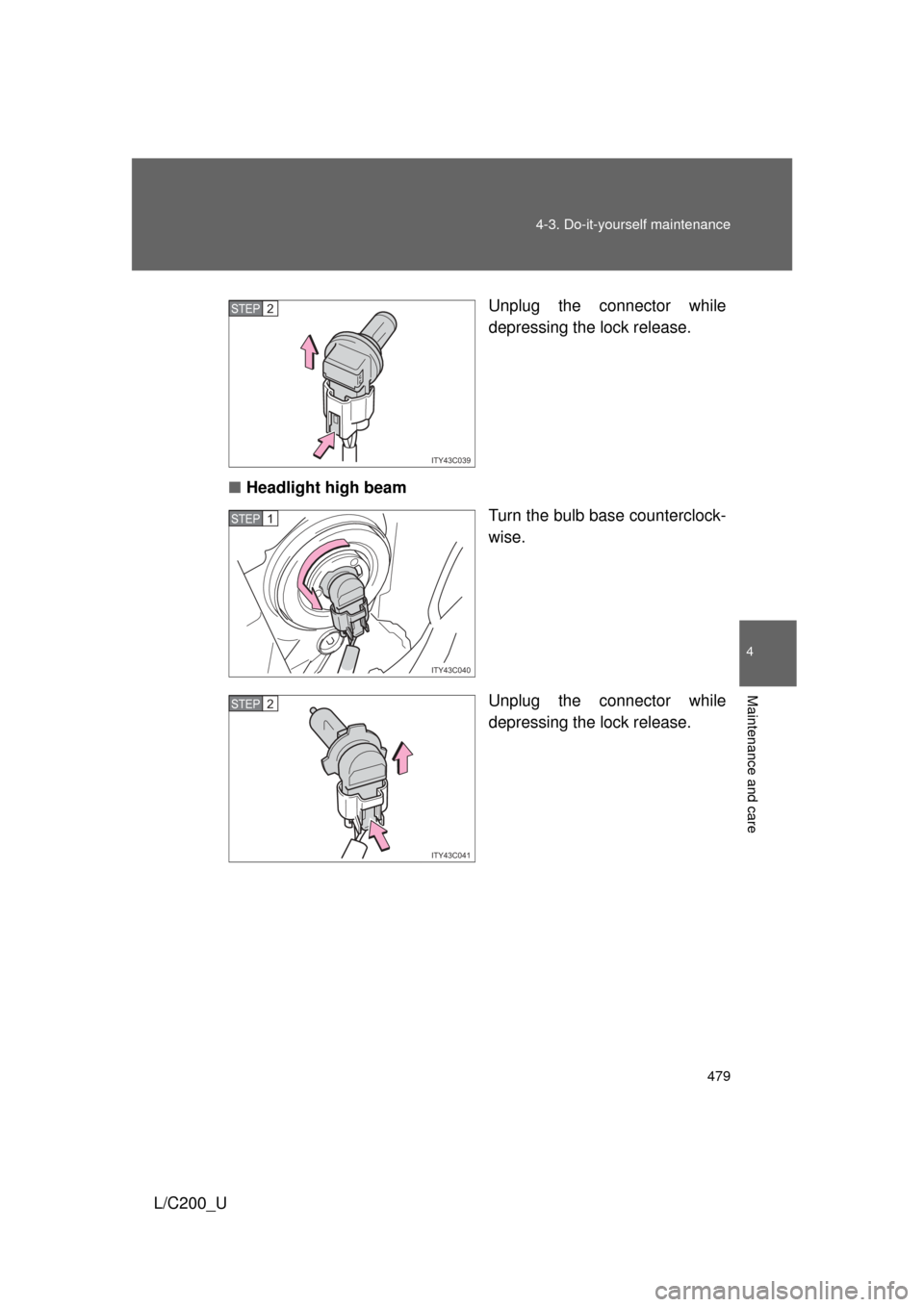

Unplug the connector while
depressing the lock release.
■ Headlight high beam
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
ITY43C039
STEP2
ITY43C040
STEP1
ITY43C041
STEP2

480 4-3. Do-it-yourself maintenance
L/C200_U■
Front fog light

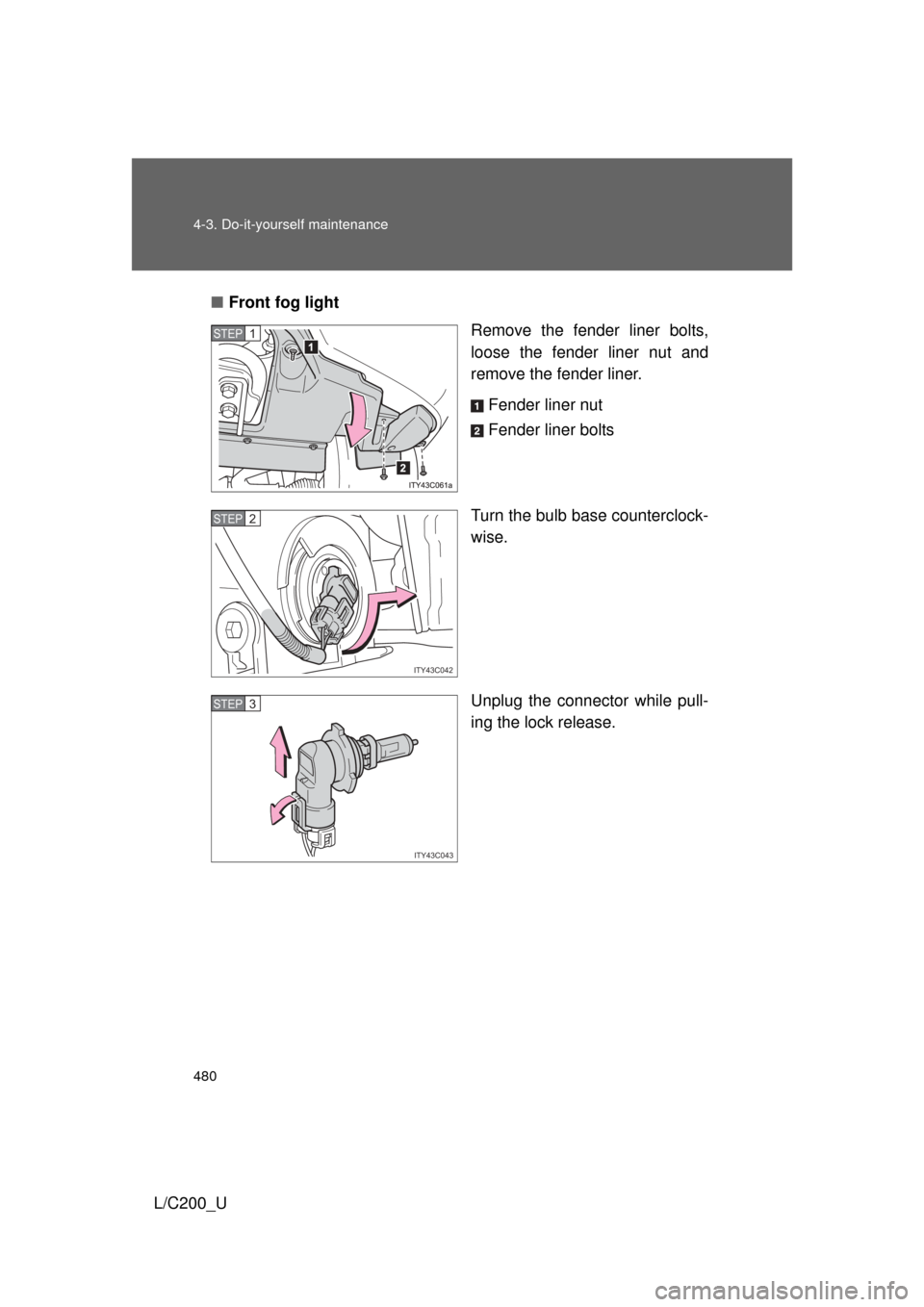

Remove the fender liner bolts,
loose the fender liner nut and
remove the fender liner.
Fender liner nut
Fender liner bolts
Turn the bulb base counterclock-
wise.
Unplug the connector while pull-
ing the lock release.
STEP1
ITY43C042
STEP2
ITY43C043
STEP3
