TOYOTA LAND CRUISER 2010 J200 Owners Manual

481
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U
■
Parking light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
ITY43C048
STEP1
ITY43C049
STEP2

482 4-3. Do-it-yourself maintenance
L/C200_U■
Front turn signal light
For the left side only: Remove
the securing bolt and move the
washer fluid filler opening.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
ITY43C012
STEP1
ITY43C044
STEP2
ITY43C045
STEP3

483
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U
■
Front side marker light
For the left side only: Remove
the securing bolt and move the
washer fluid filler opening.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
ITY43C012
STEP1
ITY43C050
STEP2
ITY43C051
STEP3

484 4-3. Do-it-yourself maintenance
L/C200_U■
Back-up light
Open the back door and remove
the nuts and lamp assembly.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
ITY43C052
STEP1
ITY43C053
STEP2
ITY43C054
STEP3

485
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U
■
Rear turn signal light
Open the back door and remove
the bolts and lamp assembly.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
ITY43C058
STEP1
ITY43C059
STEP2
ITY43C060
STEP3

486 4-3. Do-it-yourself maintenance
L/C200_U■
License plate light
Open the back door and remove
the license plate light unit.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
ITY43C067
STEP2
ITY43C068
STEP3

487
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U
■
Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Toyota
dealer replace it.
● Stop/tail lights
● Tail lights
● High mounted stoplight
● Rear side marker lights
■Condensation build-up on th e inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED lights
The stop/tail, tail, rear side marker lights and high mounted stoplight consist
of a number of LEDs. If any LEDs burn out, take your vehicle to your Toyota
dealer to have the light replaced.

488 4-3. Do-it-yourself maintenance
L/C200_U
CAUTION
■Replacing light bulbs
● Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

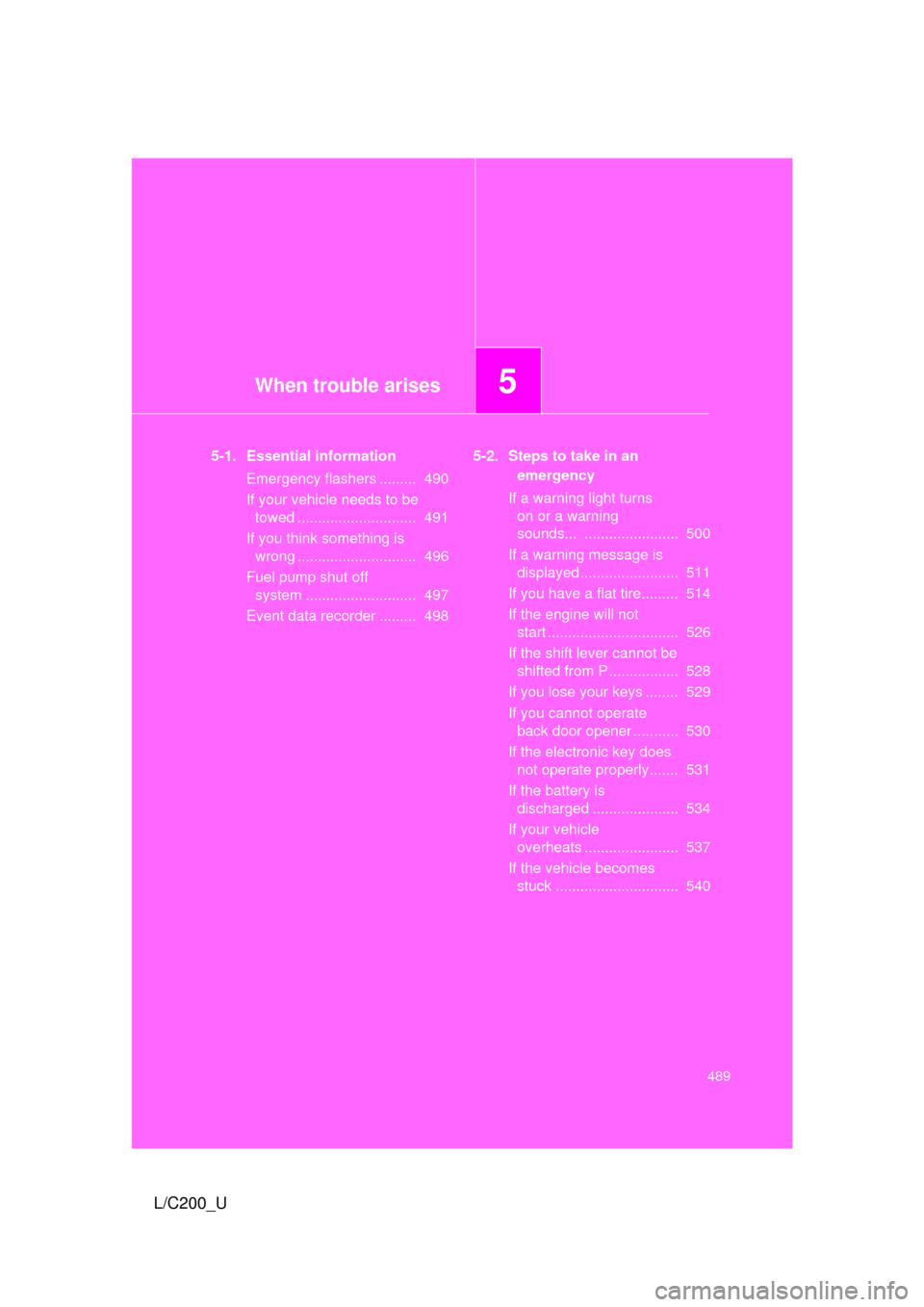

When trouble arises5
489
L/C200_U
5-1. Essential informationEmergency flashers ......... 490
If your vehicle needs to be towed ............................. 491
If you think something is wrong ............................. 496
Fuel pump shut off system ........................... 497
Event data recorder ......... 498 5-2. Steps to take in an
emergency
If a warning light turns on or a warning
sounds... ....................... 500
If a warning message is displayed ........................ 511
If you have a flat tire......... 514
If the engine will not start ................................ 526
If the shift lever cannot be shifted from P ................. 528
If you lose your keys ........ 529
If you cannot operate back door opener ........... 530
If the electronic key does not operate properly....... 531
If the battery is discharged ..................... 534
If your vehicle overheats ....................... 537
If the vehicle becomes stuck .............................. 540

490
L/C200_U
5-1. Essential information
Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if vehicle malfunctions or is involved in
an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.
ITO51C056
