stop start TOYOTA LAND CRUISER 2011 J200 Navigation Manual

AUDIO/VIDEO SYSTEM
177
This screen appears when the video
screen is first displayed after “ENGINE
START STOP” switch is in ACCESSO-
RY or IGNITION ON mode. PLAYING A DVD DISC
Push the “AUDIO” button and touch
“CD/DVD” tab to display this screen.
Touch
“Settings” on “DVD” screen, then
touch “Wide” on “Settings” screen. The
screen mode can be changed.
If you touch “Full Screen” when the ve-
hicle is completely stopped and the park-
ing brake is applied, the video screen re-
turns.

AUDIO/VIDEO SYSTEM
192
DESCRIPTION OF VIDEO CD
CONTROLS
:Use this to pause the video
screen.
: Touch this to fast reverse during
playback.
: Touch this to stop the disc.
:Touch this to resume playing dur-
ing pause.
: Touch this to fast forward during
the playback and start playing frame by
frame during pause. SEARCHING BY TRACK
Enter the track numbers and touch
“OK”. The player starts playing video
for that title number.
You can select a track number by pushing
the
“
” or “” button of
“SEEK·TRACK” .
If you enter the wrong numbers, touch
to delete the numbers.
Touch
, and the previous screen re-
turns.

AUDIO/VIDEO SYSTEM
198

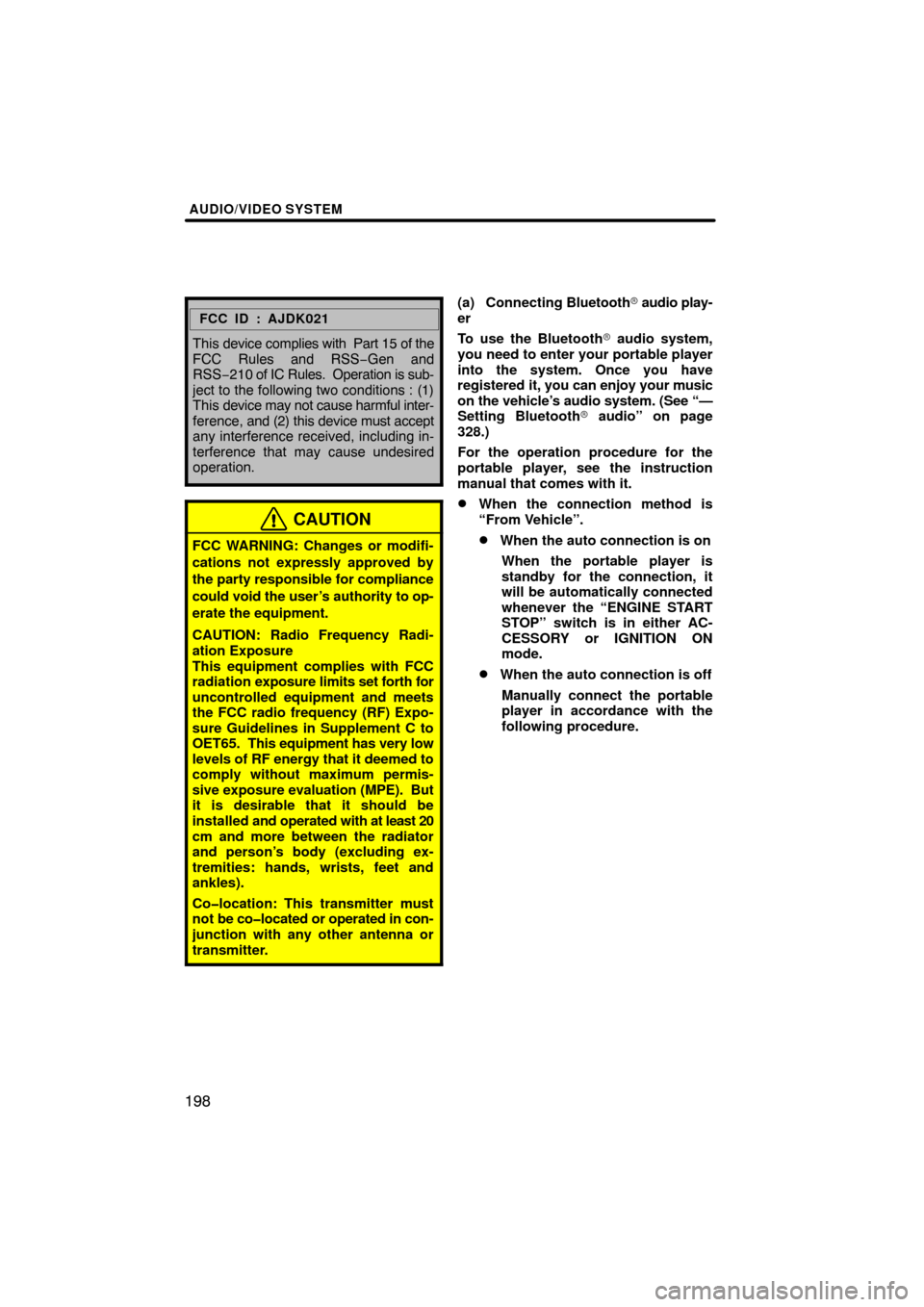

FCC ID : AJDK021
This device complies with Part 15 of the
FCC Rules and RSS −Gen and
RSS−210 of IC Rules. Operation is sub-
ject to the following two conditions : (1)
This device may not cause harmful inter-
ference, and (2) this device must accept
any interference received, including in-
terference that may cause undesired
operation.
CAUTION
FCC WARNING: Changes or modifi-
cations not expressly approved by
the party responsible for compliance
could void the user’s authority to op-
erate the equipment.
CAUTION: Radio Frequency Radi-
ation Exposure
This equipment complies with FCC
radiation exposure limits set forth for
uncontrolled equipment and meets
the FCC radio frequency (RF) Expo-
sure Guidelines in Supplement C to
OET65. This eq uipment has very low
levels of RF energy that it deemed to
comply without maximum permis-
sive exposure evaluation (MPE). But
it is desirable that it should be
installed and operated with at least 20
cm and more between the radiator
and person’s body (excluding ex-
tremities: hands, wrists, feet and
ankles).
Colocation: This transmitter must
not be colocated or operated in con-
junction with any other antenna or
transmitter.
(a) Connecting Bluetooth audio play-
er
To use the Bluetooth audio system,
you need to enter your portable player
into the system. Once you have
registered it, you can enjoy your music
on the vehicle’s audio system. (See “—
Setting Bluetooth audio” on page
328.)
For the operation procedure for the
portable player, see the instruction
manual that comes with it.
When the connection method is
“From Vehicle”.
When the auto connection is on
When the portable player is
standby for the connection, it
will be automatically connected
whenever the “ENGINE START
STOP” switch is in either AC-
CESSORY or IGNITION ON
mode.
When the auto connection is off
Manually connect the portable
player in accordance with the
following procedure.

AUDIO/VIDEO SYSTEM
200
Reconnecting the portable player
If the portable player is disconnected with
a poor reception from the Bluetooth  net-
work when the “ENGINE START STOP”
switch is in ACCESSORY or IGNITION
ON mode, the system automatically re-
connects the portable player.
If the Bluetooth is disconnected on pur-
pose such as you turned your portable
player off, this does not happen.
Reconnect it by the following method.
Select the portable player again.
Enter the portable player. (b) Playing a Bluetooth
audio
Playing and pausing a Bluetooth
audio
Push the “AUX·USB” button or push
the “AUDIO” button to display this
screen and touch “BT” tab if the
Bluetooth  audio player is already
connected.
Touch
and the music will start playing.
Touch
and the music will pause.
Touch
and the music will start playing
again.
Depending on the portable player that is
connected to the system, the music may
start playing when touching
while it is
paused. On the other h and, the music may
pause when touching
while it is play-
ing.

AUDIO/VIDEO SYSTEM
214
The rear seat entertainment system can
be used when the “ENGINE START
STOP” switch is in ACCESSORY or IGNI-
TION ON mode.
Display
The display is installed in the ceiling. When
audio−video equipment is connected to
the A/V input port, rear passengers can en-
joy different audio sources on each dis-
play. See “— Using the video mode” on
page 235.
Opening and closing the display
 Open
Push the “OPEN/CLOSE”, “DVD”,
“MAP”, “VIDEO”, “SOURCE”, “
|” or
“ON”.
 Close
Push the “OPEN/CLOSE” or “OFF”.
If the display is closed with an image
shown, the image will automatically turn
off. (The sound will not be turned off.)
Opening and closing operations can be per-
formed from the front seat. (See page 31.)
INFORMATION
The display will stop closing and re-
turn to its previous position if some-
thing gets in the way of it closing.

AUDIO/VIDEO SYSTEM
215

Tilting the display
The display angles change as follows each
time “TILT” is pushed.
1 →2 →3 →4 →1
The display angle is memorized and will be
recalled when the “ENGINE START
STOP” switch is turned to ACCESSORY
or IGNITION ON mode again.
Before using the controller
(for new vehicle owners)
An insulating sheet is set to prevent the
batteries from being discharged. Remove
the insulating sheet before using the re-
mote control.

AUDIO/VIDEO SYSTEM
233

Video CD
Push “OPTION” if no icons are shown
while watching a video CD, and following
screen appears.
“Settings”: Selecting this will display set-
ting screen.
“Hide Buttons”: Selecting this will turn off
the icons from the screen.
If “
” appears on the display when you
select a control, the operation is not per-
mitted. DESCRIPTION OF VIDEO CD
CONTROLS
:
Select this to fast rewind during
playback.
: Selecting this will stop the video
screen.
: Use this to pause/resume the vid-
eo screen.
: Select this to fast forward during
the playback and start playing frame by
frame during pause.

AUDIO/VIDEO SYSTEM
238
“Color” “R”:
Strengthens the red color of the screen.
“Color” “G”:
Strengthens the green color of the screen.
“Tone” “
+”:
Strengthens the tone of the screen.
“Tone” “
–”:
Weakens the tone of the screen.
“Contrast” “
+”:
Strengthens the contrast of the screen.
“Contrast” “
–”:
Weakens the contrast of the screen.
“Brightness” “
+”:
Brightens the screen.
“Brightness” “
–”:
Darkens the screen.
Automatic closing of the rear dis-
play
Push “DISPLAY” .
If “Auto Close” is on, the display will auto-
matically close when the “ENGINE START
STOP” switch is turned to OFF mode.
The display will automatically open when
the “ENGINE START STOP” switch is
turned to ACCESSORY or IGNITION ON
mode.

AIR CONDITIONING
251
The automatic air conditioning auto-
matically maintains the set tempera-
ture.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed, air flow, air intake and turns on− off
the air conditioning according to the tem-
perature.
The “ENGINE START STOP” switch must
be in the IGNITION ON mode.
“CLIMATE”: Push this button to display
touch−screen buttons for automatic air
conditioning controls.
INFORMATION
 During use, various odors from in-
side and outside the vehicle may
enter into and accumulate in the air
conditioning system. This may
then cause odor to be emitted from
the vents.
 To reduce potential odors from oc-
curring:
 It is recommended that the air
conditioning system be set to
OUTSIDE AIR mode prior to turn-
ing the vehicle off.
 The start timing of the blower
may be delayed for a short peri-
od of time immediately after the
air conditioning system is
started in automatic control
mode.
NOTICE
To prevent battery discharge, do not
leave the air conditioning system on
longer than necessary when the en-
gine is stopped.
By pushing the switch above, you can
operate the speech command system.
For the operation of the speech command
system and the list of commands, see
pages 44 and 47.

REAR VIEW MONITOR SYSTEM
262
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle while backing
up. The left and right displayed on the
screen are the same as those of the in-
side rear view mirror.
To display the rear view image on the
screen, place the shift lever in the “R”
position when the “ENGINE START
STOP” switch is in IGNITION ON mode.
If you move the shift lever out of the “R”
position, the screen returns to the previous
screen. Operating another function of the
navigation system will display another
screen.
When the Intuitive parking assist is
turned on and an obstacle is detected in
front of or behind your vehicle, a warning
appears on the rear view monitor. For
details, refer to the “Owner’s Manual”.
The rear view monitor system is a supple-
ment device intended to assist back up.
When backing up, be sure to check behind
and all around the vehicle visually.

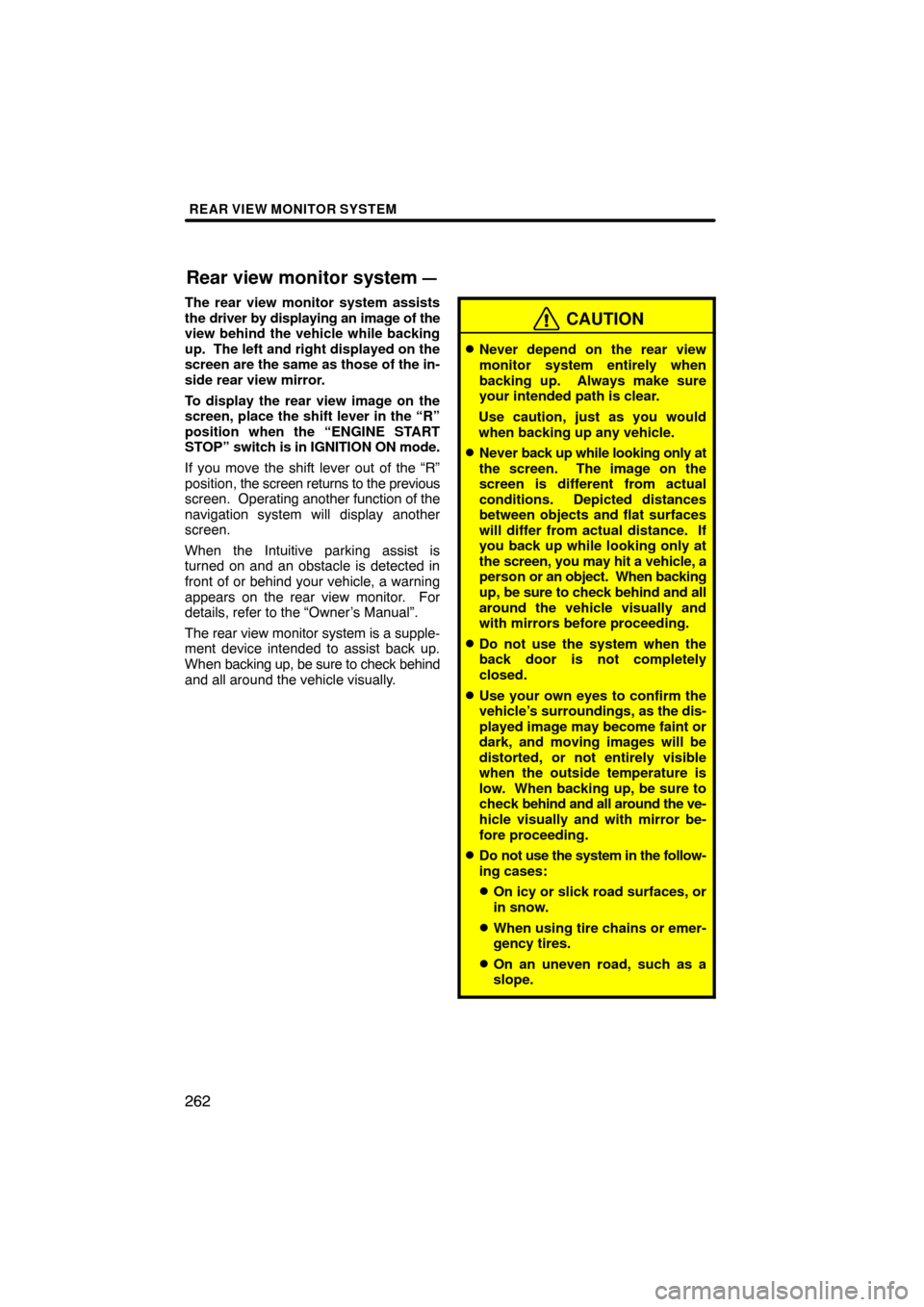

CAUTION
Never depend on the rear view
monitor system entirely when
backing up. Always make sure
your intended path is clear.
Use caution, just as you would
when backing up any vehicle.
Never back up while looking only at
the screen. The image on the
screen is different from actual
conditions. Depicted distances
between objects and flat surfaces
will differ from actual distance. If
you back up while looking only at
the screen, you may hit a vehicle, a
person or an object. When backing
up, be sure to check behind and all
around the vehicle visually and
with mirrors before proceeding.
Do not use the system when the
back door is not completely
closed.
Use your own eyes to confirm the
vehicle’s surroundings, as the dis-
played image may become faint or
dark, and moving images will be
distorted, or not entirely visible
when the outside temperature is
low. When backing up, be sure to
check behind and all around the ve-
hicle visually and with mirror be-
fore proceeding.
Do not use the system in the follow-
ing cases:
On icy or slick road surfaces, or
in snow.
When using tire chains or emer-
gency tires.
On an uneven road, such as a
slope.
Rear view monitor system —
