TOYOTA LAND CRUISER 2011 J200 Quick Reference Guide

QUICK REFERENCE
GUIDE
CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 31
LAND CRUISER
2011
00505-QRG11-LC Printed in U.S.A. 8 /10
10-TCS-03980
10%
Cert no. SGSNA-COC-005612
414825M1.indd 18/6/10 1:21 PM

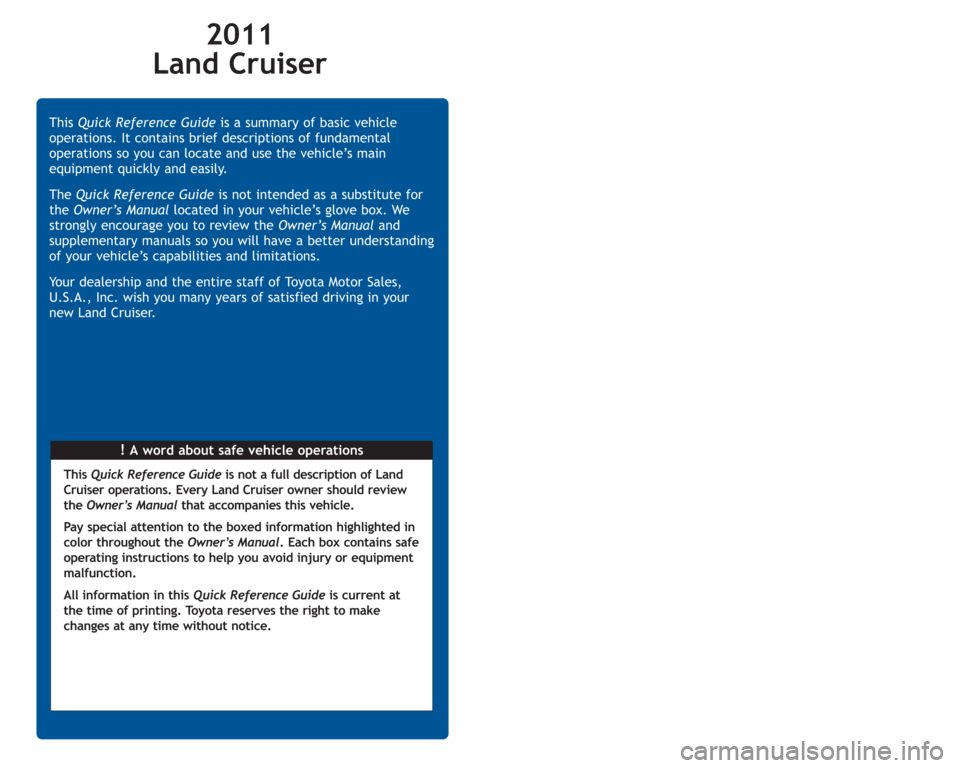

2011
Land Cruiser
!A word about safe vehicle operations This Quick Reference Guideis a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guideis not intended as a substitute for
theOwner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review theOwner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Land Cruiser.
This Quick Reference Guideis not a full description of Land
Cruiser operations. Every Land Cruiser owner should review
the Owner’s Manualthat accompanies this vehicle.
Pay special attention to the boxed
information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guideis current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
29
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the cover.
(2) Insert the jack handle extension into the lowering screw.
(3) Lower the spare tire completely to the ground.
Refer to the Owner’s Manualfor tire changing and jack positioning
procedures.
Spare tire
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
JackTool box
Doors-Child safety locks
(1)(2)(3)

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance 9Fuel tank door release and cap 8Hood release 8Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3Keyless entry16Light control-Instrument panel 9
Smart Key system1,27
Air Conditioning/Heating 18-19Audio 20-21Auto lock functions110Automatic Transmission 10Back door 17Clock 24Cool box 27Crawl control 22Cruise control 22Cup holders 27Door locks 25Four-wheel drive 11Garage door opener (HomeLink®)323Lights1& turn signals 15Mirrors-Side 17Moonroof 17Multi-information display224Parking brake 27Power outlets-12V DC 23Power outlets-115V AC 23Rear seat entertainment system 26Seat adjustments-Front 12Seat adjustments-Rear 12Seat heaters 19Seats-Head restraints 12Seats-Tumbling second row seats 13Seats-Tumbling third row seats 14-15Steering lock release 11Tilt and telescopic steering wheel 26Telephone controls (Bluetooth®)25Windows-Power 16
Window wipers & washers 16
Doors-Child safety locks 29Seat belts 28Seat belts-Shoulder belt anchor 28Spare tire & tools 29
Tire Pressure Monitoring (warning) System 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

2
OVERVIEW
Instrument panel
Steering wheel audio controls
Telephone controls1,2
Voice command button1
Multi-information display button
Headlight, turn signal and front fog light controls
Multi-information display
Wiper and washer controls
Audio system
2
“AIR BAG ON” and “AIR BAG OFF” indicator
Clock
Front passenger seat belt reminder light
Theft deterrent system/Engine immobilizer indicator
Emergency flasher button
Windshield wiper de-icer switch
1
Outside rearview mirrors/Rear window defogger button
Air Conditioning controls2
“ENGINE START STOP” switch
Steering wheel controls
(if equipped)
MODE

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Four-wheel drive control switch
VSC/TRAC OFF switch
Center differential lock/unlock switch
Cruise control
Tire Pressure Monitoring (warning) System reset
Power rearview mirror control
Instrument panel light control
Tilt and telescopic steering control
Roll Sensing of Curtain shield Airbag OFF switch
Intuitive park assist switch
1
Headlight cleaner1
1
If equipped2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual.”
Without navigation system
With navigation system

4
OVERVIEW
Indicator symbols
Instrument cluster
Tachometer
Engine coolant temperature
Fuel gauge
Speedometer
Service indicator and reminder
Vo l t m e t e r
Multi-information display
Automatic Transmission shift range display
Odometer and two trip meters
Engine oil pressure gauge
Odometer/Trip meter and trip meter reset button
Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Pre-Collision System warning light1
Malfunction/Check Engine indicator1
For details, refer to “Indicators and warning lights,” Section 2-2, 2011
Owner’s Manual.

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Low speed four-wheel drive indicator
Center differential lock indicator
Cruise control indicator
Crawl control indicator1
Low Tire Pressure Warning1
Automatic Transmission second start indicator
Open door warning
Airbag SRS warning1
Master warning1
Power mode indicatorUnengaged Park warning light
Low fuel level warning
Roll Sensing of Curtain shield Airbag OFF indicator1
Fog light indicator
1If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.

6
OVERVIEW
Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Panic button
Push and hold
NOTE:If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Smart Key system
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE:Gear shift lever must be in Park and brake pedal depressed.
Push Depress
brake pedalCarrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
Back door lock/unlock
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE:Doors may also be locked/unlocked using remote.
Power (without starting engine)
Push Lock
Push Unlock
Locking operationUnlocking operation
Carry remote to lockCarry remote to unlock
Push
Front door lockFront door unlock*
Grasp
Carry remote
to lock/unlock

8
Hood release
Pull up latch and
raise hood
Fuel tank door release and cap
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
PullTu r n t o o p e n
Store
Pull
OVERVIEW
