TOYOTA LAND CRUISER 2011 J200 Owners Manual

171
2-2. Instrument cluster
2
When driving
L/C200_U (OM60F74U)
CAUTION
■
If a safety system warning light does not come on
Should a safety system light such as Multi Terrain ABS and the SRS airbag
warning lights not come on when you start the engine, this could mean that
these systems are not available to help protect you in an accident, which
could result in death or serious injury. Have the vehicle inspected by your
Toyota dealer immediately if this occurs.

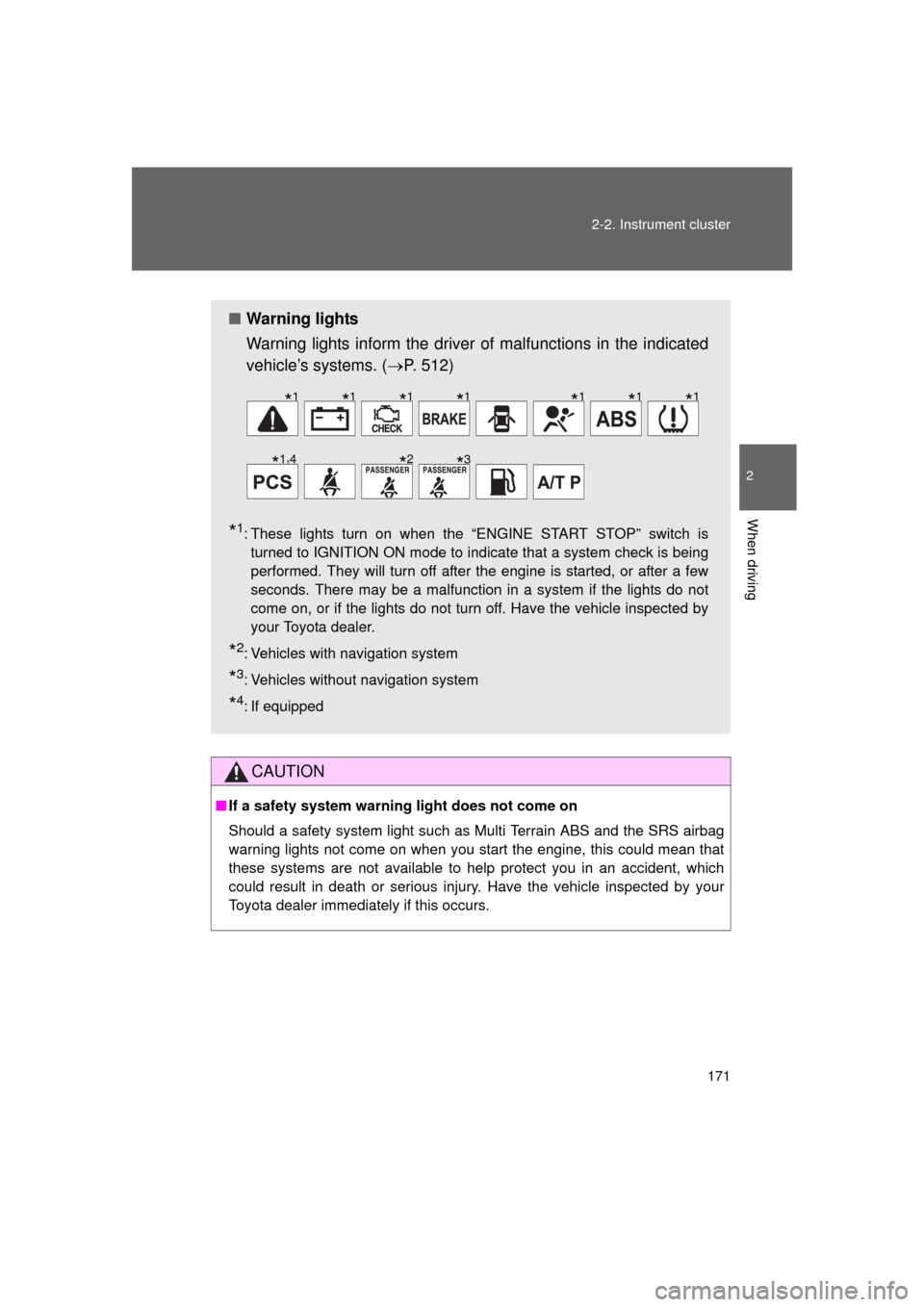

■ Warning lights
Warning lights inform the driver of malfunctions in the indicated
vehicle’s systems. ( P. 512)
*1: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is being
performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if the lights do not
come on, or if the lights do not turn off. Have the vehicle inspected by
your Toyota dealer.
*2: Vehicles with navigation system
*3: Vehicles without navigation system
*4: If equipped
*1*1*1*1*1*1*1
*1 ,
4*2*3

172
2-2. Instrument cluster
L/C200_U (OM60F74U)
Multi-information display
The Multi-information display presents the driver with a variety of
driving-related data.
● Trip information ( P. 173)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
● Intuitive parking assist dis-
play ( P. 191)
Automatically displayed when
using intuitive parking assist.
● Crawl Control display
( P. 205)
Automatically displayed when
using Crawl Control.
● Shift position and shift
range ( P. 158)
● Warning messages
( P. 523)
Automatically displayed when
a malfunction occurs in one of
the vehicle’s system.

173
2-2. Instrument cluster
2
When driving
L/C200_U (OM60F74U)
Switch the display
Display items can be switched
by pressing the “DISP” button.
Trip information■ Current fuel consumption
Displays the current rate of fuel consumption.
■ Average fuel consumption
Displays the average fuel consum ption since the vehicle was last
refueled.

174 2-2. Instrument cluster
L/C200_U (OM60F74U)■
Driving range
Displays the estimated maximum di stance that can be driven with
the quantity of fuel remaining.
● This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
● When only a small amount of fuel is added to the tank, the display may
not be updated.
■Average vehicle speed
Displays the average vehicle speed since the engine was started.
■ Driving distance
Displays the driving distance since the engine was started.
■ Tire inflation pressure
Displays inflation pressure of ea ch tire. There is no correlation
between the order of the display ed values and the tire positions.
It may take a few minutes to display the tire inflation pressure after the
“ENGINE START STOP” switch is turned to IGNITION ON mode. It may
also take a few minutes to display the tire inflation pressure after inflation
pressure has been adjusted.

175
2-2. Instrument cluster
2
When driving
L/C200_U (OM60F74U)
■
System check display
After switching the “ENGINE START STOP” switch to IGNITION ON mode,
“LAND CRUISER” is displayed while system operation is checked. When the
system check is complete, the normal screen will return.
■ Tire inflation pressure
Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using other gauges.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem to continue
using the display.
NOTICE
■The multi-information disp lay at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

176
L/C200_U (OM60F74U)
2-3. Operating the lights and wipers

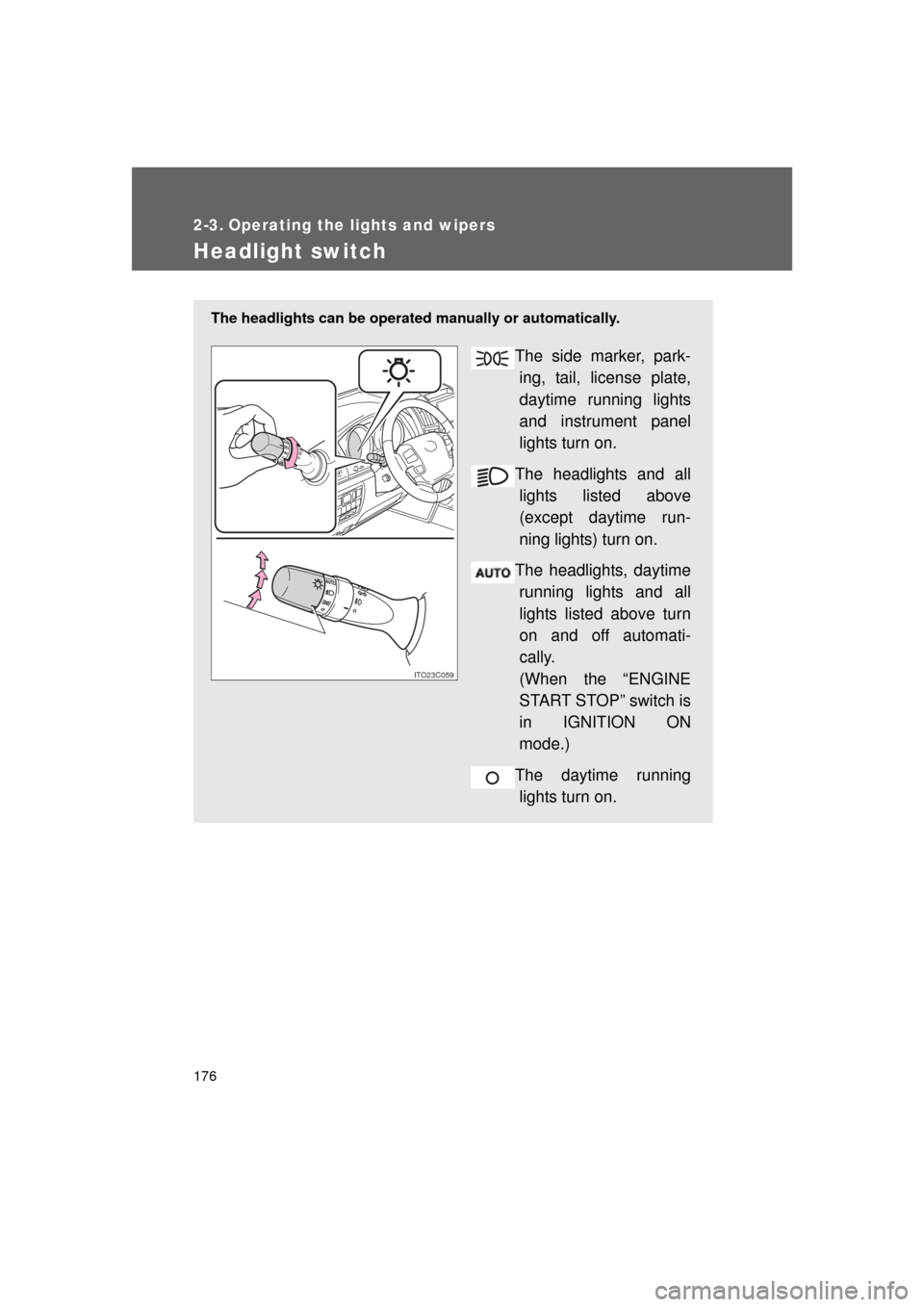

Headlight switch
The headlights can be operated manually or automatically.
The side marker, park-
ing, tail, license plate,
daytime running lights
and instrument panel
lights turn on.
The headlights and all lights listed above
(except daytime run-
ning lights) turn on.
The headlights, daytime running lights and all
lights listed above turn
on and off automati-
cally.
(When the “ENGINE
START STOP” switch is
in IGNITION ON
mode.)
The daytime running lights turn on.
ITO23C059

177
2-3. Operating the lights and wipers
2
When driving
L/C200_U (OM60F74U)
Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.
ITO23C063
■Daytime running light system
● To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the engine is started and
the parking brake is released. Daytime running lights are not designed for
use at night.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.
■ Headlight control sensor
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

178 2-3. Operating the lights and wipers
L/C200_U (OM60F74U)
■Automatic light off system
● When the headlights are on: The headlights and tail lights turn off 30 sec-
onds after a door is opened and closed if the “ENGINE START STOP”
switch has been switched to ACCESSORY or OFF mode.
● When only the tail lights are on: The tail lights turn off automatically if the
“ENGINE START STOP” switch is switched to ACCESSORY or OFF
mode and driver’s door is opened.
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNI-
TION ON mode, or turn the light switch off once and then back to the
or
position.
■ Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features P. 583)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.

179
2-3. Operating the lights and wipers
2
When driving
L/C200_U (OM60F74U)

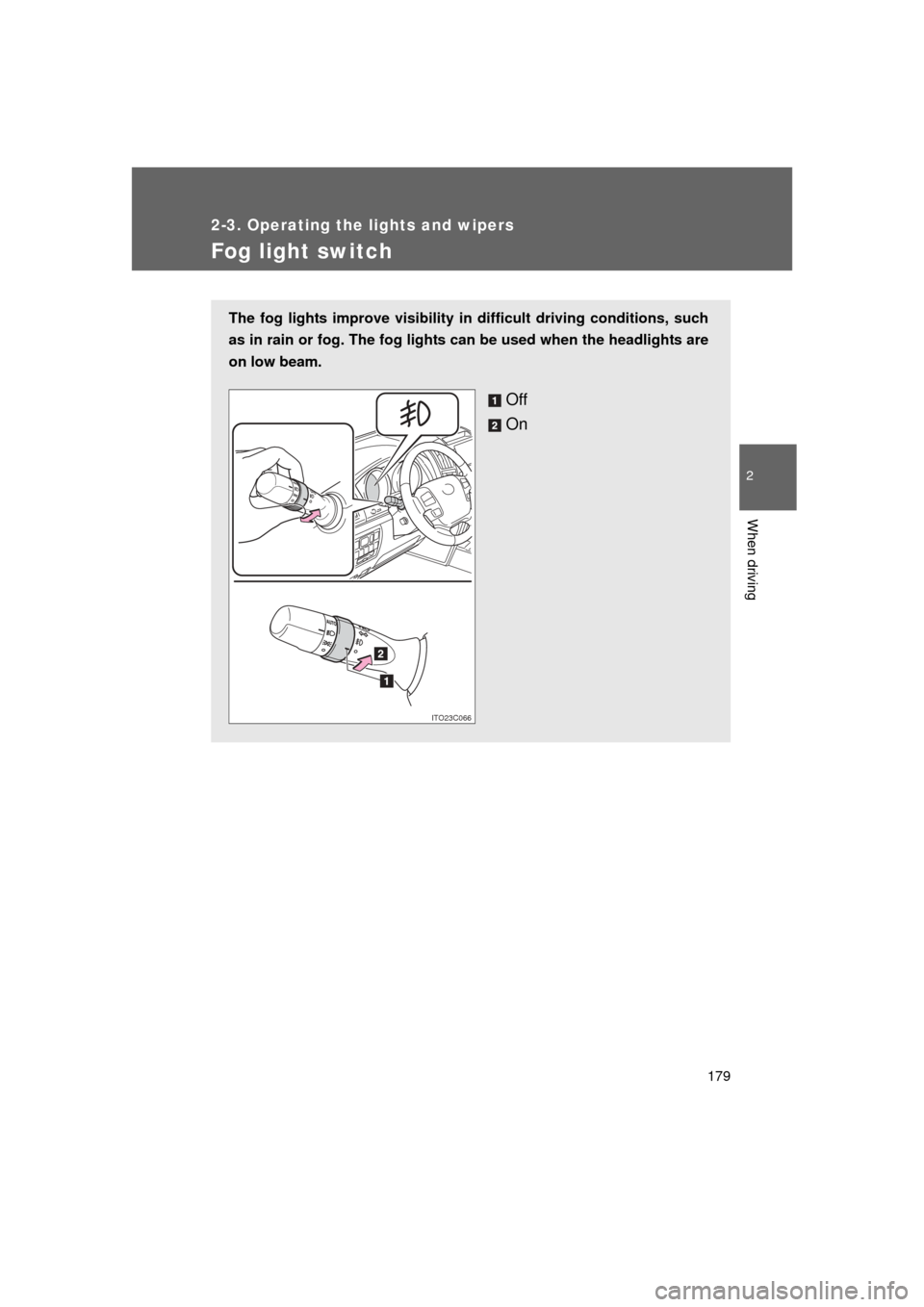

Fog light switch
The fog lights improve visibility in difficult driving conditions, such
as in rain or fog. The fog lights can be used when the headlights are
on low beam.
Off
On
ITO23C066

180
2-3. Operating the lights and wipers
L/C200_U (OM60F74U)

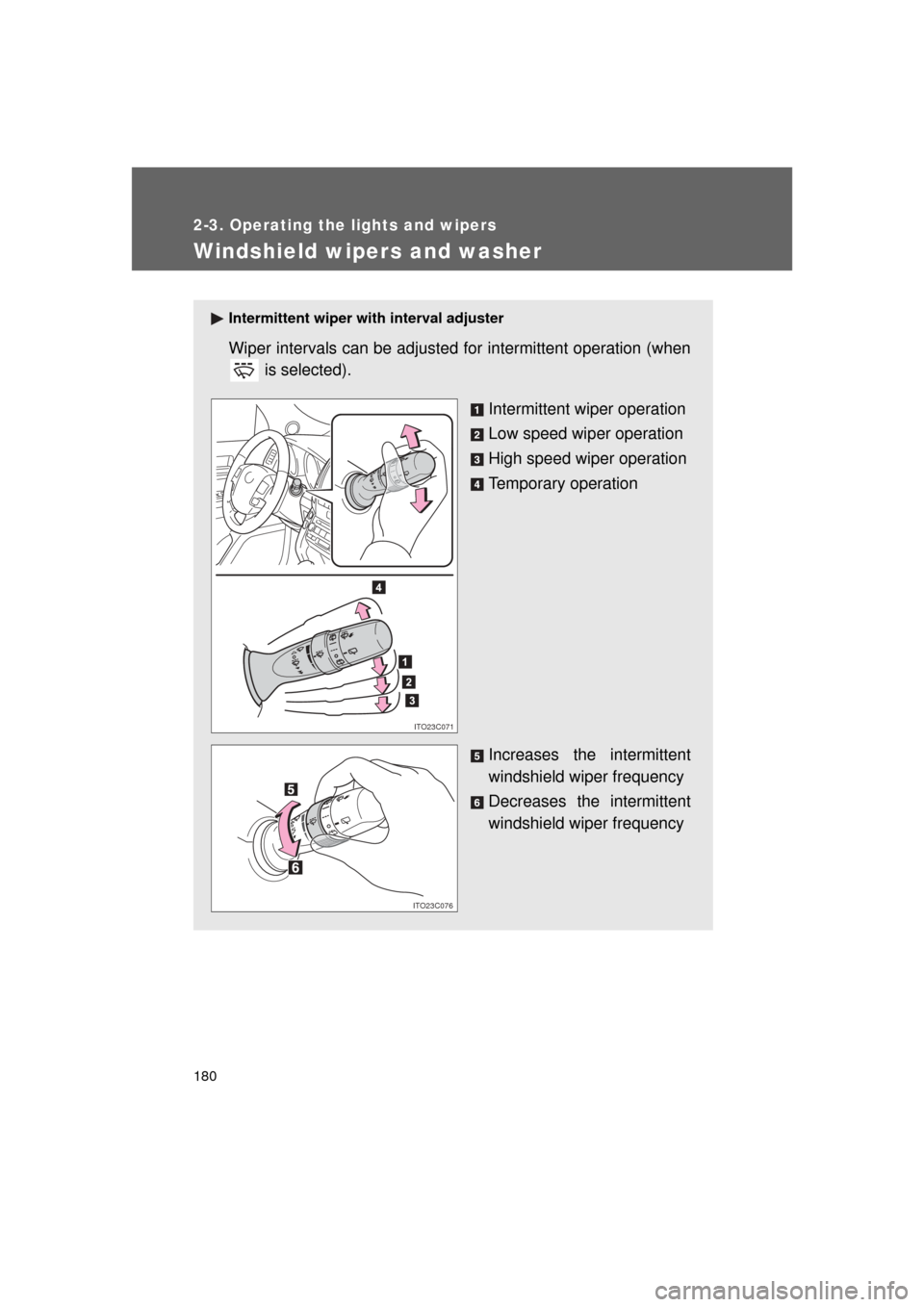

Windshield wipers and washer
Intermittent wiper with interval adjuster
Wiper intervals can be adjusted for intermittent operation (when is selected).
Intermittent wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
ITO23C071
ITO23C076
