Page 251 of 608
251
2-5. Driving information
2
When driving
L/C200_U (OM60F74U)
NOTICE
■
When installing a trailer hitch
Use only the position recommended by your Toyota dealer. Do not install the
trailer hitch on the bumper; this may cause body damage.
■ Do not directly splice trailer lights
Do not directly splice trailer lights. Directly splicing trailer lights may damage
your vehicle’s electrical system and cause a malfunction.
Page 252 of 608
252
2-5. Driving information
L/C200_U (OM60F74U)
Dinghy towing
NOTICE
■To avoid serious damage to your vehicle
Do not tow your vehicle with four wheels on the ground.
Your vehicle is not designed to be dinghy towed (with 4 wheels
on the ground) behind a motor home.
Page 253 of 608
253
2-5. Driving information
2
When driving
L/C200_U (OM60F74U)
Page 254 of 608
254
L/C200_U (OM60F74U)

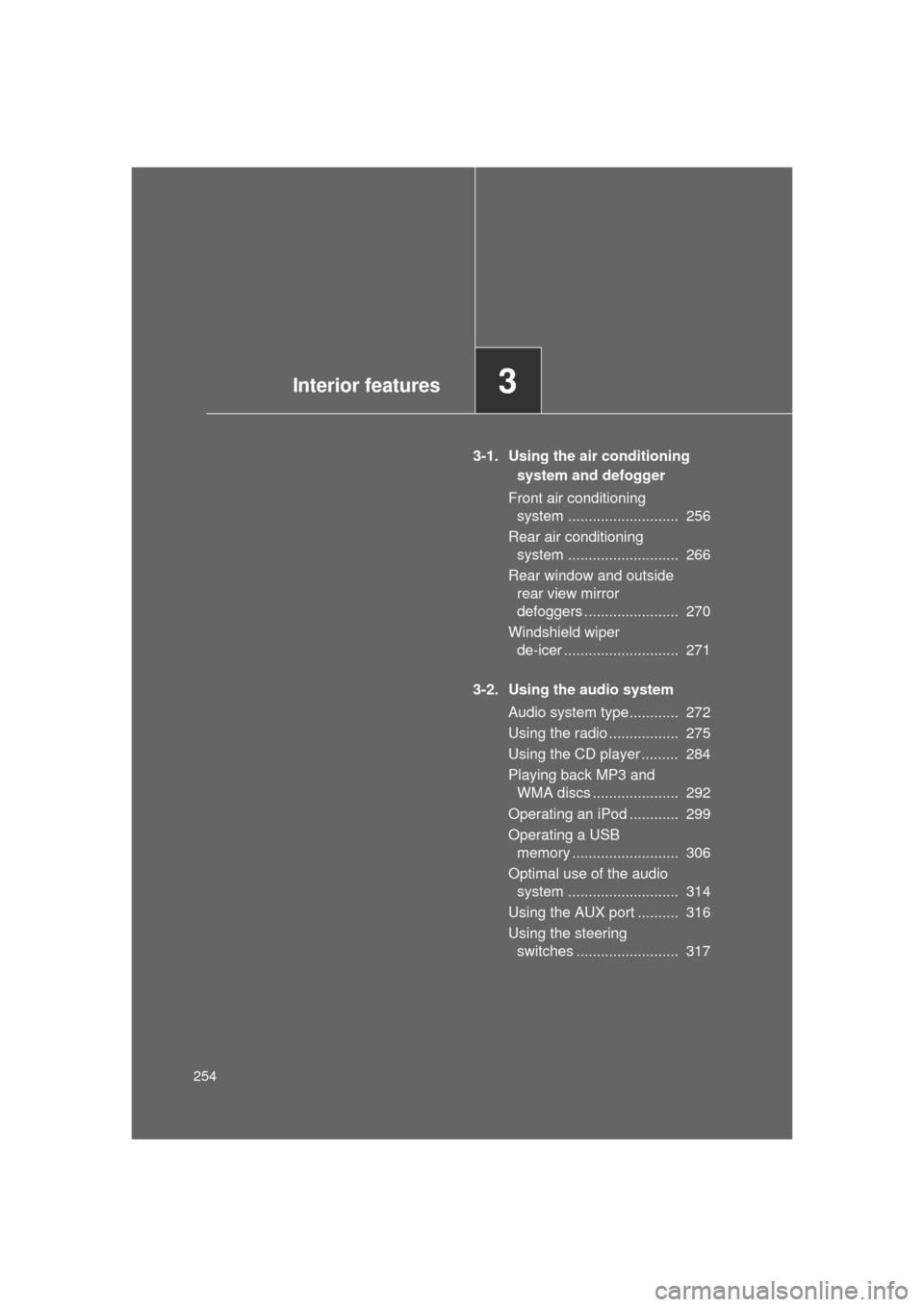

3-1. Using the air conditioning system and defogger
Front air conditioning system ........................... 256
Rear air conditioning system ........................... 266
Rear window and outside rear view mirror
defoggers ....................... 270
Windshield wiper de-icer ............................ 271
3-2. Using the audio system Audio system type............ 272
Using the radio ................. 275
Using the CD player ......... 284
Playing back MP3 and WMA discs ..................... 292
Operating an iPod ............ 299
Operating a USB memory .......................... 306
Optimal use of the audio system ........................... 314
Using the AUX port .......... 316
Using the steering switches ......................... 317
Interior features3

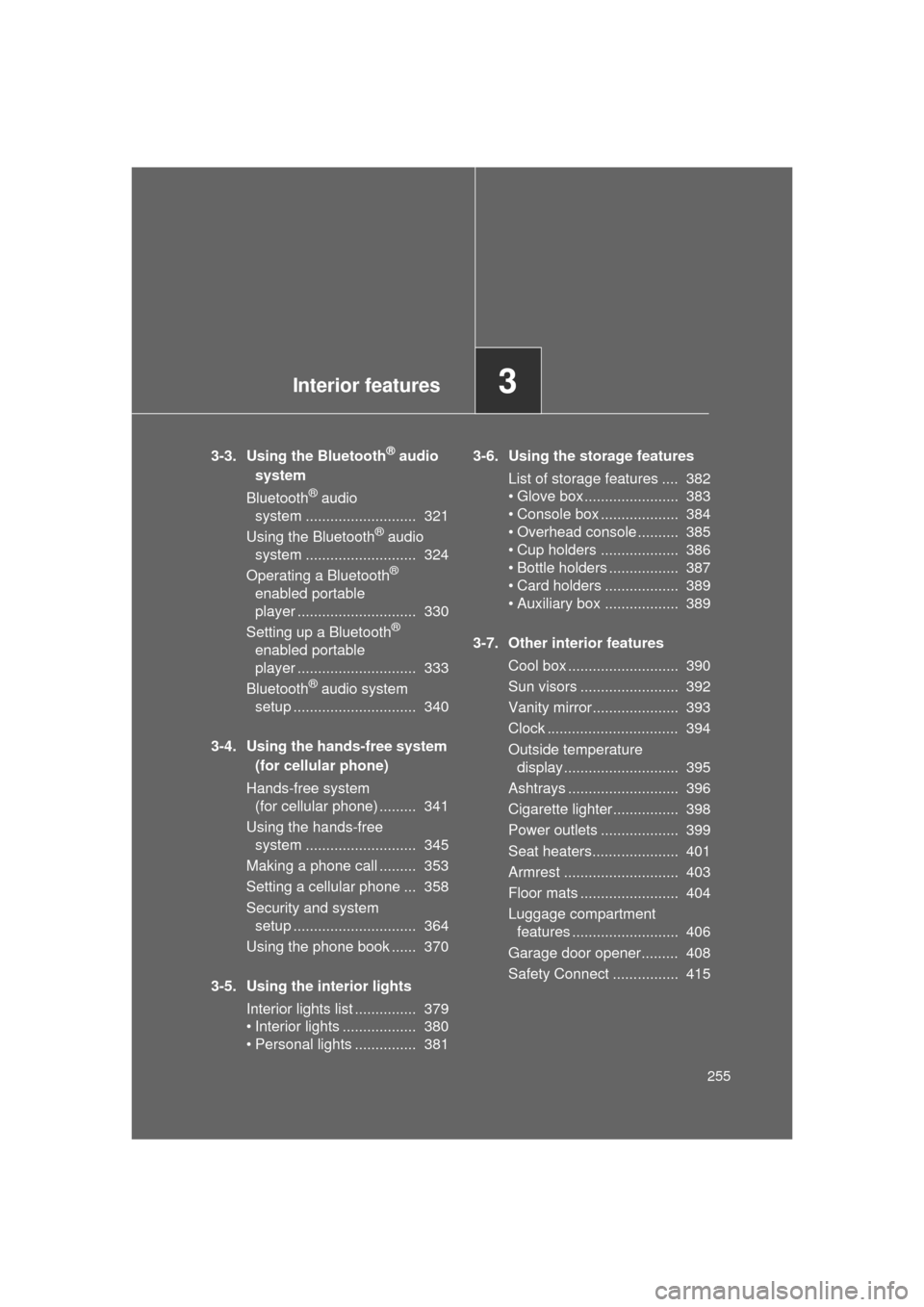

Page 255 of 608

Interior features3
255
L/C200_U (OM60F74U)
3-3. Using the Bluetooth® audio
system
Bluetooth
® audio
system ........................... 321
Using the Bluetooth
® audio
system ........................... 324
Operating a Bluetooth
®
enabled portable
player ............................. 330
Setting up a Bluetooth
®
enabled portable
player ............................. 333
Bluetooth
® audio system
setup .............................. 340
3-4. Using the hands-free system (for cellular phone)
Hands-free system (for cellular phone) ......... 341
Using the hands-free system ........................... 345
Making a phone call ......... 353
Setting a cellular phone ... 358
Security and system setup .............................. 364
Using the phone book ...... 370
3-5. Using the interior lights Interior lights list ............... 379
• Interior lights .................. 380
• Personal lights ............... 381 3-6. Using the storage features
List of storage features .... 382
• Glove box....................... 383
• Console box ................... 384
• Overhead console .......... 385
• Cup holders ................... 386
• Bottle holders ................. 387
• Card holders .................. 389
• Auxiliary box .................. 389
3-7. Other interior features Cool box ........................... 390
Sun visors ........................ 392
Vanity mirror..................... 393
Clock ................................ 394
Outside temperature display............................ 395
Ashtrays ........................... 396
Cigarette lighter................ 398
Power outlets ................... 399
Seat heaters..................... 401
Armrest ............................ 403
Floor mats ........................ 404
Luggage compartment features .......................... 406
Garage door opener......... 408
Safety Connect ................ 415
Page 256 of 608

256
L/C200_U (OM60F74U)
3-1. Using the air conditioning system and defogger

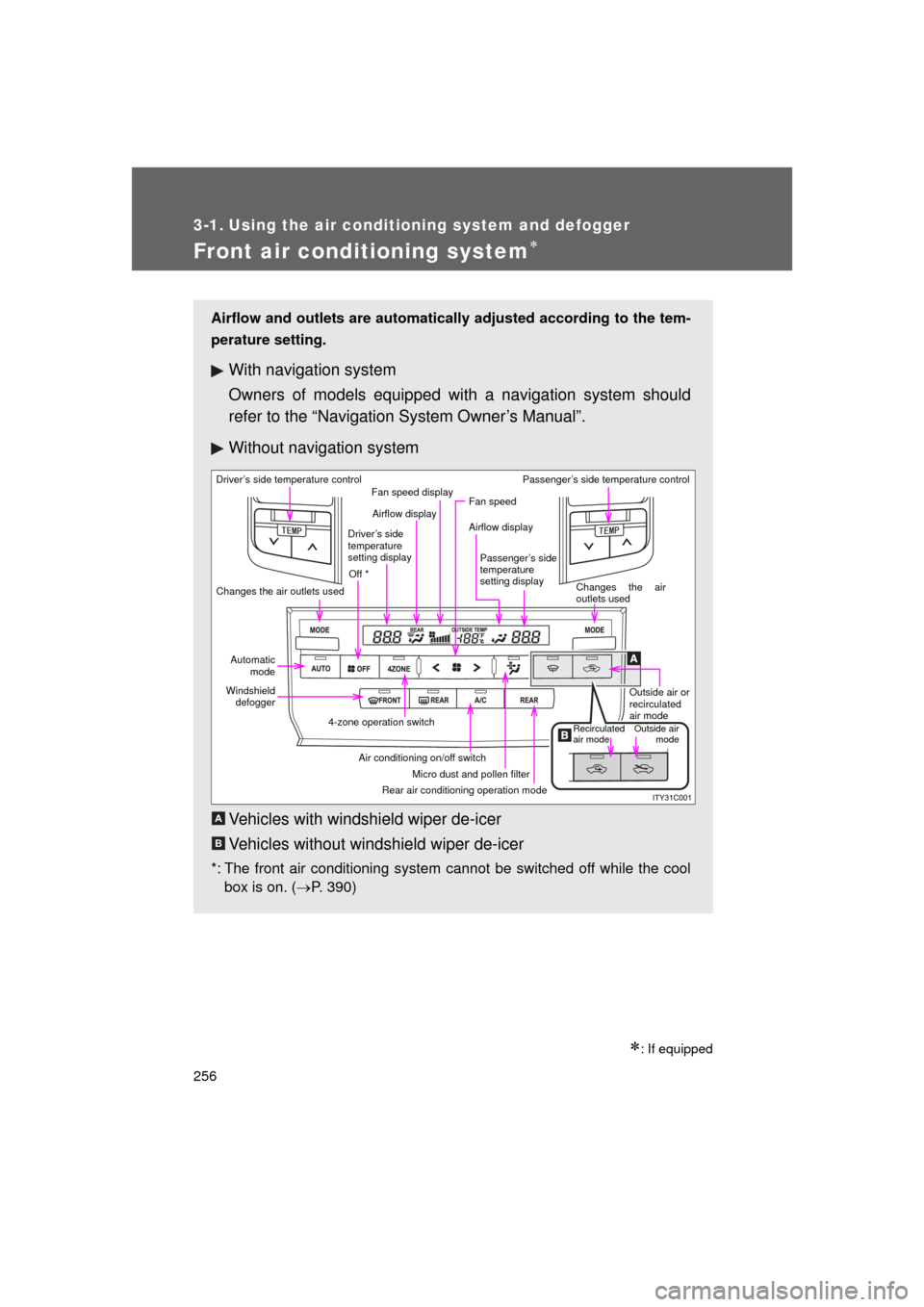

Front air conditioning system
: If equipped
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
With navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Without navig ation system
Vehicles with windshield wiper de-icer
Vehicles without windshield wiper de-icer
*: The front air conditioning system cannot be switched off while the cool box is on. ( P. 390)
Driver’s side temperature control
Changes the air outlets used Off *Airflow display
Fan speed display
Fan speed
Airflow display
Passenger’s side
temperature
setting display Passenger’s side temperature control
Changes the air
outlets usedOutside air or
recirculated
air mode
Outside airmode
Recirculated
air mode
Rear air conditioning operation mode Micro dust and pollen filter
Air conditioning on/off switch
4-zone operation switch
Windshield
defogger
Automatic
mode
Driver’s side
temperature
setting display
A
B
Page 257 of 608
257
3-1. Using the air conditioning system
and defogger
3
Interior features
L/C200_U (OM60F74U)
Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Press “” to increase the temperature and “ ” to decrease the
temperature on .
The temperature for the driver’s and front passenger’s seats can be
set separately.
STEP1
STEP2
6 ' / 2
Page 258 of 608
258 3-1. Using the air conditioning system and defogger
L/C200_U (OM60F74U)
Adjusting the settings
■ Adjusting the temperature setting
Press “ ” to increase the temperature and “ ” to decrease the tem-
perature on .
The air conditioning system switches between individual and simul-
taneous modes each time is pressed.
Individual mode (the indicator on is on.): The temperature for
the driver’s, front passenger’s and rear seats ( P. 261) can be set
separately. Operating the passenger’s side or rear temperature con-
trol will enter individual mode.
Simultaneous mode (the indicator on is off.): Only
(driver’s side) can be used to adjust the temperature for all seats.
■ Adjusting the fan speed
Press “ ” (increase) or “ ” (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
6 ' / 2
6 ' / 2
Page 259 of 608
259
3-1. Using the air conditioning system
and defogger
3
Interior features
L/C200_U (OM60F74U)■
Changing the air outlets
Press .
For driver’s seat
For front passenger’s seat
The air outlets switch each time
the button is pressed.
Different air outlets for the driver’s
and front passenger’s seats can
be chosen.
*: Driver side only
Air flows to the upper body.
*1: Depending on the rear air con-ditioning setting.
*2: Only in the automatic mode
Air flows to the upper body and
feet.
*1: Depending on the rear air con-ditioning setting.
ITO31C050
*
Page 260 of 608
260 3-1. Using the air conditioning system and defogger
L/C200_U (OM60F74U) Air flows to the feet.
*1: Depending on the rear air con-
ditioning setting.
Air flows to the feet and the
windshield defogger operates.
■ Switching between outside air and recirculated air modes
Vehicles with windshield wiper de-icer
Press .
The mode switches between outside air mode (indicator off) and
recirculated air mode (indicator on) each time the button is pressed.
Vehicles without windshield wiper de-icer
Press to switch to recirculated air mode and press
to switch to outside air mode.
ITY31C014
