TOYOTA LAND CRUISER 2011 J200 Owners Manual

471
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60F74U)
■

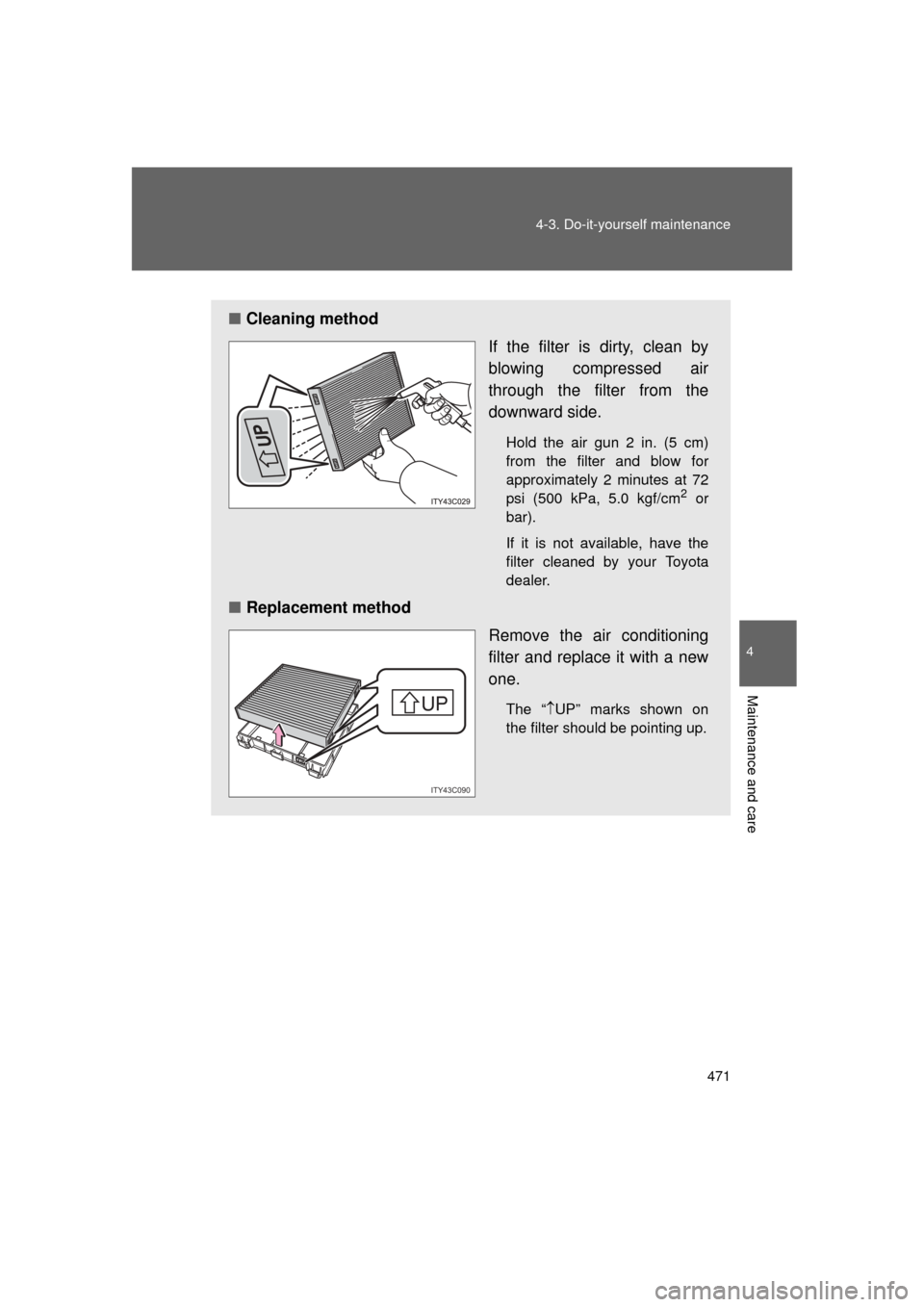

Cleaning method
If the filter is dirty, clean by
blowing compressed air
through the filter from the
downward side.
Hold the air gun 2 in. (5 cm)
from the filter and blow for
approximately 2 minutes at 72
psi (500 kPa, 5.0 kgf/cm
2 or
bar).
If it is not available, have the
filter cleaned by your Toyota
dealer.
■ Replacement method
Remove the air conditioning
filter and replace it with a new
one.
The “UP” marks shown on
the filter should be pointing up.
UP
UP
UP
ITY43C090

472 4-3. Do-it-yourself maintenance
L/C200_U (OM60F74U)
■Checking interval
Inspect, clean and replace the air conditioning filter according to the mainte-
nance schedule. In dusty areas or areas with heavy traffic flow, more fre-
quent cleaning or early replacement may be required. (For scheduled
maintenance information, read the “Scheduled Maintenance Guide”,
“Owner’s Manual Supplement”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
■To prevent damage to the system
● When using the air conditioning system, make sure that a filter is always
installed.
● When cleaning the filter, do not clean the filter with water.

473
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60F74U)

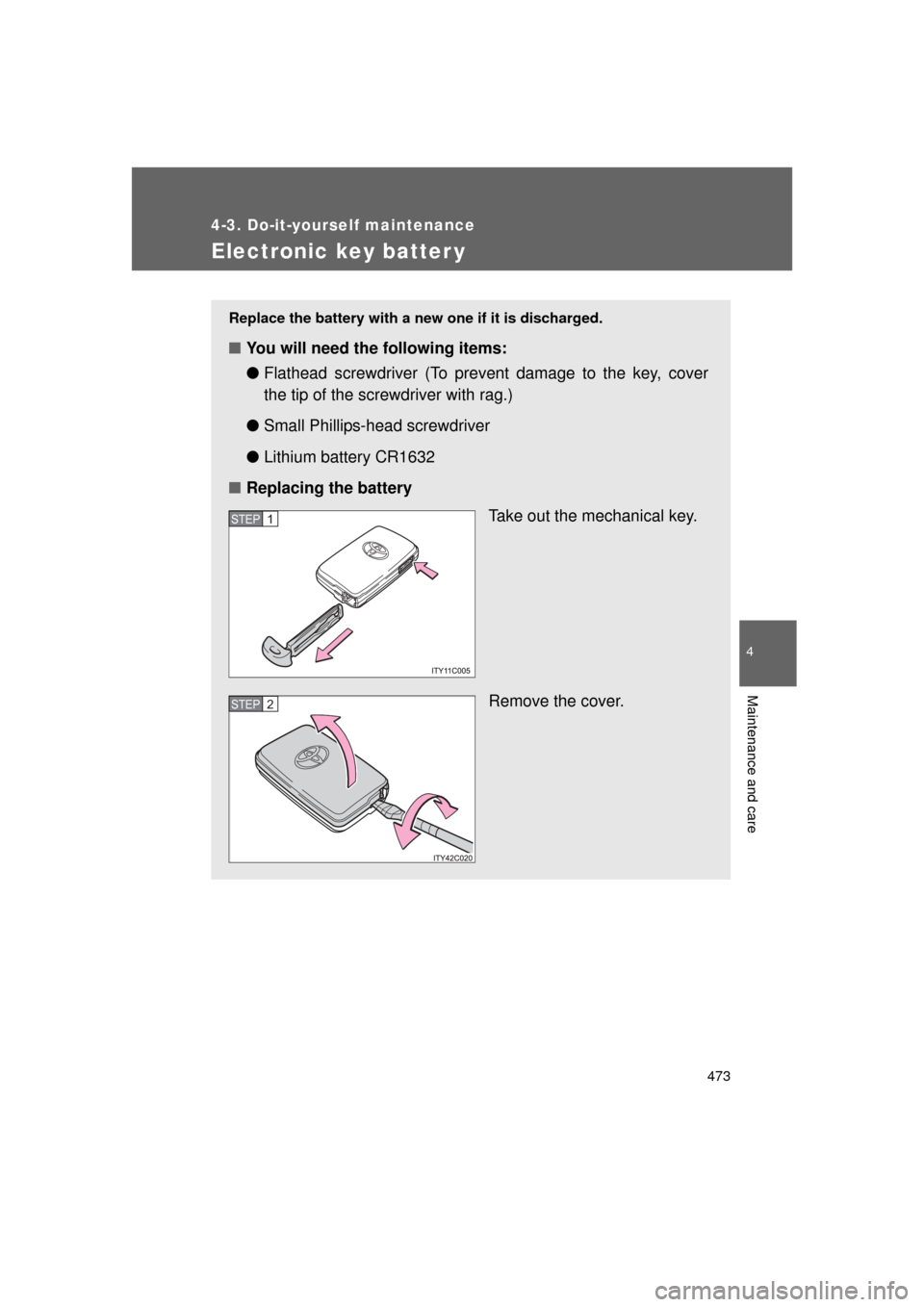

Electronic key batter y
Replace the battery with a new one if it is discharged.
■You will need the following items:
●Flathead screwdriver (To prevent damage to the key, cover
the tip of the screwdriver with rag.)
● Small Phillips-hea d screwdriver
● Lithium battery CR1632
■ Replacing the battery
Take out the mechanical key.
Remove the cover.
STEP1
STEP2

474 4-3. Do-it-yourself maintenance
L/C200_U (OM60F74U)
■If the electronic key battery is discharged
The following symptoms may occur.
● The smart key system and wireless remote control will not function prop-
erly.
● The operational range is reduced.
■ Use a CR1632 lithium battery
● Batteries can be purchased at your Toyota dealer, jewelers, or camera
stores.
● Replace only with the same or equivalent type recommended by a
Toyota dealer.
● Dispose of used batteries according to the local laws.

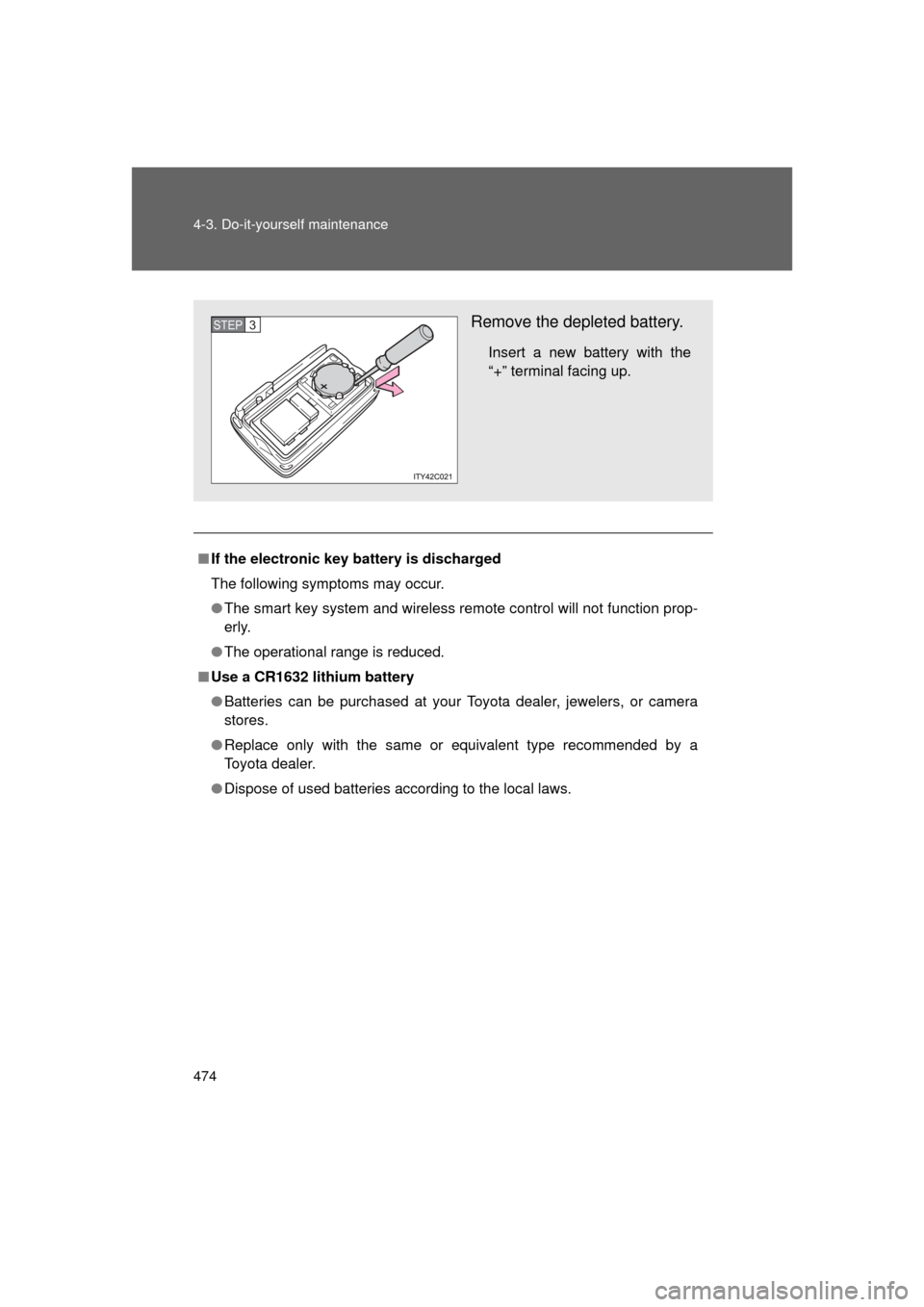

Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP3

475
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60F74U)
CAUTION
■
Removed battery and other parts
Keep away from children. These parts are small and if swallowed by a child,
they can cause choking. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the electronic key.
● Do not bend the battery terminals.

476
4-3. Do-it-yourself maintenance
L/C200_U (OM60F74U)

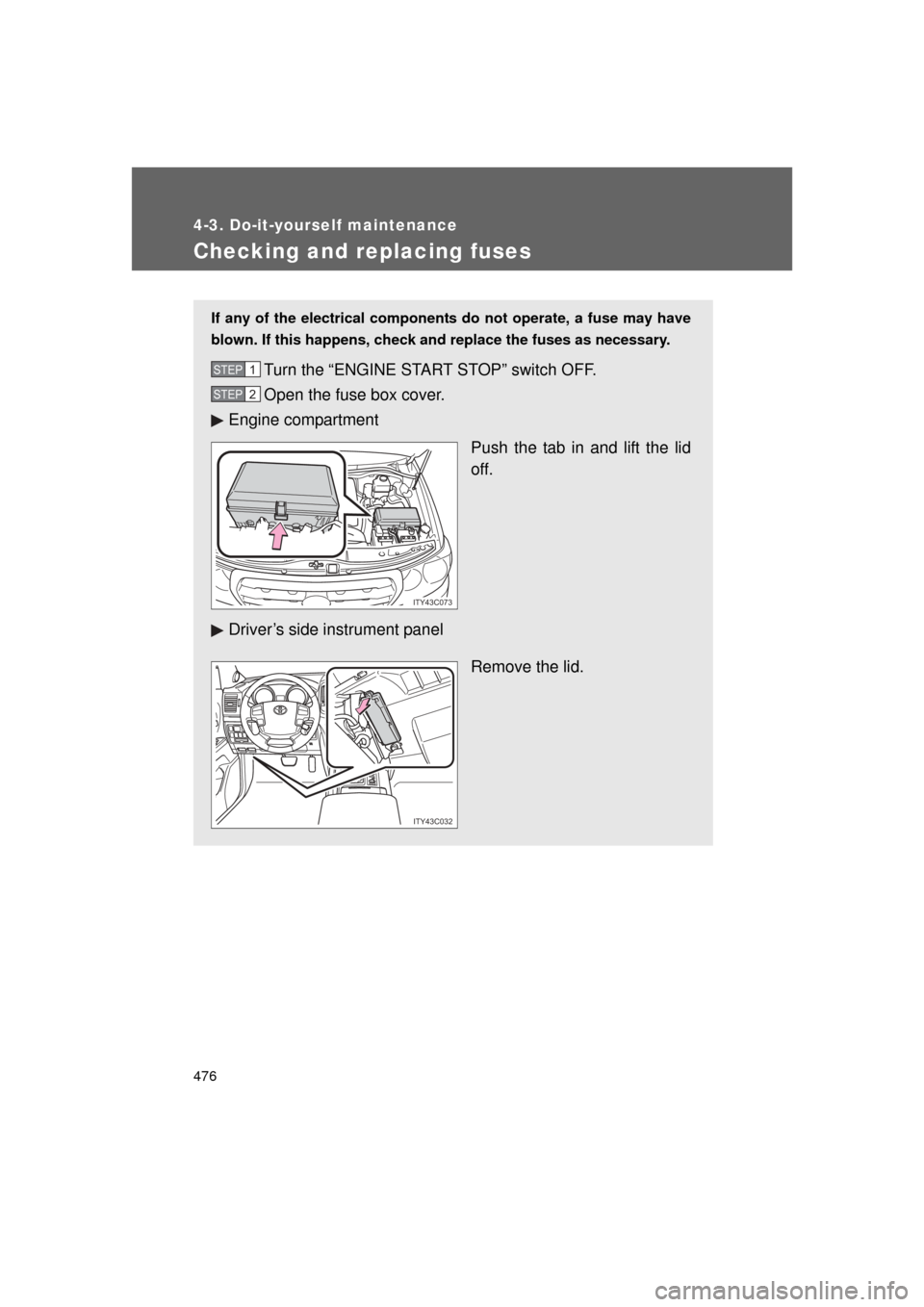

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch OFF.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Driver’s side instrument panel Remove the lid.STEP1
STEP2
ITY43C073
ITY43C032

477
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60F74U)

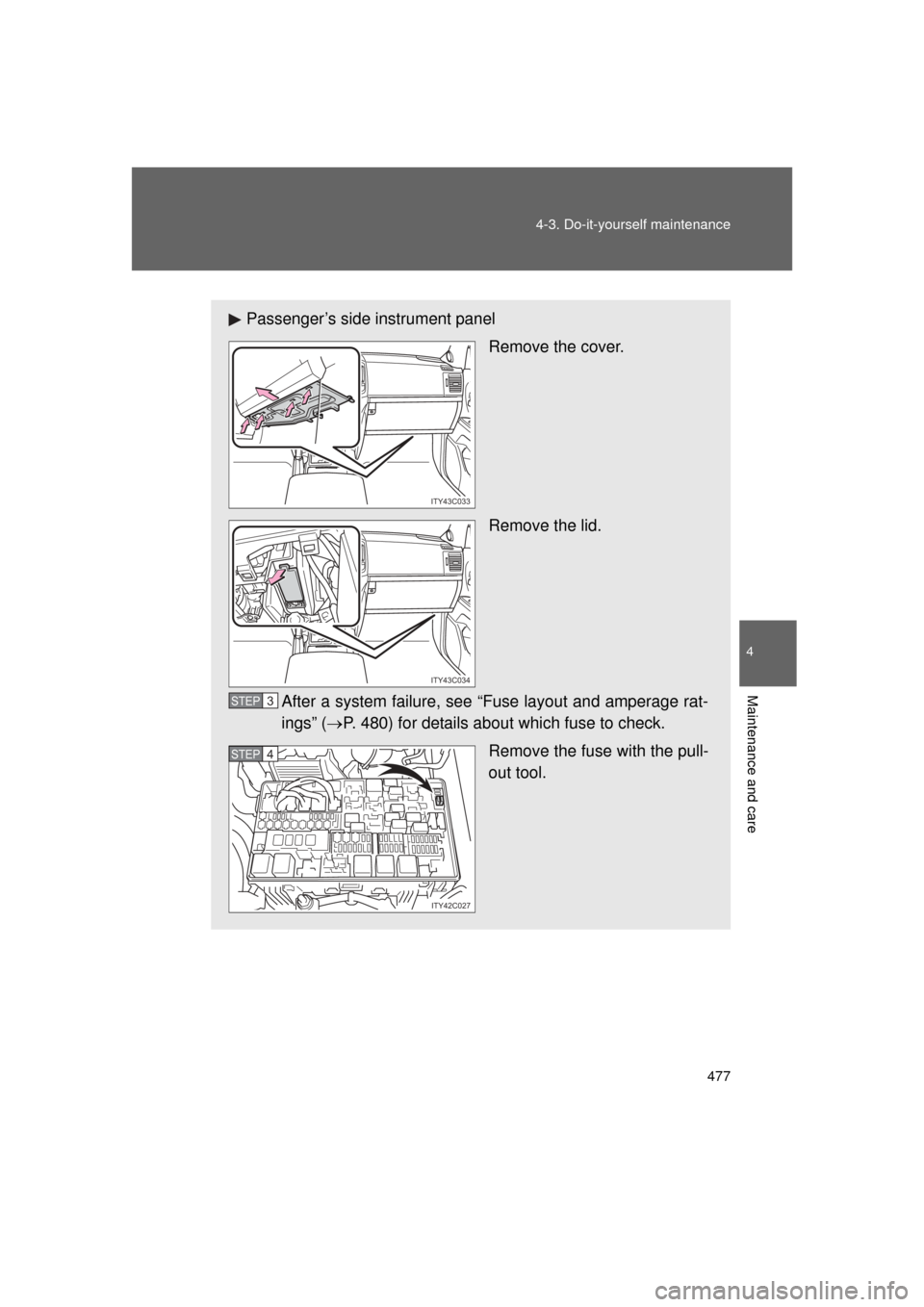

Passenger’s side instrument panel
Remove the cover.
Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” ( P. 480) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
ITY43C033
ITY43C034
STEP3
ITY42C027
STEP4

478 4-3. Do-it-yourself maintenance
L/C200_U (OM60F74U)

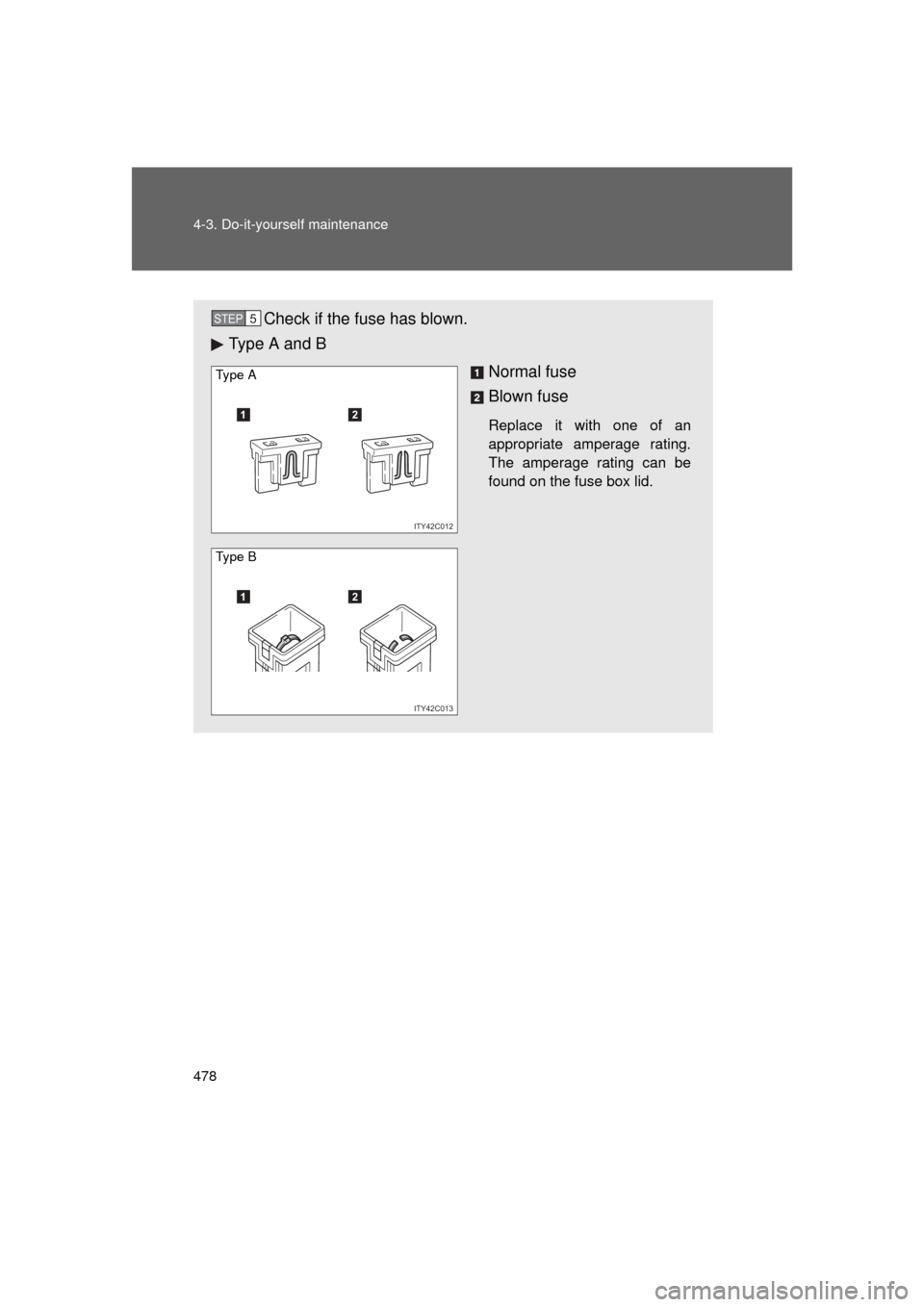

Check if the fuse has blown.
Type A and B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP5
12
ITY42C012
Ty pe A
12
ITY42C013
Ty pe B

479
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60F74U)

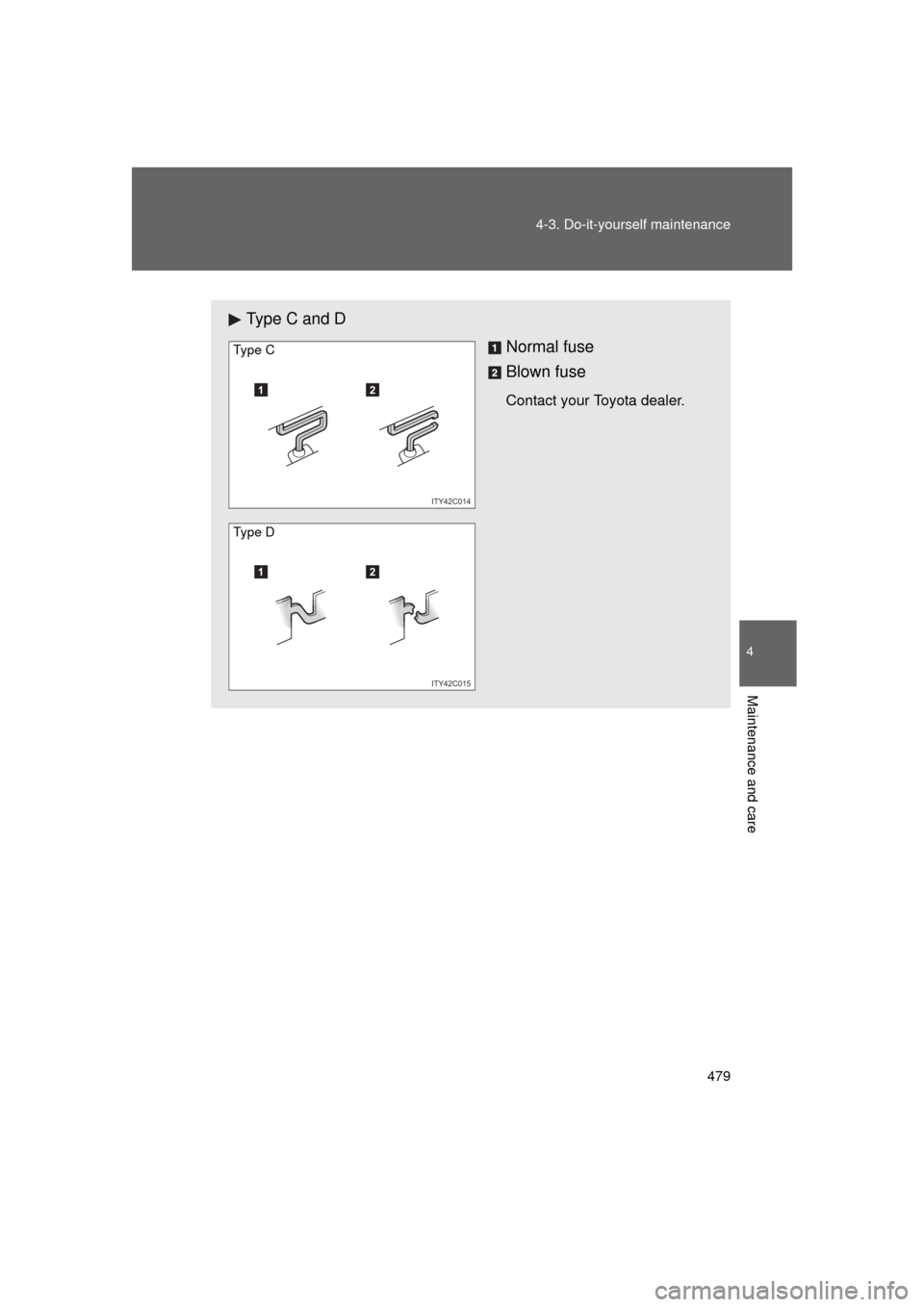

Type C and D
Normal fuse
Blown fuse
Contact your Toyota dealer.12
ITY42C014
Ty pe C
12
ITY42C015
Ty pe D

480 4-3. Do-it-yourself maintenance
L/C200_U (OM60F74U)

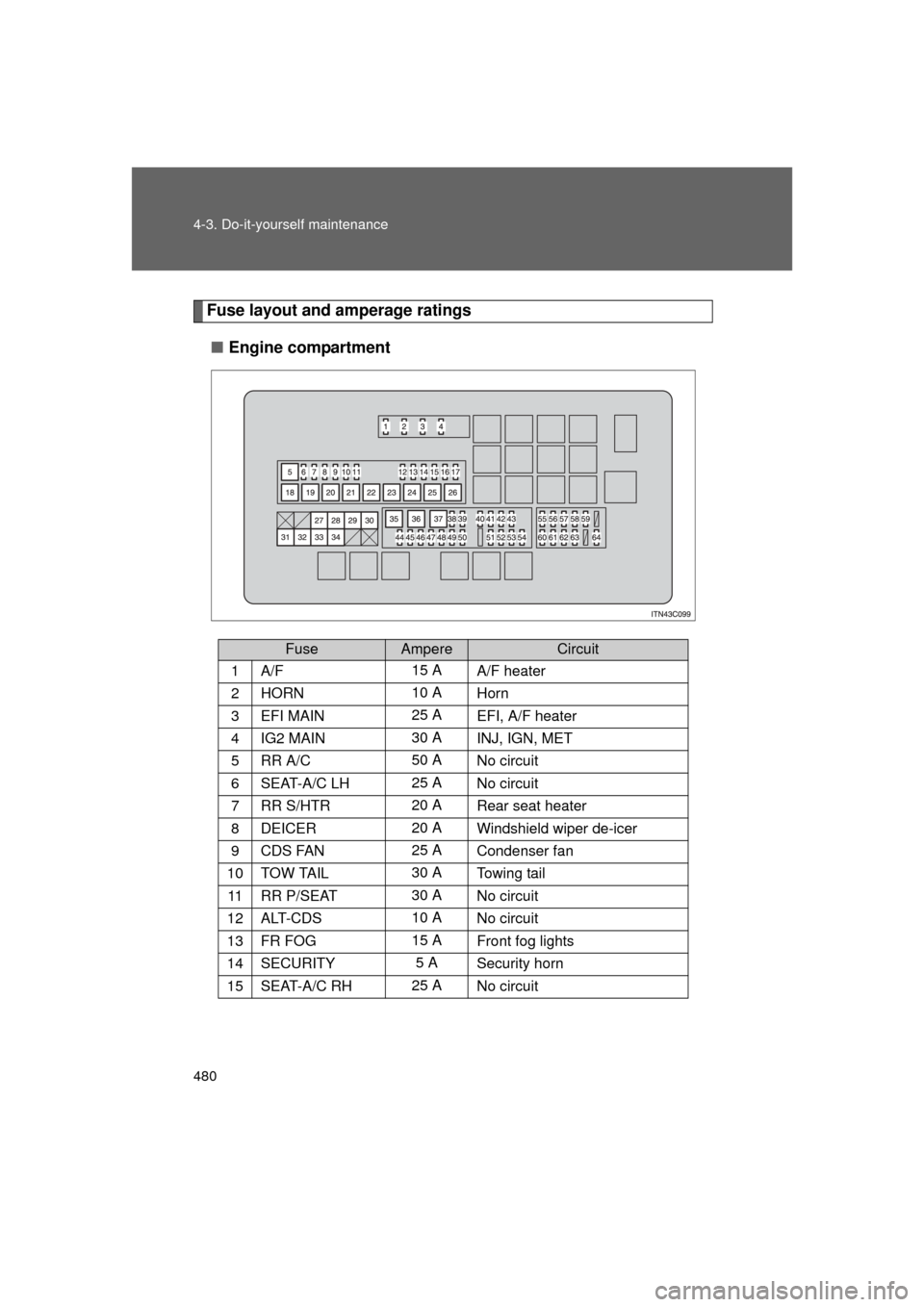

Fuse layout and amperage ratings■ Engine compartment
FuseAmpereCircuit
1A/F15 A
A/F heater
2HORN10 AHorn
3EFI MAIN25 A
EFI, A/F heater
4IG2 MAIN 30 AINJ, IGN, MET
5RR A/C50 ANo circuit
6SEAT-A/C LH25 A
No circuit
7RR S/HTR20 ARear seat heater
8DEICER20 AWindshield wiper de-icer
9CDS FAN25 A
Condenser fan
10TOW TAIL30 ATowing tail
11RR P/SEAT30 ANo circuit
12ALT-CDS10 A
No circuit
13FR FOG15 AFront fog lights
14SECURITY5 ASecurity horn
15SEAT-A/C RH25 A No circuit
