1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
L/C200_U (OM60F74U)

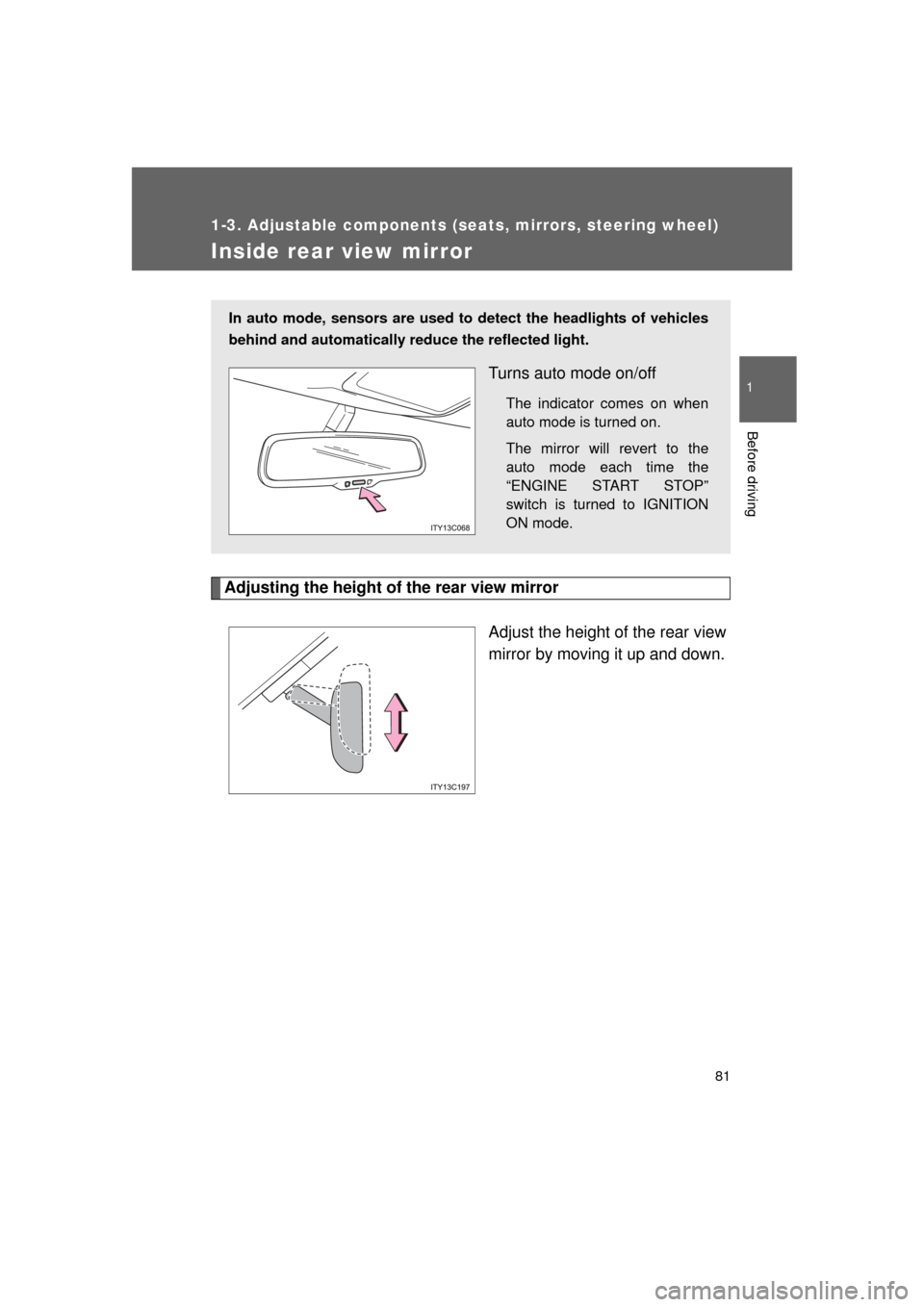

Inside rear view mirror
Adjusting the height of the rear view mirrorAdjust the height of the rear view
mirror by moving it up and down.
In auto mode, sensors are used to detect the headlights of vehicles
behind and automatically reduce the reflected light.
Turns auto mode on/off
The indicator comes on when
auto mode is turned on.
The mirror will revert to the
auto mode each time the
“ENGINE START STOP”
switch is turned to IGNITION
ON mode.

82 1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_U (OM60F74U)
■To prevent sensor error
CAUTION
■While driving
Do not adjust the position of the mirror.
Doing so may lead to mishandling of the vehicle and an accident, or result-
ing in death or serious injury.
To ensure correct functioning of the sen-
sors, do not touch or cover the sensors.
ITY13C080

83
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
L/C200_U (OM60F74U)

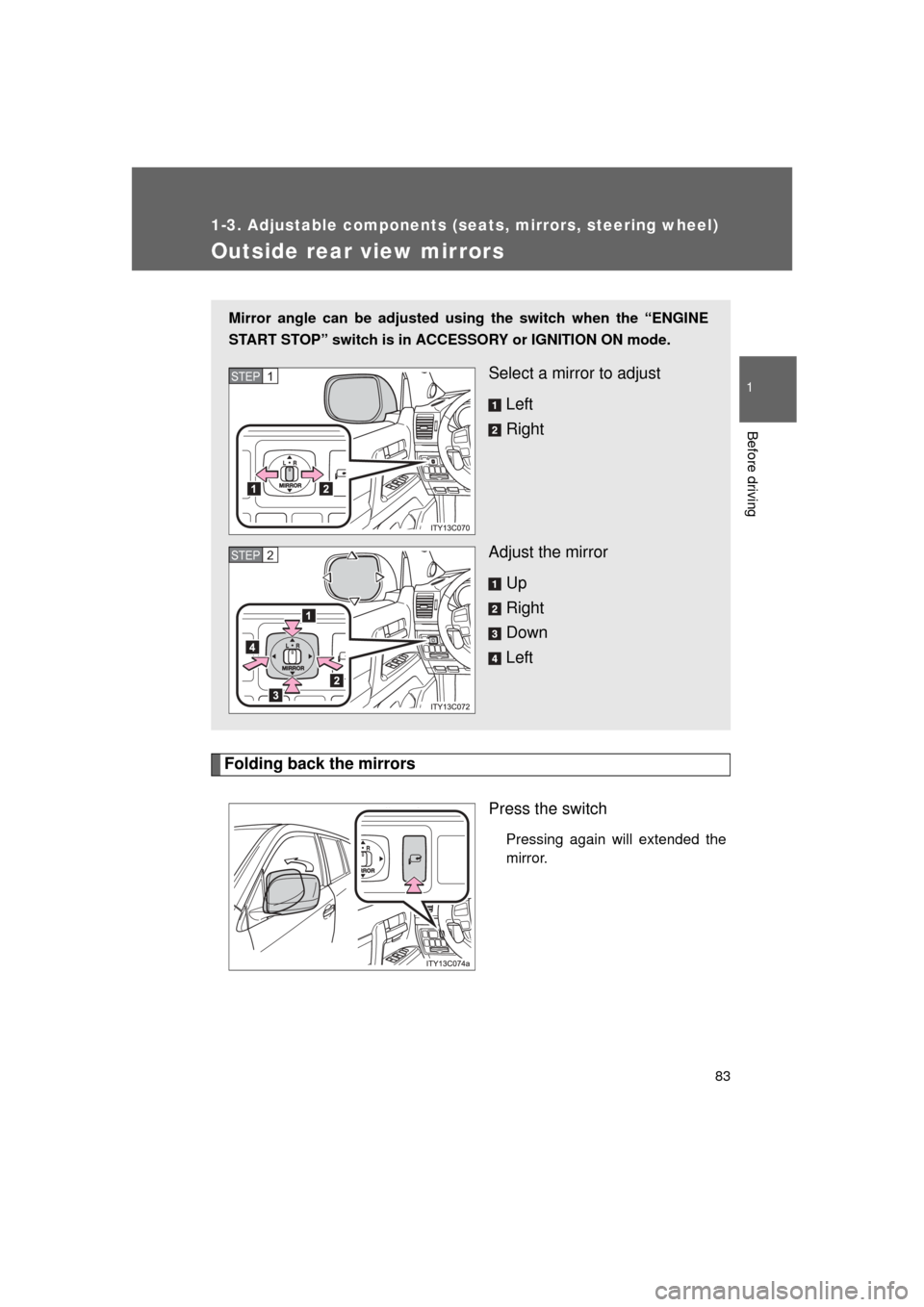

Outside rear view mirrors
Folding back the mirrorsPress the switch
Pressing again will extended the
mirror.
Mirror angle can be adjusted usin g the switch when the “ENGINE
START STOP” switch is in ACCESSORY or IGNITION ON mode.
Select a mirror to adjust
Left
Right
Adjust the mirror Up
Right
Down
LeftSTEP1
STEP2

84 1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_U (OM60F74U)
■When the mirrors are fogged up
Turn on the outside rear view mirror defoggers to defog the mirrors.
(P. 270)
■ Auto anti-glare function
When the anti-glare inside rear view mirror is set to auto mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear
view mirror to reduce reflected light. ( P. 81)
■ Linked mirror function when reversing
The outside rear view mirrors will automatically angle downwards when the
vehicle is reversing in order to give a better view of the ground. However,
this function will not operate when the mirror select switch is in the n\
eutral
position (between “L” and “R”).
■ One-touch adjustment of the mirror angle
A desired mirror face angle can be entered to memory and adjusted with the
touch of a button. ( P. 62)
CAUTION
■While driving
Observe the following precautions.
Failing to do so may result in losing control of the vehicle and cause an acci-
dent, resulting in death or serious injury.
● Do not adjust the mirrors.
● Do not drive with the mirrors folded back.
● Before driving, be sure to extend mirrors and make an adjustment prop-
erly.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defo ggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.

85
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
L/C200_U (OM60F74U)
NOTICE
■If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to
free the mirror.

86
L/C200_U (OM60F74U)
1-4. Opening and closing the windows and moon roof

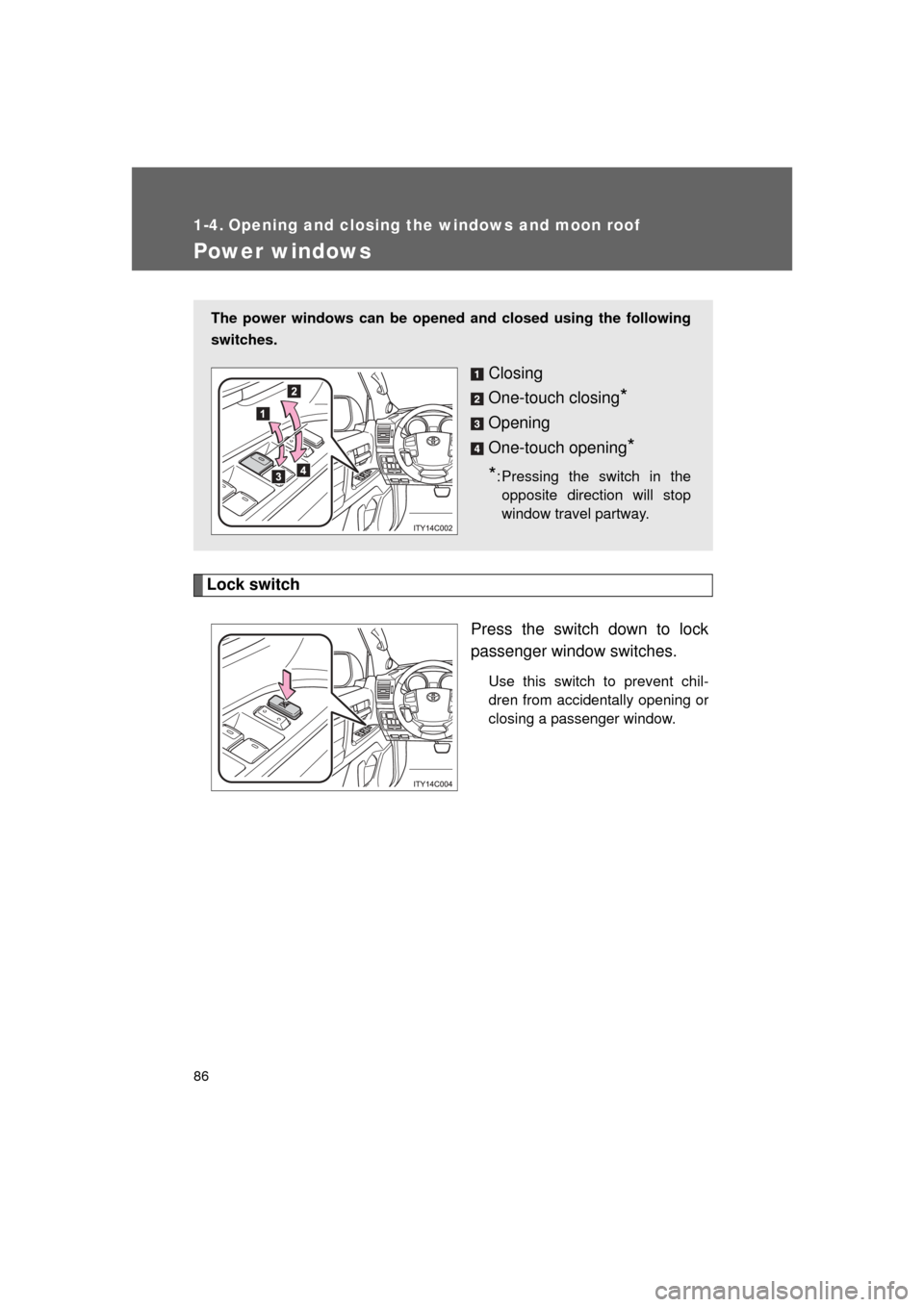

Power windows
Lock switchPress the switch down to lock
passenger window switches.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.
The power windows can be opened and closed using the following
switches.
Closing
One-touch closing
*
Opening
One-touch opening
*
*
: Pressing the switch in the opposite direction will stop
window travel partway.

87
1-4. Opening and closing the windows and moon roof
1
Before driving
L/C200_U (OM60F74U)
■
The power windows can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ Door lock linked window operation
The following functions can be used if customized at your Toyota dealer.
● The power windows can be opened and closed using the mechanical
key. ( P. 41)
● The power windows can be opened using the wireless remote control.
(P. 3 9 )
● The power windows can be closed using the smart key system. ( P. 27)
■ Operating the power windows after turning the “ENGINE START STOP”
switch OFF
The power windows can be operated for approximately 45 seconds even
after the “ENGINE START STOP” switch is turned ACCESSORY mode or
turned OFF. They cannot, however, be operated once the driver’s or front
passenger’s door is opened.
■ Jam protection function
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.

88 1-4. Opening and closing the windows and moon roof
L/C200_U (OM60F74U)
■When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot
be closed, perform the following operations using the power window switch
on the relevant door.
● After stopping the vehicle, the window can be closed by holding the
power window switch in the one-touch closing position while the
“ENGINE START STOP” switch is turned to IGNITION ON mode.
● If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position.
Continue holding the switch for a further 6 seconds after the win-
dow has closed.
Hold the power window switch in the one-touch opening position.
Continue holding the switch for a further 2 seconds after the win-
dow has opened completely.
Hold the power window switch in the one-touch closing position
once again. Continue holding the switch for a further 2 seconds
after the window has closed.
If you release the switch while the window is moving, start again from the
beginning. If the window continues to close but then re-open slightly even
after performing the above procedure correctly, have the vehicle inspected
by your Toyota dealer.
■ Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features P. 583)
STEP1
STEP2
STEP3

89
1-4. Opening and closing the windows and moon roof
1
Before driving
L/C200_U (OM60F74U)
CAUTION
■
Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
■ Jam protection function
● Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the window fully closes.

90
1-4. Opening and closing the windows and moon roof
L/C200_U (OM60F74U)

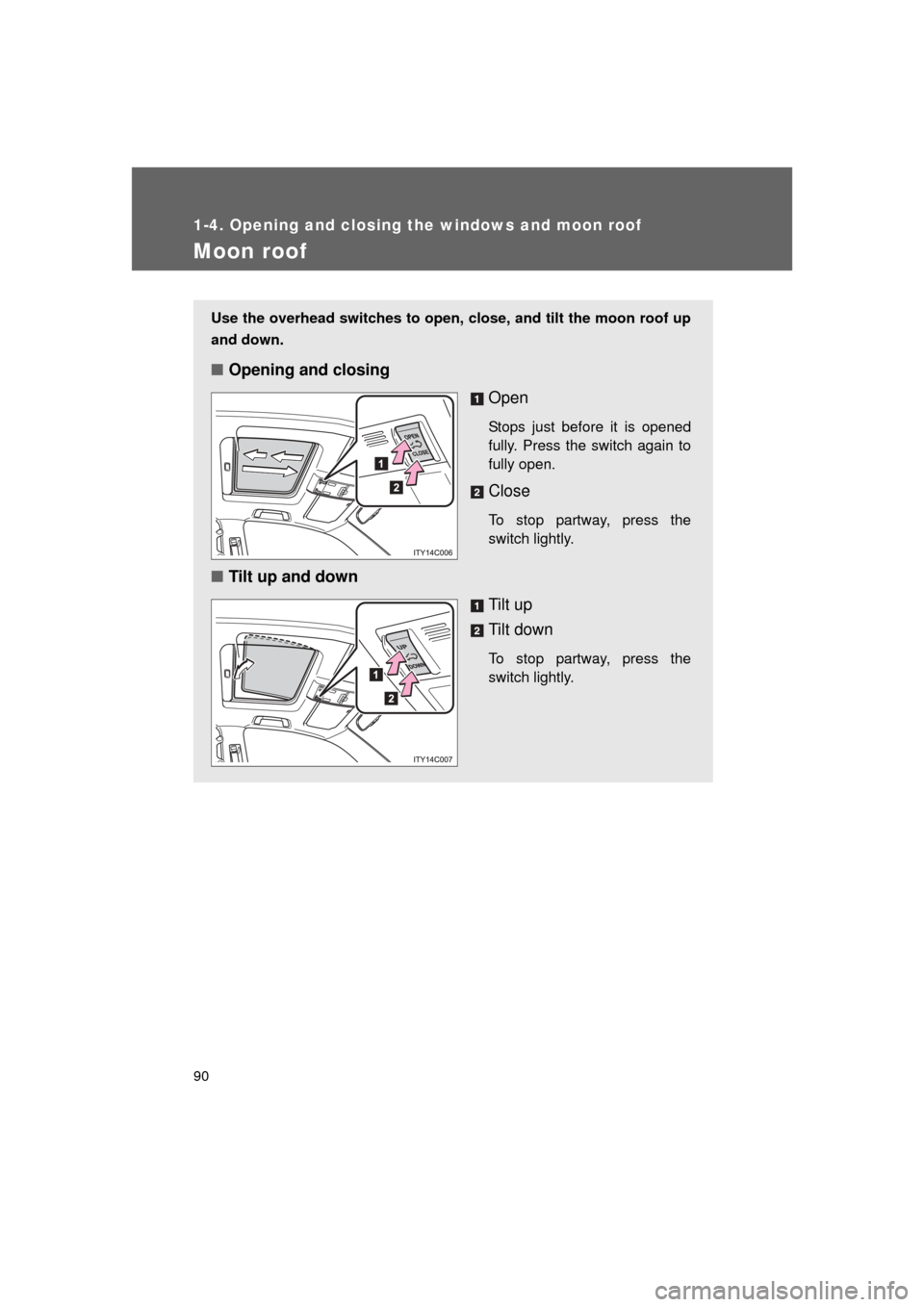

Moon roof
Use the overhead switches to open, close, and tilt the moon roof up
and down.
■Opening and closing
Open
Stops just before it is opened
fully. Press the switch again to
fully open.
Close
To stop partway, press the
switch lightly.
■Tilt up and down
Tilt up
Tilt down
To stop partway, press the
switch lightly.
