Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. (P. 675)
■Remove the engine compartment cover
P. 529

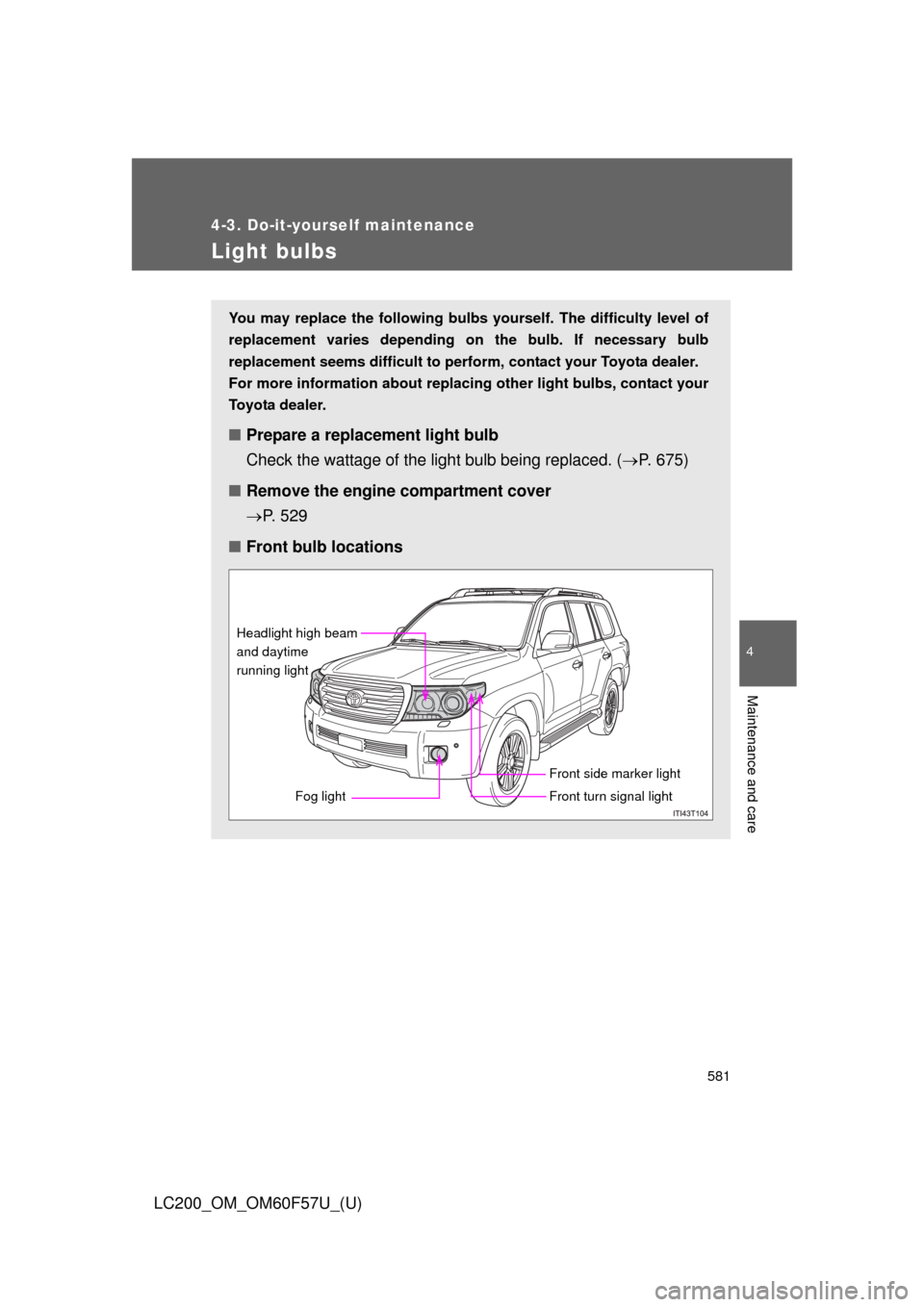

■Front bulb locations
Front side marker light
Fog light Headlight high beam
and daytime
running light
Front turn signal light

582 4-3. Do-it-yourself maintenance
LC200_OM_OM60F57U_(U)

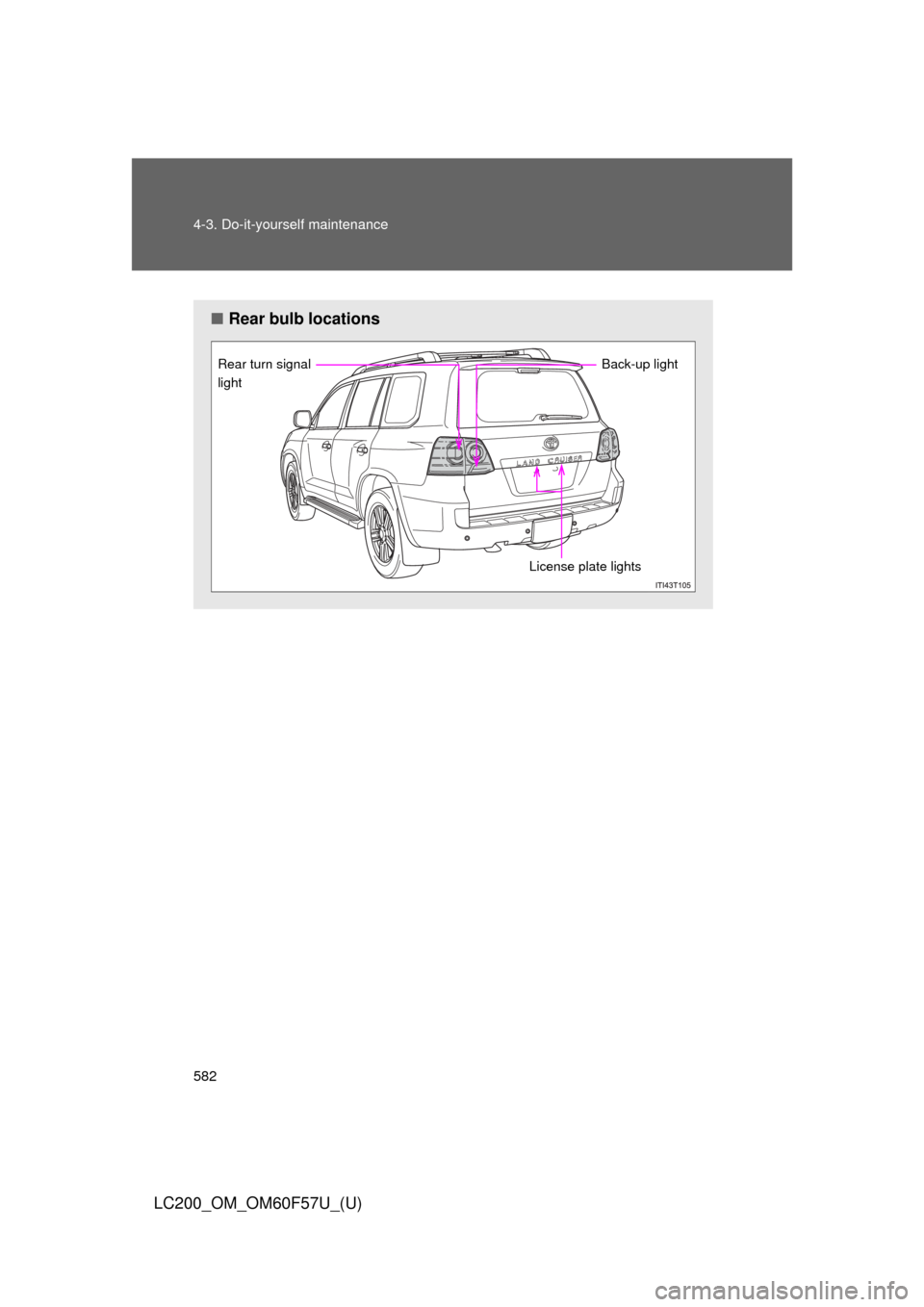

■Rear bulb locations
License plate lights Rear turn signal
light
Back-up light

583 4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60F57U_(U)
Replacing light bulbs

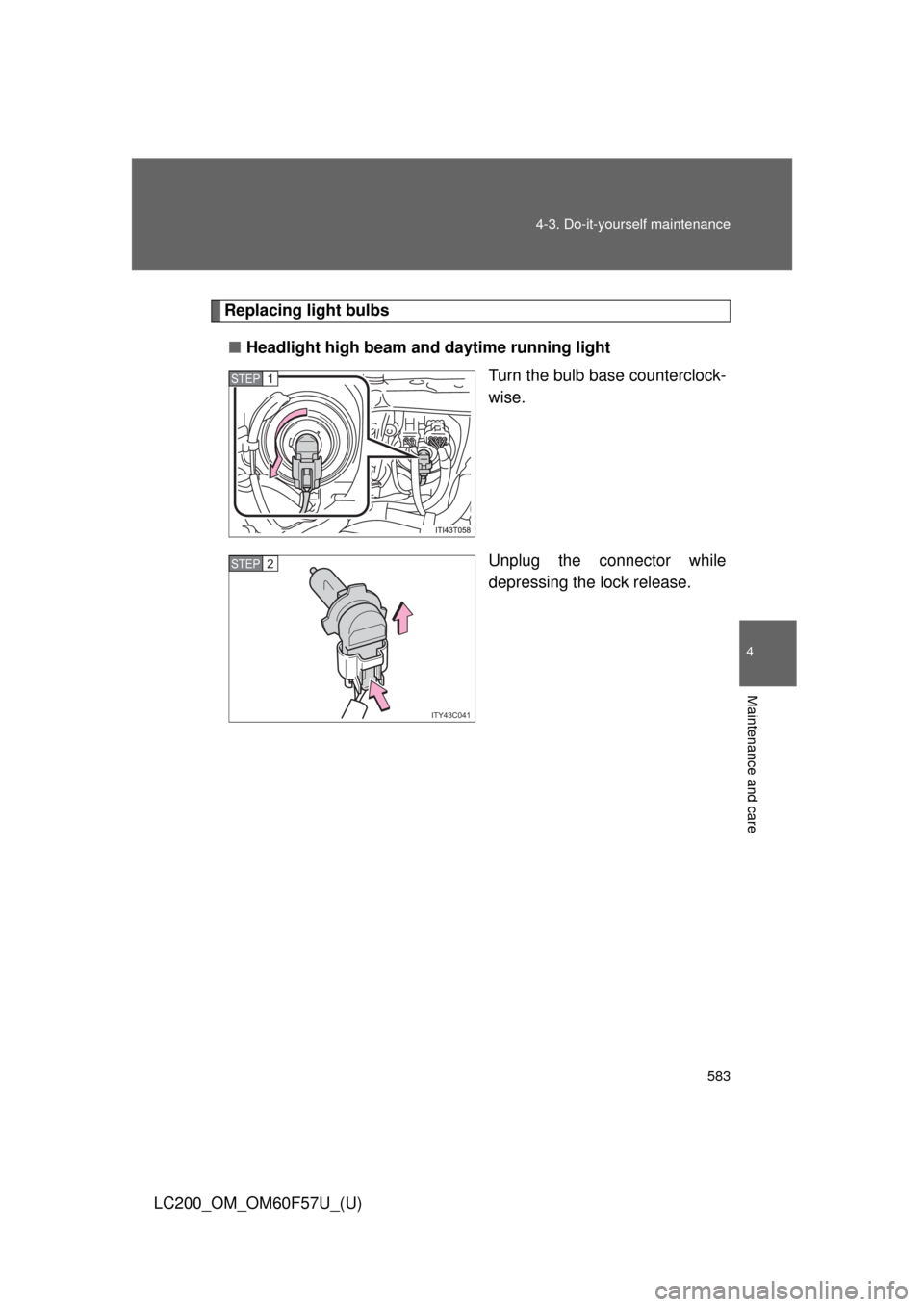

■Headlight high beam and daytime running light
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
STEP1
ITY43C041
STEP2

584 4-3. Do-it-yourself maintenance

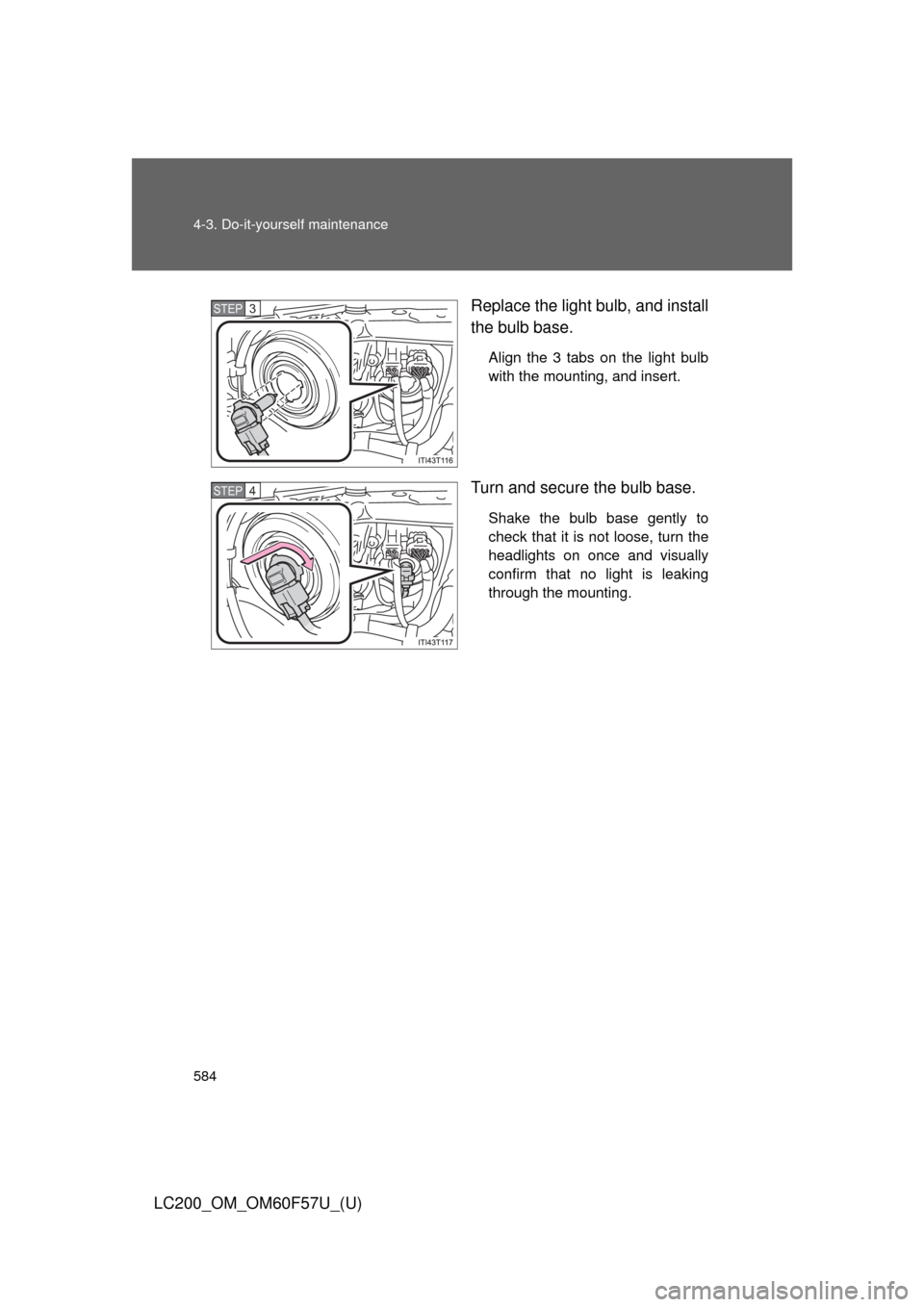

LC200_OM_OM60F57U_(U)Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
STEP3
STEP4

585 4-3. Do-it-yourself maintenance
4
Maintenance and care

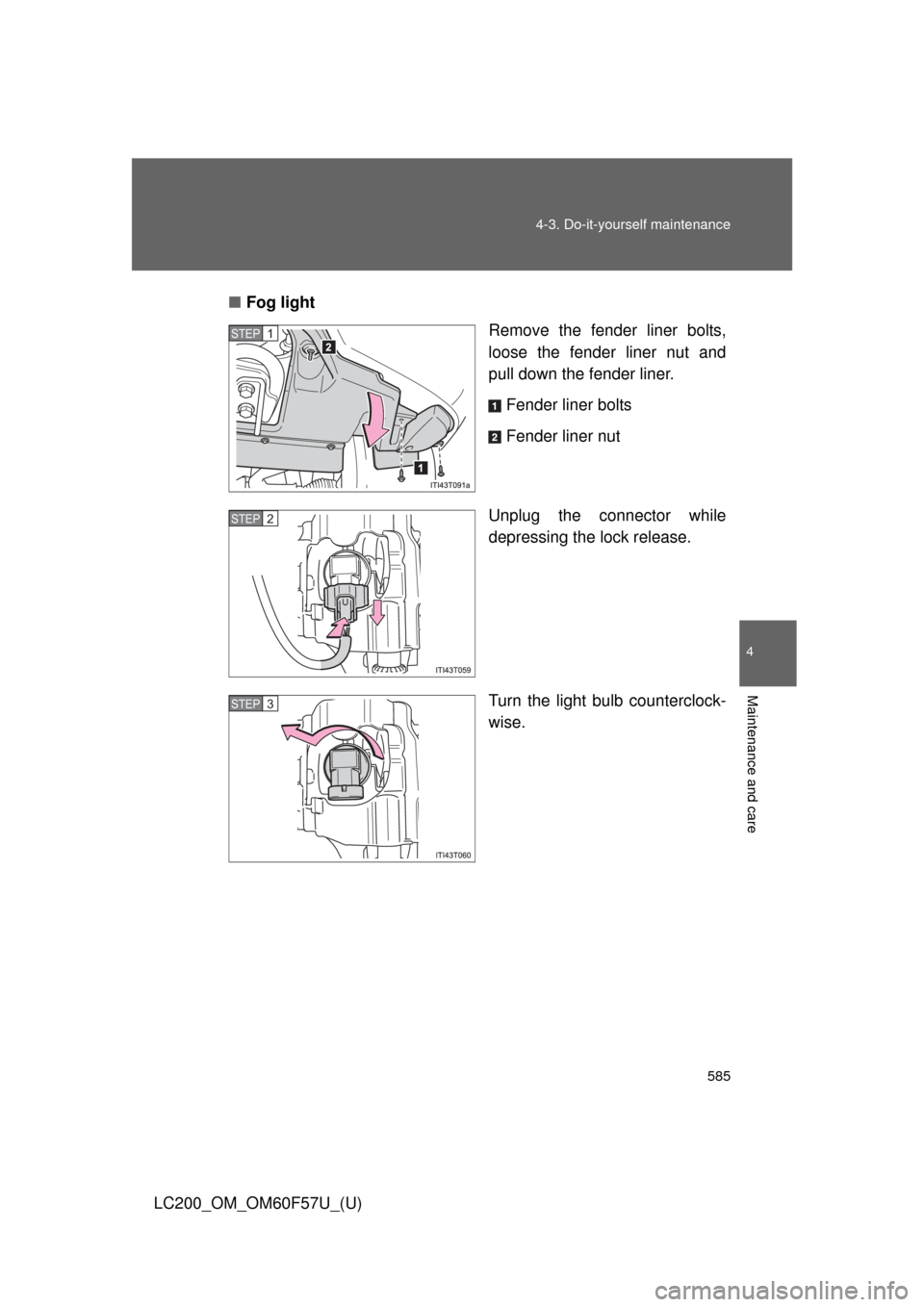

LC200_OM_OM60F57U_(U)■Fog light
Remove the fender liner bolts,
loose the fender liner nut and
pull down the fender liner.
Fender liner bolts
Fender liner nut
Unplug the connector while
depressing the lock release.
Turn the light bulb counterclock-
wise.
STEP1
STEP2
STEP3

586 4-3. Do-it-yourself maintenance

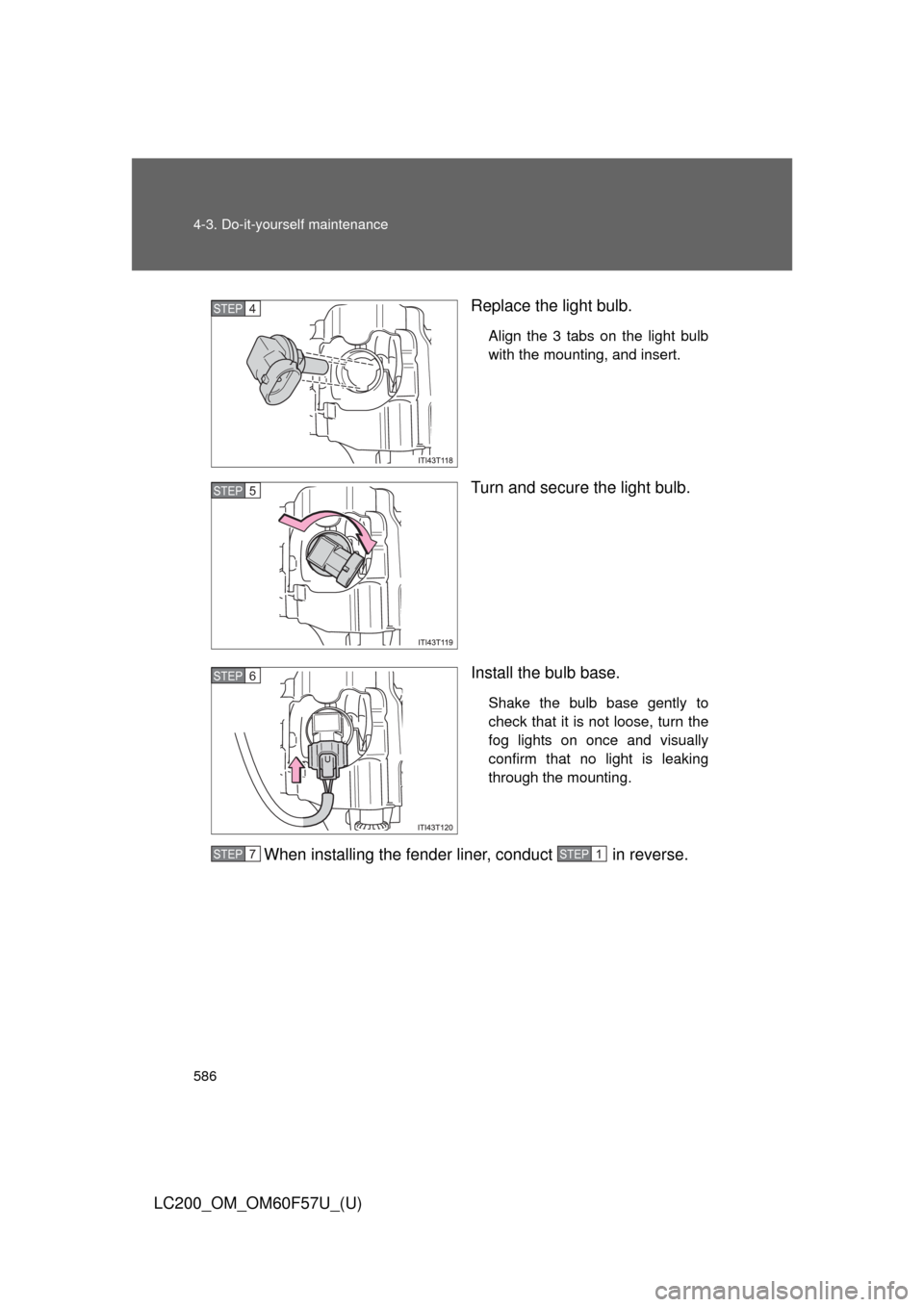

LC200_OM_OM60F57U_(U)Replace the light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the light bulb.
Install the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
fog lights on once and visually
confirm that no light is leaking
through the mounting.
When installing the fender liner, conduct in reverse.
STEP4
STEP5
STEP6
STEP7STEP1

587 4-3. Do-it-yourself maintenance
4
Maintenance and care

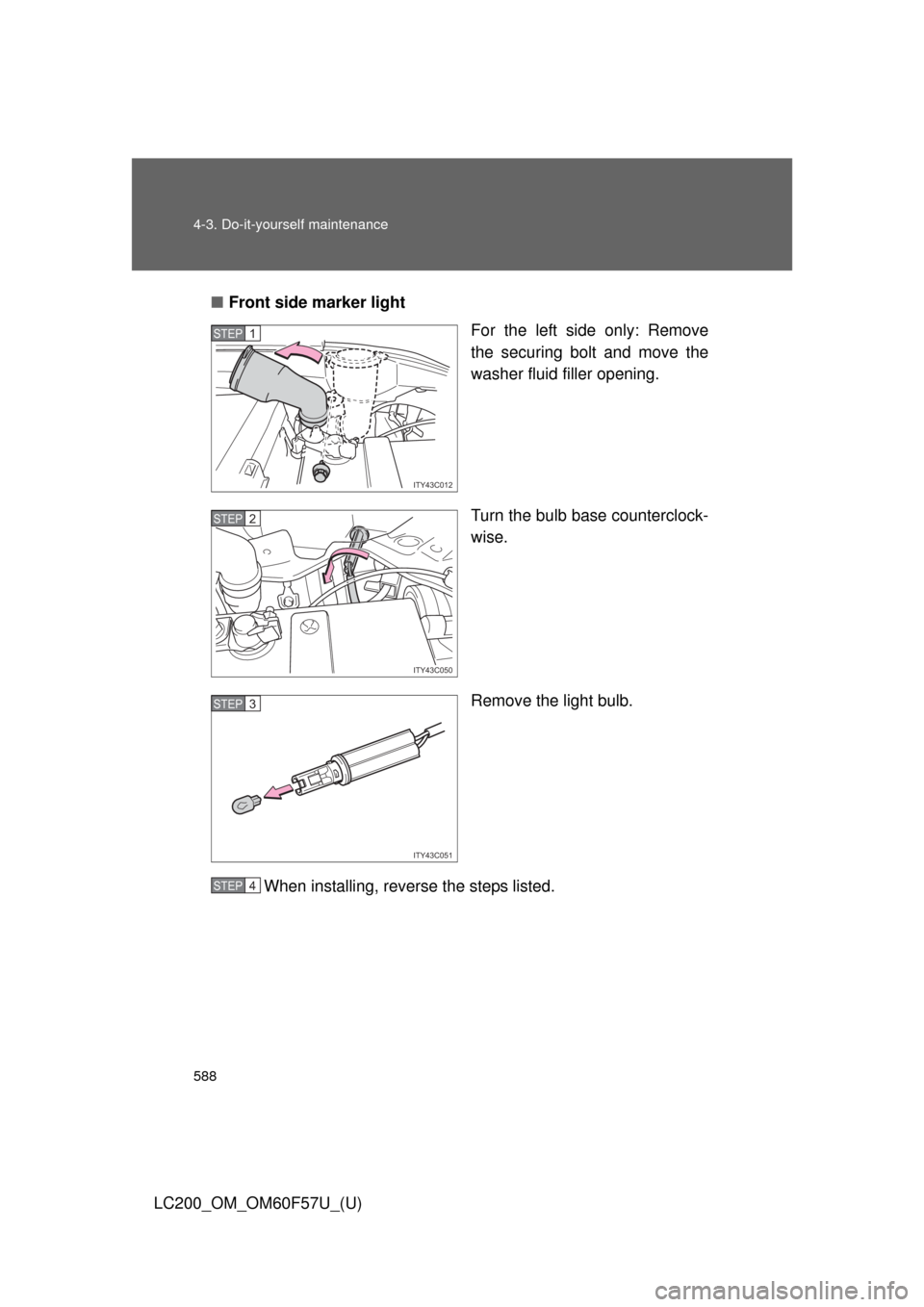

LC200_OM_OM60F57U_(U)■Front turn signal light
For the left side only: Remove
the securing bolt and move the
washer fluid filler opening.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
ITY43C012
STEP1
STEP2
STEP3
STEP4

588 4-3. Do-it-yourself maintenance
LC200_OM_OM60F57U_(U)■Front side marker light
For the left side only: Remove
the securing bolt and move the
washer fluid filler opening.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
ITY43C012
STEP1
ITY43C050
STEP2
ITY43C051
STEP3
STEP4

589 4-3. Do-it-yourself maintenance
4
Maintenance and care

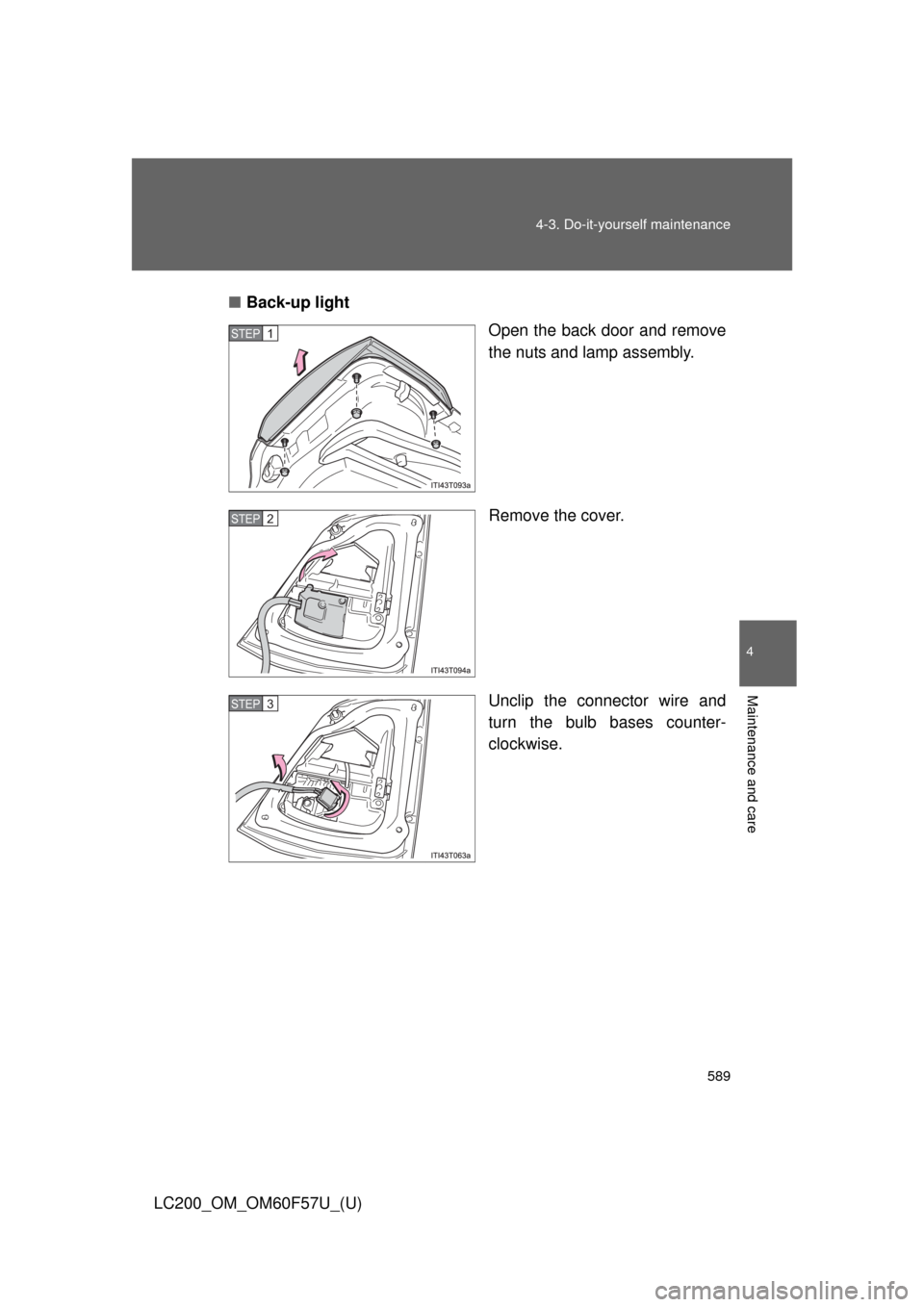

LC200_OM_OM60F57U_(U)■Back-up light
Open the back door and remove
the nuts and lamp assembly.
Remove the cover.
Unclip the connector wire and
turn the bulb bases counter-
clockwise.
STEP1
STEP2
STEP3

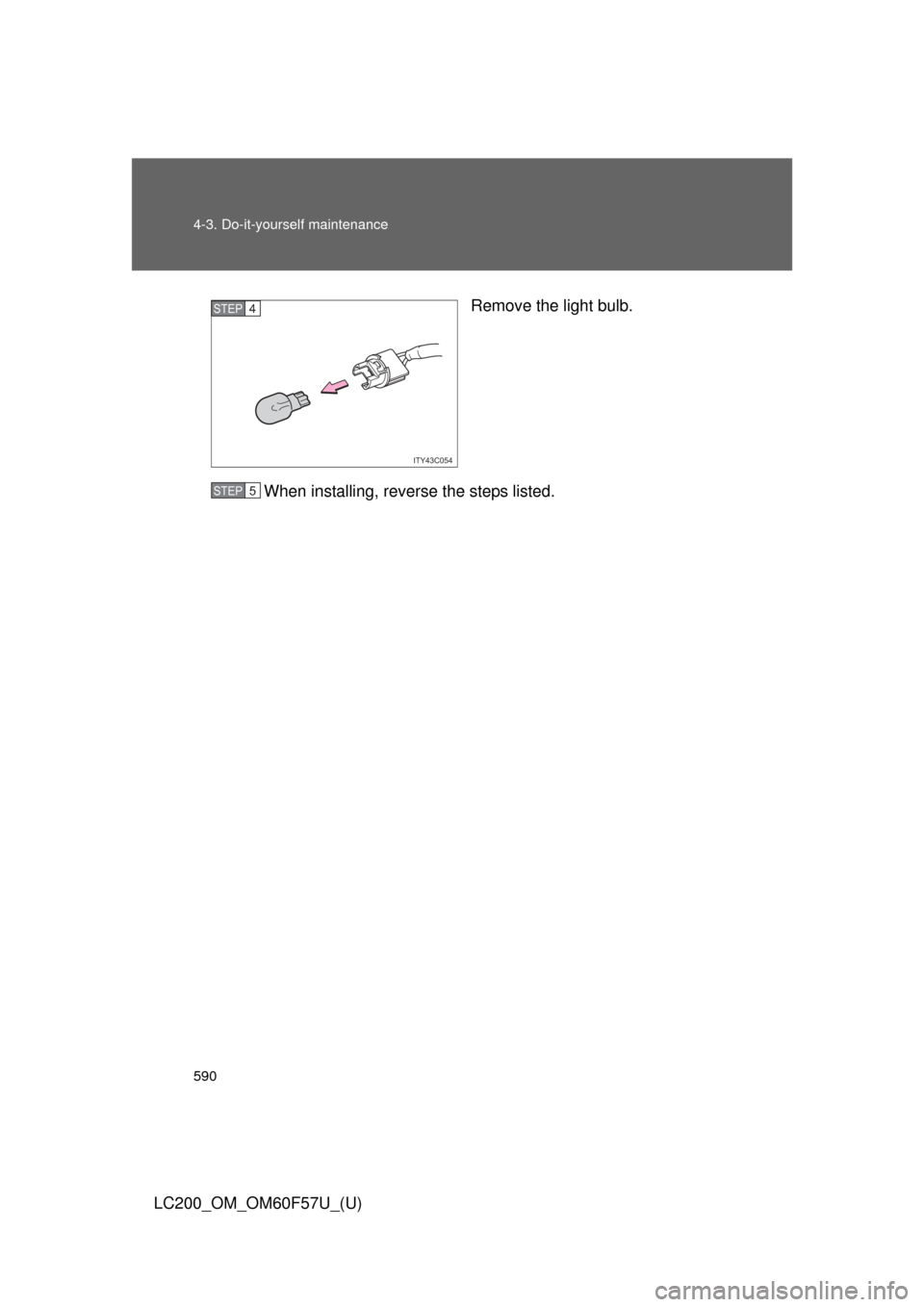

590 4-3. Do-it-yourself maintenance
LC200_OM_OM60F57U_(U)Remove the light bulb.
When installing, reverse the steps listed.
ITY43C054
STEP4
STEP5
