TOYOTA LAND CRUISER 2013 J200 Quick Reference Guide

QUICK REFERENCE GUIDE
LAND CRUISER
2013

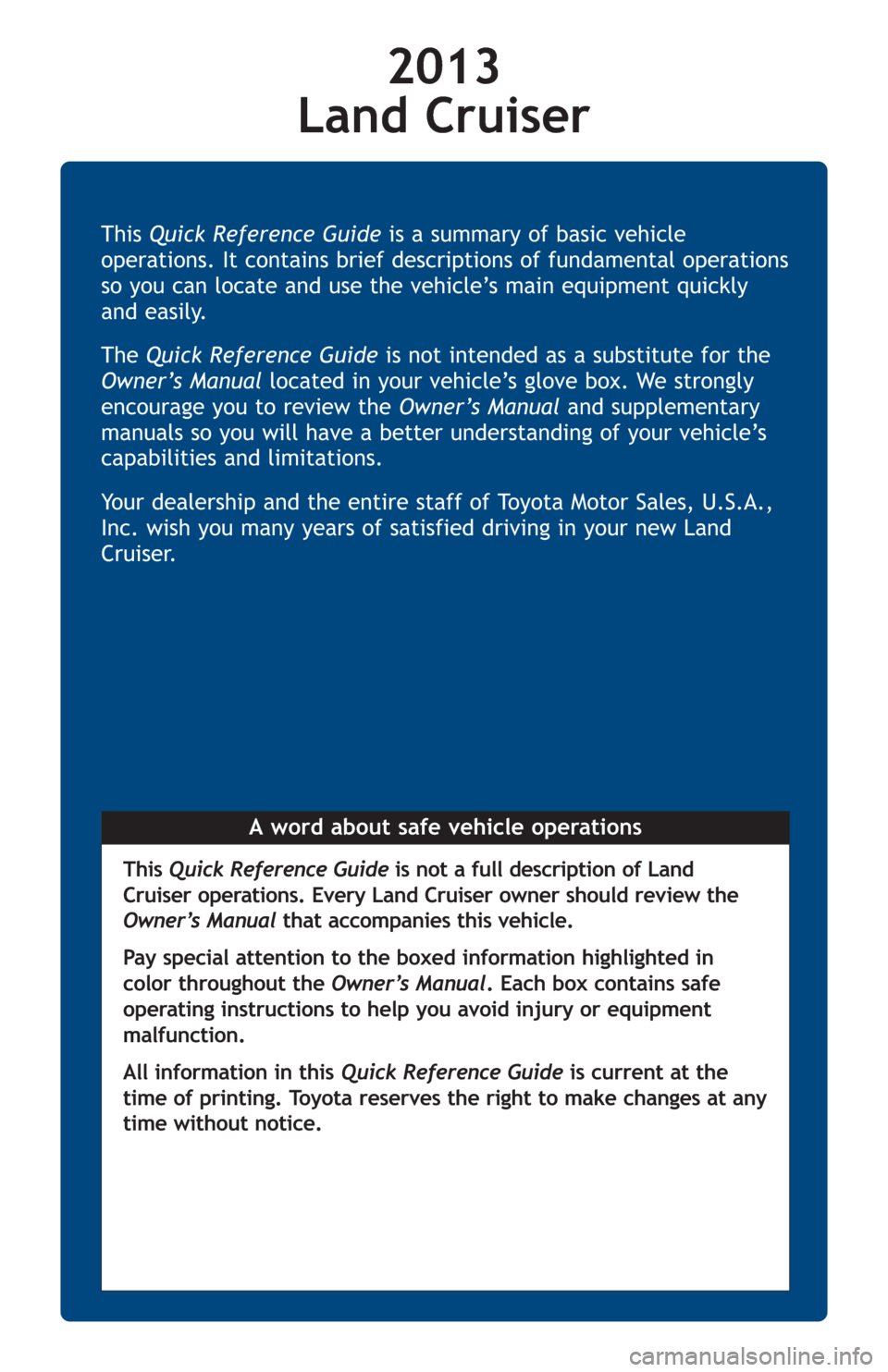

A word about safe vehicle operations This Quick Reference Guideis a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guideis not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review theOwner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Land
Cruiser.
This Quick Reference Guideis not a full description of Land
Cruiser operations. Every Land Cruiser owner should review the
Owner’s Manualthat accompanies this vehicle.
Pay special attention to the boxed
information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guideis current at the
time of printing. Toyota reserves the right to make changes at any
time without notice.
2013
Land Cruiser
A word about safe vehicle operations

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
INDEX
Engine maintenance 9Fuel tank door release and cap8Hood release 8Indicator symbols 4-5Instrument cluster 4Instrument panel2-3Keyless entry16Light control-Instrument panel9
Smart Key system1,27
Air Conditioning/Heating18-19Audio 20-21Auto lock/unlock110Automatic Transmission 10Back door 17Cooler box 26Crawl control 21Cup holders 26Door locks 25Dynamic radar cruise control 22-23Four-wheel drive 11Garage door opener (HomeLink®)323Lights1& turn signals 15Mirrors-Side 17Moonroof 17Multi-Information Display224Parking brake 27Power outlets-12V DC 27Power outlet-120V AC 27Rear seat entertainment system 26Seat adjustments-Front12Seat adjustments-Rear12Seat heaters and ventilators 19Seats-Head restraints 12Seats-Tumbling second row seats 13Seats-Tumbling third row seats 14Steering lock release 11Tilt and telescopic steering wheel 24Te l e p h o n e controls (Bluetooth®)25Windows-Power 16
Window wipers & washers 16
Doors-Child safety locks 29Floor mat installation 31Seat belts 28Seat belts-Shoulder belt anchor 28Spare tire & tools 29Star Safety SystemTM30
Tire Pressure Monitoring (warning) System 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

Steering wheel audio controls*
Telephone controls*
Voice command button*
Multi-Information Display button
Distance switch*
Headlight, turn signal and front fog light controls
Multi-Information Display
Wiper and washer controls
Audio system*
“AIR BAG ON” and “AIR BAG OFF” indicator
Clock*
Front passenger seat belt reminder light
Theft deterrent system/Engine immobilizer indicator
Emergency flasher button
Outside rearview mirrors/Rear window defogger button
Air Conditioning controls*
2
OVERVIEW
Instrument panel
Steering wheel controls

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
“ENGINE START STOP” switch
Four-wheel drive control switch
VIEW switch (multi-terrain monitor)*
Dynamic radar cruise control
Tire Pressure Monitoring (warning) System reset
Headlight leveling dial
Power outside rearview mirror controls
Instrument panel light control
Tilt and telescopic steering control
Intuitive parking assist switch
Center differential lock/unlock switch
Roll Sensing of Curtain shield Airbag OFF switch
Heated steering wheel switch
VSC/TRAC OFF switch
Headlight cleaner
* Refer to the “Navigation System Owner’s Manual” for details.

4
OVERVIEW
Indicator symbols

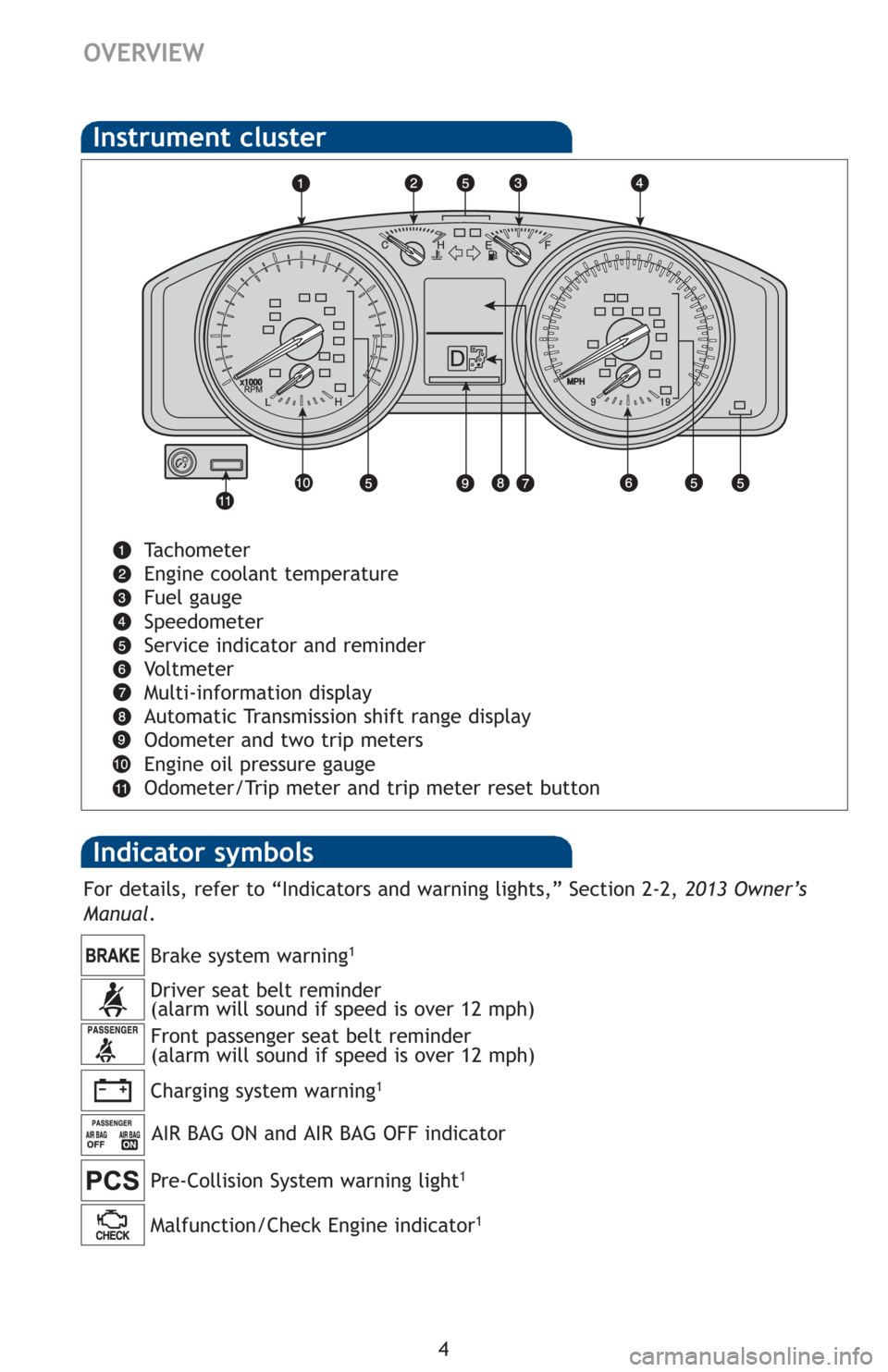

Instrument cluster
Tachometer
Engine coolant temperature
Fuel gauge
Speedometer
Service indicator and reminder
Vo l t m e t e r
Multi-information display
Automatic Transmission shift range display
Odometer and two trip meters
Engine oil pressure gauge
Odometer/Trip meter and trip meter reset button
Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Pre-Collision System warning light1
Malfunction/Check Engine indicator1
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5

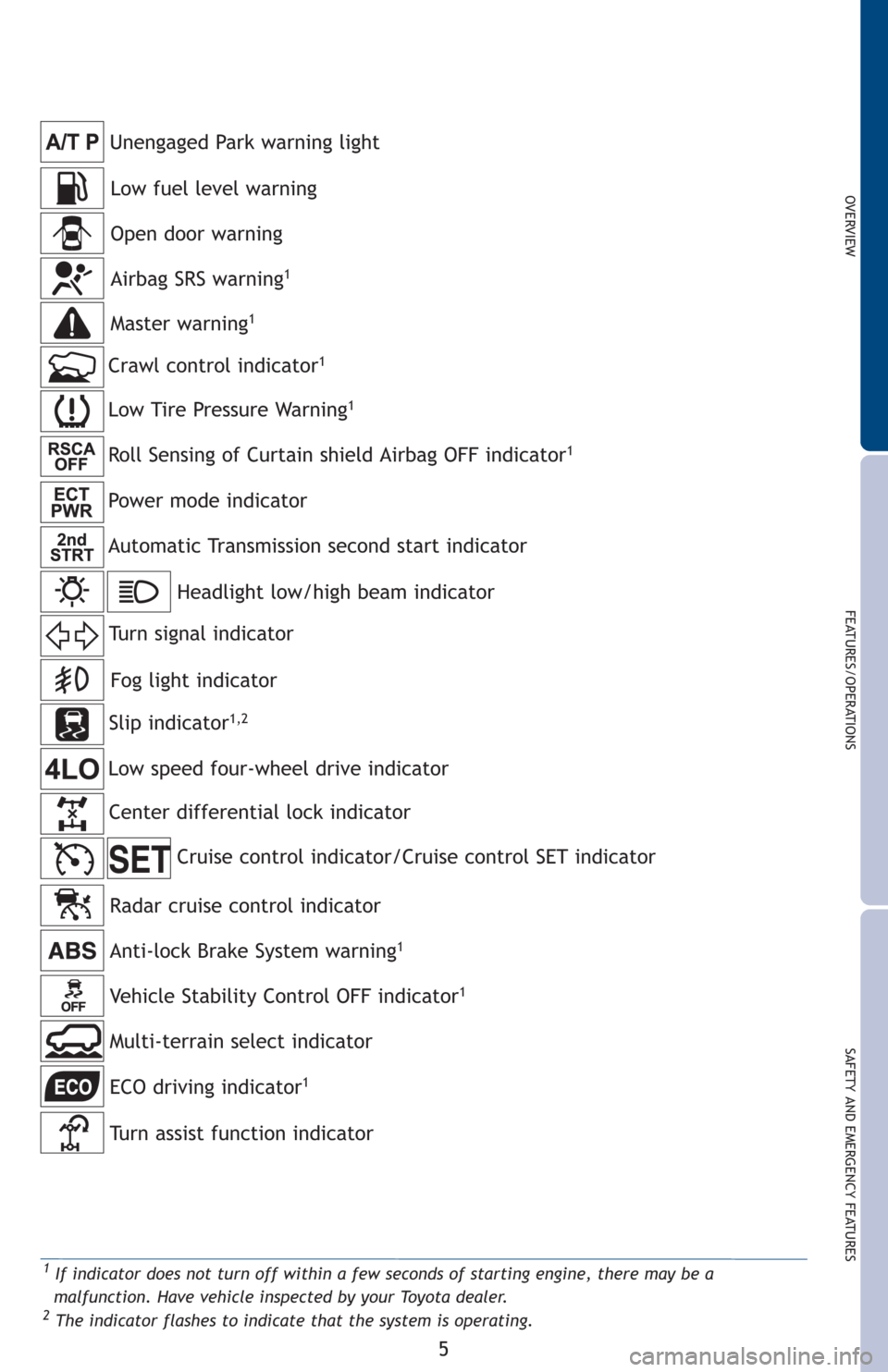

Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1,2
Low speed four-wheel drive indicator
Center differential lock indicator
Cruise control indicator/Cruise control SET indicator
Crawl control indicator1
Low Tire Pressure Warning1
Automatic Transmission second start indicator
Open door warning
Airbag SRS warning1
Master warning1
Power mode indicatorUnengaged Park warning light
Low fuel level warning
Roll Sensing of Curtain shield Airbag OFF indicator1
Fog light indicator
1If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2The indicator flashes to indicate that the system is operating.
Vehicle Stability Control OFF indicator1
Multi-terrain select indicator
ECO driving indicator1
Turn assist function indicator
Radar cruise control indicator

6
OVERVIEW

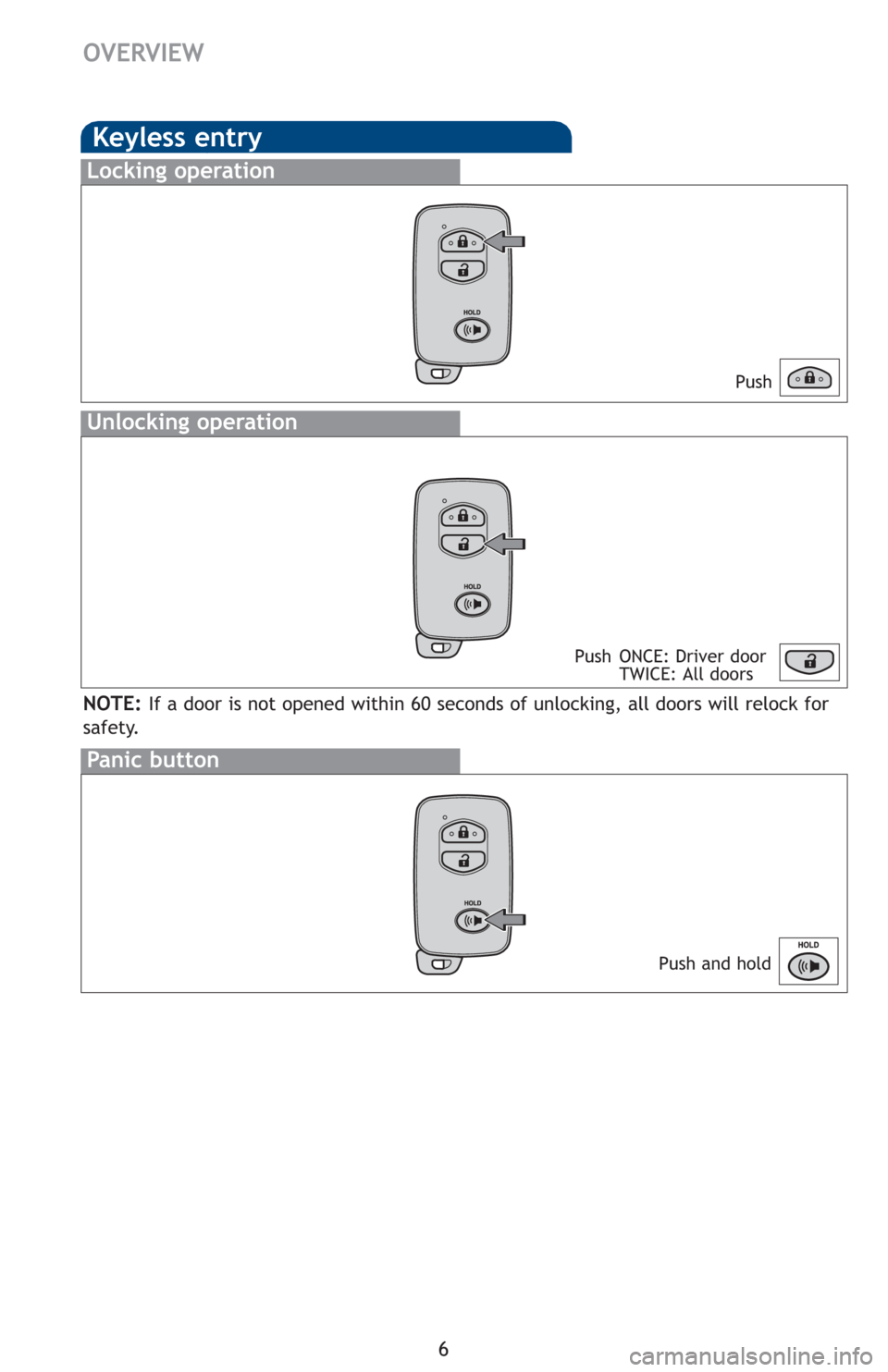

Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Panic button
Push and hold
NOTE:If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7

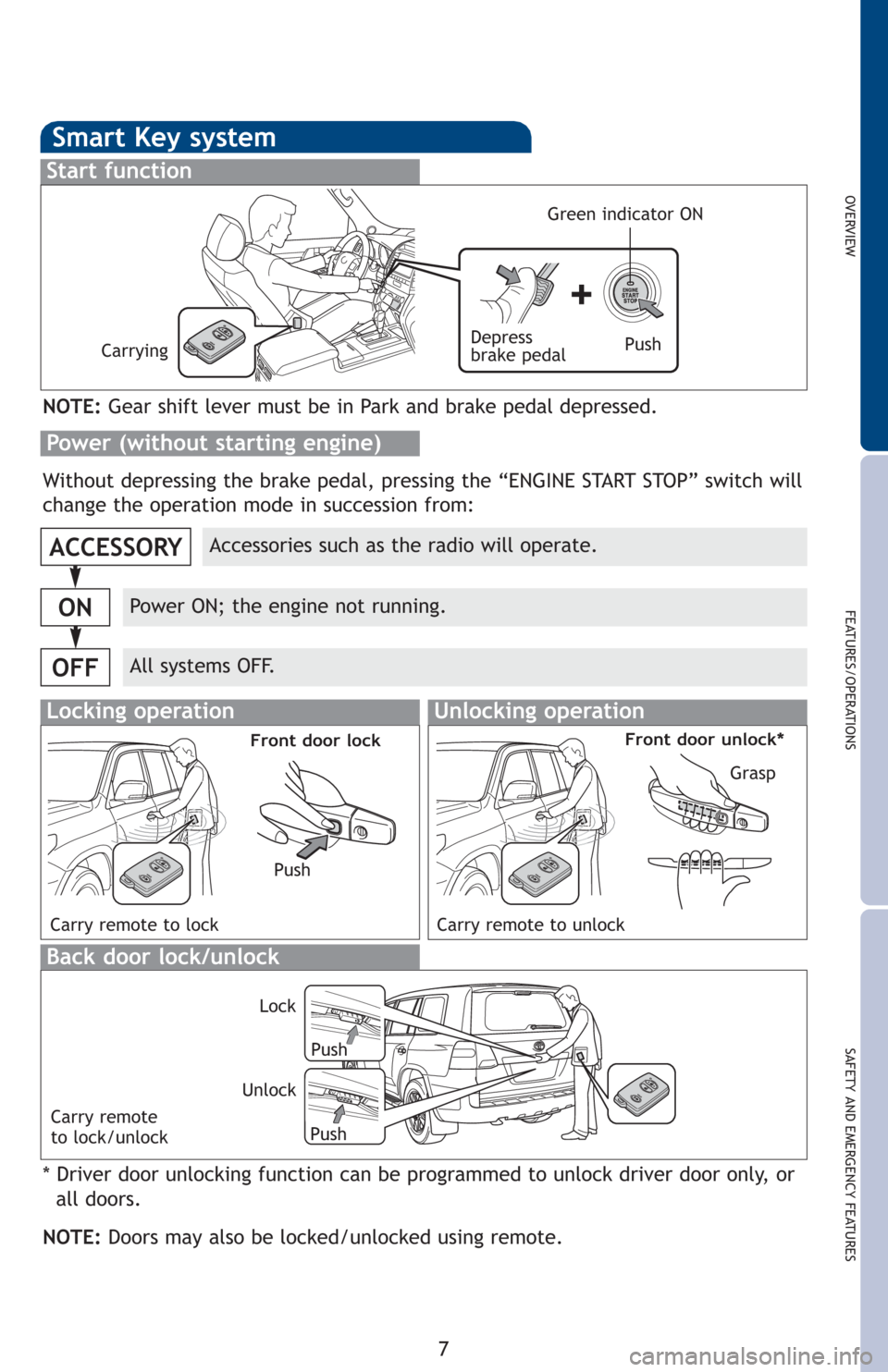

Smart Key system
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE:Gear shift lever must be in Park and brake pedal depressed.
Push Depress
brake pedalCarrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch will
change the operation mode in succession from:
Back door lock/unlock
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors.
NOTE:Doors may also be locked/unlocked using remote.
Power (without starting engine)
Push Lock
Push Unlock
Locking operationUnlocking operation
Carry remote to lock Carry remote to unlock
Push
Front door lockFront door unlock*
Grasp
Carry remote
to lock/unlock

8

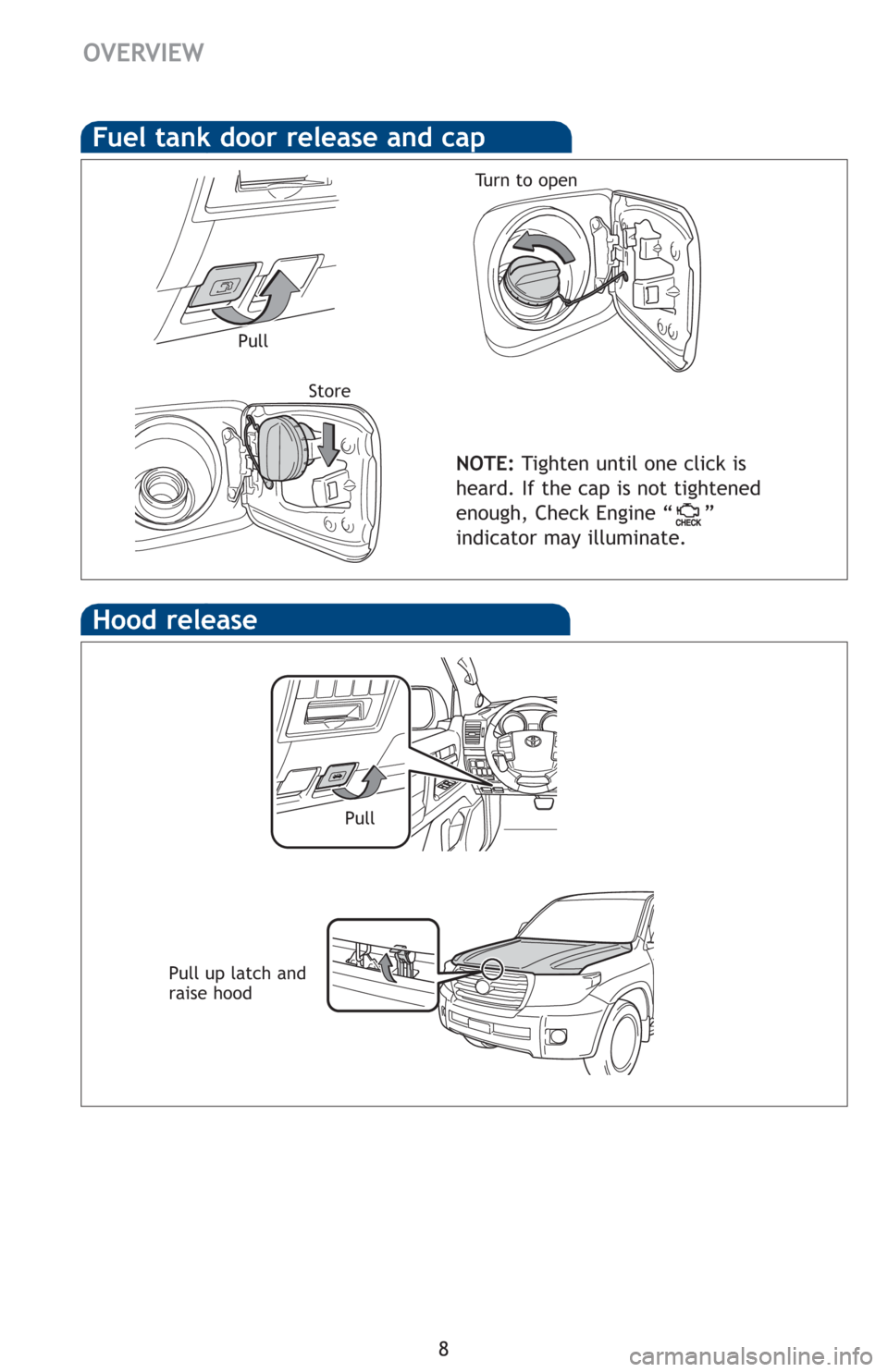

Hood release
Pull up latch and
raise hood
Fuel tank door release and cap
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
PullTu r n t o o p e n
Store
Pull
OVERVIEW
