TOYOTA LAND CRUISER 2014 J200 Owners Manual

451
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
LC200_OM_OM60L09U_(U)
Displaying the Bluetooth® device address and name
Select “Device Name” using .
Turn to display the Bluetooth
® device address and
name.
Select “Go Back” using to return to “System Setup”.
Initializing the system
Select “Initialize” and then “Confirm” using .
Select “Confirm” again using .
STEP1
STEP2
STEP3
STEP1
STEP2

452 3-4. Using the hands-free system (for cellular phone)
LC200_OM_OM60L09U_(U)
■Initialization
●The following data in the system can be initialized:
• Phone book
• Outgoing and incoming call history
• Speed dials
• Registered cellular phone data
• Security code
• Registered Bluetooth
® enabled portable player data
• Passkey for the cellular phone
• Passkey for the Bluetooth
® audio players
• Guidance volume
• Receiver volume
• Ring tone volume
● Once the initialization has been completed, the data cannot be restored
to its original state.
■ When the phone book is locked
The following functions cannot be used:
●Dialing by inputting a name
● Speed dialing
● Dialing a number stored in the call history memory
● Using the phone book

453
3-4. Using the hands-free system (for cellular phone)
3
Interior features
LC200_OM_OM60L09U_(U)

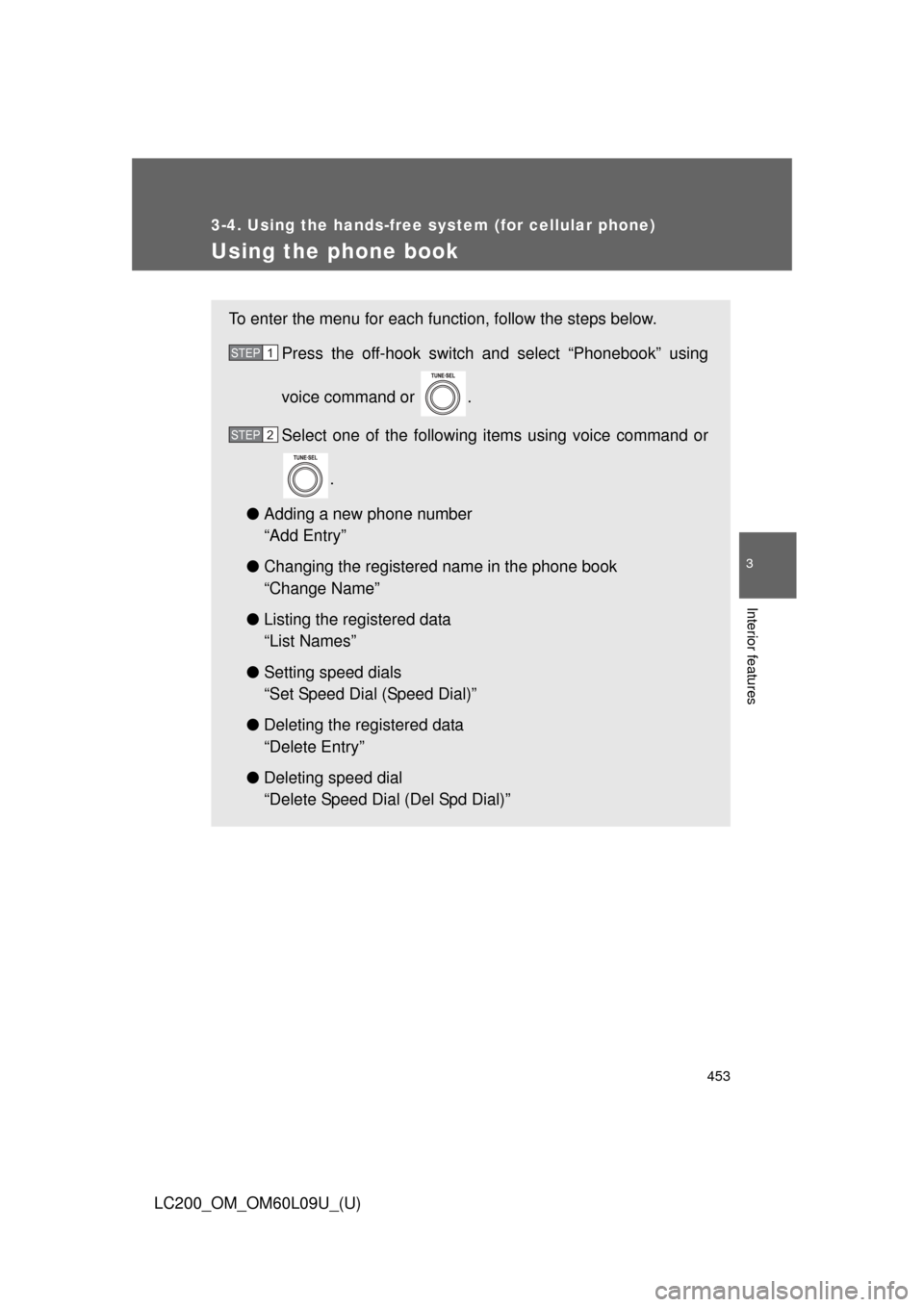

Using the phone book
To enter the menu for each function, follow the steps below.Press the off-hook switch and select “Phonebook” using
voice command or .
Select one of the following items using voice command or
.
● Adding a new phone number
“Add Entry”
● Changing the registered name in the phone book
“Change Name”
● Listing the registered data
“List Names”
● Setting speed dials
“Set Speed Dial (Speed Dial)”
● Deleting the registered data
“Delete Entry”
● Deleting speed dial
“Delete Speed Dial (Del Spd Dial)”
STEP1
STEP2

454 3-4. Using the hands-free system (for cellular phone)
LC200_OM_OM60L09U_(U)
Adding a new phone numberThe following methods can be used to add a new phone number:
● Inputting a phone number using a voice command
● Transferring data from the cellular phone
● Inputting a phone number using
● Selecting a phone number from outgoing or incoming call history
■ Adding procedure
Select “Add Entry” using a voice command or .
Use one of the following methods to input a telephone num-
ber:
Inputting a telephone number using a voice command STEP2-1 Select “By Voice” using a voice command or
.
STEP2-2 Press the talk switch, say the desired number, and select “Confirm” us ing a voice command.
STEP1
STEP2

455
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
LC200_OM_OM60L09U_(U)Transferring data from the cellular phone
STEP2-1 Select “By Phone” and then “Confirm” using a
voice command or .
STEP2-2 Transfer the data from the cellular phone.
Refer to the manual that comes with the cellular phone
for the details of transferring data.
STEP2-3 Select the data to be registered by either of the fol- lowing methods:
a. Say “Previous” or “Next” until the desired data isdisplayed, and select “Confirm” using a voice
command.
b.Select the desired data using .
Inputting a phone number using STEP2-1 Select “Manual Input” using .
STEP2-2 Input a phone number using , and press again.
Input the phone number 1 digit at a time.

456 3-4. Using the hands-free system (for cellular phone)
LC200_OM_OM60L09U_(U)Selecting a phone number from outgoing or incoming call history
STEP2-1 Select “Call History” using a voice command or
.
STEP2-2 Select “Outgoing” or “Incoming” using a voice com-
mand or .
STEP2-3 Select the data to be registered by either of the fol- lowing methods:
a. Say “Previous” or “Go back” until the desireddata is displayed, and select “Confirm” by using
a voice command.
b.Select the desired data using .
Select the name to be registered by either of the following
methods, and select “Confirm” using a voice command or :
a. Press the talk switch and say the desired name.
b. Select “Record Name” using , and say the desired name.
STEP3

457
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
LC200_OM_OM60L09U_(U)Select “Confirm” using a voice command or again.
In , selecting “Set Speed Dial (Speed Dial)” instead of “Con-
firm” registers the newly added phone number as speed dial.
Changing the registered name in the phone book
Select “Change Name” using a voice command or .
Pattern A Select the name to be changed by either of the following
methods, and select “Confirm” using a voice command or
.
a. Press the talk sw itch, say desired name.
b. Press the talk switch, a nd say “List names”. While the
desired name is read aloud, press the talk switch.
Pattern B
Select the desired name to be changed using .
Press the talk switch or select “Record Name” using ,
and say the new name.
Select “Confirm” using a voice command or .
STEP4
STEP4
STEP1
STEP2
STEP2
STEP3
STEP4

458 3-4. Using the hands-free system (for cellular phone)
LC200_OM_OM60L09U_(U)
Listing the registered dataSelect “List names” using a voice command or . The list of the
registered data will be read aloud.
When listing is complete, the system returns to “Phonebook”.
Pressing the talk switch while th e desired data is being read aloud
selects the data, and the following function will become available.
● Dialing: “Dial”
● Changing a registered name: “Change Name”
● Deleting an entry: “Delete Entry”
● Setting speed dial: “Set Speed Dial (Speed Dial)”
Setting speed dials
Select “Set Speed Dial (Spee d Dial)” using a voice command
or .
STEP1

459
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
LC200_OM_OM60L09U_(U)Pattern A
Select the data to be registered as a speed dial by either of
the following methods, and select “Confirm” using a voice
command or .
a. Press the talk sw itch, say desired name.
b. Press the talk switch, and say “List names”. When the
desired name is read aloud, press the talk switch.
Pattern B
Select the desired data using .
Select the desired preset butt on, and register the data into
speed dial by either of the following methods:
a. Press the desired preset butto n, and select “Confirm” using
a voice command or .
b. Press and hold the desired preset button.
STEP2
STEP2
STEP3

460 3-4. Using the hands-free system (for cellular phone)
LC200_OM_OM60L09U_(U)
Deleting the registered dataSelect “Delete Entry” using a voice command or .
Pattern A Select the data to be deleted by either of the following meth-
ods, and select “Confirm” us ing a voice command or :
a. Press the talk switch, and say the name of the desired phone number.
b. Press the talk switch, say “List Names”. When the name of the desired phone number is read aloud, press the talk
switch.
Pattern B
Select the data to be deleted using .
STEP1
STEP2
STEP2
