TOYOTA LAND CRUISER 2014 J200 Owners Manual

461
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
LC200_OM_OM60L09U_(U)
Deleting speed dials
Select “Delete Speed Dial (Del Spd Dial)” using a voice com-
mand or .
Press the preset button in which the desired speed dial is reg-
istered, and select “Confirm” using a voice command or
.
■Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
STEP1
STEP2

462
LC200_OM_OM60L09U_(U)
3-5. Using the interior lights

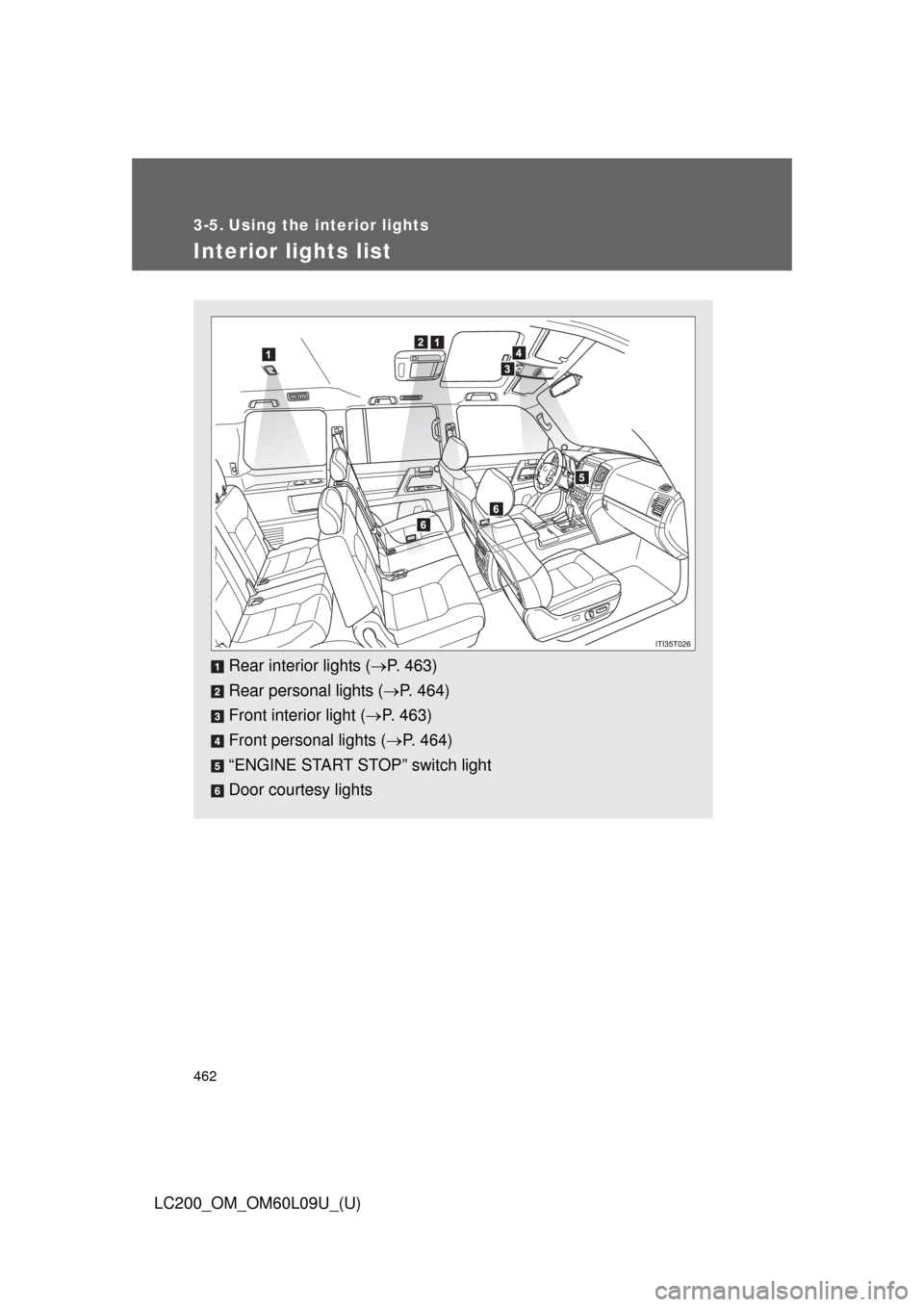

Interior lights list
Rear interior lights (P. 463)
Rear personal lights ( P. 464)
Front interior light ( P. 463)
Front personal lights ( P. 464)
“ENGINE START STOP” switch light
Door courtesy lights

463
3-5. Using the interior lights
3
Interior features
LC200_OM_OM60L09U_(U)
Interior lights
Front Door position on/off
On/off
Rear Door position
On
ITY33C008
Interior lights

464 3-5. Using the interior lights
LC200_OM_OM60L09U_(U)
Personal lightsFront On/off
Rear (type A) On/off
Rear (type B) On/off
ITY33C014
Personal lights

465
3-5. Using the interior lights
3
Interior features
LC200_OM_OM60L09U_(U)
■
Illuminated entry system
The lights automatically turn on/off according to “ENGINE START STOP”
switch mode, the presence of the electronic key, whether the doors are
locked/unlocked, and whether the doors are open/closed.
■ To prevent battery discharge
If the interior lights remain on when the “ENGINE START STOP” switch is
turned off, the lights will go off automatically after 20 minutes.
■ Customization
Settings (e.g. Time period before the interior lights turn off) can be changed.
(Customizable features
P. 694)

466
LC200_OM_OM60L09U_(U)
3-6. Using the storage features
List of storage features
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Card holders
Overhead console
Glove box
Bottle holdersDoor pockets
Auxiliary boxes
Console box
Cool box
Cup holders

467
3-6. Using the
storage features
3
Interior features
LC200_OM_OM60L09U_(U)
Glove box
Open (push button)
Lock with the mechanical key
Unlock with the mechanical
key
■Glove box light
The glove box light turns on when the tail lights are on.
■ Removing the separate tray
CAUTION
■While driving
Keep the glove box closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
Pull out the separate tray.
Glove box

468 3-6. Using the storage features
LC200_OM_OM60L09U_(U)
Console boxYour vehicle is equipped with either a lower console box or cool box.
For vehicles with the cool box, refer to page 475.
Upper console box Press the tab to open.
Lower console box (if equipped) Lift the lever to open.
Remove the tray.
ITY34C005
ITY34C006
STEP1
ITY34C033
STEP2
Console box

469
3-6. Using the
storage features
3
Interior features
LC200_OM_OM60L09U_(U)
Overhead console
Press the button.
The overhead console is useful
for temporarily storing small
items.
CAUTION
■While driving
Keep the console box closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
CAUTION
■Items unsuitable for storing
Do not store items heavier than 0.4 lb. (0.2 kg).
Doing so may cause the overhead console to open and the items inside may
fall out, resulting in an accident.
■ While driving
Do not leave the overhead console open.
Items may fall out and cause injury.
Console box and overhead console

470 3-6. Using the storage features
LC200_OM_OM60L09U_(U)
Cup holdersFront (type A) Press down and release the lid.
You can adjust or remove the
separator inside.
Front (if equipped with type B)Open the lower console box lid.
Rear Pull the armrest down. ( P. 491)
Press the button.
ITY34C011
STEP1
ITY34C015
STEP2
Cup holders
