TOYOTA LAND CRUISER 2015 J200 Owners Manual

181
2-1. Driving procedures
2
When driving
LC200_OM_OM60L83U_(U)
Parking brake
■Usage in winter time
P. 313
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
Sets the parking brake
Fully set the parking brake
while depressing the brake
pedal.
Releases the parking brake
Slightly raise the lever and
lower it completely while press-
ing the button.

182
2-1. Driving procedures
LC200_OM_OM60L83U_(U)
Hor n
To sound the horn, press on or
close to the mark.

183
2
When driving
LC200_OM_OM60L83U_(U)
2-2. Instrument cluster
Gauges and meters
Tachometer
Displays the engine speed in revolutions per minute
Engine coolant temperature gauge
Displays the engine coolant temperature
Fuel gauge
Displays the quantity of fuel remaining in the tank
Speedometer
Displays the vehicle speed
Vo l t m e t e r
Displays the charge state
Multi-information display
Presents the driver with a variety of driving-related data
P. 193

184 2-2. Instrument cluster
LC200_OM_OM60L83U_(U)
Switching the displayPressing this button switches between odometer and trip meter.
Odometer
Trip meter A
*
Trip meter B*
*: Pushing and holding the buttonwill reset the trip meter.
Odometer and trip meter
Odometer: Displays the total distance the vehicle has been driven
Trip meter: Displays the distance the vehicle has been driven since the
meter was last reset. Trip meters A and B can be used to record and
display different distances independently.
Engine oil pressure gauge
Displays the engine oil pressure
Odometer/trip meter display change button
Switches between odometer and trip meter displays
Instrument panel light control knob
The brightness of the instrument panel light can be adjusted

185
2-2. Instrument cluster
2
When driving
LC200_OM_OM60L83U_(U)
Eco Driving Indicator Light customization
Eco Driving Indicator Light ca n activated or deactivated.
While the odometer is being dis-
played, press and hold the
odometer/trip meter display
change button to display the Eco
Driving Indicator Light customi-
zation screen.
Press the odometer/trip meter display change button to set
Eco Driving Indicator Light to on or off.
Press and hold the odometer/trip meter display change button
to complete the setting.
STEP1
STEP2
STEP3

186 2-2. Instrument cluster
LC200_OM_OM60L83U_(U)
Instrument panel light controlThe brightness of the instrument panel lights can be adjusted.
Darker
Brighter
■The meters and display illuminate when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ The brightness of the instrument panel lights
When the tail lights are turned on, the meter’s brightness will be reduced
slightly unless the meter brightness level adjustment is set to the brightest
setting.
If the tail lights are turned on when the surroundings are dark, the meter’s
brightness will reduce slightly. However, when the surroundings are bright,
such as during the daytime, the meter’s brightness will not be reduced even
if the tail lights are turned on.

187
2-2. Instrument cluster
2
When driving
LC200_OM_OM60L83U_(U)
NOTICE
■
To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (“H”). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 665)
■ Vo l t m e t e r
When the voltmeter indicates 19 V or higher or 9 V or lower while the engine
is running, there may be a battery or charging system malfunction. Have the
vehicle inspected at your Toyota dealer.
■ Engine oil pressure gauge
When the value of the engine oil pressure gauge drops while the engine is
running, stop the vehicle in a safe place immediately and check the amount
of engine oil. ( P. 535)
When the oil pressure drops even though the engine oil amount has not
decreased, or if the oil pressure does not increase when engine oil is added,
contact your Toyota dealer, as there may be a problem with the lubrication
system.

188
2-2. Instrument cluster
LC200_OM_OM60L83U_(U)
Indicators and warning lights
The indicators and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
For the purpose of explanation, the fo llowing illustration displays all
indicators and warning lights illuminated.
Instrument cluster

189
2-2. Instrument cluster
2
When driving
LC200_OM_OM60L83U_(U)

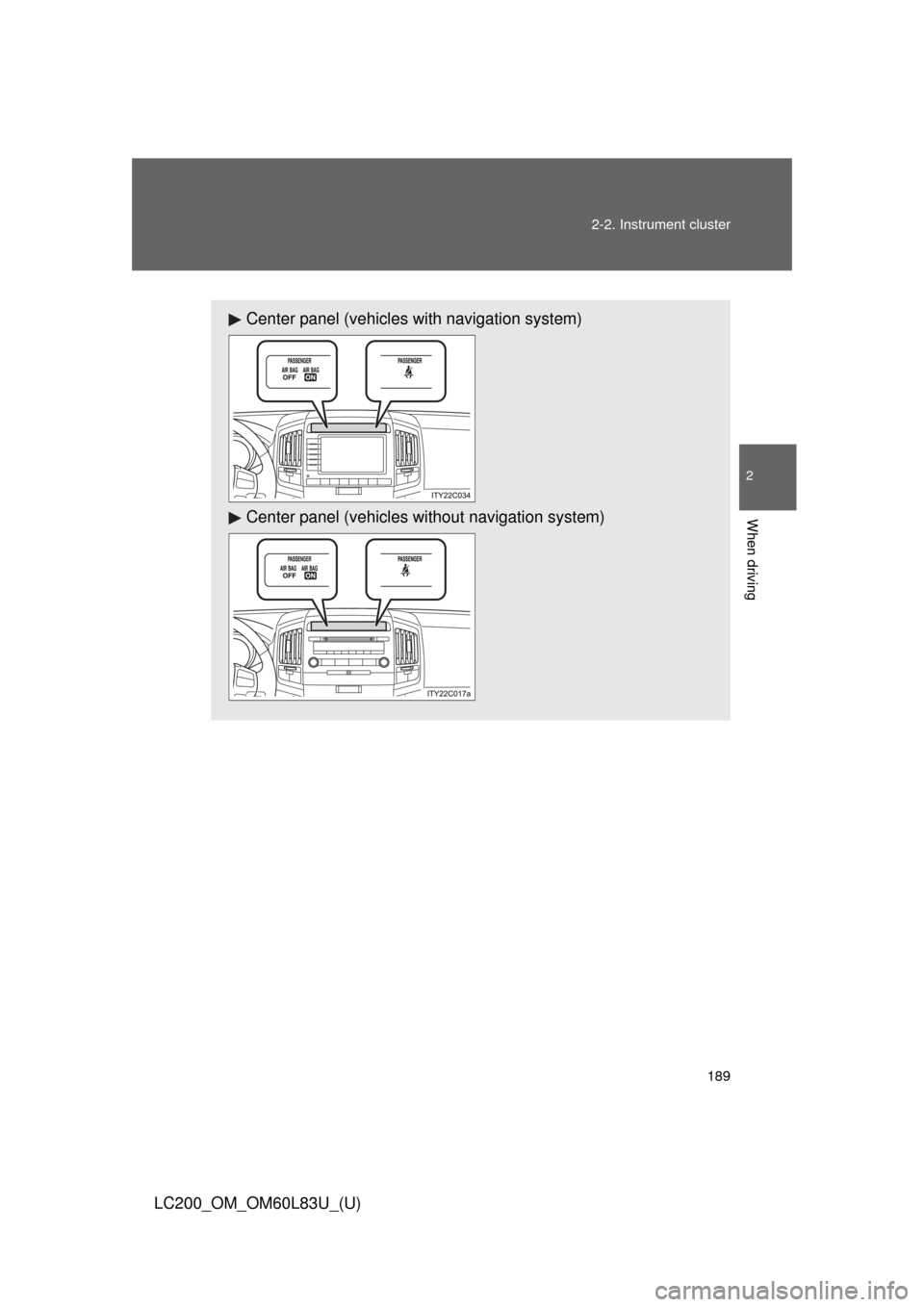

Center panel (vehicles with navigation system)
Center panel (vehicles without navigat
ion system)

190 2-2. Instrument cluster
LC200_OM_OM60L83U_(U)

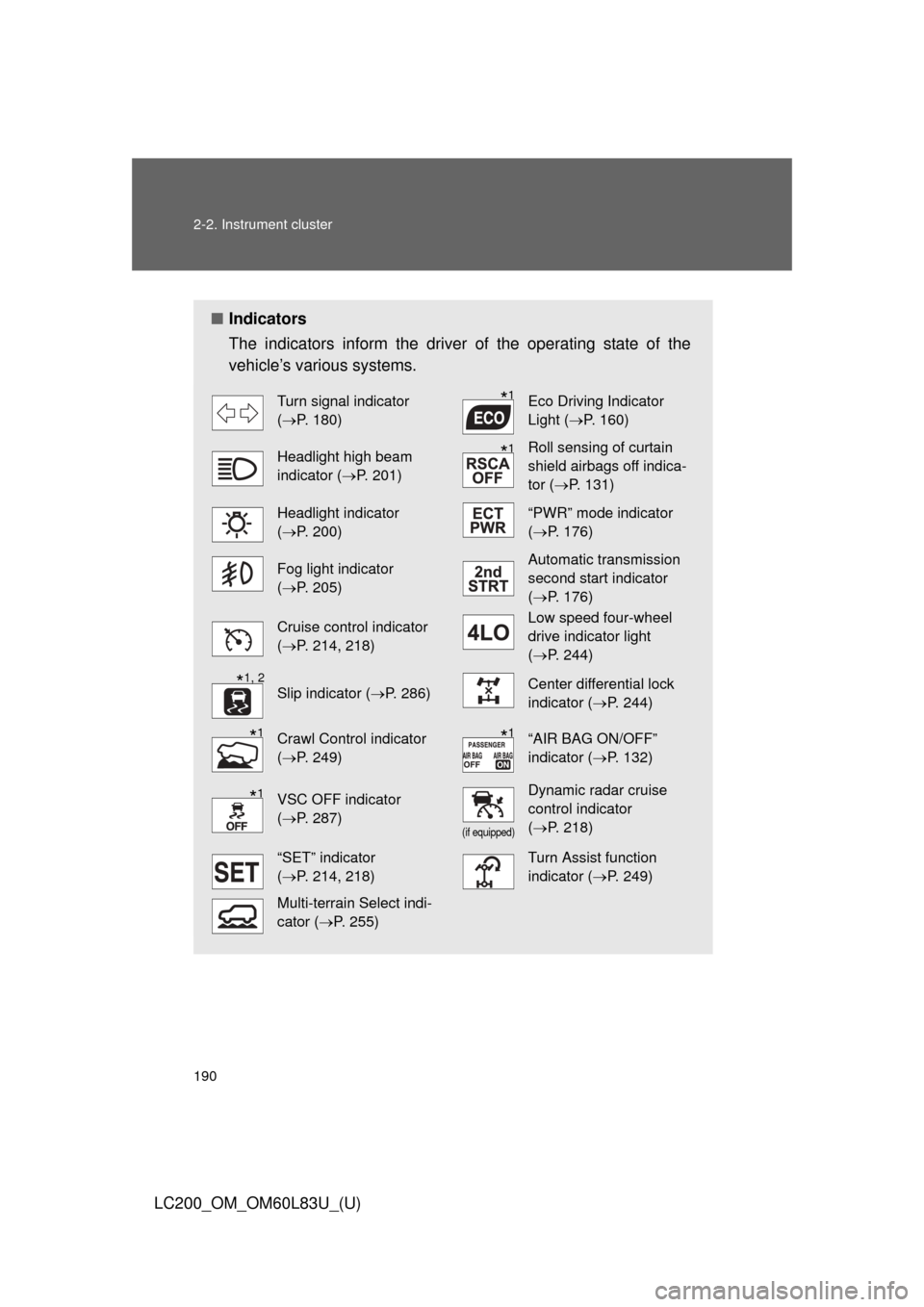

■Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 180)Eco Driving Indicator
Light ( P. 160)
Headlight high beam
indicator ( P. 201)Roll sensing of curtain
shield airbags off indica-
tor (P. 131)
Headlight indicator
(P. 200)“PWR” mode indicator
(P. 176)
Fog light indicator
(P. 205) Automatic transmission
second start indicator
(P. 176)
Cruise control indicator
(P. 214, 218)Low speed four-wheel
drive indicator light
(P. 244)
Slip indicator ( P. 286)Center differential lock
indicator (P. 244)
Crawl Control indicator
(P. 249) “AIR BAG ON/OFF”
indicator (P. 132)
VSC OFF indicator
(P. 287)
(if equipped)
Dynamic radar cruise
control indicator
(P. 218)
“SET” indicator
(P. 214, 218)Turn Assist function
indicator (P. 249)
Multi-terrain Select indi-
cator ( P. 255)
*1
*1
*1, 2
*1*1
*1
