2-2. Instrument cluster
2
When driving
LC200_OM_OM60L83U_(U)
*1: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is being
performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by
your Toyota dealer.
*2: The light flashes to indicate that the system is operating.

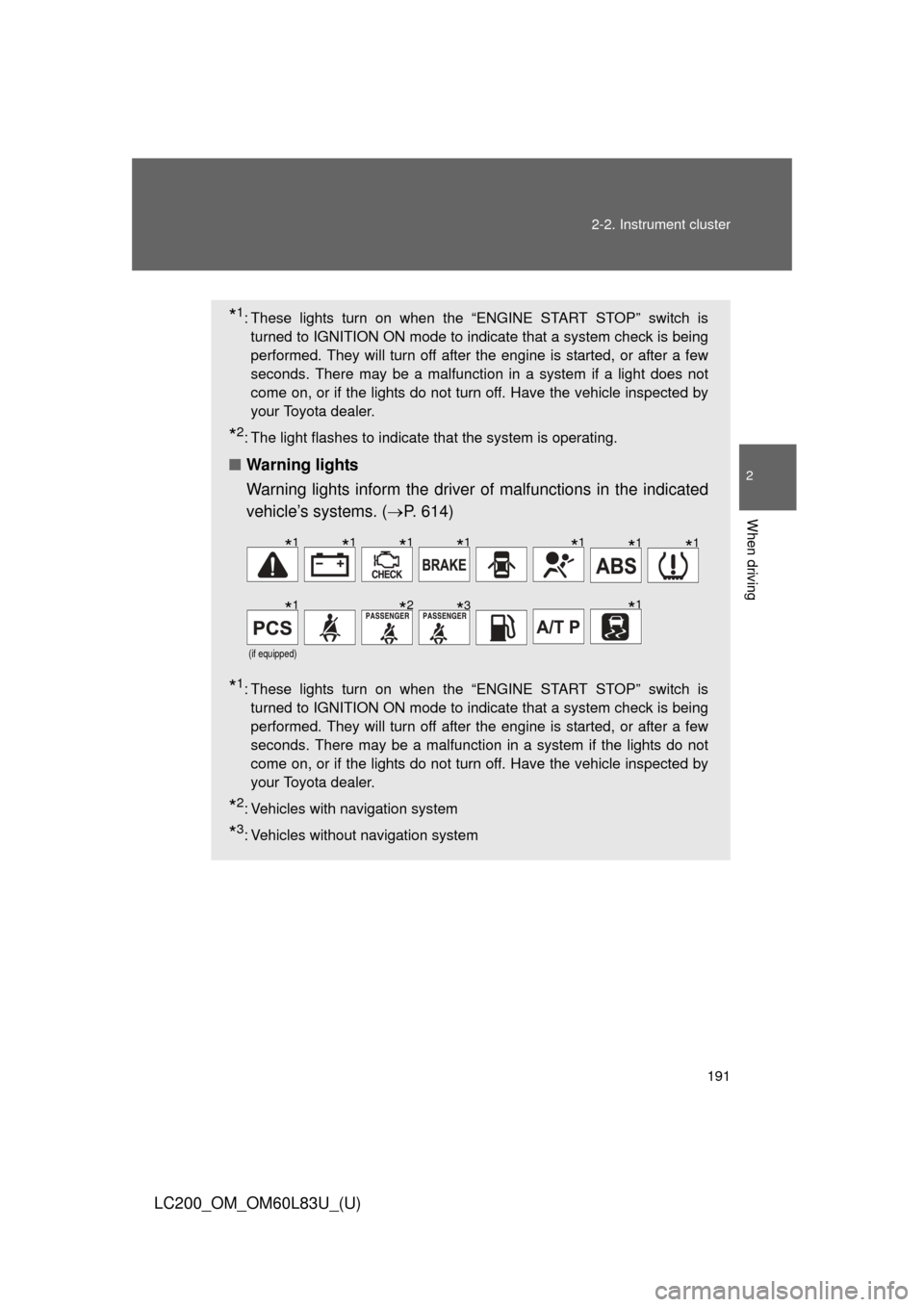

■ Warning lights
Warning lights inform the driver of malfunctions in the indicated
vehicle’s systems. ( P. 614)
*1: These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is being
performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if the lights do not
come on, or if the lights do not turn off. Have the vehicle inspected by
your Toyota dealer.
*2: Vehicles with navigation system
*3: Vehicles without navigation system
(if equipped)
*1*1*1*1*1*1*1
*1*2*3*1

192 2-2. Instrument cluster
LC200_OM_OM60L83U_(U)
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as Multi Terrain ABS and the SRS airbag
warning lights not come on when you start the engine, this could mean that
these systems are not available to help protect you in an accident, which
could result in death or serious injury. Have the vehicle inspected by your
Toyota dealer immediately if this occurs.

193
2-2. Instrument cluster
2
When driving
LC200_OM_OM60L83U_(U)
Multi-information display

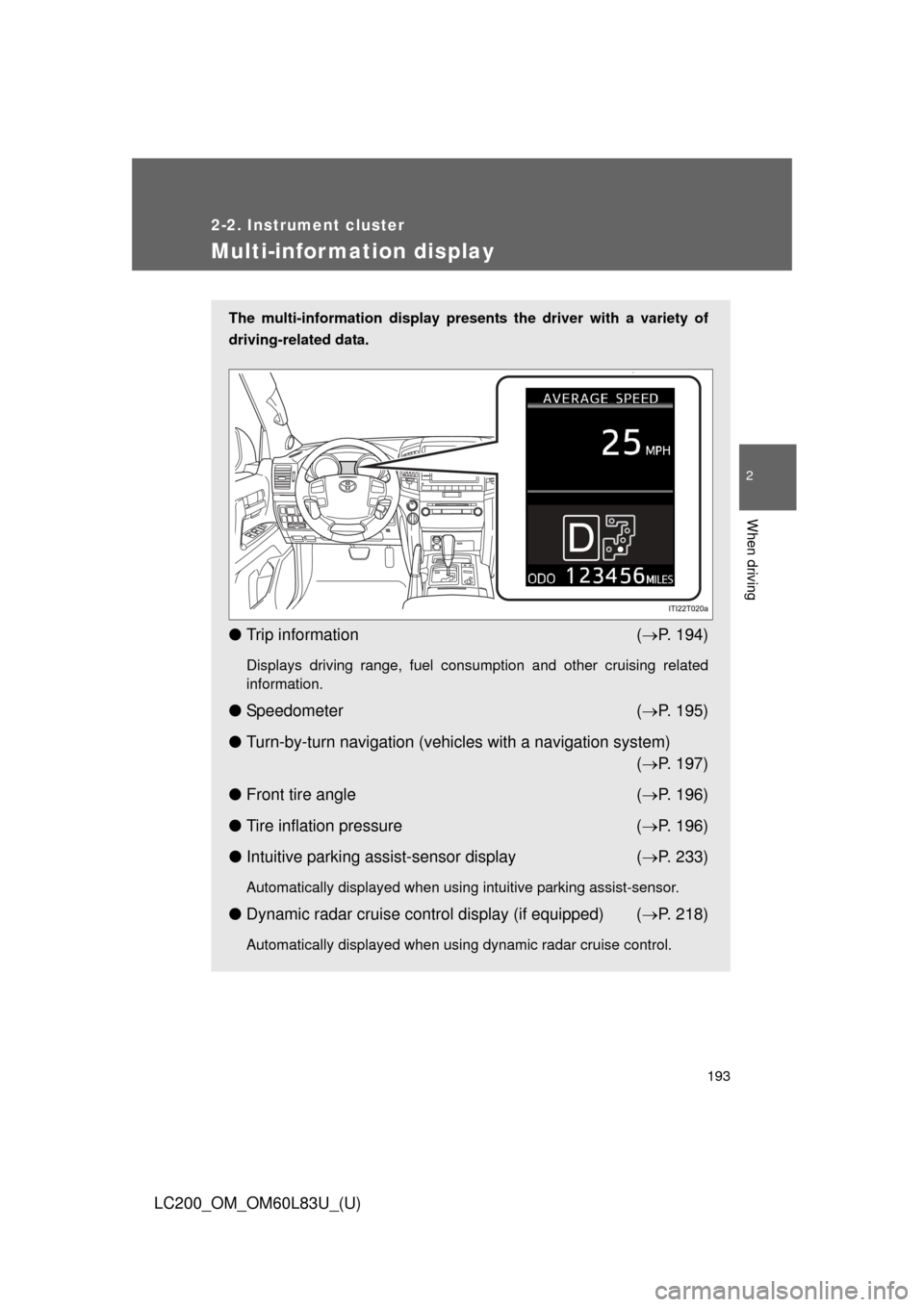

The multi-information display presents the driver with a variety of
driving-related data.
● Trip information ( P. 194)
Displays driving range, fuel consumption and other cruising related
information.
● Speedometer ( P. 195)
● Turn-by-turn navigation (vehicles with a navigation system)
( P. 197)
● Front tire angle ( P. 196)
● Tire inflation pressure ( P. 196)
● Intuitive parking assist-sensor display ( P. 233)
Automatically displayed when using intuitive parking assist-sensor.
● Dynamic radar cruise control display (if equipped) ( P. 218)
Automatically displayed when using dynamic radar cruise control.

194 2-2. Instrument cluster
LC200_OM_OM60L83U_(U)

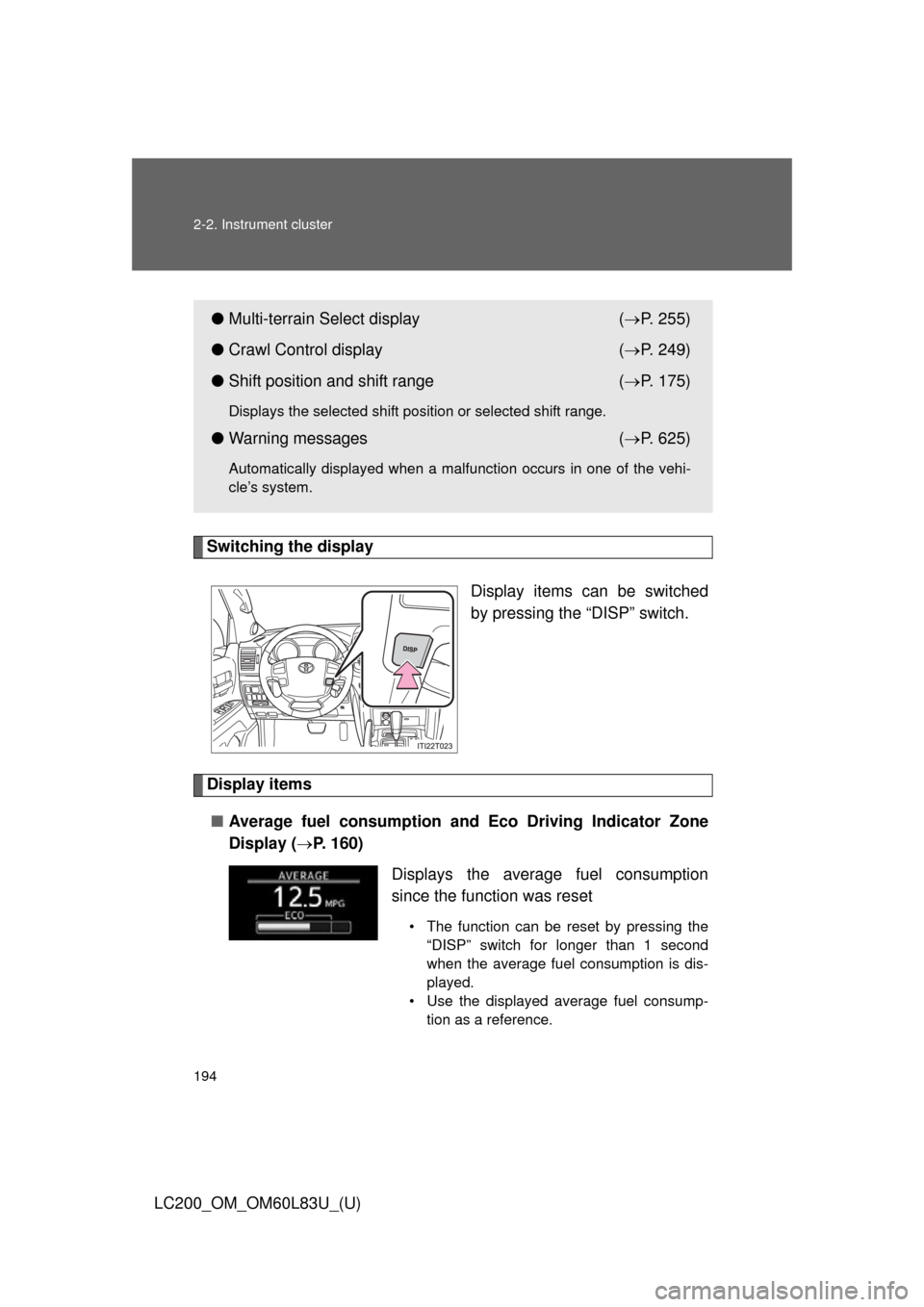

Switching the displayDisplay items can be switched
by pressing the “DISP” switch.
Display items■ Average fuel consumption and Eco Driving Indicator Zone
Display ( P. 160)
●Multi-terrain Select display ( P. 255)
● Crawl Control display ( P. 249)
● Shift position and shift range ( P. 175)
Displays the selected shift position or selected shift range.
● Warning messages ( P. 625)
Automatically displayed when a malfunction occurs in one of the vehi-
cle’s system.
Displays the average fuel consumption
since the function was reset
• The function can be reset by pressing the
“DISP” switch for longer than 1 second
when the average fuel consumption is dis-
played.
• Use the displayed average fuel consump- tion as a reference.

195
2-2. Instrument cluster
2
When driving
LC200_OM_OM60L83U_(U)
■

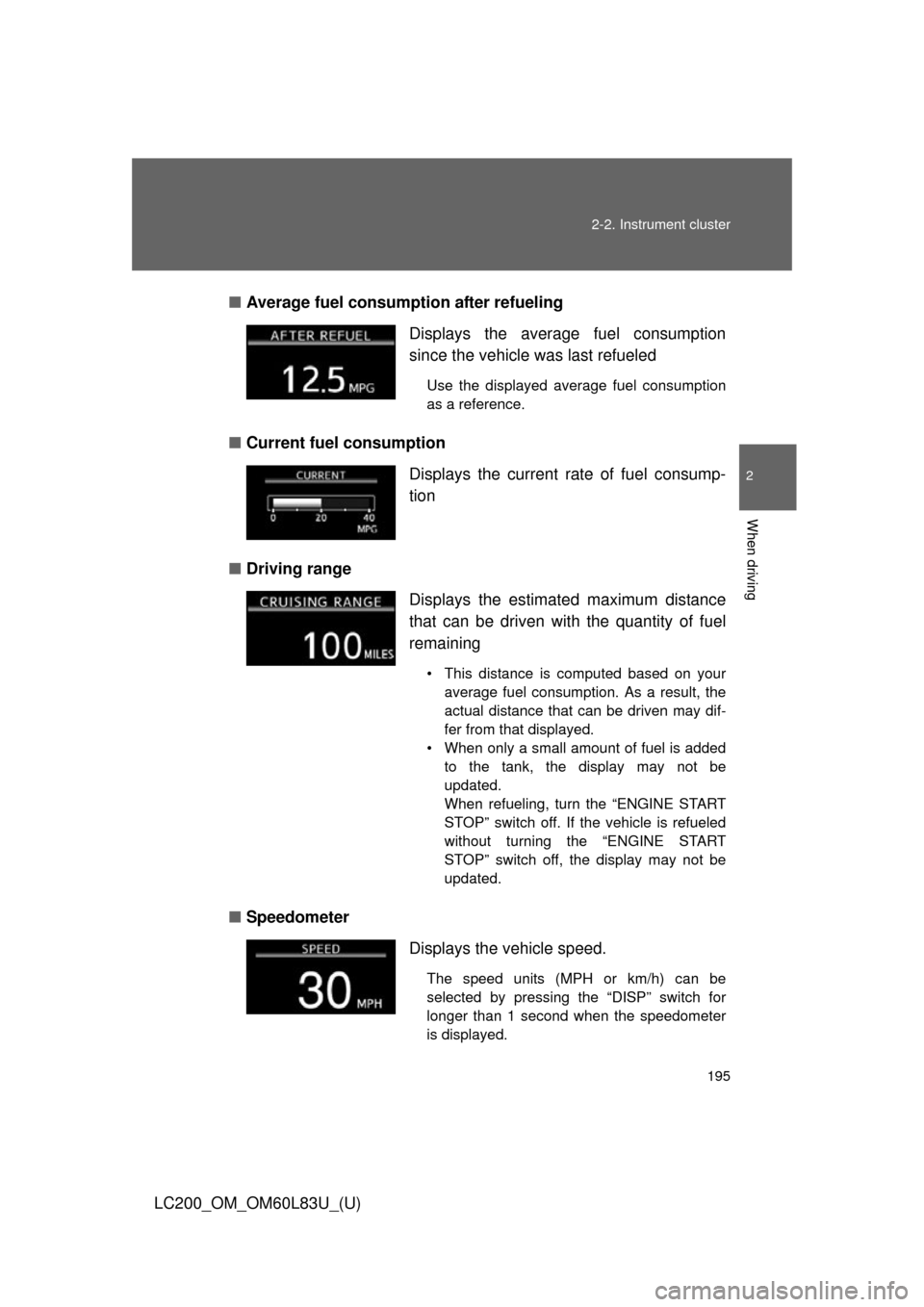

Average fuel consumption after refueling
■ Current fuel consumption
■ Driving range
■ Speedometer Displays the average fuel consumption
since the vehicle was last refueled
Use the displayed average fuel consumption
as a reference.
Displays the current rate of fuel consump-
tion
Displays the estimated maximum distance
that can be driven with the quantity of fuel
remaining
• This distance is computed based on your
average fuel consumption. As a result, the
actual distance that can be driven may dif-
fer from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be
updated.
When refueling, turn the “ENGINE START
STOP” switch off. If the vehicle is refueled
without turning the “ENGINE START
STOP” switch off, the display may not be
updated.
Displays the vehicle speed.
The speed units (MPH or km/h) can be
selected by pressing the “DISP” switch for
longer than 1 second when the speedometer
is displayed.

196 2-2. Instrument cluster
LC200_OM_OM60L83U_(U)■

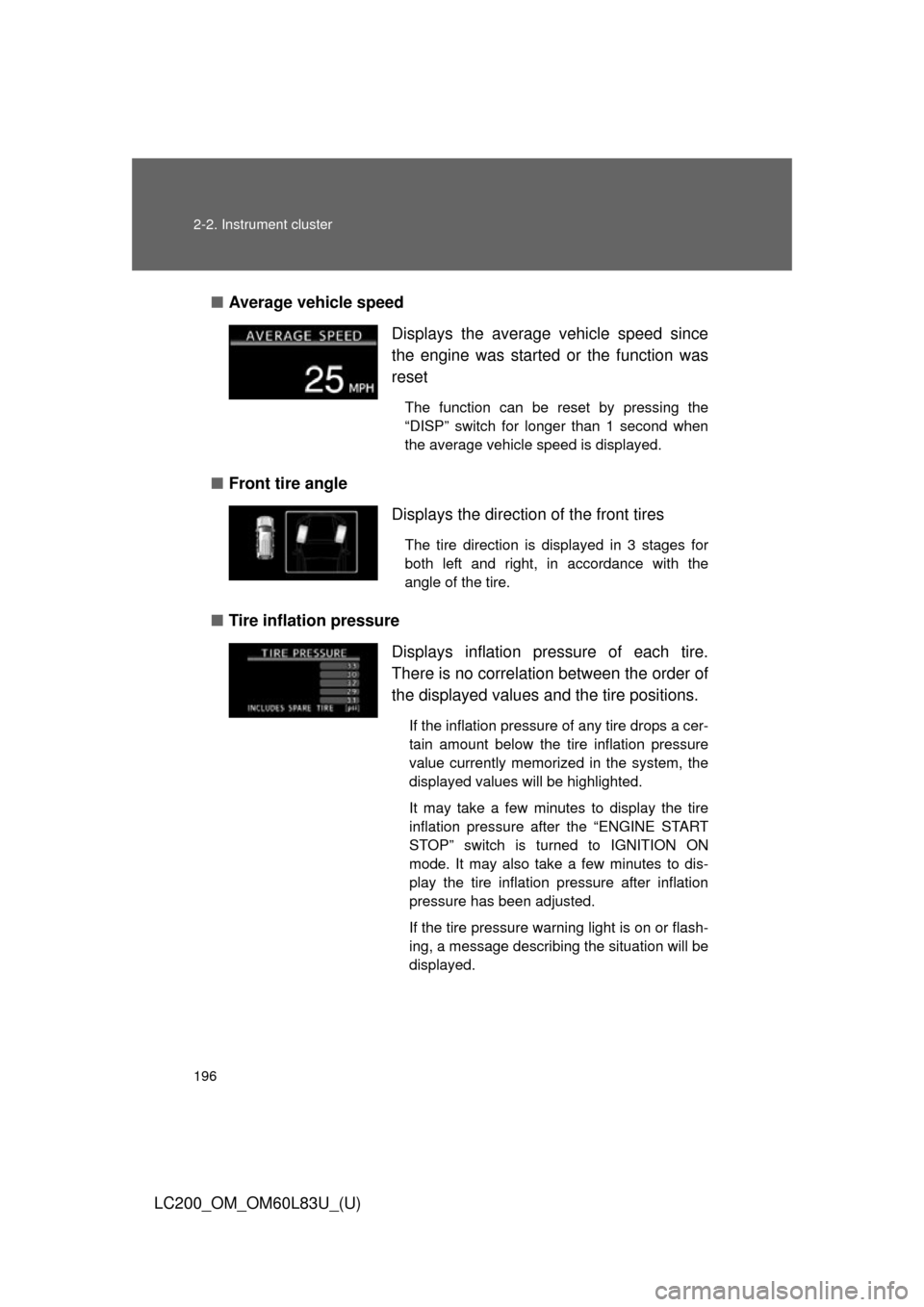

Average vehicle speed
■ Front tire angle
■ Tire inflation pressure Displays the average vehicle speed since
the engine was started
or the function was
reset
The function can be reset by pressing the
“DISP” switch for longer than 1 second when
the average vehicle speed is displayed.
Displays the direction of the front tires
The tire direction is displayed in 3 stages for
both left and right, in accordance with the
angle of the tire.
Displays inflation pressure of each tire.
There is no correlation between the order of
the displayed values and the tire positions.
If the inflation pressure of any tire drops a cer-
tain amount below the tire inflation pressure
value currently memorized in the system, the
displayed values will be highlighted.
It may take a few minutes to display the tire
inflation pressure after the “ENGINE START
STOP” switch is turned to IGNITION ON
mode. It may also take a few minutes to dis-
play the tire inflation pressure after inflation
pressure has been adjusted.
If the tire pressure warning light is on or flash-
ing, a message describing the situation will be
displayed.

197
2-2. Instrument cluster
2
When driving
LC200_OM_OM60L83U_(U)
■

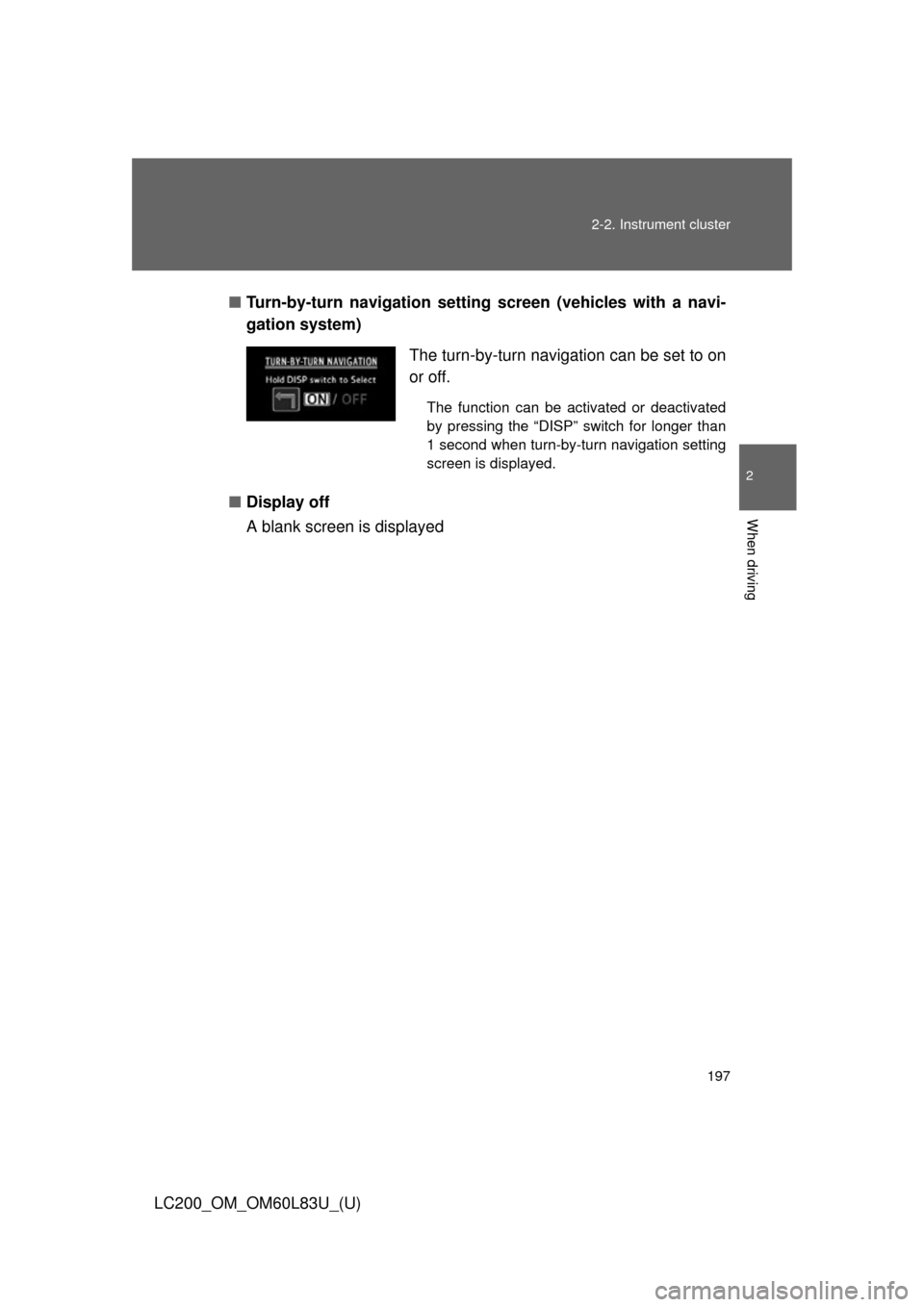

Turn-by-turn navigation setting screen (vehicles with a navi-
gation system)
■ Display off
A blank screen is displayed The turn-by-turn navigation can be set to on
or off.
The function can be activated or deactivated
by pressing the “DISP” switch for longer than
1 second when turn-by-turn navigation setting
screen is displayed.

198 2-2. Instrument cluster
LC200_OM_OM60L83U_(U)
■System check display
After turning the “ENGINE START ST OP” switch to IGNITION ON mode,
“LAND CRUISER” is displayed while system operation is checked. When the
system check is complete, the normal screen will return.
■ Turn-by-turn navigation (veh icles with navigation system)
■ When disconnecting and reco nnecting battery terminals
The following information data will be reset:
● Average fuel consumption after refueling
● Average fuel consumption
● Average vehicle speed

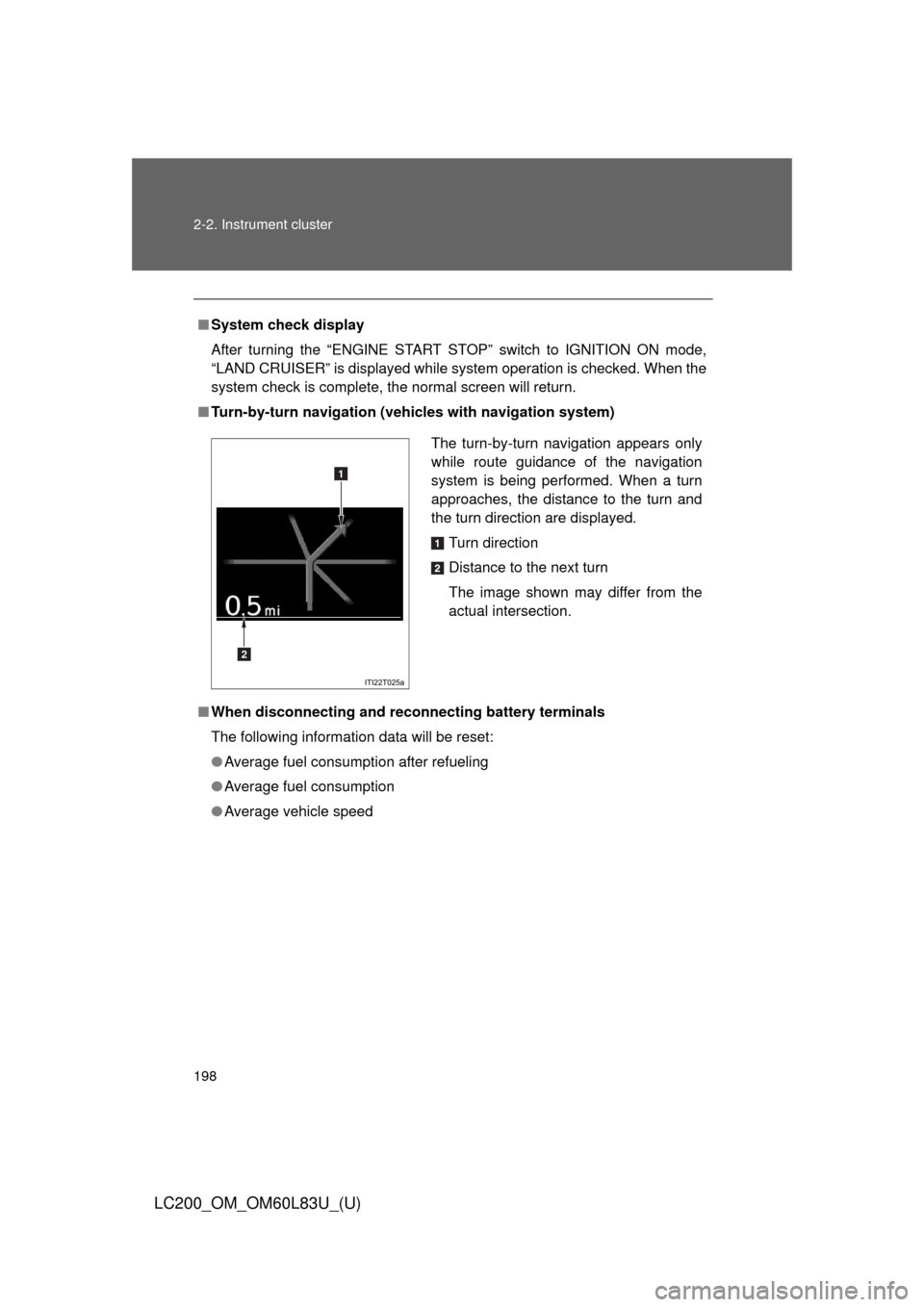

The turn-by-turn navigation appears only
while route guidance of the navigation
system is being performed. When a turn
approaches, the distance to the turn and
the turn direction are displayed.
Turn direction
Distance to the next turn
The image shown may differ from the
actual intersection.
1
2

199
2-2. Instrument cluster
2
When driving
LC200_OM_OM60L83U_(U)
CAUTION
■
The information displ ay at low temperatures
Allow the interior of the vehicle to warm up before using the information dis-
play. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or serious injury.

200
LC200_OM_OM60L83U_(U)
2-3. Operating the lights and wipers
Headlight switch

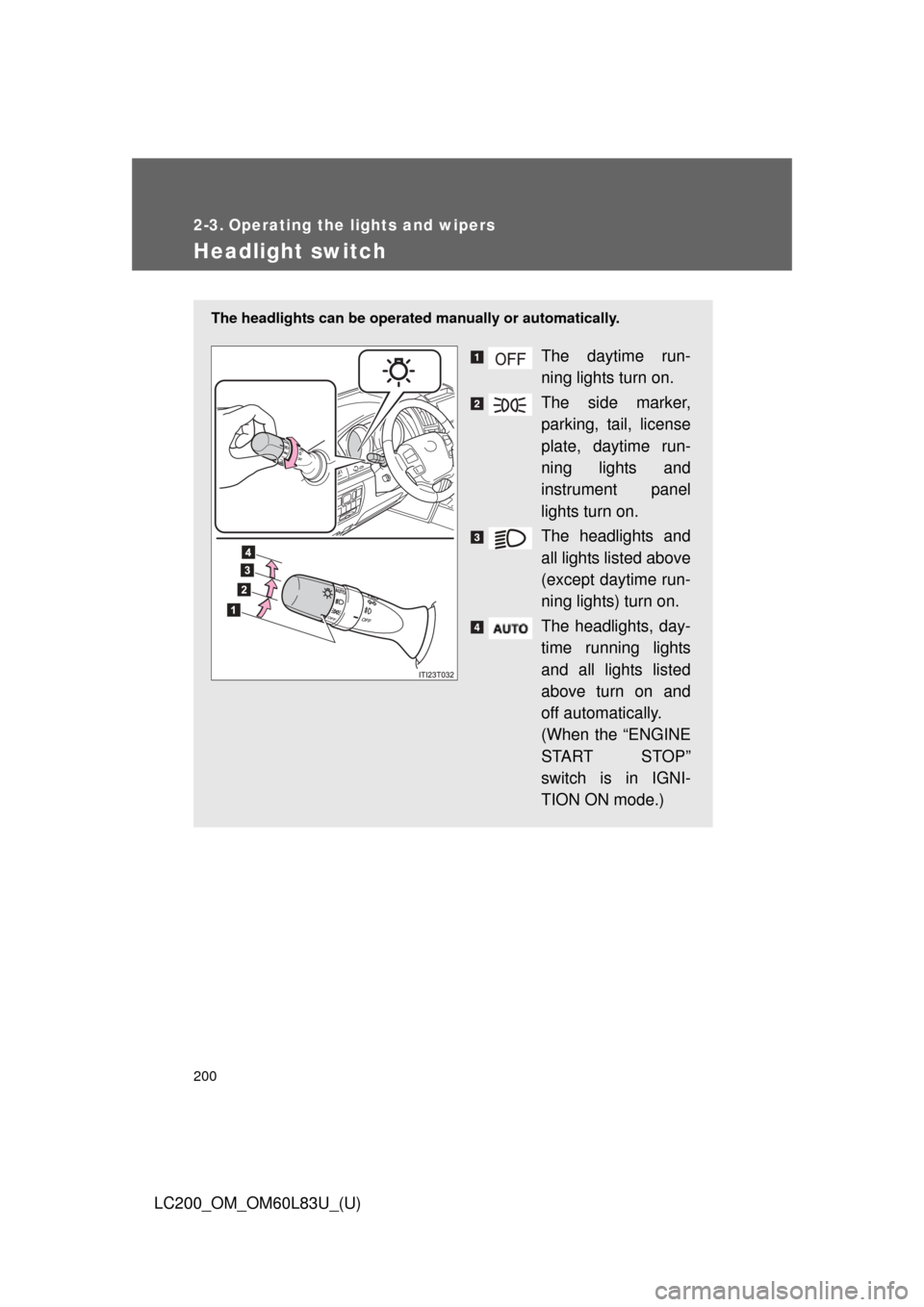

The headlights can be operated manually or automatically.
The daytime run-
ning lights turn on.
The side marker,
parking, tail, license
plate, daytime run-
ning lights and
instrument panel
lights turn on.
The headlights and
all lights listed above
(except daytime run-
ning lights) turn on.
The headlights, day-
time running lights
and all lights listed
above turn on and
off automatically.
(When the “ENGINE
START STOP”
switch is in IGNI-
TION ON mode.)
