climate control TOYOTA LAND CRUISER 2017 J200 Quick Reference Guide

22
FEATURES & OPERATIONS
NOTE: For more information, refer to the Owner’s Manual or “Navigation
System Owner’s Manual.”
Adjust airflow mode
feetupper body& feet upperbody
FRONT AIR CONDITIONING
Automatic air conditioning/heating
Airflow control display (see diagram below) Airflow control display
(see diagram below)
CLIMATE (push to display
AC control screen) Temperature
controls (driver side)
Rear Air Conditioning
operation mode ON/OFF
Windshield airflow/
defogger (outside air only)
Airflow controls
(press to change airflow mode) Outside rearview mirror/
Rear window defogger
Temperature controls
(passenger side) Windshield defogger and airflow to feet
Temperature display
(driver side left,
passenger side right)
Automatic climate control ON
Adjusting the temperature setting will
cause the airflow vents, air intake and
fan to adjust automatically. Air intake control (switch between
outside air “
” and recirculated air
“” mode)
Rear AC control
button (touch to
display rear AC
control screen)
Option controls
Climate control OFF Fan speed

23
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

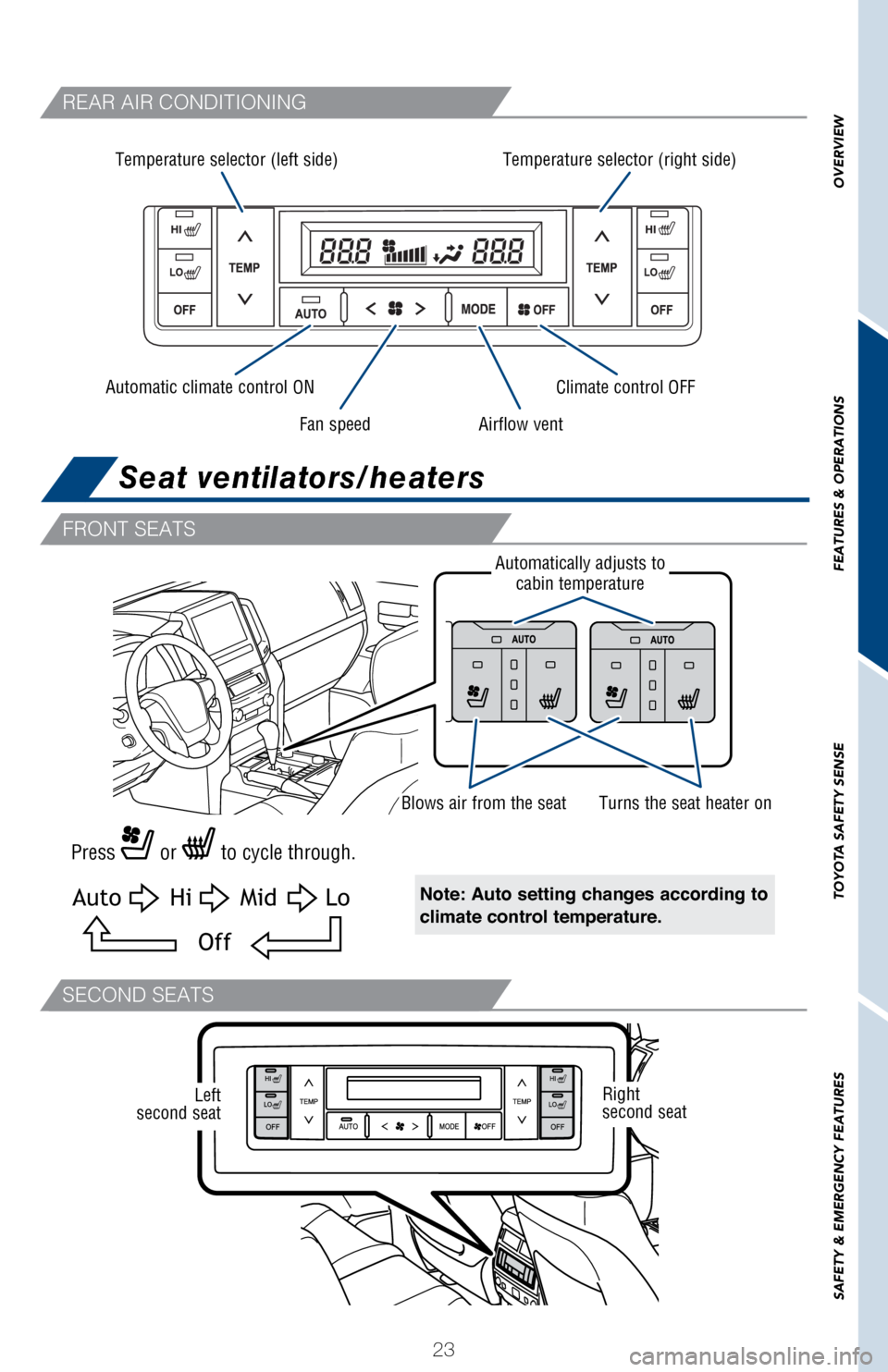

REAR AIR CONDITIONING
FRONT SEATS
SECOND SEATS
Press or to cycle through.
Note: Auto setting changes according to
climate control temperature.
Blows air from the seat
Temperature selector (left side)
Automatic climate control ONClimate control OFF
Fan speedAirflow vent
Temperature selector (right side)
Turns the seat heater on
Automatically adjusts to
cabin temperature
Off
AutoHiMidLo
Seat ventilators/heaters
Left
second seatRight
second seat
