TOYOTA LAND CRUISER 2017 J200 Quick Reference Guide

00505QRG17LC
QUICK REFERENCE GUIDE
Printed in U.S.A. 7/16
16 - M KG - 0 9 52 7
CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 312 0 17

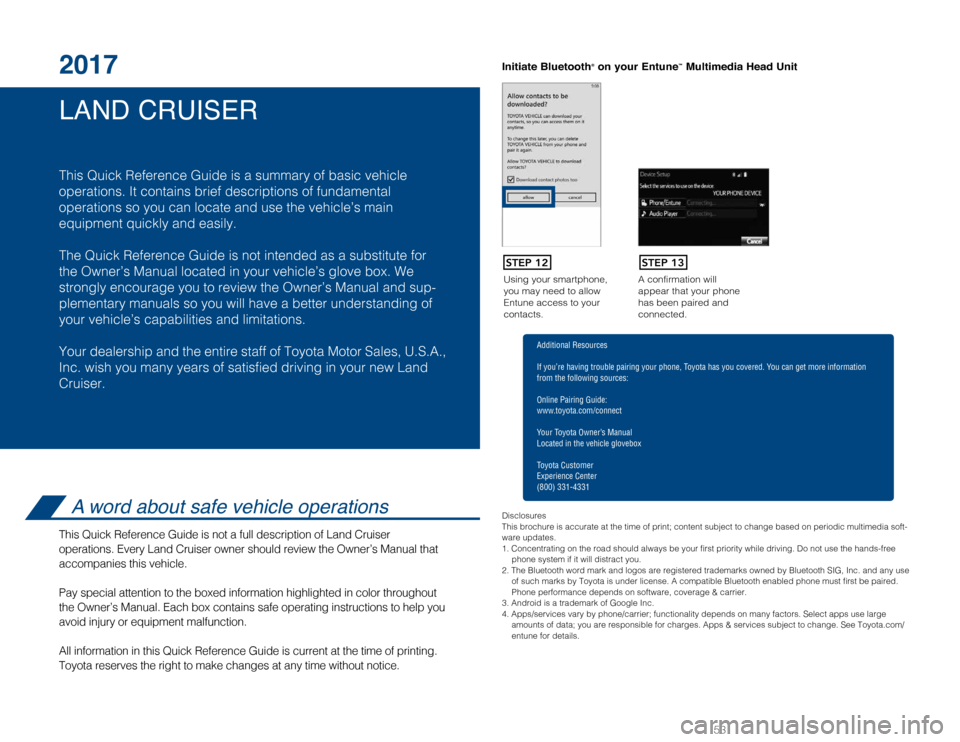

LAND CRUISER

LAND CRUISER 2017
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new -and
Cruiser.
A word about safe vehicle operations
This 2uick 3eference (uide is not a full description of -and Cruiser
operations. &very -and Cruiser owner should review the 0wners .anual that
accompanies this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
Using your smartphone,
you may need to allow
Entune access to your
contacts.A confirmation will
appear that your phone
has been paired and
connected.
Initiate Bluetooth® on your Entun
e™ Multimedia Head Unit
STEP 12STEP 13
Disclosures
This brochure is accurate at the time of print; content subject to chang\
e based on periodic multimedia soft-
ware updates.
1. Concentrating on the road should always be your first priority while driving. Do not use the hands-free
phone system if it will distract you.
2. The Bluetooth word mark and logos are registered trademarks owned by \
Bluetooth SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth enabled phone must first be paired.
Phone performance depends on software, coverage & carrier.
3. Android is a trademark of Google Inc.
4. Apps/services vary by phone/carrier; functionality depends on many fa\
ctors. Select apps use large amounts of data; you are responsible for charges. Apps & services subjec\
t to change. See Toyota.com/
entune for details.
Additional Resources
If you’re having trouble pairing your phone, Toyota has you covered. You can get more information
from the following sources:
Online Pairing Guide:
www.toyota.com/connect
Your Toyota Owner’s Manual
Located in the vehicle glovebox
Toyota Customer
Experience Center
(800) 331-4331
53

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY &
EMERGENCY FEATURES
1
INDEX
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1 6
Light control-Instrument panel 9
Smart Key system
1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES TOYOTA SAFETY SENSE
Automatic air
conditioning/heating
22-23
Audio 20-21
Auto lock/unlock
1 10
Automatic transmission 10
Cooler box 28
Crawl Control 24
Cup holders 28
Door-Back 21
Door locks 26
Doors-Power sliding 16
Four-wheel drive 11
Garage door opener (HomeLink
®)3 27
Lights1 & turn signals 17
Moon roof 19
Multi-Information Display (MID)
2 25
Multi-terrain Monitor 24
Parking brake 28
Power outlets-12V DC 28
Power outlet-120V AC 29
Qi wireless charger 29
Rear seat entertainment system 27
Rear view mirror-Outside 19
Seat adjustments-Front 12
Seat adjustments-Rear 12
Seat ventilators/heaters 23
Seats-Head restraints 12
Seats-Stowing 3rd row seats 15 Seats-Tumbling 2nd row seats 13
Seats-Tumbling 3rd row seats 14
Steering lock release
11
Telephone controls (Bluetooth
®) 26
Tilt & telescopic steering wheel 25
Windows-Power 18
Windshield wipers & washers 18
Doors-Child safety locks 41
Floor mat installation 43
Seat belts 40
Seat belts-Shoulder belt anchor 40
Spare tire & tools 41
Star Safety System
™ 42
Tire Pressure Monitoring
(warning) System (TPMS) 40
Auto High Beams (AHB) 38-39
Dynamic Radar
Cruise Control (DRCC) 36-38
Lane Departure Alert (LDA) 33-35
Pedestrian Detection Function 33
Pre-Collision System (PCS) 31-32
Quick overview-
Toyota Safety Sense P 30
Sensors 30
BLUETOOTH® DEVICE
PAIRING SECTION 44-53

2
OVERVIEWInstrument panel
Steering wheel controls
Steering wheel
audio switches2
Multi-Information
Display (MID) switches1
Dynamic Radar Cruise Control
(DRCC)/Cruise control Dynamic Radar Cruise
Control (DRCC)
vehicle-to-vehicle
distance button
Lane Departure
Alert (LDA) switch
Tilt and telescopic steering control switch
Headlight, turn signal & front fog light controls
Meters
Multi-Information Display (MID) Windshield wiper and washer controls
Multi-terrain monitor switch (VIEW)
2
Pre-Collision System (PCS) switch
Tire Pressure Monitoring
(warning) System reset switch
Hood lock release lever
Fuel tank door release lever
Power outside rear view mirror switches
Roll Sensing of Curtain
shield Airbag OFF switch
Automatic High Beam (AHB) switch
Intuitive parking assist switch
Headlight cleaner switch Talk switch
2
Telephone switches2

OVERVIEW
FEATURES/OPERATIONS
TOYOTA SAFETY SENSE
SAFETY AND EMERGENCY FEATURES
3
“ENGINE START STOP” button (Smart Key)
Audio/Navigation
2 system
Emergency flasher button
Air conditioning and heating controls
Front seat heater/ventilator switches
Heated steering wheel switch
USB/AUX port
Four-wheel drive
control switch
Crawl control
switch
Multi-terrain Select mode selector/
Crawl Control speed mode dial
Center differential lock/unlock switch
VSC OFF switch
Second start mode switch
POWER mode switch Turn Assist switch
Audio system
Shift lever
Parking brake
1 If equipped2 For details, refer to the “Navigation System Owner’s Manual” an\
d “2017 Entune™ Audio
Quick Reference Guide.”

4
OVERVIEWInstrument cluster
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2017 Owner’s
Manual.
Engine oil pressure gauge Tachometer
Multi-Information Display (MID)
Speedometer
Voltmeter
Fuel gauge
Odometer and trip meter display
Shift position and range display
Odometer/trip meter display change button
Instrument panel light control dial
Engine coolant temperature gauge
Vehicles with a monochrome display
Charging system warning Low engine oil pressure warning
Low Tire Pressure Warning
Malfunction/Check Engine indicator
2
Master warning1,2
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Open door warning
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Airbag SRS warning1
Indicator symbols
Service indicators and reminders

OVERVIEW
FEATURES/OPERATIONS
TOYOTA SAFETY SENSE
SAFETY AND EMERGENCY FEATURES
5
Arrow direction indicates fuel
tank door position
Low fuel level warning
Brake system warning2
Anti-lock Brake System warning2
Parking brake indicator
Shift position and range indicators
Roll Sensing of Curtain shield
Airbag OFF indicator2
Automatic Transmission
second start indicator
Power mode indicator
Vehicle Stability Control OFF indicator
Slip indicator
Low speed four-wheel drive indicator
Center differential lock indicator
Crawl Control indicatoraVehicle Stability Control OFF indicator
Multi-terrain select indicator
ECO driving indicator2
Turn assist function indicator
TRAC OFF indicator
Headlight low/high beam indicator
Turn signal indicator
Fog light indicator
Automatic headlight leveling
system warning
1 If equipped.2
If indicator does not turn off within a few seconds of starting engine, \
there may be a malfunction.
Have vehicle inspected by your Toyota dealer.
AIR BAG ON-OFF indicatorCruise control indicator/
Cruise control SET indicator
Auto High Beam indicator
Pre-Collision System warning2
Blind Spot Monitor indicator2
Rear Cross Traffic
Alert indicator
Blind Spot Monitor outside rear
view mirror indicators2
Land Departure Alert indicator
Dynamic Radar Cruise Control
indicator

6
Keyless entry
OVERVIEW
NOTE: If a door is not opened within 30 seconds of unlocking, all doors will relock for
safety.
Push
ONCE: Driver door TWICE: All doors
Carry remote
Smart key feature
Carry remote
Smart key feature
Front door lock
Touch Carry remote
Smart key feature
Grasp
Front door unlock*
Push
Push and hold
* Driver door unlocking function can be programmed to unlock driver door\
only, or all doors.
NOTE: Doors may also be locked/unlocked using remote.
LockUnlock
LOCKING OPERATION
UNLOCKING OPERATION
PANIC BUTTON (IF EQUIPPED)
BACK DOOR LOCK/UNLOCK

OVERVIEW
FEATURES/OPERATIONS
TOYOTA SAFETY SENSE
SAFETY AND EMERGENCY FEATURES
7
Smart Key system
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
Without depressing the brake pedal, pressing the “ENGINE START STOP”\
switch
will change the operation mode in succession from:
START FUNCTION
POWER (WITHOUT STARTING ENGINE)

8
OVERVIEW
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
”
indicator may
illuminate.
Pull
Turn to open
Store
Pull up latch and
raise hood
Pull
Fuel tank door release and cap
Hood release
