TOYOTA LAND CRUISER 2018 (in English) Owner's Manual

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
19
Moonroof
Automatic mode
OpenTilt
CloseClose
Recommended open position to minimize
wind noise.
Push once to open partway;
again to open completely.
Use switch to adjust mirror angle while in ACCESSORY or IGNITION ON mode\
.
Linked mirror function when reversing The outside rearview mirrors
automatically angle downwards when vehicle is in reverse. Will only oper\
ate when
switch is in “L” or “R” position.
SLIDIING OPERATION
TILTING OPERATION
Rear view mirror-Outside

20
Audio
FEATURES & OPERATIONS
NOTE: For more information, refer to the “Navigation System Owner’s Manual”
and “2018 Entune™ Audio Quick Reference Guide.”
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Entune
™ system if it will distract you.
Disc slot
Turn to search selected
media (radio, CD, DVD,
etc.)
Eject disc
Mute/Pause
Seek station/ track/
presets or rewind/FF
Push to turn ON/OFF
Display home
screen Display audio
setup screen Display
screen
Display map
screen
Audio/visualscreenDisplay information screen
Display hands-freescreen
Entune™ Premium JBL® Audio with Integrated Navigation and App Suite

21
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
“” and “+/-”
Use to raise or lower
volume.
USB/AUX PORT
STEERING WHEEL SWITCHES
“”Use to search within the selected
audio medium (radio, etc.).
“”
Push to access voice command
system.“MODE”
Push to turn audio ON and to
select an audio mode.
Push and hold to mute or
pause the audio.
USB port
By connecting a USB-compatible portable audio device or USB memory to th\
e
USB port, you can listen to music from the portable audio device or USB \
memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from\
a portable
audio device through the vehicle’s speaker system while in AUX mode.

22
FEATURES & OPERATIONS
NOTE: For more information, refer to the Owner’s Manual or “Navigation
System Owner’s Manual.”
Adjust airflow mode
feetupper body& feet upperbody
FRONT AIR CONDITIONING
feet & windshield defogger
Automatic air conditioning/heating
Airflow control display (see diagram below) Airflow control display
(see diagram below)
CLIMATE (push to display
AC control screen) Temperature controls
(passenger side)
Rear Air Conditioning
operation mode ON/OFF
Windshield airflow/
defogger (outside air only)
Airflow controls
(press to change airflow mode) Outside rearview mirror/
Rear window defogger
Temperature controls
(driver side) Windshield defogger and airflow to feet
Temperature display
(driver side left,
passenger side right)
Automatic climate control ON
Adjusting the temperature setting will
cause the airflow vents, air intake and
fan to adjust automatically. Air intake control (switch between
outside air “
” and recirculated air
“” mode)
Rear AC control
button (touch to
display rear AC
control screen)
Option controls
Climate control OFF Fan speed

23
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

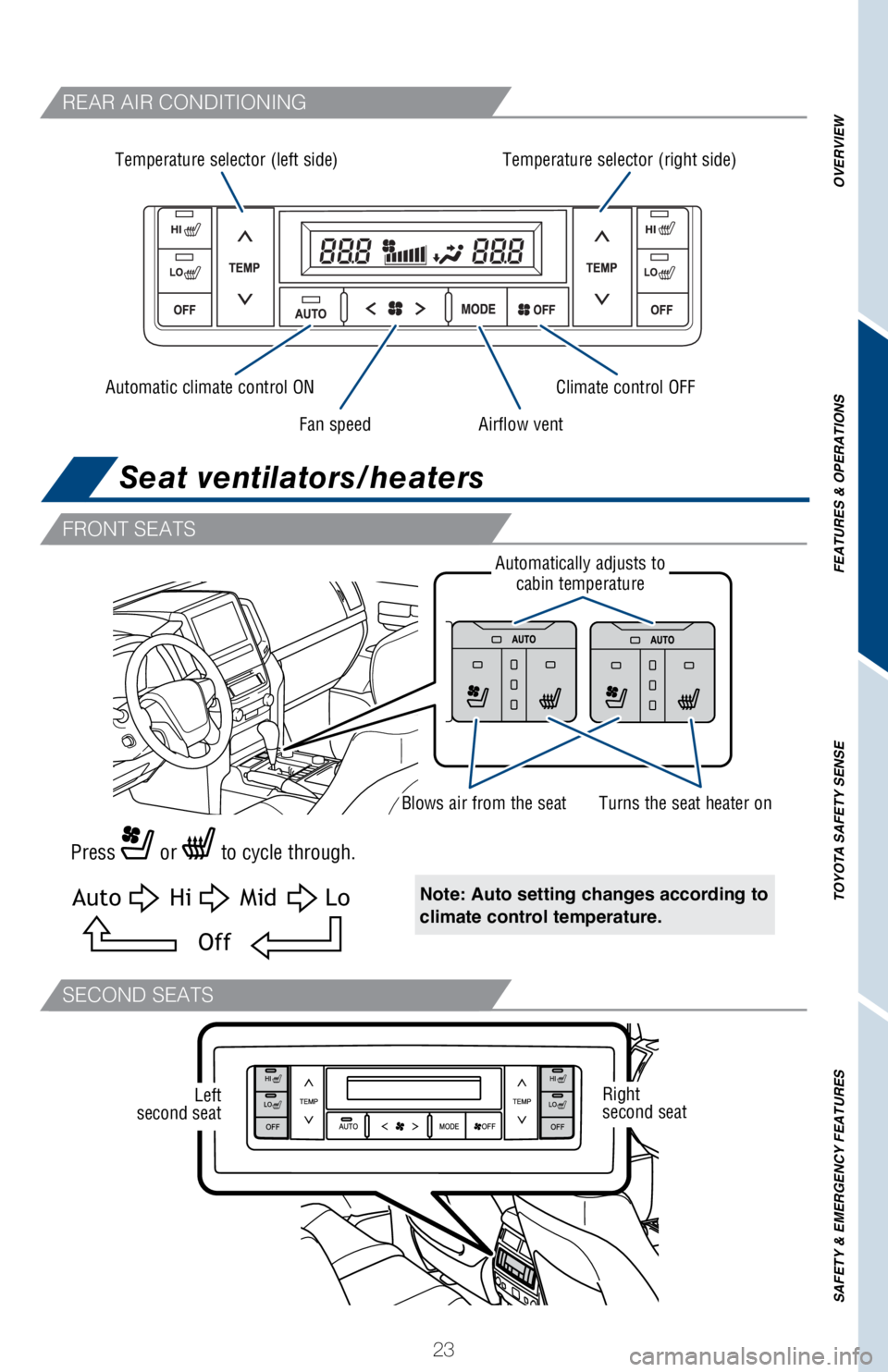

REAR AIR CONDITIONING
FRONT SEATS
SECOND SEATS
Press or to cycle through.
Note: Auto setting changes according to
climate control temperature.
Blows air from the seat
Temperature selector (left side)
Automatic climate control ONClimate control OFF
Fan speedAirflow vent
Temperature selector (right side)
Turns the seat heater on
Automatically adjusts to
cabin temperature
Off
AutoHiMidLo
Seat ventilators/heaters
Left
second seatRight
second seat

24

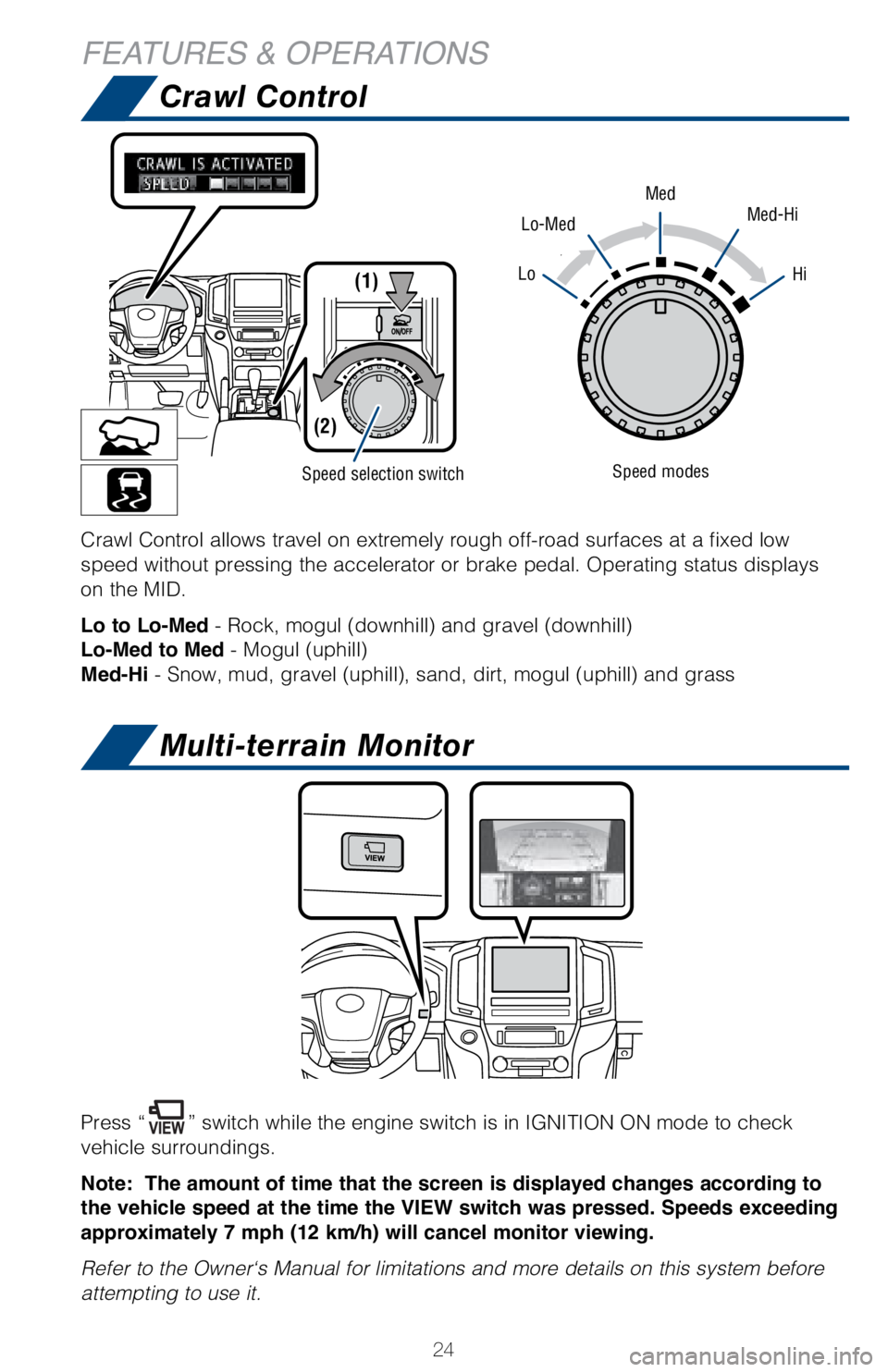

Crawl Control
Multi-terrain Monitor
FEATURES & OPERATIONS
Speed selection switch
LoHi(1)
(2)
Med
Lo-MedMed-Hi
Speed modes
Press “” switch while the engine switch is in IGNITION ON mode to check
vehicle surroundings.
Note: The amount of time that the screen is displayed changes according to
the vehicle speed at the time the VIEW switch was pressed. Speeds exceeding
approximately 7 mph (12 km/h) will cancel monitor viewing.
Refer to the Owner‘s Manual for limitations and more details on this \
system before
attempting to use it.
Crawl Control allows travel on extremely rough off-road surfaces at a fi\
xed low
speed without pressing the accelerator or brake pedal. Operating status \
displays
on the MID.
Lo to Lo-Med - Rock, mogul (downhill) and gravel (downhill)
Lo-Med to Med - Mogul (uphill)
Med-Hi - Snow, mud, gravel (uphill), sand, dirt, mogul (uphill) and grass

25
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Multi-Information Display (MID)
Select: To select an
item/change pagesEnter/Set: Press to enter/
set, press and hold to reset
Menu/Display: Switch
the top screenReturn: To previous
screen
Push “Multi-Information switches” to view or change information in\
the following:
Drive information
Vehicle information display (if equipped)
Navigation system-linked display (if equipped)
Audio system linked display (if equipped)
Driving assist system information (if equipped)
Warning messages
Settings display

26
Telephone control (Bluetooth®)
FEATURES & OPERATIONS
Voice
command
switch
End call
Start call/
Mobile Assistant access*
MicrophoneDisplay
Steering wheel telephone switches
Microphone
Bluetooth® technology allows dialing or receipt of calls without taking hands from\

the steering wheel or using a cable to connect the telephone and the sys\
tem.
* Push and hold to access Mobile Assistant. Once you connect a compatible,\

registered mobile phone, you can access Siri® Eyes Free using Mobile Assistant
access switch.
Refer to the Navigation System Owner’s Manual for more details.

Refer to “Bluetooth® Device Pairing Section” in this guide and the “Navigation
System Owner’s Manual” for more information about phone connection\
s and
compatibility.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the hands-free phone system if it will distract you.

27
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Garage door opener (HomeLink®)*
Rear seat entertainment system (if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 5-4 in the Owner’s Manua\
l for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Gentex Corporation.
Front audio system (DVD player) Displays
Remote control
Headphone volume control and headphone jacks
A/V input port
(VTR and HDMI port)
For details, refer to the “Navigation System Owner’s Manual.”

28
Parking brake
Cup holders
Cool box
Power outlets-12V DC
FEATURES & OPERATIONS
Push “PWR” button to turn cool box ON; indicator will illuminate.
Indicator
The “ENGINE START STOP” switch must be in “ACCESSORY” or “\
IGNITION ON”
mode to be used.
FrontRear
(2) Push
SetRelease
(1) Pull slightly
(3) Lower
Pull
FrontRear
