TOYOTA LAND CRUISER 2019 (in English) Owner's Guide

29
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

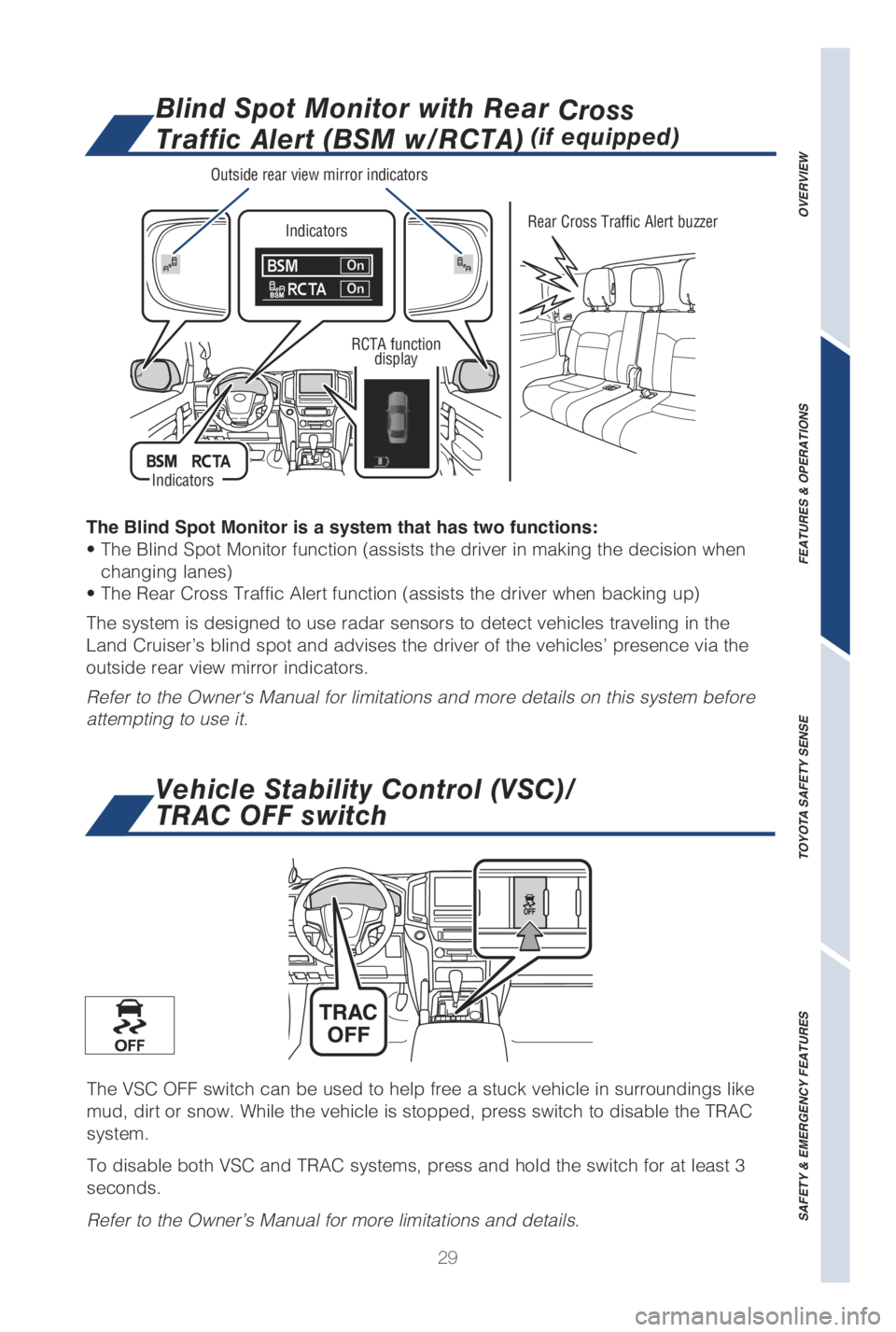

Vehicle Stability Control (VSC)/
TRAC OFF switch
The VSC OFF switch can be used to help free a stuck vehicle in surroundi\
ngs like
mud, dirt or snow. While the vehicle is stopped, press switch to disable\
the TRAC
system.
To disable both VSC and TRAC systems, press and hold the switch for at l\
east 3
seconds.
Refer to the Owner’s Manual for more limitations and details.
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the decision when
changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
The system is designed to use radar sensors to detect vehicles traveling\
in the
Land Cruiser’s blind spot and advises the driver of the vehicles’ presence via the
outside rear view mirror indicators.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA)
(if equipped)
Indicators
Indicators
RCTA function display Rear Cross Traffic Alert buzzer
Outside rear view mirror indicators

30
FEATURES & OPERATIONS

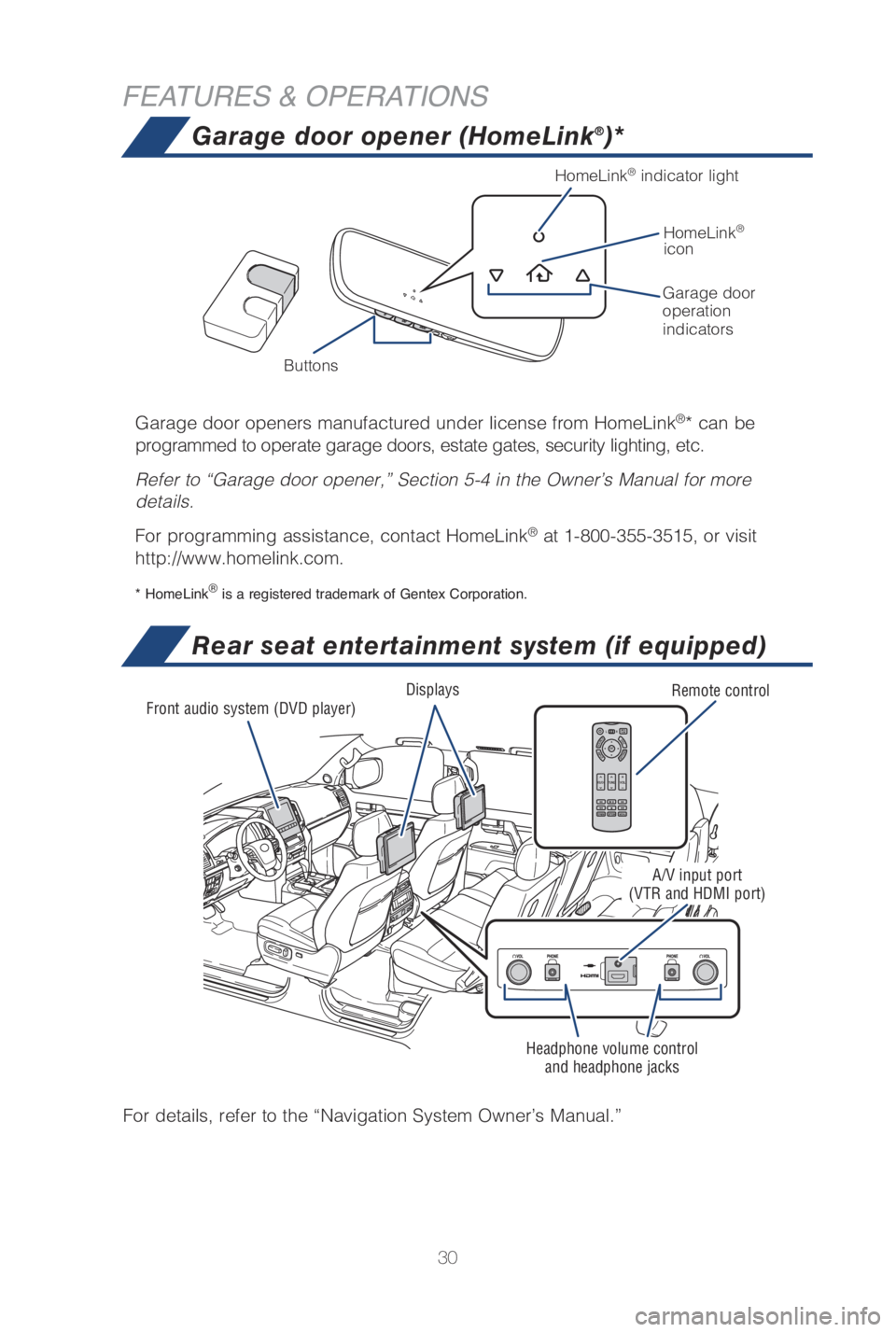

Garage door opener (HomeLink®)*
Rear seat entertainment system (if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 5-4 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Gentex Corporation.
Front audio system (DVD player)Displays Remote control
Headphone volume control and headphone jacks
A/V input port
(VTR and HDMI port)
For details, refer to the “Navigation System Owner’s Manual.”
HomeLink® indicator light
HomeLink
®
icon
Buttons Garage door
operation
indicators

31
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

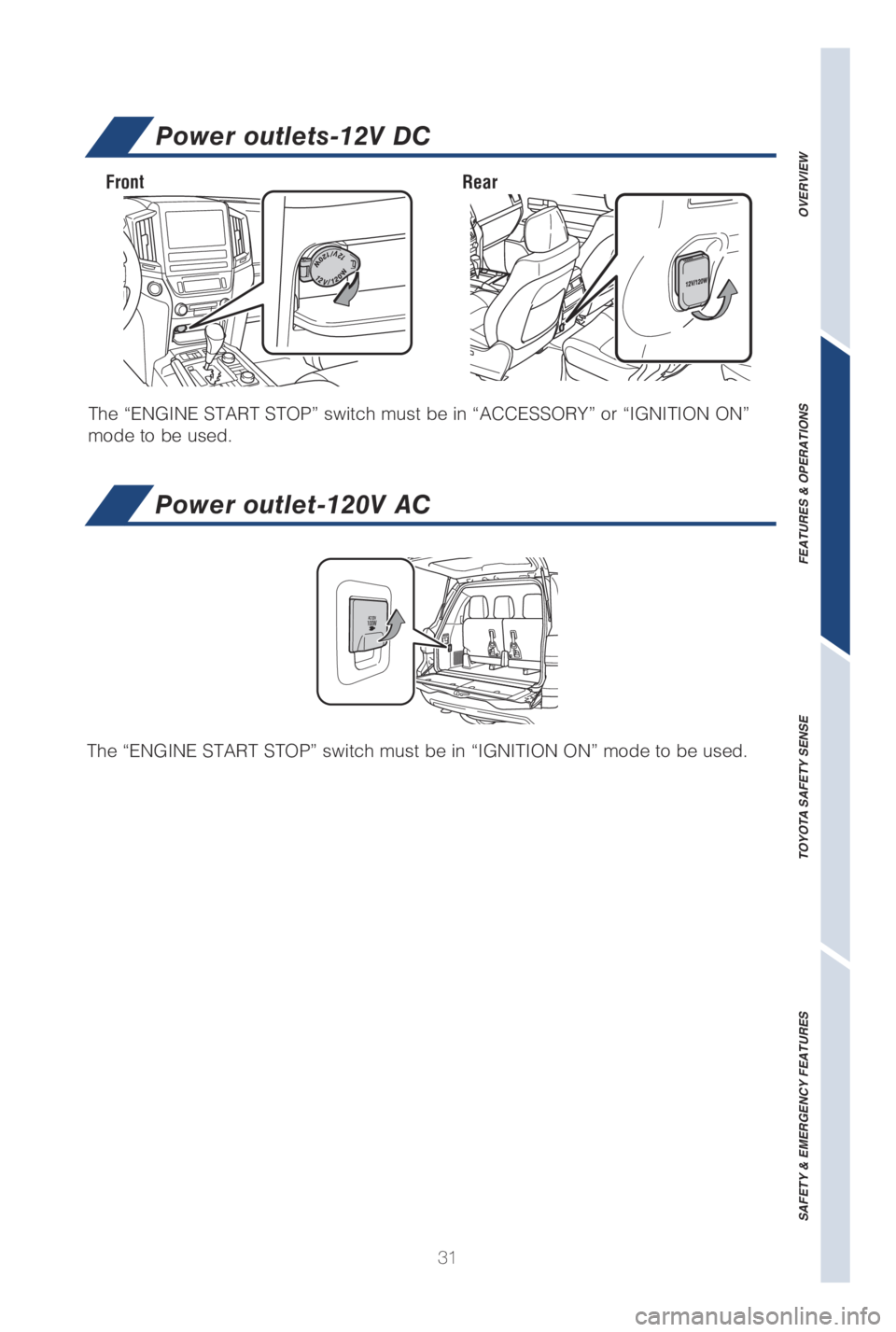

Power outlets-12V DC
The “ENGINE START STOP” switch must be in “ACCESSORY” or “\
IGNITION ON”
mode to be used.
FrontRear
Power outlet-120V AC
The “ENGINE START STOP” switch must be in “IGNITION ON” mode\
to be used.

32

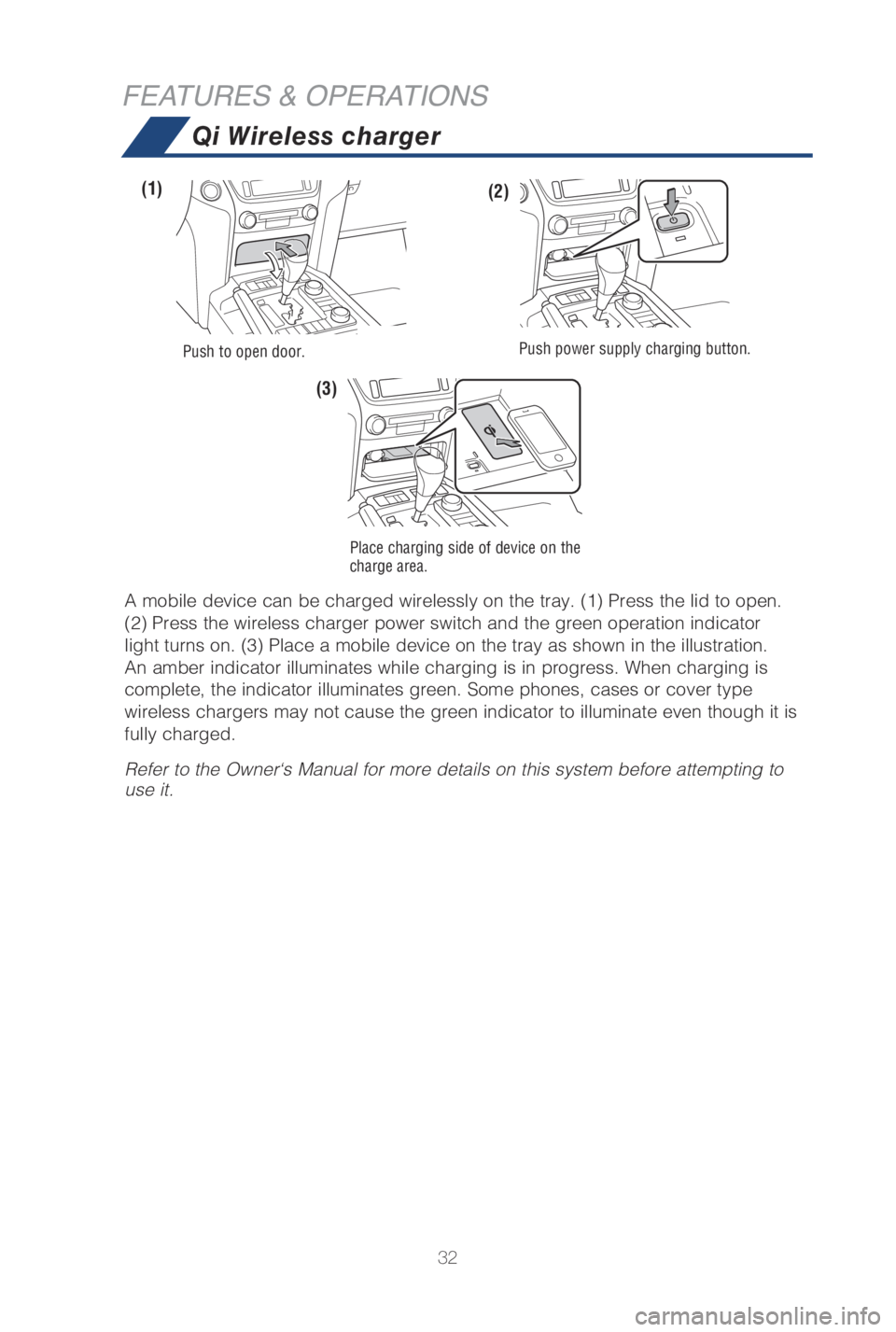

Qi Wireless charger
FEATURES & OPERATIONS
(1)
Push to open door.Push power supply charging button.
Place charging side of device on the
charge area.
(2)
(3)
A mobile device can be charged wirelessly on the tray. (1) Press the lid to open.
(2) Press the wireless charger power switch and the green operation indicator
light turns on. (3) Place a mobile device on the tray as shown in the illustration.
An amber indicator illuminates while charging is in progress. When charg\
ing is
complete, the indicator illuminates green. Some phones, cases or cover t\
ype
wireless chargers may not cause the green indicator to illuminate even t\
hough it is
fully charged.
Refer to the Owner‘s Manual for more details on this system before attempting to
use it.

33

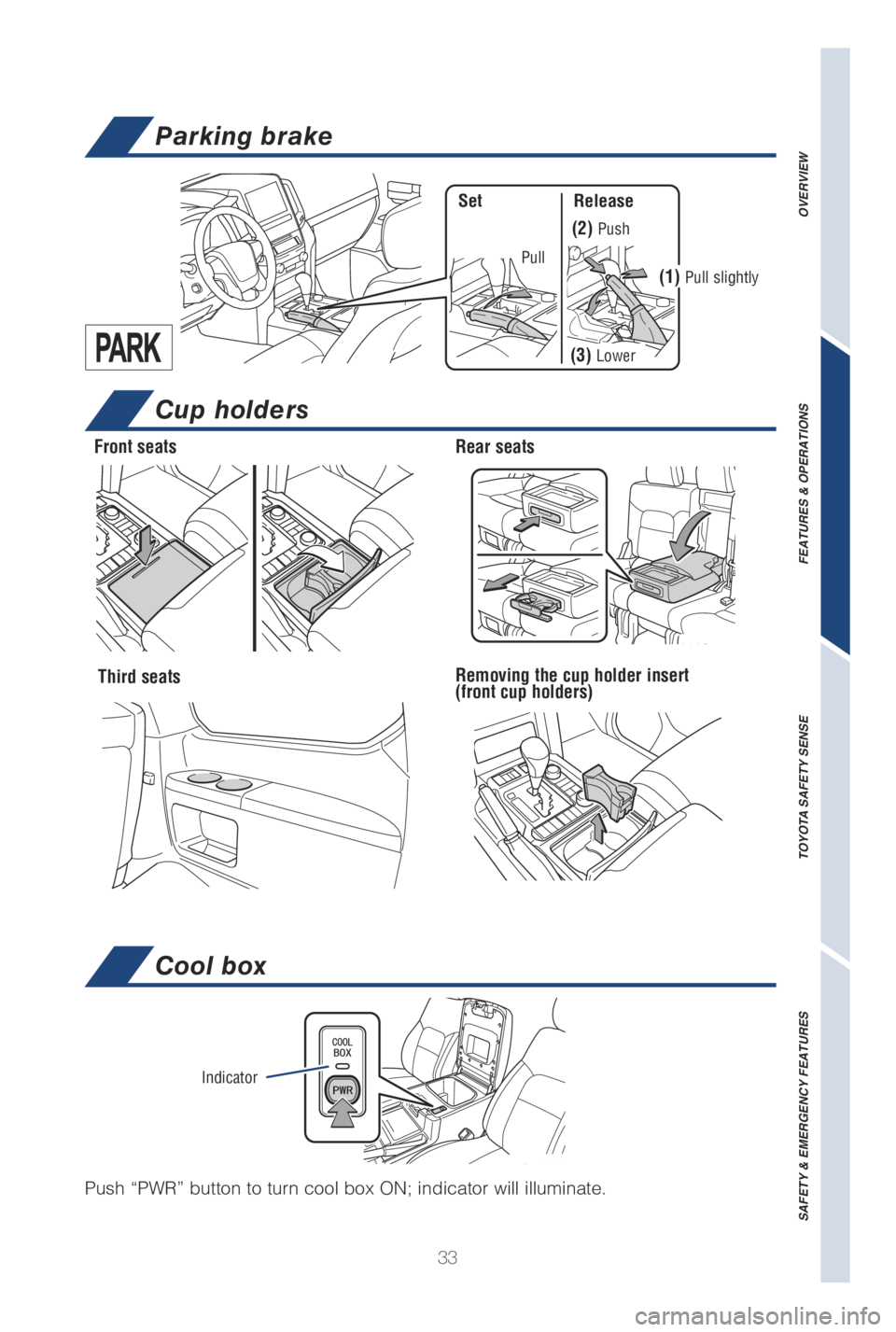

Parking brake
Cup holders
Cool box
Push “PWR” button to turn cool box ON; indicator will illuminate.
Indicator
(2) Push
SetRelease
(1) Pull slightly
(3) Lower
Pull
Front seats
Third seats
Rear seats
Removing the cup holder insert
(front cup holders)
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

34
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense
Pre-Collision System with Pedestrian Detection (PCS w/PD)
PCS w/PD is designed to provide alert, mitigation, and/or avoidance
support in certain conditions, when the system detects a potential
collision with a preceding vehicle is likely to occur.
Advanced millimeter-wave radar sensor system is designed to work
with the camera sensor to help recognize a preceding pedestrian,
and provide an alert, mitigation and/or avoidance support in certain
conditions.
Lane Departure Alert (LDA)
LDA is designed to provide notification when the system detects an
unintended lane departure.Automatic High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles and the
tail lights of preceding vehicles and switch between high beams and
low beams as appropriate.
Dynamic Radar Cruise Control (DRCC)
DRCC is designed to help maintain a pre-set distance to a preceding
vehicle when the preceding vehicle is traveling at a lower speed.

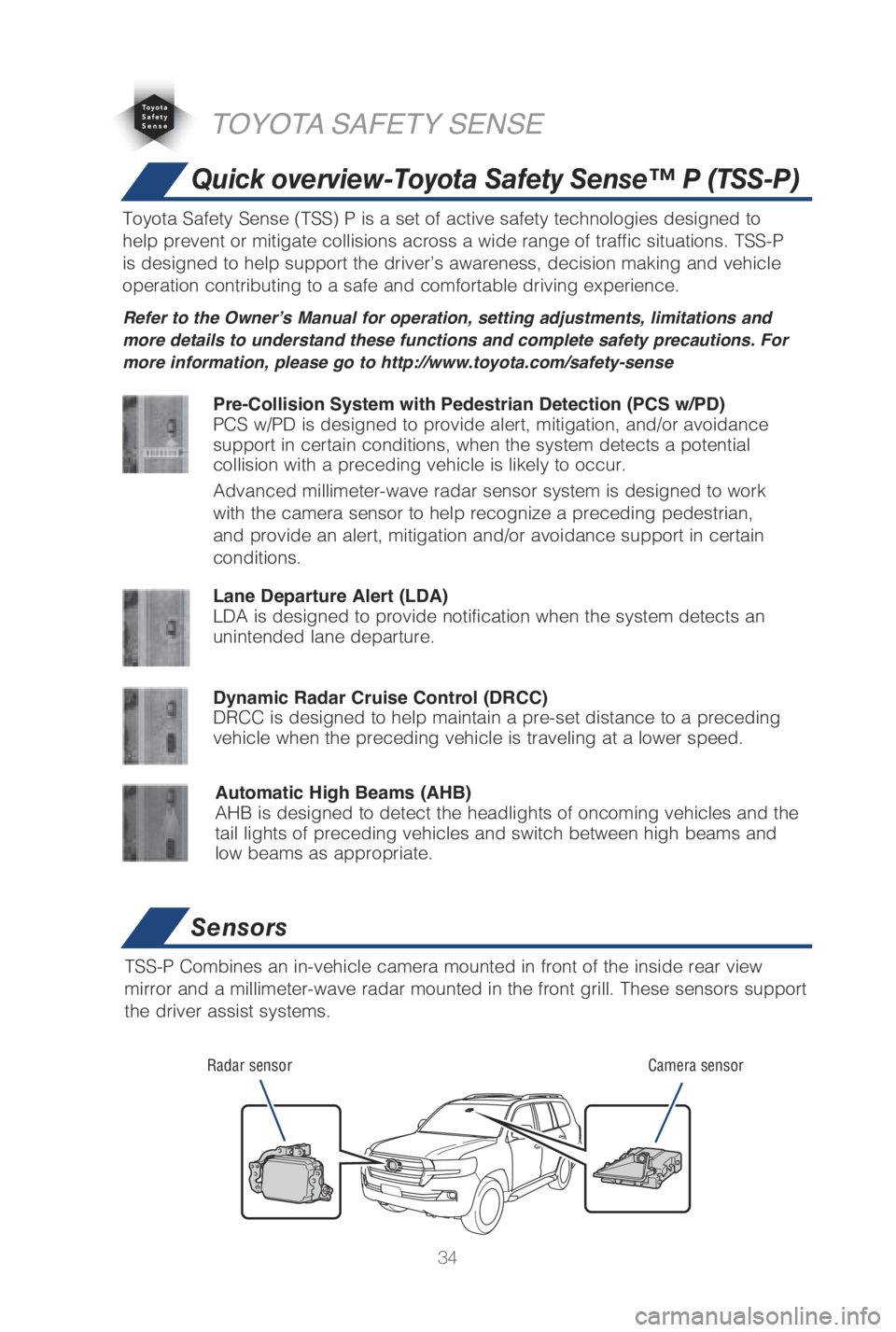

Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
Toyota Safety Sense (TSS) P is a set of active safety technologies designed to
help prevent or mitigate collisions across a wide range of traffic situa\
tions. TSS-P
is designed to help support the driver’s awareness, decision making and vehicle
operation contributing to a safe and comfortable driving experience.
TSS-P Combines an in-vehicle camera mounted in front of the inside rear \
view
mirror and a millimeter-wave radar mounted in the front grill. These sen\
sors support
the driver assist systems.
Radar sensor Camera sensor
TOYOTA SAFETY SENSE

35
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
The Pre-Collision System uses a radar sensor and camera sensor to help d\
etect a
vehicle or pedestrian in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control pe\
rformance
that this system can provide, do not overly rely on this system. This sy\
stem will not
prevent collisions or lessen collision damage or injury in every situati\
on. Do not use
PCS instead of normal braking operations under any circumstances. Do not\
attempt
to test the operation of the pre-collision system yourself, as the syste\
m may not
operate or engage, possibly leading to an accident. In some situations, \
such as
when driving in inclement weather such as heavy rain, fog, snow or a san\
dstorm or
while driving on a curve and for a few seconds after driving on a curve,\
a vehicle
may not be detected by the radar and camera sensors, preventing the syst\
em from
operating or engaging properly.
Refer to a Toyota Owner’s Manual for a list of additional situations \
in which the
system may not operate properly.
Pre-Collision Warning
When the system determines that the possibility of a frontal collision i\
s high, a
buzzer will sound and a warning message will be displayed on the Multi-I\
nformation
Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide addi\
tional
braking force using Brake Assist. This system may prime the brakes and m\
ay apply
greater braking force in relation to how strongly the brake pedal is dep\
ressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines tha\
t the
possibility of a frontal collision with a preceding vehicle is extremely\
high, the
system may automatically apply the brakes, reducing speed in order to he\
lp the
driver reduce the impact and in certain cases avoid the collision.

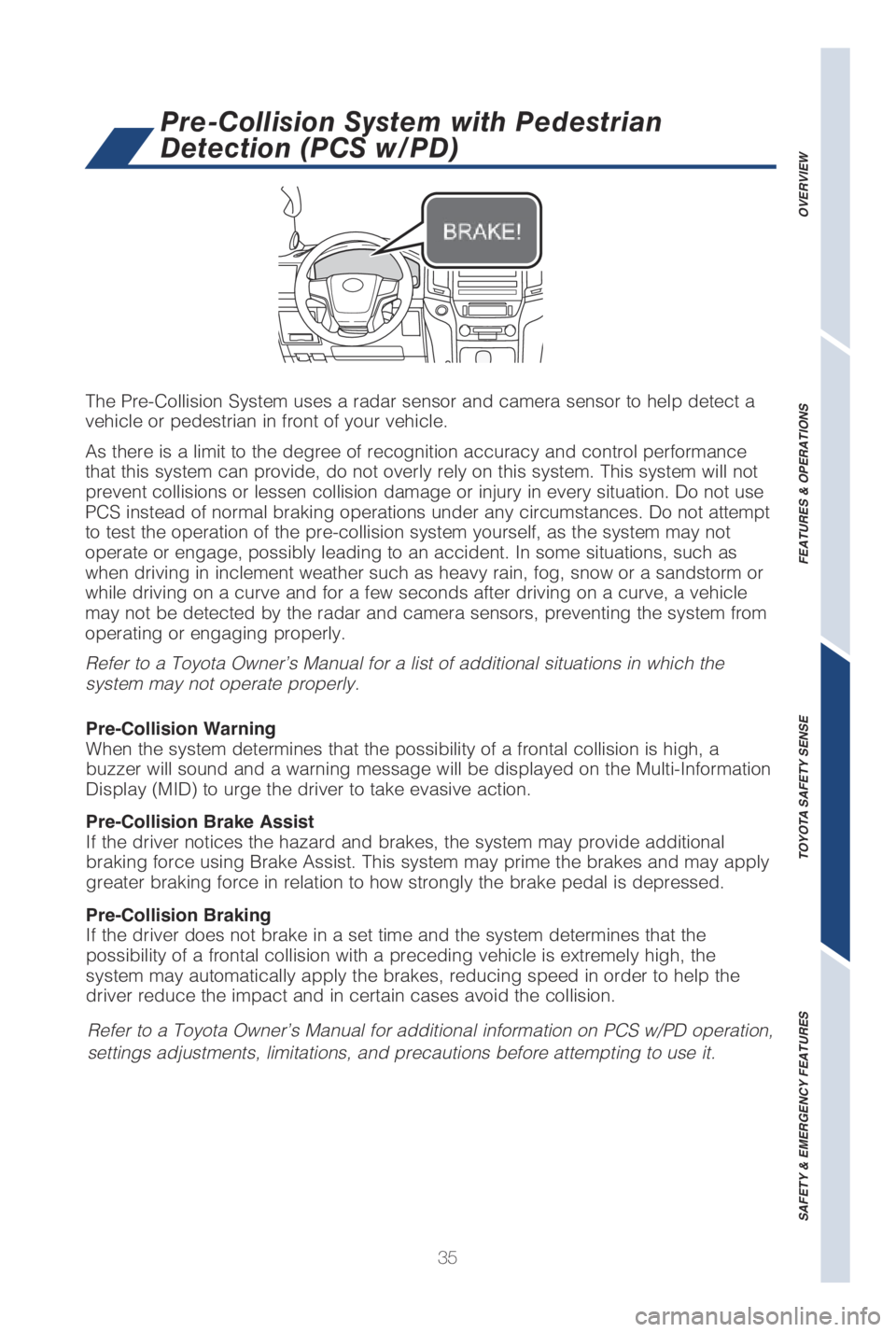

Pre-Collision System with Pedestrian
Detection (PCS w/PD)
Refer to a Toyota Owner’s Manual for additional information on PCS w/\
PD operation,
settings adjustments, limitations, and precautions before attempting to \
use it.

36
TOYOTA SAFETY SENSE

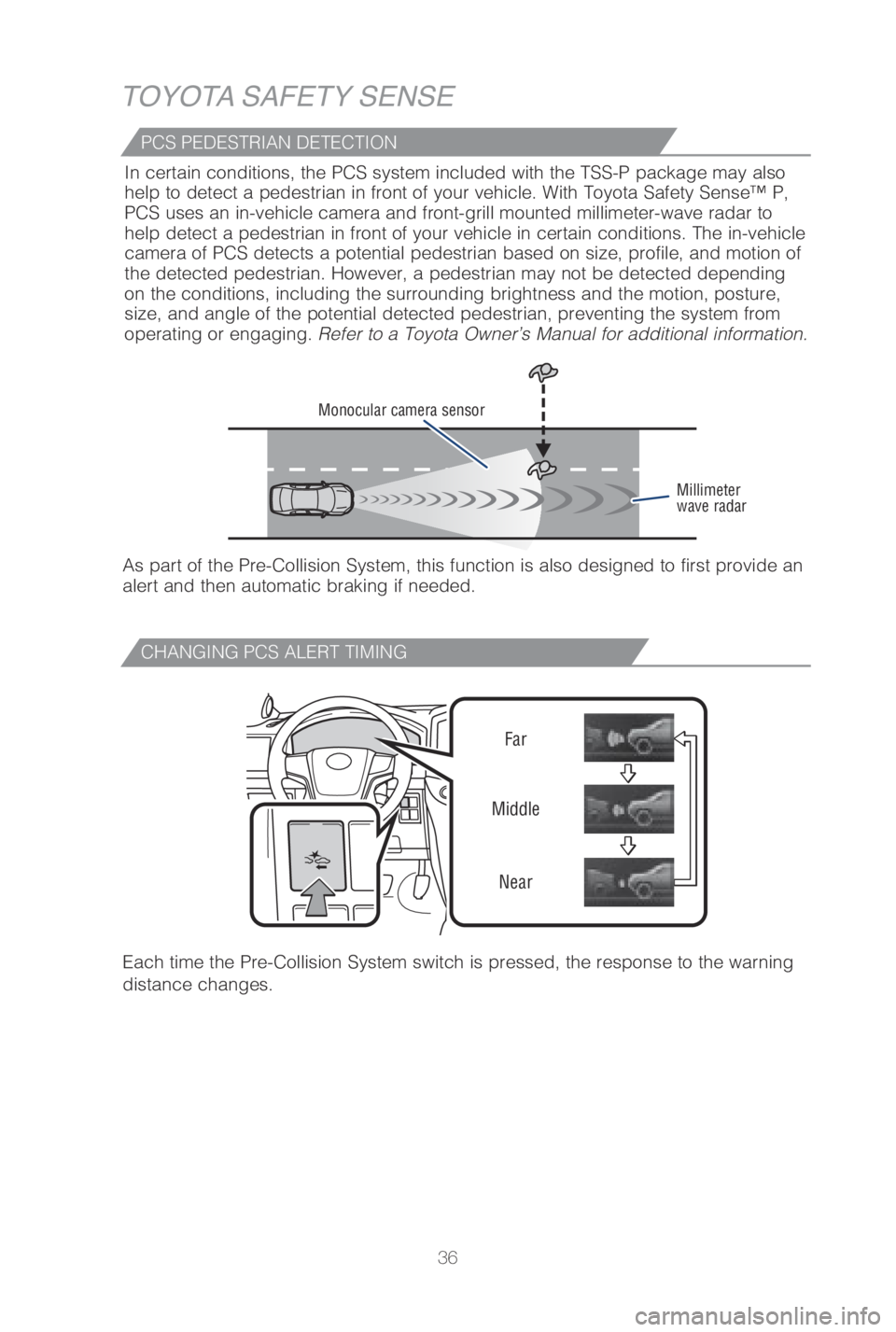

CHANGING PCS ALERT TIMING
Each time the Pre-Collision System switch is pressed, the response to th\
e warning
distance changes.Far
Middle
Near
Monocular camera sensor
Millimeter
wave radar
As part of the Pre-Collision System, this function is also designed to f\
irst provide an
alert and then automatic braking if needed.In certain conditions, the PCS system included with the TSS-P package ma\
y also
help to detect a pedestrian in front of your vehicle. With Toyota Safety\
Sense™ P,
PCS uses an in-vehicle camera and front-grill mounted millimeter-wave ra\
dar to
help detect a pedestrian in front of your vehicle in certain conditions.\
The in-vehicle
camera of PCS detects a potential pedestrian based on size, profile, and\
motion of
the detected pedestrian. However, a pedestrian may not be detected depen\
ding
on the conditions, including the surrounding brightness and the motion, \
posture,
size, and angle of the potential detected pedestrian, preventing the sys\
tem from
operating or engaging.
Refer to a Toyota Owner’s Manual for additional information.
PCS PEDESTRIAN DETECTION

37

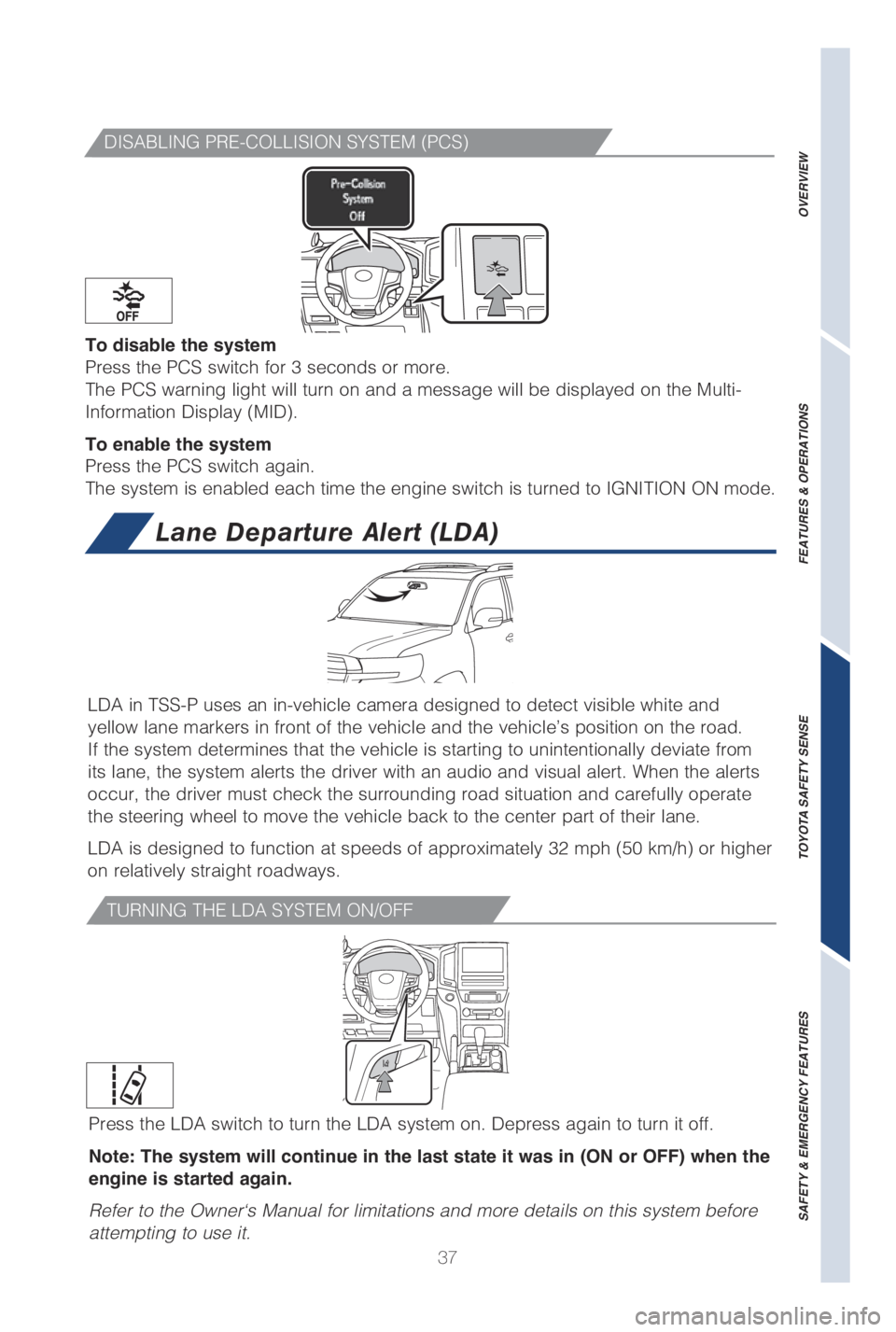

DISABLING PRE-COLLISION SYSTEM (PCS)
To disable the system
Press the PCS switch for 3 seconds or more.
The PCS warning light will turn on and a message will be displayed on th\
e Multi-
Information Display (MID).
To enable the system
Press the PCS switch again.
The system is enabled each time the engine switch is turned to IGNITION \
ON mode.
Lane Departure Alert (LDA)
TURNING THE LDA SYSTEM ON/OFF
Press the LDA switch to turn the LDA system on. Depress again to turn it\
off.
Note: The system will continue in the last state it was in (ON or OFF) when the
engine is started again.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
LDA in TSS-P uses an in-vehicle camera designed to detect visible white \
and
yellow lane markers in front of the vehicle and the vehicle’s position on the road.
If the system determines that the vehicle is starting to unintentionally\
deviate from
its lane, the system alerts the driver with an audio and visual alert. W\
hen the alerts
occur, the driver must check the surrounding road situation and carefull\
y operate
the steering wheel to move the vehicle back to the center part of their \
lane.
LDA is designed to function at speeds of approximately 32 mph (50 km/h) or higher
on relatively straight roadways.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

38
TOYOTA SAFETY SENSE

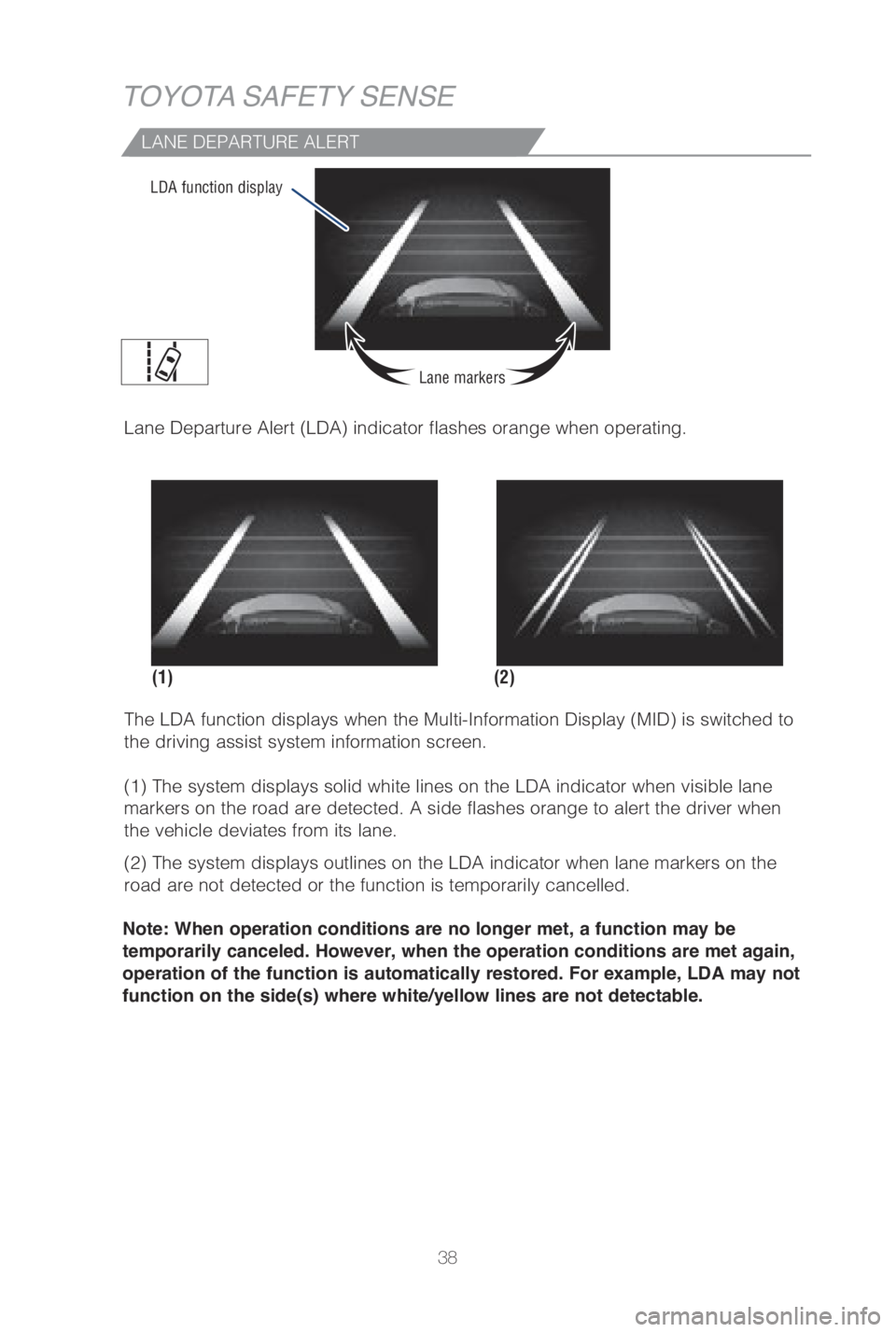

LANE DEPARTURE ALERT
The LDA function displays when the Multi-Information Display (MID) is switched to
the driving assist system information screen.
(1) The system displays solid white lines on the LDA indicator when visible lane
markers on the road are detected. A side flashes orange to alert the dri\
ver when
the vehicle deviates from its lane.
(2) The system displays outlines on the LDA indicator when lane markers on the
road are not detected or the function is temporarily cancelled.(2)
Note: When operation conditions are no longer met, a function may be
temporarily canceled. However, when the operation conditions are met again,
operation of the function is automatically restored. For example, LDA may not
function on the side(s) where white/yellow lines are not detectable.(1)
Lane Departure Alert (LDA) indicator flashes orange when operating.
LDA function display
Lane markers
