TOYOTA LAND CRUISER 2019 Owners Manual (in English)
Manufacturer: TOYOTA, Model Year: 2019, Model line: LAND CRUISER, Model: TOYOTA LAND CRUISER 2019Pages: 60, PDF Size: 10.01 MB
Page 1 of 60
00505QRG19LC
2 0 1 9 www.toyota.com/owners
CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 31
Printed in U.S.A. 07/18
1 8 - M K G - 12 0 4 6
QUICK REFERENCE GUIDE
LANDCRUISER

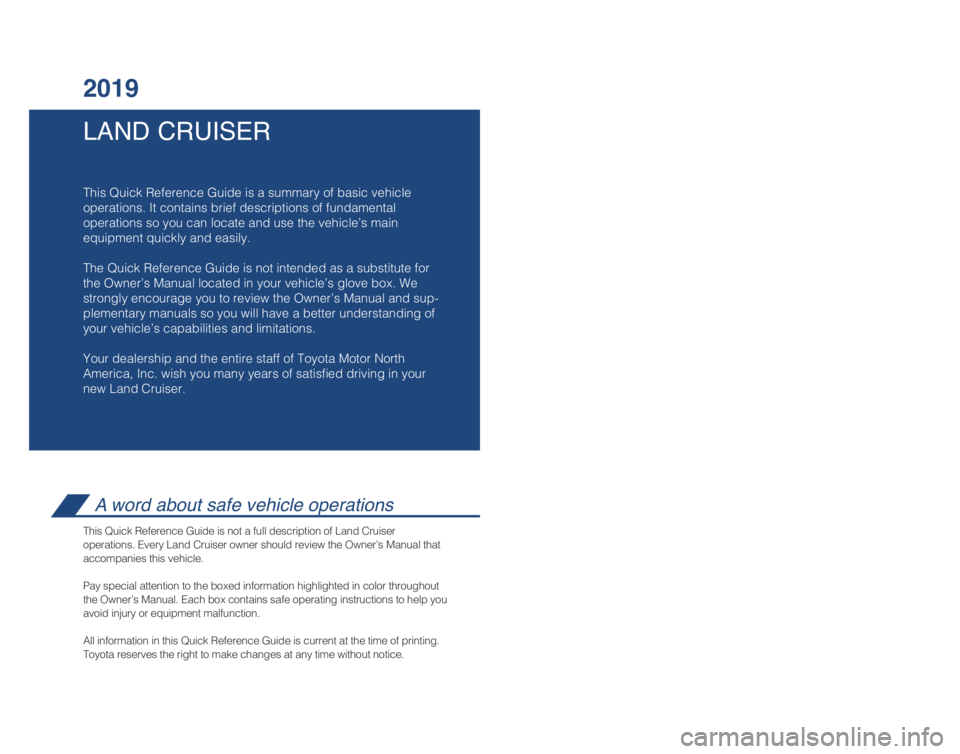

Page 2 of 60
LAND CRUISER
2019
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Land Cruiser.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Land Cruiser
operations. Every Land Cruiser owner should review the Owner’s Manual\
that
accompanies this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
57
Using your smartphone, you may need to allow Entune access to your contacts.
A confirmation will appear that your phone has been paired and connected.
Initiate Bluetooth® on your Entune™ Multimedia Head Unit
STEP 12STEP 13
DisclosuresThis brochure is accurate at the time of print; content subject to chang\
e based on periodic multimedia software updates.1. Concentrating on the road should always be your first priority while driving. Do not use the hands-free phone system if it will distract you.2. The Bluetooth word mark and logos are registered trademarks owned by \
Bluetooth SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on software, coverage & carrier.3. Android is a trademark of Google Inc.4. Apps/services vary by phone/carrier; functionality depends on many fa\
ctors. Select apps use large amounts of data; you are responsible for charges. Apps & services subjec\
t to change. See Toyota.com/entune for details.
Additional Resources
If you’re having trouble pairing your phone, Toyota has you covered. You can get more informationfrom the following sources:
Online Pairing Guide:www.toyota.com/connect
Your Toyota Owner’s ManualLocated in the vehicle glovebox
Toyota Customer Experience Center(800) 331-4331
Page 3 of 60
1

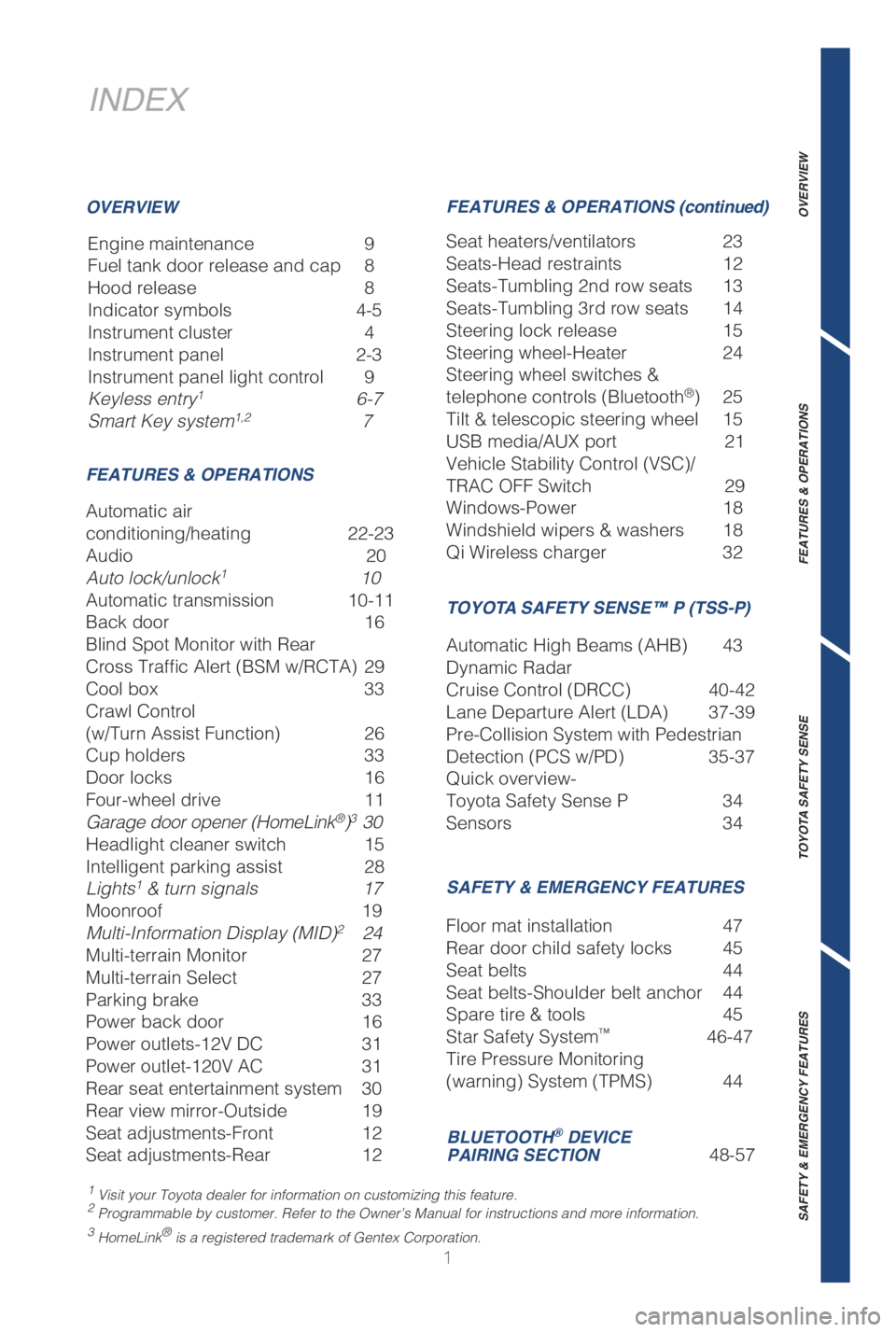

INDEX
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 9
Keyless entry1 6-7
Smart Key system1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONSFEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic air
conditioning/heating 22-23
Audio 20
Auto lock/unlock1 10
Automatic transmission 10-11
Back door 16
Blind Spot Monitor with Rear
Cross Traffic Alert (BSM w/RCTA) 29
Cool box 33
Crawl Control
(w/Turn Assist Function) 26
Cup holders 33
Door locks 16
Four-wheel drive 11
Garage door opener (HomeLink®)3 30
Headlight cleaner switch 15
Intelligent parking assist 28
Lights1 & turn signals 17
Moonroof 19
Multi-Information Display (MID)2 24
Multi-terrain Monitor 27
Multi-terrain Select 27
Parking brake 33
Power back door 16
Power outlets-12V DC 31
Power outlet-120V AC 31
Rear seat entertainment system 30
Rear view mirror-Outside 19
Seat adjustments-Front 12
Seat adjustments-Rear 12
Seat heaters/ventilators 23
Seats-Head restraints 12
Seats-Tumbling 2nd row seats 13
Seats-Tumbling 3rd row seats 14
Steering lock release 15
Steering wheel-Heater 24
Steering wheel switches &
telephone controls (Bluetooth®) 25
Tilt & telescopic steering wheel 15
USB media/AUX port 21
Vehicle Stability Control (VSC)/
TRAC OFF Switch 29
Windows-Power 18
Windshield wipers & washers 18
Qi Wireless charger 32
Floor mat installation 47
Rear door child safety locks 45
Seat belts 44
Seat belts-Shoulder belt anchor 44
Spare tire & tools 45
Star Safety System™ 46-47
Tire Pressure Monitoring
(warning) System (TPMS) 44
Automatic High Beams (AHB) 43
Dynamic Radar
Cruise Control (DRCC) 40-42
Lane Departure Alert (LDA) 37-39
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 35-37
Quick overview-
Toyota Safety Sense P 34
Sensors 34
BLUETOOTH® DEVICE PAIRING SECTION 48-57
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Page 4 of 60
2

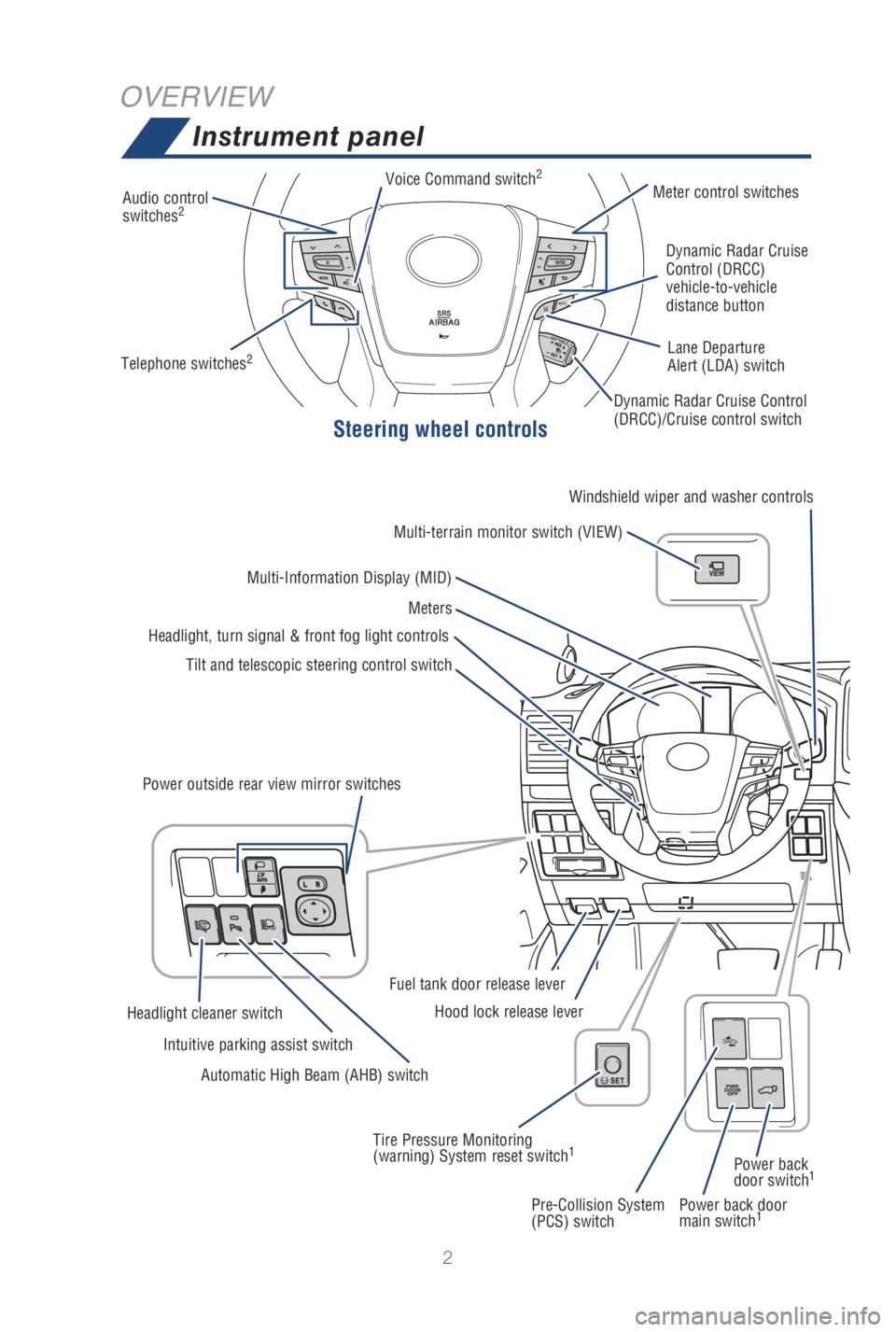

OVERVIEWInstrument panel
Steering wheel controls
Power back door
main switch1
Audio control
switches2Meter control switches
Dynamic Radar Cruise Control
(DRCC)/Cruise control switch Dynamic Radar Cruise
Control (DRCC)
vehicle-to-vehicle
distance button
Lane Departure
Alert (LDA) switch
Tilt and telescopic steering control switch
Headlight, turn signal & front fog light controls
Meters
Multi-Information Display (MID) Windshield wiper and washer controls
Multi-terrain monitor switch (VIEW)
Pre-Collision System
(PCS) switch Power back
door switch
1
Tire Pressure Monitoring
(warning) System reset switch1
Hood lock release lever
Fuel tank door release lever
Power outside rear view mirror switches
Automatic High Beam (AHB) switch
Intuitive parking assist switch
Headlight cleaner switch Voice Command switch
2
Telephone switches2

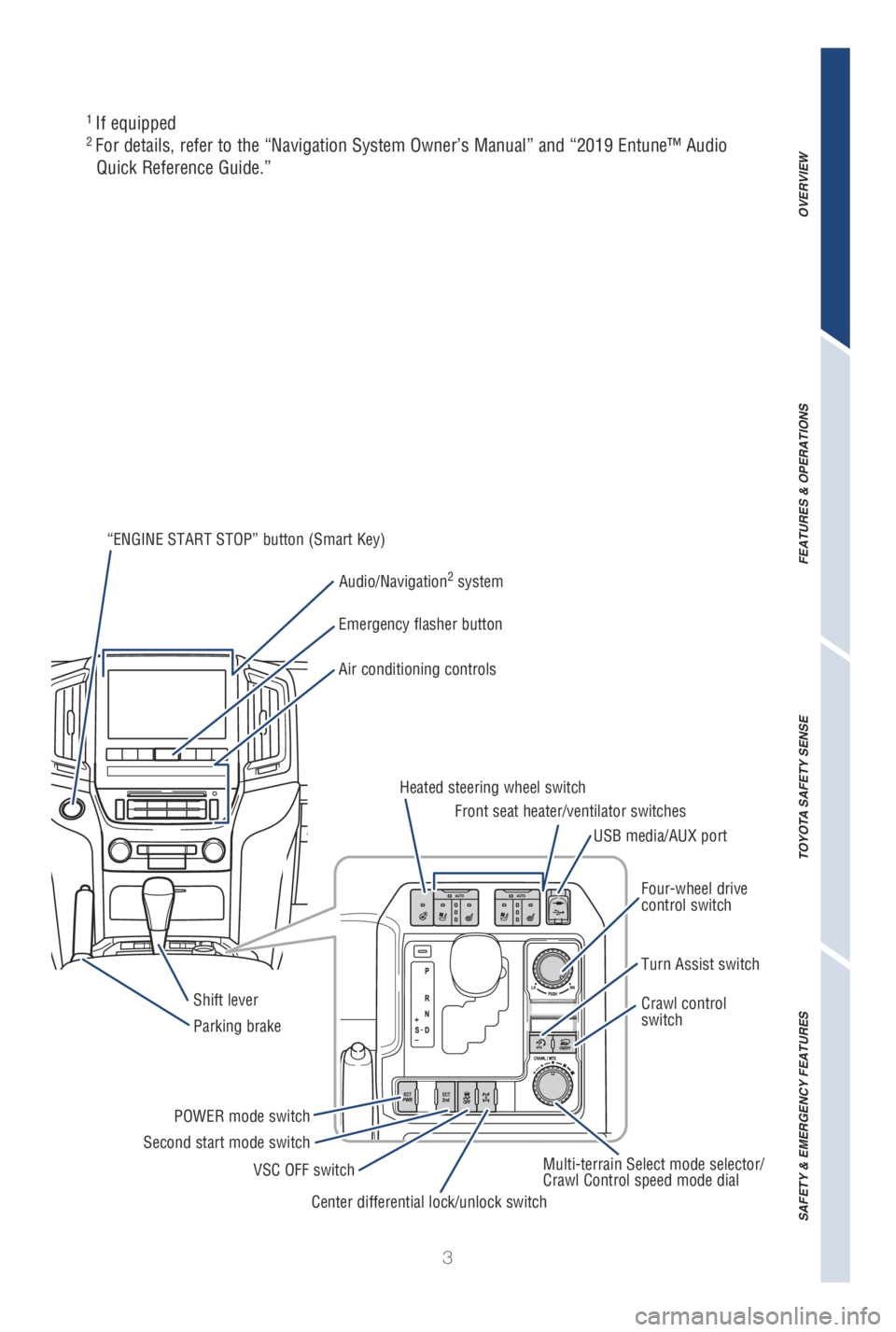

Page 5 of 60
3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
“ENGINE START STOP” button (Smart Key)
Audio/Navigation
2 system
Emergency flasher button
Air conditioning controls
Front seat heater/ventilator switches
Heated steering wheel switch
USB media/AUX port
Four-wheel drive
control switch
Crawl control
switch
Multi-terrain Select mode selector/
Crawl Control speed mode dial
Center differential lock/unlock switch
VSC OFF switch
Second start mode switch
POWER mode switch Turn Assist switch
Shift lever
Parking brake
1 If equipped2 For details, refer to the “Navigation System Owner’s Manual” an\
d “2019 Entune™ Audio
Quick Reference Guide.”
Page 6 of 60
4

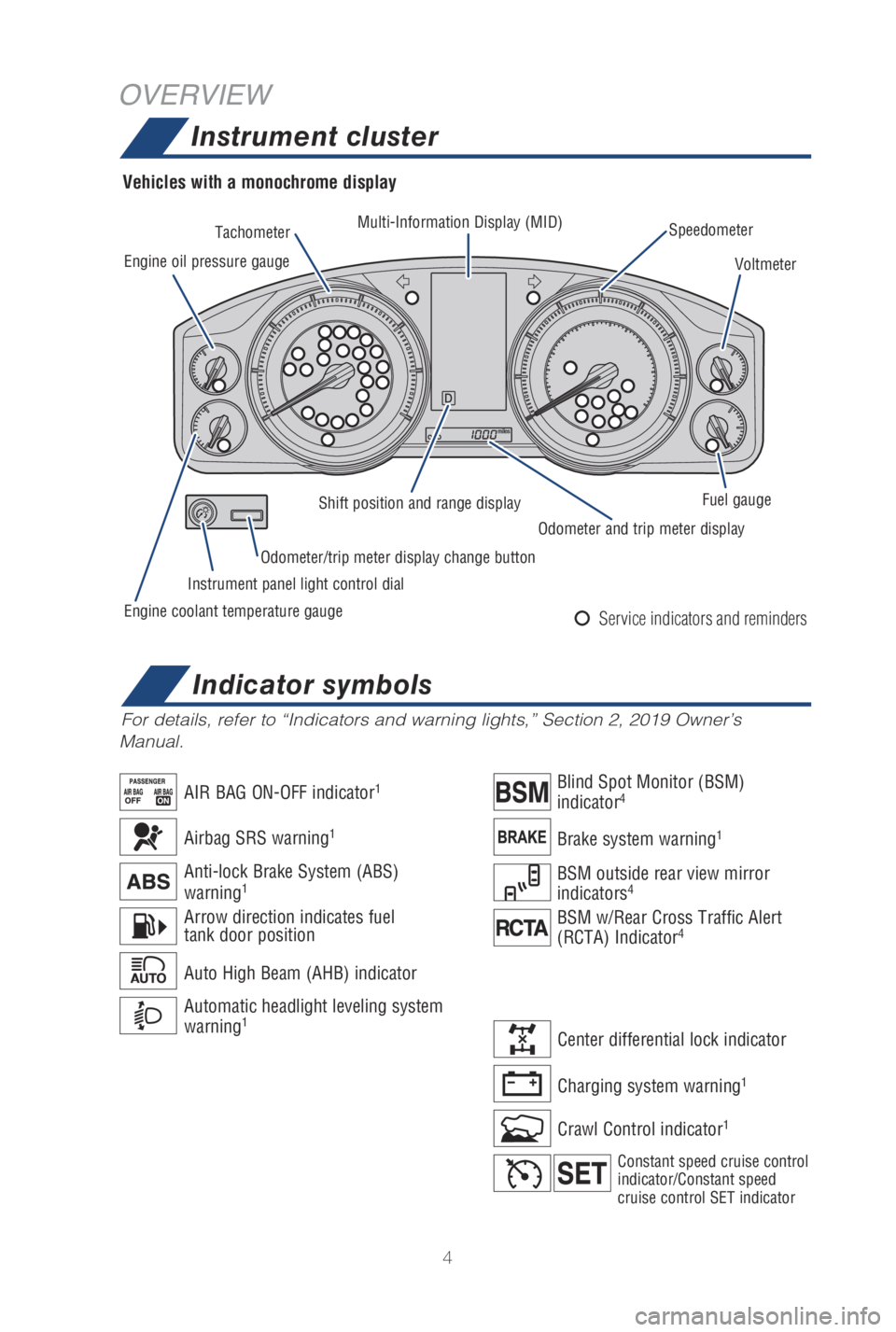

OVERVIEWInstrument cluster
For details, refer to “Indicators and warning lights,” Section 2, \
201 9 Owner’s
Manual.
Engine oil pressure gauge Tachometer
Multi-Information Display (MID)
Speedometer
Voltmeter
Fuel gauge
Odometer and trip meter display
Shift position and range display
Odometer/trip meter display change button
Instrument panel light control dial
Engine coolant temperature gauge
Vehicles with a monochrome display
Arrow direction indicates fuel
tank door position
Brake system warning1
Anti-lock Brake System (ABS)
warning1
Charging system warning1
Center differential lock indicator
Crawl Control indicator1
Automatic headlight leveling system
warning1
AIR BAG ON-OFF indicator1
Airbag SRS warning1
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Auto High Beam (AHB) indicator Blind Spot Monitor (BSM)
indicator
4
BSM outside rear view mirror
indicators4
BSM w/Rear Cross Traffic Alert
(RCTA) Indicator4
Indicator symbols
Service indicators and reminders
Page 7 of 60

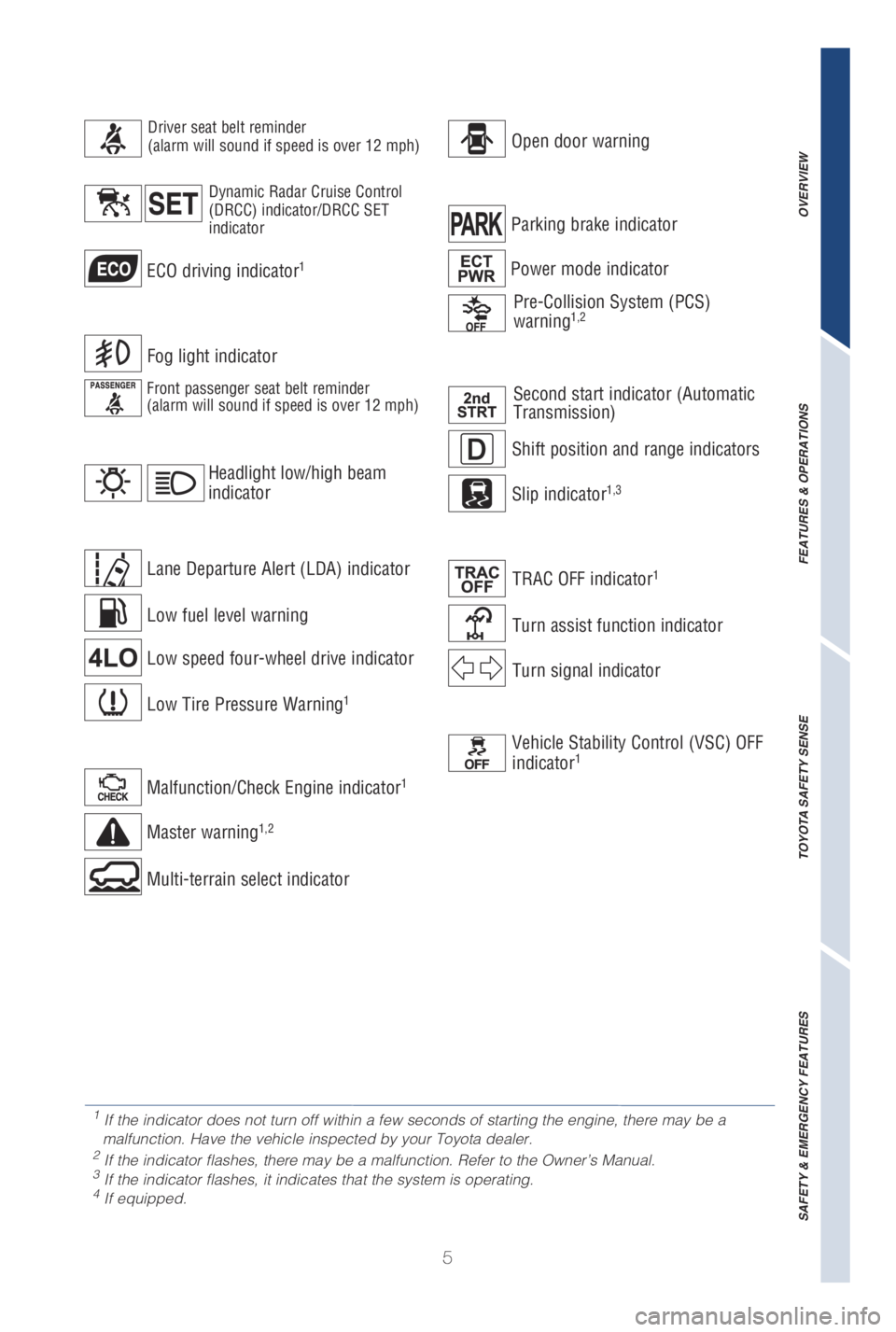

5
Low fuel level warning
Parking brake indicatorShift position and range indicators
Low Tire Pressure Warning1
Malfunction/Check Engine indicator1
Master warning1,2
Second start indicator (Automatic
Transmission)
Power mode indicator
Slip indicator1,3
Low speed four-wheel drive indicatorMulti-terrain select indicator
ECO driving indicator1
Turn assist function indicator
TRAC OFF indicator1
Turn signal indicator
Fog light indicator
Open door warning
Constant speed cruise control indicator/Constant speed
cruise control SET indicator
Pre-Collision System (PCS) warning1,2
Lane Departure Alert (LDA) indicator
Headlight low/high beam
indicator
Vehicle Stability Control (VSC) OFF
indicator1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Dynamic Radar Cruise Control
(DRCC) indicator/DRCC SET
indicator
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
1
If the indicator does not turn off within a few seconds of starting the \
engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Page 8 of 60
6

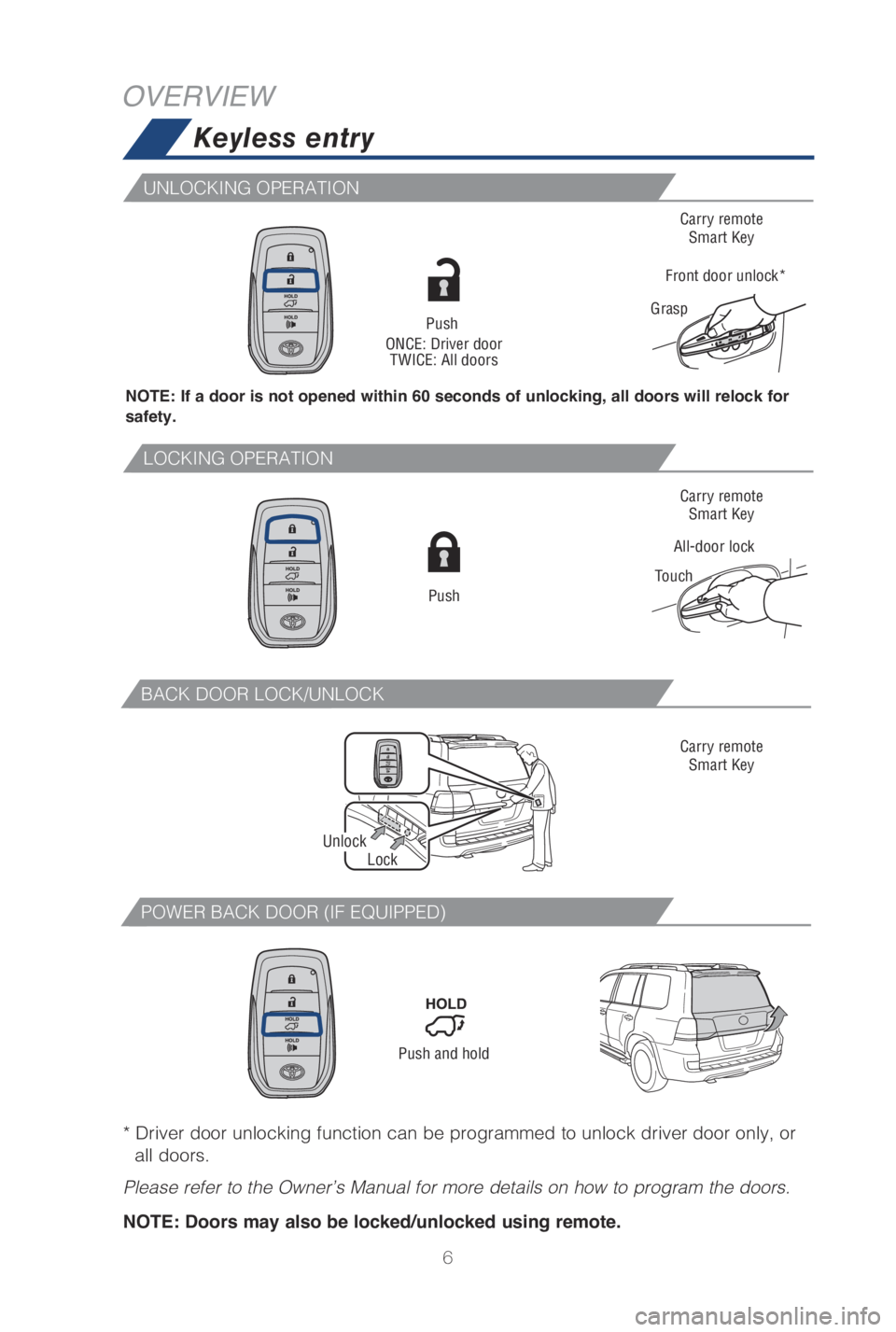

Keyless entry
OVERVIEW
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Push
ONCE: Driver door TWICE: All doors
All-door lock
Touch Carry remote
Smart Key
Carry remote Smart Key
Carry remote Smart Key
Grasp
Front door unlock*
Push
Push and hold
* Driver door unlocking function can be programmed to unlock driver door\
only, or
all doors.
Please refer to the Owner’s Manual for more details on how to program\
the doors.
NOTE: Doors may also be locked/unlocked using remote.
LockUnlock
LOCKING OPERATION
UNLOCKING OPERATION
POWER BACK DOOR (IF EQUIPPED)
BACK DOOR LOCK/UNLOCK
Page 9 of 60
7

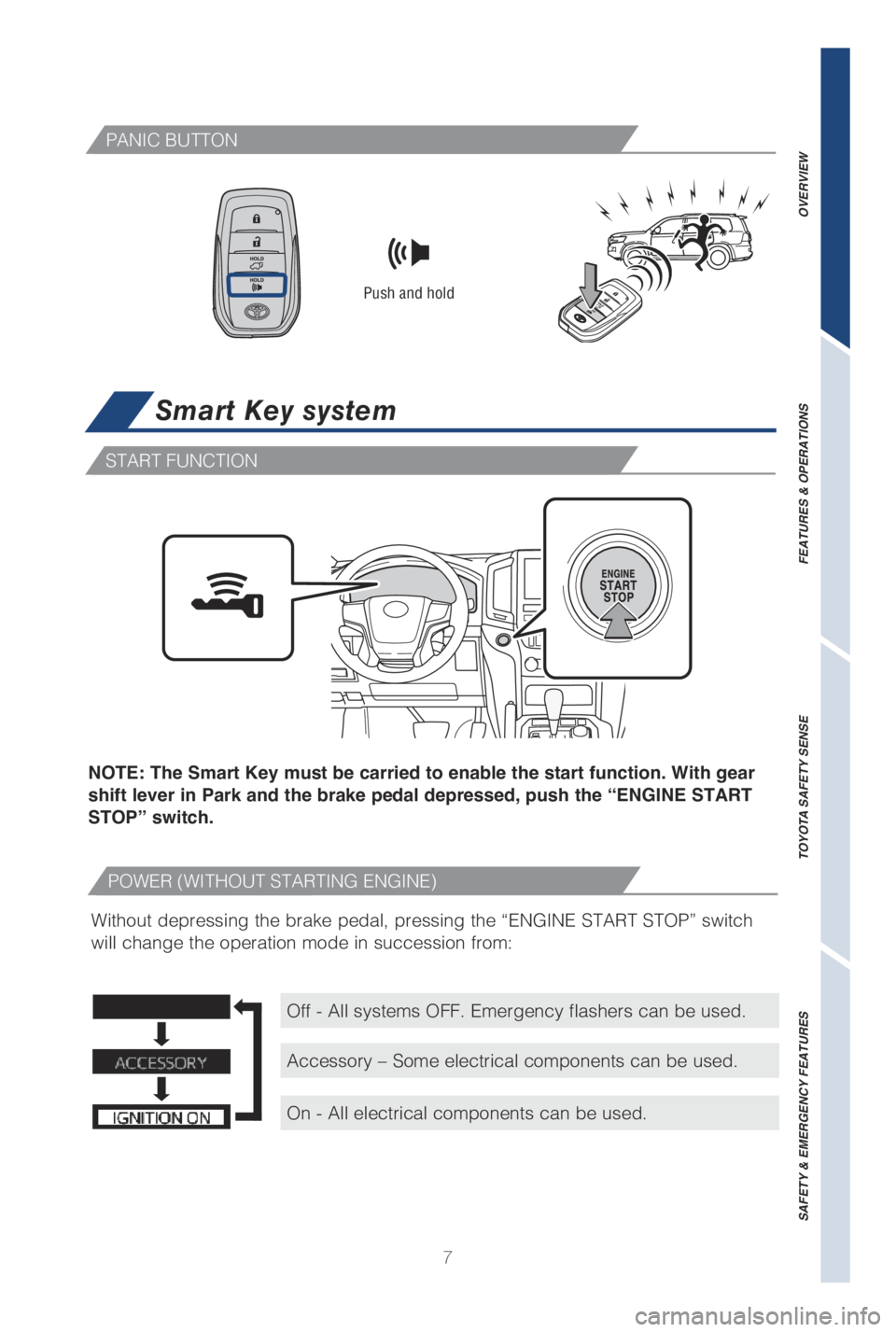

Smart Key system
NOTE: The Smart Key must be carried to enable the start function. With gear
shift lever in Park and the brake pedal depressed, push the “ENGINE START
STOP” switch.
Without depressing the brake pedal, pressing the “ENGINE START STOP”\
switch
will change the operation mode in succession from:
Push and hold
PANIC BUTTON
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
Page 10 of 60

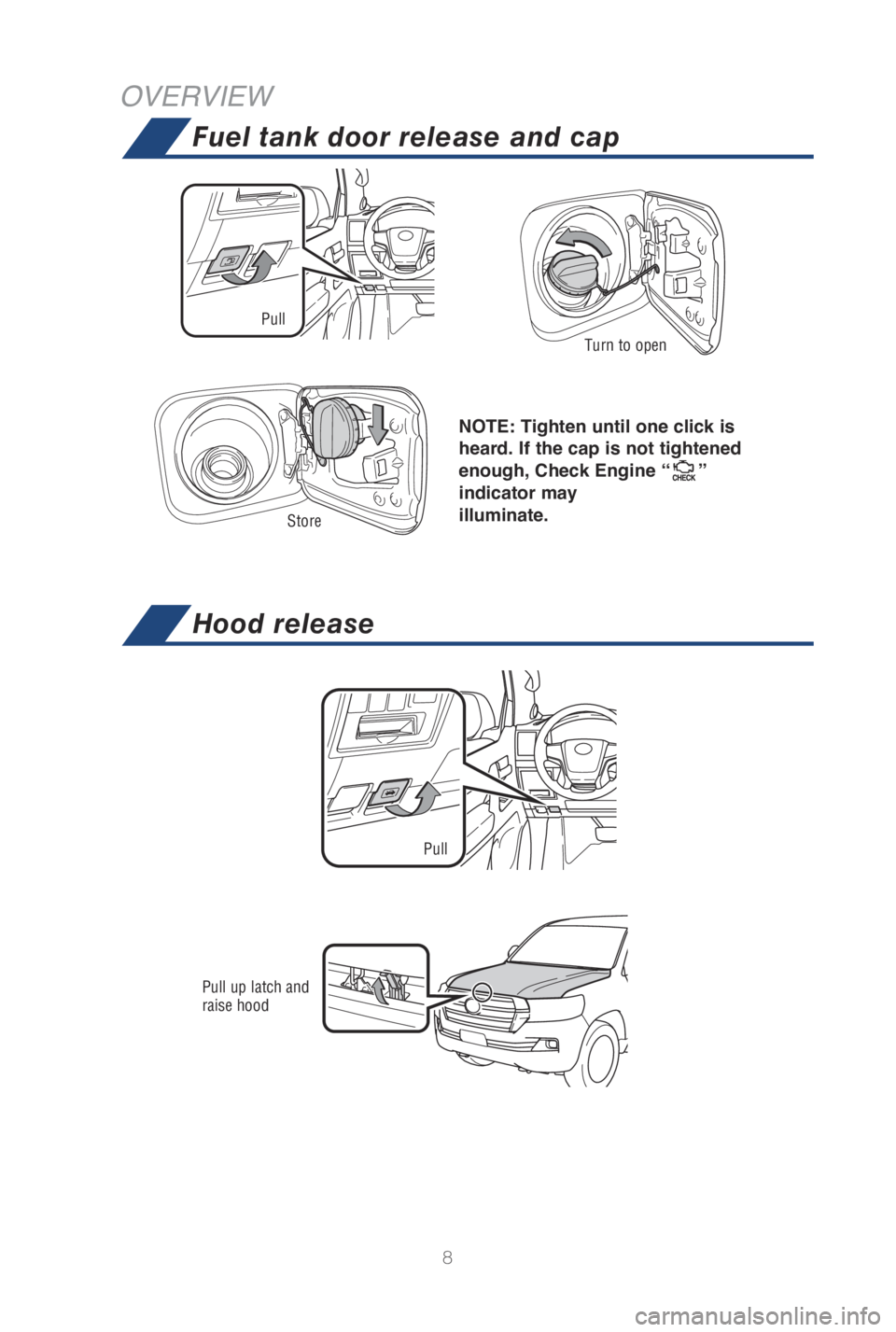

8
OVERVIEW
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
”
indicator may
illuminate.
PullTurn to open
Store
Pull up latch and raise hood
Pull
Fuel tank door release and cap
Hood release
