TOYOTA LAND CRUISER 2020 Owners Manual (in English)

LC200_OM_OM60R53U_(U)
6018-2. Customization
8
Vehicle specifications
■Vehicle customization
●If the smart key system is turned off, unlock door cannot be selected.
● If the doors are not opened after unlocking and are then automa tically re-
locked, a signal will be given if Operation signal (Emergency f lashers) or
Operation signal (Buzzer) are set to on.
■ When setting using the multi-information display
When using the multi-information display to set an item that can also be set
using the navigation system, the item displayed on the navigation system will
not change immediately.
If the engine switch is first turned off, the screen display wi ll change once the
engine switch is turned to IGNITION ON mode again.
■ When customizing using the navigation system
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to P. Also, to prevent battery discharge, leave the engin e running while
customizing the features.
WARNING
■ During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a seri ous health
hazard.
NOTICE
■ During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

602
LC200_OM_OM60R53U_(U)
8-3. Initialization

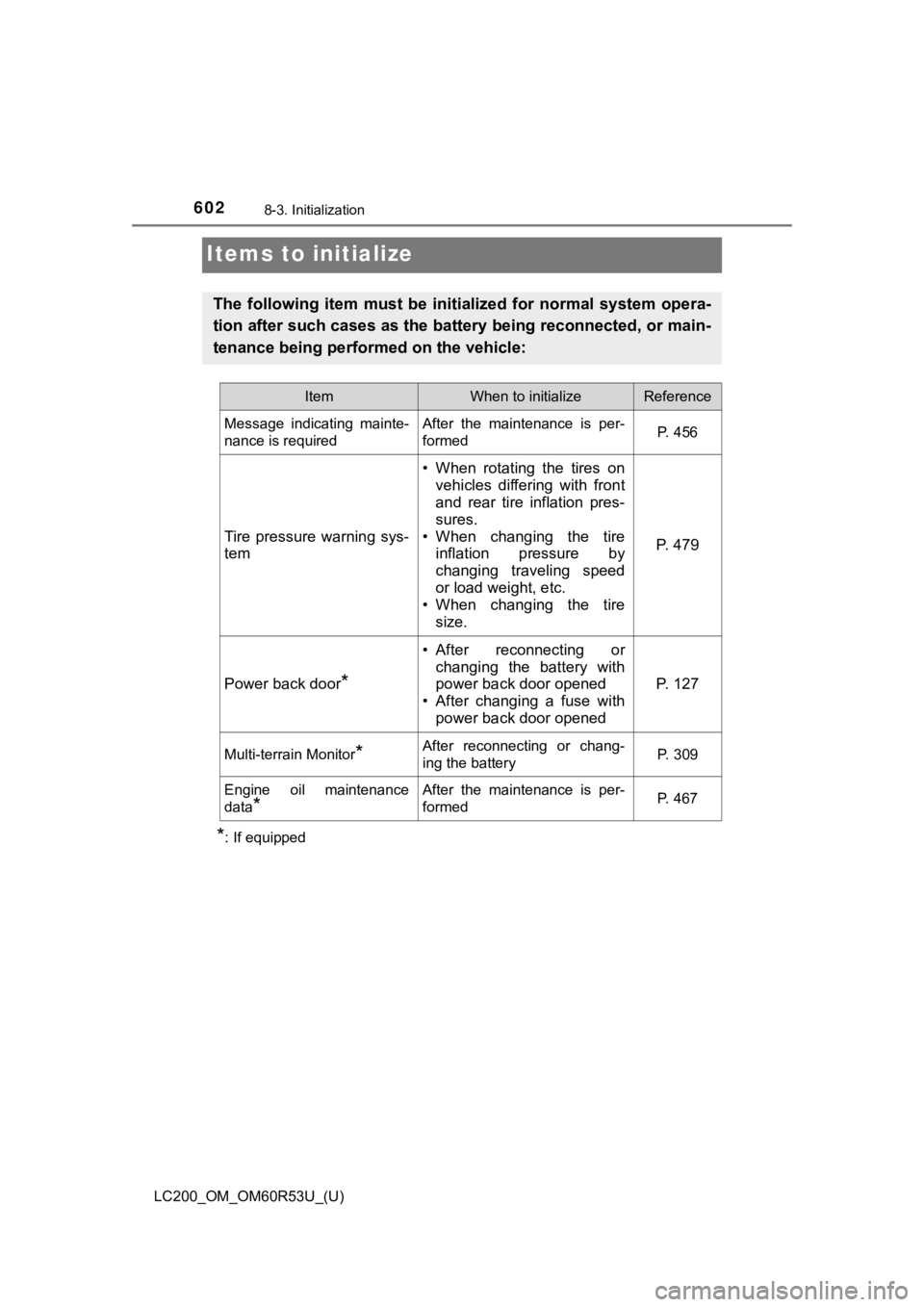

Items to initialize
*: If equipped
The following item must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main -
tenance being performed on the vehicle:
ItemWhen to initializeReference
Message indicating mainte-
nance is requiredAfter the maintenance is per-
formedP. 456
Tire pressure warning sys-
tem
• When rotating the tires on vehicles differing with front
and rear tire inflation pres-
sures.
• When changing the tire inflation pressure by
changing traveling speed
or load weight, etc.
• When changing the tire
size.
P. 479
Power back door*
• After reconnecting orchanging the battery with
power back door opened
• After changing a fuse with power back door opened
P. 127
Multi-terrain Monitor*After reconnecting or chang-
ing the batteryP. 309
Engine oil maintenance
data
*
After the maintenance is per-
formedP. 467

603
LC200_OM_OM60R53U_(U)
9For U.S. owners
Reporting safety defects for U.S. owners........................ 604

604
LC200_OM_OM60R53U_(U)

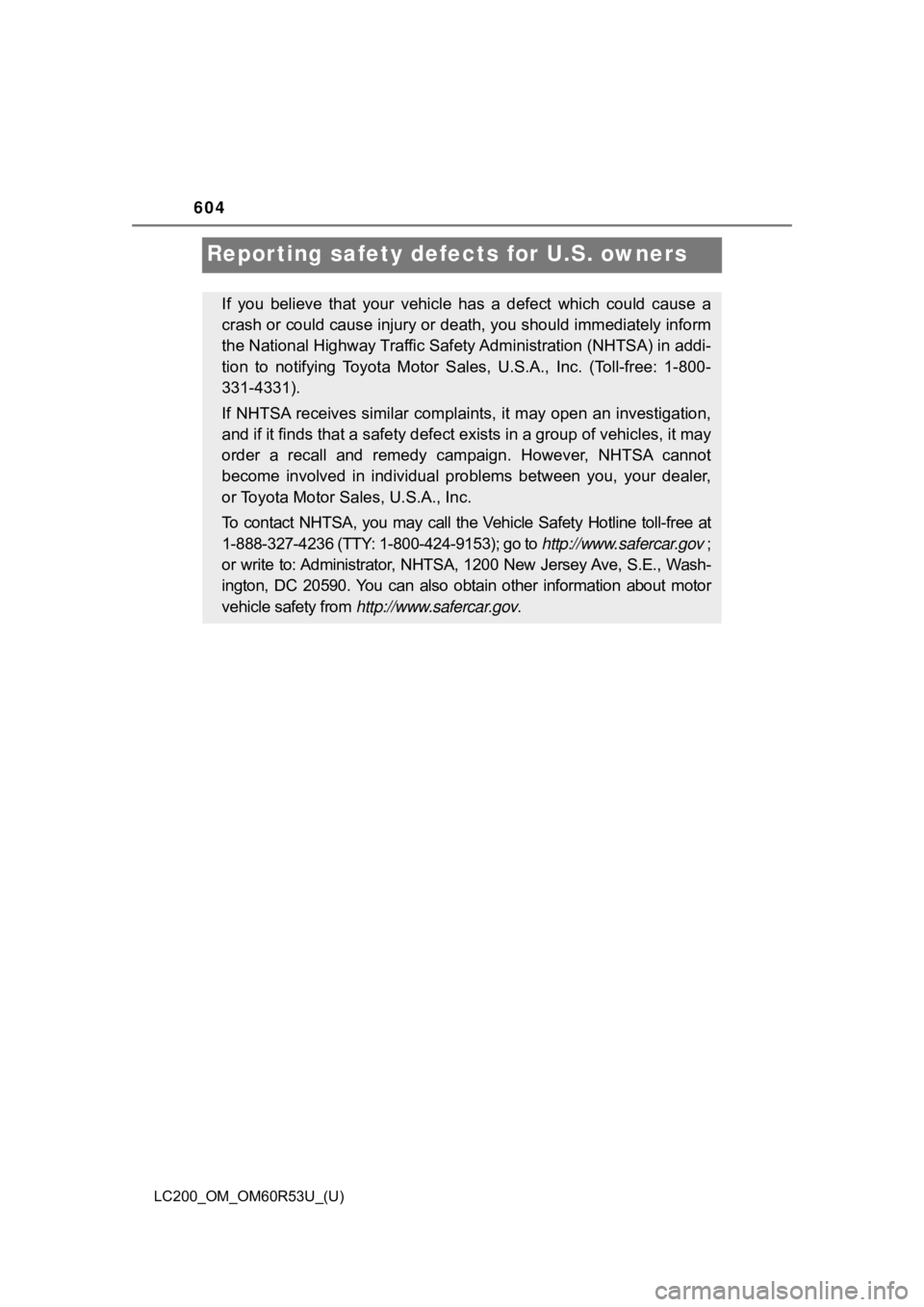

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately in form
the National Highway Traffic Saf ety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives similar complaints, it may open an investigat ion,
and if it finds that a safety de fect exists in a group of vehic les, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual problems between you, your dealer ,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll- free at
1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov ;
or write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E., W ash-
ington, DC 20590. You can also obtain other information about motor
vehicle safety from http://www.safercar.gov .

605
LC200_OM_OM60R53U_(U)
Index
What to do if... (Troubleshooting) .................... 606
Alphabetical index ..................... 610
For vehicles with a navigat ion system or a multimedia
system, refer to the “NAVIGATION SYSTEM OWNER’S
MANUAL” for information regarding the equipment listed
below.
• Navigation system
• Audio/video system
• Rear seat entertainment system
• Hands-free system (for cellular phone)

606What to do if... (Troubleshooting)
LC200_OM_OM60R53U_(U)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys can be
made by your Toyota dealer. ( P. 1 1 1 )
●If you lose your electronic keys, the risk of vehicle theft inc reases signifi-
cantly. Contact your Toyota dealer immediately. ( P. 113)
●Is the electronic key battery weak or depleted? (P. 494)
●Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( P. 209)
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of t he radio
wave. ( P. 136)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. ( P. 117)
If you have a problem, check the following before contacting
your Toyota dealer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

607What to do if... (Troubleshooting)
LC200_OM_OM60R53U_(U)
●Did you press the engine switch while firmly depressing the brake pedal?
( P. 207)
●Is the shift lever in P? ( P. 2 1 1 )
●Is the electronic key anywhere detectable inside the vehicle? ( P. 135)
●Is the steering wheel unlocked? (P. 2 1 1 )
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. ( P. 556)
●Is the battery discharged? (P. 558)
●Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake p edal with the
engine switch in IGNITION ON mode ( P. 218)
●It is locked automatically to prevent theft of the vehicle. ( P. 2 1 1 )
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( P. 165)
If you think something is wrong
The engine does not start
The shift lever cannot be shifted from P even if you depress
the brake pedal
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches

608What to do if... (Troubleshooting)
LC200_OM_OM60R53U_(U)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a peri od of
time. ( P. 210)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
(P. 527)
●The parking brake indicator is on
Is the parking brake released? ( P. 221)
Depending on the situation, other types of warning buzzer may a lso sound.
( P. 525, 534)
●Did anyone inside the vehicle open a door during setting the al arm?
The sensor detects it and the alarm sounds. ( P. 83)
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine.
The engine switch is tur ned off automatically
A warning buzzer sounds during driving
An alarm is activated and the horn sounds

609What to do if... (Troubleshooting)
LC200_OM_OM60R53U_(U)
●Is the electronic key left inside the vehicle or the moon roof opened?
Check the message on the multi-information display. ( P. 534)
●When a warning light turns on or a warning message is displayed , refer to
P. 525, 534.
●Stop the vehicle in a safe place and replace the flat tire with the spare
tire. ( P. 539)
●Try the procedure for when the vehicle becomes stuck in mud, di rt, or
snow. ( P. 564)
A warning buzzer sounds w hen leaving the vehicle
A warning light turns on or a warning message is displayed
When a problem has occurred If you have a flat tire
The vehicle becomes stuck

610Alphabetical index
LC200_OM_OM60R53U_(U)
Alphabetical index
A/C .................................... 390, 401Air conditioning filter ............. 492
Changing the rear seat
settings ............................... 394
Front automatic air
conditioning system ............ 390
Micro dust and pollen filter .... 396
Rear air conditioning system ......... ....................... 401
ABS (Anti-lock Brake System) .................................. 373
Function ................................ 373
Warning light ......................... 526
Active head restraint ............... 141
Active TRAC ............................. 373
Air cleaner ................................ 463
Air conditioning filter .............. 492
Air conditioning
system ............................ 390, 401 Air conditioning filter ............. 492
Changing the rear seat
settings ............................... 394
Front automatic air
conditioning system ............ 390
Micro dust and pollen filter .... 396
Rear air conditioning system ......... ....................... 401 Airbags ....................................... 40
Airbag operating conditions .... 48
Airbag preca utions for
your child .............................. 43
Airbag warning light .............. 525
Correct driving posture ........... 30
Curtain shield airbag operating conditions ............. 48
Curtain shield airbag precautions........................... 46
Front passenger occupant
classification syst em ............ 52
General airbag precautions .... 43
Locations of airbags ............... 40
Modification and disposal of airbags ............................. 47
Side airbag operating
conditions ............................. 48
Side airbag precautions .......... 45
Side and curtain shield airbags operating
conditions ............................. 48
Side and curtain shield
airbags precautions .............. 46
SRS airbags ........................... 40
Alarm .......................................... 83 Alarm ...................................... 83
Warning buzzer .................... 525
Anchor brackets ........................ 64
Antenna Smart key system ................. 134
A
