TOYOTA LAND CRUISER 2020 Owners Manual (in English)

Quick Reference Guide 2020toyota\fcom
Printed in U.S.A. 8/19
19 - M KG -13 4 87
QUICK
REFERENCE
GUIDE
2020

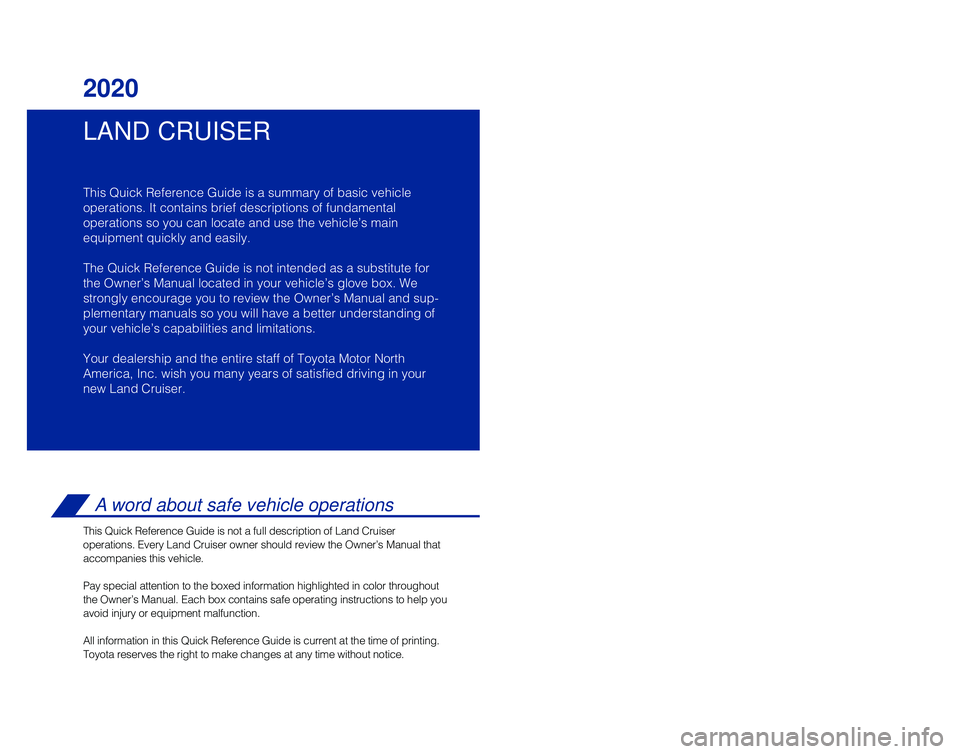

LAND CRUISER 2020
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Land Cruiser.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Land Cruiser
operations. Every Land Cruiser owner should review the Owner’s Manual\
that
accompanies this vehicle.
Pay special attention to the boxed information highlighted in color thro\
ughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.

1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY &
EMERGENCY FEATURES

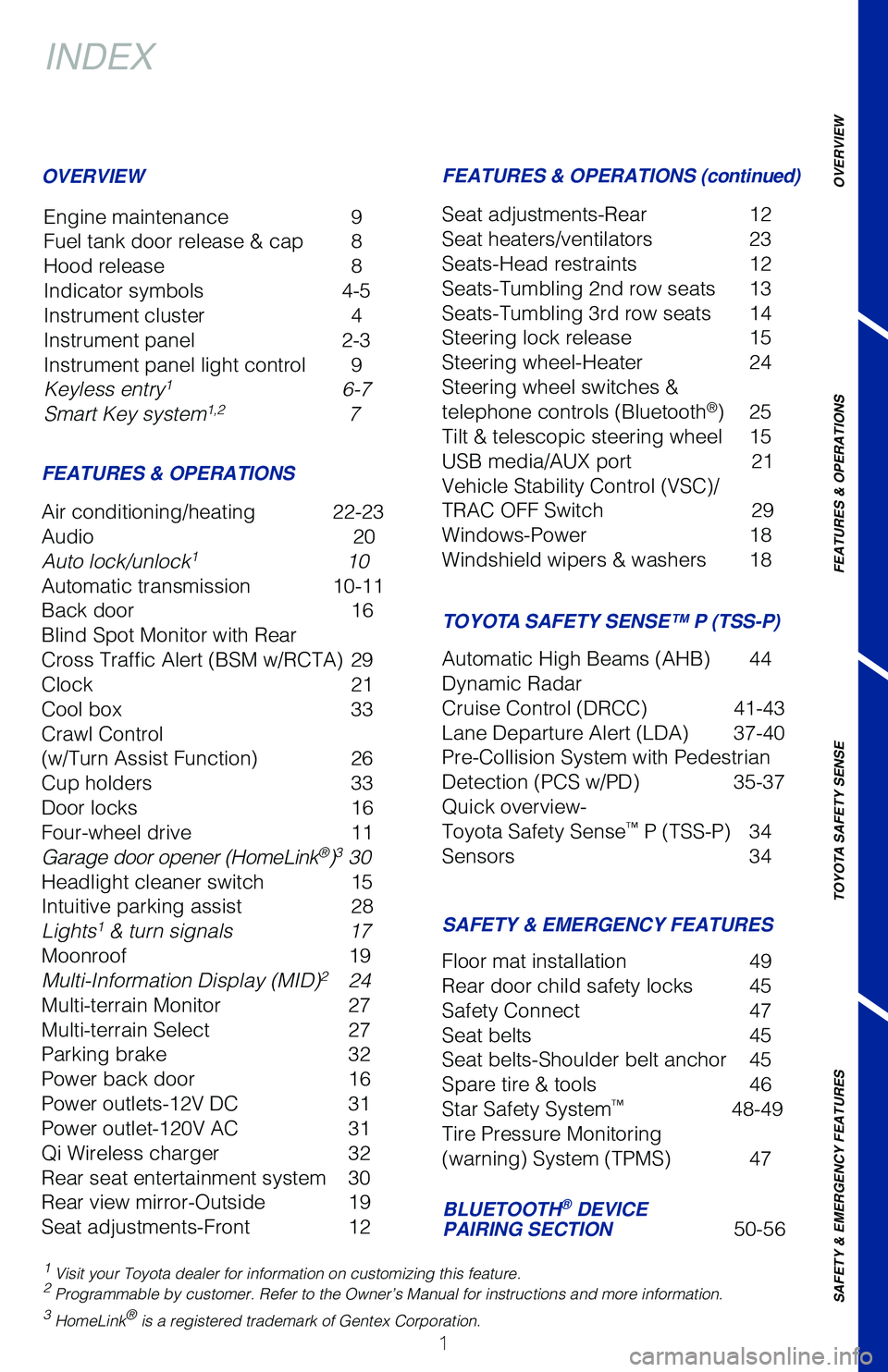

INDEX
Engine maintenance 9
Fuel tank door release & cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 9
Keyless entry
1 6-7
Smart Key system1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES TOYOTA SAFETY SENSE™ P (TSS-P)
Air conditioning/heating 22-23
Audio
20
Auto lock/unlock
1 10
Automatic transmission 10-11
Back door 16
Blind Spot Monitor with Rear
$ross 5raffic AMert #4. w3$5A

Clock 21
Cool box 33
Crawl Control
w5urn Assist 'unction

Cup holders 33
Door locks 16
Four-wheel drive 11
Garage door opener (HomeLink
®)3 30
Headlight cleaner switch 15
Intuitive parking assist 28
Lights
1 & turn signals 17
Moonroof 19
Multi-Information Display (MID)
2 24
Multi-terrain Monitor 27
Multi-terrain Select 27
Parking brake 32
Power back door 16
Power outlets-12V DC 31
Power outlet-120V AC 31
Qi Wireless charger 32
Rear seat entertainment system 30
Rear view mirror-Outside 19
Seat adjustments-Front 12 Seat adjustments-Rear 12
Seat heaters/ventilators 23
Seats-Head restraints
12
Seats-Tumbling 2nd row seats 13
Seats-Tumbling 3rd row seats 14
Steering lock release 15
Steering wheel-Heater 24
Steering wheel switches &
teMeQhone controMs #Muetooth
®

Tilt & telescopic steering wheel 15
USB media/AUX port 21
7ehicMe 4taCiMity $ontroM 74$

TRAC OFF Switch 29
Windows-Power 18
Windshield wipers & washers 18
Floor mat installation 49
Rear door child safety locks 45
Safety Connect 47
Seat belts 45
Seat belts-Shoulder belt anchor 45
Spare tire & tools 46
Star Safety System
™ 48-49
Tire Pressure Monitoring
warning
4ystem 51.4
 Automatic )igh #eams A)#

Dynamic Radar
$ruise $ontroM %3$$

-ane %eQarture AMert -%A

Pre-Collision System with Pedestrian
%etection 1$4 w1%

Quick overview-
Toyota Safety Sense
™ 1 5441
34
Sensors 34
BLUETOOTH® DEVICE
PAIRING SECTION 50-56

2

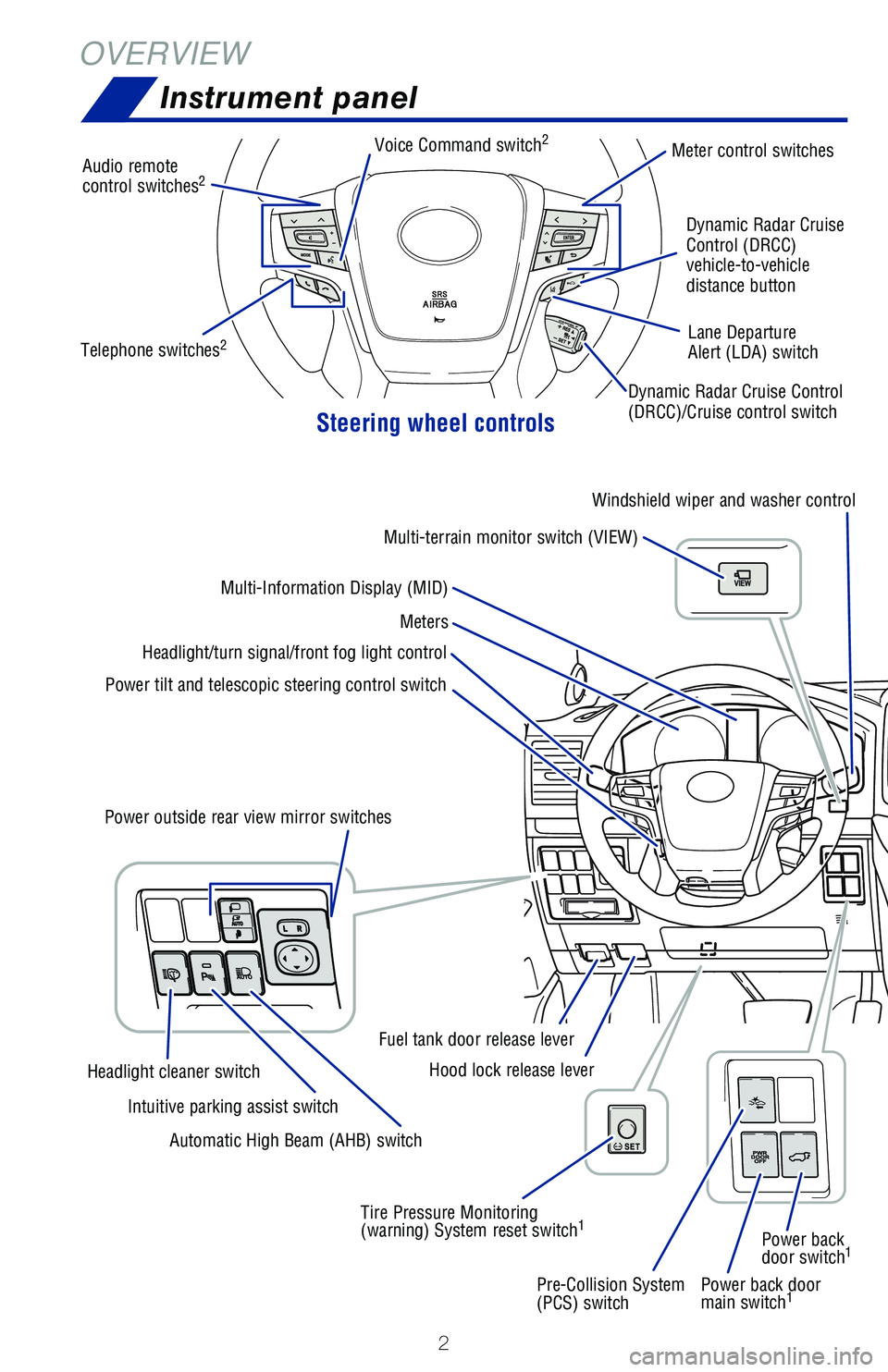

OVERVIEWInstrument panel
Steering wheel controls
Power back door
main switch1
Audio remote
control switches2
Meter control switches
Dynamic Radar Cruise Control
(DRCC)/Cruise control switch Dynamic Radar Cruise
Control (DRCC)
vehicle-to-vehicle
distance button
Lane Departure
Alert (LDA) switch
Power tilt and telescopic steering control switch Headlight/turn signal/front fog light control
Meters
Multi-Information Display (MID) Windshield wiper and washer control
Multi-terrain monitor switch (VIEW)
Pre-Collision System
(PCS) switch Power back
door switch
1
Tire Pressure Monitoring
(warning) System reset switch1
Hood lock release lever
Fuel tank door release lever
Power outside rear view mirror switches
Automatic High Beam (AHB) switch
Intuitive parking assist switch
Headlight cleaner switch Voice Command switch
2
Telephone switches2

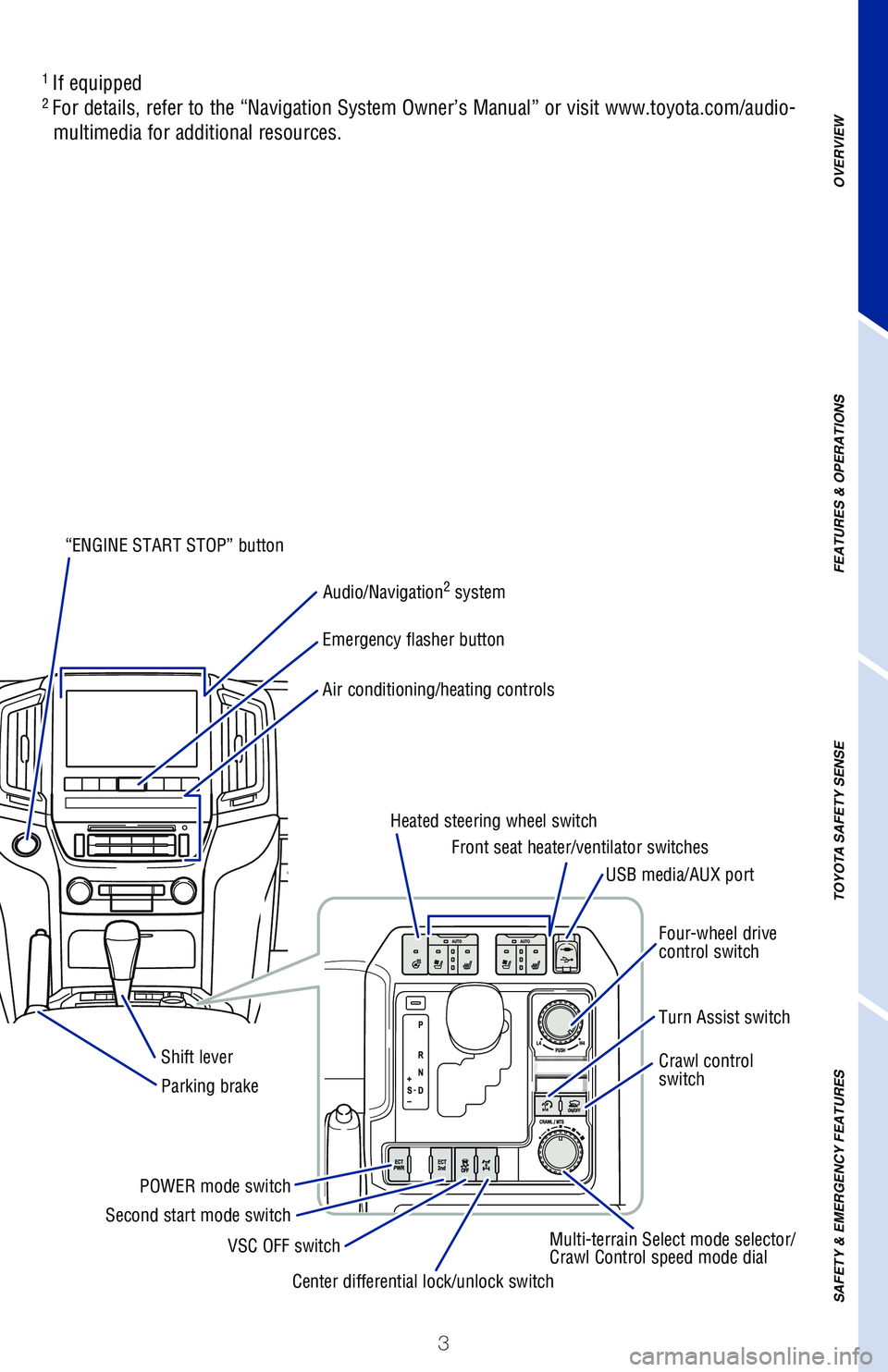

3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
“ENGINE START STOP” button
Audio/Navigation
2 system
Emergency flasher button
Air conditioning/heating controls
Front seat heater/ventilator switches
Heated steering wheel switch
USB media/AUX port
Four-wheel drive
control switch
Crawl control
switch
Multi-terrain Select mode selector/
Crawl Control speed mode dial
Center differential lock/unlock switch
VSC OFF switch
Second start mode switch
POWER mode switch Turn Assist switch
Shift lever
Parking brake
1 If equipped2 For details, refer to the “Navigation System Owner’s Manual” or\
visit www.toyota.com/audio-
multimedia for additional resources.

4

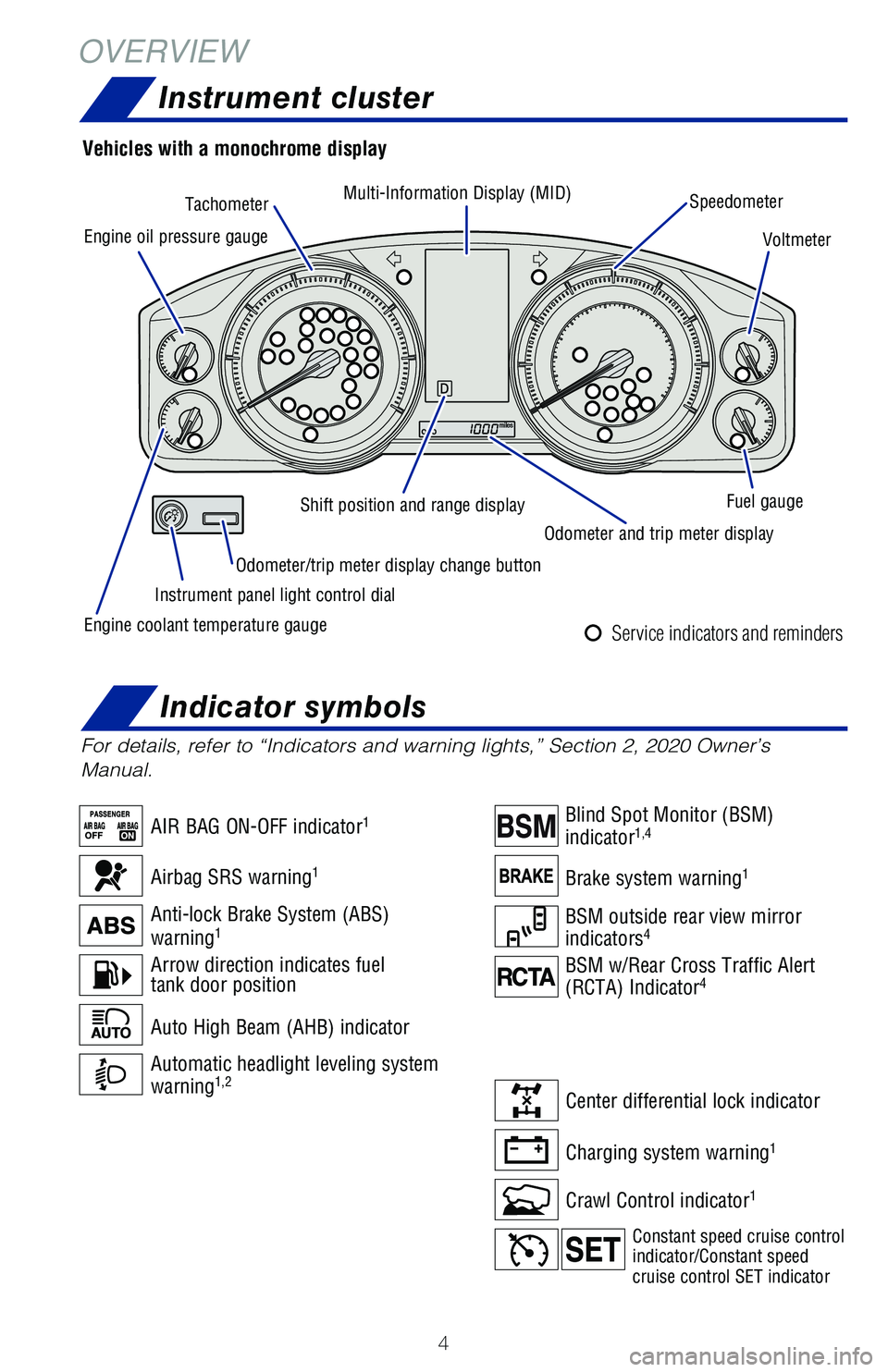

OVERVIEWInstrument cluster
For details, refer to “Indicators and warning lights,” Section 2, \
2020 Owner’s
Manual.
Engine oil pressure gauge Tachometer
Multi-Information Display (MID)
Speedometer
Voltmeter
Fuel gauge
Odometer and trip meter display
Shift position and range display
Odometer/trip meter display change button
Instrument panel light control dial
Engine coolant temperature gauge
Vehicles with a monochrome display
Arrow direction indicates fuel
tank door position
Brake system warning1
Anti-lock Brake System (ABS)
warning1
Charging system warning1
Center differential lock indicator
Crawl Control indicator1
Automatic headlight leveling system
warning1,2
AIR BAG ON-OFF indicator1
Airbag SRS warning1
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Auto High Beam (AHB) indicator Blind Spot Monitor (BSM)
indicator
1,4
BSM outside rear view mirror
indicators4
BSM w/Rear Cross Traffic Alert
(RCTA) Indicator4
Indicator symbols
Service indicators and reminders

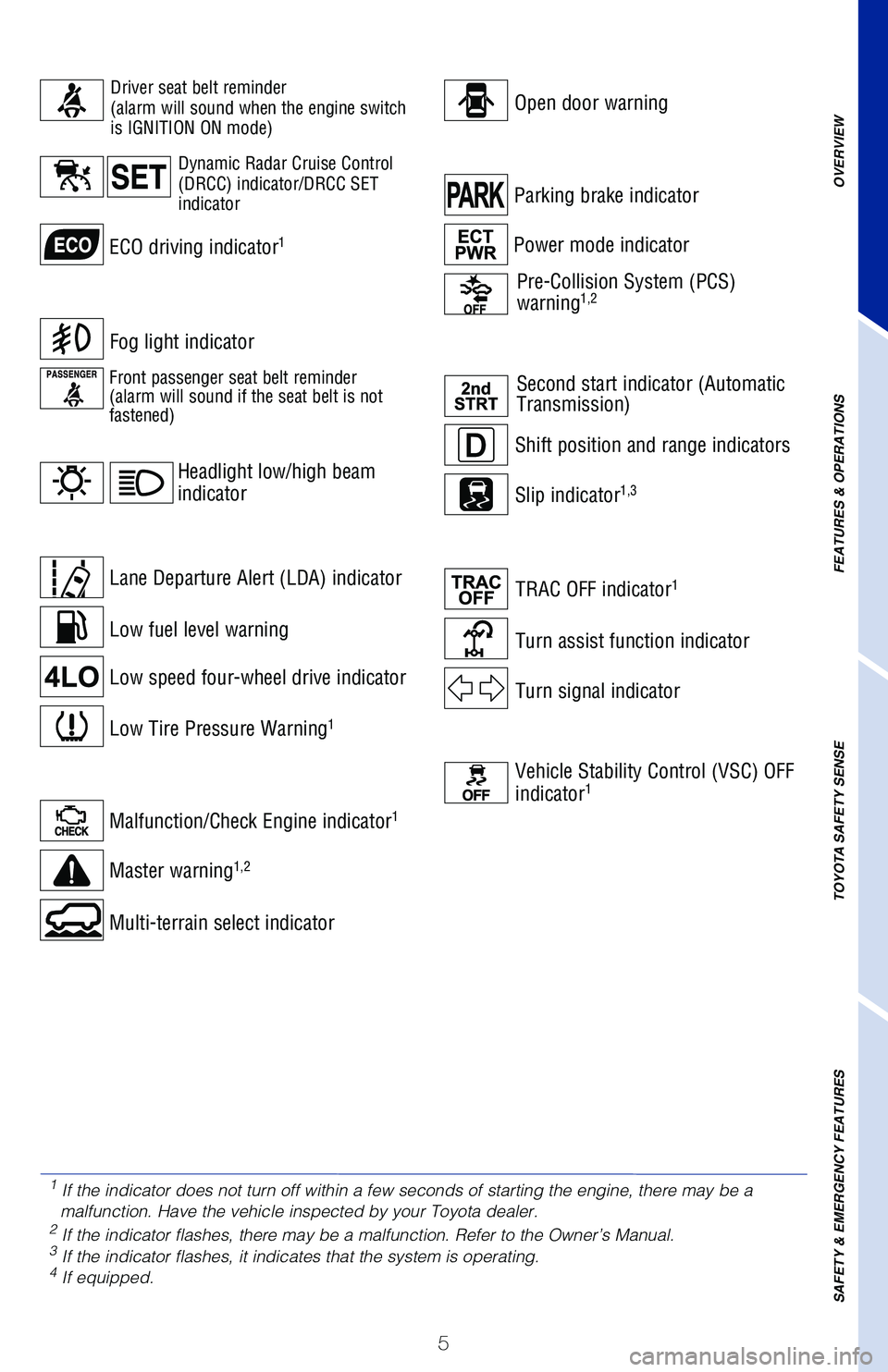

5
Low fuel level warning
Parking brake indicatorShift position and range indicators
Low Tire Pressure Warning1
Malfunction/Check Engine indicator1
Master warning1,2
Second start indicator (Automatic
Transmission)
Power mode indicator
Slip indicator1,3
Low speed four-wheel drive indicatorMulti-terrain select indicator
ECO driving indicator1
Turn assist function indicator
TRAC OFF indicator1
Turn signal indicator
Fog light indicator
Open door warning Pre-Collision System (PCS)
warning
1,2
Lane Departure Alert (LDA) indicator
Headlight low/high beam
indicator
Vehicle Stability Control (VSC) OFF
indicator1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURESDynamic Radar Cruise Control
(DRCC) indicator/DRCC SET
indicator
Driver seat belt reminder
(alarm will sound when the engine switch
is IGNITION ON mode)
Front passenger seat belt reminder
(alarm will sound if the seat belt is not
fastened)
1
If the indicator does not turn off within a few seconds of starting the \
engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.

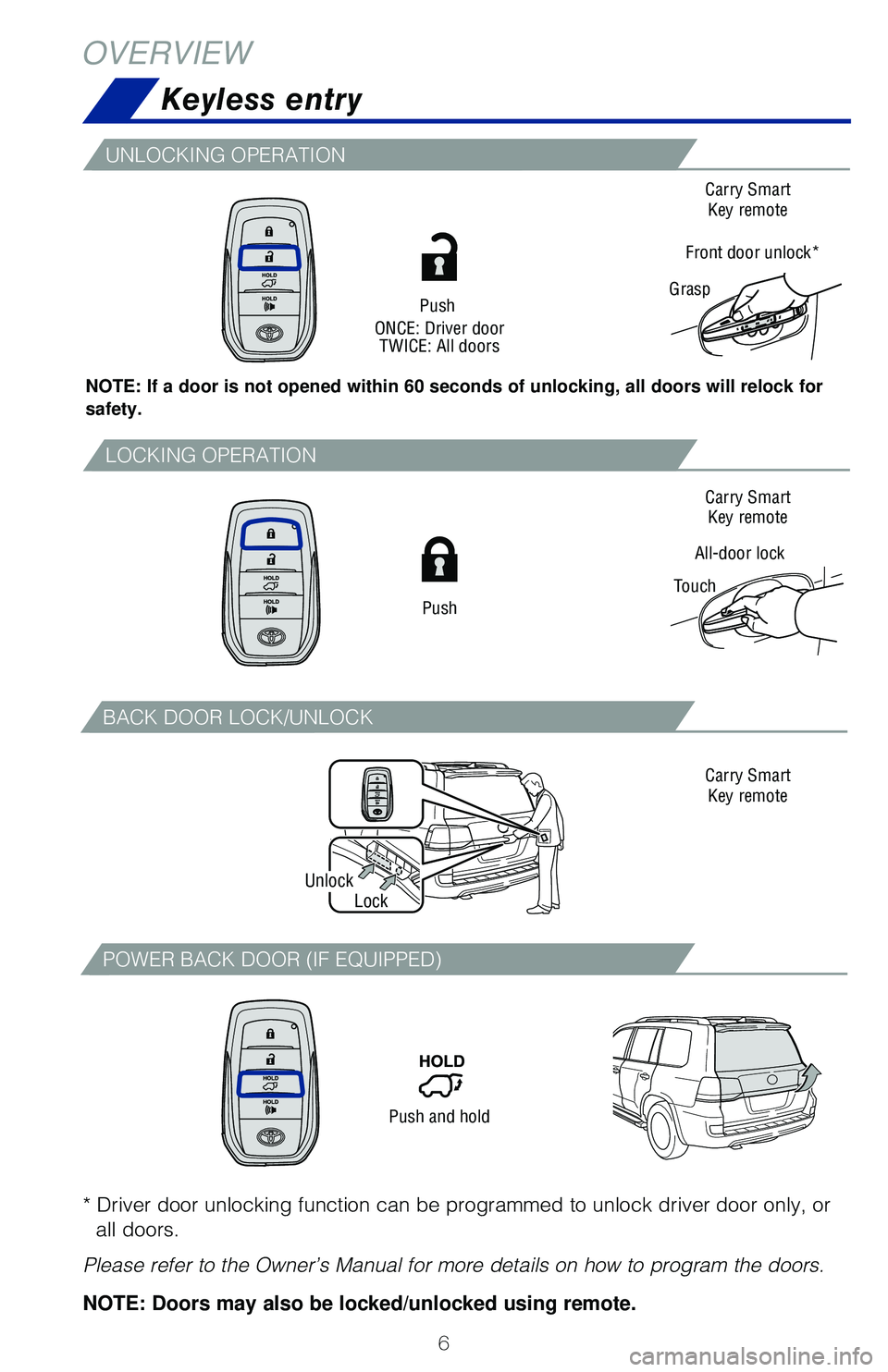

6
Keyless entry
OVERVIEW
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Push
ONCE: Driver door TWICE: All doors
All-door lock
Touch Carry Smart
Key remote
Carry Smart Key remote
Carry Smart Key remote
Grasp
Front door unlock*
Push
Push and hold
* Driver door unlocking function can be programmed to unlock driver door\
only, or all doors.
Please refer to the Owner’s Manual for more details on how to program\
the doors.
NOTE: Doors may also be locked/unlocked using remote.
LockUnlock
LOCKING OPERATION
UNLOCKING OPERATION
108&3 #A$, %003 I' &26I11&%

BACK DOOR LOCK/UNLOCK

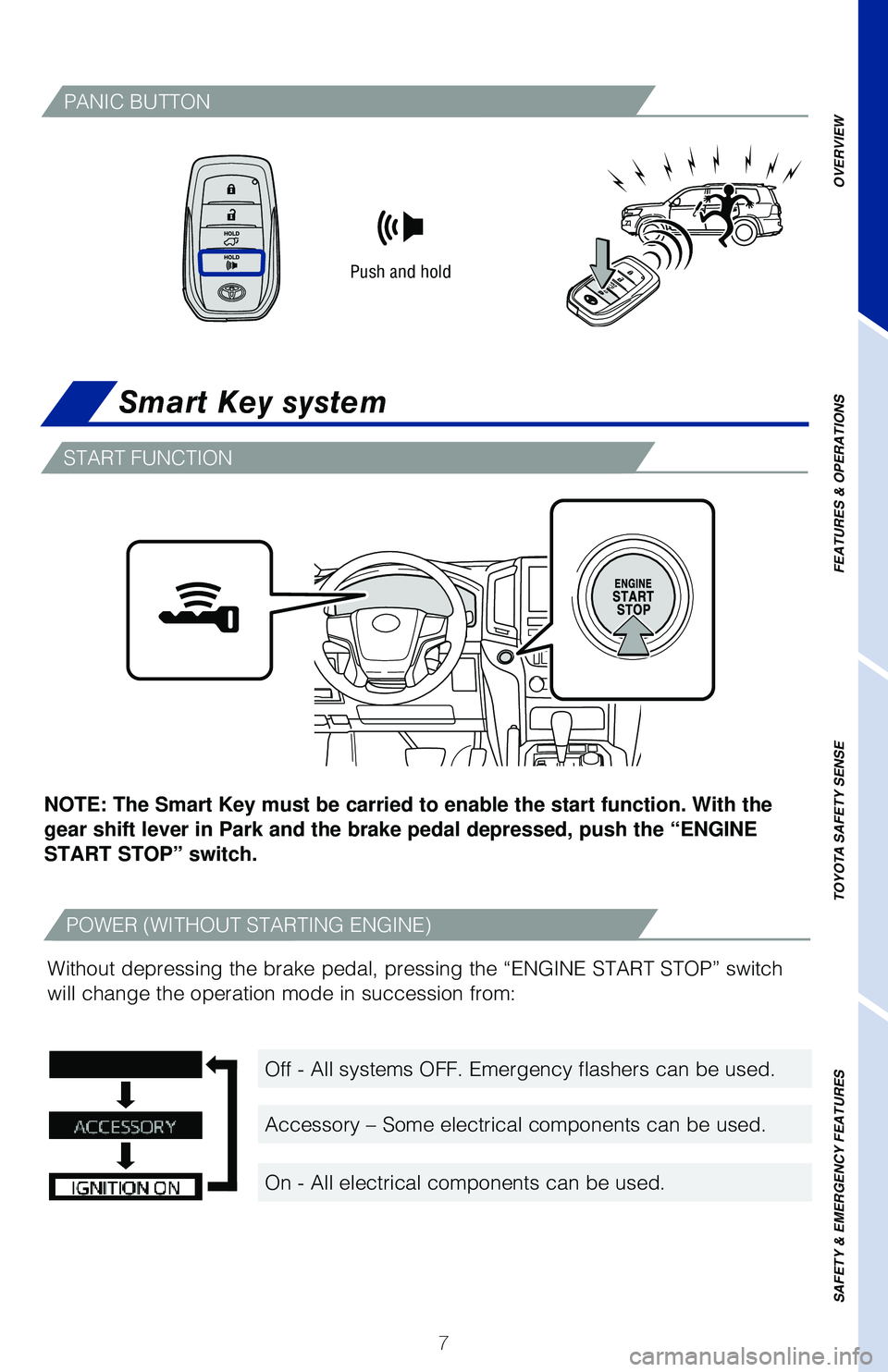

7
Smart Key system
NOTE: The Smart Key must be carried to enable the start function. With the
gear shift lever in Park and the brake pedal depressed, push the “ENGINE
START STOP” switch.
Without depressing the brake pedal, pressing the “ENGINE START STOP”\
switch
will change the operation mode in succession from:
Push and hold
PANIC BUTTON
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
START FUNCTION
108&3 8I5)065 45A35I/( &/(I/&

8

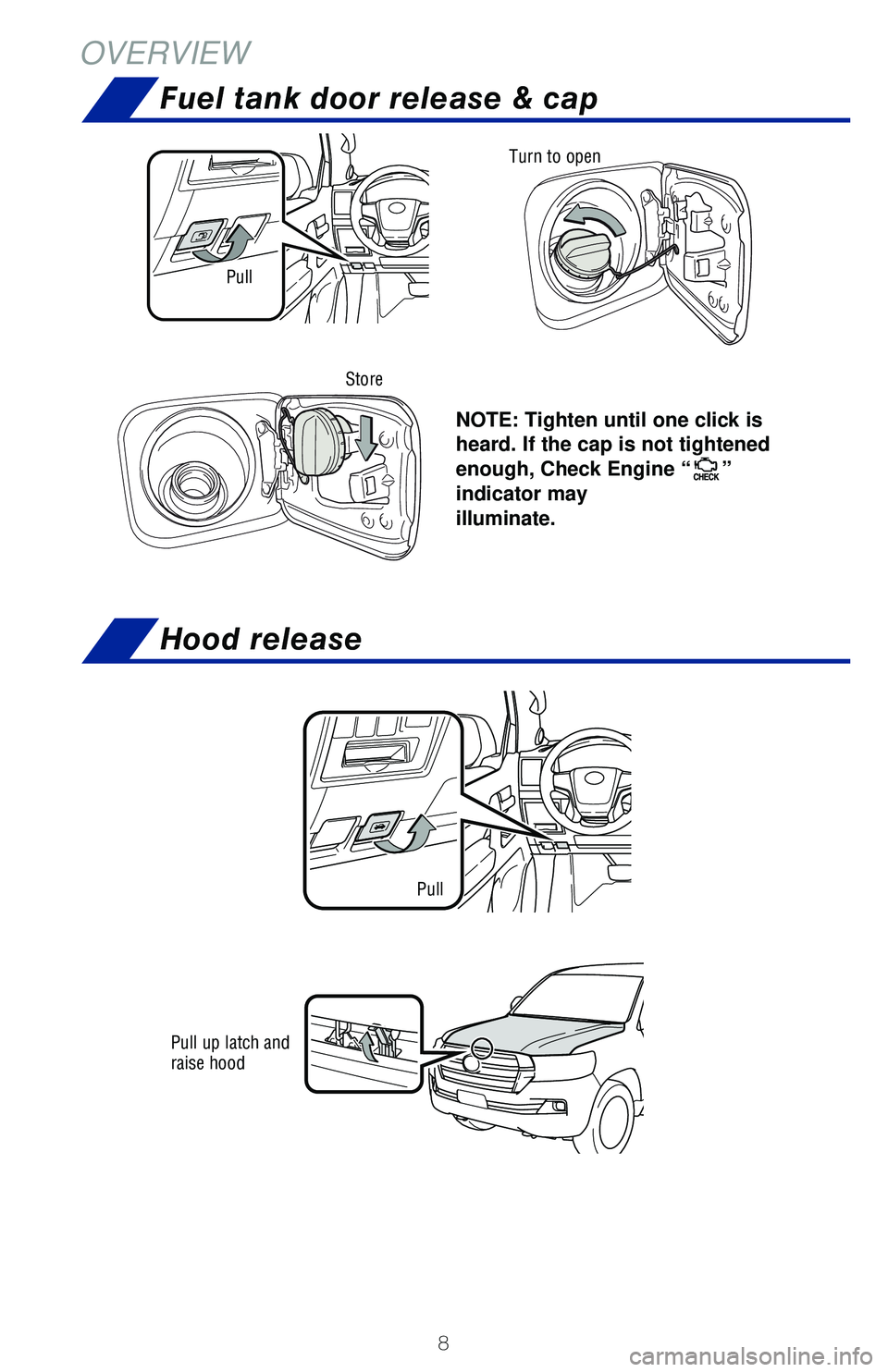

OVERVIEW
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
”
indicator may
illuminate.
Pull Turn to open
Store
Pull up latch and
raise hood
Pull
Fuel tank door release & cap
Hood release
