TOYOTA LAND CRUISER 2021 Owners Manual (in English)

5417-2. Steps to take in an emergency
LC200_OM_OM60T03U_(U)
7
When trouble arises
■System warning lights
The master warning light does not come on or flash in the follo wing case.
Instead, a separate system warning light will come on along wit h a message
or image shown on the multi-information display.
● Indicates that the PCS (Pre-Collision System) is not currently functional
The PCS warning light flashes or illuminates. ( P. 531)
● Indicates that a door is not fully closed while the vehicle is stopped.
The Open door warning light comes on. ( P. 532)
■ If “See Owner’s Manual” is shown
●If “Smart key System Malfunction” is shown, this may be a malfunction.
Immediately have the vehicle inspected by your Toyota dealer.
● If “Transmission Fluid Temp High” is shown, it indicates that t he automatic
transmission fluid temperature is too high.
Immediately stop the vehicle in a safe place, shift the shift lever to P and
wait until the warning message and light go off. If the warning message and
light go off, you may start the vehicle again. If the warning m essage and
light do not go off, contact your Toyota dealer.
■ If “Shift to P Before Exiting Vehicle” is shown
Message is displayed when the driver’s door is opened without t urning the
engine switch to off with the shift lever in any position other than P.
Shift the shift lever to P.
■ If “Power Turned Off to Save Battery” is shown
Power was turned off due to the automatic power off function.
Next time when starting the engine, increase the engine speed s lightly and
maintain that level for approximately 5 minutes to recharge the battery.
■ When a message that indicates the need for the shift lever oper ation is
shown
To prevent the shift lever from being operated incorrectly or t he vehicle from
moving unexpectedly, a message that requires shifting the shift lever may be
shown on the multi-information display. In that case, follow th e instruction of
the message and shift the shift lever.
■ When “Headlight System Malfuncti on Visit Your Dealer” is displayed on
the multi-information display
The following systems may be malfunctioning. Have the vehicle inspected by
your Toyota dealer.
● The LED headlight system
● The automatic headlight leveling system
● Automatic High Beam (if equipped)

5427-2. Steps to take in an emergency
LC200_OM_OM60T03U_(U)■
If a message that indicates the ma lfunction of front camera is displayed.
(if equipped)
The following systems may be suspended until the problem shown in the
message is resolved. ( P. 266, 530)
● PCS (Pre-Collision System)
● LDA (Lane Departure Alert)
● Dynamic radar cruise control
● Automatic High Beam
■ If “Engine Oil Level Low” is shown
Indicates that engine oil level is low.
Check the level of engine oil, and add if necessary.
This message may appear if the vehicle is stopped on a slope.
Move the vehicle to a level surface and check to see if the mes sage disap-
pears.
■ If a following message is shown, take appropriate action and co nfirm
that the message has disappeared. ( P. 304)
●
“Crawl Not Available Select L4 a nd Shift to [D] or [R] Position”
●“Crawl Not Available Check System Operation Conditions”
●“Turn Assist Function Not Available Check System Operation Conditions”
●“Turn Assist Function Not Available Activate Crawl Control”
■If “Maintenance Required Soon” is shown (U.S.A. only)
Indicates that all maintenance according to the driven distance on the mainte-
nance schedule
* should be performed soon.
Comes on approximately 4500 miles (7200 km) after the message has been
reset.
If necessary, perform maintenance.
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’ s Manual
Supplement” for the maintenance interval applicable to your veh icle.
■ If “Maintenance Required Visit Yo ur Dealer” is shown (U.S.A. only)
Indicates that all maintenance is required to correspond to the driven distance
on the maintenance schedule
*.
Comes on approximately 5000 miles (8000 km) after the message has been
reset. (The indicator will not work properly unless the message has been
reset.)
Perform the necessary maintenance. Please reset the message aft er the
maintenance is performed ( P. 459)
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’ s Manual
Supplement” for the maintenance interval applicable to your veh icle.

5437-2. Steps to take in an emergency
LC200_OM_OM60T03U_(U)
7
When trouble arises
■If “Oil Maintenance Required Soon” is shown
Indicates that the engine oil is scheduled to be changed. (The indicator will
not work properly unless the message has been reset.)
Check the engine oil, and change if necessary. After changing t he engine oil,
the message should be reset. ( P. 471)
■ If “Oil Maintenance Required Visit Your Dealer” is shown
Indicates that the engine oil should be changed. (The indicator will not work
properly unless the message has been reset.)
Check and change the engine oil, and oil filter by your Toyota dealer. After
changing the engine oil, the message should be reset. ( P. 471)
■ If “Visit Your Dealer” is shown
The system or part shown on the multi-information display is ma lfunctioning.
Have the vehicle inspected by your Toyota dealer immediately.
■ Warning buzzer
In some cases, the buzzer may not be heard due to being in a no isy location
or audio sound.

544
LC200_OM_OM60T03U_(U)
7-2. Steps to take in an emergency
If you have a flat tire
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the engine.
● Turn on the emergency flashers. ( P. 520)
Your vehicle is equipped with a spare tire. The flat tire can b e
replaced with the spare tire.
For details about tires: P. 4 8 2
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance wit h a flat tire can damage the tire and the
wheel beyond repair, which cou ld result in an accident.
Before jacking up the vehicle

5457-2. Steps to take in an emergency
LC200_OM_OM60T03U_(U)
7
When trouble arises
Location of the spare tire, jack and tools
Jack
Spare tireTool box1
2
3

5467-2. Steps to take in an emergency
LC200_OM_OM60T03U_(U)
WARNING
■Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing t ires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jack s for
replacing tires on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle while it is supported
by the jack.
●Do not start or run the engine while your vehicle is supported by the
jack.
●Do not raise the vehicle w hile someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to
replace the tire.
●Use a jack stand if it is nece ssary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that n o one
working on or near the vehicle will be injured.
■Using the jack handle
Tighten all the jack handle bol ts securely using a Phillips-hea d screw-
driver, to prevent the extension parts from coming apart unexpe ctedly.

5477-2. Steps to take in an emergency
LC200_OM_OM60T03U_(U)
7
When trouble arises
Remove the cover.
Unhook the rubber band and
take out the jack.Loosen
Tighten
Loosen and remove the jack.
Remove the cover.
Take out the tool box.
Taking out the jack
1
2
1
2
Taking out the tool box
IN82LA044
1
2

5487-2. Steps to take in an emergency
LC200_OM_OM60T03U_(U)
Assembling the jack handle.
Remove the jack handle and the jack handle extension bar from the
tool box and asse mble by following these steps.
Loosen the screw using a
screwdriver.
Assemble the jack handle and
the jack handle extension bar
and tighten the screw.
Check that the screw is firmly
tightened.
Open the cover.
Taking out the spare tire
1
2

5497-2. Steps to take in an emergency
LC200_OM_OM60T03U_(U)
7
When trouble arises
Insert the jack handle extension
into the lowering screw.Lower
Raise
Place a rag under the jack
handle extension to protect the
back door.
Lower the spare tire completely
to the ground.
Pull out the spare tire and
remove the holding bracket.
Remove the spare wheel cover.
3
1
2
4
5
6

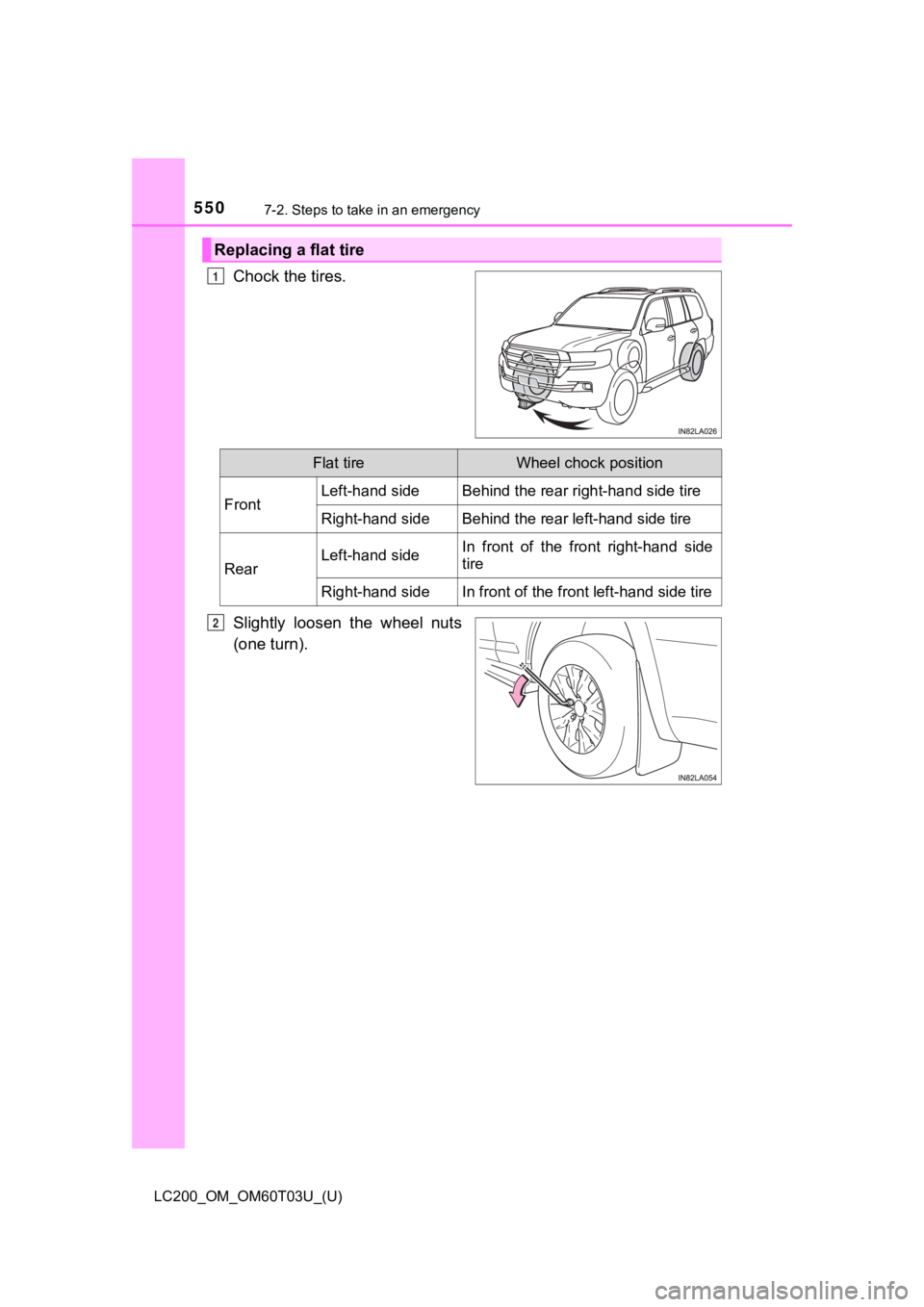

5507-2. Steps to take in an emergency
LC200_OM_OM60T03U_(U)
Chock the tires.
Slightly loosen the wheel nuts
(one turn).
Replacing a flat tire
1
Flat tireWheel chock position
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side
tire
Right-hand sideIn front of the front left-hand side tire
2
