TOYOTA MATRIX 2003 E130 / 1.G Navigation Manual

Corolla_MATRIX_Navi_U (L/O 0208)
632003 MY COROLLA MATRIX (OM12774U)
2NAN044

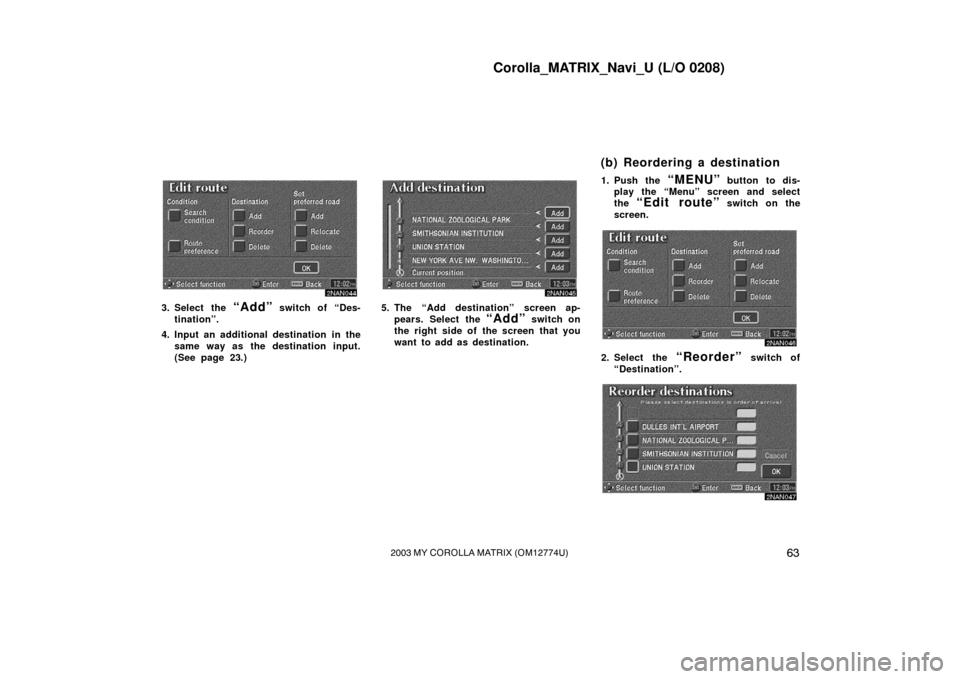

3. Select the “Add” switch of “Des-
tination”.
4. Input an additional destination in the same way as the destination input.
(See page 23.)
2NAN045
5. The “Add destination” screen ap-pears. Select the
“Add” switch on
the right side of the screen that you
want to add as destination. 1. Push the
“MENU” button to dis-
play the “Menu” screen and select
the
“Edit route” switch on the
screen.
2NAN046
2. Select the “Reorder” switch of
“Destination”.
2NAN047
(b) Reordering a destination

Corolla_MATRIX_Navi_U (L/O 0208)
642003 MY COROLLA MATRIX (OM12774U)
3. Choose the destinations in the orderof arrival by selecting the
switch
on the left side of the screen.
After you finished selecting the destina-
tions, select the
“OK” switch.

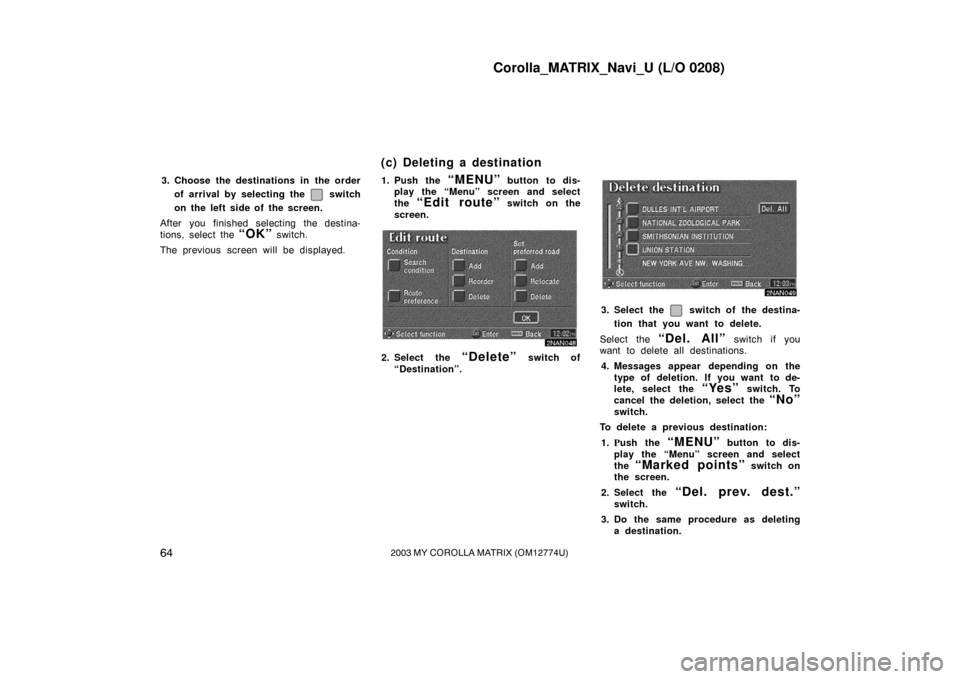

The previous screen will be displayed. 1. Push the
“MENU” button to dis-
play the “Menu” screen and select
the
“Edit route” switch on the
screen.
2NAN
2. Select the “Delete” switch of
“Destination”.
2NAN049
3. Select the switch of the destina-
tion that you want to delete.
Select the
“Del. All” switch if you
want to delete all destinations.
4. Messages appear depending on the type of deletion. If you want to de-
lete, select the
“Yes” switch. To
cancel the deletion, select the
“No”
switch.
To delete a previous destination:
1. Push the
“MENU” button to dis-
play the “Menu” screen and select
the
“Marked points” switch on
the screen.
2. Select the
“Del. prev. dest.”
switch.
3. Do the same procedure as deleting a destination.
(c) Deleting a destination

Corolla_MATRIX_Navi_U (L/O 0208)
652003 MY COROLLA MATRIX (OM12774U)

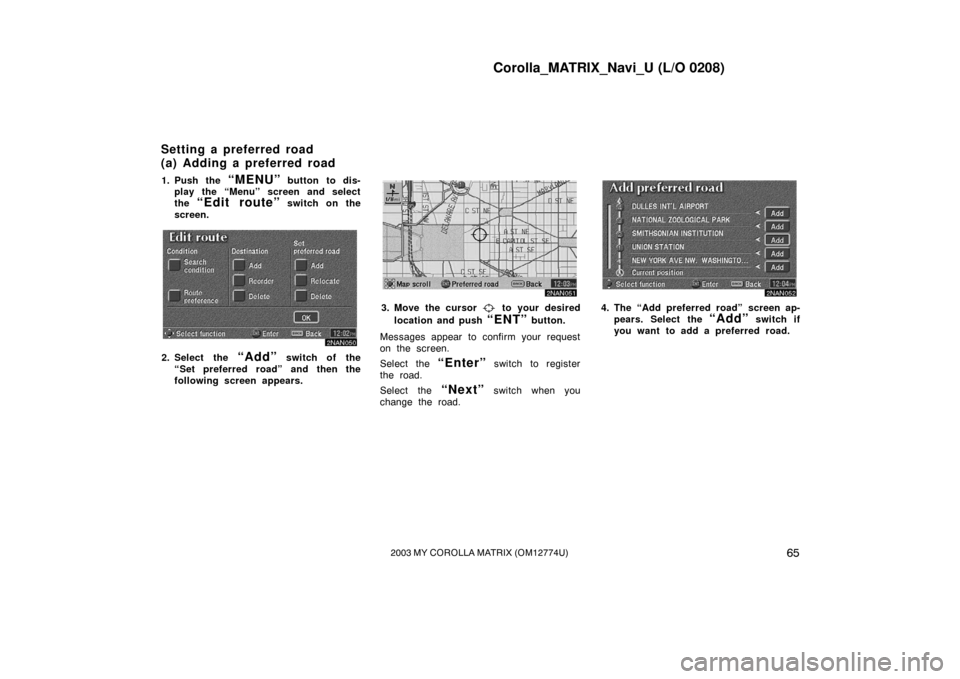

1. Push the “MENU” button to dis-
play the “Menu” screen and select
the
“Edit route” switch on the
screen.
2NAN
2. Select the “Add” switch of the
“Set preferred road” and then the
following screen appears.
2NAN051
3. Move the cursor to your desired
location and push
“ENT” button.
Messages appear to confirm your request
on the screen.
Select the
“Enter” switch to register
the road.
Select the
“Next” switch when you
change the road.
2NAN052
4. The “Add preferred road” screen ap- pears. Select the
“Add” switch if
you want to add a preferred road.
Setting a preferred road
( a) Ad d in g a pref erred ro ad

Corolla_MATRIX_Navi_U (L/O 0208)
662003 MY COROLLA MATRIX (OM12774U)

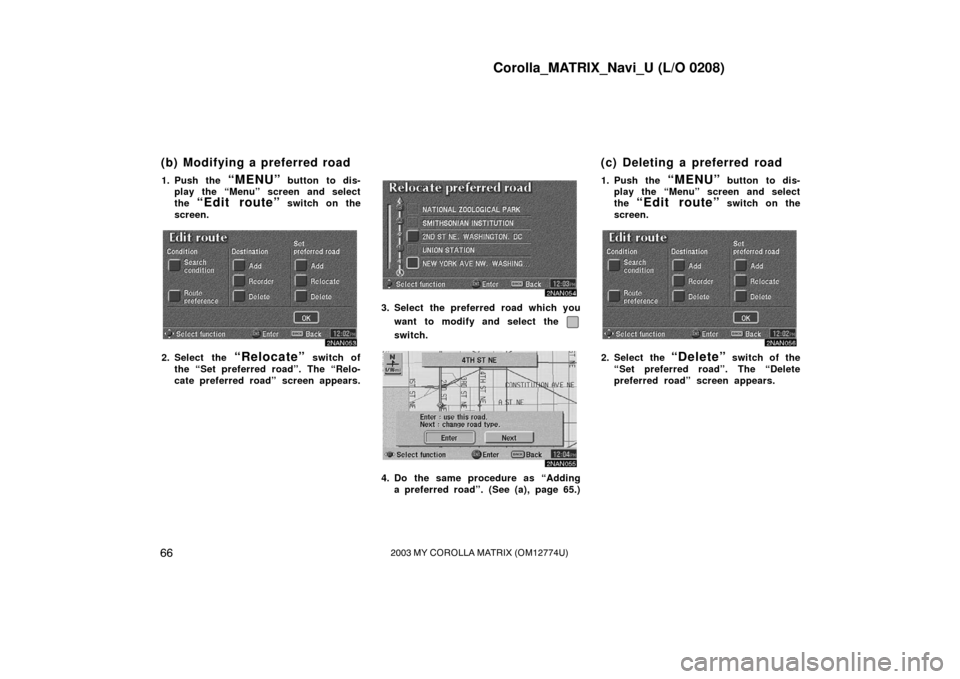

1. Push the “MENU” button to dis-
play the “Menu” screen and select
the
“Edit route” switch on the
screen.
2NAN053
2. Select the “Relocate” switch of
the “Set preferred road”. The “Relo-
cate preferred road” screen appears.
2NAN054
3. Select the preferred road which you
want to modify and select the
switch.
2NAN055
4. Do the same procedure as “Addinga preferred road”. (See (a), page 65.) 1. Push the
“MENU” button to dis-
play the “Menu” screen and select
the
“Edit route” switch on the
screen.
2NAN056
2. Select the “Delete” switch of the
“Set preferred road”. The “Delete
preferred road” screen appears.
(b) Modifying a preferred road (c) Deleting a preferred road

Corolla_MATRIX_Navi_U (L/O 0208)
672003 MY COROLLA MATRIX (OM12774U)
2NAN057

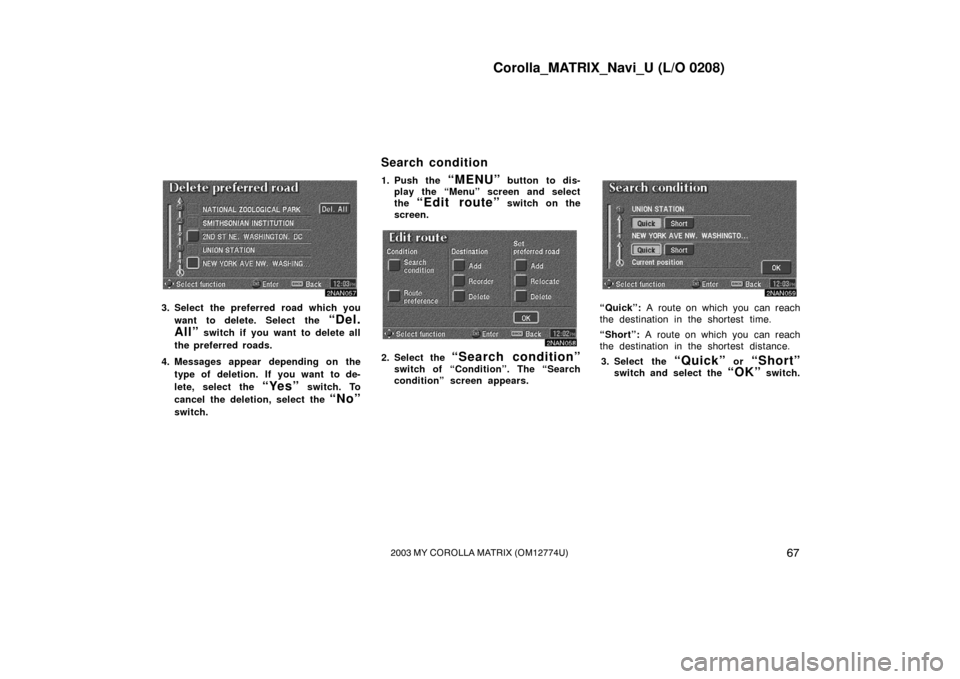

3. Select the preferred road which youwant to delete. Select the
“Del.
All”
switch if you want to delete all
the preferred roads.
4. Messages appear depending on the type of deletion. If you want to de-
lete, select the
“Yes” switch. To
cancel the deletion, select the
“No”
switch. 1. Push the
“MENU” button to dis-
play the “Menu” screen and select
the
“Edit route” switch on the
screen.
2NAN058
2. Select the “Search condition”
switch of “Condition”. The “Search
condition” screen appears.
2NAN059
“Quick”: A route on which you can reach
the destination in the shortest time.
“Short”: A route on which you can reach
the destination in the shortest distance.
3. Select the
“Quick” or “Short”
switch and select the “OK” switch.
Search condition

Corolla_MATRIX_Navi_U (L/O 0208)
682003 MY COROLLA MATRIX (OM12774U)

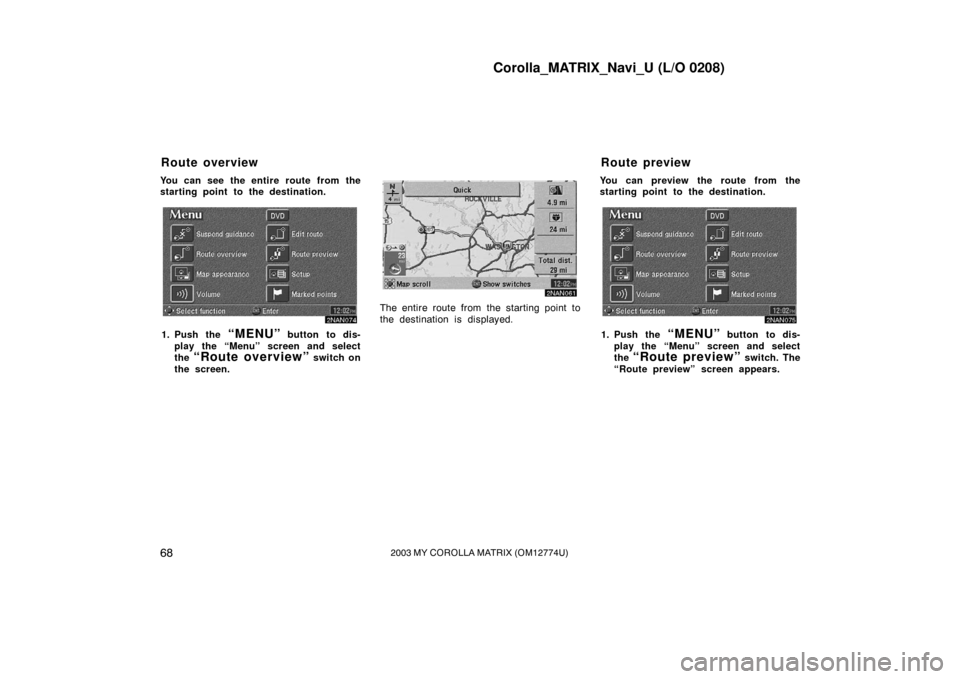

You can see the entire route from the
starting point to the destination.
2NAN074
1. Push the “MENU” button to dis-
play the “Menu” screen and select
the
“Route overview” switch on
the screen.
2NAN061
The entire route from the starting point to
the destination is displayed. You can preview the route from the
starting point to the destination.
2NAN075
1. Push the “MENU” button to dis-
play the “Menu” screen and select
the
“Route preview” switch. The
“Route preview” screen appears.
Route overview Route preview

Corolla_MATRIX_Navi_U (L/O 0208)
692003 MY COROLLA MATRIX (OM12774U)
2NAN

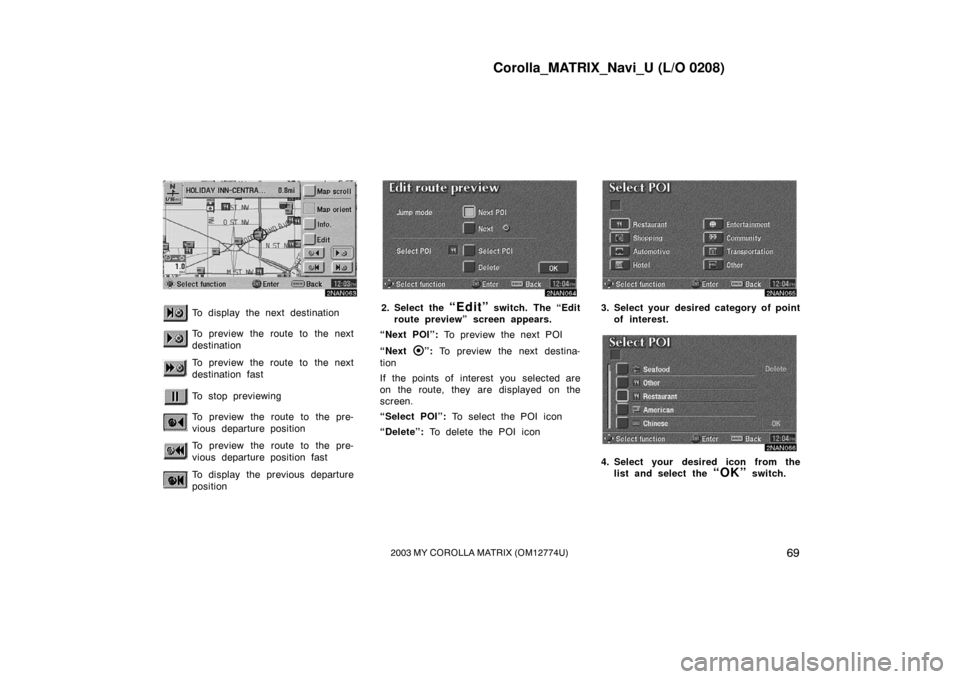

To display the next destination
To preview the route to the next
destination
To preview the route to the next
destination fast
To stop previewing
To preview the route to the pre-
vious departure position
To preview the route to the pre-
vious departure position fast
To display the previous departure
position
2NAN064
2. Select the “Edit” switch. The “Edit
route preview” screen appears.
“Next POI”: To preview the next POI
“Next
”: To preview the next destina-
tion
If the points of interest you selected are
on the route, they are displayed on the
screen.
“Select POI”: To select the POI icon
“Delete”: To delete the POI icon
2NAN065
3. Select your desired category of point
of interest.
2NAN066
4. Select your desired icon from thelist and select the
“OK” switch.

Corolla_MATRIX_Navi_U (L/O 0208)
702003 MY COROLLA MATRIX (OM12774U)

712003 MY COROLLA MATRIX (OM12774U)
MORE ADVANCED FUNCTIONS
Convenient features
Setup72
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Map color 73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Screen adjustment 73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Automatic rerouting 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Time to destination 75
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Distance 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Notify seasonal restrict 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Voice guide in all mode 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Current street name 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Maintenance information 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Dealer setting 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Calendar with memo 83
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
SECTION III

Corolla_MATRIX_Navi_U (L/O 0208)
722003 MY COROLLA MATRIX (OM12774U)

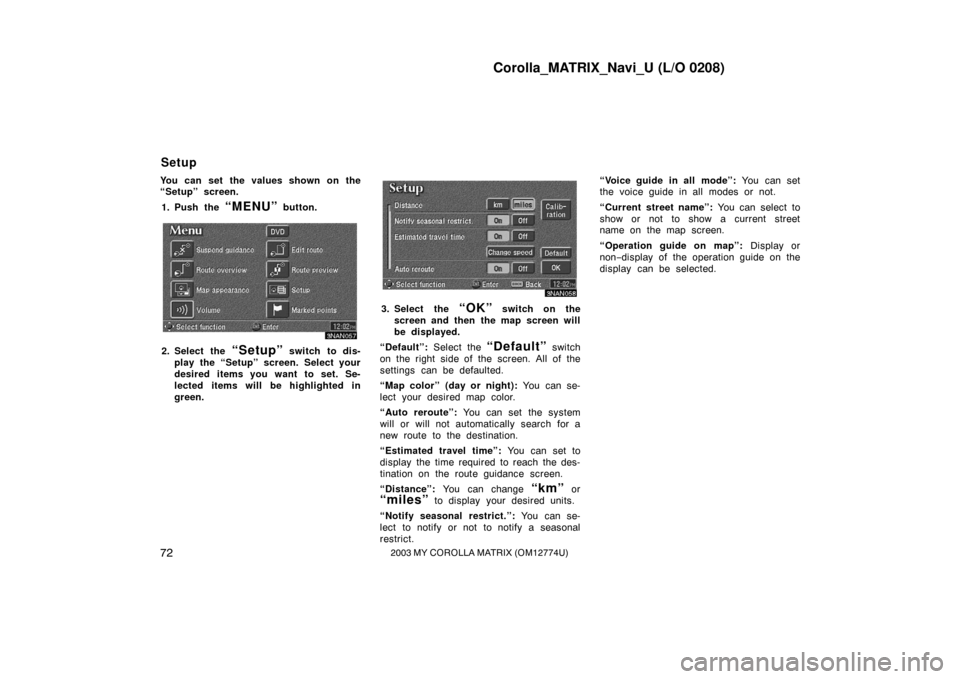

You can set the values shown on the
“Setup” screen.1. Push the
“MENU” button.
3NAN057
2. Select the “Setup” switch to dis-
play the “Setup” screen. Select your
desired items you want to set. Se-
lected items will be highlighted in
green.
3NAN058
3. Select the “OK” switch on the
screen and then the map screen will
be displayed.
“Default”: Select the
“Default” switch
on the right side of the screen. All of the
settings can be defaulted.
“Map color” (day or night): You can se-
lect your desired map color.
“Auto reroute”: You can set the system
will or will not automatically search for a
new route to the destination.
“Estimated travel time”: You can set to
display the time required to reach the des-
tination on the route guidance screen.
“Distance”: You can change
“km” or
“miles” to display your desired units.
“Notify seasonal restrict.”: You can se-
lect to notify or not to notify a seasonal
restrict. “Voice guide in all mode”:
You can set
the voice guide in all modes or not.
“Current street name”: You can select to
show or not to show a current street
name on the map screen.
“Operation guide on map”: Display or
non− display of the operation guide on the
display can be selected.
Setup
