This section describes some of the basic
features of the Toyota audio system.
Some information may not pertain to your
system.
Your audio system works when the igni-
tion switch is in the “ACC” or “ON” posi-
tion.
NOTICE
To prevent the battery from being
discharged, do not leave the car au-
dio on longer than necessary when
the engine is not running.
5NAN030
(a) Turning the system on and off
POWER/VOL: Push this knob to turn the
audio system on and off. Turn this knob
to adjust the volume. The system turns
on in the last mode used.
5NAN014
Push “BAND” (FM1, FM2 or AM) or
“CD” button to turn on the desired
mode. The selected mode turns on im-
mediately and the sc reen turns to each
audio control mode.
Push these buttons if you want to switch
from one mode to another.
If a disc is not inserted, the compact disc
player does not start playing.
You can turn off the compact disc player
by ejecting the compact disc or pressing
“BAND” button. The previous audio mode
will come on again.
Using your audio system—
—Some basics

Corolla_MATRIX_Navi_U (L/O 0208)
942003 MY COROLLA MATRIX (OM12774U)
5NAN001
5NAN002
5NAN003
5NAN004
5NAN031

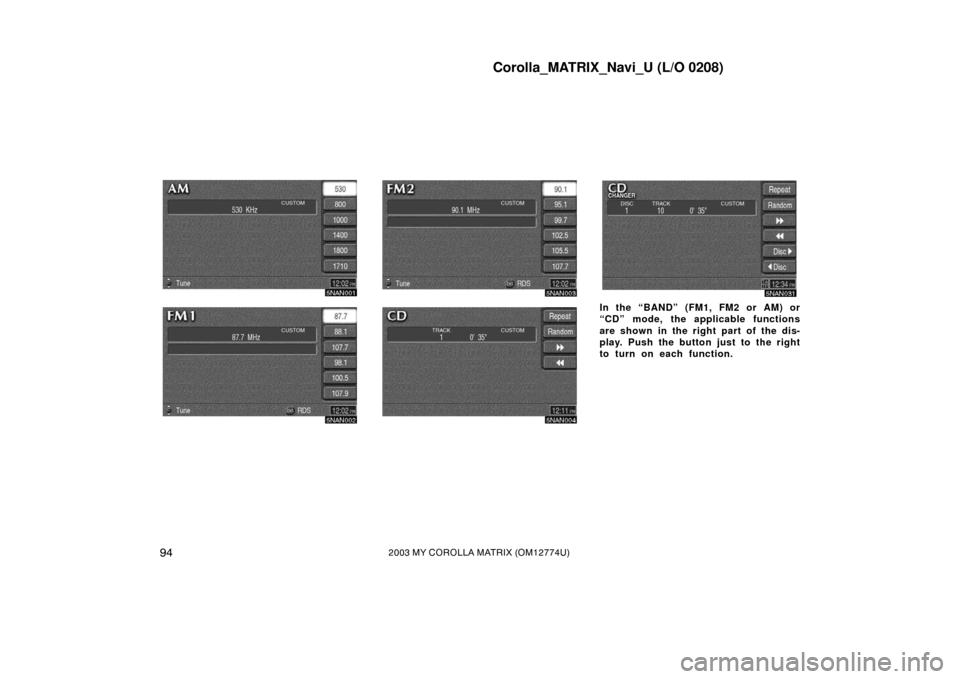

In the “BAND” (FM1, FM2 or AM) or
“CD” mode, the applicable functions
are shown in the right part of the dis-
play. Push the button just to the right
to turn on each function.

Corolla_MATRIX_Navi_U (L/O 0208)
952003 MY COROLLA MATRIX (OM12774U)
(b) Tone and balance
How good an audio program sounds to you
is largely determined by the mix of the
treble, mid−range, and bass levels. In fact,
different kinds of music and vocal programs
usually sound better with different mixes of
treble, midrange, and bass.
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
5NAN019
5NAN009
Pushing the “” button will display
the sound control mode. Adjust the
tone and balance by moving the select
and scroll lever.
“Treble”: Adjusts high −pitched tones.
“Midrange”: Adjusts mid−pitched tones.
“Bass”: Adjusts low− pitched tones.
“Balance”: Adjusts the sound balance
between the right and left speakers.
“Fader”: Adjusts the sound balance be-
tween the front and rear speakers.
“Speed Compensated Volume”: Adjusts
the volume level automatically to depend-
ing on road and wind noise as you drive.
Adjusts the volume to the desired level.
Move the select and scroll lever to adjust
the volume level to “O ff”, “Low”, “Mid” or
“High”. The higher the choice, the greater
the volume compensation at faster ve-
hicle speeds. This function will automati-
cally adjust increasing the volume to
overcome noise at any speed. The vol-
ume level will always be the same while
you are driving. If you do not want to use
speed compensated volume, adjust “Off”.

Corolla_MATRIX_Navi_U (L/O 0208)
962003 MY COROLLA MATRIX (OM12774U)
EQ (Equalization) presets: This function
is designed to select the preset EQ set-
tings. Settings consist of the treble, mid −
range and bass control positions which
can be stored in the custom setting.
To use a preset EQ setting: Push the
“
” button when the radio or the com-
pact disc player is on. You can choose
from 5 presets and custom setting using
the buttons: “EQ1”, “EQ2”, “EQ3”, “EQ4”,
“EQ5” and “CUSTOM”. In radio mode,
pressing the selected preset button for 2
seconds or more after selecting an EQ
setting will store the EQ setting for each
station.
To set “CUSTOM”: Push the “
” button
and the “CUSTOM” button. Then you can
manually adjust the treble, mid −range or
bass using the select and scroll lever.
This will overwrite any previous custom
setting that was saved with a station pre-
set. When a tuner preset is saved, the EQ
preset name is saved along with the tun-
er settings. Additionally, the current EQ
setting is saved with the current mode
(AM, FM1, FM2 or CD).
(c) Your radio antenna
Your vehicle has a mast type antenna.
To remove the antenna, carefully turn it
counterclockwise.
NOTICE
To prevent damage to the antenna,
make sure it is removed before driv-
ing your vehicle through an automat-
ic car wash.
(d) Your compact disc player
When you insert a compact disc, insert
it with the label side up. The compact
disc player will play from track 1 through
the end of the disc. Then it will play from
track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
The player is intended for use with 12
cm (4.7 in.) discs only.

Corolla_MATRIX_Navi_U (L/O 0208)
972003 MY COROLLA MATRIX (OM12774U)
5NAN015
(a) Listening to the radio
Push “BAND” (FM1, FM2 or AM) button
to choose either an AM or FM station.
“AM”, “FM1” or “FM2” appears on the
screen.
5NAN032
Move this select and scroll lever up to
step up the station band or down to
step down.
Your radio automatically changes to ste-
reo reception when a stereo broadcast is
received. “Stereo” appears on the screen.
If the signal becomes weak, the radio
reduces the amount of channel separation
to prevent the weak signal from creating
noise. If the signal becomes extremely
weak, the radio switches from stereo to
mono reception. In this case, “Stereo”
disappears from the screen.
5NAN002
(b) Presetting a station
1. Tune in the desired station.
2. Push one of the radio preset function buttons and hold it until you hear a beep. This sets the station to the preset
and its frequency appear s on the button label.
—Radio operation

Corolla_MATRIX_Navi_U (L/O 0208)
982003 MY COROLLA MATRIX (OM12774U)
At the same time, the current EQ setting
is stored. When the preset station is an
RDS station, the program name may ap-
pear.
Each radio mode (AM, FM1 or FM2) can
store up to 6 stations. To change the
preset station to a different one, follow
the same procedure.
5NAN016
(c) Selecting a station
Tune in the desired station using one of
the following methods.
Preset tuning: Push the function button
for the station you want. The station fre-
quency appears on the screen.
Seek tuning: Push either side of the
“SEEK” button for less than 2 seconds.
The radio will begin seeking up or down
for a station of the nearest frequency and
will stop on reception. Each time you
push the button, stati ons will be searched
out one after another. To scan all frequencies:
Push and hold
either side of the “SEEK” button for more
than 2 seconds and less than 4 seconds
until you hear a beep. “SCAN” appears
on the screen. The radio will find the
next station and stay there for a few
seconds, and then scan again. To select
a station, push the “SEEK” button again.
To scan preset stations: Push and hold
either side of the “SEEK” button for more
than 4 seconds until you hear two beeps.
“P.SCAN” appears on the screen. The ra-
dio will tune in the next preset station,
stay there for a few seconds, and then
move to the next preset station. To select
a station, push the “SEEK” button again.

Corolla_MATRIX_Navi_U (L/O 0208)
992003 MY COROLLA MATRIX (OM12774U)
(d) Radio Data System
Your audio system is equipped with Radio
Data Systems (RDS). RDS mode pro-
vides you to receive text messages from
radio stations that utilize RDS transmit-
ters.
When RDS is on, the radio can
—select only stations of a particular pro-
gram type,
—display messages from radio stations,
—search for a stronger signal station,
—search for local stations broadcasting
the same network as the vehicle travels,
—receive announcements concerning lo-
cal and national emergencies (even if
RDS function is turned off).
RDS features are available for the use
only on FM stations which broadcast RDS
information.
5NAN005
5NAN006
“RDS SEEK”
This button allows you to search all avail-
able RDS stations out of the entire FM
band and sort them by program type
(See following “PTY” button for details on
program types). Push the “ENT” button in FM mode to
switch the screen to “RDS Option”.
You can select the following function:
“RDS Seek”:
Turn RDS seek operation
on and off.
“RDS Message”: Turn RDS broadcast
message on the display on and off.
“Alternate Frequency”: Turn automatic
selection of RDS network playing the
same network broadcast on and off.
“Regionalization”: Turn RDS network
broadcast on and off in favor of broad-
casting local or regional content.
“Interrupt Volume”: Adjust the volume
level for RDS interrupt.
To seek an RDS station, select “ON” for
“RDS Seek”, “RDS Message” and “Alter-
nate Frequency” by the select and scroll
lever and push the “ENT” button. Quickly
push the “SEEK” button on either side.
During the program type search, “RDS
SEEK” will be shown on the screen.

Corolla_MATRIX_Navi_U (L/O 0208)
1002003 MY COROLLA MATRIX (OM12774U)
“ALERT”
This type of announcement warns of na-
tional or local emergencies. You will not
be able to turn off alert announcements.
Alert announcements will come on when
the RDS station is received. “ALERT” ap-
pears on the screen when an alert an-
nouncement plays. The radio uses inter-
rupt volume during these announcements.
When an alert announcement comes on
the tuned radio station or a related net-
work station, you will hear it even if the
volume is muted or a compact disc is
playing. If the radio tunes to a related
network station for an alert announce-
ment, it will return to the original station
when the announcement is finished. If the
compact disc player is playing, play will
stop for the announcement and resume
when the announcement is finished.
5NAN007
“PTY” button
Push the “ENT” button in FM mode to
switch the screen to “RDS Option”.
This button is used for changing the
“PTY Selection” of RDS stations in all
RDS mode. 26 program types are avail-
able as listed here.
The following program type names are avail-
able.
News
Information
Sports
Ta l k
Rock
Classic Rock
Adult Hits
Soft Rock
To p 4 0
Country Music
Oldies Music
Soft
Nostalgia
Jazz Music
Classical Music
R & B
Soft R & B
Language
Religious Music
Religious Talk
Personality
Public
College
Weather
Test (Emergency message)
ALERT (Emergency message)
Any: When you select “Any”, all program
types are selected.
None: When you select “None”, selected
program types are cancelled.

Corolla_MATRIX_Navi_U (L/O 0208)
1012003 MY COROLLA MATRIX (OM12774U)
5NAN008
5NAN017
(e) Traffic announcement
“TA” button
When in FM1 or FM2 mode, push and
release the “TA” button for less than 2
seconds to toggle the TA icon on and off
and change the radio’s response to traffic
announcements. Push and hold the “TA”
button for more than 2 seconds to cause
the tuner to seek to the next RDS station
capable to broadcasting traffic announce-
ments. If the tuner stops on a radio sta-
tion that is an active traffic program, “TP”
will be displayed and TA will be set to
on. If no traffic program is found during
traffic seek, TA will still be turned on. If
a traffic interrupt is received and TA is
active, the volume will be increased to
the predefined interrupt volume setting for
the duration of the traffic interrupt. If TA
is on and the audio mode is compact
disc or compact disc auto changer opera-
tion, a traffic interrupt will also pause
playback and change the audio mode to
tuner. The volume will be increased to
the predefined interrupt volume setting for
the duration of the traffic interrupt. Once
the traffic interrupt has ended, the pre-
vious audio mode will resume.You can decrease the volume indepen-
dently from the memorized interrupt vol-
ume range while receiving a TA station.
Traffic announcement can be canceled by
pressing the “TA” button again.

Corolla_MATRIX_Navi_U (L/O 0208)
1022003 MY COROLLA MATRIX (OM12774U)
5NAN020
(a) Inserting compact discs
1. Slide open the cover of the compact disc auto changer under the front passenger seat. The magazine will come out
from the compact disc auto changer.
—Compact disc player
operation
