Jack point guide
With side mud guards—The jack point
guides are located under the side mud
guards. They indicate the jack point posi-
tions.6. After making sure that no one is inthe vehicle, raise it high enough so
that the spare tire can be installed.
Remember you will need more ground
clearance when putting on the spare tire
than when removing the flat tire.

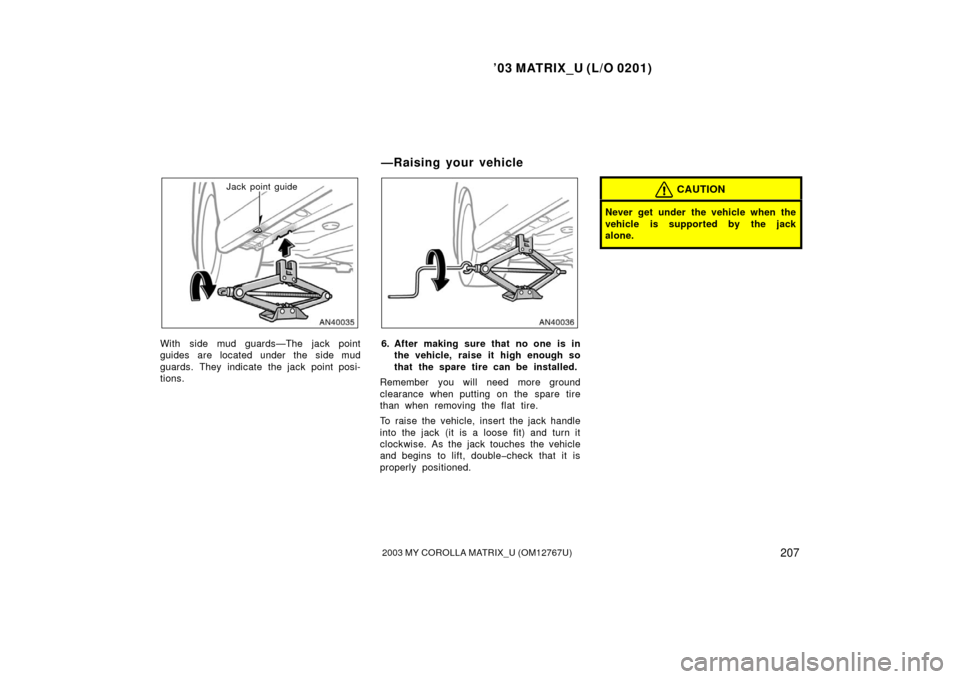

To raise the vehicle, insert the jack handle
into the jack (it is a loose fit) and turn it
clockwise. As the jack touches the vehicle
and begins to lift, doublecheck that it is
properly positioned.
CAUTION
Never get under the vehicle when the
vehicle is supported by the jack
alone.
—Raising your vehicle

’03 MATRIX_U (L/O 0201)
2082003 MY COROLLA MATRIX_U (OM12767U)
7. Remove the wheel nuts and changetires.
Lift the flat tire straight off and put it
aside.
Roll the spare wheel into position and
align the holes in the wheel with the bolts.
Then lift up the wheel and get at least the
top bolt started through its hole. Wiggle
the tire and press it back over the other

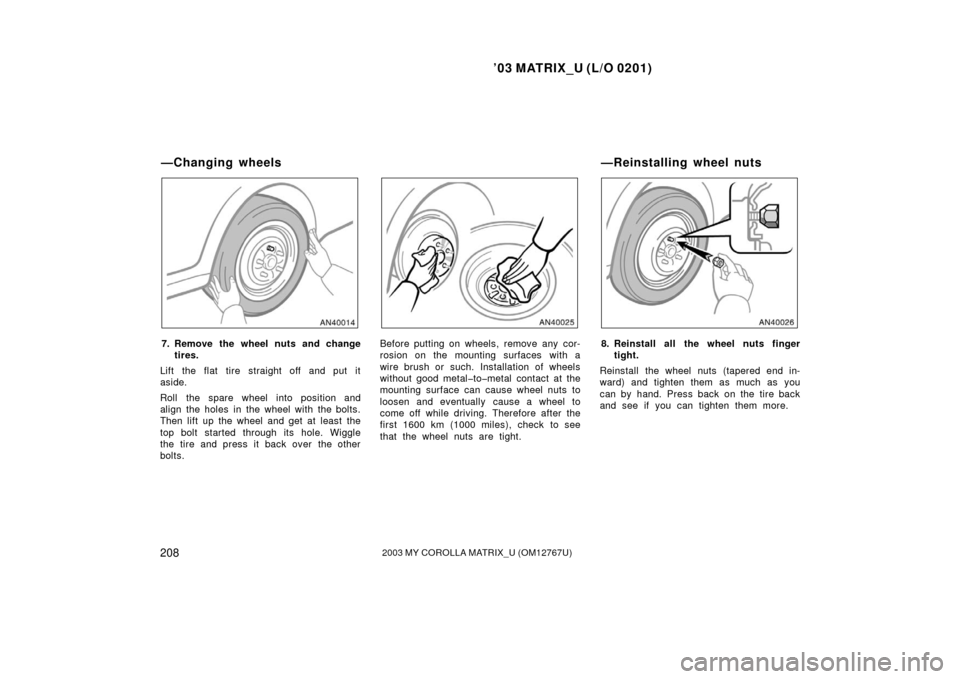

bolts.Before putting on wheels, remove any cor-
rosion on the mounting surfaces with a
wire brush or such. Installation of wheels
without good metaltometal contact at the
mounting surface can cause wheel nuts to
loosen and eventually cause a wheel to
come off while driving. Therefore after the
first 1600 km (1000 miles), check to see
that the wheel nuts are tight.8. Reinstall all the wheel nuts finger tight.
Reinstall the wheel nuts (tapered end in-
ward) and tighten them as much as you
can by hand. Press back on the tire back
and see if you can tighten them more.
—Changing wheels —Reinstalling wheel nuts

’03 MATRIX_U (L/O 0201)
2092003 MY COROLLA MATRIX_U (OM12767U)
9. Lower the vehicle completely andtighten the wheel nuts.
Turn the jack handle counterclockwise to
lower the vehicle.
Use only the wheel nut wrench and turn
it clockwise to tighten the nuts. Do not
use other tools or any additional leverage
other than your hands, such as a hammer,
pipe or your foot. Make sure the wrench
is securely engaged over the nut.

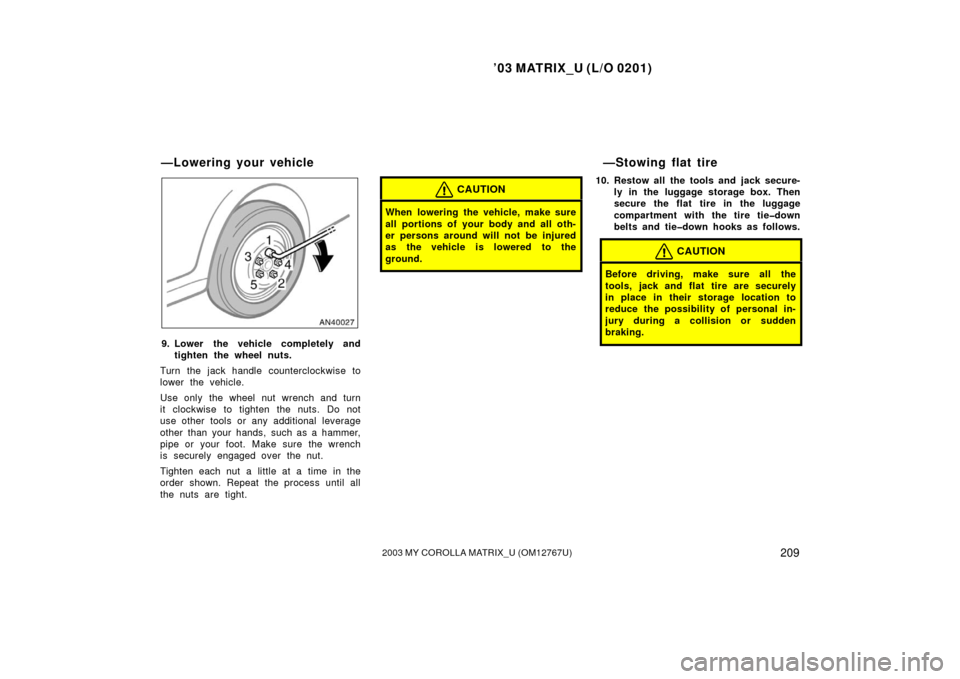

Tighten each nut a little at a time in the
order shown. Repeat the process until all
the nuts are tight.
CAUTION
When lowering the vehicle, make sure
all portions of your body and all oth-
er persons around will not be injured
as the vehicle is lowered to the
ground.
10. Restow all the tools and jack secure- ly in the luggage storage box. Then
secure the flat tire in the luggage
compartment with the tire tiedown
belts and tiedown hooks as follows.
CAUTION
Before driving, make sure all the
tools, jack and flat tire are securely
in place in their storage location to
reduce the possibility of personal in-
jury during a collision or s udden
braking.
—Lowering your vehicle —Stowing flat tire

’03 MATRIX_U (L/O 0201)
2102003 MY COROLLA MATRIX_U (OM12767U)

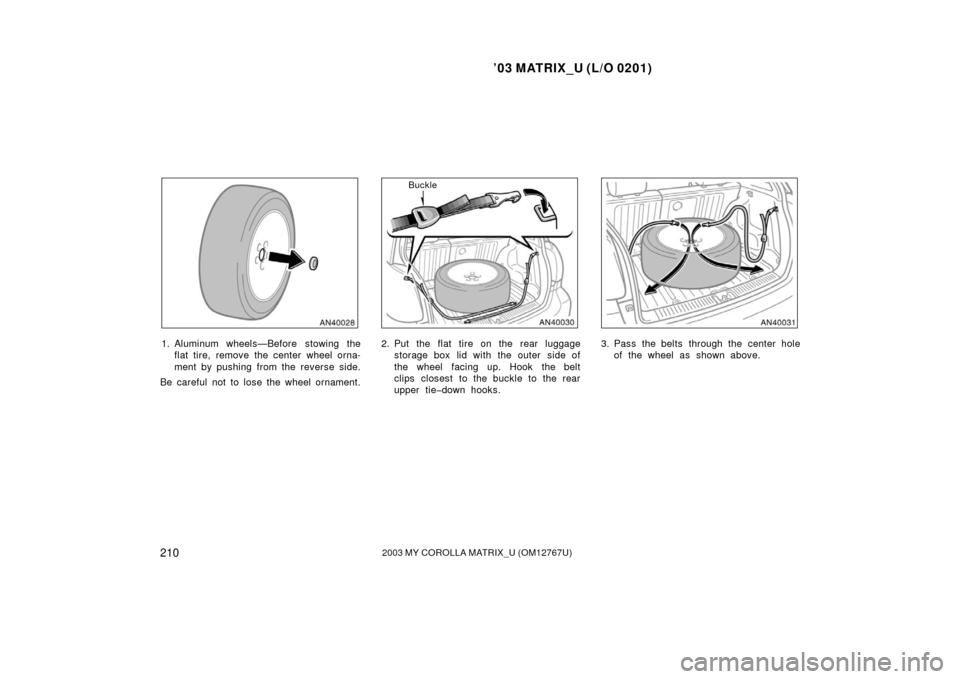

1. Aluminum wheels—Before stowing theflat tire, remove the center wheel orna-
ment by pushing from the reverse side.
Be careful not to lose the wheel ornament.
Buckle
2. Put the flat tire on the rear luggage storage box lid with the outer side of
the wheel facing up. Hook the belt
clips closest to the buckle to the rear
upper tiedown hooks.3. Pass the belts through the center holeof the wheel as shown above.

’03 MATRIX_U (L/O 0201)
2112003 MY COROLLA MATRIX_U (OM12767U)
4. Attach the other clips of the belts tothe lower rear tiedown hooks.
5. Position the tire edge against the rearcenter end of the rear luggage storage
box lid. Then pull the ends of the belts
to secure the tire securely.
After stowing the flat tire, check that the
tire and belts are secured.
To loosen the tire tiedown belts, see
“Tiedown hooks and tire tiedown belts”
on page 162 in Section 19.

’03 MATRIX_U (L/O 0201)
2122003 MY COROLLA MATRIX_U (OM12767U)
11. Check the air pressure of the re-placed tire.
Adjust the air pressure to the specification
designated on page 272 in Section 8. If
the pressure is lower, drive slowly to the
nearest service station and fill to the cor-
rect pressure.
Do not forget to reinstall the tire inflation
valve cap as dirt and moisture could get
into the valve core and possibly cause air
leakage. If the cap is missing, have a new
one put on as soon as possible.
As soon after changing wheels as pos-
sible, tighten the wheel nuts to the torque
specified on page 272 in Section 8 with
a torque wrench. Have a technician repair
the flat tire.
Steel wheels
Aluminum wheels
After repairing the flat tire, change it
with compact spare tire and reinstall
the wheel ornament as follows.

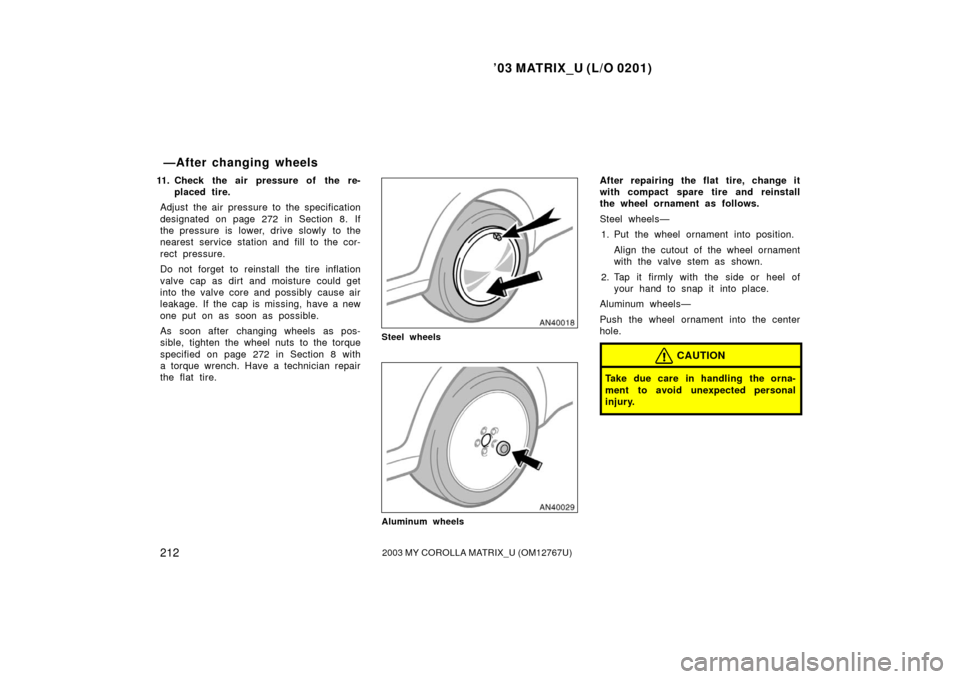

Steel wheels— 1. Put the wheel ornament into position.
Align the cutout of the wheel ornament
with the valve stem as shown.
2. Tap it firmly with the side or heel of your hand to snap it into place.
Aluminum wheels—
Push the wheel ornament into the center
hole.
CAUTION
Take due care in handling the orna-
ment to avoid unexpected personal
injury.
—After changing wheels

’03 MATRIX_U (L/O 0201)
2132003 MY COROLLA MATRIX_U (OM12767U)

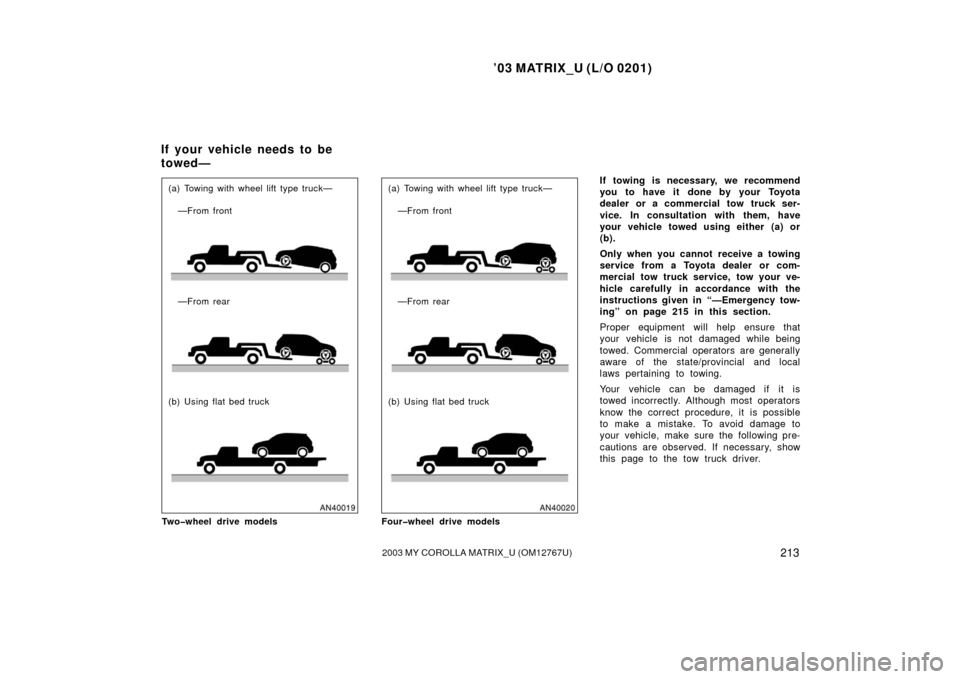

(a) Towing with wheel lift type truck—
(b) Using flat bed truck—From rear —From front
Twowheel drive models(a) Towing with wheel lift type truck—
(b) Using flat bed truck —From rear —From front
Fourwheel drive modelsIf towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice. In consultation with them, have
your vehicle towed using either (a) or
(b).
Only when you cannot receive a towing
service from a Toyota dealer or com-
mercial tow truck service, tow your ve-
hicle carefully in accordance with the
instructions given in “—Emergency tow-
ing” on page 215 in this section.
Proper equipment will help ensure that
your vehicle is not damaged while being
towed. Commercial operators are generally
aware of the state/provincial and local
laws pertaining to towing.
Your vehicle can be damaged if it is
towed incorrectly. Although most operators
know the correct procedure, it is possible
to make a mistake. To avoid damage to
your vehicle, make sure the following pre-
cautions are observed. If necessary, show
this page to the tow truck driver.
If your vehicle needs to be
towed—

’03 MATRIX_U (L/O 0201)
2142003 MY COROLLA MATRIX_U (OM12767U)
NOTICE
Fourwheel drive models—When tow-
ing, be sure to tow the vehicle with
all four wheels lifted. Otherwise, the
drive system could be damaged and
the vehicle could fly off the tow
truck.
TOWING PRECAUTIONS:
Use a safety chain system for all towing,
and abide by the state/provincial and local
laws. The wheels and axle on the ground
must be in good condition. If they are
damaged, use a towing dolly.
Twowheel drive models—
(a) Towing with wheel lift type truck
From front— Release the parking brake.
NOTICE
When lifting wheels, take care to en-
sure adequate ground clearance for
towing at the opposite end of the
raised vehicle. Otherwise, the bumper
and/or underbody of the towed vehicle
will be damaged during towing.
From rear—
Manual transmission:
We recommend using a towing dolly
under the front wheels. If you do not
use a towing dolly, place the ignition
key in the “ACC” position and put the
transmission in neutral.
NOTICE
Do not tow with the key removed or
in the “LOCK” position when towing
from the rear without a towing dolly.
The steering lock mechanism is not
strong enough to hold the front
wheels straight.
Automatic transmission:
Use a towing dolly under the front
wheels.
NOTICE
Never tow a vehicle with an automatic
transmission from the rear with the
front wheels on the ground, as this
may cause serious damage to the
transmission.
(b) Using flat bed truck
Fourwheel drive models—
(a) Towing with wheel lift type truck
Use a towing dolly under the wheels not
lifted by the truck.
(b) Using flat bed truck

’03 MATRIX_U (L/O 0201)
2152003 MY COROLLA MATRIX_U (OM12767U)
(c) Towing with slingtype truck
All models—
(c) Towing with sling type truck
NOTICE
Do not tow with sling type truck, ei-
ther from the front or rear. This may
cause body damage.
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice.
If towing service is not available in an
emergency, your vehicle may be tempo-
rarily towed by a cable or chain se-
cured to the emergency towing eyelet
under the front of the vehicle. Use ex-
treme caution when towing vehicle.
NOTICE
Only use specified towing eyelet;
otherwise your vehicle may be dam-
aged.
A driver must be in the vehicle to steer
it and operate the brakes.
Towing in this manner may be done only
on hardsurfaced roads for a short dis-
tance and at low speeds. Also, the
wheels, axles, drive train, steering and
brakes must all be in good condition.
CAUTION
Use extreme caution when towing ve-
hicles. Avoid sudden starts or erratic
driving maneuvers which would place
excessive stress on the emergency
towing eyelet and towing cable or
chain. The eyelet and towing cable or
chain may break and cause serious
injury or damage.
—Emergency towing

’03 MATRIX_U (L/O 0201)
2162003 MY COROLLA MATRIX_U (OM12767U)
NOTICE
Use only a cable or chain specifically
intended for use in towing vehicles.
Securely fasten the cable or chain to
the towing eyelet provided.
Before towing, release the parking brake
and put the transmission in neutral (manu-
al) or “N” (automatic). The key must be
in “ACC” (engine off) or “ON” (engine run-
ning).
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.
If you cannot shift the selector lever
out of “P” position to other positions
even though the brake pedal is de-
pressed, use the shift lock override but-
ton as follows:1. Turn the ignition key to “LOCK” position. Make sure the parking
brake is applied.
2. Pry up the cover with a flatbladed screwdriver or equivalent.3. Insert your finger into the hole topush down the shift lock override
button. You can shift out of “P”
position only while pushing the but-
ton.
4. Shift into “N” position.
5. Insert the cover.
6. Start the engine. For your safety, keep the brake pedal depressed.
Be sure to have the system checked by
your Toyota dealer as soon as possible.
If you cannot shift automatic
transmission selector lever
