Select one of the — switch on
the “Destinations” screen. The screen
changes and displays the map location
of your desired preset destination. In
this case, it is necessary to register
your desired preset destination before-
hand. (Refer to pages 56 through 58,
“Registering”, “Editing” or “Deleting”
preset destination.)After you input the destination by one
of the 11 methods, the screen changes
and displays the map location of the
selected destination and the route pref-
erence.
1NAN042
Select the “Map scroll” switch on
the screen to move the cursor
.
You can move and set the cursor
at
a desired point. (For the method of how
to move the cursor, see page 4.)
“Change”: Selecting this switch can
change “Route preference”.
When you select the
“Enter” switch,
the system starts searching for a route to
your destination using the conditions en-
tered.
1NAN043
1NAN044
Destination input by
PRESET DESTINATIONEntering destination

Corolla_MATRIX_Navi_U (L/O 0305)
24
2004 COROLLA MATRIX Navigation from May. ’03 Prod. (OM12800U)
If you want to set a preferred road point
between the starting point and the destina-
tion or change the search condition, push
the
“ENT” button to display the menu
switches. And then select the
“Edit
route”
switch on the screen. The screen
changes and displays the edit route menu.
(For details, see page 66.)
You can start the route guidance by se-
lecting the
“Start” switch on the screen
or starting to move your vehicle.
When you keep pushing the
“ENT” but-
ton until you hear a beep, “demo” mode
will start.Route preference:
To change the conditions of the route
preference.

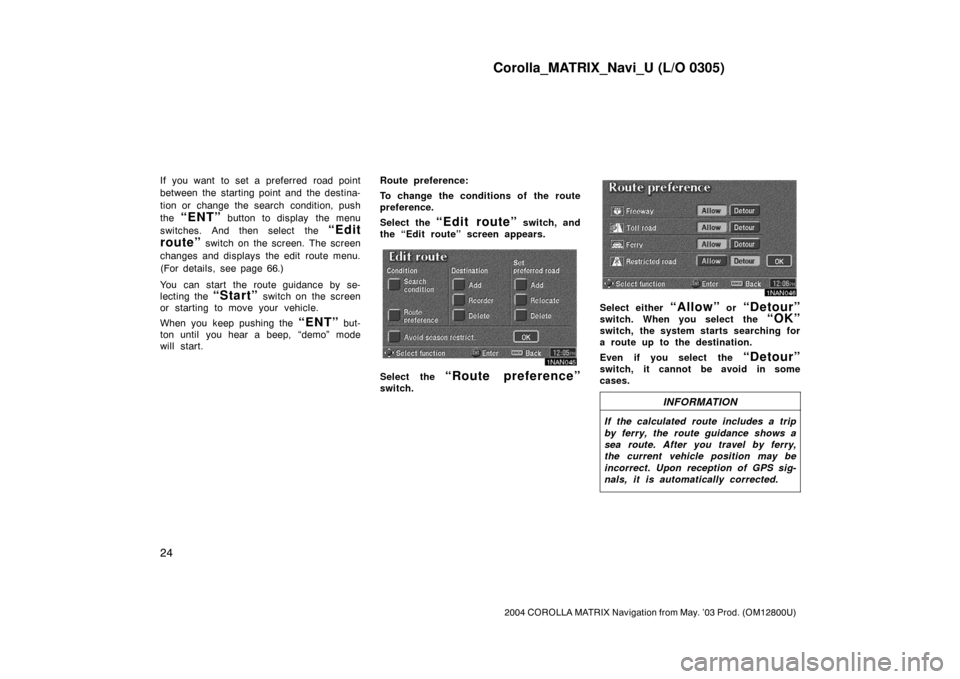

Select the
“Edit route” switch, and
the “Edit route” screen appears.
1NAN045
Select the “Route preference”
switch.
1NAN046
Select either “Allow” or “Detour”
switch. When you select the “OK”
switch, the system starts searching for
a route up to the destination.
Even if you select the
“Detour”
switch, it cannot be avoid in some
cases.
INFORMATION
If the calculated route includes a trip
by ferry, the route guidance shows a
sea route. After you travel by ferry,
the current vehicle position may be
incorrect. Upon reception of GPS sig-
nals, it is automatically corrected.

Corolla_MATRIX_Navi_U (L/O 0305)
25
2004 COROLLA MATRIX Navigation from May. ’03 Prod. (OM12800U)
1NAN047

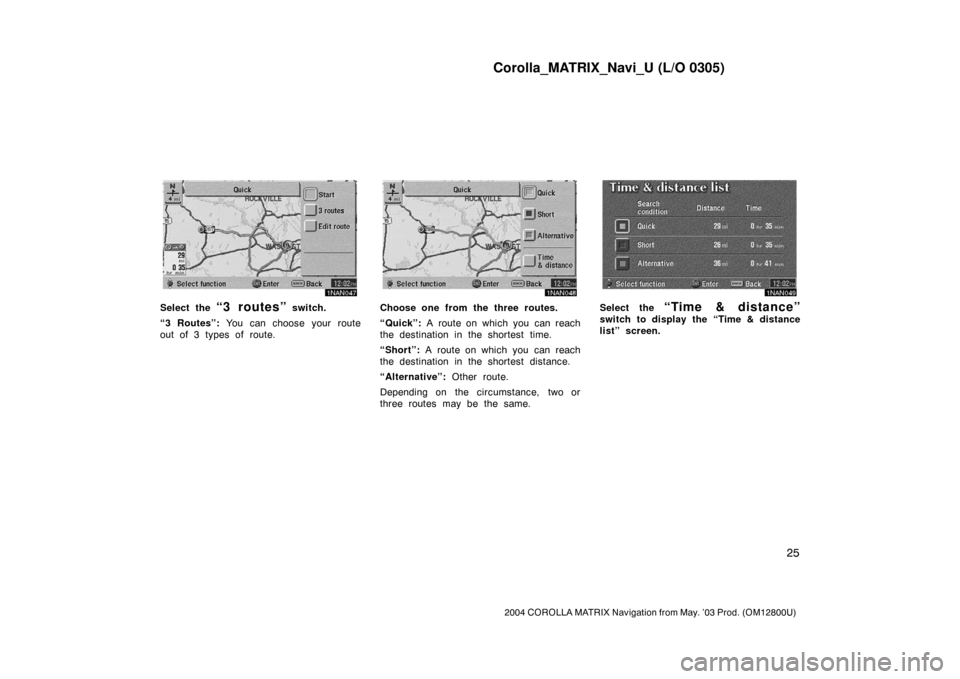

Select the “3 routes” switch.
“3 Routes”: You can choose your route
out of 3 types of route.
1NAN048
Choose one from the three routes.
“Quick”: A route on which you can reach
the destination in the shortest time.
“Short”: A route on which you can reach
the destination in the shortest distance.
“Alternative”: Other route.
Depending on the circumstance, two or
three routes may be the same.
1NAN049
Select the “Time & distance”
switch to display the “Time & distance
list” screen.

Corolla_MATRIX_Navi_U (L/O 0305)
26
2004 COROLLA MATRIX Navigation from May. ’03 Prod. (OM12800U)
The route guidance system displays two
different screen modes.

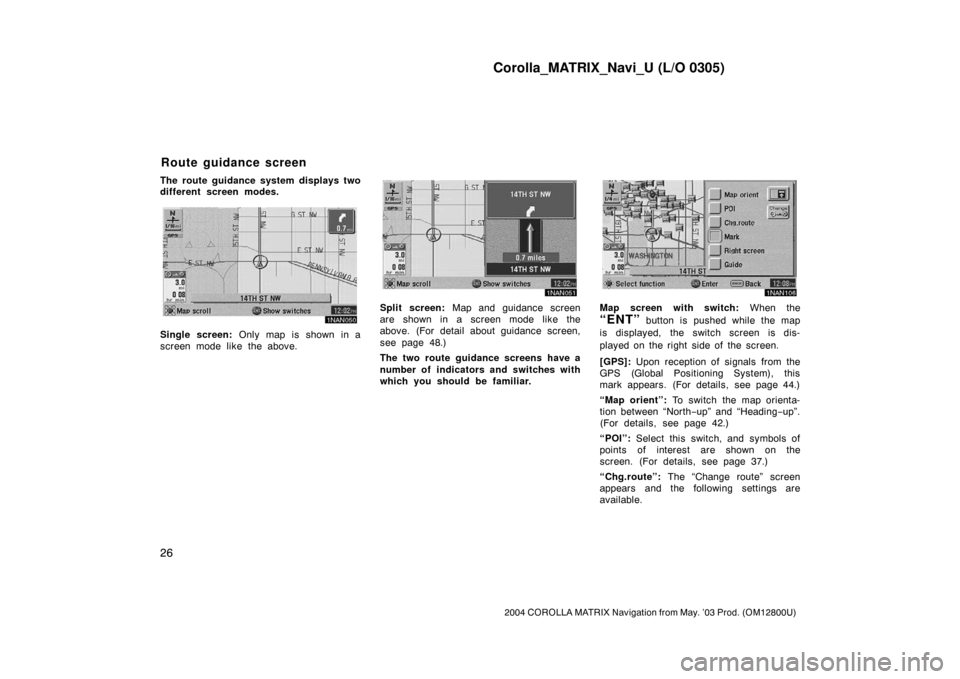

1NAN050
Single screen: Only map is shown in a
screen mode like the above.
1NAN051
Split screen: Map and guidance screen
are shown in a screen mode like the
above. (For detail about guidance screen,
see page 48.)
The two route guidance screens have a
number of indicators and switches with
which you should be familiar.
1NAN106
Map screen with switch: When the
“ENT” button is pushed while the map
is displayed, the switch screen is dis-
played on the right side of the screen.
[GPS]: Upon reception of signals from the
GPS (Global Positioning System), this
mark appears. (For details, see page 44.)
“Map orient”: To switch the map orienta-
tion between “North−up” and “Heading−up”.
(For details, see page 42.)
“POI”: Select this switch, and symbols of
points of interest are shown on the
screen. (For details, see page 37.)
“Chg.route”: The “Change route” screen
appears and the following settings are
available.
Route guidance screen

Corolla_MATRIX_Navi_U (L/O 0305)
27
2004 COROLLA MATRIX Navigation from May. ’03 Prod. (OM12800U)
“Mark”: Select this switch for quick regis-
tration of the marked point. (For details,
see page 55.)
“Guide”: When POI icons are displayed
on the map, select this switch, and the
name of a POI icon near the cursor is
displayed. Move the select and scroll le-
ver to the right or left, and the name of
the next POI icon is displayed. If no POI
icons are displayed on the screen, “No
guidance information available” is dis-
played. Push the
“ENT” button while the
name of a POI icon is displayed to see
detailed information about that POI (name,
location, phone number, etc.) displayed on
the screen.
“
”: Select this switch when you
have several destinations to go. The dis-
tance and time from the current position
to the destination can be displayed for
each destination. When you are not travel-
ing on the route, however, only the dis-
tance is displayed.
INFORMATION
The distance to your destination ap-
pears on the left of the screen.
The time to your destination can
also be displayed. (For the setting
steps, see page 75.)
Selecting these switches
changes the guidance
screen.
Selecting these switches
changes the map screen.
1NAN053
1NAN098
“Search condition”: To change the condi-
tion for reroute. (For details, see page
68.)
“Del. next dest.”: To delete the setting of
the next destination.
“Delete preferred road”: To delete the
preferred road that you registered.

Corolla_MATRIX_Navi_U (L/O 0305)
28
2004 COROLLA MATRIX Navigation from May. ’03 Prod. (OM12800U)
“Start route from adjacent road”: To
start the route guidance from the adjacent
road.
(ex. When the route guidance guides the
route on the freeway, but you drive on the
parallel way along a freeway.)
“Detour for”: To change the condition for
detour. (For details, see page 35.)
“Whole route”: To calculate an entire
new route to the destination.You can set the map mode and guid-
ance mode.
1NAN056

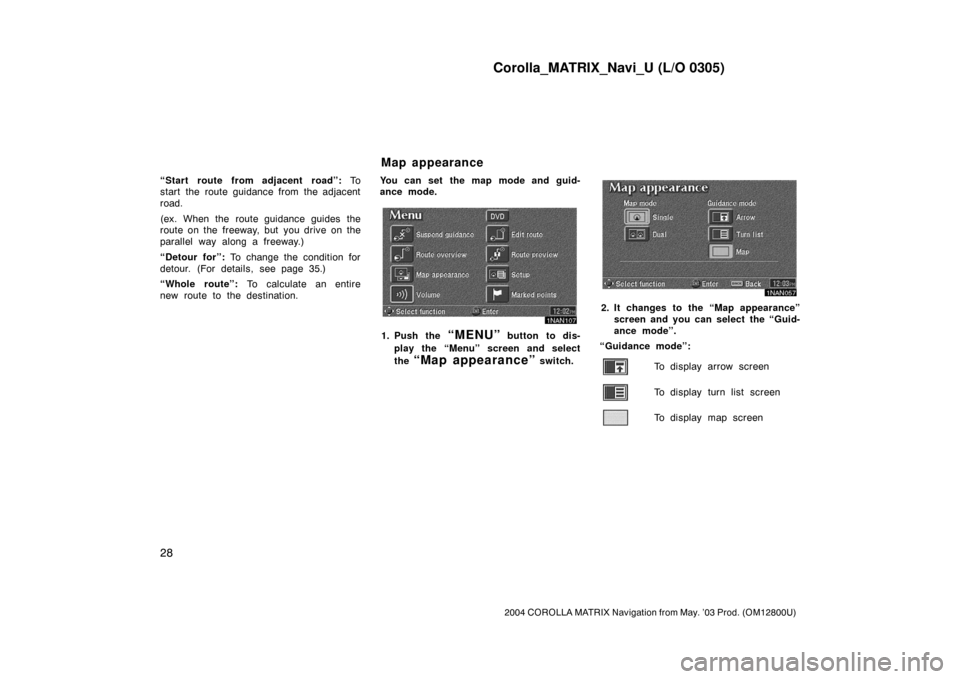

1. Push the “MENU” button to dis-
play the “Menu” screen and select
the
“Map appearance” switch.
1NAN057
2. It changes to the “Map appearance”
screen and you can select the “Guid-
ance mode”.
“Guidance mode”:
To display arrow screen
To display turn list screen
To display map screen
Map appearance

Corolla_MATRIX_Navi_U (L/O 0305)
29
2004 COROLLA MATRIX Navigation from May. ’03 Prod. (OM12800U)
Arrow screen

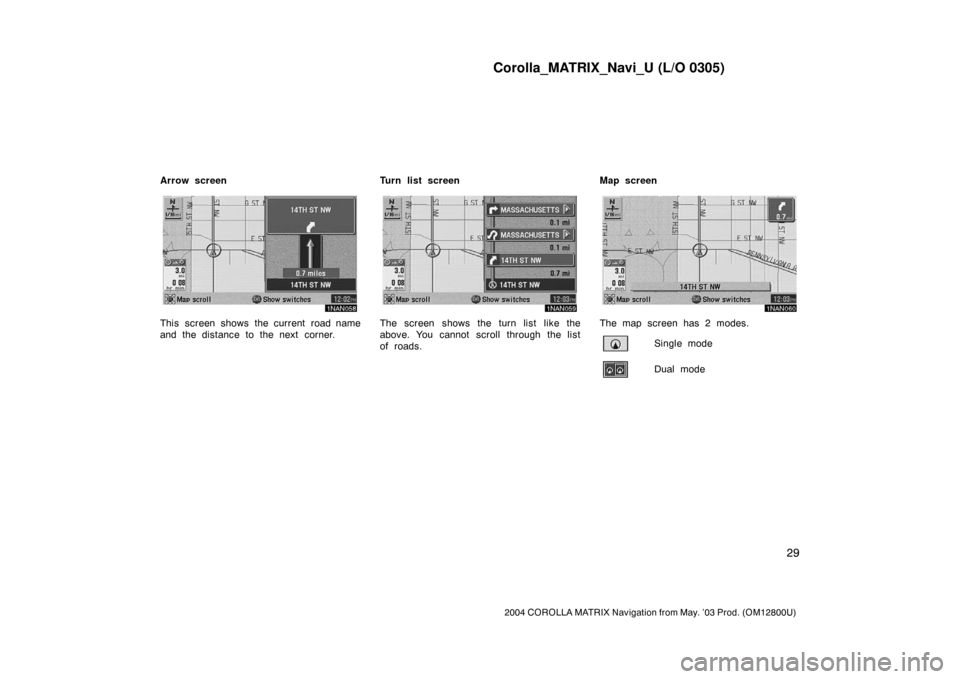

1NAN058
This screen shows the current road name
and the distance to the next corner.Turn list screen
1NAN059
The screen shows the turn list like the
above. You cannot scroll through the list
of roads.Map screen
1NAN060
The map screen has 2 modes.
Single mode
Dual mode

Corolla_MATRIX_Navi_U (L/O 0305)
30
2004 COROLLA MATRIX Navigation from May. ’03 Prod. (OM12800U)
1NAN061
The current vehicle position mark ap-
pears in the center of the map screen.
You can return to this map screen
showing your current position at any
time from any screen by pushing the
“MAP” or “NAV” button.
While you are driving, the current vehicle
position mark is fixed in the center of the
screen and the map moves.
If you move the map, the current vehicle
position mark continues to track your cur-
rent location.
INFORMATION
When you use the map scroll feature,
the current vehicle position mark may
disappear from the screen. Move the
map again with map scroll or push
the
“MAP” or “NAV” button to re-
turn to the current vehicle position
map location display.
The current position is automatically
set as your vehicle receives signals
from the GPS (Global Positioning Sys-
tem). If your current position is not
correct, it is automatically corrected af-
ter your vehicle receives signals from
the GPS.
INFORMATION
The current position may not be cor-
rect when the vehicle is new or when
its battery has been disconnected. As
soon as the system receives signals
from the GPS, the correct current
position is displayed.
If you must correct the current position
manually, follow the steps on page 61.The current street name will be displayed
in the bottom of the screen when the
setting of the current street name is on.
In some areas, the roads have not been
completely digitized in our database yet.
For this reason, the route guidance may
indicate a road that is not passable.
Current position display

Corolla_MATRIX_Navi_U (L/O 0305)
31
2004 COROLLA MATRIX Navigation from May. ’03 Prod. (OM12800U)
You can adjust the volume of the voice
or turn off voice guidance.
1NAN108

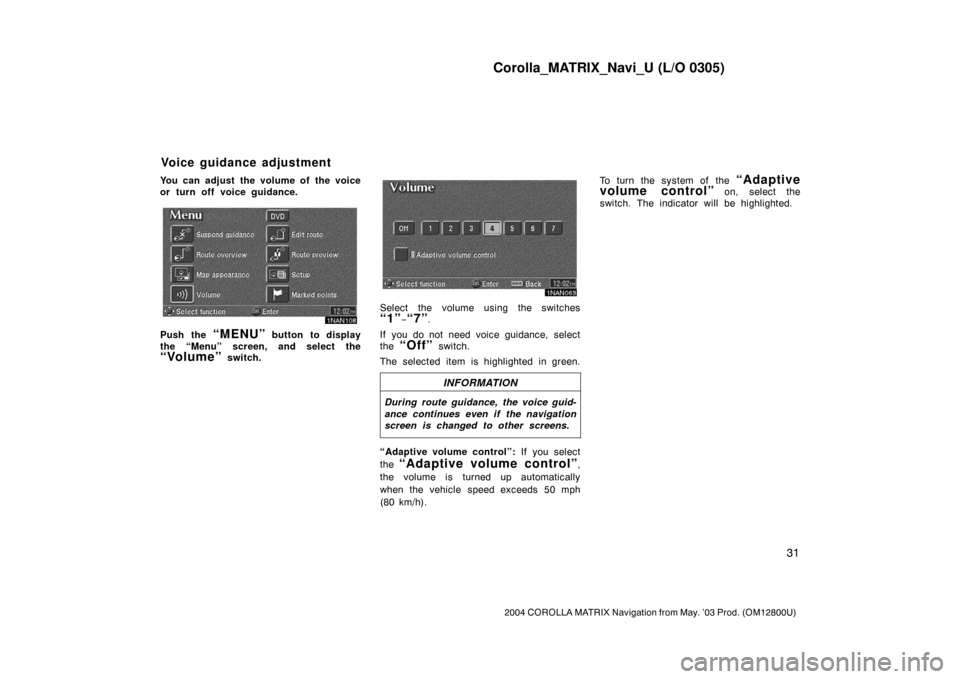

Push the “MENU” button to display
the “Menu” screen, and select the
“Volume” switch.
1NAN063
Select the volume using the switches
“1”−“7”.
If you do not need voice guidance, select
the
“Off” switch.
The selected item is highlighted in green.
INFORMATION
During route guidance, the voice guid-
ance continues even if the navigation
screen is changed to other screens.
“Adaptive volume control”: If you select
the
“Adaptive volume control”,
the volume is turned up automatically
when the vehicle speed exceeds 50 mph
(80 km/h).To turn the system of the
“Adaptive
volume control” on, select the
switch. The indicator will be highlighted.
Voice guidance adjustment

Corolla_MATRIX_Navi_U (L/O 0305)
32
2004 COROLLA MATRIX Navigation from May. ’03 Prod. (OM12800U)
SSNU187

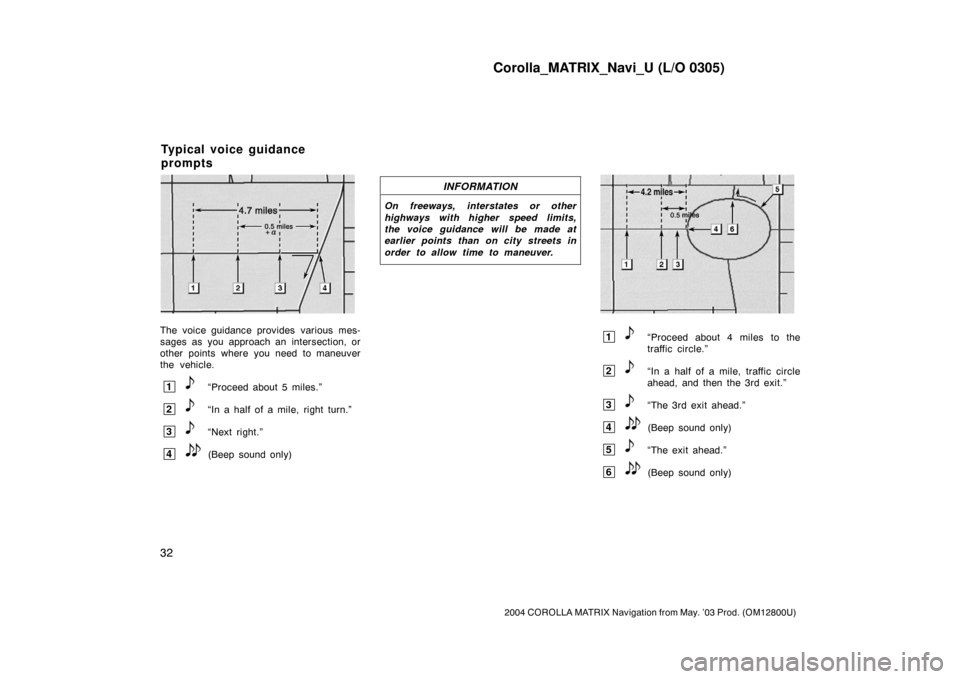

The voice guidance provides various mes-
sages as you approach an intersection, or
other points where you need to maneuver
the vehicle.
1“Proceed about 5 miles.”
2“In a half of a mile, right turn.”
3“Next right.”
4(Beep sound only)
INFORMATION
On freeways, interstates or other
highways with higher speed limits,
the voice guidance will be made at
earlier points than on city streets in
order to allow time to maneuver.
SSNU188
1“Proceed about 4 miles to the
traffic circle.”
2“In a half of a mile, traffic circle
ahead, and then the 3rd exit.”
3“The 3rd exit ahead.”
4(Beep sound only)
5“The exit ahead.”
6(Beep sound only)
Typical voice guidance
prompts
