This system has a function which in-
forms you the memo you entered. When
the system begins operating after
reaching the memo’s date, the “Informa-
tion” screen will be displayed.
The “Information” screen will not be dis-
played again by selecting the
“Do not
display this message again”
switch.
3NAN040
Push the “SETUP” button. Push the
“Calendar” button to display the
“Calendar” screen.
3NAN041
Today’s date is highlighted. If today’s date
is not displayed on the screen, select
“Today” switch to display a calendar of
this month.
Calendar with memo

Corolla_MATRIX_Navi_U (L/O 0405)
85
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
3NAN042

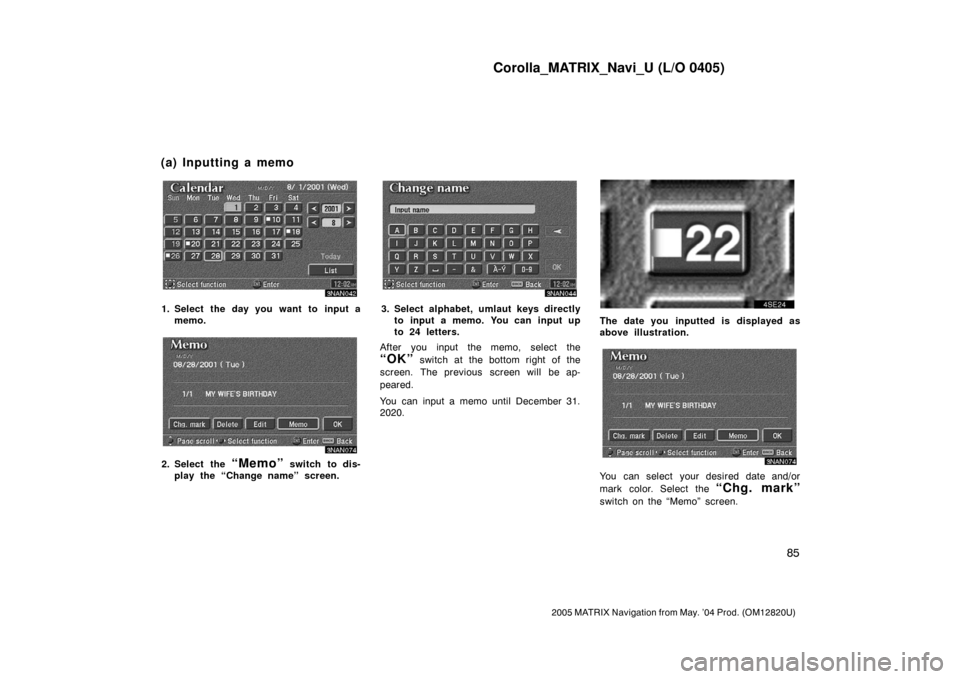

1. Select the day you want to input a
memo.
3NAN074
2. Select the “Memo” switch to dis-
play the “Change name” screen.
3NAN044
3. Select alphabet, umlaut keys directly
to input a memo. You can input up
to 24 letters.
After you input the memo, select the
“OK” switch at the bottom right of the
screen. The previous screen will be ap-
peared.
You can input a memo until December 31.
2020.
4SE24
The date you inputted is displayed as
above illustration.
3NAN074
You can select your desired date and/or
mark color. Select the
“Chg. mark”
switch on the “Memo” screen.
(a) Inputting a memo

Corolla_MATRIX_Navi_U (L/O 0405)
86
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
3NAN047

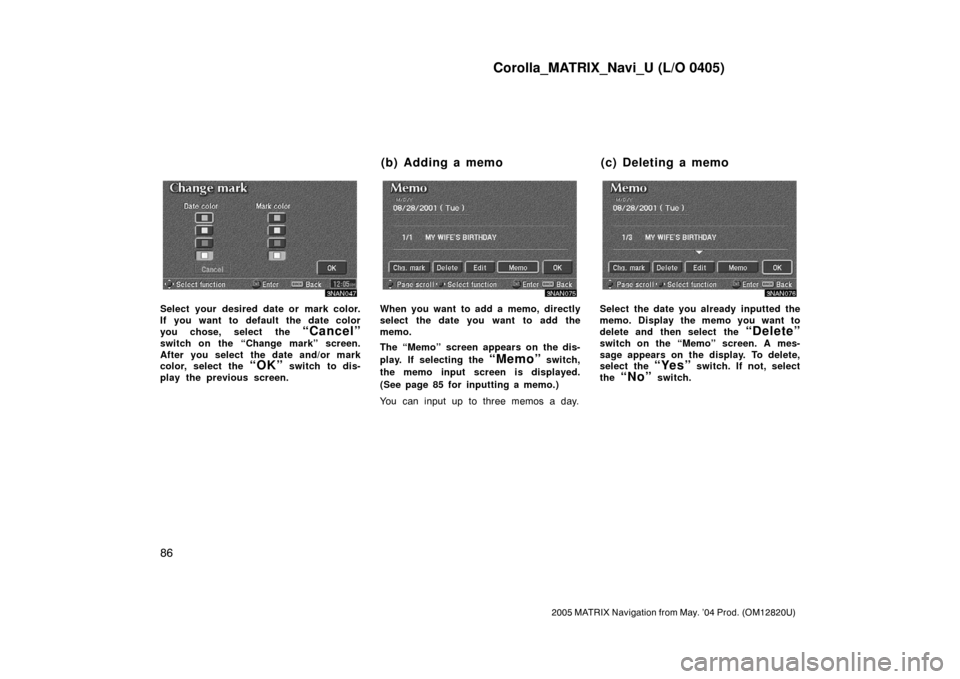

Select your desired date or mark color.
If you want to default the date color
you chose, select the
“Cancel”
switch on the “Change mark” screen.
After you select the date and/or mark
color, select the
“OK” switch to dis-
play the previous screen.
3NAN075
When you want to add a memo, directly
select the date you want to add the
memo.
The “Memo” screen appears on the dis-
play. If selecting the
“Memo” switch,
the memo input screen is displayed.
(See page 85 for inputting a memo.)
You can input up to three memos a day.
3NAN076
Select the date you already inputted the
memo. Display the memo you want to
delete and then select the
“Delete”
switch on the “Memo” screen. A mes-
sage appears on the display. To delete,
select the
“Yes” switch. If not, select
the
“No” switch.
(b) Adding a memo (c) Deleting a memo

Corolla_MATRIX_Navi_U (L/O 0405)
87
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
3NAN077

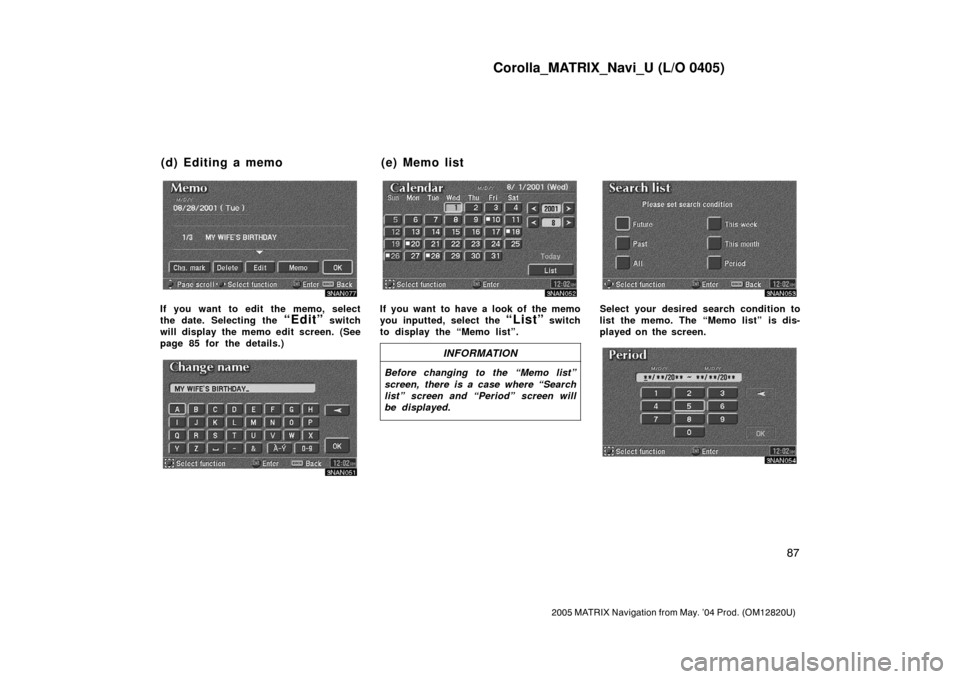

If you want to edit the memo, select
the date. Selecting the
“Edit” switch
will display the memo edit screen. (See
page 85 for the details.)
3NAN051
3NAN052
If you want to have a look of the memo
you inputted, select the
“List” switch
to display the “Memo list”.
INFORMATION
Before changing to the “Memo list”
screen, there is a case where “Search
list” screen and “Period” screen will
be displayed.
3NAN053
Select your desired search condition to
list the memo. The “Memo list” is dis-
played on the screen.
3NAN054
(d) Editing a memo (e) Memo list

Corolla_MATRIX_Navi_U (L/O 0405)
88
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
In case of selecting the “Period”switch, you can display the “Memo list”
as long as you desired. Select number
keys to input your desired search peri-
od. After inputting a search period of
time, select the
“OK” switch. The
“Memo list” screen will be displayed.
You can input a search period from Janu-
ary 1. 2000 through December 31. 2020.3NAN055

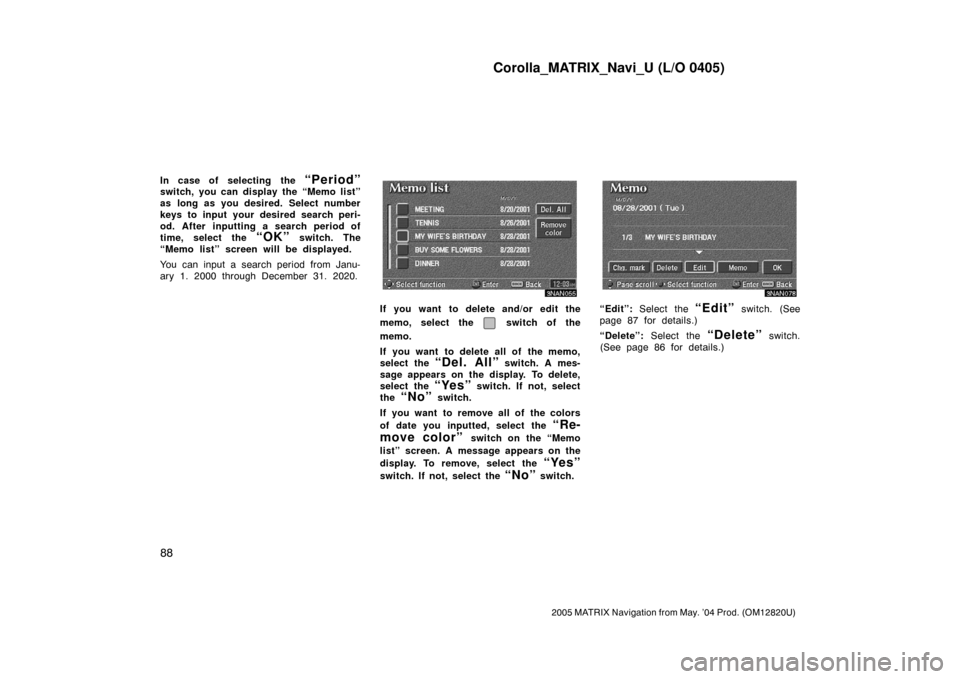

If you want to delete and/or edit the
memo, select the
switch of the
memo.
If you want to delete all of the memo,
select the
“Del. All” switch. A mes-
sage appears on the display. To delete,
select the
“Yes” switch. If not, select
the
“No” switch.
If you want to remove all of the colors
of date you inputted, select the
“Re-
move color”
switch on the “Memo
list” screen. A message appears on the
display. To remove, select the
“Yes”
switch. If not, select the “No” switch.
3NAN078
“Edit”: Select the “Edit” switch. (See
page 87 for details.)
“Delete”: Select the
“Delete” switch.
(See page 86 for details.)

Corolla_MATRIX_Navi_U (L/O 0405)
89
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
OTHER FUNCTIONS
Other functions
Clock adjustment90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION IV

Corolla_MATRIX_Navi_U (L/O 0405)
90
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
The clock in this system can be cor-
rected manually or by using signals
from the GPS. Daylight Saving Time
setting or your desired time setting is
available.
1. Push the
“SETUP” button.
4NAN003
2. Push the “Clock” button.CLOCK SETTING
4NAN008
Select your desired switch you want to
set.
“12Hr/24Hr”: You can select standard 12
hour AM/PM time,
“12Hr”, or 24 hour
military time,
“24Hr”.
“Auto GPS Update”: If you select the
“ON” switch, the time is automatically
adjusted by the GPS clock. If you select
the
“OFF” switch, you can adjust the
clock manually. (For the method of how to
adjust the clock, see manual clock adjust-
ment.)
“Daylight Savings”: Daylight savings time
can be set or canceled.
“Time Zone”: You can select the time
zone. Selected switch is highlighted in
green.MANUAL CLOCK ADJUSTMENT
4NAN008
Push the “Adjust” button and select
hour or minute. The highlighted num-
bers may then be adjusted by moving
the select and scroll lever up or down.
Push the
“Adjust” button once again,
and return to clock setting mode.
If you push the
“Adjust” button, “Auto
GPS Update” will turn to
“OFF” auto-
matically.
After making any changes on the “Ad-
just Clock” screen, push the
“OK”
button so that the previous screen will
be displayed. You can also display the
previous screen by pushing the
“Back” button.
Clock adjustment

Corolla_MATRIX_Navi_U (L/O 0405)
91
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
AUDIO SYSTEM
Audio system
Quick reference for your audio system92 . . . . . . . . . . . . . . . . . . . . . . . . .
Using your audio system93 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Car audio system operating hints111 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION V

Corolla_MATRIX_Navi_U (L/O 0405)
92
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
5NAN033
“BAND” button
Push this button to choose an audio control mode, FM1,
FM2 or AM station. For details, see pages 94 and 97.
Function buttons
Push the button on the
screen to control the radio
or compact disc player. For
details, see pages 98,
104 and 109.
“ ” button
Push this button to display the sound control mode.
For details, see page 95.
“ENT” button/select and scroll lever
In case of selecting a function and letter or moving cursor,
move the lever. In case of deciding after selecting it on the
screen, push the lever. For details, see page 97.“PWR/VOL” knob
Push this knob to turn the
audio system on and off, and
turn it to adjust the volume.
For details, see page 93.
“TA” button
Push this button to seek a
station that broadcasts traffic
information regularly. For
details, see page 101.
“CD” button
Push this button to turn on the
compact disc player or
compact disc changer. For
details, see pages 103 and
108.
“SEEK” button
Radio: Push either side of this
button to seek up or down for
a station, or scan for a
station. For details, see page
98.
Compact disc player: Push
either side of this button to
seek up or down for a track,
or scan for a track. For
details, see pages 103 and
109.
Eject button
Push this button to
eject a compact disc.Compact disc slot
Push a compact disc
into the slot.
Quick reference for your audio system

Corolla_MATRIX_Navi_U (L/O 0405)
93
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
This section describes some of the basic
features of the Toyota audio system.
Some information may not pertain to your
system.
INFORMATION
This audio unit has a thermal shut
down system. When the temperature
of the unit becomes extremely high,
the unit automatically shuts down
with a beep and warning message.
When the unit cools down enough, it
automatically returns to operation.
Your audio system works when the igni-
tion switch is in the “ACC” or “ON” posi-
tion.
NOTICE
To prevent the battery from being
discharged, do not leave the car au-
dio on longer than necessary when
the engine is not running.
5NAN030
(a) Turning the system on and off
POWER/VOL: Push this knob to turn the
audio system on and off. Turn this knob
to adjust the volume. The system turns
on in the last mode used.
5NAN014
Push “BAND” (FM1, FM2 or AM) or
“CD” button to turn on the desired
mode. The selected mode turns on im-
mediately and the screen turns to each
audio control mode.
Push these buttons if you want to switch
from one mode to another.
If a disc is not inserted, the compact disc
player does not start playing.
You can turn off the compact disc player
by ejecting the compact disc or pressing
“BAND” button. The previous audio mode
will come on again.
Using your audio system—
—Some basics
