navigation TOYOTA MATRIX 2005 E130 / 1.G Navigation Manual

Corolla_MATRIX_Navi_U (L/O 0405)
44
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
1NAN090
1NAN091

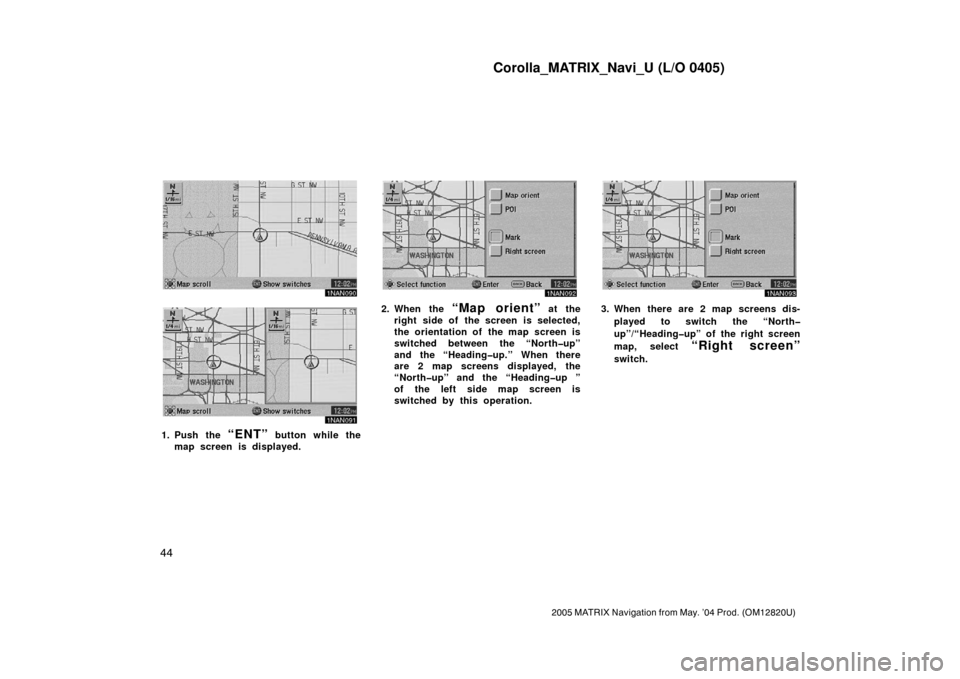

1. Push the “ENT” button while the
map screen is displayed.
1NAN092
2. When the “Map orient” at the
right side of the screen is selected,
the orientation of the map screen is
switched between the “Northup”
and the “Headingup.” When there
are 2 map screens displayed, the
“Northup” and the “Headingup ”
of the left side map screen is
switched by this operation.
1NAN093
3. When there are 2 map screens dis-
played to switch the “North
up”/“Headingup” of the right screen
map, select
“Right screen”
switch.

Corolla_MATRIX_Navi_U (L/O 0405)
45
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
1NAN094
4. Select the “Map orient.” switch
of the “Edit right screen”, and then
the “Northup”/“Headingup” of the
right screen is switched.
When 2 map screens are displayed, you
can set one as the “North−up” and the
other one as the “Heading−up.”This navigation system calculates the
current vehicle position using satellite
signals, various vehicle signals, map
data, etc. However, an accurate position
may not be shown depending on the
satellite condition, road configuration,
vehicle condition or other circum-
stances.
The Global Positioning System (GPS) de-
veloped and operated by the U.S. Depart-
ment of Defense provides an accurate cur-
rent vehicle position using 3 to 4
satellites. The GPS system has a certain
level of inaccuracy built in for security
reasons. While the navigation system will
compensate for this most of the time, oc-
casional positioning errors up to 300 feet
can and should be expected. Generally,
position errors will be corrected within a
few seconds.
1NAN095
When your vehicle is not receiving signals
from the satellites, the “GPS” mark does
not appear at the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle
position on the map display. Tunnels, tall
buildings, trucks, or even the placement of
objects on the instrument panel may ob-
struct the GPS signals.
The installation of window tinting may also
obstruct the GPS signals. Most window
tinting contains some metallic content that
will interfere with the GPS signal recep-
tion. We recommend not to use the win-
dow tinting on vehicles equipped with nav-
igation systems.
Limitations of the navigation
system

Corolla_MATRIX_Navi_U (L/O 0405)
46
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
The GPS satellites may not send signals
due to repairs or improvements being
made to them.
Even when the navigation system is re-
ceiving good GPS signals, the vehicle
position may not be shown accurately or
inappropriate route guidance may occur in
some cases.When driving on a small angled Y−
shaped road.
When driving on a spiral road.
When driving on a slippery road such
as in sand, gravel, snow, etc.
When driving on a long straight road.
When freeway and surface streets run
in parallel.
After moving by ferry or vehicle carrier.
When a long route is searched during
high speed driving.
When driving without setting the current
position calibration correctly.
After repeating a change of directions
by going forward and backward, or
turning on a turntable in the parking
lot.
When leaving a covered parking lot or
parking garage.
When a roof carrier is installed.
When driving with the tire chains
installed.
When the tires are worn.
After replacing a tire or tires.
When using tires that are smaller or
larger than the factory specifications.
When the tire pressure in any of the
four tires is not correct.
INFORMATION
If your vehicle cannot receive GPS
signals, you can correct the current
position manually. For the information
on setting the current position cal-
ibration, see page 61.
(a) Accurate current vehicle
position may not be shown in
the following cases:

Corolla_MATRIX_Navi_U (L/O 0405)
47
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
When turning at a wrong intersection
off the designated route guidance.
If you are heading for a destination
without passing through a set preferred
road, automatic rerouting may display
a route returning to the set preferred
road.
When turning at an intersection, there
is no route guidance.
When passing through the intersection,
there is no route guidance.
During automatic rerouting, the route
guidance may not be available for the
next turn to the right or left.
It may take a long time to operate
automatic rerouting during high speed
driving. In automatic rerouting, a detour
route may be shown.
During automatic rerouting, the route
may not be changed.
The route in a U−turn may be shown
or announced.
A location may have multiple names
and the system will announce one or
more.
Some routes may not be searched.
If the route to your destination includes
gravel, unpaved roads or alleys, the
route guidance may not be shown.
Your destination point might be shown
on the opposite side of the street.
When a portion of the route has regu-
lations prohibiting the entry of the ve-
hicle that vary by time or season or
other reason.
The road and map data stored in your
navigation system may not be complete
or may not be the latest release.
After replacing the tire, implement the
operation described in the “Current
position calibration”. (For details, see
page 61.)
This navigation system uses the tire turn-
ing data and is designed to work with
factory−specified tires for your vehicle.
Installing tires that are larger or smaller
than the originally equipped diameter may
cause inaccurate display of the vehicle’s
position. The tire pressure also affects the
diameter of the tires so please make sure
the tire pressure of all four tires is cor-
rect.This system uses the maps of DENSO
based on NavTech maps and GDT maps.
This product contains proprietary and
confidential property of Geographic
Data Technology, Inc. Unauthorized use,
including duplication of this product is
expressly prohibited.
In order to provide you with accurate map
information as much as possible, we are
always gathering information such as road
repairs and doing site investigation. How-
ever, the names of roads, streets, facili-
ties, and their locations are often
changed. In some places, construction on
roads may be in progress. For that rea-
son, information on some areas in this
system might be different from the actual
location.
(b) Inappropriate route
guidance may occur in the
following cases:Map database information and
updates

Corolla_MATRIX_Navi_U (L/O 0405)
48
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
The map database is normally updated
once a year. Contact your dealer for infor-
mation about the availability and pricing of
an update.

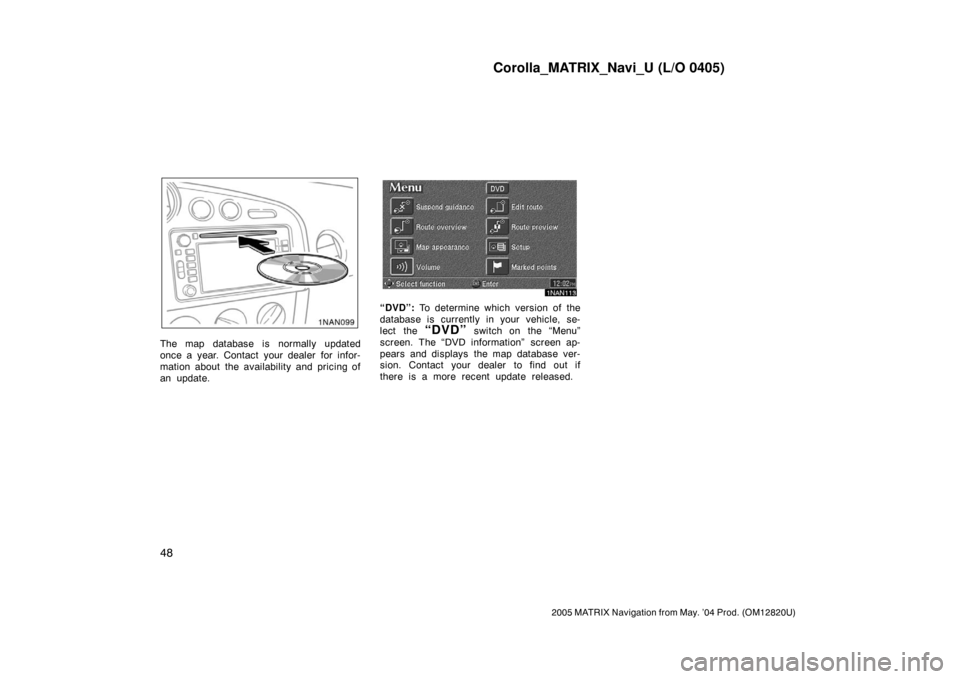

1NAN113
“DVD”: To determine which version of the
database is currently in your vehicle, se-
lect the
“DVD” switch on the “Menu”
screen. The “DVD information” screen ap-
pears and displays the map database ver-
sion. Contact your dealer to find out if
there is a more recent update released.

49
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
ADVANCED FUNCTIONS
Descriptions of functions for more effective use
Marked points50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preset destinations56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Area to avoid58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current position calibration61 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Edit route63 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting a preferred road66 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Search condition68 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route overview69 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route preview69 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION II

Corolla_MATRIX_Navi_U (L/O 0405)
50
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
You can register and keep your own
marked points of interest list (like res-
taurants, sports facilities, etc.) and use
the marked points to input a destina-
tion.

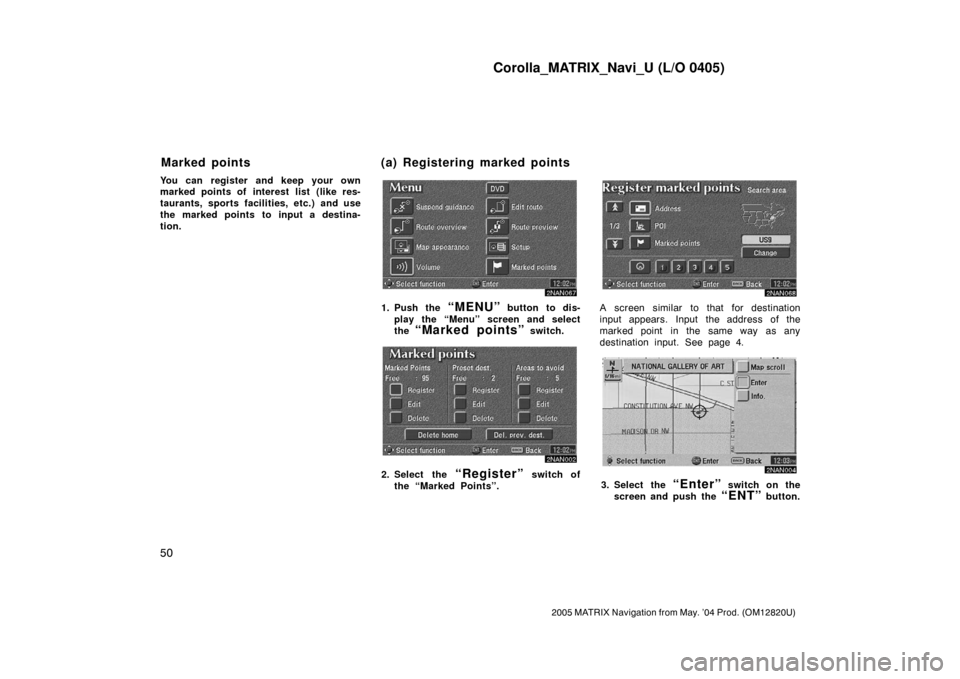

2NAN067
1. Push the “MENU” button to dis-
play the “Menu” screen and select
the
“Marked points” switch.
2NAN002
2. Select the “Register” switch of
the “Marked Points”.
2NAN068
A screen similar to that for destination
input appears. Input the address of the
marked point in the same way as any
destination input. See page 4.
2NAN004
3. Select the “Enter” switch on the
screen and push the
“ENT” button.
Marked points (a) Registering marked points

Corolla_MATRIX_Navi_U (L/O 0405)
51
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
2NAN005

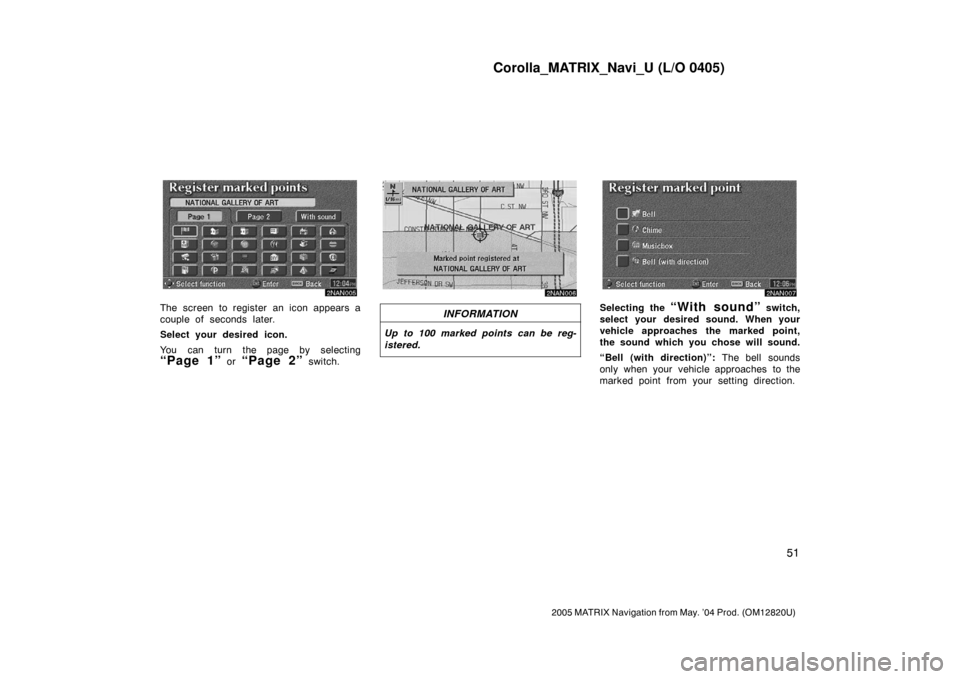

The screen to register an icon appears a
couple of seconds later.
Select your desired icon.
You can turn the page by selecting
“Page 1” or “Page 2” switch.
2NAN006
INFORMATION
Up to 100 marked points can be reg-
istered.
2NAN007
Selecting the “With sound” switch,
select your desired sound. When your
vehicle approaches the marked point,
the sound which you chose will sound.
“Bell (with direction)”: The bell sounds
only when your vehicle approaches to the
marked point from your setting direction.

Corolla_MATRIX_Navi_U (L/O 0405)
52
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
2NAN008
Operate the select and scroll lever, so
that the direction is facing to your de-
sired direction.
Push the
“ENT” button and the map
screen returns.Once a marked point is registered, you
can edit the icon, name or telephone
number.
1. Push the
“MENU” button to dis-
play the “Menu” screen and select
the
“Marked points” switch.
2NAN009
2. Select the “Edit” switch of the
“Marked Points”.

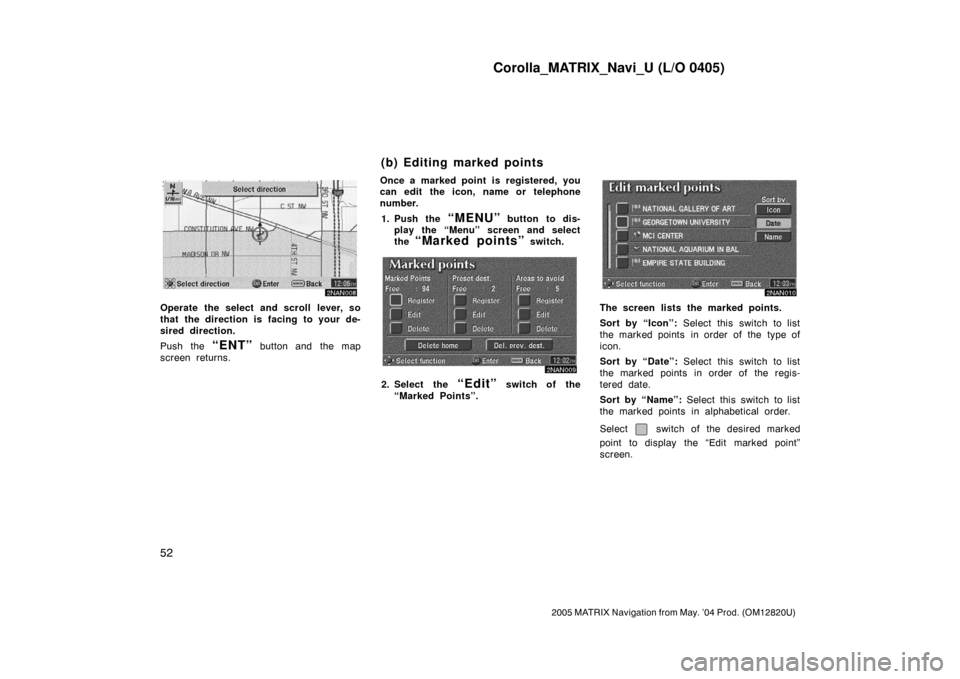

2NAN010
The screen lists the marked points.
Sort by “Icon”: Select this switch to list
the marked points in order of the type of
icon.
Sort by “Date”: Select this switch to list
the marked points in order of the regis-
tered date.
Sort by “Name”: Select this switch to list
the marked points in alphabetical order.
Select
switch of the desired marked
point to display the “Edit marked point”
screen.
(b) Editing marked points

Corolla_MATRIX_Navi_U (L/O 0405)
53
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
2NAN011
3. Select the “Change” switch which
you want to edit.CHANGING THE ICON
2NAN012
Select your desired icon.CHANGING THE NAME
2NAN013
Select alphabet or numeral keys to in-
put the name.
After you finish your entry, select the
“OK” switch on the screen.
The previous screen will be displayed.
