navigation TOYOTA MATRIX 2005 E130 / 1.G Navigation Manual

Corolla_MATRIX_Navi_U (L/O 0405)
4
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
1NAN004
1. Move the cursor to the desired
point by operating the select and
scroll lever. When you release the
lever, scrolling stops.
1NAN005
2. In case of making the position indi-
cated by the cursor
on the dis-
play as a destination, push the
“ENT” button and select your de-
sired switch on the switch menu on
the right of the screen.Push the
“DEST” button and the “Des-
tinations” screen appears.
1NAN100
The “Destinations” screen allows you to
select the area to be searched for your
destination.
To shift to the next or previous
page.
Select the “Change” switch on the
screen to display a map of the United
States divided into 10 regions and a
part of Canada.
How to move the cursor Destination input

Corolla_MATRIX_Navi_U (L/O 0405)
5
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
1NAN007
Select an area by the select and scroll
lever to select the search area. Select the
“OK” switch and push the “ENT” but-
ton, and the “Destinations” screen returns.United States of America
US1
Idaho
Oregon
Washington
US2California
Nevada
US3
Arizona
Colorado
Montana
New Mexico
Utah
Wyoming
US4
Iowa
Kansas
Minnesota
Missouri
Nebraska
North Dakota
South Dakota
US5Oklahoma
Te x a s
US6
Illinois
Indiana
Kentucky
Michigan
Ohio
Wisconsin
US7
Alabama
Arkansas
Louisiana
Mississippi
Tennessee

Corolla_MATRIX_Navi_U (L/O 0405)
6
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
US8
Connecticut
Maine
Massachusetts
New Hampshire
New Jersey
New York
Rhode Island
Vermont
US9
Delaware
Maryland
New Jersey
Pennsylvania
Virginia
Washington, D.C.
West Virginia
US10
Florida
Georgia
North Carolina
South Carolina
CANADA
CAN
Alberta
British Columbia
Manitoba
New Brunswick
Newfoundland and Labrador
Nova Scotia
Ontario
Prince Edward Island
Québec
Saskatchewan
Yukon Territory
Once you choose the area to search, you
can use one of 11 different methods to
enter your destination. See pages 8
through 23 for the detailed steps.
1. By Address: You can input the house
number and the street address by us-
ing the input keys. See page 8 for the
detailed steps.2. By POI (Point of interest): You can
select one of the many points of inter-
est that have been already stored in
the system’s database. There are about
50 categories to choose from, including
restaurants, hotels and so on. See
page 11 for the detailed steps.
3. By Marked Points: You can select
your own favorite destinations as
“Marked points”. The system allows
you to store up 100 marked points.
See page 17 for the detailed steps.
4. By Previous Destination: You can se-
lect a destination from any of the last
20 previously set destinations. See
page 18 for the detailed steps.
5. By Emergency: You can select one of
the two points of emergency service
points that have been already stored in
the system’s database. See page 18
for the detailed steps.
6. By Intersection: You can enter the
names of two intersecting streets. This
is helpful if you do not know the spe-
cific street address of your destination
but know the general vicinity. See page
19 for the detailed steps.

Corolla_MATRIX_Navi_U (L/O 0405)
7
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
7. By Previous Start Point: You can en-
ter a point where the system has
started to guide last time. See page 22
for the detailed steps.
8. By Freeway Ent./Exit: You can enter
the name of the freeway (interstate)
entrance or exit. See page 20 for the
detailed steps.
9. By Map Selection: You can select a
destination simply by selecting the
location on the displayed map. See
page 22 for the detailed steps.
10. By Preset Destination (
—
switches on the “Destination”
screen): You can choose the destina-
tion by selecting one of the preset des-
tination switch. In this case, it is nec-
essary to register your desired
destination beforehand. See page 23
for the detailed steps.
11 . B y H o m e (
switch on the “Des-
tination” screen): You can select your
own home without entering the address
each time. In this case, it is necessary
to register your home beforehand. See
page 22 for the detailed steps.
INFORMATION
When inputting the destination, the
response to the switch may be slow.
“Points of interest” are mainly reg-
istered in “Detailed map coverage
areas”. The registration is made
based on the NavTech “Standard
POI Inclusion List”.
If there is no point registered,
switches such as “Marked points”,
“Home”, “Previous destination” and
“Previous starting point” are
dimmed and not available.
The route for returning may not be
the same as that for going.
The route guidance to the destina-
tion may not be the shortest route
or a route without traffic conges-
tion.
Route guidance may not be avail-
able if there is no road data for the
specified location.
When setting the destination, you
should use the map on a scale of
one half mile or smaller.
To select an “Address”, “Point of
interest”, “Freeway Ent./Exit” or “In-
tersection” in a different region, a
search area’s change is necessary.
CAUTION
While you are driving, be sure to fol-
low traffic regulations and keep the
road condition in mind. If a traffic
sign on the road has been changed,
the route guidance may provide
wrong information.

Corolla_MATRIX_Navi_U (L/O 0405)
8
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
1NAN008
There are 2 ways to input a destination
by address.Select the
“Address” switch on the
“Destinations” screen. The “Address”
screen appears, and then you can input
a house number.
1NAN009
After inputting a house number, select the
“OK” switch which you can input a
street name.
It is possible to input a street name first.
Select the
“Street” switch on the dis-
play to display the screen which you can
input a street name.
1NAN010
After each letter is inputted, the system
searches the database for street names
that match. Alphabet keys are dimmed if
the database does not have a match for
the next letter in the remaining list of
matching street names.
Selecting the
“À” switch to display
the diacritics input screen, the
“09”
switch to display the numeral input
screen.
Based on your input, the number of
matching sites appears at the top right of
the screen. After the number decreases to
some extent, select the
“List” switch to
display the street selection list. If the
number of matches decreases to 4 or
less, the screen changes automatically to
the selection list.
Destination input by
ADDRESS(a) Inputting a street name

Corolla_MATRIX_Navi_U (L/O 0405)
9
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
1NAN011
When you find your desired street
name, select
of the item. The
screen changes and displays the map
location of the selected destination and
the route preference. (See “Entering
destination” on page 23.)
If the same street exists in more than one
city, the current screen changes to the
“Select city” screen. Select or enter your
desired city.
1NAN012
If you input a street name first, the screen
changes. You can then input the house
number.
1NAN101
If the above screen appears, you can se-
lect an address range on that screen.

Corolla_MATRIX_Navi_U (L/O 0405)
10
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
The screen for selecting the last 5 cities
appears if you select the “City” switch
on the “Address” screen on page 8.

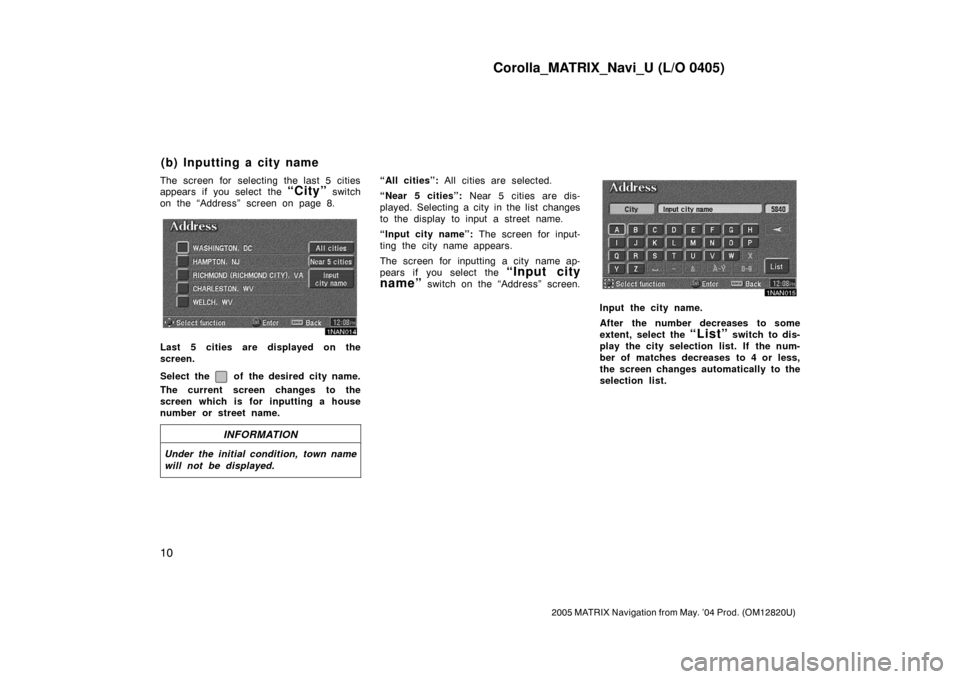

1NAN014
Last 5 cities are displayed on the
screen.
Select the
of the desired city name.
The current screen changes to the
screen which is for inputting a house
number or street name.
INFORMATION
Under the initial condition, town name
will not be displayed.
“All cities”: All cities are selected.
“Near 5 cities”: Near 5 cities are dis-
played. Selecting a city in the list changes
to the display to input a street name.
“Input city name”: The screen for input-
ting the city name appears.
The screen for inputting a city name ap-
pears if you select the
“Input city
name”
switch on the “Address” screen.
1NAN015
Input the city name.
After the number decreases to some
extent, select the
“List” switch to dis-
play the city selection list. If the num-
ber of matches decreases to 4 or less,
the screen changes automatically to the
selection list.
(b) Inputting a city name

Corolla_MATRIX_Navi_U (L/O 0405)
11
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
1NAN016
Select the of the desired city
name.
“Map”: If you select this switch, the
screen changes and displays the map
location of the selected city and the route
preference. (See “Entering destination” on
page 23.)
The current screen changes to the
screen which is for inputting a street
name.
1NAN017
Input a street name. (See “(a) Inputting
a street name” on page 8.)
The screen changes and displays the
map location of the selected destination
and the route preference. (See “Enter-
ing destination” on page 23.)There are 3 ways to select a point of
interest location (POI).
(a) Input the name of the point of inter-
est directly.
(b) Inputting a city name first.
(c) Selecting from the points of interest
categories.
It will not take a long time for you to
find your destination if you use a com-
bination of the searching ways of (a),
(b) and (c).
Destination input by
POI (Point of Interest)

Corolla_MATRIX_Navi_U (L/O 0405)
12
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
Select the “POI” (Point of interest)
switch on the “Destinations” screen.

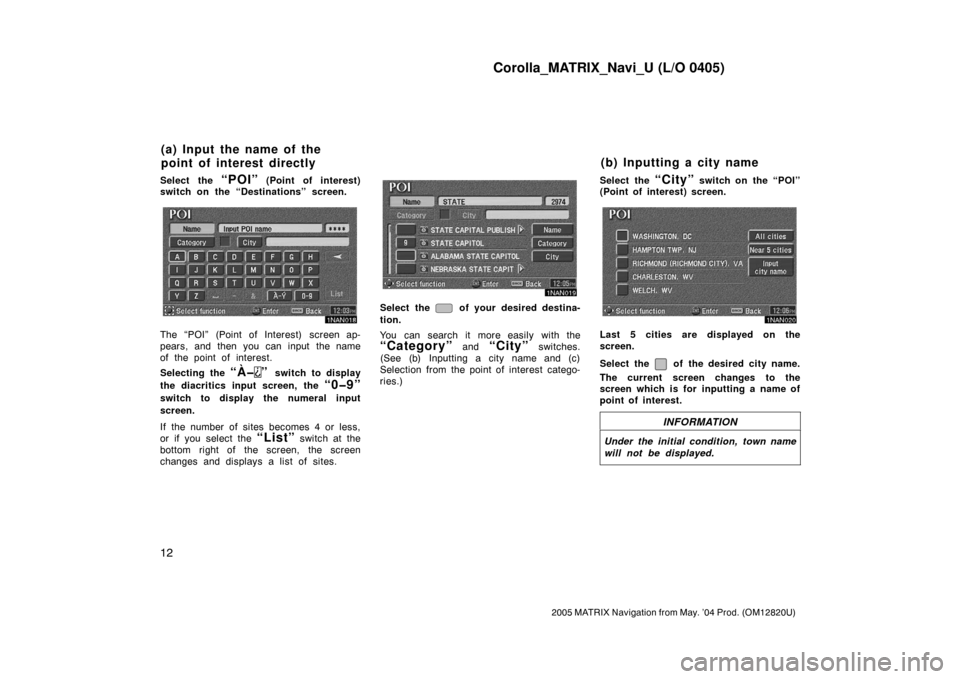

1NAN018
The “POI” (Point of Interest) screen ap-
pears, and then you can input the name
of the point of interest.
Selecting the
“À” switch to display
the diacritics input screen, the
“09”
switch to display the numeral input
screen.
If the number of sites becomes 4 or less,
or if you select the
“List” switch at the
bottom right of the screen, the screen
changes and displays a list of sites.

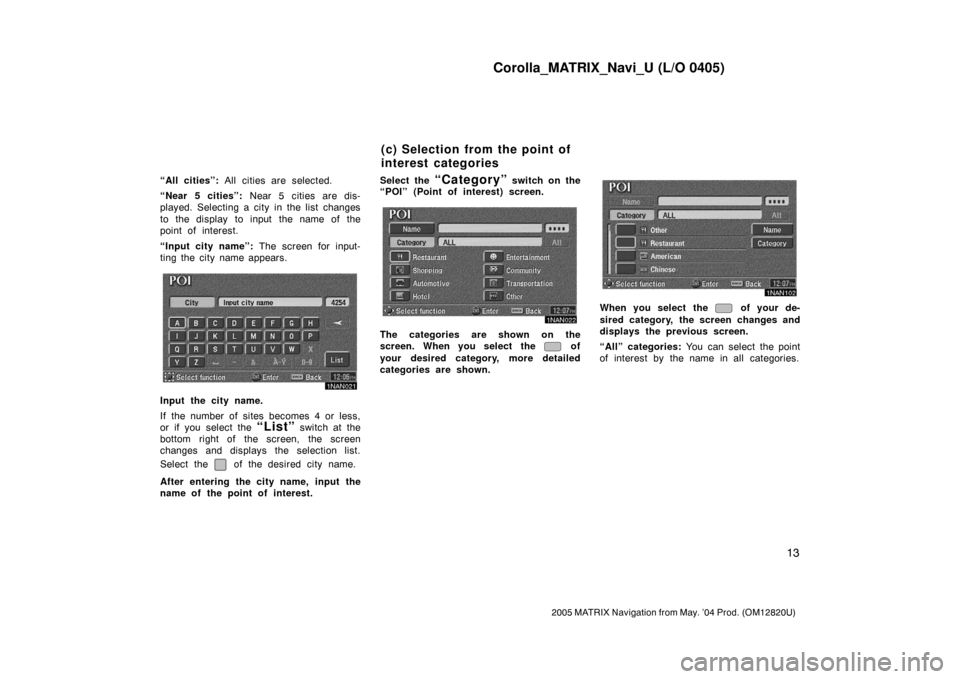

1NAN019
Select the of your desired destina-
tion.
You can search it more easily with the
“Category” and “City” switches.
(See (b) Inputting a city name and (c)
Selection from the point of interest catego-
ries.)Select the
“City” switch on the “POI”
(Point of interest) screen.
1NAN020
Last 5 cities are displayed on the
screen.
Select the
of the desired city name.
The current screen changes to the
screen which is for inputting a name of
point of interest.
INFORMATION
Under the initial condition, town name
will not be displayed.
(a) Input the name of the
point of interest directly(b) Inputting a city name

Corolla_MATRIX_Navi_U (L/O 0405)
13
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
“All cities”: All cities are selected.
“Near 5 cities”: Near 5 cities are dis-
played. Selecting a city in the list changes
to the display to input the name of the
point of interest.
“Input city name”: The screen for input-
ting the city name appears.
1NAN021
Input the city name.
If the number of sites becomes 4 or less,
or if you select the
“List” switch at the
bottom right of the screen, the screen
changes and displays the selection list.
Select the
of the desired city name.
After entering the city name, input the
name of the point of interest.Select the
“Category” switch on the
“POI” (Point of interest) screen.
1NAN022
The categories are shown on the
screen. When you select the
of
your desired category, more detailed
categories are shown.
1NAN102
When you select the of your de-
sired category, the screen changes and
displays the previous screen.
“All” categories: You can select the point
of interest by the name in all categories.
(c) Selection from the point of
interest categories
