2005 MATRIX from Sep. ’04 Prod. (OM12892U)
Do not allow anyone to get his/her
head closer to the area where the
side airbag and curtain shield air-
bag inflate, since these airbags
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.Do not allow anyone to kneel on
the passenger seat, facing the pas-
senger ’s side door, since the side
airbag and curtain shield airbag
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.Do not allow anyone to get his/her
head or hands out of windows
since the curtain shield airbags
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.

’05 MATRIX_U (L/O 0409)
62
2005 MATRIX from Sep. ’04 Prod. (OM12892U)

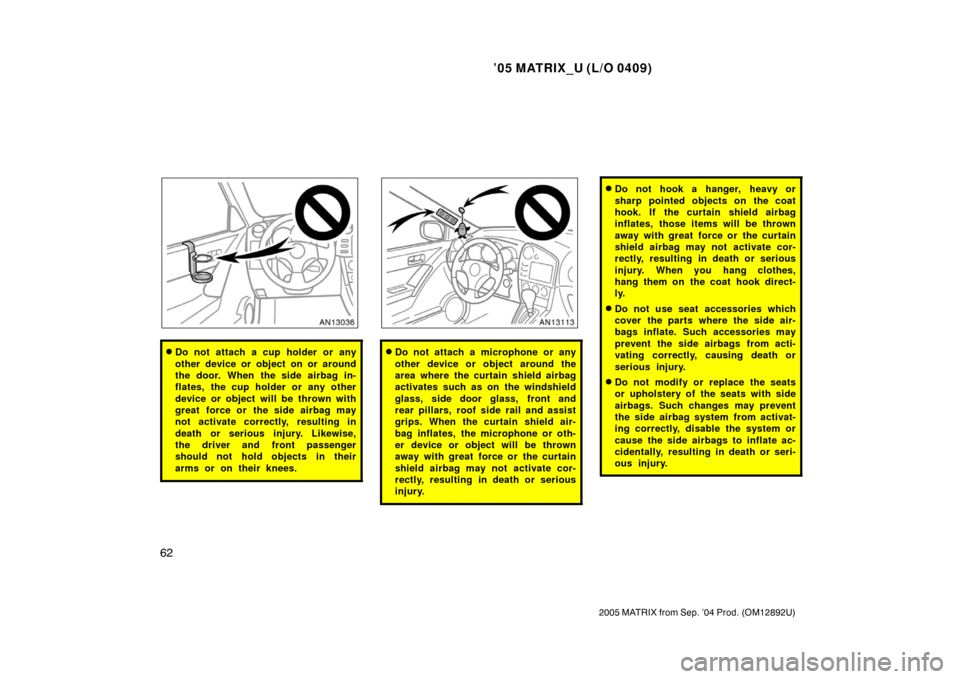

Do not attach a cup holder or any
other device or object on or around
the door. When the side airbag in-
flates, the cup holder or any other
device or object will be thrown with
great force or the side airbag may
not activate correctly, resulting in
death or serious injury. Likewise,
the driver and front passenger
should not hold objects in their
arms or on their knees.Do not attach a microphone or any
other device or object around the
area where the curtain shield airbag
activates such as on the windshield
glass, side door glass, front and
rear pillars, roof side rail and assist
grips. When the curtain shield air-
bag inflates, the microphone or oth-
er device or object will be thrown
away with great force or the curtain
shield airbag may not activate cor-
rectly, resulting in death or serious
injury.
Do not hook a hanger, heavy or
sharp pointed objects on the coat
hook. If the curtain shield airbag
inflates, those items will be thrown
away with great force or the curtain
shield airbag may not activate cor-
rectly, resulting in death or serious
injury. When you hang clothes,
hang them on the coat hook direct-
ly.
Do not use seat accessories which
cover the parts where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such changes may prevent
the side airbag system from activat-
ing correctly, disable the system or
cause the side airbags to inflate ac-
cidentally, resulting in death or seri-
ous injury.

’05 MATRIX_U (L/O 0409)
63
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
Do not disassemble or repair the
front and rear pillars and roof side
rails containing the curtain shield
airbags. Such changes may disable
the system or cause the curtain
shield airbags to inflate accidental-
ly, resulting in death or serious in-
jury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
If you wish to modify your vehicle for
a person with physical disability, con-
sult your Toyota dealer. It may dan-
gerously interfere with the SRS front
airbags operation.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS side airbag and curtain shield
airbag system in some cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the side structure of
the passenger compartment
 Repairs made on or near the con-
sole or front seat
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS side airbags and curtain
shield airbags are operating properly.

’05 MATRIX_U (L/O 0409)
64
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system and indicator light,
front passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, infla-
tors, warning light, interconnecting wiring
and power sources. (For details, see “Ser-
vice reminder indicators and warning buzz-
ers” on page 107 in Section 1−6.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on for more than 6
seconds or flashes.
The light comes on or starts flashing
while driving.
The SRS warning light will come on and
front passenger occupant classification in-
dicator light will indicate “OFF” if there is
a malfunction in the front passenger occu-
pant classification system.
In the following cases, contact your Toyota
dealer as soon as possible:
Any of the SRS side airbags and cur-
tain shield airbags have been inflated.
The portion of the doors (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS side airbags and curtain
shield airbags to inflate.
The surface of the seats with the SRS
side airbag (shaded in the illustration)
is scratched, cracked, or otherwise
damaged.
The portion of the front pillars, rear
pillars or roof side rail garnishes (pad-
ding) containing the curtain shield air-
bags inside (shaded in the illustration)
is scratched, cracked, or otherwise
damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.

’05 MATRIX_U (L/O 0409)
65
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
Your vehicle is equipped with a front
passenger occupant classification sys-
tem. This system detects the conditions
1—4 in the table on page 67 and based
on these conditions activates or deacti-
vates front passenger airbags. The sys-
tem monitors the weight and load on
the front passenger seat, and the seat
belt buckle switch to determine condi-
tions 1—4. In order for the system to
detect the conditions correctly, do not
do any of the following.
Put a heavy load on the front passen-
ger seat.
Attach a commercial seatback table to
the front passenger seatback.
Put weight on the front passenger by
putting your hands or feet on the front
passenger seatback from the rear pas-
senger seat.
The front passenger occupant classifi-
cation indicator light indicates the ac-
tuation of the front passenger airbag,
side airbag on the front passenger seat
and front passenger ’s seat belt preten-
sioner.
The indicator light will indicate “OFF”
when the ignition switch is in the “ON”
position with the condition 2 in the table
shown below.If the front passenger occupant classifica-
tion system determines that a person of
adult size sits in the front passenger seat
but the “OFF” indicator is illuminated, one
of the following is likely to have occurred:
A rear passenger lifts the front passen-
ger seat cushion with their legs.
Objects are placed under the front pas-
senger seat.
The front passenger seatback is in
contact with the rear seat.
To ensure the system correctly detects an
adult sitting in the front passenger seat,
make sure the above do not occur.
Make sure that the “ON” indicator is illu-
minated when an adult is seated in the
front passenger seat. If the “OFF” indica-
tor is illuminated, ask the passenger to sit
up straight, well back in the seat, and
with the seat belt worn correctly. If the
“OFF” indicator still remains illuminated,
either ask the passenger to move to the
rear seat, or if that is not possible, move
the front passenger seat fully rearward.
—Front passenger occupant
classification system

’05 MATRIX_U (L/O 0409)
66
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
The front passenger occupant classifi-
cation indicator light will indicate “ON”
and “OFF” when the ignition key is
turned to the “ON” position. After
about four seconds, it will go off. After
that, the front passenger occupant clas-
sification system operates and judges
whether to indicate “ON” or “OFF”.
The SRS warning light will come on
and front passenger occupant classifi-
cation indicator light will indicate
“OFF” if there is a malfunction in the
front passenger occupant classification
system.

’05 MATRIX_U (L/O 0409)
67
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
Condition and operation in the front passenger occupant classification systemCondition detected bythe front passenger
occupant classification system
Indicator/warning lightDevices
Front
passenger occupant
classification
indicator light
SRS warning light
Front
passenger ’s seat belt
reminder lightFront
passenger airbagSide airbag
on the front passenger seatCurtain shieldairbag in the front
passenger sideFront
passenger ’s seat belt
pretensioner
1. Adult∗ 1“ON”OffFlashing∗4Activated
2. Child∗2 or child
restraint system∗ 3“OFF”OffFlashing∗4Deactivated
Activated
Activated
3. UnoccupiedNot
illuminatedOffOffDeactivatedDeactivated
4. There is a
malfunction in the
system
“OFF”OnOffDeactivatedActivated
∗1: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may
recognize him/her as a child depending on his/her physique and posture.
∗2: When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/h er
as an adult depending on his/her physique or posture.
∗ 3: Never install a rear −facing child restraint system on the front passenger seat. A forward −facing child restraint system should only be
installed on the front passenger seat when it is unavoidable. (See “Child restraint” on page 69 in this Section as for installi ng the
child restraint system.)
∗ 4: In the event the front passenger does not wear a seat belt.

’05 MATRIX_U (L/O 0409)
68
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
CAUTION
To avoid potential death or serious
injury when the front passenger occu-
pant classification system does not
detect the conditions correctly, ob-
serve the following.
Make sure the front passenger oc-
cupant classification indicator light
indicates “ON” when using the seat
belt extender for the front passen-
ger seat. If the indicator light indi-
cates “OFF”, disconnect the extend-
er tongue from the seat belt buckle,
then reconnect the seat belt. Recon-
nect the seat belt extender after
making sure the indicator light indi-
cates “ON”. If you use the seat belt
extender while the indicator light
indicates “OFF”, the front passen-
ger airbag and side airbag on the
front passenger side may not acti-
vate correctly, which could cause
death or serious injury in the event
of collision.
Do not recline the front passenger
seatback so far that it touches a
rear seat. This may cause the
“OFF” indicator to be illuminated,
which indicates that the passen-
ger’s airbags will not deploy in the
event of a severe accident. If the
seatback touches the rear seat, re-
turn the seatback to a position
where it does not touches the rear
seat.
Keep the front passenger seatback
as upright as possible when the ve-
hicle is moving. Reclining the seat-
back excessively may lessen the ef-
fectiveness of the seat belt system.
If an adult sits in the front passen-
ger seat, the occupant classification
indicator light should indicate “ON”.
If the “OFF” indicator is illumina-
ted, ask the passenger to sit up
straight, well back in the seat, feet
on the floor, and with the seat belt
worn correctly. If the “OFF” indica-
tor still remains illuminated, either
ask the passenger to move to the
rear seat, or if that is not possible,
move the front passenger seat fully
rearward.
Wear the seat belt properly.
Make sure the front passenger ’s
seat belt tab has not been left in-
serted into the buckle before some-
one sits in the front passenger
seat.
Do not put a heavy load in the
front passenger seatback pocket or
attach a seatback table to the front
passenger seat seatback.
Do not put weight on the front pas-
senger seat by putting your hands
or feet on the front passenger seat
seatback from the rear passenger
seat.
Do not let a rear passenger lift the
front passenger seat with their feet
or press on the seatback with their
legs.
Do not put objects under the front
passenger seat.
Child restraint systems installed on
the rear seat should not contact the
front seatbacks.

’05 MATRIX_U (L/O 0409)
69
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
When it is unavoidable to install the
forwardfacing child restraint sys-
tem on the front passenger seat,
install the child restraint system on
the front passenger seat in the
proper order. (As for the installation
order, see “—Installation with seat
belt” on page 72 in this Section.)
Do not remove the front seats.
Do not kick the front passenger
seat or subject it to severe impact.
Otherwise, the SRS warning light
may come on to indicate a malfunc-
tion of the detection system. In this
case, contact your Toyota dealer im-
mediately.
The front passenger occupant classifica-
tion indicator light may indicate “ON” (the
front passenger airbag and side airbag on
the front passenger seat may deploy)
even if observing the above cautions,
when a child sits in, or a forward−facing
child restraint system is installed on the
front passenger seat. Refer to all the cau-
tions in “SRS airbags” on page 50 and
“Child restraint” on page 69 in this Sec-
tion. Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child s
hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” on
page 42 in this Section for details.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the front passenger
occupant classification indicator
light indicates “OFF”. In the event
of an accident, the impact of the
rapid inflation of the front passen-
ger airbag could cause death or se-
rious injury to the child if the rear
facing child restraint system is
installed on the front passenger
seat.
Child restraint—
—Child restraint precautions

’05 MATRIX_U (L/O 0409)
70
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the front pas-
senger occupant classification indi-
cator light indicates “OFF”, because
the front passenger airbag could in-
flate with considerable speed and
force. Otherwise, the child may be
killed or seriously injured.
Do not allow the child to lean his/
her head or any part of his/her
body against the door or the area
of the seat, front or rear pillar or
roof side rail from which the side
airbags or curtain shield airbags
deploy even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag and cur-
tain shield airbag inflate, and the
impact could cause death or seri-
ous injury to the child.
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly se-
cured. If it is not secured properly,
it may cause death or serious injury
to the child in the event of a sud-
den stop or accident.
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap por-
tion of the lap/shoulder belt. You must
carefully consult the manufacturer ’s in-
structions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
When not using the child restraint system,
keep it secured with the seat belt or place
it in the trunk or somewhere other than
the passenger compartment. This will pre-
vent it from injuring passengers in the
event of a sudden stop or accident.
—Child restraint system
