TOYOTA MATRIX 2008 E130 / 1.G User Guide

’08 MATRIX_U (L/O 0706)
1
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Instrument cluster overview 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 6
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1

’08 MATRIX_U (L/O 0706)
2
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

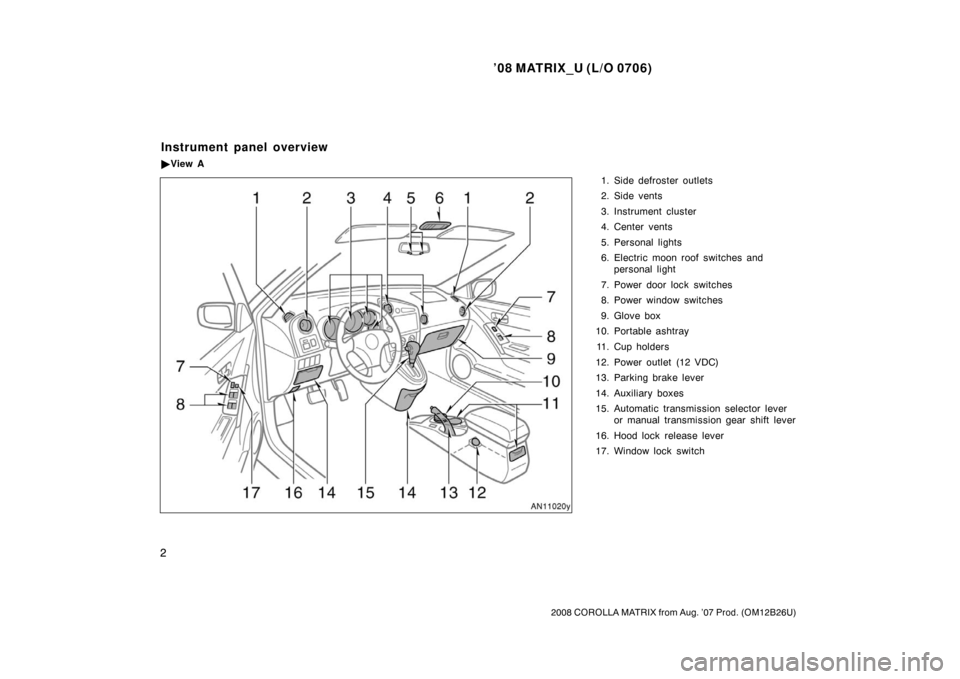

1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switches andpersonal light
7. Power door lock switches
8. Power window switches
9. Glove box
10. Portable ashtray
11. Cup holders
12. Power outlet (12 VDC)
13. Parking brake lever
14. Auxiliary boxes
15. Automatic transmission selector lever or manual transmission gear shift lever
16. Hood lock release lever
17. Window lock switch
Instrument panel overview
 View A

’08 MATRIX_U (L/O 0706)
3
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

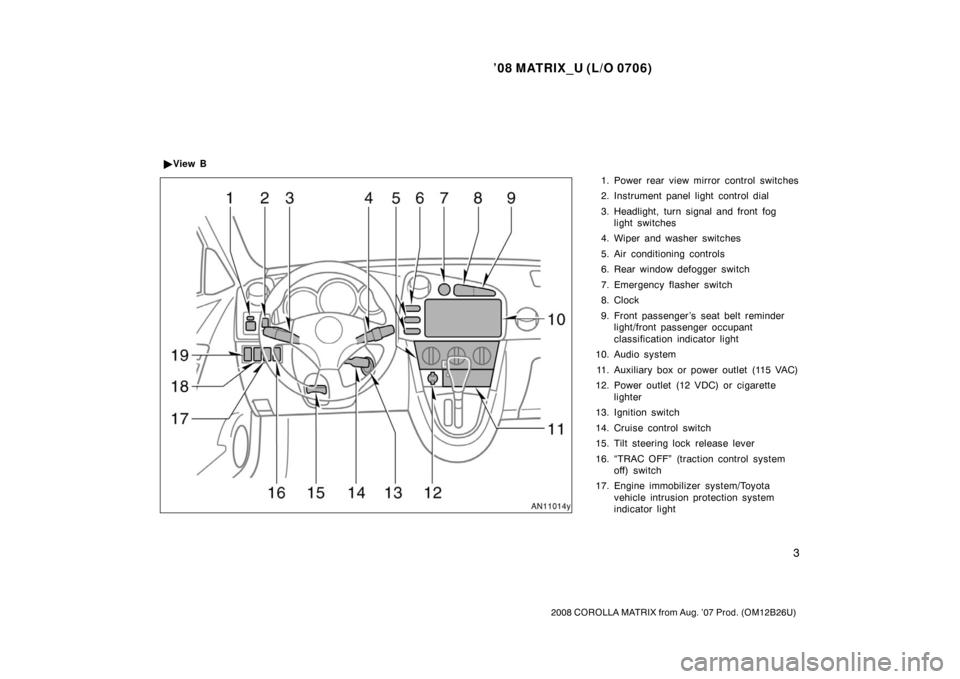

1. Power rear view mirror control switches
2. Instrument panel light control dial
3. Headlight, turn signal and front foglight switches
4. Wiper and washer switches
5. Air conditioning controls
6. Rear window defogger switch
7. Emergency flasher switch
8. Clock
9. Front passenger ’s seat belt reminder light/front pass enger occupant
classification indicator light
10. Audio system
11. Auxiliary box or power outlet (115 VAC)
12. Power outlet (12 VDC) or cigarette lighter
13. Ignition switch
14. Cruise control switch
15. Tilt steering lock release lever
16. “TRAC OFF” (traction control system off) switch
17. Engine immobilizer system/Toyota vehicle intrusion protection system
indicator light

View B

’08 MATRIX_U (L/O 0706)
4
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
18. Tire pressure warning system resetswitch
19. Glass hatch opener switch

’08 MATRIX_U (L/O 0706)
5
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

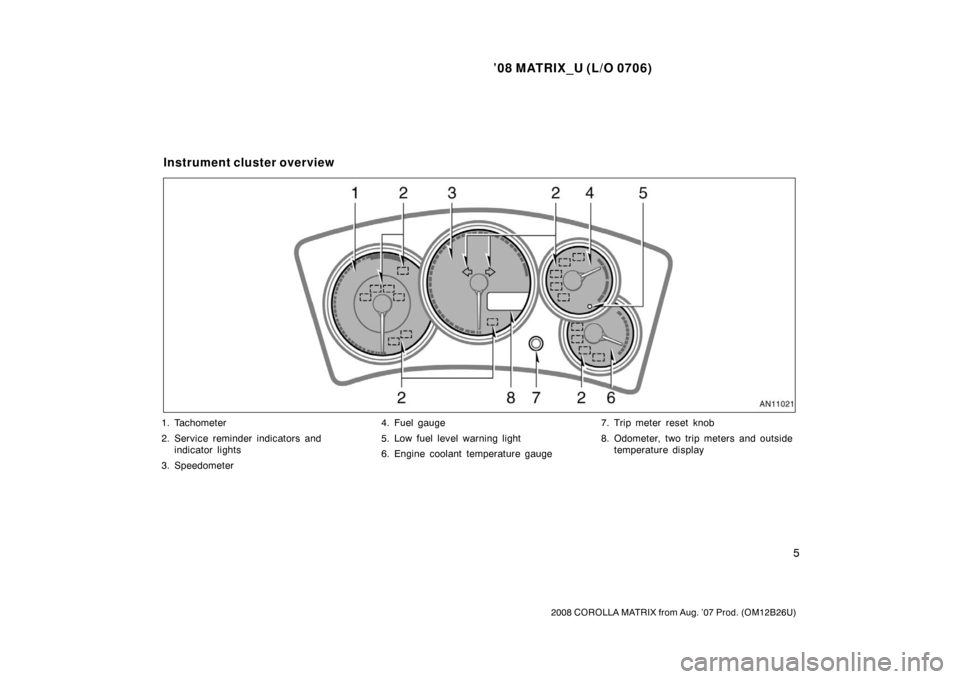

1. Tachometer
2. Service reminder indicators andindicator lights
3. Speedometer 4. Fuel gauge
5. Low fuel level warning light
6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer, two trip meters and outside
temperature display
Instrument cluster overview

’08 MATRIX_U (L/O 0706)
6
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Brake system warning light∗1
Charging system warning light∗1
Low engine oil pressure warning light∗1
Malfunction indicator lamp∗1
SRS warning light∗1
Driver ’s seat belt reminder light∗1Open door warning light∗1
Anti −lock brake system warning light∗
1or
Low windshield washer fluid level warning light∗1
or Front passenger ’s seat belt reminder light
∗
1
or
Vehicle stability control system/traction control
system warning light∗1
Low tire pressure warning light∗1
Engine oil replacement reminder light∗1
Front passenger occupant classification indicator
light
Indicator symbols on the instrument panel

’08 MATRIX_U (L/O 0706)
7
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 105 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 133 in
Section 1 −7.Cruise control indicator light
∗
2
Overdrive −off indicator light
Turn signal indicator lights
Headlight high beam indicator light
Headlight indicator light
Tail light indicator light
Slip indicator light/traction control system off
indicator light

’08 MATRIX_U (L/O 0706)
8
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

’08 MATRIX_U (L/O 0706)
9
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Back door 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Glass hatch 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Toyota vehicle intrusion protection system (TVIP) 26
. . . . . . . . . . . . . . .
Hood 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel tank cap 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2

’08 MATRIX_U (L/O 0706)
10
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

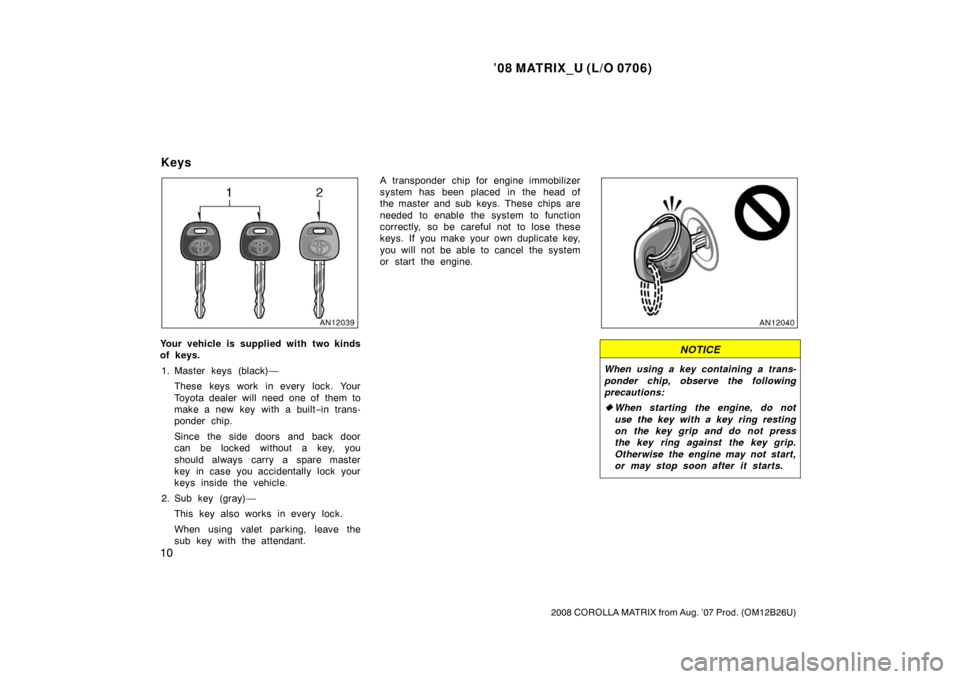

Your vehicle is supplied with two kinds
of keys.1. Master keys (black)— These keys work in every lock. Your
Toyota dealer will need one of them to
make a new key with a built −in trans-
ponder chip.
Since the side doors and back door
can be locked without a key, you
should always carry a spare master
key in case you accidentally lock your
keys inside the vehicle.
2. Sub key (gray)— This key also works in every lock.
When using valet parking, leave the
sub key with the attendant. A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:

When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
Keys
