REAR DOOR CHILDPROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
When the child−protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.
Vehicles with automatic transmission
and power door lock system—You can
select the following modes of the
automatic locking and unlocking
functions.
Mode 1—Automatic locking linked
with the shift position
All the side doors and back door are
automatically locked when the selector
lever is moved out of the “P” position
with the ignition switch in the “ON”
position and all the doors are closed.
Mode 2—Functions cancelled
Automatic door locking and unlocking
functions do not activate in this mode.
Mode 3—Automatic locking and un-
locking linked with the shift position
Locking function—All the side doors
and back door are automatically locked
when the selector lever is moved out
of the “P” position with the ignition
switch in the “ON” position and all the
doors are closed.
Unlocking function—All the side doors
and back door are automatically un-
locked when the selector lever is
moved to the “P” position with the igni-
tion switch in the “ON” position.
—Automatic door locking and
unlocking functions

’08 MATRIX_U (L/O 0706)
22
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Mode 4—Automatic locking and un-
locking linked with the shift position
and ignition switch
Locking function—All the side doors
and back door are automatically locked
when the selector lever is moved out
of the “P” position with the ignition
switch in the “ON” position and all the
doors are closed.
Unlocking function—All the side doors
and back door are automatically un-
locked when the ignition switch is
turned from the “ON” position to the
“ACC” or “LOCK” position.
CHANGING THE MODE
The mode toggles through from mode
1 to mode 4. To change the mode, do
the following: 1. Set the interior light switch to the “DOOR” position. (See “Interior lights”
on page 95 in Section 1 −5.)
2. Shift the selector lever into the “P” position and close all the side doors
and back door.
3. Turn the ignition switch to the “ON” position. 4. Within 5 seconds after the ignition
switch is turned to the “ON” position,
push and hold the power door lock
switch on the front side for about 5
seconds.
5. The interior light will flash to indicate that the mode has been changed.
The flashing of the interior light indicates
the mode which has been selected.
Flashing once, the function has
changed to mode 1.
Flashing twice, the function has
changed to mode 2.
Flashing three times, the function has
changed to mode 3.
Flashing four times, the function has
changed to mode 4.
If the battery is disconnected or run down,
the mode may change. Set the desired
mode by following the above procedures.
Window lock
switch
Driver’s door
Front
Rear
Passengers’ doors
Power windows

’08 MATRIX_U (L/O 0706)
23
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
The windows can be operated with the
switch on each side door. The passen-
gers’ windows can also be controlled
by the switches on the driver’s door.
The power windows work when the ignition
switch is in the “ON” position.
Normal operation: The window moves as
long as you hold the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.
Automatic operation (to open the driv-
er ’s window): Push the switch completely
down and then release it. The window will
fully open. To stop the window partway,
lightly pull the switch up and then release
it.CAUTION
To avoid death or serious personal
injury, you must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.

’08 MATRIX_U (L/O 0706)
24
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
LOCKING AND UNLOCKING WITH KEY

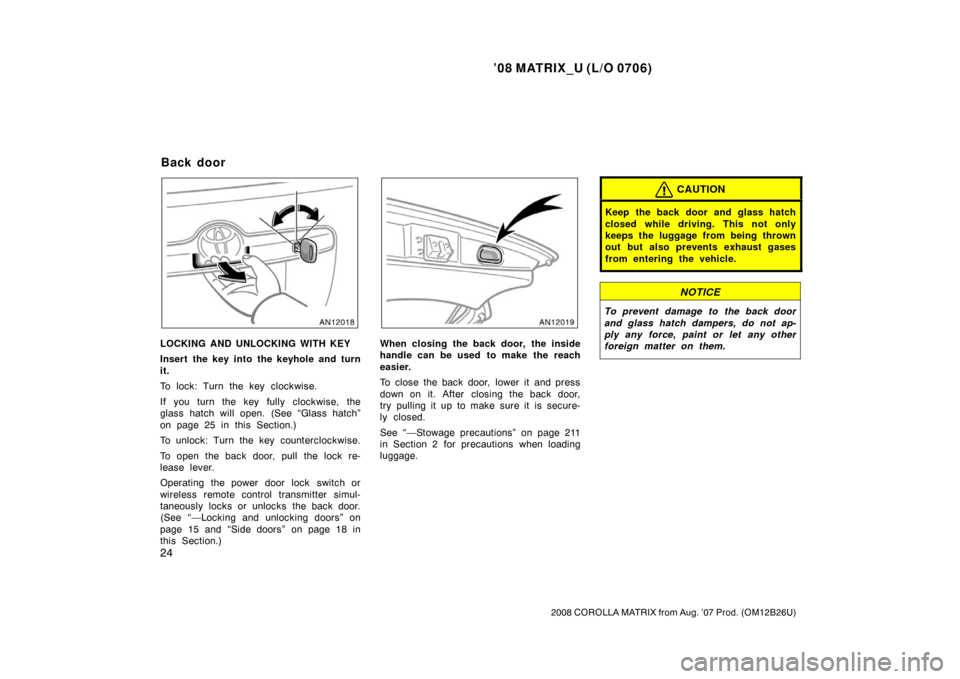

Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
If you turn the key fully clockwise, the
glass hatch will open. (See “Glass hatch”
on page 25 in this Section.)
To unlock: Turn the key counterclockwise.
To open the back door, pull the lock re-
lease lever.
Operating the power door lock switch or
wireless remote control transmitter simul-
taneously locks or unlocks the back door.
(See “—Locking and unlocking doors” on
page 15 and “Side doors” on page 18 in
this Section.)When closing the back door, the inside
handle can be used to make the reach
easier.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
See “—Stowage precautions” on page 211
in Section 2 for precautions when loading
luggage.
CAUTION
Keep the back door and glass hatch
closed while driving. This not only
keeps the luggage from being thrown
out but also prevents exhaust gases
from entering the vehicle.
NOTICE
To prevent damage to the back door
and glass hatch dampers, do not ap-
ply any force, paint or let any other
foreign matter on them.
Back door

’08 MATRIX_U (L/O 0706)
25
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
OPENING THE GLASS HATCH WITH
THE KEY

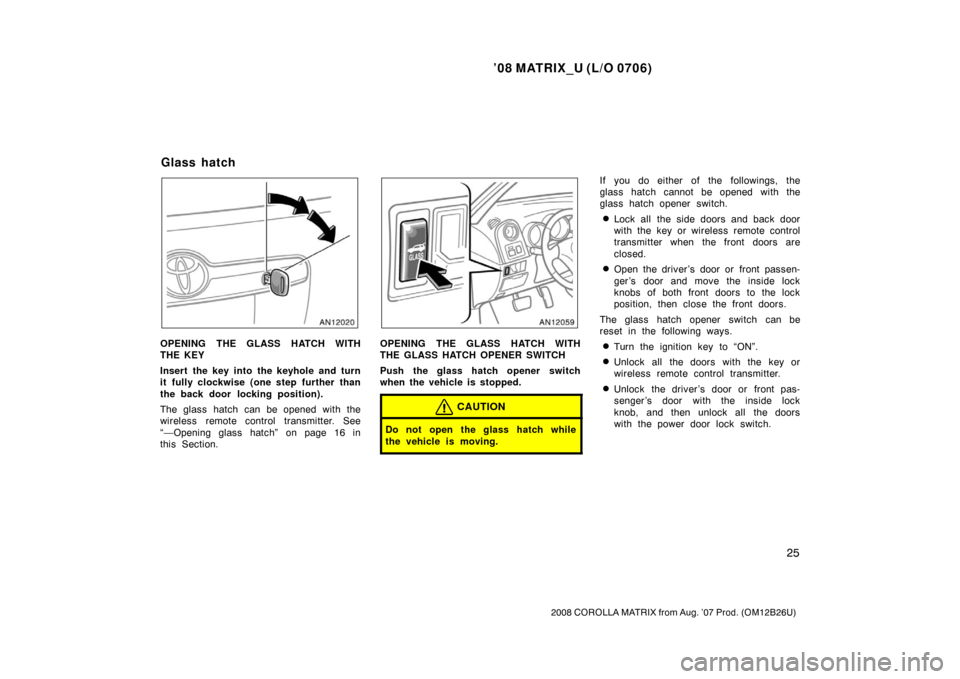

Insert the key into the keyhole and turn
it fully clockwise (one step further than
the back door locking position).
The glass hatch can be opened with the
wireless remote control transmitter. See
“—Opening glass hatch” on page 16 in
this Section.OPENING THE GLASS HATCH WITH
THE GLASS HATCH OPENER SWITCH
Push the glass hatch opener switch
when the vehicle is stopped.
CAUTION
Do not open the glass hatch while
the vehicle is moving.
If you do either of the followings, the
glass hatch cannot be opened with the
glass hatch opener switch.
Lock all the side doors and back door
with the key or wireless remote control
transmitter when the front doors are
closed.
Open the driver ’s door or front passen-
ger’s door and move the inside lock
knobs of both front doors to the lock
position, then close the front doors.
The glass hatch opener switch can be
reset in the following ways.
Turn the ignition key to “ON”.
Unlock all the doors with the key or
wireless remote control transmitter.
Unlock the driver’s door or front pas-
senger ’s door with the inside lock
knob, and then unlock all the doors
with the power door lock switch.
Glass hatch

’08 MATRIX_U (L/O 0706)
26
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
CLOSING THE GLASS HATCH
Lower the glass hatch and push the
lower center of it until it is locked.
When you open the back door with the
glass hatch opened, the glass hatch will
be closed. After closing the back door,
you should check the glass hatch fully
closed.
See “—Stowage precautions” on page 211
in Section 2 for precautions when loading
luggage.
CAUTION
Keep the back door and glass hatch
closed while driving. This not only
keeps the luggage from being thrown
out but also prevents exhaust gases
from entering the vehicle.
NOTICE
To prevent damage to the back door
and glass hatch dampers, do not ap-
ply any force, paint or let any other
foreign matter on them.
TVIP is a theft deterrent system. If
someone attempts to damage or break
into your vehicle, the system sounds
the alarm while flashing the lights.SETTING THE SYSTEM
You can set the system as follows.1. Remove the key from the ignition switch.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobilizer system”
on page 12 for details.) 2. Have all passengers get out of the vehicle.
3. Close all the side doors, back door and glass hatch securely.
Toyota vehicle intrusion
protection system (TVIP)

’08 MATRIX_U (L/O 0706)
27
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
4. Lock all the side doors and back doorwith the key or wireless remote control
transmitter. At this time, the TVIP indi-
cator light comes on.
The system will be set in 30 seconds.
When the system is set, the indicator
light will start flashing again.
5. Make sure that the indicator light flashes. Then you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system because unlocking
from the inside activates the alarm.

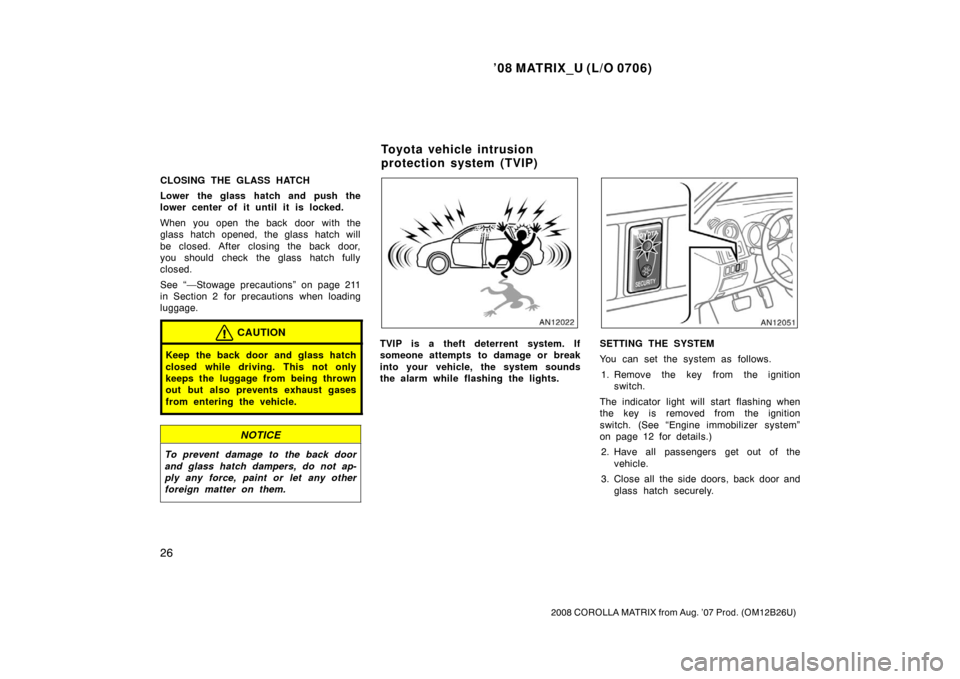

Activating the alarm
If the system detects a threat to the
vehicle, it sounds the alarm for one
minute while flashing headlights and
turn signal lights. Also, the interior
lights turn on when the interior light
switch is in the “DOOR” position.
The system detects a threat under any of
the following conditions:
Either of the front doors is unlocked by
means other than the key or wireless
remote control transmitter.
If the key is not in the ignition switch,
all the side doors and back door will
be automatically locked again.
Any of the side doors, back door or
glass hatch are forcibly opened.
The alarm will activate when the back
door is unlocked with a key. Cancel the
system before unlocking the back door.
The side windows are tapped or bro-
ken.
The battery terminal is disconnected
and then reconnected.
The ignition is hotwired.
After one minute, the alarm automatically
stops and the indicator light starts flashing
again.
Reactivating the alarm
Once set, until you cancel the system, the
system automatically resets the alarm af-
ter the alarm has stopped.
The alarm will activate again under the
same circumstances described in “Activat-
ing the alarm”.
Stopping the alarm
You can stop the alarm in either of the
following ways:
Unlock any of the side doors and back
door with the key or wireless remote
control transmitter.
Place the ignition switch in the “ON”
position. CANCELLING THE SYSTEM
You can cancel the system as described
in “Stopping the alarm”.
If you cancel the system by unlocking any
of the side doors but no door is opened
within 30 seconds, all the side doors and
back door lock automatically and the sys-
tem will be set again.
TESTING THE SYSTEM
You can check the system operation as
follows.
1. Open all the windows.
2. Set the system as described in “SETTING THE SYSTEM”.
3. Unlock the driver’s door with the inside lock knob. The system should activate
and the alarm should sound.
4. Stop the alarm as described in “Stop- ping the alarm”.
5. Repeat steps 2 to 4 for the other doors. (For rear side doors, unlock and
then open the doors in step 3.)
If the system does not work properly,
have it checked by your Toyota dealer.

’08 MATRIX_U (L/O 0706)
28
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.3. Hold the hood open by inserting the support rod into the slot.
To insert the support rod into the slot,
move it straight up. If it is moved to the
side or toward the inside of the vehicle,
it may become detached.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
Hood

’08 MATRIX_U (L/O 0706)
29
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
NOTICE
Be sure to return the support rod to
its clip before closing the hood. Clos-
ing the hood with the support rod up
could cause the hood to bend.
This indicates that the fuel filler door
is on the left side of your vehicle.1. To open the fuel filler door, pull thelever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
Fuel tank cap

’08 MATRIX_U (L/O 0706)
30
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a
click.
If the cap is not installed securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel sp illage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
Sliding operation
Tilting operation
Electric moon roof
