TOYOTA MATRIX 2009 E140 / 2.G Owners Manual

241 3-5. Using the storage features
3
Interior features
Bottle holders
Front
Rear
CAUTION
■Items unsuitable for the bottle holder
Do not place anything other than pet bottles in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
Bottle holders

242 3-5. Using the storage features
Auxiliary boxes
Front
Pull up the lever.
Overhead console (vehicles with moon roof)
Push the lid.
NOTICE
■When a pet bottle is in the front bottle holder (vehicles with manual
window)
As there is a possibility of interfering with
a manual window regulator handle, pre-
vent the window from opening and clos-
ing, do not place a pet bottle in the holder
when turning the handle.
Bottle holders and auxiliary boxes

243 3-5. Using the storage features
3
Interior features
CAUTION
■Caution while driving
Keep the auxiliary boxes closed.
Injuries may result in the event of an accident or sudden braking.
■Items that should not be left in the overhead console
Do not leave glasses or lighters in the console.
If the interior of the vehicle becomes hot, lighters may explode and glasses
may warp or become cracked.
■Items unsuitable for storing (overhead console only)
Do not store items heavier than 0.4 lb. (0.2 kg).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident.
Auxiliary boxes

244
3-6. Other interior features

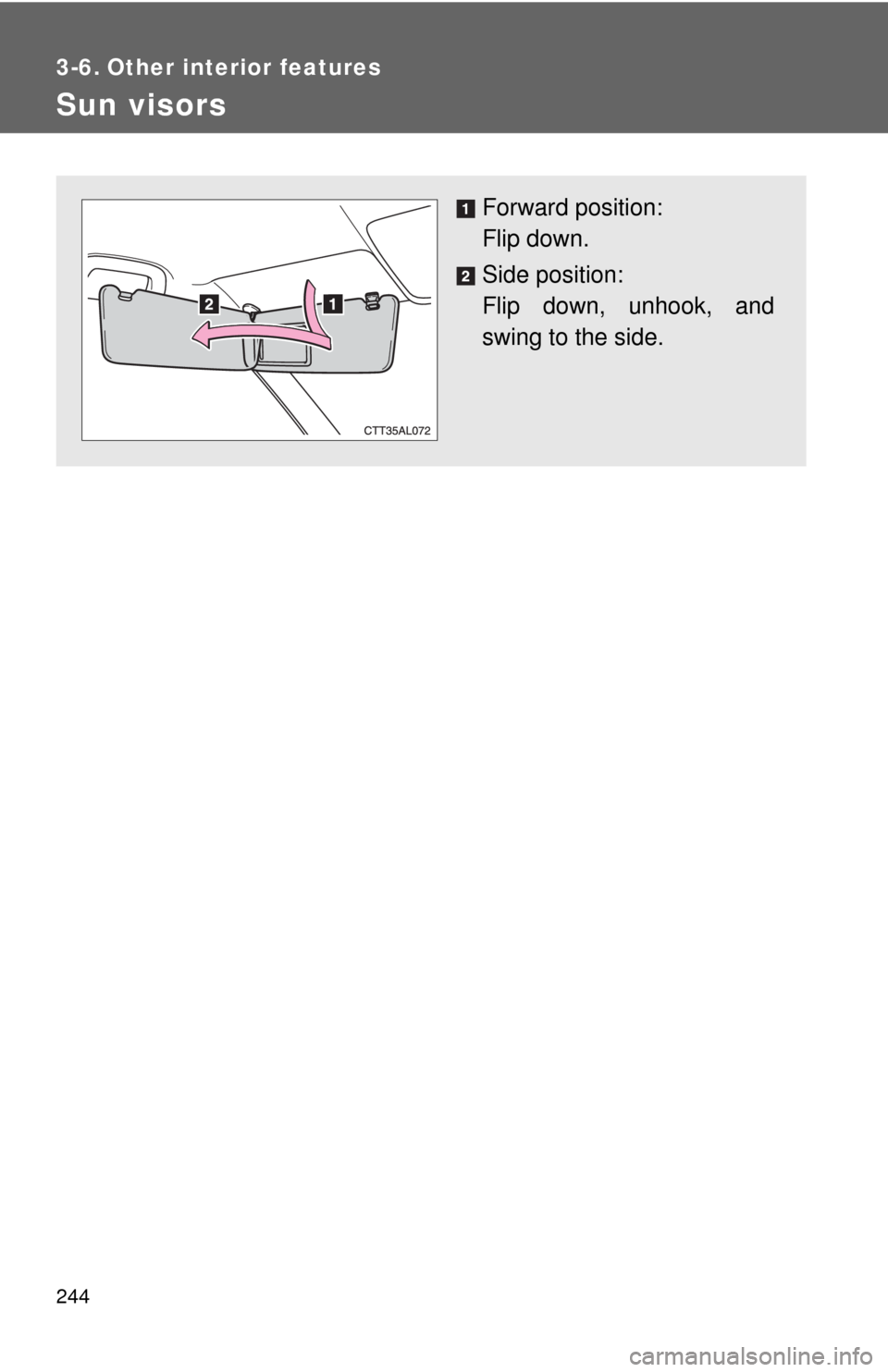

Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.

245
3-6. Other interior features
3
Interior features
Vanity mirrors
Slide the cover.

246
3-6. Other interior features
Clock
■The clock is displayed when
The engine switch is in the “ACC” or “ON” position.
Adjusts the hour.
Adjusts the minutes.
Rounds to the nearest
hour.*
*: e.g. 1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00

247
3-6. Other interior features
3
Interior features
Ashtrays (if equipped)
CAUTION
■When not in use
Keep the ashtray closed.
Injuries may result in the event of an accident or sudden braking.
■To prevent fire
●Fully extinguish matches and cigarettes before putting them in the ashtray,
then make sure the ashtray is fully closed.
●Do not place paper or any other type of flammable object in the ashtray.
An ashtray can be installed in
a cup holder.

248
3-6. Other interior features
Cigarette lighter (if equipped)
■The cigarette lighter can be used when
The engine switch is in the “ACC” or “ON” position.
CAUTION
■To avoid burns or fires
●Do not touch the metal parts of the cigarette lighter.
●Do not hold the cigarette lighter down. It could overheat and cause a fire.
●Do not insert anything other than the cigarette lighter into the outlet.
Push the cigarette lighter
down.
The cigarette lighter will pop up
when it is ready for use.

249
3-6. Other interior features
3
Interior features
Power outlet (if equipped)
■The power outlet can be used when
12 V
The engine switch is in the “ACC” or “ON” position.
115 V
The engine switch is in the “ON” position.
The power outlet can be used for a following component.
12 V: Accessories that run on less than 10 A.
115 V: Accessories that uses less than 100 W.
Type A (12 V)
Type B (115 V)
Main switch
To use the power outlet,
turn on the main switch.
Power outlet socket

250 3-6. Other interior features
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■To prevent the fuse from being blown
12 V
Do not use an accessory that uses more than 12 V 10 A.
115 V
Do not use a 115 V appliance that requires more than 100 W.
If a 115 V appliance that consumes more than 100 W is used, the protection
circuit will cut the power supply.
■To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is off.
■Appliances that may not operate properly (115 V)
The following 115 V appliances may not operate properly even if their power
consumption is under 100 W.
●Appliances with high initial peak wattage
●Measuring devices that process precise data
●Other appliances that require an extremely stable power supply
