391 6-1. Specifications
6
Vehicle specifications
Vehicle identification

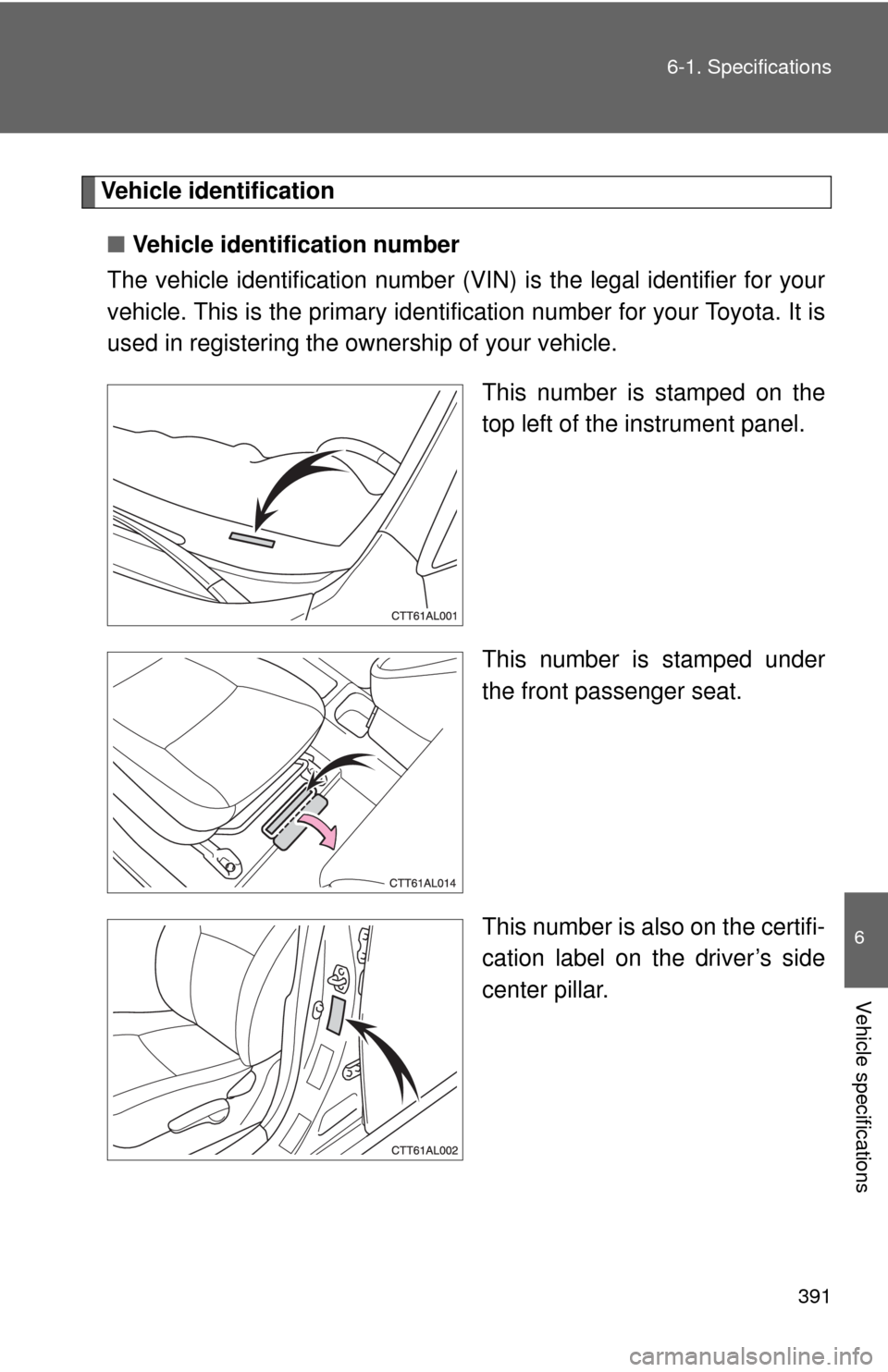

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is stamped under
the front passenger seat.
This number is also on the certifi-
cation label on the driver’s side
center pillar.

392 6-1. Specifications
■Engine number
The engine number is stamped on the engine block as shown.
1.8 L 4-cylinder (2ZR-FE) engine
2.4 L 4-cylinder (2AZ-FE) engine

393 6-1. Specifications
6
Vehicle specifications
Engine
1.8 L 4-cylinder (2ZR-FE) engine
*: Drive belt tension measured with Borroughs drive belt tension gauge No.
BT-33-73F (used belt), lb.
Model 2ZR-FE engine
Ty p e4 cylinder in line,
4 cycle, gasoline
Bore and stroke3.17 × 3.48 in.
(80.5 × 88.3 mm)
Displacement 109.7 cu.in. (1798 cm3)
Drive belt tension*143 ± 22 lb.
Valve clearance (engine cold)
Intake
ExhaustAutomatic adjustment

394 6-1. Specifications
2.4 L 4-cylinder (2AZ-FE) engine
Fuel
Model 2AZ-FE engine
Ty p e4 cylinder in line,
4 cycle, gasoline
Bore and stroke3.48 × 3.78 in.
(88.5 × 96.0 mm)
Displacement 144.1 cu.in. (2362 cm3)
Drive belt tension Automatic adjustment
Valve clearance (engine cold)
Intake
Exhaust0.007 ⎯ 0.011 in.
(0.19 ⎯ 0.29 mm)
0.015 ⎯ 0.019 in.
(0.38 ⎯ 0.48 mm)
Fuel type Unleaded gasoline only
Octane rating 87 (Research Octane Number 91) or higher
Fuel tank capacity 13.2 gal. (50 L, 10.9 Imp.gal.)

395 6-1. Specifications
6
Vehicle specifications
Lubrication system
Oil viscosity
●The 0W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startability. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
●The 20 in 0W-20 indicates the oil viscosity when the oil is at its oper-
ating temperature. An oil with a higher viscosity may be better suited
if the vehicle is operated at high speeds, or under extreme load con-
ditions.
Oil capacity
(drain and refill)
With filter
Without filter1.8 L 4-cylinder (2ZR-FE) engine
4.4 qt. (4.2 L, 3.7 Imp.qt.)
2.4 L 4-cylinder (2AZ-FE) engine
4.0 qt. (3.8 L, 3.3 Imp.qt.)
1.8 L 4-cylinder (2ZR-FE) engine
4.1 qt. (3.9 L, 3.4 Imp.qt.)
2.4 L 4-cylinder (2AZ-FE) engine
3.8 qt. (3.6 L, 3.2 Imp.qt.)
Oil grade ILSAC multigrade engine oil
Recommended oil
viscosityUse Toyota approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the grade and vis-
cosity shown below.
0W-20 is the oil that provides the optimal level
of fuel efficiency.
Outside temperature

396 6-1. Specifications
Cooling system
Ignition system
Capacity
(Reference)1.8 L 4-cylinder (2ZR-FE) engine
5.8 qt. (5.5 L, 4.8 Imp.qt.)
2.4 L 4-cylinder (2AZ-FE) engine
6.0 qt. (5.7 L, 5.0 Imp.qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate,
non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Spark plug
Make
Gap1.8 L 4-cylinder (2ZR-FE) engine
DENSO SC20HR11
2.4 L 4-cylinder (2AZ-FE) engine
DENSO SK20R11
NGK IFR6A11
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

397 6-1. Specifications
6
Vehicle specifications
Electrical system
Manual transaxle
Automatic transaxle
Battery
Open voltage at
68°F (20°C):12.6 ⎯ 12.8 V Fully charged
12.2 ⎯ 12.4 V Half charged
11 . 8 ⎯ 12.0 V Discharged
(Voltage checked 20 minutes after the
engine and all the lights turned off)
Charging rates 5 A max.
Gear oil capacity (Reference)1.8 L 4-cylinder (2ZR-FE) engine
2.0 qt. (1.9 L, 1.7 Imp.qt.)
2.4 L 4-cylinder (2AZ-FE) engine
2.6 qt. (2.5 L, 2.2 Imp.qt.)
Gear oil type API GL-4
Recommended gear oil
viscositySAE 75W
Fluid capacity
(drain and refill)1.8 L 4-cylinder (2ZR-FE) engine
2.6 qt. (2.5 L, 2.2 Imp.qt.)
2.4 L 4-cylinder (2AZ-FE) engine
3.7 qt. (3.5 L, 3.1 Imp.qt.)
Fluid type Toyota Genuine ATF WS

398 6-1. Specifications
Rear differential (AWD models)
Transfer (AWD models)
Clutch
NOTICE
■Automatic transmission fluid type
Using automatic transmission fluid other than “Toyota Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the transmission of your
vehicle.
Oil capacity 0.5 qt. (0.5 L, 0.4 Imp.qt.)
Oil type Hypoid gear oil API GL-5
Recommended oil viscosityAbove 0°F (-18°C): SAE 90
Below 0°F (-18°C): SAE 80W or 80W-90
Oil capacity 0.8 qt. (0.8 L, 0.7 Imp.qt.)
Oil type Hypoid gear oil API GL-5
Recommended oil viscosityAbove 0°F (-18°C): SAE 90
Below 0°F (-18°C): SAE 80W or 80W-90
Pedal free play 0.2 ⎯ 0.6 in. (5 ⎯ 15 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3

399 6-1. Specifications
6
Vehicle specifications
Brakes
*1: Minimum pedal clearance when depressed with a force of 66 lbf (294 N, 30
kgf) while the engine is running
*2: 2.4 L 4-cylinder (2AZ-FE) engine with 18-inch tires or AWD models
*3: Parking brake lever travel when pulled up with a force of 44 lbf (200 N, 20
kgf)
Pedal clearance*1
1.8 L 4-cylinder (2ZR-FE) engine
• With vehicle stability control:
3.4 in. (87 mm)
• Without vehicle stability control:
3.2 in. (81 mm)
2.4 L 4-cylinder (2AZ-FE) engine
• AWD models: 3.4 in. (87 mm)
• Vehicles with P215/45R18 tires:
3.4 in. (87 mm)
• Vehicles with tires other than the
above: 3.3 in. (85 mm)
Pedal free play 0.04 ⎯ 0.24 in. (1 ⎯ 6 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining wear limit*20.04 in. (1.0 mm)
Parking brake lever travel*36 ⎯ 9 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3

400 6-1. Specifications
Steering
Tires and wheels
Type A
Type B
Free play Less than 1.2 in. (30 mm)
Tire size P205/55R16 89H, T135/70R16 100M
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size 16 × 6 1/2 J, 16 × 4T (compact spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size P205/55R16 89H, T135/80R16 101M
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size 16 × 6 1/2 J, 16 × 4T (compact spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
