fog light TOYOTA MATRIX 2009 E140 / 2.G Owners Manual

TABLE OF CONTENTSIndex
2
1-1. Key information .................. 24Keys ..................................... 24
1-2. Opening, closing
and
locking the

doors ............. 26
Wireless remote control ....... 26
Doors.................................... 29
Back door ............................. 33
1-3.
Adjustable components
(seats, mirrors,
steering wheel)

................. 35
Front seats ........................... 35
Rear seats ............................ 38
Head restraints ..................... 40
Seat belts ............................. 41
Steering wheel ..................... 46
Anti-glare inside rear view mirror .................................. 47
Outside rear view mirrors ..... 49
1-4. Opening a
nd closing the
window

s ............................ 51
Power windows .................... 51
Moon roof ............................. 53
1-5. Refueling ............................. 56 Opening the fuel tank cap .... 56
1-6. Theft deterrent system ...... 60 Engine immobilizer system ................................ 60
Theft prevention labels (for U.S.A.) ......................... 62 1-7. Safety information .............. 63
Correct driving posture ......... 63
SRS airbags ......................... 65
Front passenger occupant classification system ........... 77
Child restraint systems ......... 82
Installing child restraints ....... 86
2-1. Driving procedures............. 96 Driving the vehicle ................ 96
Engine (ignition) switch....... 106
Automatic transmission ...... 110
Manual transmission........... 115
Turn signal lever ................. 117
Parking brake ..................... 118
2-2. Instrument cluster ............ 119 Gauges and meters ............ 119
Indicators and warning lights ................................. 122
2-3. Operating the li
ghts and
wipers

.............................. 125
Headlight switch ................. 125
Fog light switch ................... 128
Windshield wipers and washer .............................. 129
Rear window wiper and washer .............................. 131
2-4. Using other driving systems ........................... 132
Cruise control ..................... 132
Driving assist systems ........ 135
1Before driving
2When driving

1
2
3
4
5
6
7
3
2-5. Driving information ........... 140
Cargo and luggage ............. 140
Vehicle load limits ............... 143
Winter driving tips ............... 144
Trailer towing ...................... 148
Dinghy towing
(automatic
transmission) .................... 156
Dinghy towing
(manual transmission) ...... 157
3-1. Using the air conditioning
system and defogger...... 162
Air conditioning system ....... 162
Rear window and outside
rear view mirror
defoggers .......................... 168
3-2. Using the audio system.... 169
Audio system types ............. 169
Using the radio .................... 172
Using the CD player ............ 178
Playing MP3 and
WMA discs ........................ 185
Optimal use of the audio
system .............................. 193
Using the AUX adapter ....... 196
Using the steering wheel
audio switches .................. 197
3-3. Using the hands-free
phone system
(for cellular phone) ......... 200Hands-free phone system
(for cellular phone)
features ............................ 200
Using the hands-free
phone system
(for cellular phone) ........... 203
Making a phone call ........... 212
Setting a cellular phone ...... 216
Security and system
setup ................................ 221
Using the phone book ........ 225
3-4. Using the interior lights ... 232
Interior lights list ................. 232
• Interior light ...................... 233
• Personal/interior lights...... 234
• Personal lights.................. 235
3-5. Using the storage
features ........................... 236
List of storage features ....... 236
• Glove box ......................... 237
• Console box ..................... 237
• Cup holders ...................... 239
• Bottle holders ................... 241
• Auxiliary boxes ................. 242
3-6. Other interior features ..... 244
Sun visors........................... 244
Vanity mirrors ..................... 245
Clock .................................. 246
Ashtrays ............................. 247
Cigarette lighter .................. 248
Power outlet ....................... 249
Grocery bag hook ............... 251
Seatback table.................... 253
Floor mat ............................ 254
Luggage compartment
feature .............................. 255
3Interior features

6
Headlights (low beam) P. 125

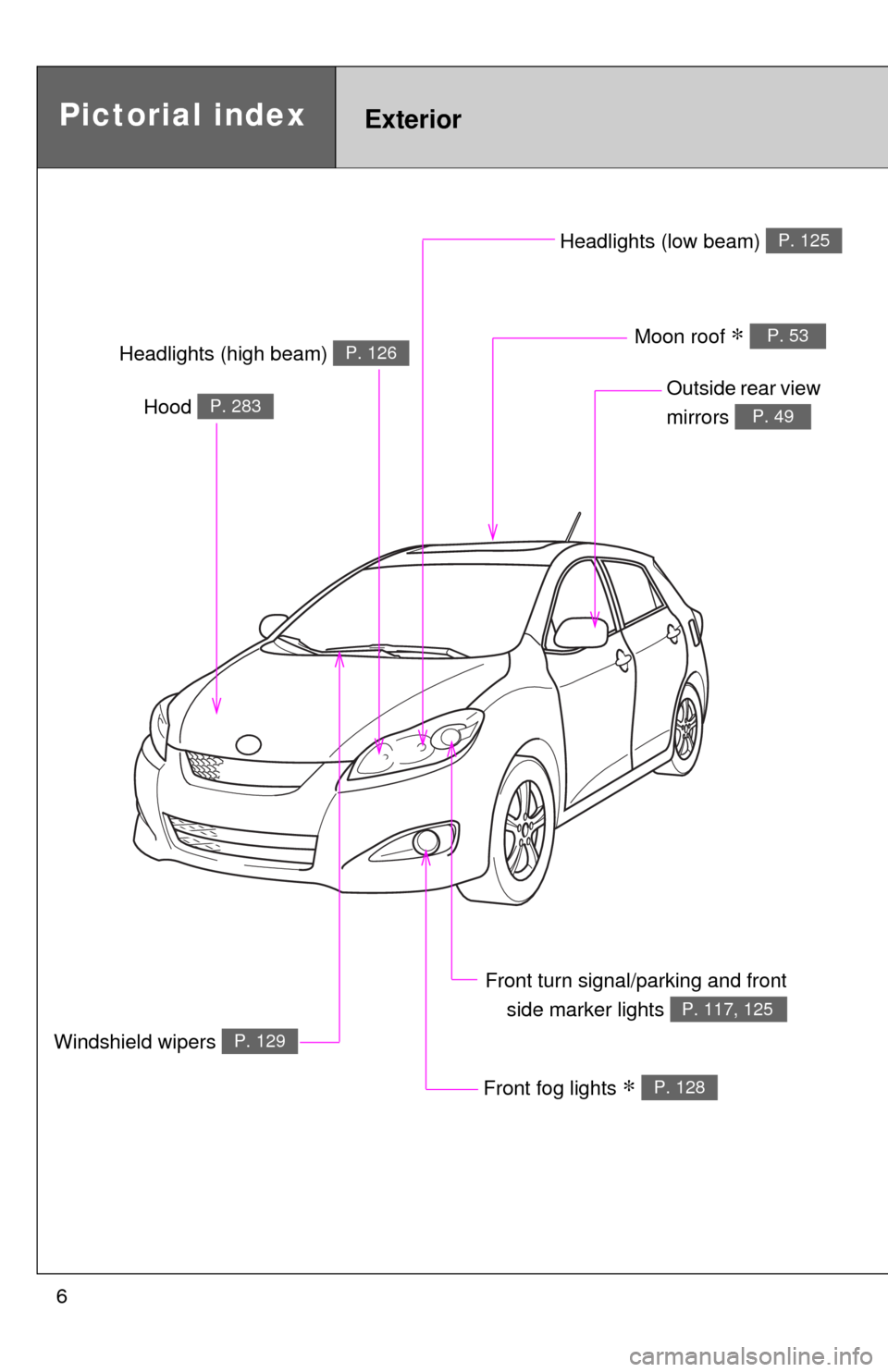

Pictorial indexExterior
Front fog lights ∗ P. 128
Hood P. 283
Windshield wipers P. 129
Outside rear view
mirrors
P. 49
Front turn signal/parking and front
side marker lights
P. 117, 125
Headlights (high beam) P. 126Moon roof ∗ P. 53

7
Tires
●Rotation
●Replacement
●Inflation pressure
●Information
P. 303
P. 362
P. 400
P. 408

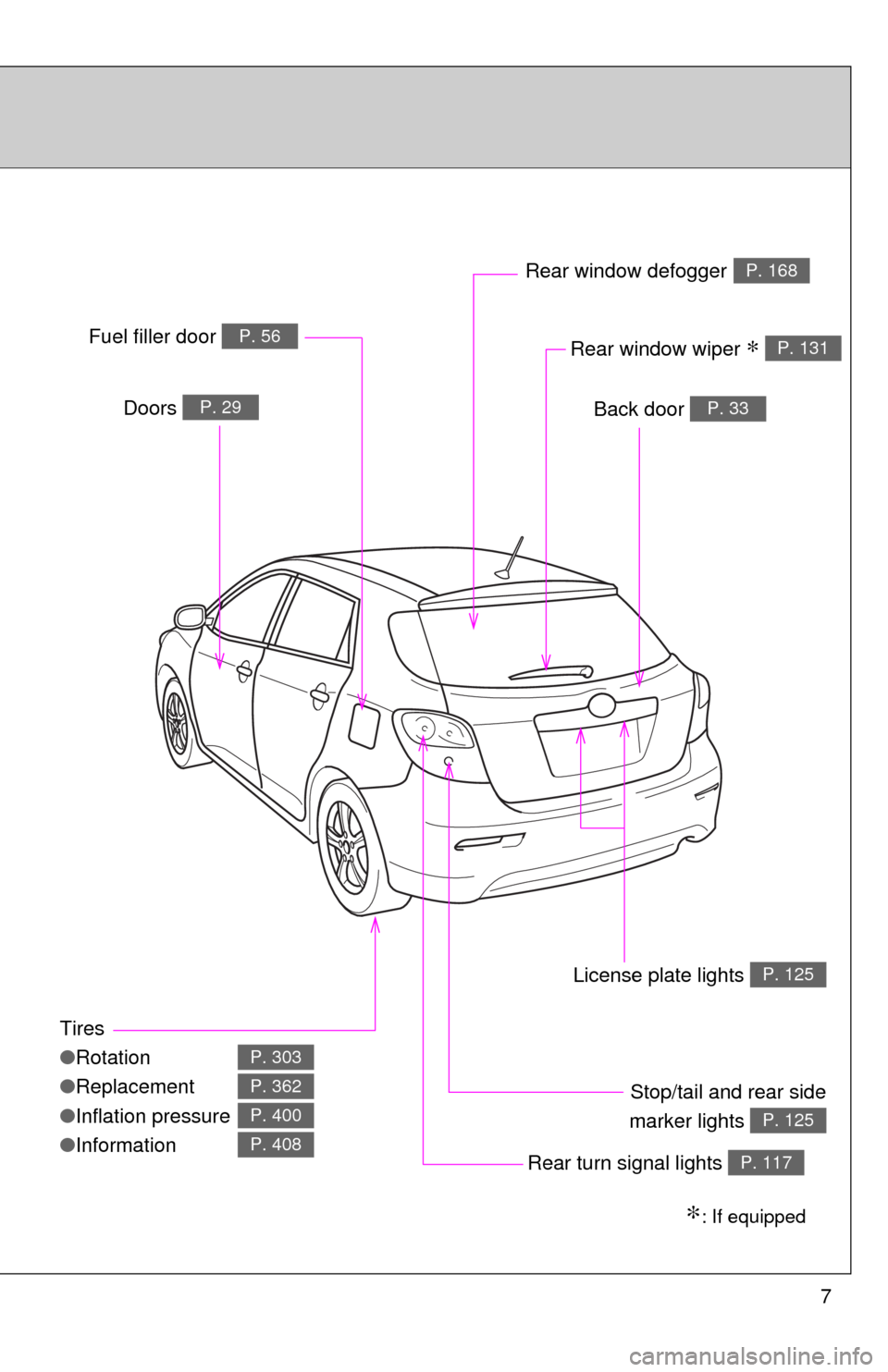

Back door P. 33Doors P. 29
Fuel filler door P. 56
Rear turn signal lights P. 117
Rear window defogger P. 168
: If equipped
Stop/tail and rear side
marker lights
P. 125
Rear window wiper ∗ P. 131
License plate lights P. 125

13

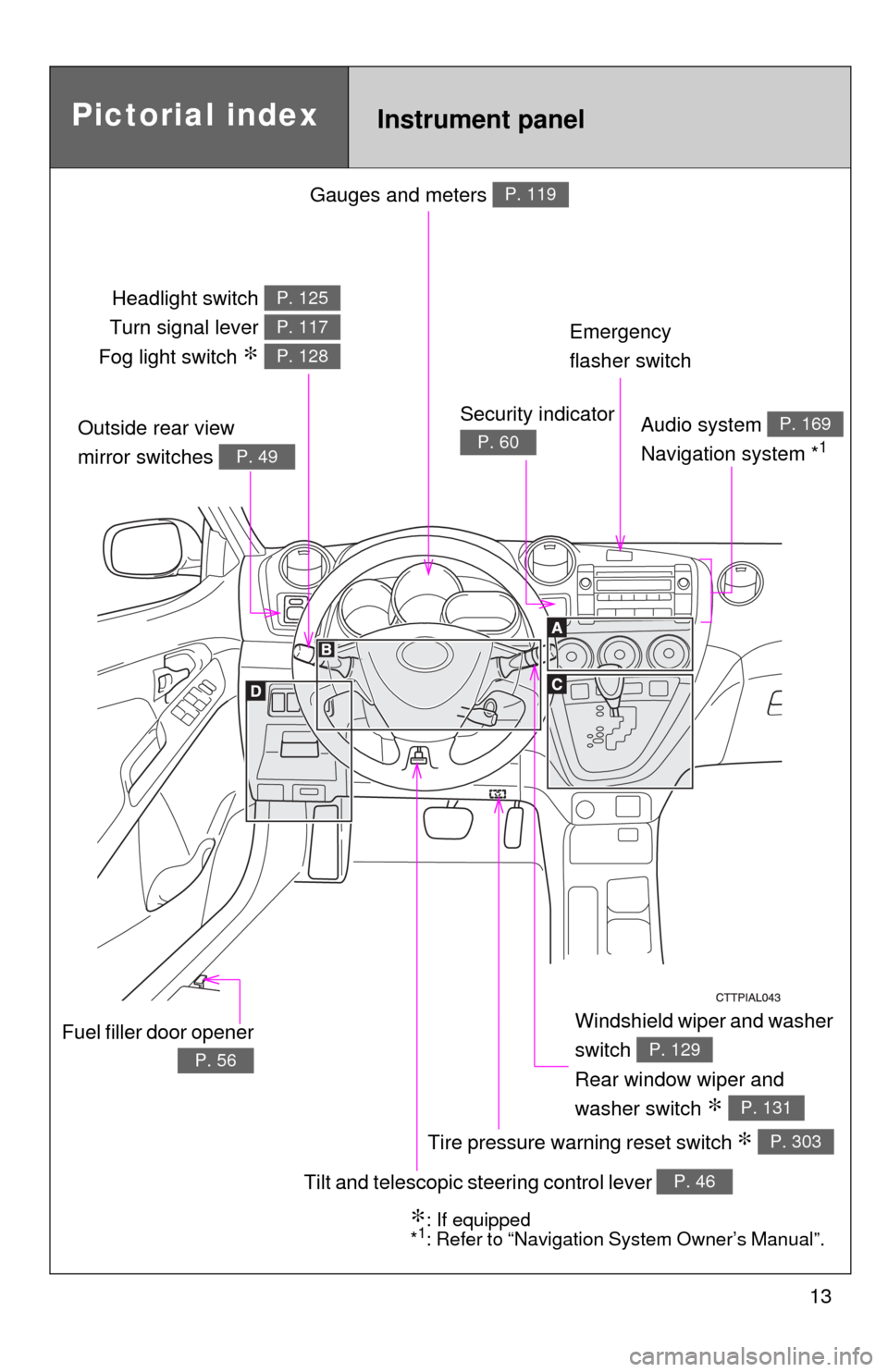

Gauges and meters P. 119
Tilt and telescopic steering control lever P. 46
Pictorial index
Headlight switch
Turn signal lever
Fog light switch
∗
P. 125
P. 117
P. 128
Instrument panel
Audio system
Navigation system *1
P. 169
Windshield wiper and washer
switch
Rear window wiper and
washer switch
∗
P. 129
P. 131
Security indicator
P. 60Outside rear view
mirror switches
P. 49
Tire pressure warning reset switch ∗ P. 303
Fuel filler door opener
P. 56
∗: If equipped
*1: Refer to “Navigation System Owner’s Manual”.
Emergency
flasher switch

When driving2
95
2-1. Driving procedures .......... 96
Driving the vehicle.............. 96
Engine (ignition) switch .... 106
Automatic transmission .... 110
Manual transmission ........ 115
Turn signal lever .............. 117
Parking brake ................... 118
2-2. Instrument cluster.......... 119
Gauges and meters............. 119
Indicators and warning
lights .............................. 122
2-3. Operating the lights and
wipers ........................... 125
Headlight switch ............... 125
Fog light switch ................ 128
Windshield wipers and
washer ........................... 129
Rear window wiper and
washer ........................... 131
2-4. Using other driving
systems ........................ 132
Cruise control ................... 132
Driving assist systems ..... 1352-5. Driving information ........ 140
Cargo and luggage .......... 140
Vehicle load limits ............ 143
Winter driving tips ............ 144
Trailer towing ................... 148
Dinghy towing
(automatic
transmission) ................. 156
Dinghy towing
(manual transmission) ... 157

98 2-1. Driving procedures
Starting on a steep uphill
Automatic transmission
Firmly set the parking brake and shift the shift lever to D.
Gently depress the accelerator pedal.
Release the parking brake.
Manual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as
gradually releasing the clutch pedal.
Release the parking brake.
■Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the
windows may become fogged-up, and the road will be slippery.
●Drive carefully when it starts to rain, because the road surface will be
especially slippery.
●Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road
surface, preventing the steering and brakes from operating properly.
■Breaking in your new Toyota
To extend the life of the vehicle, the following precautions are recommended
to observe:
●For the first 200 miles (300 km):
Avoid sudden stops.
●For the first 500 miles (800 km):
Do not tow a trailer.
●For the first 1000 miles (1600 km):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive slowly with the manual transmission in a high gear.
• Do not drive at a constant speed for extended periods.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3

123 2-2. Instrument cluster
2
When driving

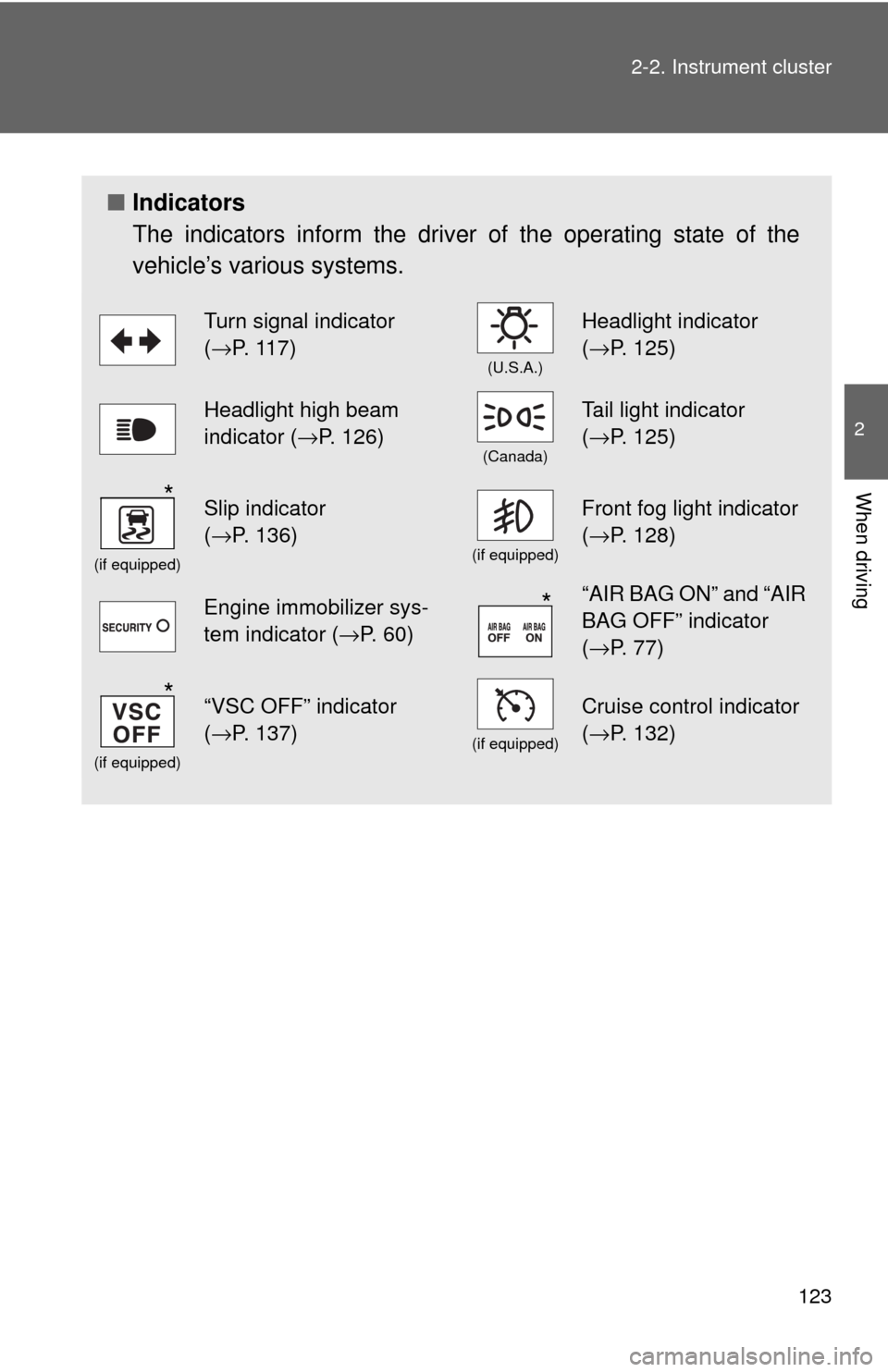

■Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(→P. 1 1 7 )
(U.S.A.)
Headlight indicator
(→P. 125)
Headlight high beam
indicator (→P. 126)
(Canada)
Tail light indicator
(→P. 125)
(if equipped)
Slip indicator
(→P. 136)
(if equipped)
Front fog light indicator
(→P. 128)
Engine immobilizer sys-
tem indicator (→P. 60)“AIR BAG ON” and “AIR
BAG OFF” indicator
(→P. 77)
(if equipped)
“VSC OFF” indicator
(→P. 137)
(if equipped)
Cruise control indicator
(→P. 132)
*
*
*

128
2-3. Operating the lights and wipers
Fog light switch (if equipped)

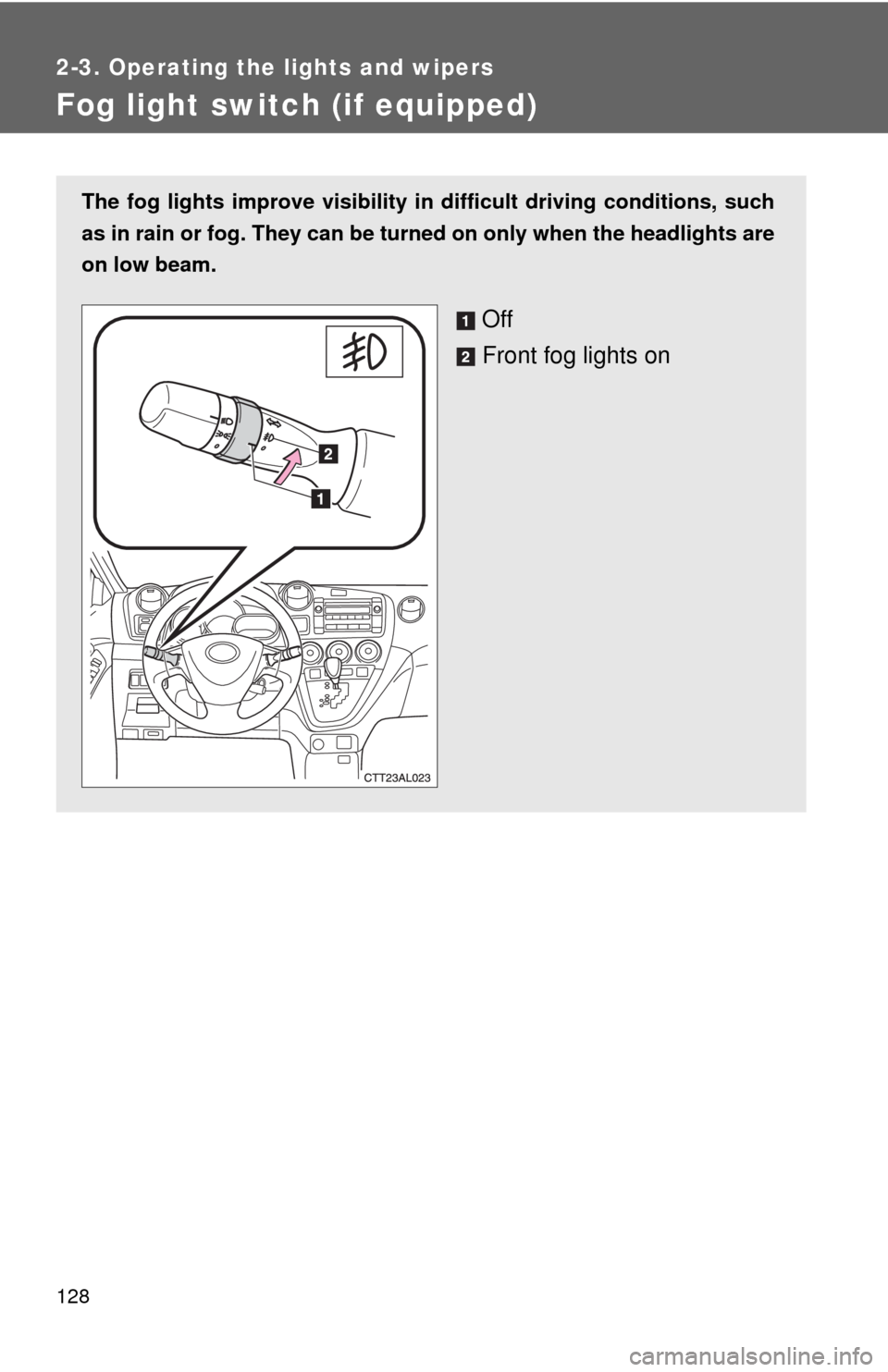

The fog lights improve visibility in difficult driving conditions, such
as in rain or fog. They can be turned on only when the headlights are
on low beam.
Off
Front fog lights on

327 4-3. Do-it-yourself maintenance
4
Maintenance and care
7 EPS 60 A Electric power steering
8 P/I 50 A EFI MAIN, HORN, IG2
9 H-LP MAIN 50 AH-LP LH LO, H-LP RH LO, H-LP
LH HI, H-LP RH HI
10 EFI NO. 2 10 A Emission control system
11 EFI NO. 1 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
12 H-LP RH HI 10 A Right-hand headlight (high beam)
13 H-LP LH HI 10 A Left-hand headlight (high beam)
14 H-LP RH LO 10 ARight-hand headlight (low beam),
front fog lights
15 H-LP LH LO 10 A Left-hand headlight (low beam)
16 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
17 TURN-HAZ 10 ATurn signal lights, emergency
flashers
18 ALT-S 7.5 A Charging system
19 AM2 NO. 2 7.5 AStarting system, multiport fuel
injection system/sequential multi-
port fuel injection system
20 AM2 30 AStarting system, multiport fuel
injection system/sequential multi-
port fuel injection system
21 STRG LOCK 20 A No circuit
22 IG2 NO.2 7.5 A Starting system
23 ECU-B2 10 A Engine immobilizer system
FuseAmpereCircuit
