288
4-3. Do-it-yourself maintenance

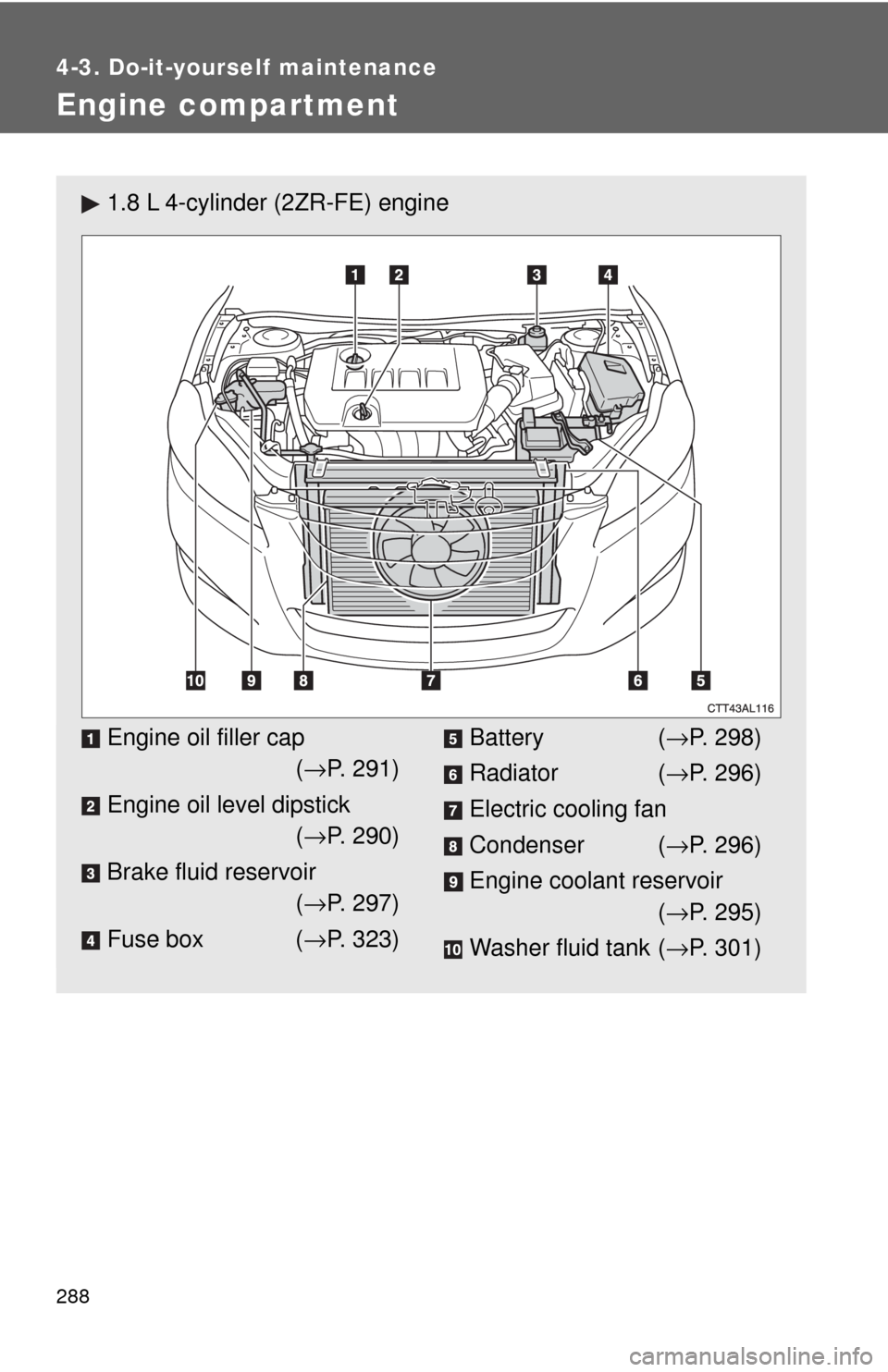

Engine compartment
1.8 L 4-cylinder (2ZR-FE) engine
Engine oil filler cap
(→P. 291)
Engine oil level dipstick
(→P. 290)
Brake fluid reservoir
(→P. 297)
Fuse box (→P. 323)Battery (→P. 298)
Radiator (→P. 296)
Electric cooling fan
Condenser (→P. 296)
Engine coolant reservoir
(→P. 295)
Washer fluid tank (→P. 301)

289 4-3. Do-it-yourself maintenance
4
Maintenance and care

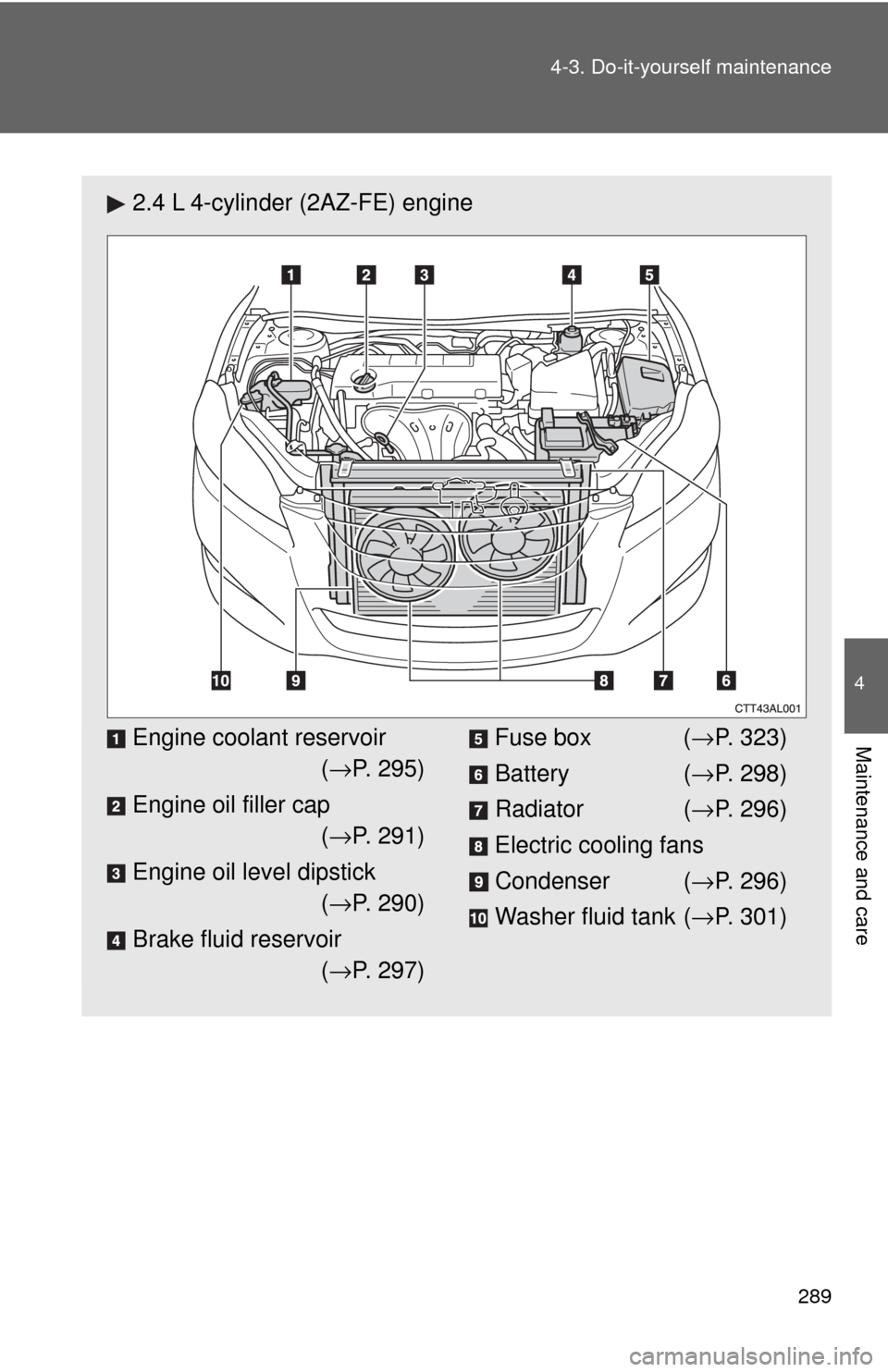

2.4 L 4-cylinder (2AZ-FE) engine
Engine coolant reservoir
(→P. 295)
Engine oil filler cap
(→P. 291)
Engine oil level dipstick
(→P. 290)
Brake fluid reservoir
(→P. 297)Fuse box (→P. 323)
Battery (→P. 298)
Radiator (→P. 296)
Electric cooling fans
Condenser (→P. 296)
Washer fluid tank (→P. 301)

323
4-3. Do-it-yourself maintenance
4
Maintenance and care

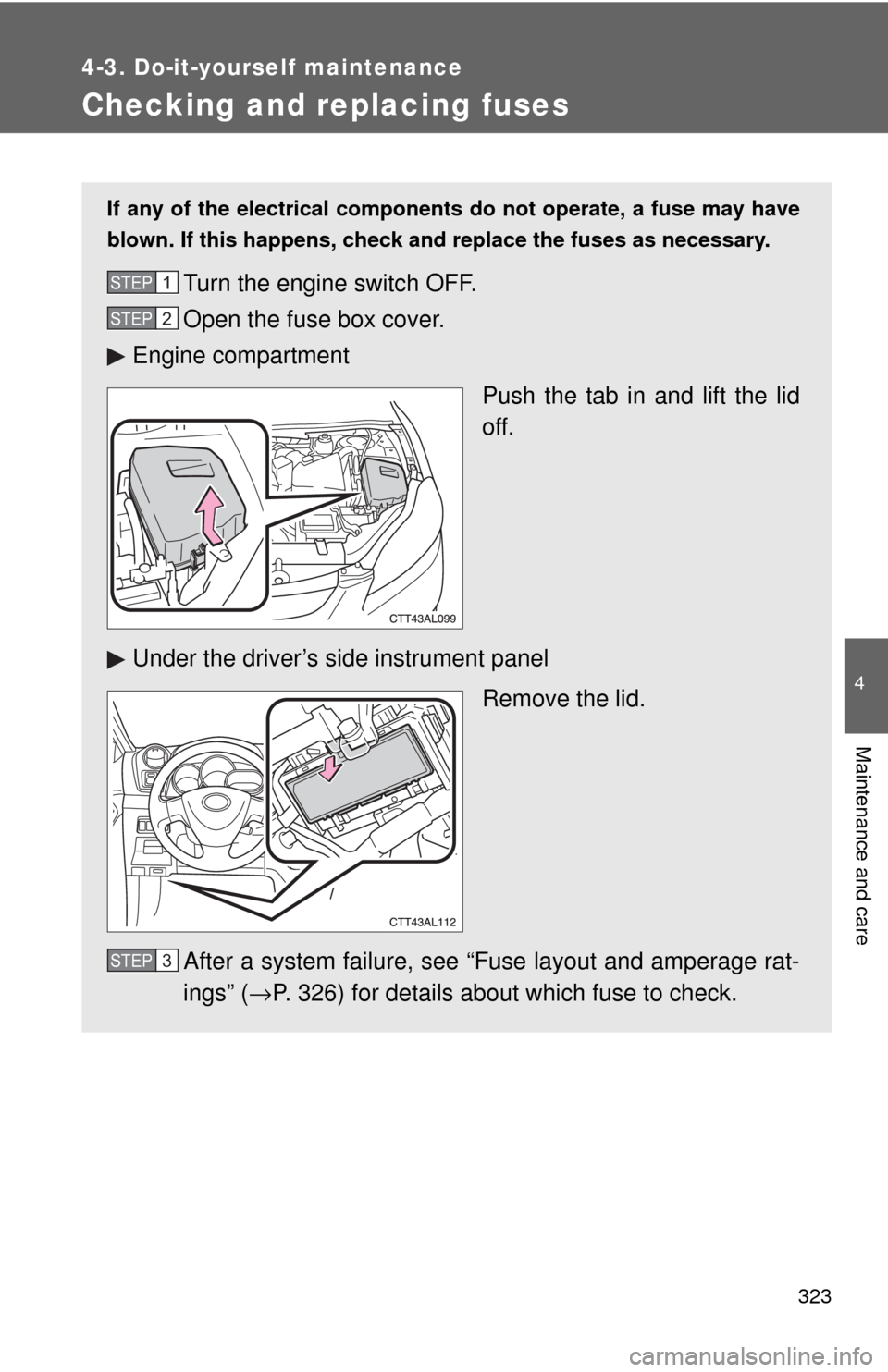

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the engine switch OFF.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Under the driver’s side instrument panel
Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” (→P. 326) for details about which fuse to check.STEP1
STEP2
STEP3

324 4-3. Do-it-yourself maintenance

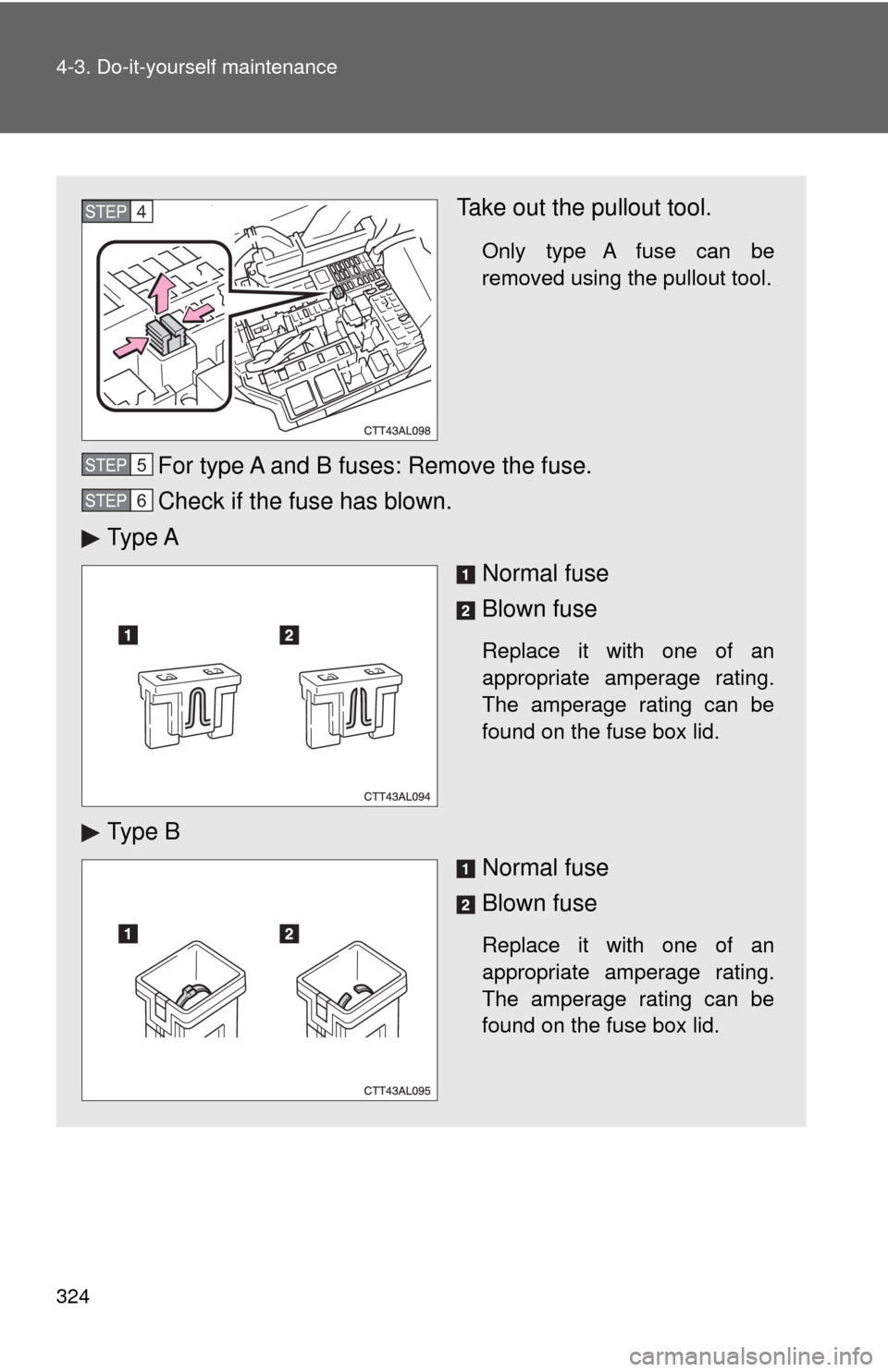

Take out the pullout tool.
Only type A fuse can be
removed using the pullout tool.
For type A and B fuses: Remove the fuse.
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP4
STEP5
STEP6

331 4-3. Do-it-yourself maintenance
4
Maintenance and care
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacing. (→P. 332)
●If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
●Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer, as soon as possible.

432 Alphabetical index
Floor mat................................... 254
Fluid
Brake ..................................... 297
Washer .................................. 301
Fog lights
Replacing light bulbs ............. 332
Switch.................................... 128
Wattage ................................. 404
Front passenger occupant
classification system ..............77
Front passenger's seat belt
reminder light......................... 355
Front seats
Adjustment ..............................35
Front side marker lights
Replacing light bulbs ............. 332
Switch.................................... 125
Wattage ................................. 404
Front turn signal lights
Replacing light bulbs ............. 332
Switch.................................... 117
Wattage ................................. 404
Fuel
Capacity ................................ 394
Fuel gauge ............................ 119
Fuel pump shut off system .... 349
Gas station information ......... 440
Information ............................ 405
Refueling .................................56
Type ...................................... 394
Fuel door.....................................56
Fuel filler door ............................56
Fuel pump shut off system ..... 349
Fuses......................................... 323Gas station information .......... 440
Gauges...................................... 119
Glove box ................................. 237
Grocery bag hooks .................. 251
Hands-free phone system
(for cellular phone) ................ 200
Head restraints
Adjusting ................................ 40
Headlights
Replacing light bulbs ............. 332
Switch ................................... 125
Wattage................................. 404
Heaters
Side mirror ............................ 168
Hood.......................................... 283
Hooks
Cargo hooks.......................... 255
Grocery bag hooks................ 251FG
H
