364 5-2. Steps to take in an emergency
■Front passenger detection sensor and passenger seat belt reminder
●If luggage is placed on the front passenger seat, the front passenger
detection sensor may cause the warning light to flash, even if a passen-
ger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passen-
ger, and the warning light may not operate properly.
■Changing the engine oil (U.S.A. only)
Make sure to reset the oil change system. (P. 298)
■
When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level.
Pushing the tire pressure warning reset switch does not turn off the tire
pressure warning light.
■The tire pressure warning light may turn on due to natural causes
The tire pressure warning light may turn on due to natural causes such
as natural air leaks or tire inflation pressure changes caused by temper-
ature. In this case, adjusting the tire inflation pressure will turn off the
warning light (after a few minutes).

366 5-2. Steps to take in an emergency
■If the tire pressure warning light comes on after blinking for 1
minute frequently
If the tire pressure warning light comes on after blinking for 1 minute fre-
quently when the engine switch is turned to the “ON” position, have it
checked by your Toyota dealer.
■Customization that can be configured at Toyota dealer
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features P. 427) However, Toyota recommends that the
seat belt reminder buzzer be operational to alert the driver and front passen-
ger that the seat belts are not fastened.
CAUTION
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is probable that you have a flat tire. Check the tires.
If the tire is flat, change to the spare tire and have the flat tire repaired
by the nearest Toyota dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

5
When trouble arises

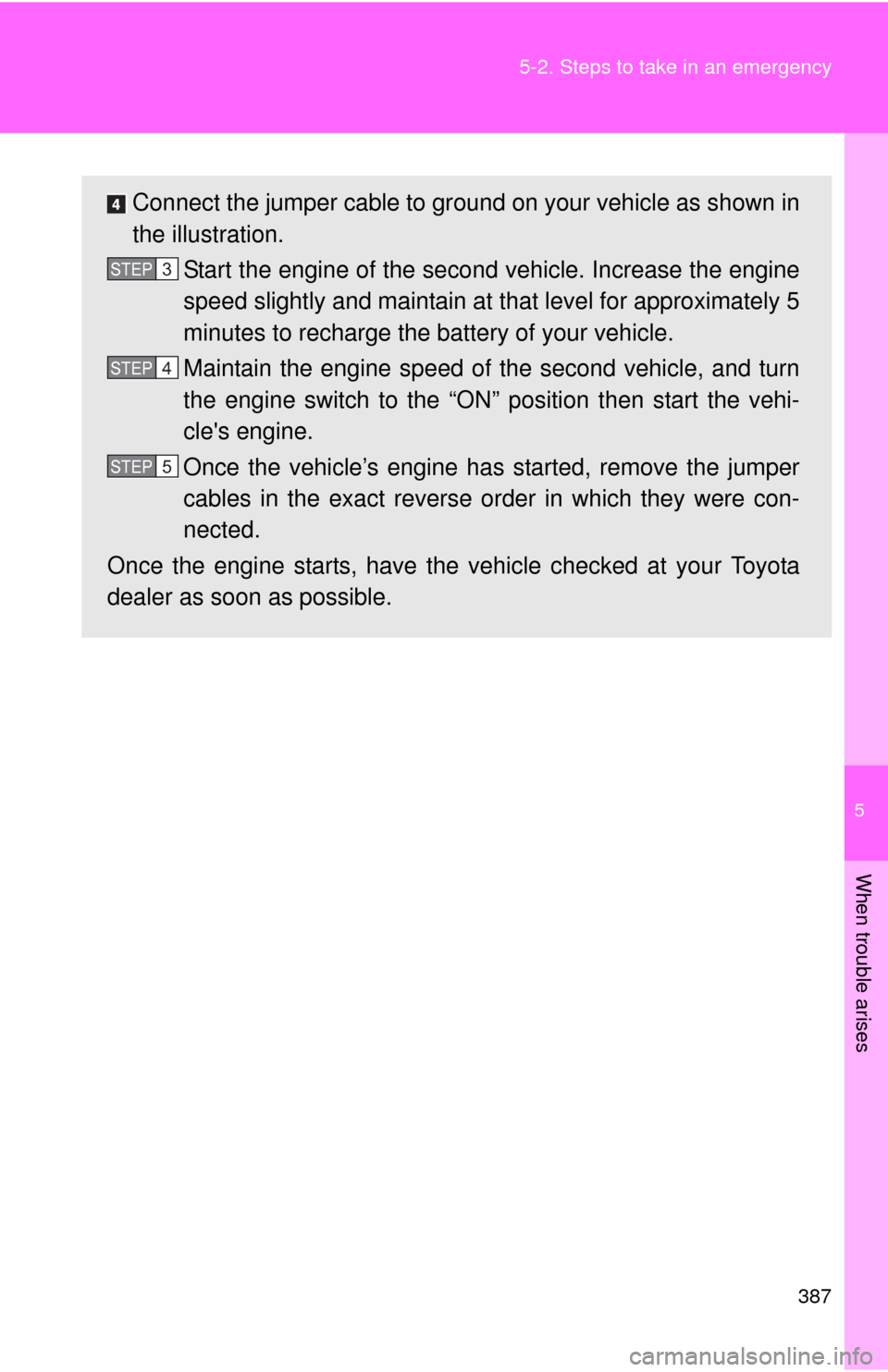

387 5-2. Steps to take in an emergency
Connect the jumper cable to ground on your vehicle as shown in
the illustration.
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Maintain the engine speed of the second vehicle, and turn
the engine switch to the “ON” position then start the vehi-
cle's engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your Toyota
dealer as soon as possible.
STEP3
STEP4
STEP5

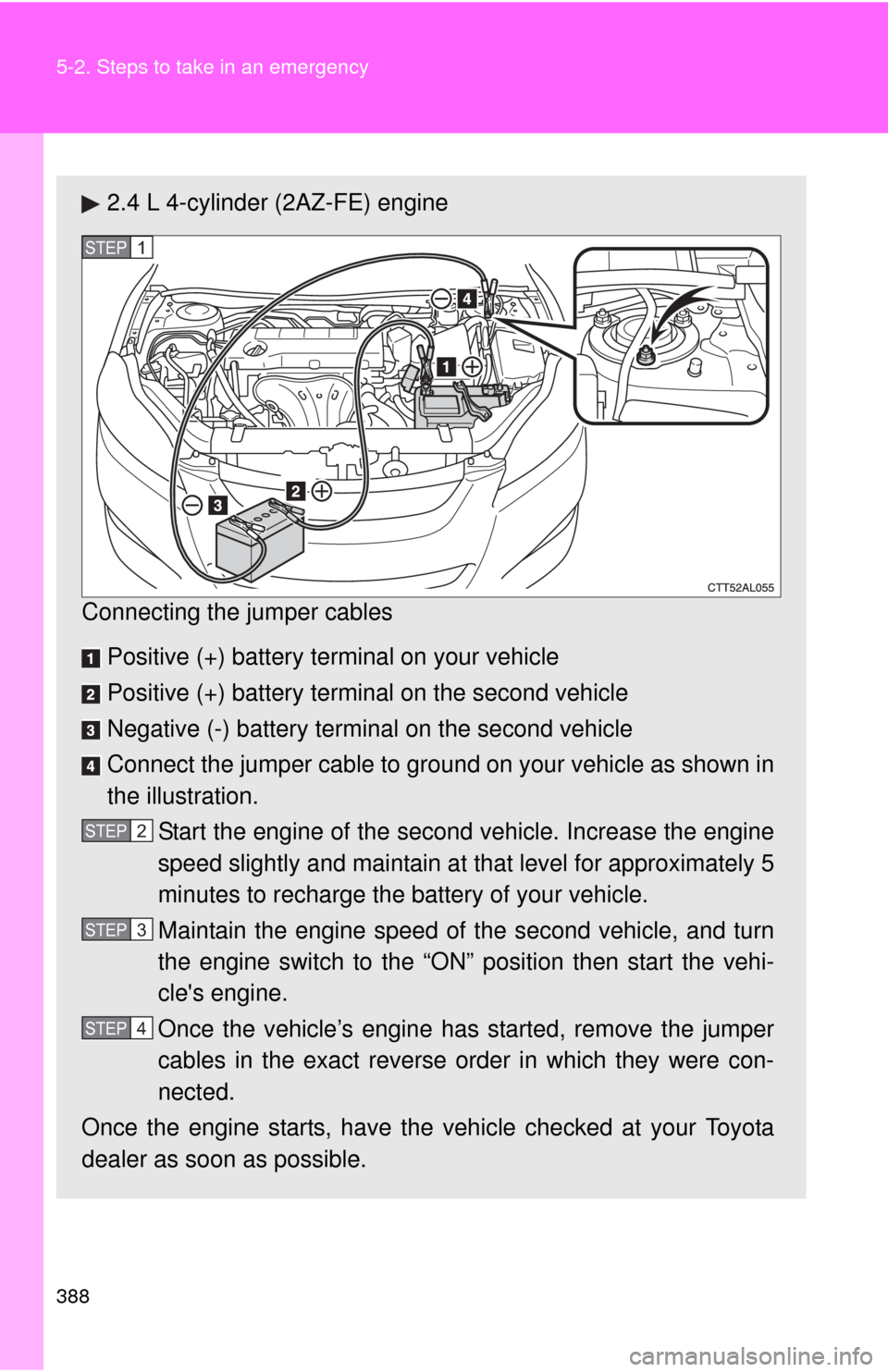

388 5-2. Steps to take in an emergency
2.4 L 4-cylinder (2AZ-FE) engine
Connecting the jumper cables
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (-) battery terminal on the second vehicle
Connect the jumper cable to ground on your vehicle as shown in
the illustration.
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Maintain the engine speed of the second vehicle, and turn
the engine switch to the “ON” position then start the vehi-
cle's engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your Toyota
dealer as soon as possible.
STEP1
STEP2
STEP3
STEP4

404 6-1. Specifications
Electrical system
Manual transaxle
Automatic transaxle
Battery
Open voltage at
68F (20C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage checked 20 minutes after the
engine and all the lights turned off)
Charging rates 5 A max.
Gear oil capacity (reference)1.8 L 4-cylinder (2ZR-FE) engine
2.0 qt. (1.9 L, 1.7 Imp. qt.)
2.4 L 4-cylinder (2AZ-FE) engine
2.6 qt. (2.5 L, 2.2 Imp. qt.)
Gear oil type API GL-4
Recommended gear oil
viscositySAE 75W
Fluid capacity (reference)1.8 L 4-cylinder (2ZR-FE) engine
6.9 qt. (6.5 L, 5.7 Imp. qt.)
2.4 L 4-cylinder (2AZ-FE) engine (2WD
models)
8.2 qt. (7.8 L, 6.9 Imp. qt.)
2.4 L 4-cylinder (2AZ-FE) engine (AWD
models)
8.6 qt. (8.1 L, 7.1 Imp. qt.)
Fluid type Toyota Genuine ATF WS

439 Alphabetical index
Daytime running light
system ................................... 133
Defogger
Rear window......................... 174
Side mirror ............................ 174
Dimension ................................ 396
Dinghy towing .................. 163,164
Display
Trip meter ............................. 126
Do-it-yourself maintenance .... 285
Doors
Door glasses .......................... 56
Door lock .......................... 26, 29
Side mirrors ............................ 54
Driver's seat belt reminder
light ........................................ 362
Driving
Break-in tips ......................... 104
Correct posture....................... 68
Procedures ........................... 102
Winter driving tips ................. 151
Electric power steering........... 142
Emergency flashers
Switch ................................... 348
Emergency, in case of
If a warning light turns on ..... 359
If the engine will not start...... 383
If the shift lever cannot be
shifted from P ..................... 384
If the vehicle has a
discharged battery ............. 386
If the warning buzzer
sounds ............................... 359If you have a flat tire .............369
If you lose your keys .............385
If you think something is
wrong ..................................355
If your vehicle becomes
stuck ...................................394
If your vehicle needs to be
towed ..................................349
If your vehicle overheats .......391
Engine
Compartment ........................294
Engine switch ........................112
Hood......................................289
How to start the
engine .................................112
Identification number .............397
If the engine will not start ......383
Ignition switch........................112
Overheating...........................391
Engine coolant
Capacity ................................403
Checking ...............................300
Preparing and checking before
winter ..................................151
Engine coolant temperature
gauge ......................................126
Engine immobilizer system.......65
Engine oil
Capacity ................................401
Checking ...............................296
Preparing and checking before
winter ..................................151
Engine oil maintenance
data .........................................298
EPS ............................................142
Event data recorder .................357D
E

444 Alphabetical index
Tachometer............................... 126
Tail lights
Replacing light bulbs ............. 337
Switch.................................... 132
Wattage ................................. 411
Theft deterrent system
Engine immobilizer system .....65
Theft prevention labels..............67
Tie-down belts .......................... 261
Tire inflation pressure ............. 317
Tire information
Glossary ................................ 421
Size ....................................... 418
Tire identification number ...... 417
Uniform tire quality
grading ................................ 419Tires
Chains ................................... 151
Checking ............................... 308
If you have a flat tire.............. 369
Inflation pressure .................. 317
Inflation pressure sensor....... 309
Replacing .............................. 369
Rotating tires ......................... 308
Size ....................................... 407
Snow tires ............................. 151
Spare tire .............................. 369
Tonneau cover ......................... 263
Tools ......................................... 369
Total load capacity .................. 150
Towing
Dinghy towing ............... 163, 164
Trailer towing ........................ 155
TRAC ......................................... 143
Traction control ....................... 143
Trip meter ................................. 126
Turn signal lights
Replacing light bulbs ............. 337
Switch ................................... 123
Wattage................................. 411T

445 Alphabetical index
Vanity mirrors .......................... 251
Vehicle identification
number................................... 397
Vehicle stability control .......... 143
VSC ........................................... 143
Warning buzzers
Brake system........................ 359
Downshifting ......................... 120
Seat belt reminder ................ 362
Warning lights
Active torque control 4WD
system warning light .......... 360
Anti-lock brake system ......... 360
Brake assist system ............. 360
Brake system........................ 359
Charging system .................. 360
Electric power steering
warning light ....................... 360
Engine oil maintenance ........ 362
Engine oil pressure............... 360
Low fuel level........................ 362
Low tire pressure warning
light .................................... 362
Malfunction indicator lamp.... 360
Open door ............................ 362
Pretensioners ....................... 360
Seat belt reminder light ........ 362
SRS airbags ......................... 360
Washer fluid ......................... 362Washer
Checking ...............................306
Preparing and checking
before winter .......................151
Switch....................................136
Washing and waxing ...............274
Weight
Cargo capacity ......................147
Load limits .............................150
Weight ...................................396
Wheels ......................................321
Window glasses ........................56
Window lock switch ...................56
Windows
Power windows .......................56
Rear window defogger ..........174
Washer ..................................136
Windshield wipers ...................136
Wireless remote control key
Replacing the battery ............325
Wireless remote control ..........26
WMA disc ..................................191V
W
