cruise control TOYOTA MATRIX 2010 E140 / 2.G Owners Manual

TABLE OF CONTENTSIndex
2
1-1. Key informationKeys ..................................... 24
1-2. Opening, closing
and
locking the

doors
Wireless remote control ....... 26
Doors.................................... 29
Back door ............................. 33
1-3.
Adjustable components
(seats, mirrors,
steering wheel)
Front seats

........................... 37
Rear seats ............................ 41
Head restraints ..................... 43
Seat belts ............................. 45
Steering wheel ..................... 51
Anti-glare inside rear view mirror .................................. 52
Outside rear view mirrors ..... 54
1-4. Opening a
nd closing the
windo

ws
Power windows .................... 56
Moon roof ............................. 58
1-5. Refueling Opening the fuel tank cap .... 61
1-6. Theft deterrent system Engine immobilizer system ................................ 65
Theft prevention labels (for U.S.A.) ......................... 67 1-7. Safety information
Correct driving posture ......... 68
SRS airbags ......................... 70
Front passenger occupant classification system ........... 82
Child restraint systems ......... 87
Installing child restraints ....... 91
2-1. Driving procedures Driving the vehicle .............. 102
Engine (ignition) switch....... 112
Automatic transmission ...... 116
Manual transmission........... 121
Turn signal lever ................. 123
Parking brake ..................... 124
Horn .................................... 125
2-2. Instrument cluster Gauges and meters ............ 126
Indicators and warning lights ................................. 129
2-3. Operating the li
ghts and
wipers
Headlight switch

................. 132
Fog light switch ................... 135
Windshield wipers and washer .............................. 136
Rear window wiper and washer .............................. 138
2-4. Using other driving systems Cruise control ..................... 139
Driving assist systems ........ 142
1Before driving
2When driving

15
B
Cruise control switch  P. 139
Talk switch  P. 210
Engine (ignition) switch P. 112
Telephone switches 
P. 210
Audio remote control
switches *2  P. 203
: If equipped
*2: For vehicles with a navigation system, refer to “Navigation System Owner’s Manual”.

19
Installation of a mobile two-way radio system
As the installation of a mobile two-way radio system in your vehicle may
affect electronic systems such as the multi-port fuel injection system/sequen-
tial multi-port fuel injection system, cruise control system, anti-lock brake
system, SRS airbag system or seat belt pretensioner system, be sure to
check with your Toyota dealer for precautionary measures or special instruc-
tions regarding installation.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota
dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlor-
ate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbags, seat belt pretensioners, and wireless remote con-
trol batteries.

When driving2
101
2-1. Driving procedures
Driving the vehicle............ 102
Engine (ignition) switch .... 112
Automatic transmission .... 116
Manual transmission ........ 121
Turn signal lever .............. 123
Parking brake ................... 124
Horn ................................. 125
2-2. Instrument cluster
Gauges and meters ......... 126
Indicators and warning
lights .............................. 1292-3. Operating the lights and
wipers
Headlight switch ............... 132
Fog light switch ................ 135
Windshield wipers and
washer ........................... 136
Rear window wiper and
washer ........................... 138
2-4. Using other driving
systems
Cruise control ................... 139
Driving assist systems ..... 142
2-5. Driving information
Cargo and luggage .......... 147
Vehicle load limits ............ 150
Winter driving tips ............ 151
Trailer towing ................... 155
Dinghy towing
(automatic
transmission) ................. 163
Dinghy towing
(manual transmission) ... 164

120 2-1. Driving procedures
■Downshifting restrictions (multi-mode type)
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever is operated. (The warning buzzer will
sound twice.)
■When driving with the cruise control system (if equipped)
Standard type
Engine braking will not occur when downshifting from D to 3. (P. 139)
Multi-mode type
Engine braking will not occur when downshifting from D to 4 range of S, or
from 5 to 4 range of S. (P. 139)
■If the shift lever cannot be shifted from P
P. 384
■If the “S” indicator does not come on even after shifting the shift lever
to S (multi-mode type)
This may indicate a malfunction in the automatic transmission system. Have
the vehicle inspected by your Toyota dealer immediately.
(In this situation, the vehicle will operate as if the shift lever is in D.)

130 2-2. Instrument cluster

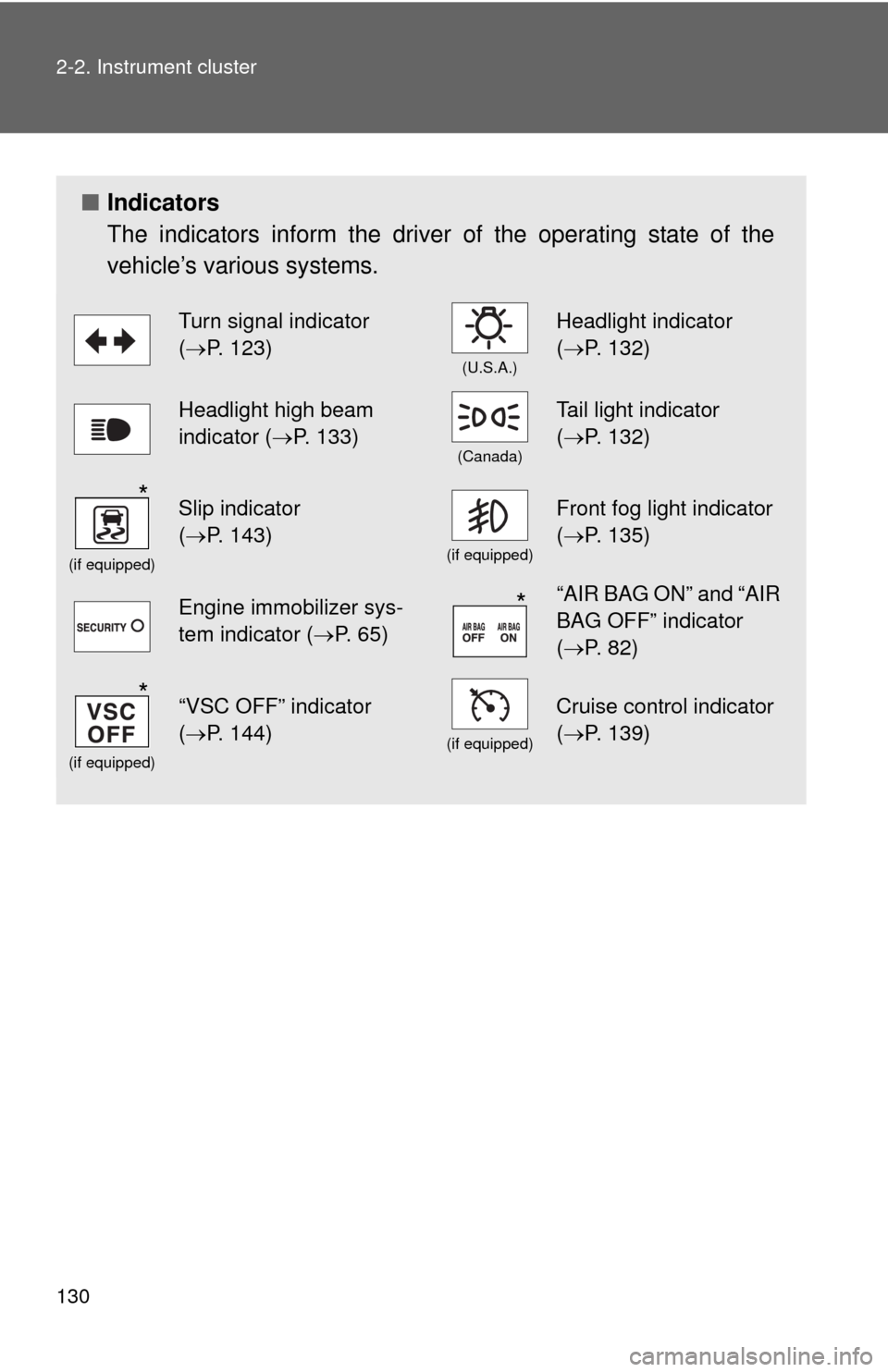

■Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 123)
(U.S.A.)
Headlight indicator
(P. 132)
Headlight high beam
indicator (P. 133)
(Canada)
Tail light indicator
(P. 132)
(if equipped)
Slip indicator
(P. 143)
(if equipped)
Front fog light indicator
(P. 135)
Engine immobilizer sys-
tem indicator (P. 65)“AIR BAG ON” and “AIR
BAG OFF” indicator
(P. 82)
(if equipped)
“VSC OFF” indicator
(P. 144)
(if equipped)
Cruise control indicator
(P. 139)
*
*
*

139
2
When driving
2-4. Using other driving systems

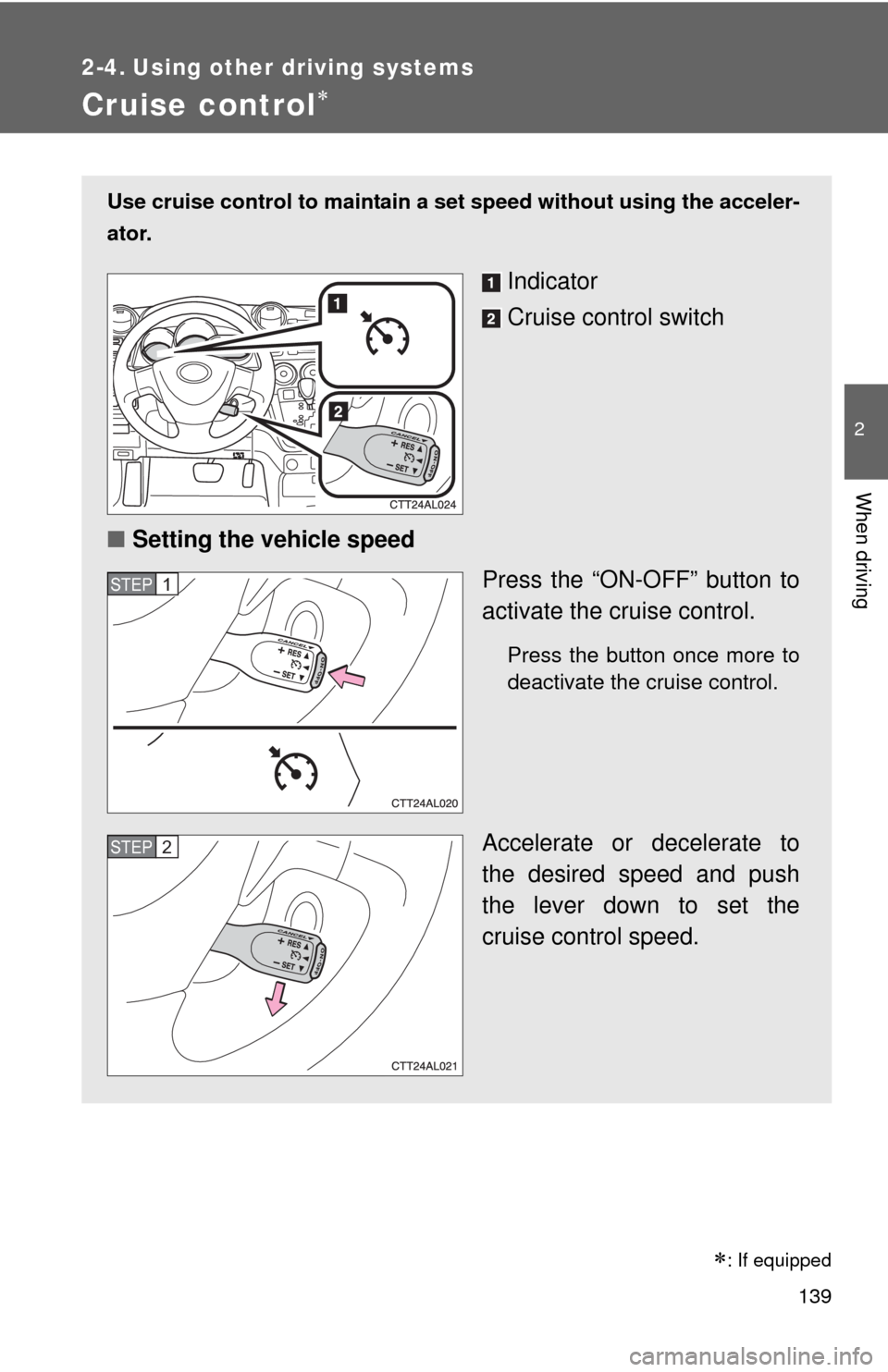

Cruise control
Use cruise control to maintain a set speed without using the acceler-
ator.
Indicator
Cruise control switch
■Setting the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Press the button once more to
deactivate the cruise control.
Accelerate or decelerate to
the desired speed and push
the lever down to set the
cruise control speed.
STEP1
STEP2

: If equipped

140 2-4. Using other driving systems
■Cruise control can be set when
●Automatic transmission:
The shift lever is in D or “3” (standard type), or in D, “4” or “5” range of S
(multi-mode type).
●Vehicle speed is above 25 mph (40 km/h).

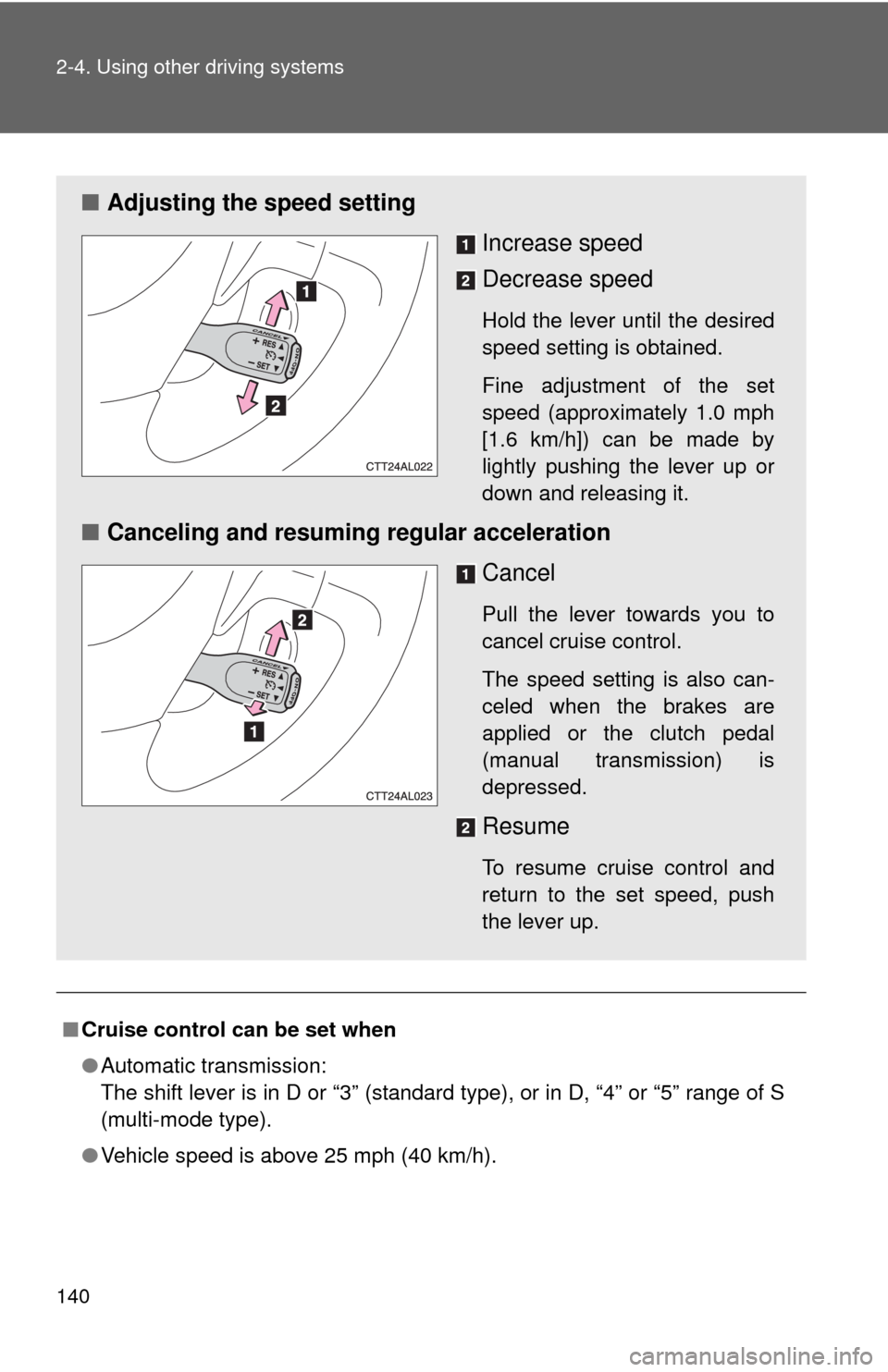

■Adjusting the speed setting
Increase speed
Decrease speed
Hold the lever until the desired
speed setting is obtained.
Fine adjustment of the set
speed (approximately 1.0 mph
[1.6 km/h]) can be made by
lightly pushing the lever up or
down and releasing it.
■Canceling and resuming regular acceleration
Cancel
Pull the lever towards you to
cancel cruise control.
The speed setting is also can-
celed when the brakes are
applied or the clutch pedal
(manual transmission) is
depressed.
Resume
To resume cruise control and
return to the set speed, push
the lever up.

141 2-4. Using other driving systems
2
When driving
■Accelerating
The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
■Automatic cruise control cancellation
The set speed is automatically canceled in any of the following situations.
●Actual vehicle speed falls more than 10 mph (16 km/h) below the preset
vehicle speed.
At this time, the memorized set speed is not retained.
●Actual vehicle speed is below 25 mph (40 km/h).
●VSC is activated.
■If the cruise control indicator light flashes
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Contact your Toyota dealer and have your Toyota inspected.
CAUTION
■To avoid operating the cruise control by mistake
Keep the “ON-OFF” button off when not in use.
■Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in control of the vehicle being lost and could cause an
accident resulting in death or serious injury.
●In heavy traffic
●On roads with sharp bends
●On winding roads
●On slippery roads, such as those covered with rain, ice or snow
●On steep hills
●When your vehicle is towing a trailer

438 Alphabetical index
Care
Exterior .................................. 274
Interior ................................... 276
Seat belts .............................. 277
Cargo capacity ......................... 147
Cargo hooks ............................. 261
CD changer ............................... 184
CD player .................................. 184
Chains ....................................... 151
Child restraint system
Booster seats, definition ..........87
Booster seats, installation .......91
Convertible seats,
definition ...............................87
Convertible seats,
installation .............................91
Front passenger occupant
classification system .............82
Infant seats, definition .............87
Infant seats, installation...........91
Installing CRS with LATCH
anchors .................................92
Installing CRS with
seat belts ..............................94
Installing CRS with top tether
straps ....................................98Child safety
Airbag precautions .................. 77
Battery precautions ....... 305, 389
Child restraint system ............. 87
Child-protectors....................... 30
How your child should wear
the seat belt .......................... 47
Installing child restraints.......... 91
Moon roof precautions ............ 60
Power window lock switch ...... 56
Power window precautions ..... 57
Removed key battery
precautions ......................... 326
Seat belt extender
precautions ........................... 49
Seat belt precautions .............. 48
Child-protectors ......................... 30
Cleaning
Exterior.................................. 274
Interior ................................... 276
Seat belts .............................. 277
Clock ......................................... 252
Compass................................... 268
Condenser ................................ 301
Console box ............................. 243
Cooling system
Engine overheating ............... 391
Cruise control .......................... 139
Cup holder ................................ 245
Curtain shield airbags ............... 70
Customizable features ............ 427C
