service indicator TOYOTA MATRIX 2010 E140 / 2.G Owners Manual

284
4-2. Maintenance

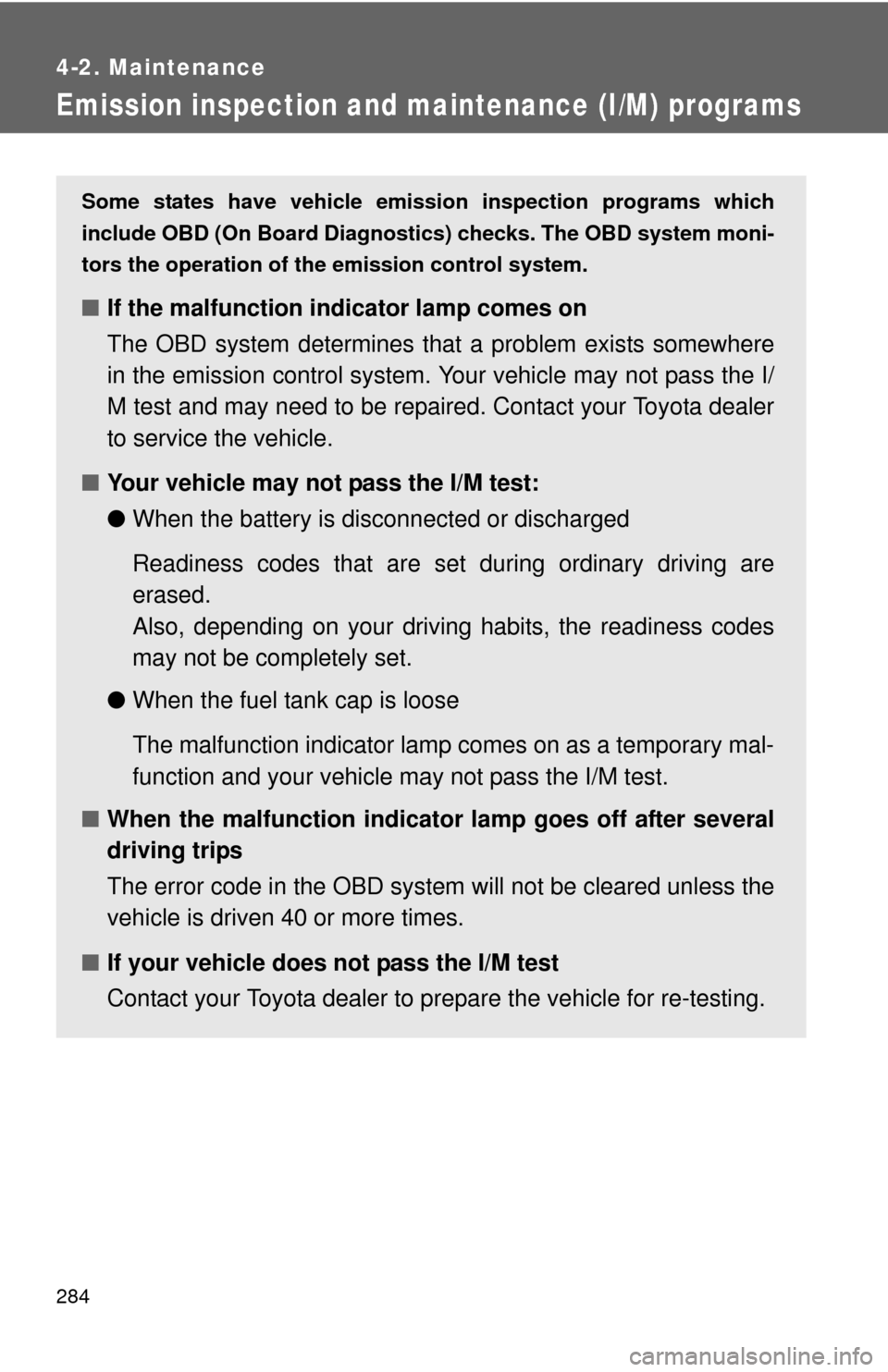

Emission inspection and maintenance (I/M) programs
Some states have vehicle emission inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system moni-
tors the operation of the emission control system.
■If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere
in the emission control system. Your vehicle may not pass the I/
M test and may need to be repaired. Contact your Toyota dealer
to service the vehicle.
■Your vehicle may not pass the I/M test:
●When the battery is disconnected or discharged
Readiness codes that are set during ordinary driving are
erased.
Also, depending on your driving habits, the readiness codes
may not be completely set.
●When the fuel tank cap is loose
The malfunction indicator lamp comes on as a temporary mal-
function and your vehicle may not pass the I/M test.
■When the malfunction indicator lamp goes off after several
driving trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■If your vehicle does not pass the I/M test
Contact your Toyota dealer to prepare the vehicle for re-testing.

413 6-1. Specifications
6
Vehicle specifications
■Toyota recommends the use of gasoline containing detergent additives
●Toyota recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
●All gasoline sold in the U.S. contains detergent additives to clean and/or
keep clean intake systems.
■Toyota recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.
■Toyota does not recommend blended gasoline
●Toyota allows the use of oxygenate blended gasoline where the oxygen-
ate content is up to 10% ethanol or 15% MTBE.
●If you use gasohol in your Toyota, be sure that it has an octane rating no
lower than 87.
●Toyota does not recommend the use of gasoline containing methanol.
■Toyota does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.

443 Alphabetical index
Seat belts
Adjusting the seat belt ............ 45
Automatic Locking
Retractor .............................. 46
Child restraint system
installation ............................ 91
Cleaning and maintaining
the seat belts...................... 277
Emergency Locking
Retractor .............................. 46
How to wear your seat belt ..... 45
How your child should wear
the seat belt ......................... 47
Pregnant women, proper seat
belt use ................................ 47
Reminder light ...................... 362
Seat belt extenders ................ 47
Seat belt pretensioners .......... 46
Seatback table ......................... 259
Seating capacity ...................... 150
Seats
Adjustment ............................. 37
Adjustment precautions .......... 39
Child seats/child restraint
system installation................ 91
Cleaning ............................... 276
Head restraint ......................... 43
Properly sitting in the seat ...... 68
Rear seat folding down........... 41
Seatback table...................... 259
Service reminder
indicators .............................. 129
Shift lever
Automatic transmission ........ 116
If the shift lever cannot
be shifted from P ................ 384
Manual transmission ............ 121
Shift lock system..................... 384
Side airbags ............................... 70Side marker lights
Replacing light bulbs .............337
Switch....................................132
Wattage .................................411
Side mirror
Adjusting .................................54
Spare tire
Inflation pressure...................317
Storage location ....................369
Spark plug ................................403
Specifications...........................396
Speedometer ............................126
Steering
Column lock release..............114
Steering wheel
Adjustment ..............................51
Audio switches ......................203
Stop lights
Replacing light bulbs .............337
Wattage .................................411
Storage feature.........................242
Storage precautions ................147
Stuck
If your vehicle becomes
stuck ...................................394
Sun visors.................................250
Sunshade
Roof.........................................59
Switch
Emergency flasher switch .....348
Engine switch ........................112
Fog light switch .....................135
Hazard light switch ................348
Ignition switch........................112
Light switches........................132
Power door lock switch ...........29
Power window switch ..............56
Window lock switch .................56
Wiper and washer switch ......136S
