bluetooth TOYOTA MATRIX 2011 E140 / 2.G User Guide

235 3-3. Using the Bluetooth
® audio system
3
Interior features
Operating the system using voice commands
By following voice guidance instructions output from the speaker,
voice commands enable the operation of the Bluetooth
® audio sys-
tem without the need to check the display or operate .
■Operation procedure when using voice commands
Press the talk switch and follow voice guidance instructions.
■Auxiliary commands when using voice commands
The following auxiliary commands can be used when operating the
system using a voice command:
“Cancel”: Exits the Bluetooth
® audio setup
“Repeat”: Repeats the previous voice guidance instruction
“Go back”: Returns to the previous procedure
“Help”: Reads aloud the function summary if a help comment is
registered for the selected function

236 3-3. Using the Bluetooth
® audio system
Using the Bluetooth® audio system for the first time
Before using the Bluetooth
® audio system, it is necessary to register
a Bluetooth® enabled portable player in the system. Follow the proce-
dure below to register (pair) a portable player:
Press and hold until “BT AUDIO” is displayed.
Press (SETUP).
The introductory guidance and portable player name registration
instructions are heard.
Select “Pair Audio Players (Pair audio player)” using a voice
command or .
Register a portable player name by either of the following
methods:
a. Select “Record Name” using , and say the name to
be registered.
b. Press the talk switch and say the name to be registered.
A voice guidance instruction to confirm the input is heard.
Select “Confirm” using a voice command or .
A passkey is displayed and heard, and a voice guidance instruction
for inputting the passkey into the portable player is heard.
STEP1
STEP2
STEP3
STEP4
STEP5

237 3-3. Using the Bluetooth
® audio system
3
Interior features
Input the passkey into the portable player.
Refer to the manual that comes with the portable player for the oper-
ation of the portable player.
Guidance for registration completion is heard.
If the portable player has a Bluetooth
® phone, the phone can be reg-
istered at the same time. (P. 256)
Menu list of the Bluetooth® audio system
“BT Audio Setup” can be canceled by pressing the on-hook switch or
saying the voice command, “Cancel”.
First menuSecond
menuThird menuOperation details
Setup
(Setup)BT Audio
Setup
(BT audio
setup)Pair Audio
Players (Pair
audio player)Registering a portable player
Select Audio
PlayerSelecting a portable player to
be used
Change NameChanging the registered
name of a portable player
List Audio
PlayersListing the registered porta-
ble players
Set Passkey Changing the passkey
Delete Audio
PlayerDeleting a registered porta-
ble player
System
SetupGuidance Vol-
umeSetting voice guidance vol-
ume
Device NameDisplaying the Bluetooth
®
device address and name
Reset Setting Initializing the system
STEP6

238 3-3. Using the Bluetooth
® audio system
■When using a voice command
For numbers, say a combination of single digits from zero to nine.
Say the command correctly and clearly.
■Situations where the system may not recognize your voice
●When driving on rough roads
●When driving at high speeds
●When air is blowing out of the vents onto the microphone
●When the air conditioning fan emits a loud noise
■Operations that cannot be performed while driving
●Operating the system with
●Registering a portable player to the system
■Changing the passkey
P. 244

239
3-3. Using the Bluetooth® audio system
3
Interior features

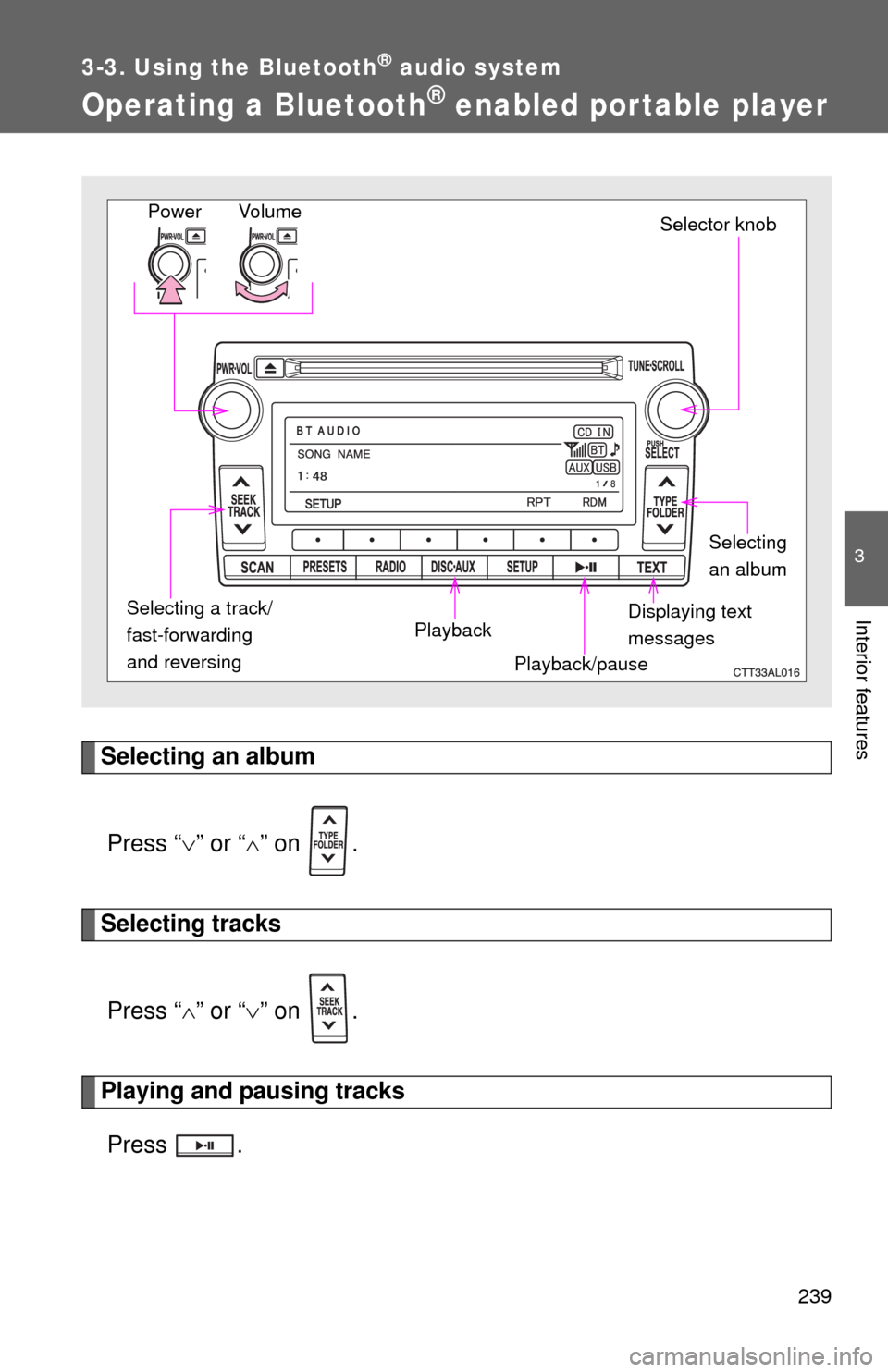

Operating a Bluetooth® enabled portable player
Selecting an album
Press “” or “” on .
Selecting tracks
Press “” or “” on .
Playing and pausing tracks
Press .
Vo lu m e Power
Playback/pauseDisplaying text
messagesSelector knob
Selecting
an album
Selecting a track/
fast-forwarding
and reversingPlayback

240 3-3. Using the Bluetooth
® audio system
Fast-forwarding and reversing tracks
Press and hold “
” or “” on .
Switching the display
Press .
Each time is pressed, the display changes in the following order:
Track title  Track title/Artist name  Track title/Album name  Track
title/Elapsed time
Using the steering wheel audio switches
P. 2 2 7
■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.

241
3-3. Using the Bluetooth® audio system
3
Interior features

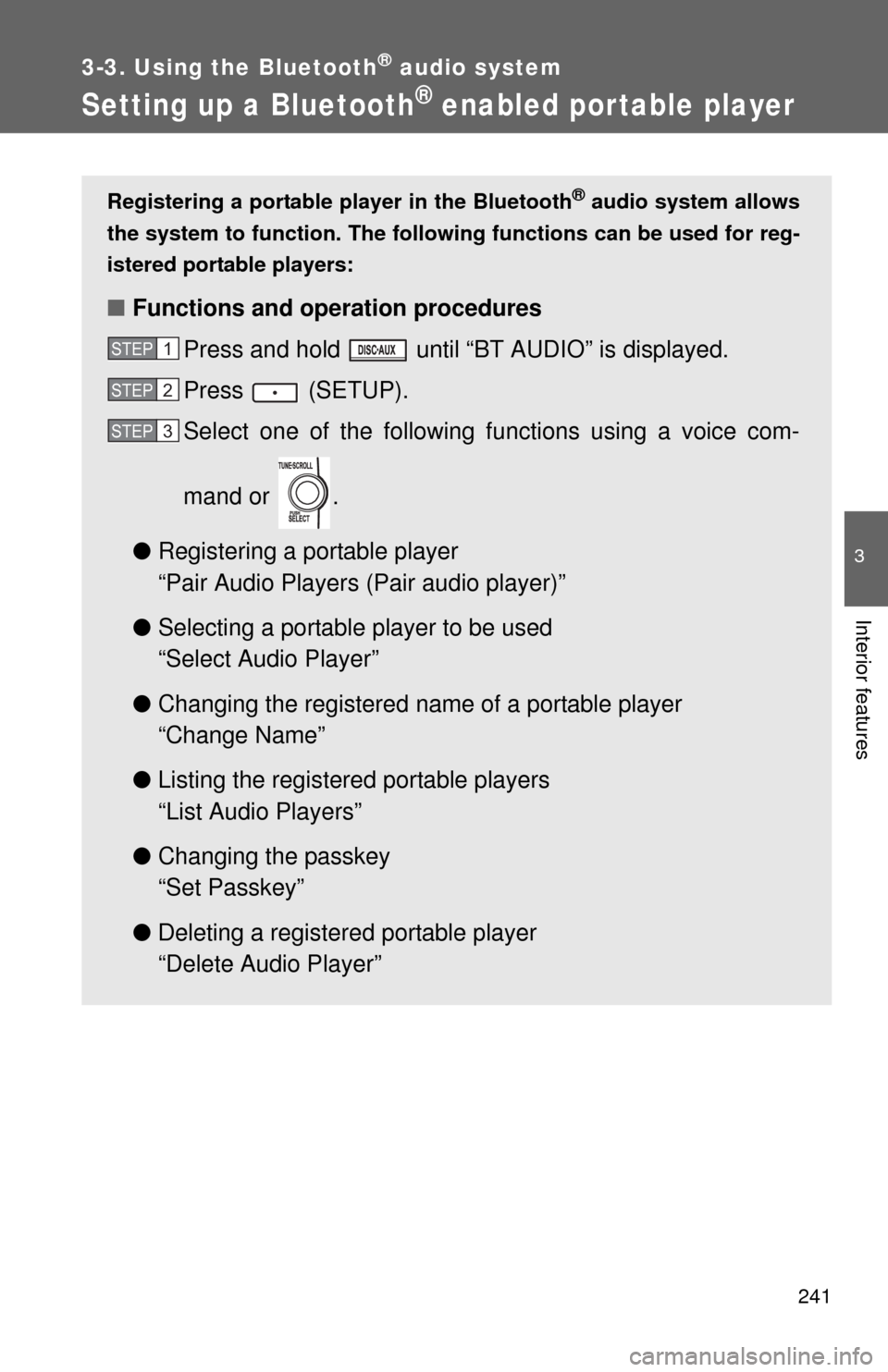

Setting up a Bluetooth® enabled por table player
Registering a portable player in the Bluetooth® audio system allows
the system to function. The following functions can be used for reg-
istered portable players:
■Functions and operation procedures
Press and hold until “BT AUDIO” is displayed.
Press (SETUP).
Select one of the following functions using a voice com-
mand or .
●Registering a portable player
“Pair Audio Players (Pair audio player)”
●Selecting a portable player to be used
“Select Audio Player”
●Changing the registered name of a portable player
“Change Name”
●Listing the registered portable players
“List Audio Players”
●Changing the passkey
“Set Passkey”
●Deleting a registered portable player
“Delete Audio Player”
STEP1
STEP2
STEP3

242 3-3. Using the Bluetooth
® audio system
Registering a portable player
Select “Pair Audio Players (Pair audio player)” using a voice com-
mand or , and perform the procedure for registering a portable
player. (P. 236)
Selecting a portable player to be used
Select “Select Audio Player” using a voice command or .
Select the portable player to be used by either of the following
methods, and select “Confirm” using a voice command or
:
a. Press the talk switch and say the name of the desired por-
table player.
b. Press the talk switch and say “List audio players”. When the
name of the desired portable player is read aloud, press the
talk switch.
STEP1
STEP2

243 3-3. Using the Bluetooth
® audio system
3
Interior features
Press the talk switch and say “From car” or “From audio”, and
select “Confirm” using a voice command or .
If “From car” is selected, the portable player will be automatically
connected whenever the engine switch is in either the “ACC” or “ON”
position.
Changing the registered name of a portable player
Select “Change Name” using a voice command or .
Select the name of the portable player to be changed by
either of the following methods, and select “Confirm” using a
voice command or :
a. Press the talk switch and say the name of the desired por-
table player.
b. Press the talk switch and say “List audio players”. When the
name of the desired portable player is read aloud, press the
talk switch.
Press the talk switch or select “Record Name” using ,
and say the new name.
Select “Confirm” using a voice command or .
STEP3
STEP1
STEP2
STEP3
STEP4

244 3-3. Using the Bluetooth
® audio system
Listing the registered portable players
Select “List Audio Players” using a voice command or . The list
of registered portable players will be read aloud.
When listing is complete, the system returns to “BT Audio Setup”.
Pressing the talk switch while the name of a portable player is being
read aloud selects the portable player, and the following functions will
become available:
●Selecting a portable player: “Select Audio Player”
●Changing a registered name: “Change Name”
●Deleting a portable player: “Delete Audio Player”
Changing the passkey
Select “Set Passkey” using a voice command or .
Press the talk switch, say a 4 to 8-digit number, and select
“Confirm” using a voice command or .
When the entire number to be registered as a passkey has
been input, press again.
STEP1
STEP2
STEP3
