2011
Corolla Matrix

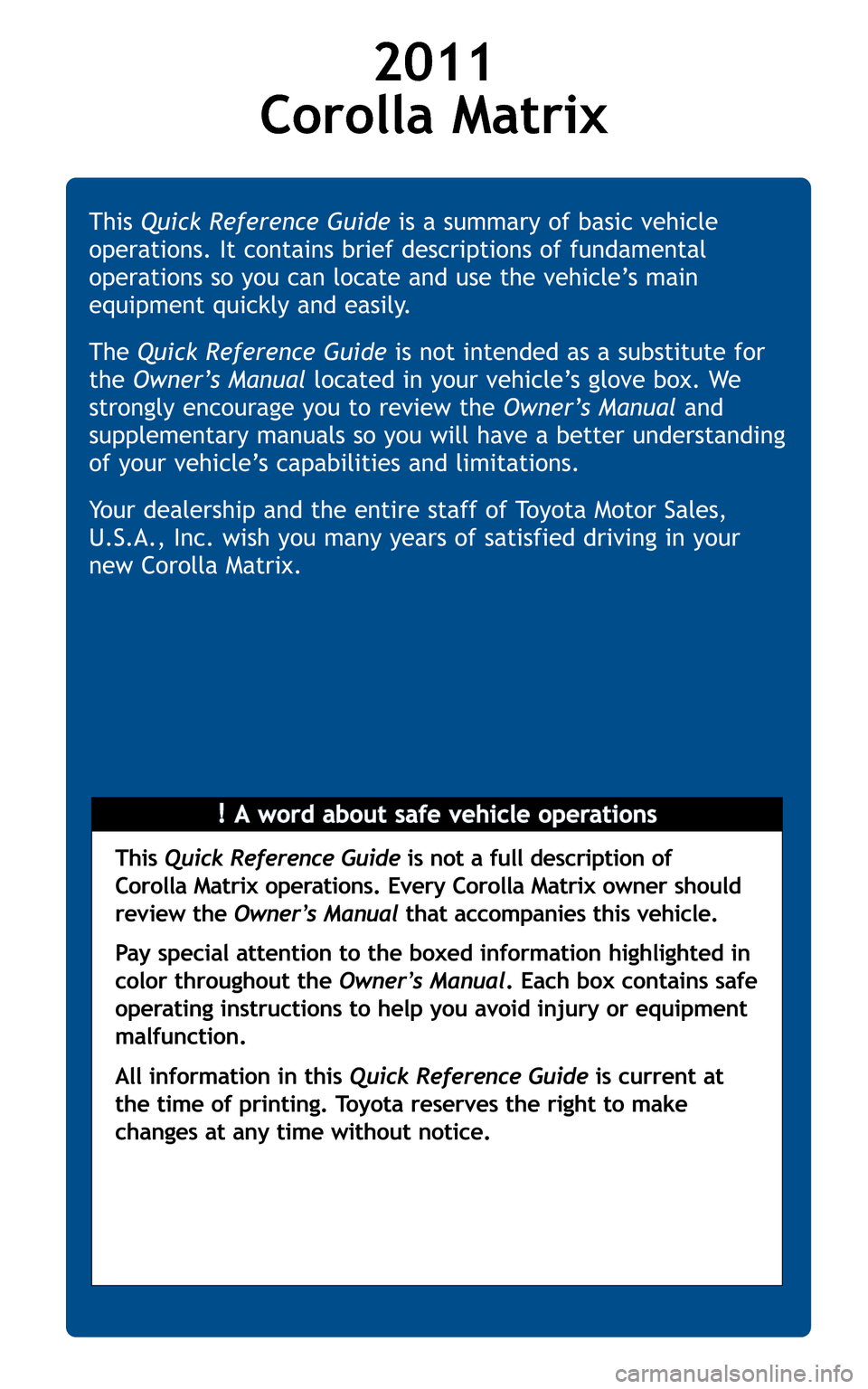

This Quick Reference Guide is not a full description of
Corolla Matrix operations. Every Corolla Matrix owner should
review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed
information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
414843M2.qxd:414843M2 11/18/10 9:43 AM Page B

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 7Fuel tank door release and cap6Hood release 7Indicator symbols4-5Instrument cluster 4Instrument panel2-3
Keyless entry16
Air Conditioning/Heating 16Audio 14-15Auto lock/unlock28Automatic Transmission 8Auxiliary storage 17Bottle holders19Clock 10Cruise control17Cup holders18Door-Back 13Door locks-Power 13Light control-Instrument panel 16Lights & turn signals 11Moonroof 13Parking brake10Power outlet-12V DC 19Power outlet-115V AC19Seat adjustments-Front 9Seat adjustments-Rear 9Seats-Head restraints 9Telephone controls (Bluetooth®)18Tilt and telescopic steering wheel10Windows-Power 12
Windshield wipers & washers 12
Doors-Child safety locks 20Seat belts21Seat belts-Shoulder belt anchor20Spare tire & tools21
Tire Pressure Monitoring (warning) System 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
INDEX
414843M2.qxd:414843M2 11/18/10 9:44 AM Page 1

2
OVERVIEW

Steering wheel audio controls
Telephone controls*
Voice command button*
Ignition switch
Cruise control*
VSC/TRAC OFF switch
Auxiliary storage
Power outside rearview mirror control
Headlight, turn signal and front fog light* controls
Wiper and washer controls
“AIR BAG ON” and “AIR BAG OFF” indicator
Steering wheel controls
414843M2.qxd:414843M2 11/18/10 9:44 AM Page 2

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

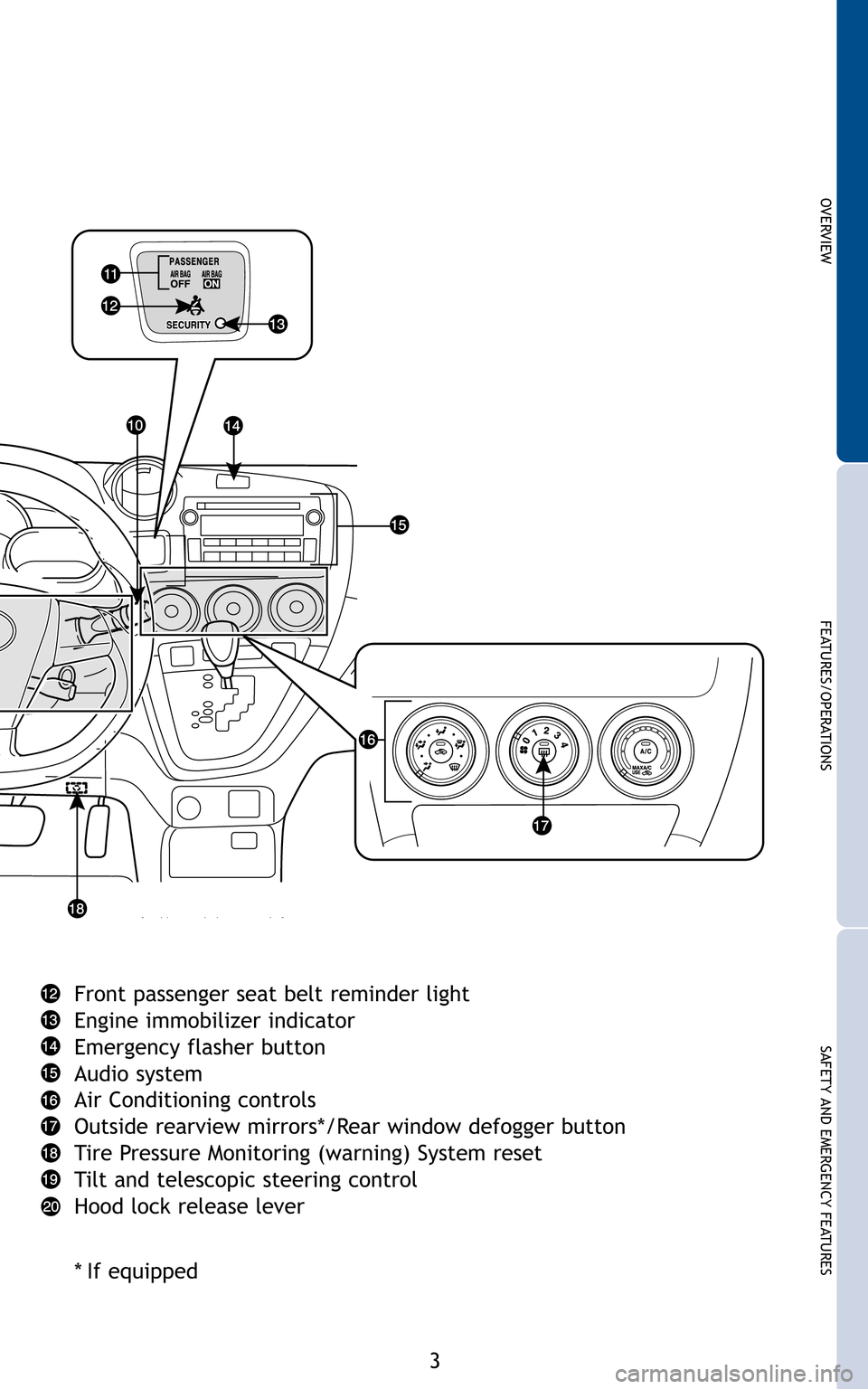

Front passenger seat belt reminder light
Engine immobilizer indicator
Emergency flasher button
Audio system
Air Conditioning controls
Outside rearview mirrors*/Rear window defogger button
Tire Pressure Monitoring (warning) System reset
Tilt and telescopic steering control
Hood lock release lever
* If equipped
414843M2.qxd:414843M2 11/18/10 9:44 AM Page 3

4
OVERVIEW

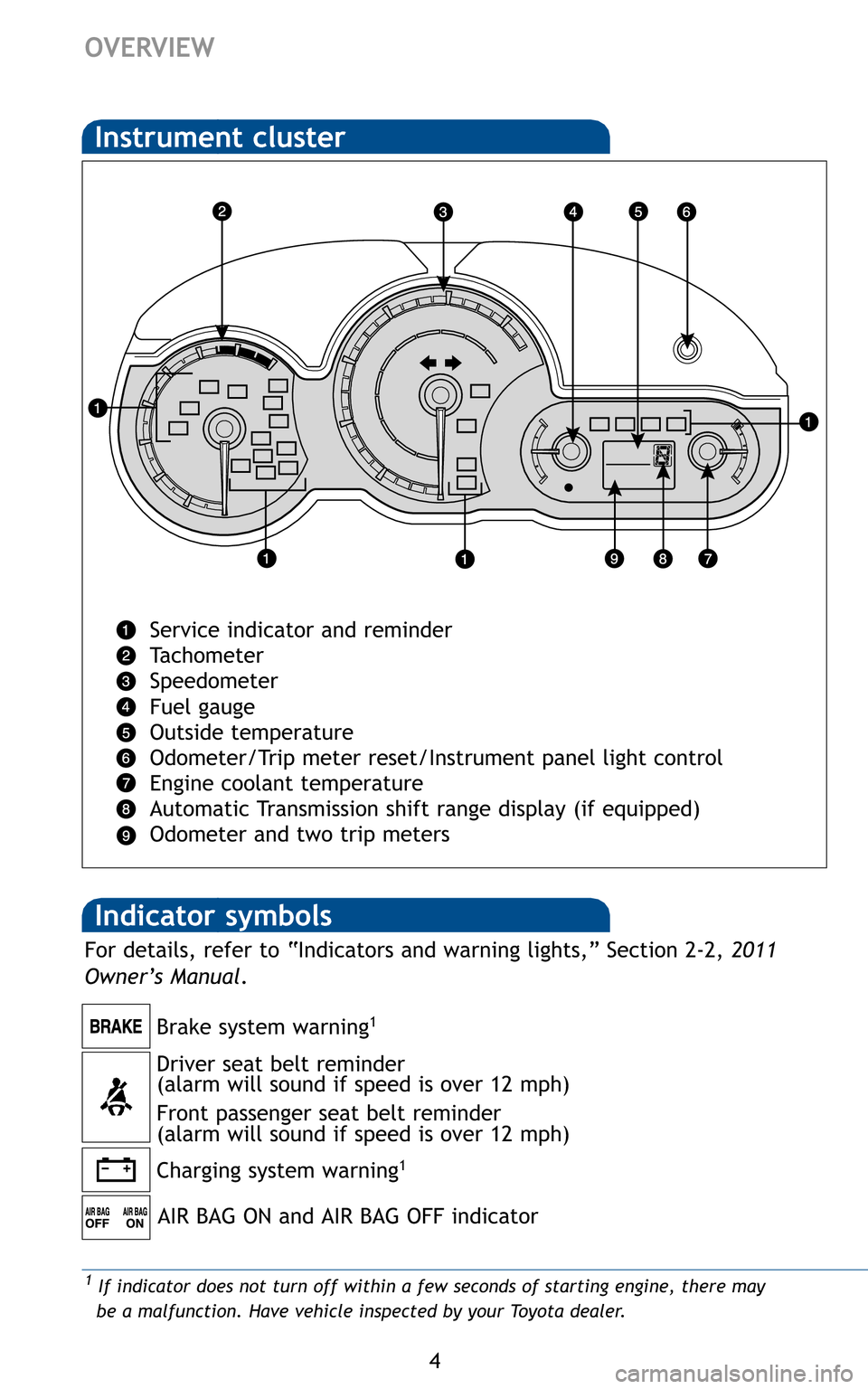

Service indicator and reminder
Tachometer
Speedometer
Fuel gauge
Outside temperature
Odometer/Trip meter reset/Instrument panel light control
Engine coolant temperature
Automatic Transmission shift range display (if equipped)
Odometer and two trip meters
Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
For details, refer to “Indicators and warning lights,” Section 2-2,
2011
Owner’s Manual .
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
414843M2.qxd:414843M2 11/18/10 9:44 AM Page 4

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

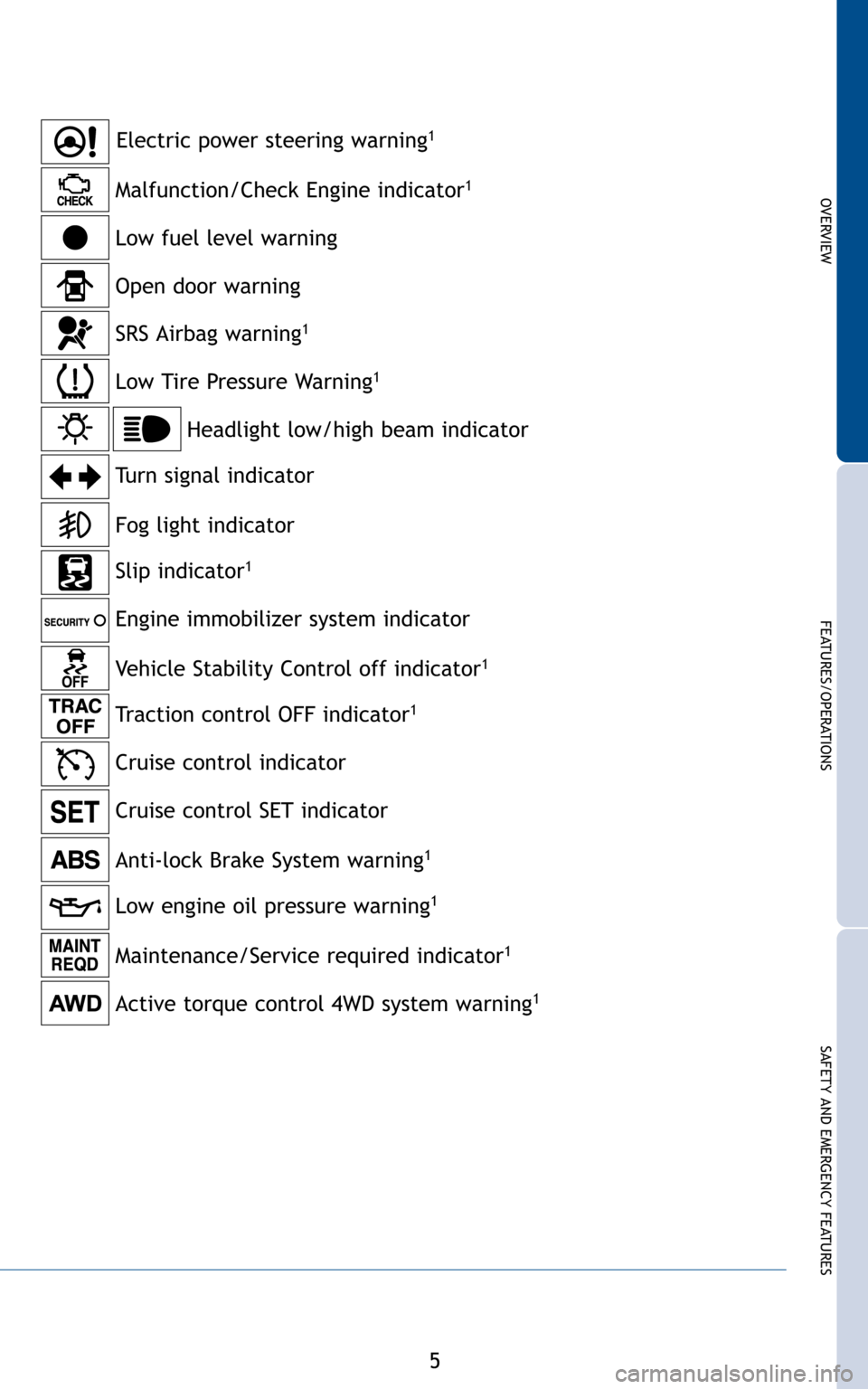

Anti-lock Brake System warning1
Headlight low/high beam indicator

Turn signal indicator
Slip indicator
1
Cruise control indicator
Low Tire Pressure Warning1
Open door warning
SRS Airbag warning1
Malfunction/Check Engine indicator1
Low fuel level warning
Fog light indicator
Active torque control 4WD system warning1
Low engine oil pressure warning1
Maintenance/Service required indicator1
Electric power steering warning1
Engine immobilizer system indicator
Traction control OFF indicator
1
Vehicle Stability Control off indicator1
Cruise control SET indicator
414843M2.qxd:414843M2 11/18/10 9:44 AM Page 5

6
OVERVIEW

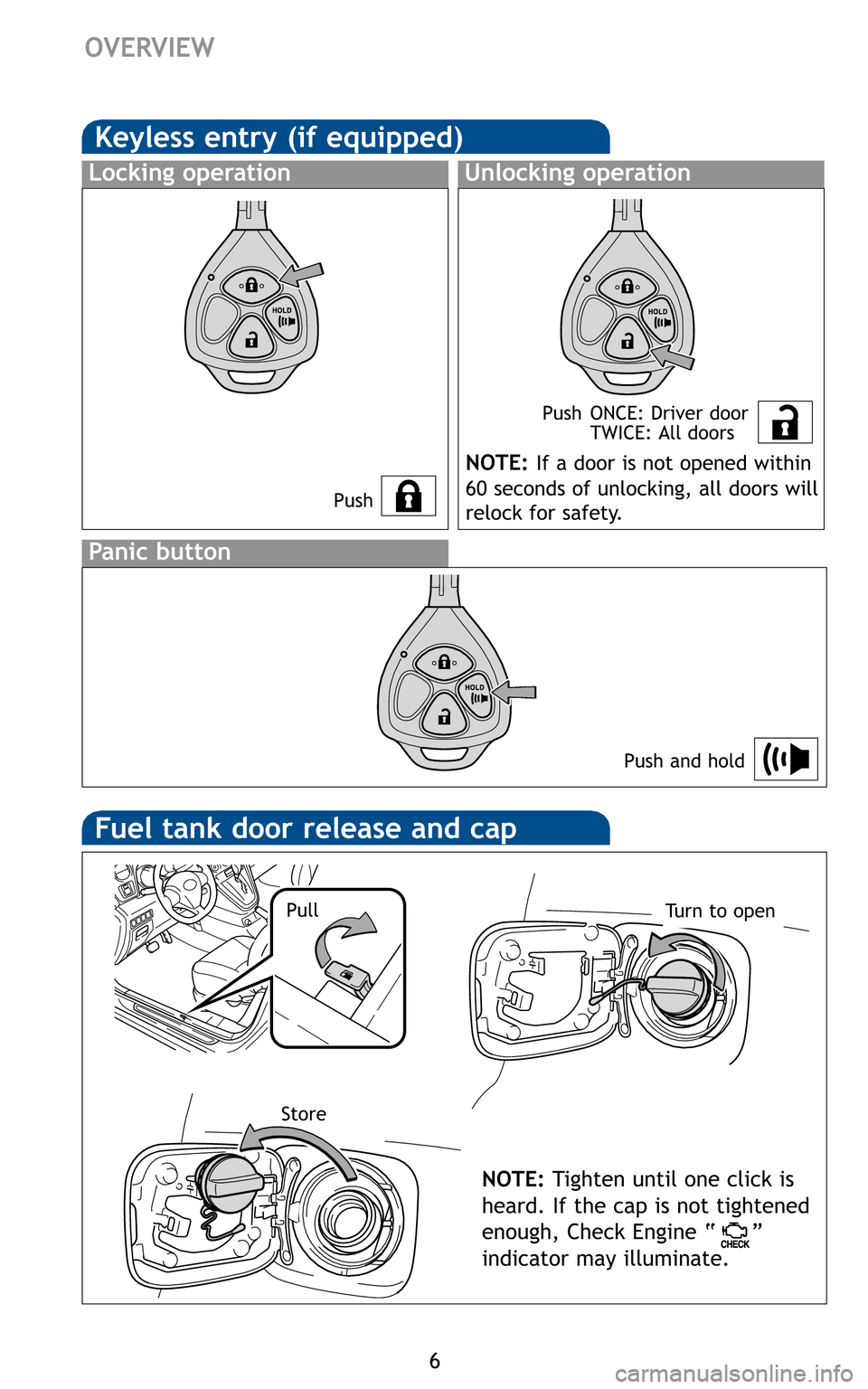

Push Push ONCE: Driver door
TWICE: All doors


Push and hold
NOTE:If a door is not opened within
60 seconds of unlocking, all doors will
relock for safety.

NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
PullTurn to open
Store
414843M2.qxd:414843M2 11/18/10 9:44 AM Page 6

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

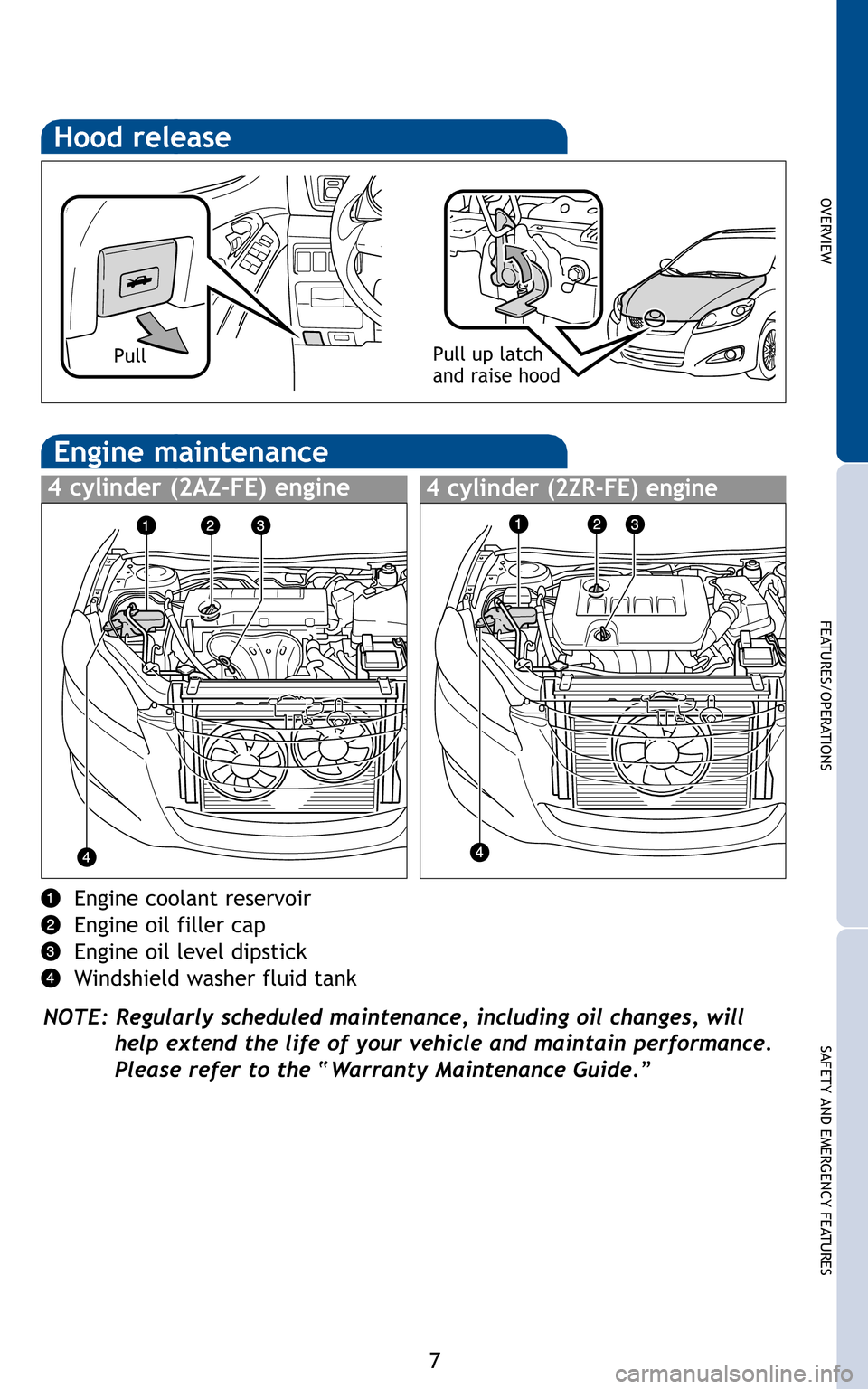

Pull up latch
and raise hoodPull
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”


414843M2.qxd:414843M2 11/18/10 9:44 AM Page 7

8

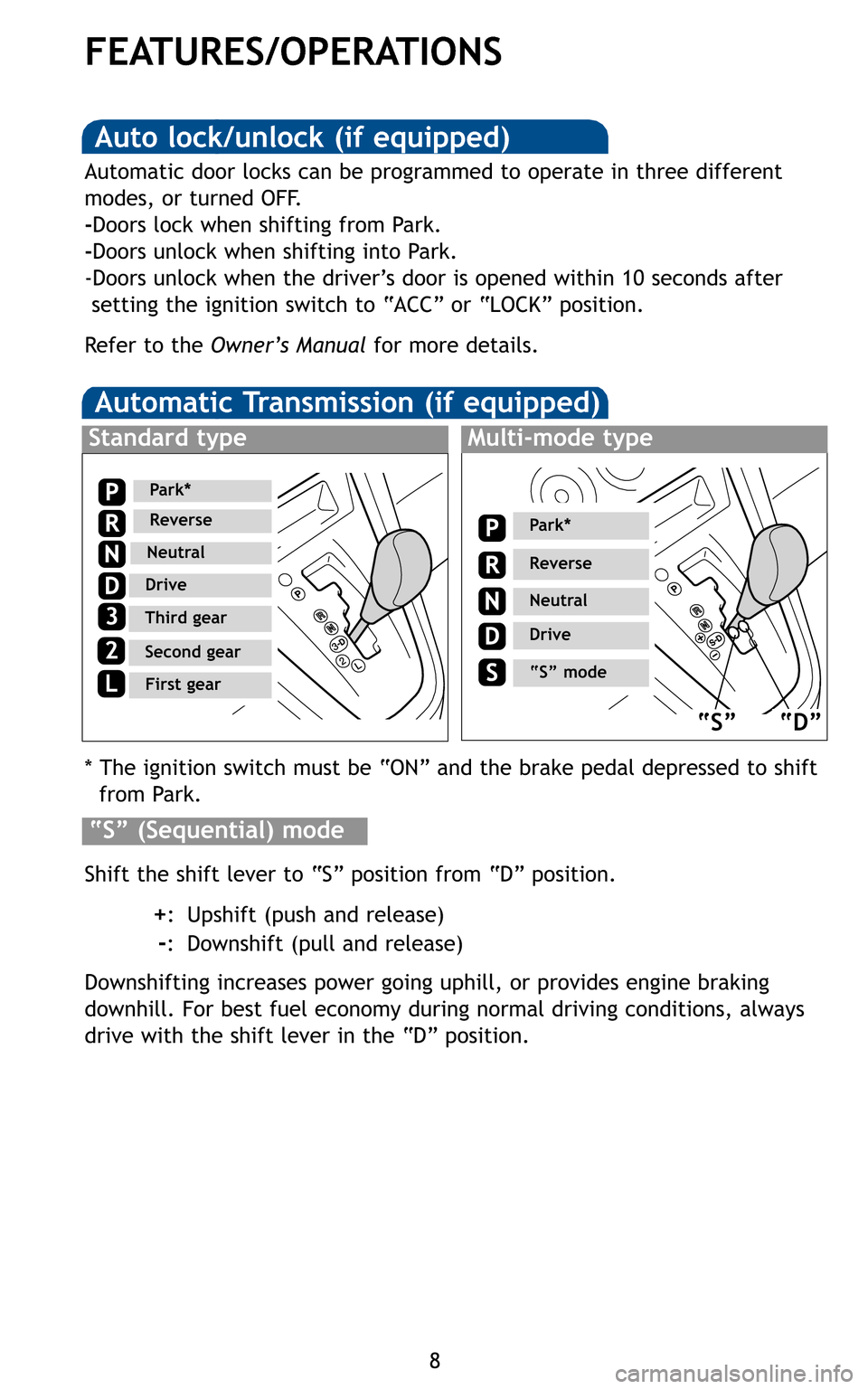

FEATURES/OPERATIONS

* The ignition switch must be “ON” and the brake pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshift (push and release)
-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.

3
2L

Park*
Reverse
Neutral
Drive
“S” mode
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear



“S”“D”
Automatic door locks can be programmed to operate in three different
modes, or turned OFF.
- Doors lock when shifting from Park.
- Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after setting the ignition switch to “ACC” or “LOCK” position.
Refer to the Owner’s Manual for more details.

414843M2.qxd:414843M2 11/18/10 9:44 AM Page 8
