Page 4 of 501
TABLE OF CONTENTSIndex
4
3-5. Using the interior lights
Interior lights list ................. 282
• Interior light ...................... 283
• Personal/interior lights...... 284
• Personal lights ................. 285
3-6. Using the storage features
List of storage features....... 286
• Glove box ......................... 287
• Console box ..................... 287
• Cup holders ...................... 288
• Bottle holders ................... 290
• Auxiliary boxes ................. 291
3-7. Other interior features
Sun visors .......................... 293
Vanity mirrors ..................... 294
Clock .................................. 295
Ashtrays ............................. 296
Cigarette lighter .................. 297
Power outlet ....................... 298
Grocery bag hook............... 300
Seatback table ................... 302
Floor mat ............................ 303
Luggage compartment
feature .............................. 304
Compass ............................ 3114-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ........... 316
Cleaning and protecting
the vehicle interior ............ 319
4-2. Maintenance
Maintenance
requirements .................... 322
General maintenance ......... 324
Emission inspection and
maintenance (I/M)
programs .......................... 327
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ....................... 328
Hood ................................... 332
Positioning a floor jack........ 334
Engine compartment .......... 337
Tires.................................... 351
Tire inflation pressure ......... 360
Wheels................................ 364
Air conditioning filter ........... 366
Key battery ......................... 368
Checking and replacing
fuses ................................. 371
Light bulbs .......................... 380
4Maintenance and care
Page 253 of 501
253 3-4. Using the hands-free phone system (for cellular phone)
3
Interior features

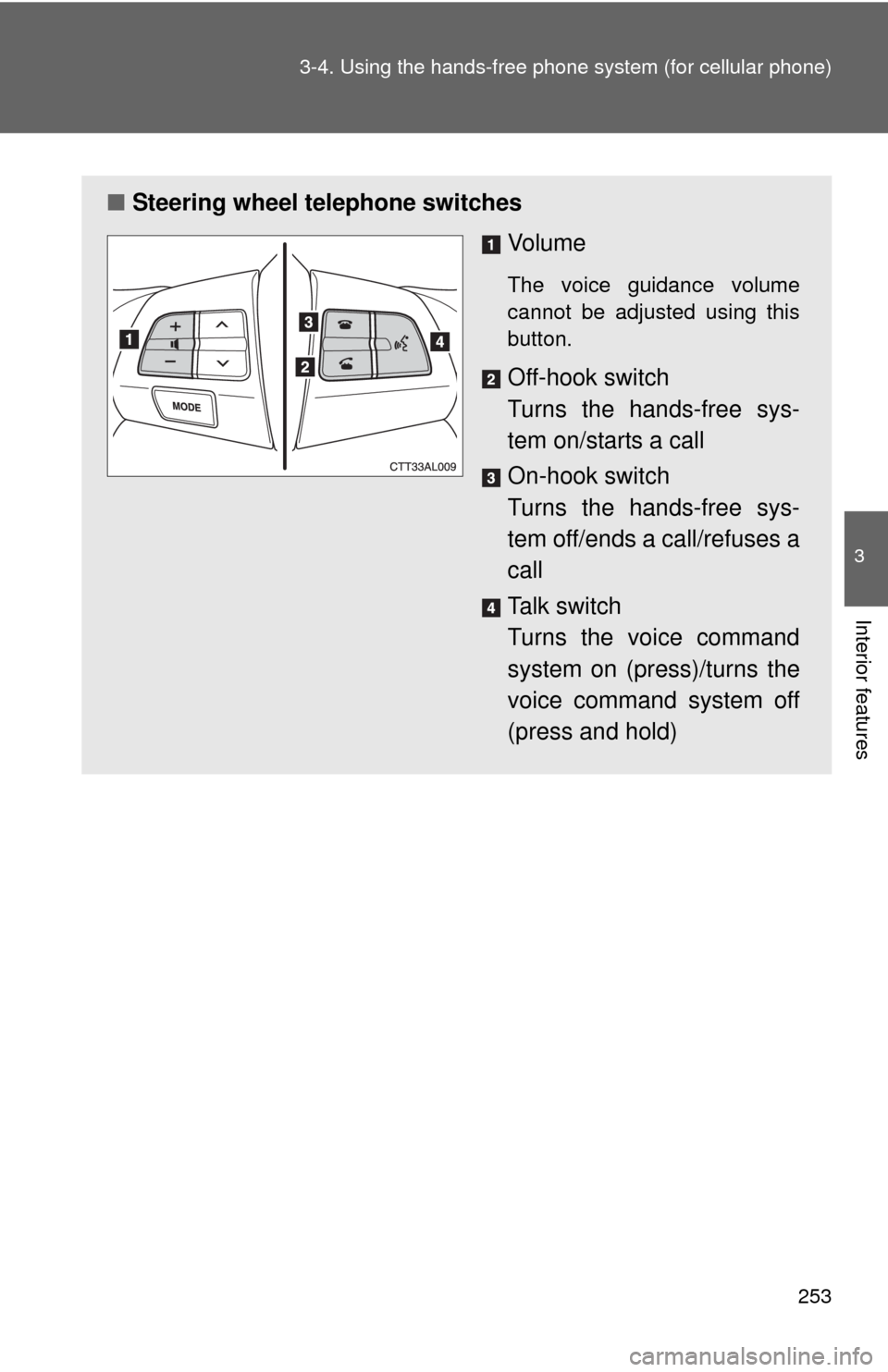

■Steering wheel telephone switches
Vo l u m e
The voice guidance volume
cannot be adjusted using this
button.
Off-hook switch
Turns the hands-free sys-
tem on/starts a call
On-hook switch
Turns the hands-free sys-
tem off/ends a call/refuses a
call
Talk switch
Turns the voice command
system on (press)/turns the
voice command system off
(press and hold)
Page 299 of 501
299 3-7. Other interior features
3
Interior features
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■To prevent the fuse from being blown
12 V
Do not use an accessory that uses more than 12 V 10 A.
115 V
Do not use a 115 V appliance that requires more than 100 W.
If a 115 V appliance that consumes more than 100 W is used, the protection
circuit will cut the power supply.
■To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is off.
■Appliances that may not operate properly (115 V)
The following 115 V appliances may not operate properly even if their power
consumption is under 100 W.
●Appliances with high initial peak wattage
●Measuring devices that process precise data
●Other appliances that require an extremely stable power supply
Page 315 of 501
Maintenance and care4
315
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior......... 316
Cleaning and protecting
the vehicle interior.......... 319
4-2. Maintenance
Maintenance
requirements .................. 322
General maintenance....... 324
Emission inspection and
maintenance (I/M)
programs........................ 3274-3. Do-it-yourself maintenance
Do-it-yourself service
precautions .................... 328
Hood ................................ 332
Positioning a floor jack ..... 334
Engine compartment ........ 337
Tires ................................. 351
Tire inflation pressure ...... 360
Wheels ............................. 364
Air conditioning filter......... 366
Key battery ....................... 368
Checking and replacing
fuses .............................. 371
Light bulbs........................ 380
Page 330 of 501
329 4-3. Do-it-yourself maintenance
4
Maintenance and care

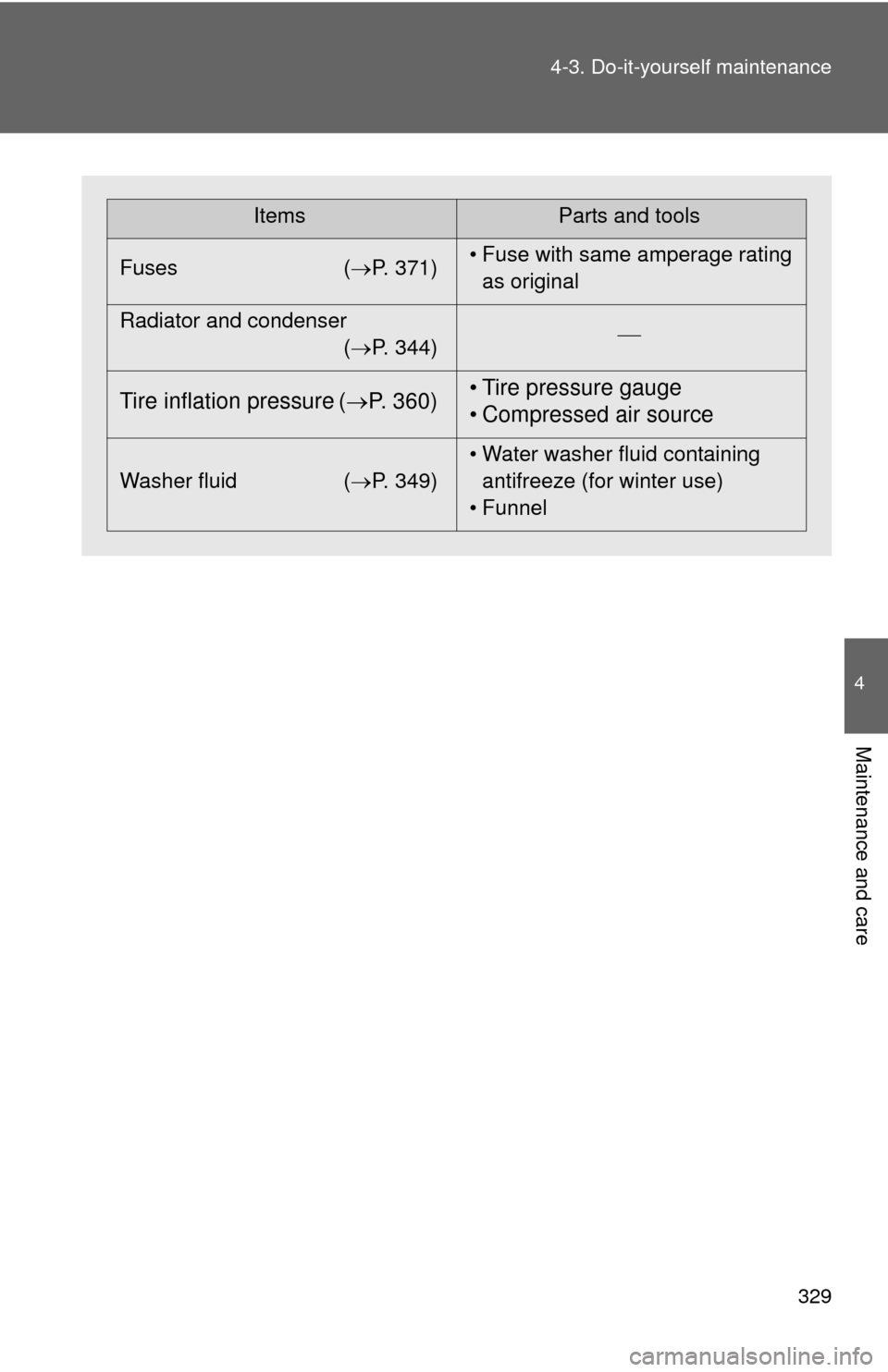

ItemsParts and tools
Fuses (P. 371)• Fuse with same amperage rating
as original
Radiator and condenser
(P. 344)
Tire inflation pressure (P. 360)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 349)• Water washer fluid containing
antifreeze (for winter use)
• Funnel
Page 338 of 501
337
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compar tment
1.8 L 4-cylinder (2ZR-FE) engine
Engine oil filler cap
(P. 340)
Engine oil level dipstick
(P. 339)
Brake fluid reservoir
(P. 345)
Fuse box (P. 371)Battery (P. 347)
Radiator (P. 344)
Electric cooling fan
Condenser (P. 344)
Engine coolant reservoir
(P. 343)
Washer fluid tank (P. 349)
Page 339 of 501
338 4-3. Do-it-yourself maintenance
2.4 L 4-cylinder (2AZ-FE) engine
Engine coolant reservoir
(P. 343)
Engine oil filler cap
(P. 340)
Engine oil level dipstick
(P. 339)
Brake fluid reservoir
(P. 345)Fuse box (P. 371)
Battery (P. 347)
Radiator (P. 344)
Electric cooling fans
Condenser (P. 344)
Washer fluid tank (P. 349)
Page 372 of 501
371
4-3. Do-it-yourself maintenance
4
Maintenance and care
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the engine switch OFF.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Under the driver’s side instrument panel
Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” (P. 374) for details about which fuse to check.STEP1
STEP2
STEP3
Page 373 of 501
372 4-3. Do-it-yourself maintenance

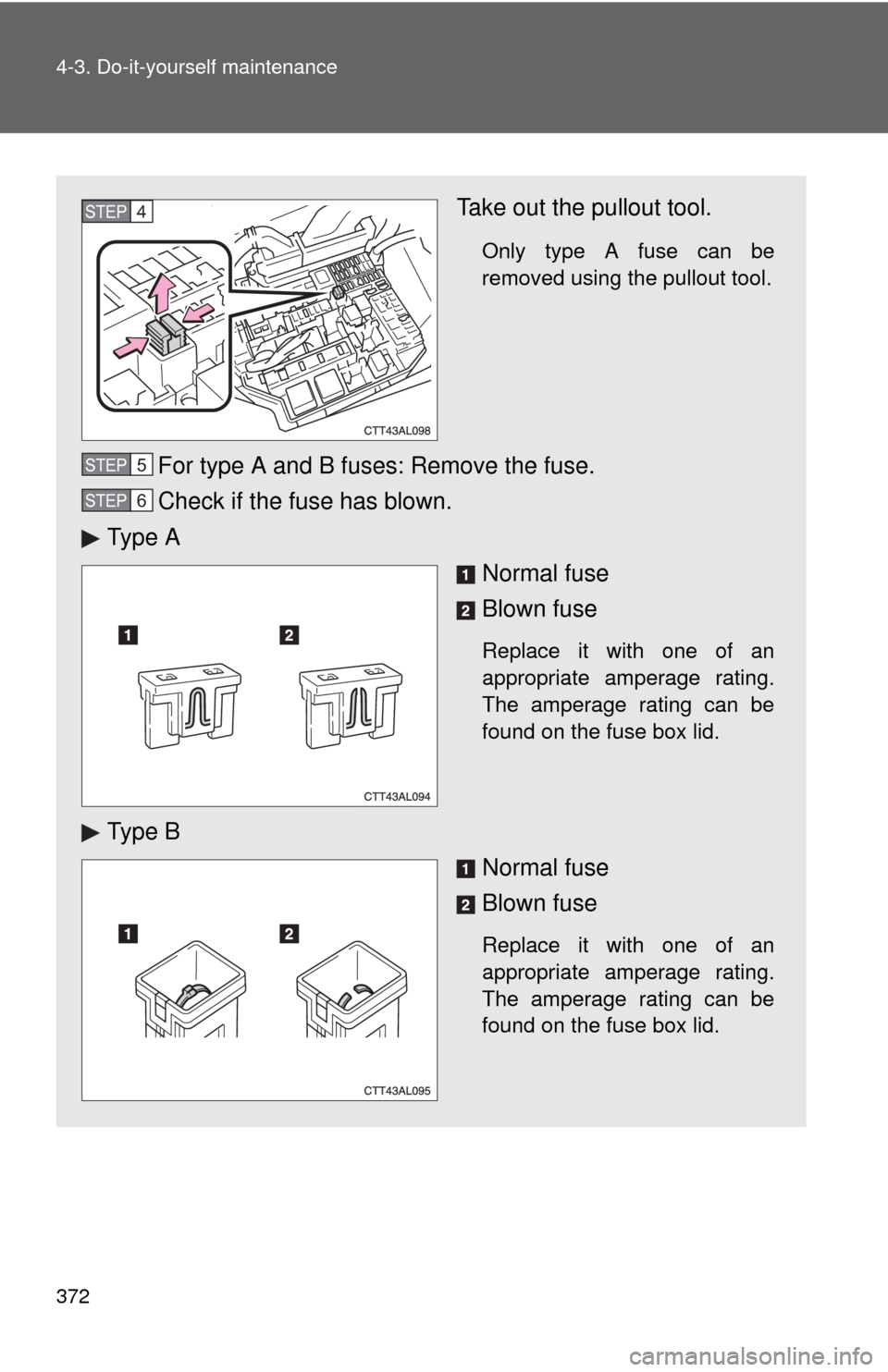

Take out the pullout tool.
Only type A fuse can be
removed using the pullout tool.
For type A and B fuses: Remove the fuse.
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP4
STEP5
STEP6
Page 374 of 501
373 4-3. Do-it-yourself maintenance
4
Maintenance and care

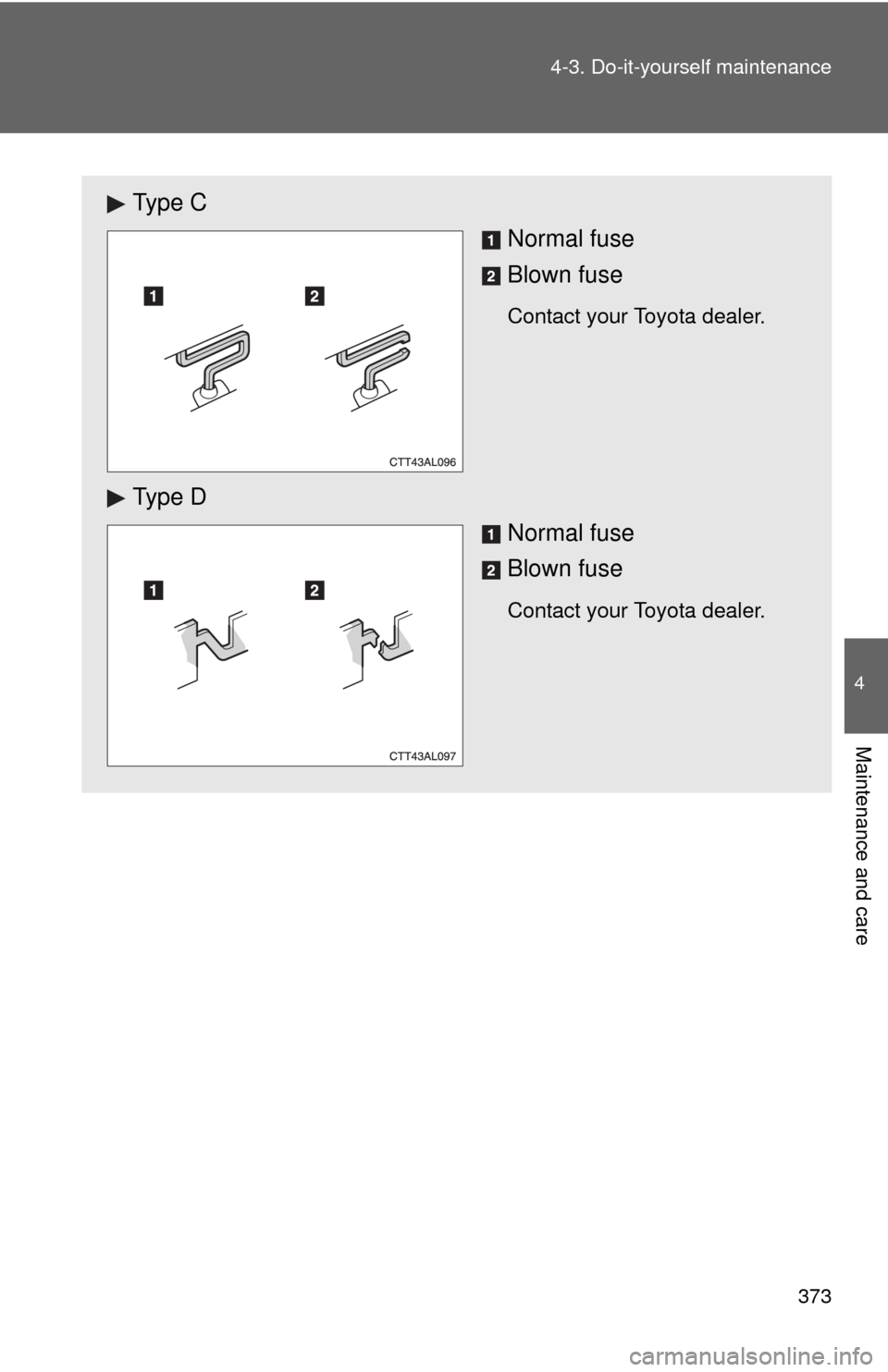

Ty p e C
Normal fuse
Blown fuse
Contact your Toyota dealer.
Ty p e D
Normal fuse
Blown fuse
Contact your Toyota dealer.
