heater TOYOTA MATRIX 2011 E140 / 2.G Owners Manual

172

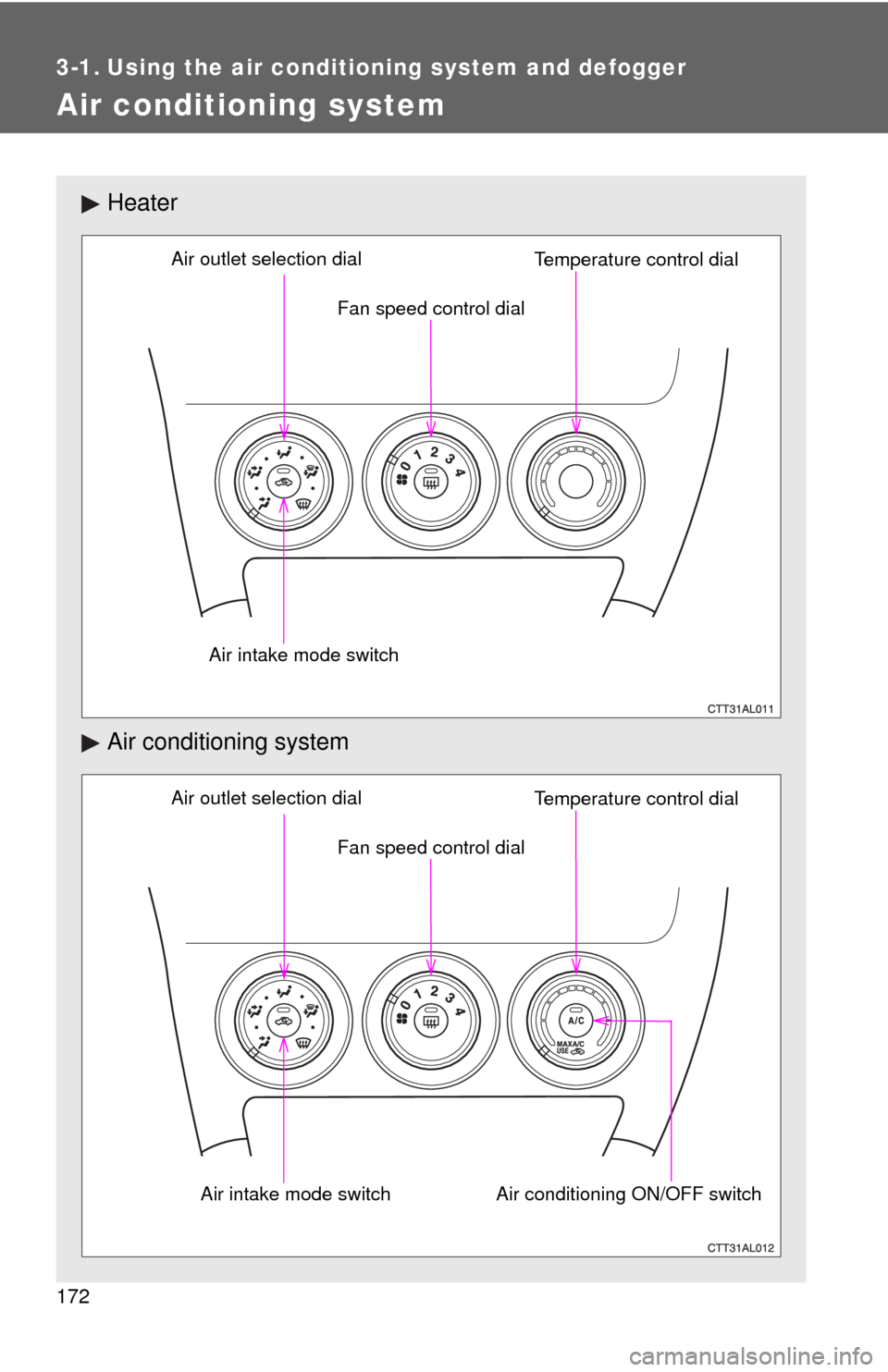

3-1. Using the air conditioning system and defogger
Air conditioning system
Heater
Air conditioning system
Fan speed control dial Air outlet selection dial
Air intake mode switchTemperature control dial
Air conditioning ON/OFF switch Fan speed control dial Air outlet selection dial
Air intake mode switchTemperature control dial

173 3-1. Using the air conditioning system and defogger
3
Interior features
Adjusting the settings
■Adjusting the temperature setting (heater)
Turn the temperature control dial clockwise to increase the temper-
ature.
■Adjusting the temperature setting (air conditioning system)
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
If is not pressed, the system will blow ambient temperature air or
heated air.
■Adjusting the fan speed
Turn the fan speed control dial clockwise (increase) or counter-
clockwise (decrease).
Set the dial to “0” to turn the fan off.
■Selecting the air outlets
Set the air outlet selection dial to an appropriate position.
The positions between the air outlet selections shown below can also be
selected for more detailed adjustment.
Air flows to the upper body.

321 4-1. Maintenance and care
4
Maintenance and care
NOTICE
■Cleaning detergents
●Do not use organic substances such as benzene or gasoline, acidic or
alkaline solutions, dye, bleach or other detergent. Doing so may discolor
the vehicle interior or cause streaks or damage to painted surfaces.
●Do not use polish wax or polish cleaner. The instrument panel's or other
interior part's painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces.
●Remove any dust or dirt on leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or that contain wax, on the
upholstery, as they may stick to the leather surface if the vehicle interior
heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components under the floor of the vehicle, and
may also cause the body to rust.
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.
●Be careful not to scratch or damage the heater wires.

375 4-3. Do-it-yourself maintenance
4
Maintenance and care
7 EPS 60 A Electric power steering
8 P/I 50 A EFI MAIN, HORN, IG2
9 H-LP MAIN 50 AH-LP LH LO, H-LP RH LO, H-LP
LH HI, H-LP RH HI
10 EFI NO. 2 10 A Emission control system
11 EFI NO. 1 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
12 H-LP RH HI 10 A Right-hand headlight (high beam)
13 H-LP LH HI 10 A Left-hand headlight (high beam)
14 H-LP RH LO 10 A Right-hand headlight (low beam)
15 H-LP LH LO 10 A Left-hand headlight (low beam)
16 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
17 TURN-HAZ 10 ATurn signal lights, emergency
flashers
18 ALT-S 7.5 A Charging system
19 AM2 NO. 2 7.5 AStarting system, multiport fuel
injection system/sequential multi-
port fuel injection system
20 AM2 30 AStarting system, multiport fuel
injection system/sequential multi-
port fuel injection system
21 STRG LOCK 20 A No circuit
22 IG2 NO.2 7.5 A Starting system
23 ECU-B2 10 A PTC heater
24 ECU-B 10 AMain body ECU, gauge and
meters, daytime running light sys-
tem
25 RAD NO. 1 15 A Audio system
FuseAmpereCircuit

376 4-3. Do-it-yourself maintenance
26 DOME 10 AInterior lights, personal light, clock,
wireless remote control
27 SPARE 10 A Spare fuse
28 SPARE 30 A Spare fuse
29 SPARE 20 A Spare fuse
30 AMP 30 A No circuit
31 MAYDAY 10 A No circuit
32 EFI MAIN 20 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO. 1, EFI NO. 2
33 HORN 10 A Horn
34 IG2 15 AMultiport fuel injection system/
sequential multiport fuel injection
system, starting system, IGN,
METER
35HTR SUB
NO. 130 A PTC heater
36HTR SUB
NO. 330 A PTC heater
37PWR OUTLET/
INVERTER15 A Power outlet
FuseAmpereCircuit

377 4-3. Do-it-yourself maintenance
4
Maintenance and care
■Under the driver’s side instrument panel
FuseAmpereCircuit
1 TAIL 10 AParking lights, tail lights, license
plate lights, multiport fuel injection
system/sequential multiport fuel
injection system, instrument cluster
lights
2 PANEL 7.5 A Switch illumination
3 FR DOOR 20 A Power windows, electric moon roof
4 RL DOOR 20 A Power windows
5 RR DOOR 20 A Power windows
6 SUNROOF 20 A Electric moon roof
7 CIG 15 A Cigarette lighter, power outlet
8 ACC 7.5 AOutside rear view mirrors, audio
system, main body ECU, clock,
shift lock control system
9 MIR HTR 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, outside rear view mirror
heaters
10 PWR OUTLET 15 A No circuit

378 4-3. Do-it-yourself maintenance
11 IGN 7.5 ASRS airbag system, multiport fuel
injection system/sequential multi-
port fuel injection system, front
passenger occupant classification
system
12 METER 7.5 A Gauge and meters
13 HTR-IG 10 AAir conditioning system, rear win-
dow defogger, PTC heater
14 WIPER 25 A Windshield wipers
15 RR WIPER 15 A Rear window wiper
16 WASHER 15 A Windshield washer
17 ECU-IG NO. 1 10 AMain body ECU, electric power
steering, electric cooling fan(s),
shift lock control system, anti-lock
brake system, multiport fuel injec-
tion system/sequential multiport
fuel injection system, tire pressure
warning system, vehicle stability
control system, all wheel drive sys-
tem
18 ECU-IG NO. 2 10 ABack-up lights, charging system,
rear window defogger, auto anti-
glare inside rear view mirror
19 OBD 7.5 A On-board diagnosis system
20 STOP 10 AStop lights, high mounted stop-
light, anti-lock brake system, vehi-
cle stability control system,
multiport fuel injection system/
sequential multiport fuel injection
system, shift lock control system
21 DOOR 25 A Power door lock system
22 ACC-B 25 A CIG, ACC
23 4WD 7.5 A All wheel drive system
FuseAmpereCircuit

466 6-1. Specifications
Warning: The temperature grades for this tire are established for a
tire that is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either sepa-
rately or in combination, can cause heat buildup and possible tire fail-
ure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sureTire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which a
tire may be inflated, shown on the sidewall of
the tire
Recommended infla-
tion pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weightThe combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weightThe weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weightThe sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

493 Alphabetical index
Fuel door .................................... 62
Fuel filler door ........................... 62
Fuel pump shut off system .... 398
Fuses ........................................ 371
Gas station information .......... 500
Gauges ..................................... 129
Glove box ................................. 287
Grocery bag hooks ................. 300
Hands-free phone system
(for cellular phone) ............... 247
Hazard lights
Switch ................................... 390
Head restraints
Adjusting ................................ 44
Headlights
Replacing light bulbs ............ 380
Switch ................................... 135
Wattage ................................ 456
Heaters
Side mirror ............................ 179
Hood ......................................... 332
Hooks
Cargo hooks ......................... 304
Grocery bag hooks ............... 300
Horn .......................................... 128I/M test.......................................327
Identification number
Engine ...................................443
Vehicle ..................................443
Ignition switch ..........................115
Illuminated entry system .........283
Indicator lights .........................132
Initialization
Items to initialize....................474
Inside rear view mirror ..............53
Interior lights
Interior lights..........................282
Switch....................................283
Wattage .................................456
Jack
Positioning a floor jack ..........334
Vehicle-equipped jack ...........411
Jack handle ..............................411
Keyless entry..............................26
Keys
Engine switch ........................115
If you lose your keys .............427
Ignition switch........................115
Key number .............................24
Keyless entry...........................26
Keys ........................................24
Wireless remote control key ....26
G
H
I
J
K

494 Alphabetical index
License plate lights
Replacing light bulbs ............. 380
Switch.................................... 135
Wattage ................................. 456
Light bulbs
Replacing .............................. 380
Wattage ................................. 456
Lights
Emergency flasher switch ..... 390
Fog light switch ..................... 137
Hazard light switch ................390
Headlights switch .................. 135
Interior light switch ................283
Personal light switch ..... 284, 285
Replacing light bulbs ............. 380
Turn signal lever.................... 126
Wattage ................................. 456
Load capacity ........................... 153
Lock steering column .............. 117
Maintenance
Do-it-yourself
maintenance ....................... 328
General maintenance ............ 324
Maintenance data.................. 442
Maintenance requirements.... 322
Manual transmission
Manual transmission ............. 124
Meter
Instrument panel light
control ................................. 131
Meters ................................... 129Mirrors
Inside rear view mirror ............ 53
Side mirror heater ................. 179
Side mirrors............................. 55
Vanity mirrors ........................ 294
Moon roof ................................... 59
MP3 disc ................................... 197
Noise from under vehicle .......... 18
Odometer .................................. 129
Oil
Engine oil .............................. 339
Opener
Fuel filler door ......................... 62
Hood ..................................... 332
Outside rear view mirrors
Adjusting and folding............... 55
Outside temperature
display .................................... 129
Overheating, Engine ................ 433
Parking brake ........................... 127
Parking lights
Replacing light bulb............... 380
Switch ................................... 135
Wattage................................. 456
Personal lights
Switch ........................... 284, 285
Wattage................................. 456
Power outlet ............................. 298
Power windows .......................... 57L
M
N
O
P
