key TOYOTA MATRIX 2011 E140 / 2.G Owners Manual

TABLE OF CONTENTSIndex
2
1-1. Key informationKeys ..................................... 24
1-2. Opening, closing
and
locking the

doors
Wireless remote control ....... 26
Doors.................................... 29
Back door ............................. 34
1-3.
Adjustable components
(seats, mirrors,
steering wheel)
Front seats

........................... 38
Rear seats ............................ 42
Head restraints ..................... 44
Seat belts ............................. 46
Steering wheel ..................... 52
Anti-glare inside rear view mirror .................................. 53
Outside rear view mirrors ..... 55
1-4. Opening a
nd closing the
windo

ws
Power windows .................... 57
Moon roof ............................. 59
1-5. Refueling Opening the fuel tank cap .... 62
1-6. Theft deterrent system Engine immobilizer system ................................ 66
Theft prevention labels (except for Canada) ........... 68 1-7. Safety information
Correct driving posture ......... 69
SRS airbags ......................... 71
Front passenger occupant classification system ........... 83
Child restraint systems ......... 88
Installing child restraints ....... 92
2-1. Driving procedures Driving the vehicle .............. 104
Engine (ignition) switch....... 115
Automatic transmission ...... 119
Manual transmission........... 124
Turn signal lever ................. 126
Parking brake ..................... 127
Horn .................................... 128
2-2. Instrument cluster Gauges and meters ............ 129
Indicators and warning lights ................................. 132
2-3. Operating the li
ghts and
wipers
Headlight switch

................. 135
Fog light switch ................... 137
Windshield wipers and washer .............................. 138
Rear window wiper and washer .............................. 140
1Before driving
2When driving

TABLE OF CONTENTSIndex
4
3-5. Using the interior lights
Interior lights list ................. 282
• Interior light ...................... 283
• Personal/interior lights...... 284
• Personal lights ................. 285
3-6. Using the storage features
List of storage features....... 286
• Glove box ......................... 287
• Console box ..................... 287
• Cup holders ...................... 288
• Bottle holders ................... 290
• Auxiliary boxes ................. 291
3-7. Other interior features
Sun visors .......................... 293
Vanity mirrors ..................... 294
Clock .................................. 295
Ashtrays ............................. 296
Cigarette lighter .................. 297
Power outlet ....................... 298
Grocery bag hook............... 300
Seatback table ................... 302
Floor mat ............................ 303
Luggage compartment
feature .............................. 304
Compass ............................ 3114-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ........... 316
Cleaning and protecting
the vehicle interior ............ 319
4-2. Maintenance
Maintenance
requirements .................... 322
General maintenance ......... 324
Emission inspection and
maintenance (I/M)
programs .......................... 327
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ....................... 328
Hood ................................... 332
Positioning a floor jack........ 334
Engine compartment .......... 337
Tires.................................... 351
Tire inflation pressure ......... 360
Wheels................................ 364
Air conditioning filter ........... 366
Key battery ......................... 368
Checking and replacing
fuses ................................. 371
Light bulbs .......................... 380
4Maintenance and care

1
2
3
4
5
6
7
5
5-1. Essential information
Emergency flashers ............ 390
If your vehicle needs to
be towed ........................... 391
If you think something is
wrong ................................ 397
Fuel pump shut off
system .............................. 398
Event data recorder ............ 399
5-2. Steps to take in an
emergency
If a warning light turns
on or a warning buzzer
sounds... .......................... 401
If you have a flat tire............ 411
If the engine will not start .... 425
If the shift lever cannot be
shifted from P.................... 426
If you lose your keys ........... 427
If the battery is
discharged ........................ 428
If your vehicle overheats ..... 433
If the vehicle becomes
stuck ................................. 436
If your vehicle has to
be stopped in an
emergency ........................ 4386-1. Specifications
Maintenance data
(fuel, oil level, etc.) ........... 442
Fuel information.................. 457
Tire information .................. 460
6-2. Customization
Customizable features........ 472
6-3. Initialization
Items to initialize ................. 474
Reporting safety defects
for U.S. owners ................ 476
Seat belt instructions
for Canadian owners
(in French) ........................ 477
SRS airbag instructions
for Canadian owners
(in French) ........................ 479
Abbreviation list ......................... 488
Alphabetical index ..................... 489
What to do if... ........................... 498
5When trouble arises6Vehicle specifications
7For owners
Index

20
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, or other features of the vehicle. In addi-
tion, heat build-up or extremely cold temperatures inside the vehicle can be
fatal to children.

Before driving1
23
1-1. Key information
Keys ................................... 24
1-2. Opening, closing and
locking the doors
Wireless remote control ..... 26
Doors ................................. 29
Back door ........................... 34
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ......................... 38
Rear seats.......................... 42
Head restraints................... 44
Seat belts ........................... 46
Steering wheel ................... 52
Anti-glare inside rear
view mirror ....................... 53
Outside rear view
mirrors.............................. 551-4. Opening and closing the
windows
Power windows .................. 57
Moon roof ........................... 59
1-5. Refueling
Opening the fuel tank
cap ................................... 62
1-6. Theft deterrent system
Engine immobilizer
system ............................. 66
Theft prevention labels
(except for Canada) ......... 68
1-7. Safety information
Correct driving posture....... 69
SRS airbags ....................... 71
Front passenger occupant
classification system ........ 83
Child restraint systems....... 88
Installing child restraints..... 92

24
1-1. Key information
Keys
■Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by your Toyota dealer using
the key number plate. (P. 427)
■When riding in an aircraft
When bringing a wireless remote control key onto an aircraft, make sure you
do not press any buttons on the wireless remote control key while inside the
aircraft cabin. If you are carrying the wireless remote control key in your bag
etc, ensure that the buttons are not likely to be pressed accidentally. Press-
ing a button may cause the wireless remote control key to emit radio waves
that could interfere with the operation of the aircraft.

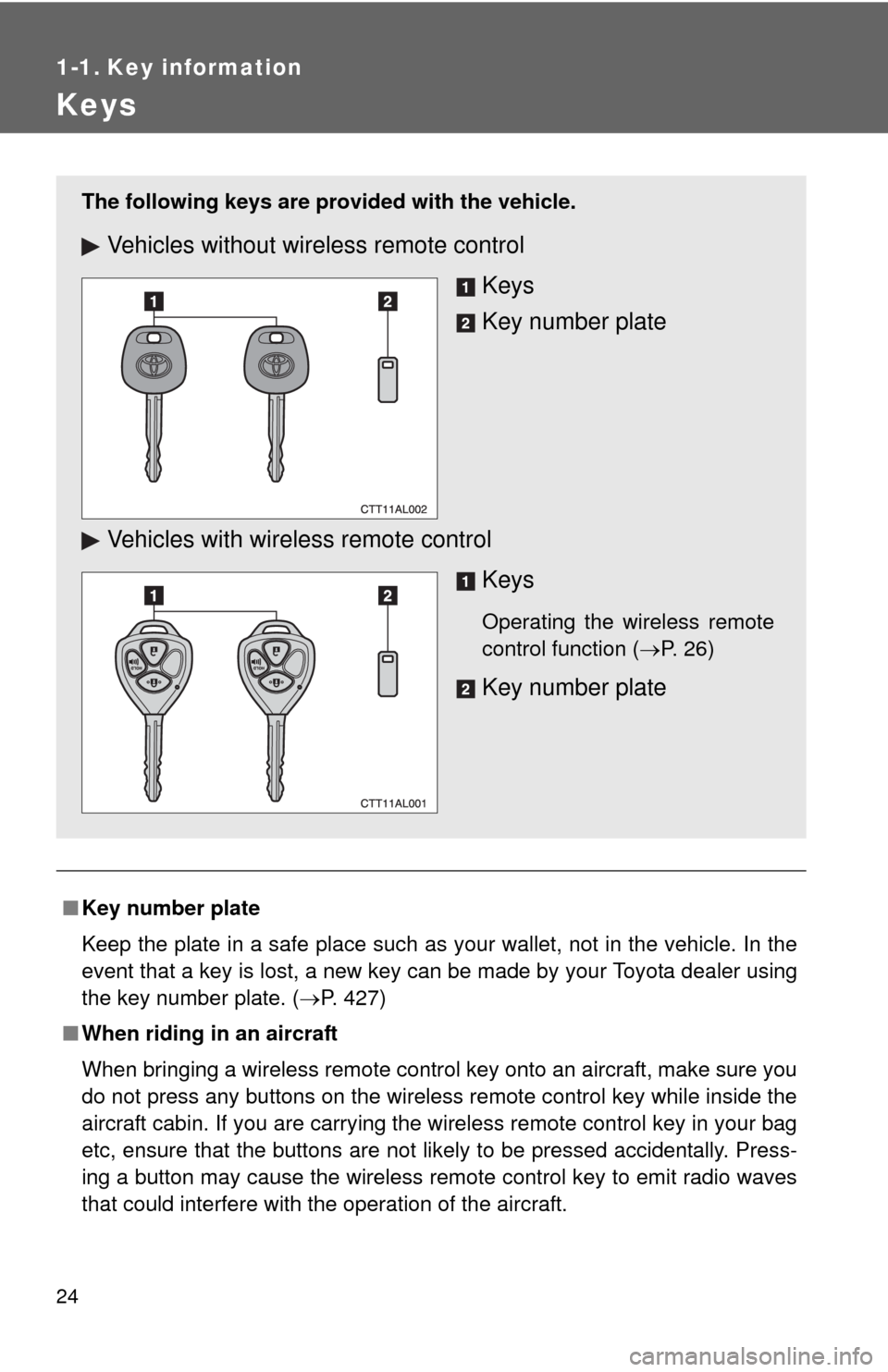

The following keys are provided with the vehicle.
Vehicles without wireless remote control
Keys
Key number plate
Vehicles with wireless remote control
Keys
Operating the wireless remote
control function (P. 26)
Key number plate

25 1-1. Key information
1
Before driving
NOTICE
■To prevent key damage
●Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
●Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
●Do not disassemble the key.

27 1-2. Opening, closing and locking the doors
1
Before driving
■Key battery depletion
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 368)
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■Conditions affecting operation
The wireless remote control function may not operate normally in the follow-
ing situations.
●Near a TV tower, radio station, electric power plant, airport or other facil-
ity that generates strong radio waves
●When carrying a portable radio, cellular phone or other wireless commu-
nication devices
●When multiple wireless keys are in the vicinity
●When the wireless key has come into contact with, or is covered by, a
metallic object
●When a wireless key (that emits radio waves) is being used nearby
●When the wireless key has been left near an electrical appliance such as
a personal computer
●When the wireless key battery is depleted
●If window tint with a metallic content or metallic objects are attached to
the rear window
■Customization that can be configured at Toyota dealer
Settings (e.g. operation signal) can be changed.
(Customizable features P. 472)

29
1
1-2. Opening, closing and locking the doors
Before driving

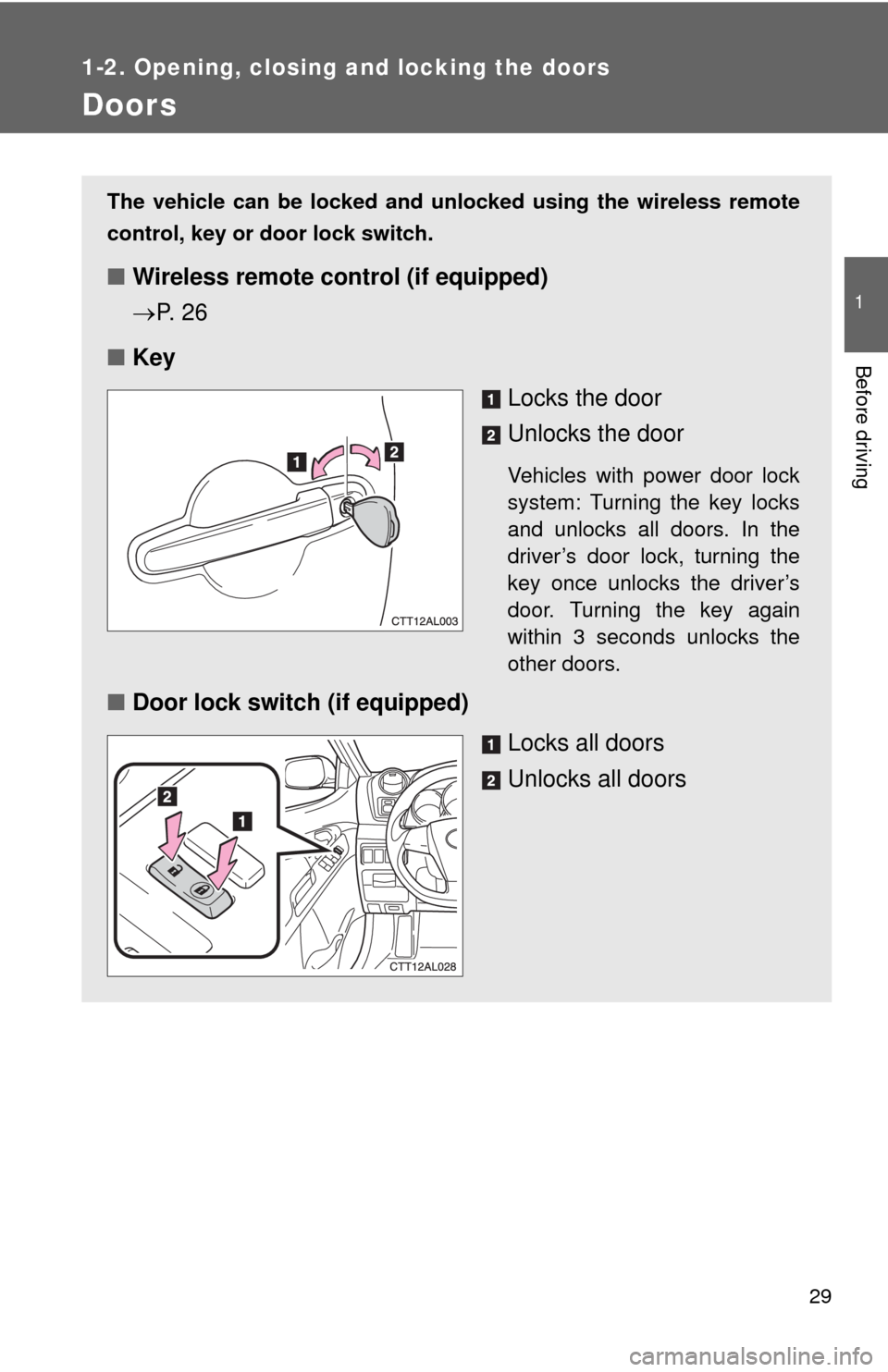

Doors
The vehicle can be locked and unlocked using the wireless remote
control, key or door lock switch.
■Wireless remote control (if equipped)
P. 2 6
■Key
Locks the door
Unlocks the door
Vehicles with power door lock
system: Turning the key locks
and unlocks all doors. In the
driver’s door lock, turning the
key once unlocks the driver’s
door. Turning the key again
within 3 seconds unlocks the
other doors.
■Door lock switch (if equipped)
Locks all doors
Unlocks all doors

33 1-2. Opening, closing and locking the doors
1
Before driving
■When all the doors are locked with the wireless remote control or key
The doors cannot be unlocked with the door lock switch.
The door lock switch can be reset by unlocking all the doors with the wire-
less remote control or key.
■The doors cannot be locked when
The key is in the engine switch and either of the front door is open.
■Customization that can be configured at Toyota dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 472)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
●Always use a seat belt.
●Always lock the doors.
●Ensure that all doors are properly closed.
●Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
●Set the rear door child protector locks when children are seated in the rear
seat.
