bluetooth TOYOTA MATRIX 2012 E140 / 2.G Owner's Manual

259
3-3. Using the Bluetooth
® audio system
3
Interior features
Deleting a registered portable player
Select “Delete Audio Playe r” using a voice command or .
Select the portable player to be deleted by either of the follow-
ing methods and select “Confirm” using a voice command or
:
a. Press the talk switch and say the name of the desired por- table player.
b. Press the talk switch and say “List audio players”. When the name of the desired portable player is read aloud, press the
talk switch.
If the portable player to be deleted is paired as a Bluetooth
® phone,
the registration of the mobile phone can be deleted at the same time.
A voice guidance instruction to delete a mobile phone is heard.
Select “Confirm” using a voice command or .
■The number of portable pl ayers that can be registered
Up to 2 portable players can be registered in the system.
STEP1
STEP2
STEP3

260
3-3. Using the Bluetooth® audio system

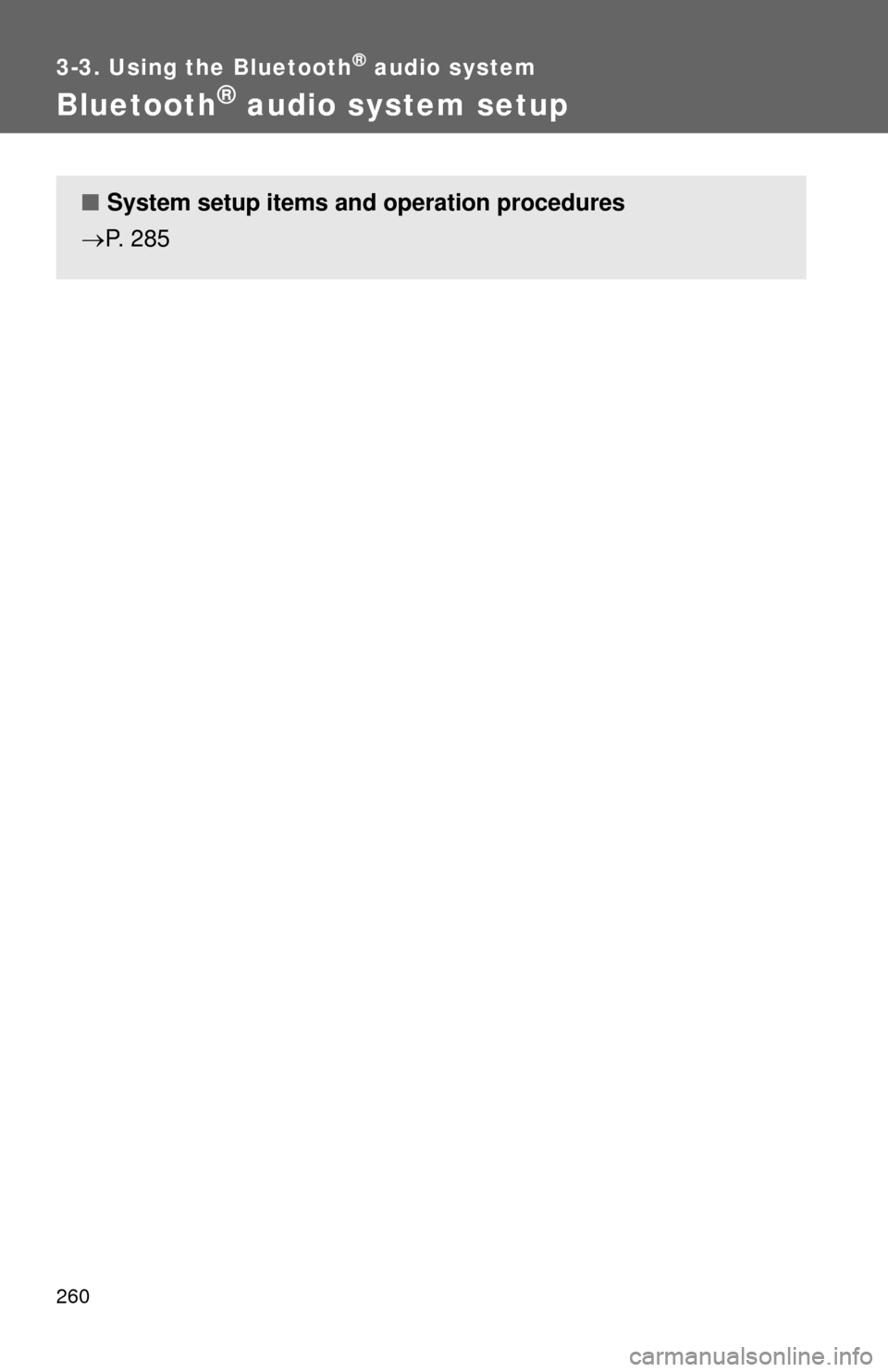

Bluetooth® audio system setup
■System setup items and operation procedures
 P. 285

261
3
Interior features
3-4. Using the hands-free phone system (for cellular phone)

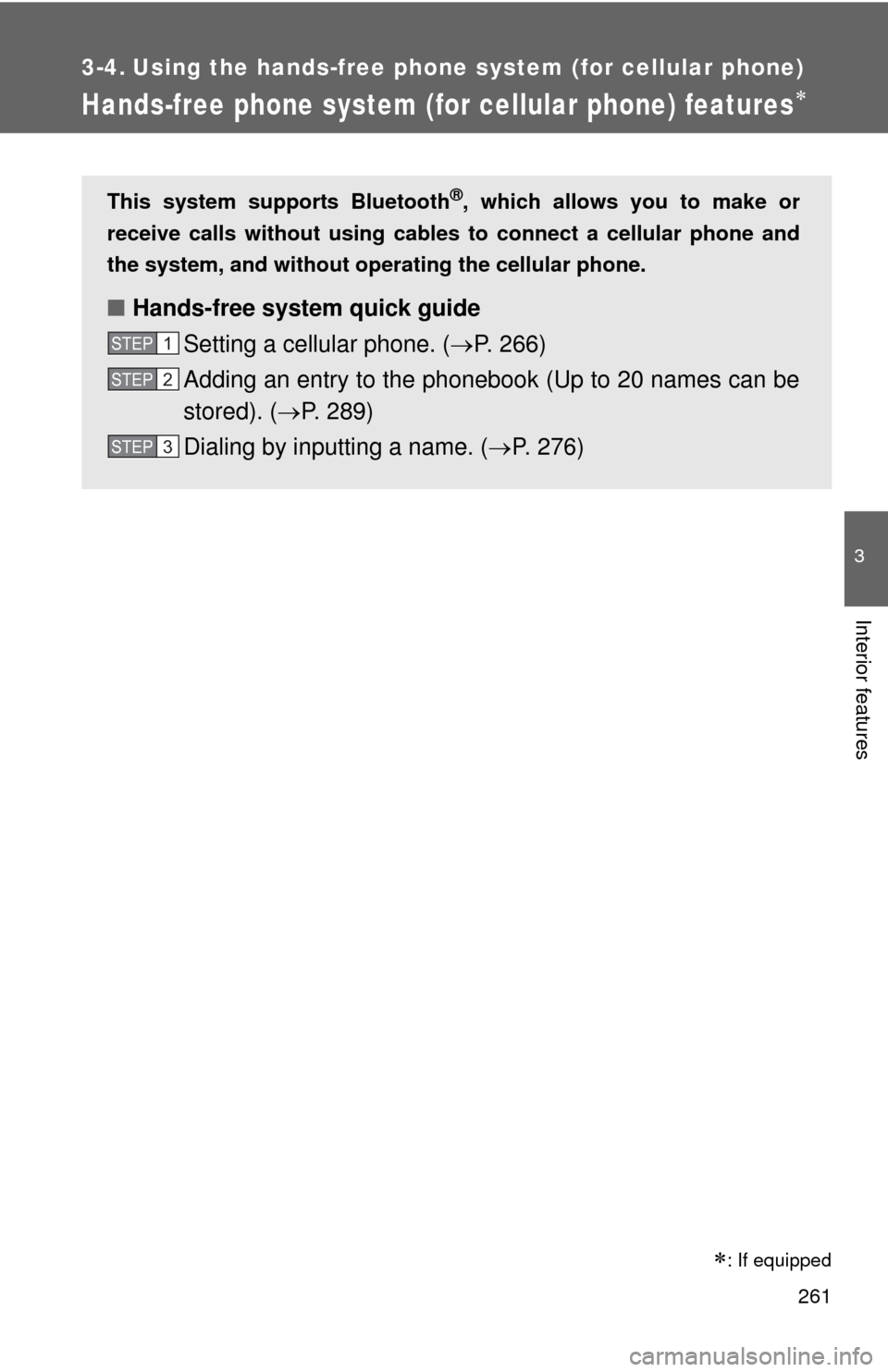

Hands-free phone system (for cellular phone) features
: If equipped
This system supports Bluetooth®, which allows you to make or
receive calls without using cables to connect a cellular phone and
the system, and without oper ating the cellular phone.
■Hands-free system quick guide
Setting a cellular phone. ( P. 266)
Adding an entry to the phonebook (Up to 20 names can be
stored). ( P. 289)
Dialing by inputting a name. ( P. 276)
STEP1
STEP2
STEP3

263
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior features
■Conditions under which th e system will not operate
● If using a cellular phone that does not support Bluetooth
®
●If the cellular phone is switched off
● If you are outside service range
● If the cellular phone is not connected
● If the cellular phone's battery is low
● If the cellular phone is behind the seat or in the glove box or console box
● If metal is covering or touching the cellular phone
■ When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed.
■ Required profiles for the cellular phone
●HFP (Hands Free Profile) Ver. 1.0
● OPP (Object Push Profile) Ver. 1.1

264 3-4. Using the hands-free phone system (for cellular phone)
■About Bluetooth®
■Certification for the hands-free phone system
FCC ID: L2C0045TR
IC ID: 3432A-0045TR
MADE IN MEXICO
This device complies with Part 15 of the FCC Rules and RSS-210 Rules.
Operation is subject to the following two conditions; (1) This device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
CAUTION
■ FCC WARNING
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Radio Frequency Radiation Exposure. This equipment complies with FCC/
IC radiation exposure limits set forth for uncontrolled equipment and meets
the FCC radio frequency (RF) Exposure Guidelines in Supplement C to
OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This
equipment has very low levels of RF energy that it deemed to comply with-
out maximum permissive exposure evaluation (MPE). But it is desirable that
it should be installed and operated with at least 7.9 in. (20 cm) and more
between the radiator and person’s body (excluding extremities: hands,
wrists, feet and ankles).
This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
■ Caution while driving
Do not use a cellular phone, or connect the Bluetooth
® phone.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

266
3-4. Using the hands-free phone system (for cellular phone)
Using the hands-free phone system (for cellular phone)

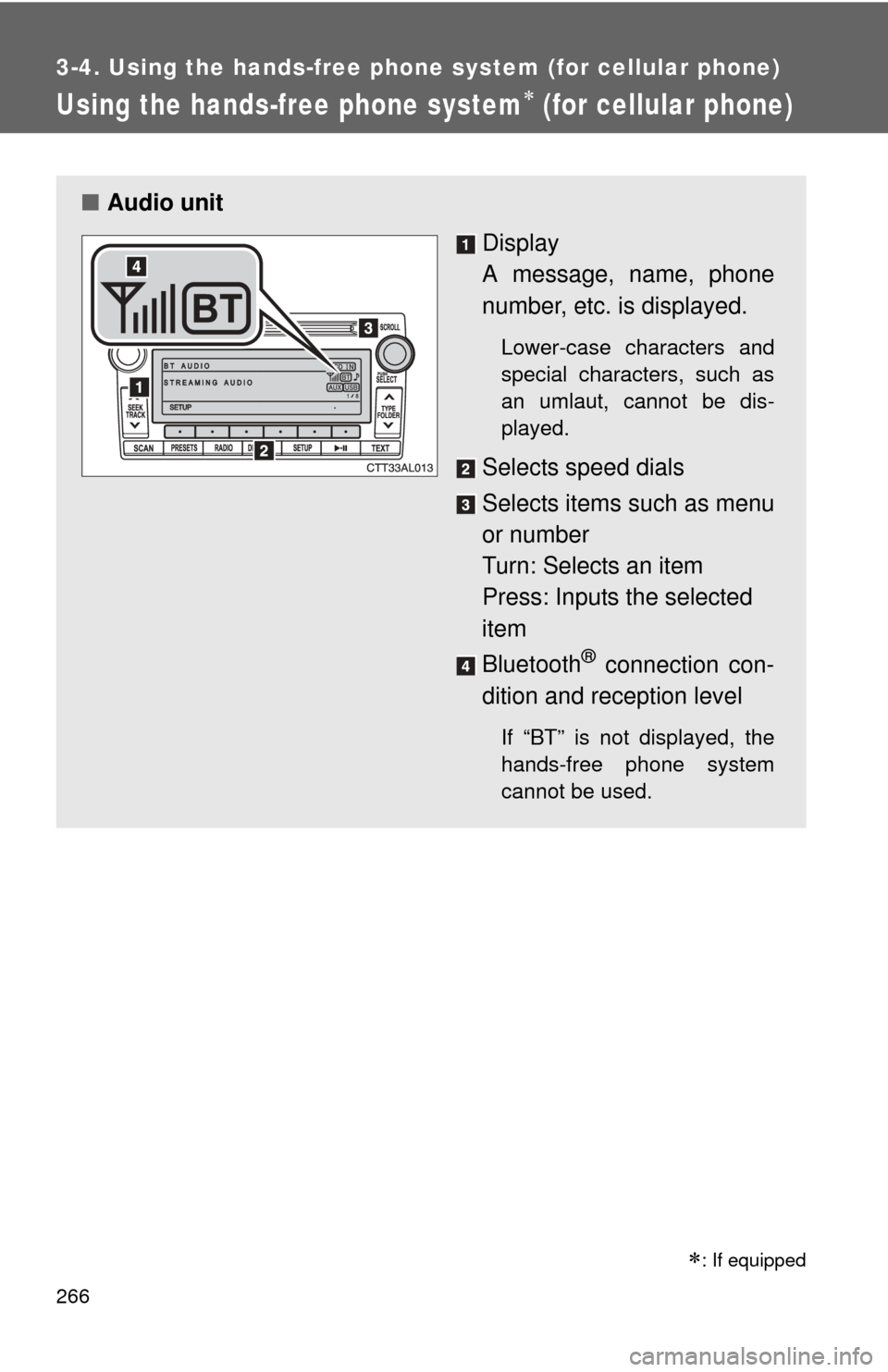

■Audio unit
Display
A message, name, phone
number, etc. is displayed.
Lower-case characters and
special characters, such as
an umlaut, cannot be dis-
played.
Selects speed dials
Selects items such as menu
or number
Turn: Selects an item
Press: Inputs the selected
item
Bluetooth
® connection con-
dition and reception level
If “BT” is not displayed, the
hands-free phone system
cannot be used.
: If equipped

271
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior features
Registration to the hands-free phone system only
Select “Phone Only” using a voice command or .
Registration to the hands-fr ee phone system and Bluetooth
® audio
system at the same time
Select “Int. Audio (Internal audio)” using a voice command or
.
Select “Confirm” using a voice command or .
A passkey is displayed and heard, and a voice guidance instruction
for inputting the passkey into the cellular phone is heard. Input the passkey into the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
Guidance for registration completion is heard.
STEP5
STEP5
STEP6
STEP7

505
Alphabetical index
Back door
Back door ............................... 36
Wireless remote control.......... 28
Back-up lights Wattage ................................ 469
Battery Checking .............................. 361
If the vehicle has a discharged battery ............. 441
Preparing and checking before winter ...................... 161
Bluetooth
® audio..................... 244
Bluetooth® phone ................... 261
Bottle holder ............................ 304
Brake
Fluid...................................... 359
Parking brake ....................... 130
Brake assist ............................. 152
Break-in tips ............................ 109 Care
Exterior ..................................330
Interior ...................................333
Seat belts ..............................334
Cargo capacity .........................157
Cargo hooks .............................318
CD changer ...............................204
CD player ..................................204
Chains .......................................161
Child restraint system Booster seats, definition ..........90
Booster seats, installation .......94
Convertible seats, definition ...............................90
Convertible seats, installation .............................94
Front passenger occupant
classification system .............85
Infant seats, definition .............90
Infant seats, installation...........94
Installing CRS with LATCH anchors .................................95
Installing CRS with
seat belts ..............................97
Installing CRS with top tether straps ..................................101
BC
